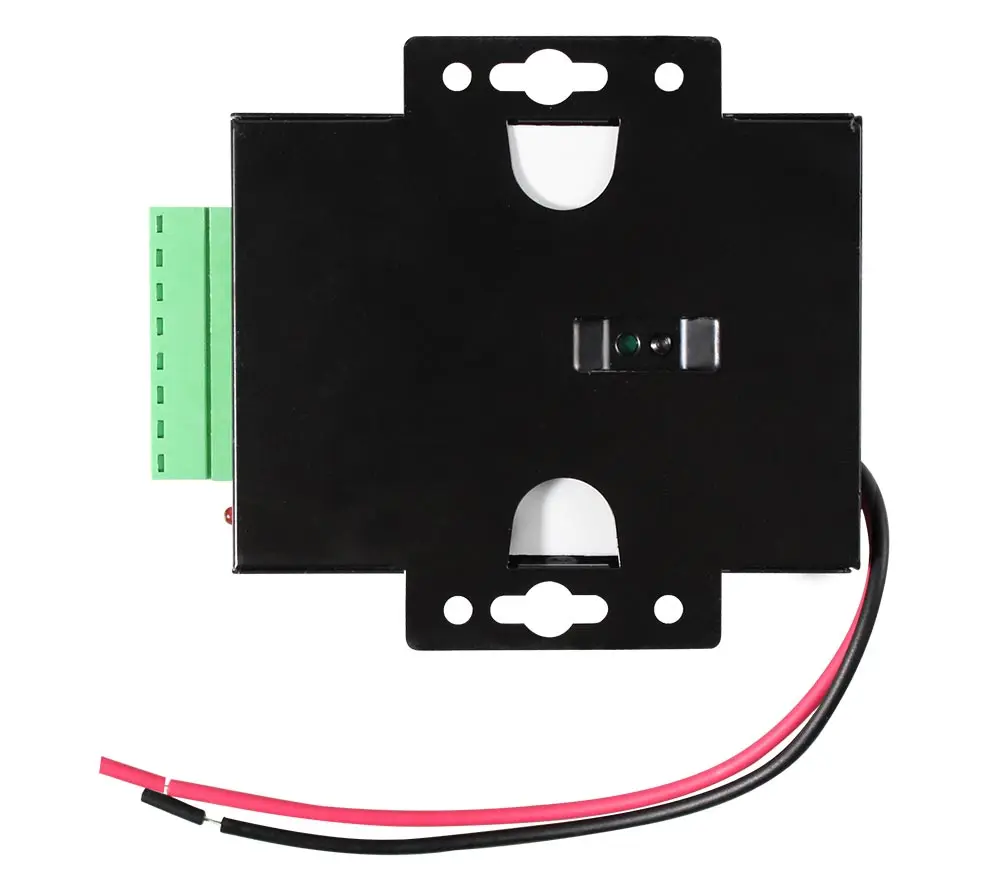

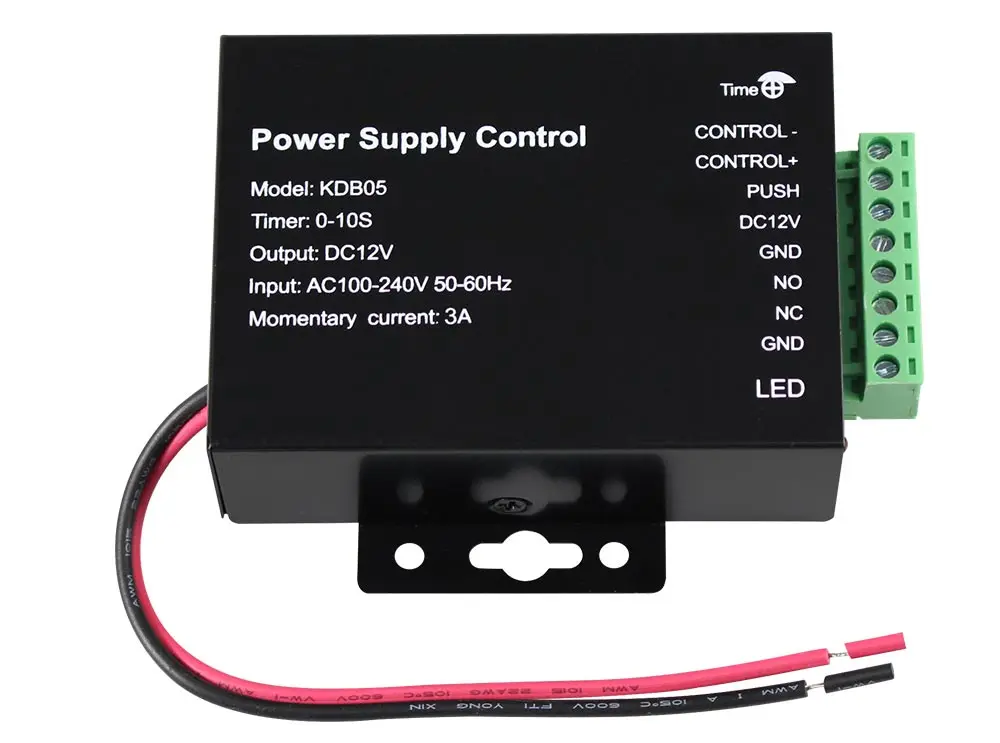

DC12V 3A/ 5A Access Control Power Supply
very suitable for door access control system and video intercom system
Product Features
1) Made of high quality metal.
2) Less Power consumption, and high power.
3) It controls electric lock directly.
4) Can reduce the load of access controller, save wiring to reduce the hidden trouble
5) Set NC / NO outputs, can control various types of electric locks
6) Based delay control circuit, lock time is adjustable.
7) Automatic protection function
8) Operative device: E/M Lock, Access Controller, Exit Push Button, Door Bell
Kindly note: 3A can control 1 electric lock, 5A can control 2 electric locks.Â
Product Specifications

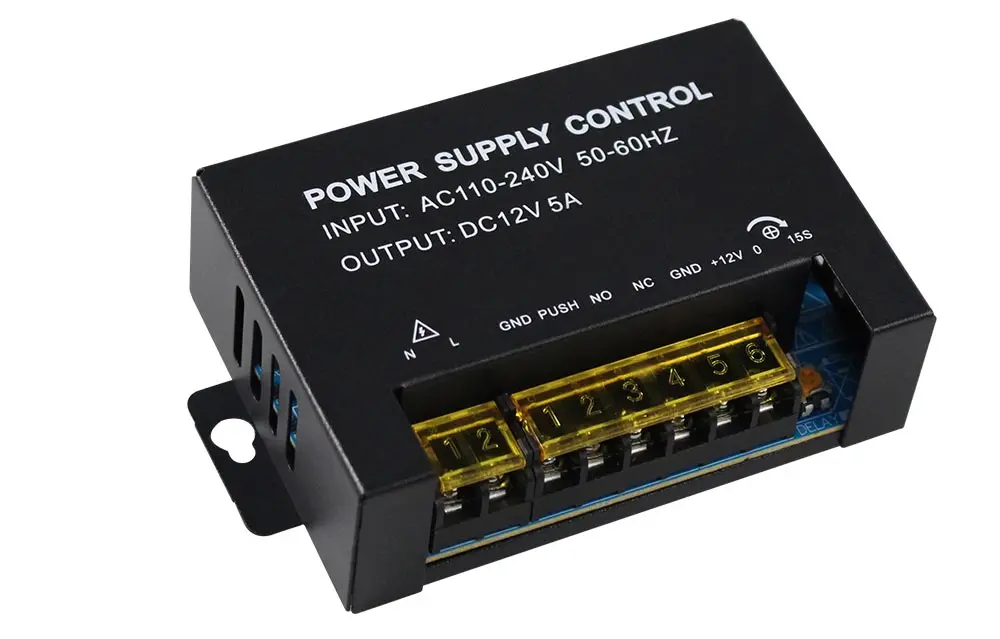

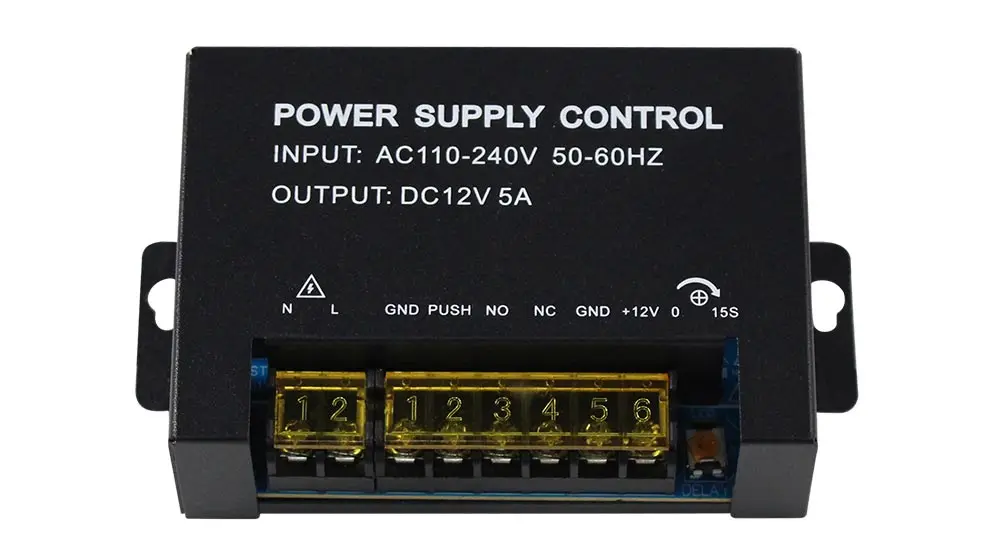

Type A
Input Voltage: AC110V-AC240V / 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A/5A
Persistent Current: 3.5A
Working Temperature:ï¹£20℃~ï¹¢60℃      Â
Operating Humidity: ≦ 90%
Time Delay: 0~15 seconds adjustable

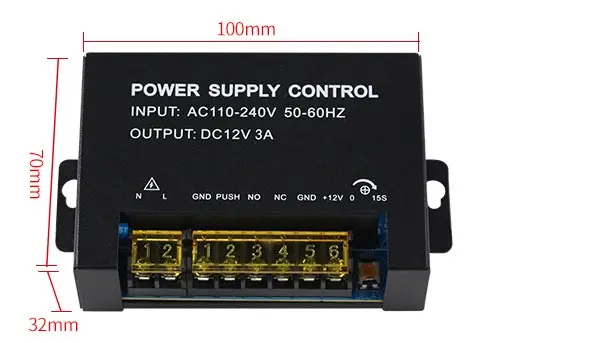

Dimension: 100X70X32mm( L/W/H )

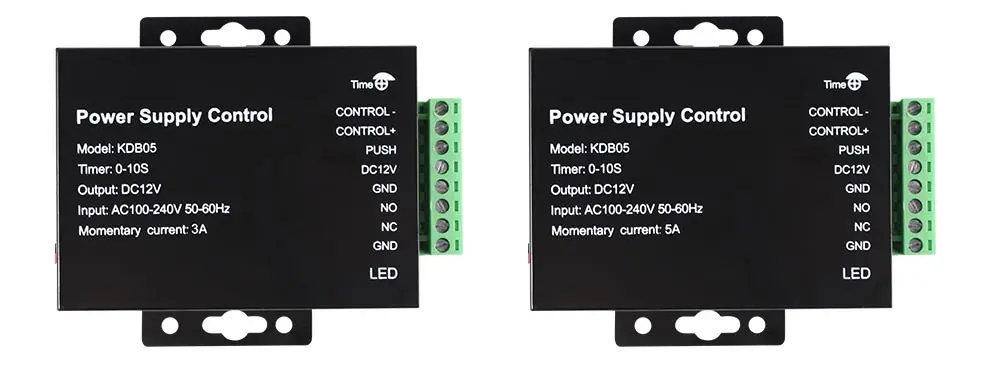

Type B
Input Voltage: AC110V-AC240V / 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A/5A
Persistent Current: 3.5A
Working Temperature:ï¹£20℃~ï¹¢60℃      Â
Operating Humidity: ≦ 90%
Time Delay: 0~10 seconds adjustable

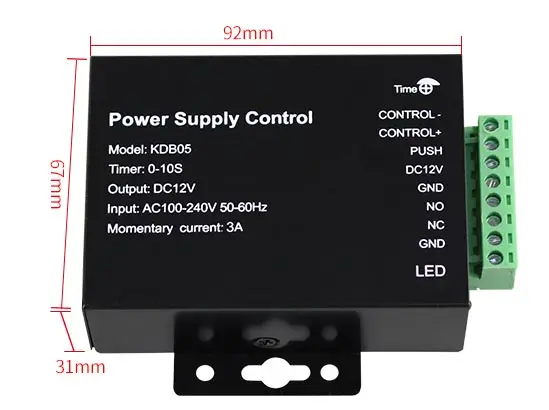

Dimension: 92X67X31mm( L/W/H )

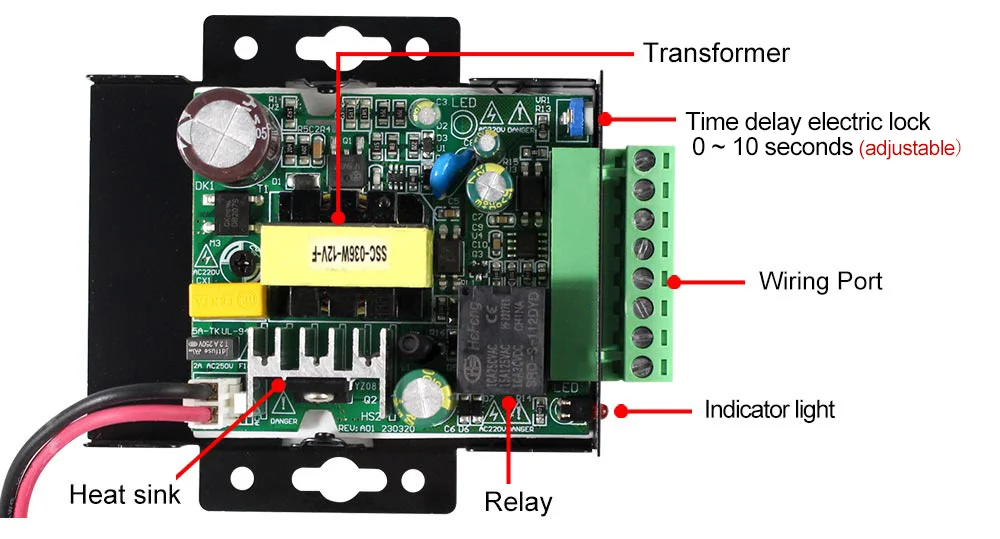

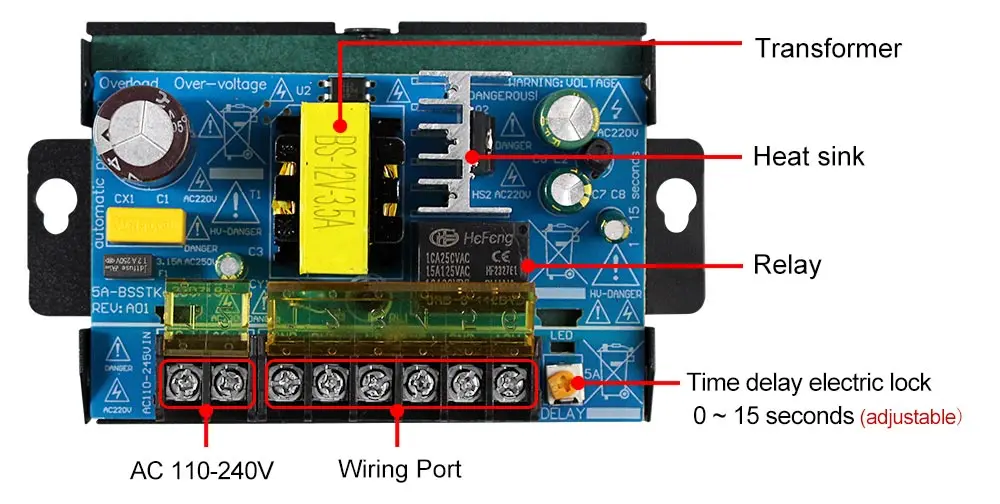

Product Analysis

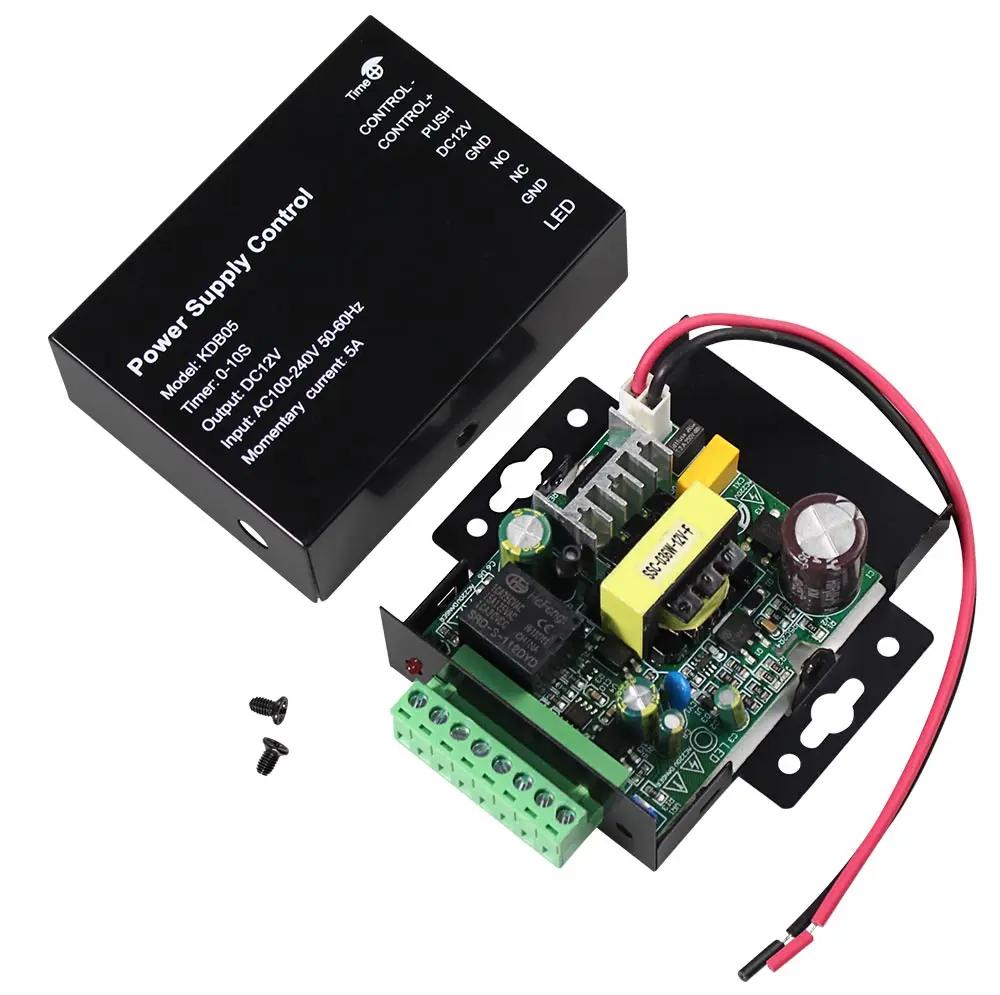

Product Details

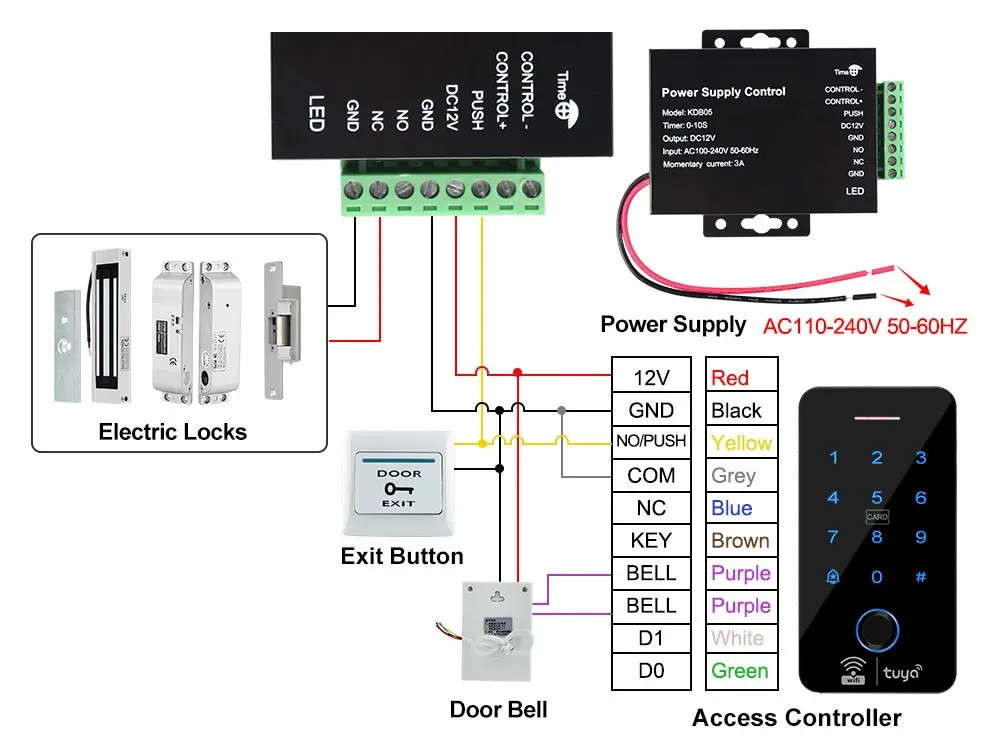

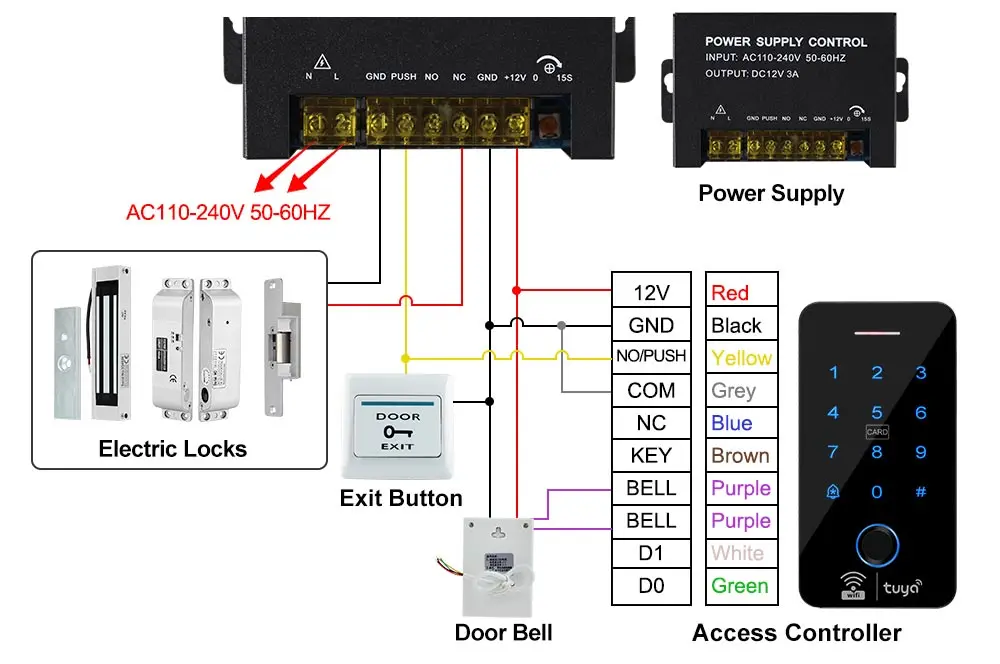

Wiring Diagram
( please note that the access controller, locks, exit button are not including in the package, need to buy additional. Thanks)
Type A
Type B
