3m adjustable detective diffusive sensor
Product Name:Infrared photoelectric switch

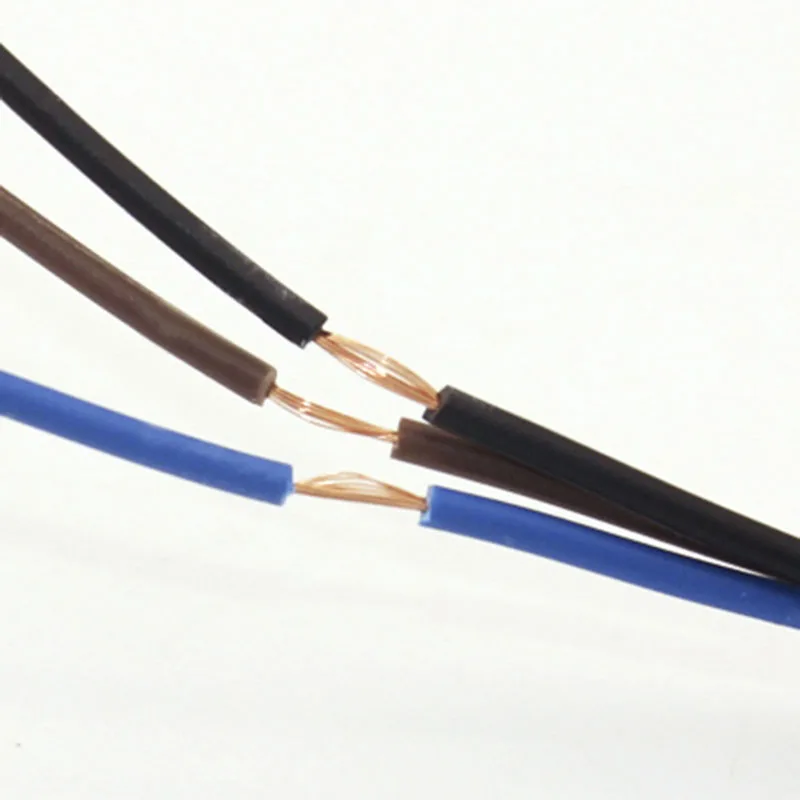

Wire Type:3 Wire(Brown, Blue, Black) or 2 wires
Switch Appearance Type: Block Type, Aluminum Shell

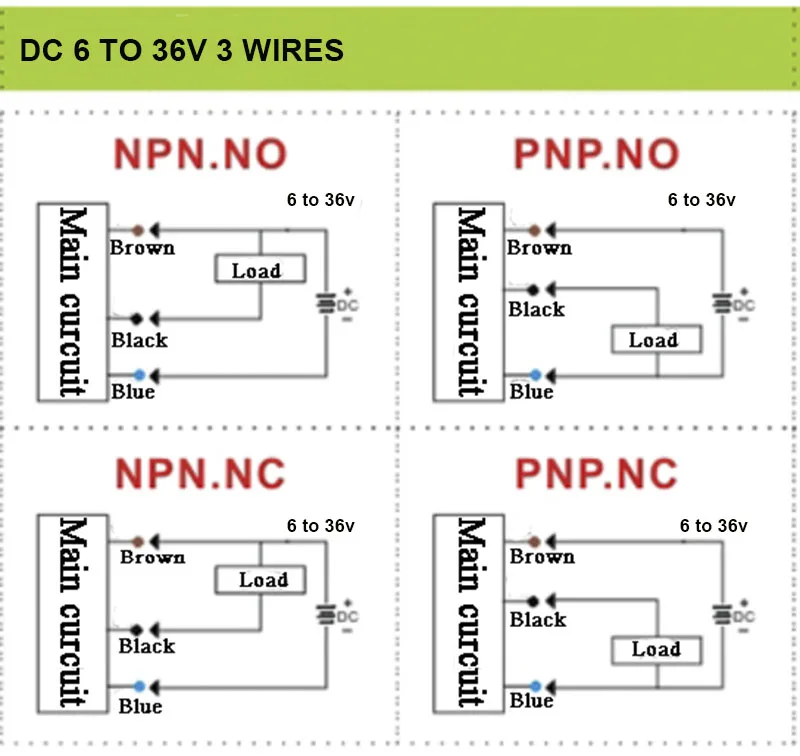

Output Type: NPN NO(Normally Open) or PNP NO OR PNP NC OR NPN NC or npn no+nc or pnpn no+nc or AC
Detecting Distance:10-300cm Adjustable
Detection method:Diffusive type (no mirror needed)
Detectable object: Any Reflective Object (detective distance could change along with object color. the more bright, the more sensitive)
Supply Voltage:6-36V DC or AC version. Choose correct type according to your needs
Output Current: 80-300mA
Response Time: 2ms
Cable Length:1.2M/3.5Ft
Case Material ABS Plastic
Probe diameter: 18 mm
Probe Length: 68 mm
cable length: 1.2m
