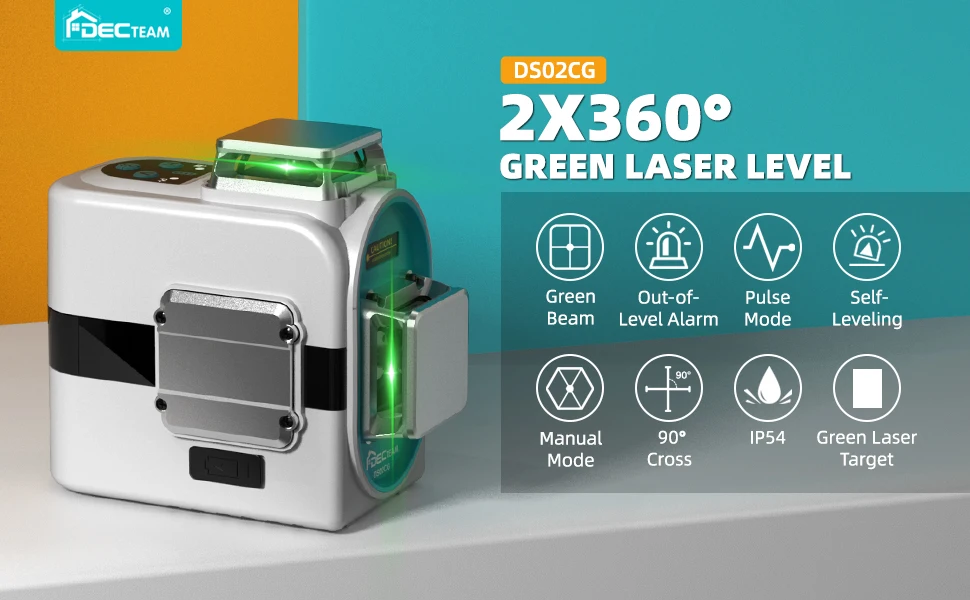

Decteam 2×360° 8 Lines Laser Level Green Cross Line Self-leveling Horizontal & Vertical Laser Tool With Li-ion Battery Hard Case
DS02CG Green Beam Laser Level Specifications:
-
Projection: 2 x 360° Green Laser Lines
-
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
-
Laser Wavelength: 505-520nm
-
Horizontal / Vertical Accuracy: ±1/9 Inch at 33 Feet（±3mm/10m）
-
Leveling / Compensation Range: ±4°
-
Leveling Time: 2s
-
Working Distance: 98 feet (30m), 130-197 feet（40-60m） with Laser Detector
-
Power Source: 3.7V / 5200mAh Li-ion Battery
-
Reference Operating Time: About 7 hours with all laser beams on(Different brightness at different time)
-
Mount Size: 1/4"-20
-
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
-
Operation Temperature Range: Between -10℃ and +50℃
-
Storage Temperature Range: Between -20℃ and +70℃
|
|

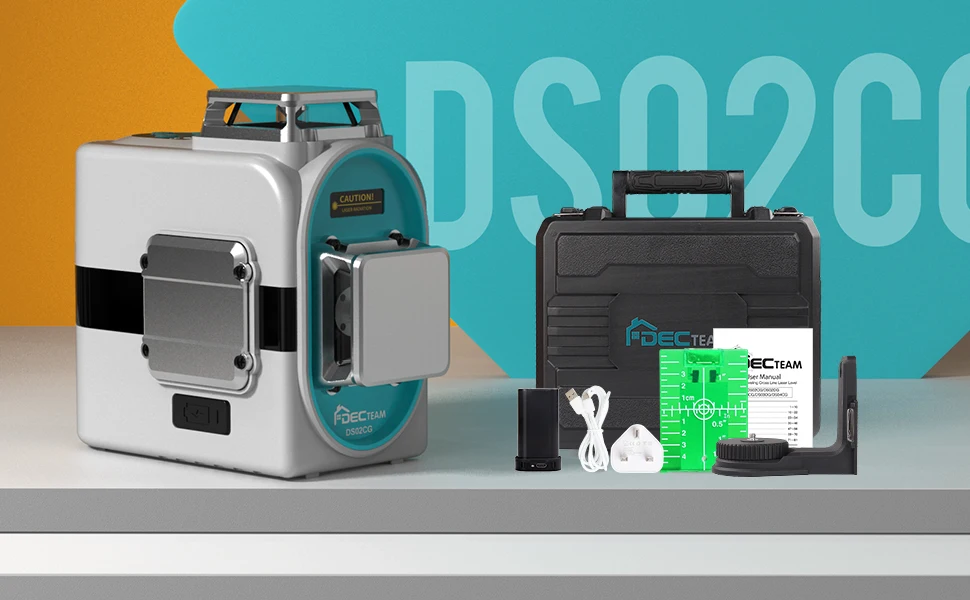

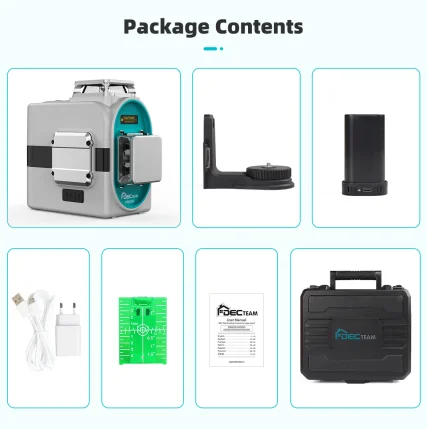

Package Contents: 1x DS02CG Laser Level |
The Questions You May Have
Q: How far is the laser line projected?
A: Working Distance: 30m , Working Distance With Detector: 40-60m
Q: Can the laser be seen in outdoor or bright sunlight?
A: Yes.But we recommend to use the polarized sunglasses when works in the strong sunlight.Because the laser beam is green, while the sun is the combination of seven-color light. The strong sunlight will affect the visibility of the laser brightness.
Q: How to charge this device? How long can the device work?
A: Decteam DS02CG Laser level，The operating time is about 8 hours after full charged of the battery.Besides that, the device could work normally by Charging withType-C socket directly while there's no battery inside the device.The indicator light of the operation board will show the situation of charging.
Q. Do the laser level have a warranty?
A: Yes, It has 1 year warranty. Decteam provide 1 year free technical support , 24 hours customer service.

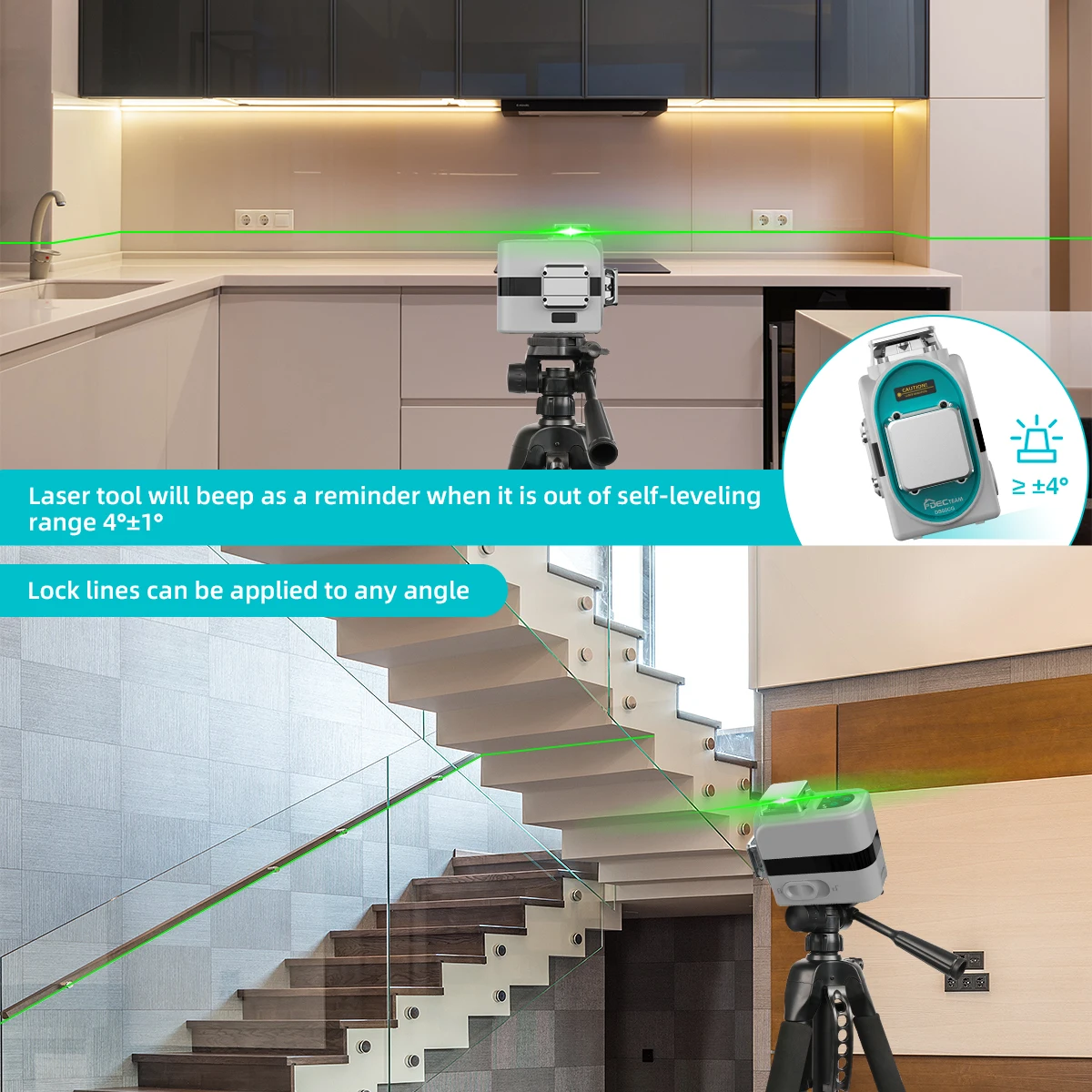

Self-leveling mode & Manual Mode
Laser tool will beep as a reminder when it is out of self-leveling range 4°±1°. And when you Lock the pendulum, the lines can be applied to any angle.

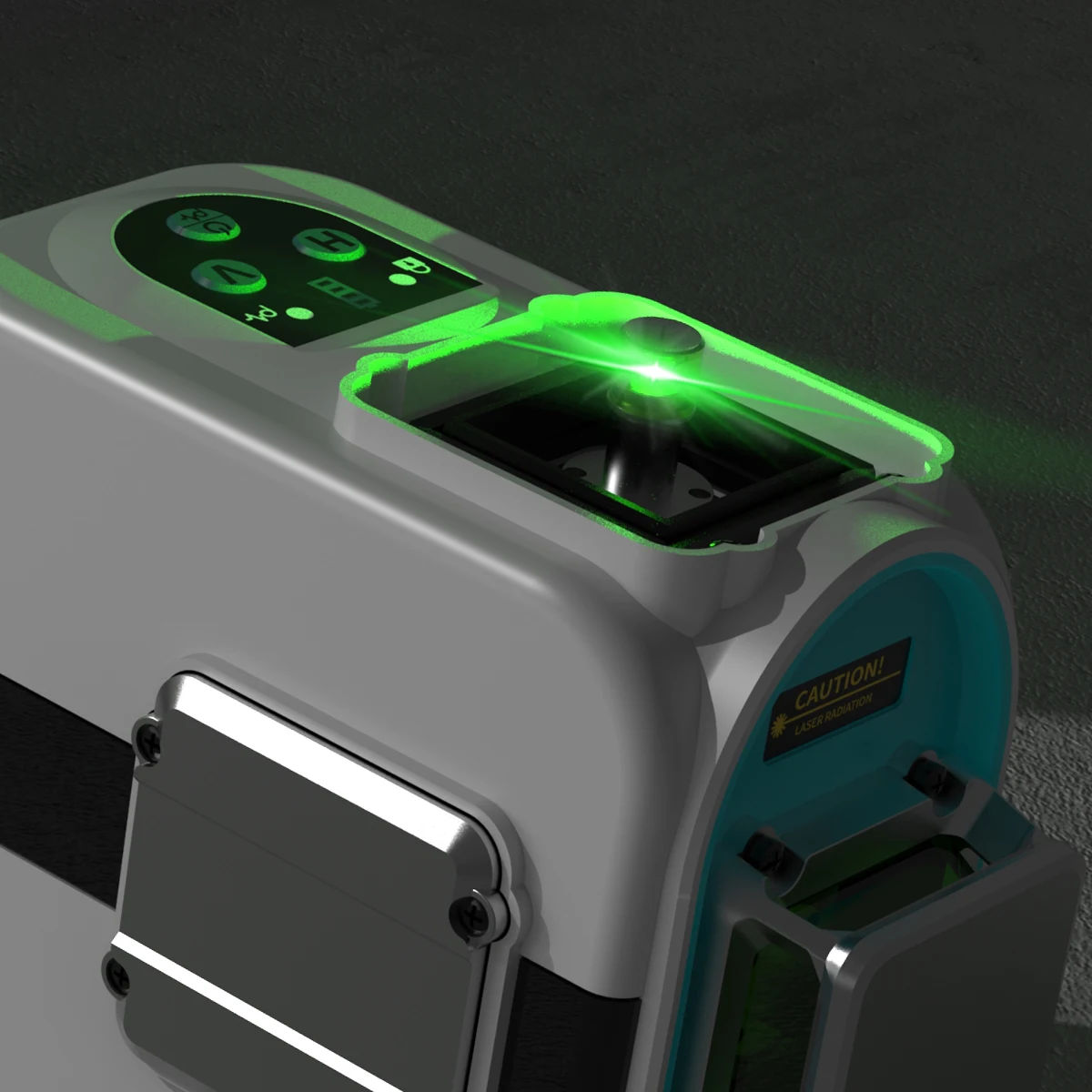

New Diode Technology
We adopt advanced technology, made in Germany, which is the best green laser unit in the word at present; Green laser is 2 times brighter than red laser with the same light source. When in the cloudy and light intensity is 14000lux environment, but outdoor use is recommended to work with target board or laser detector.

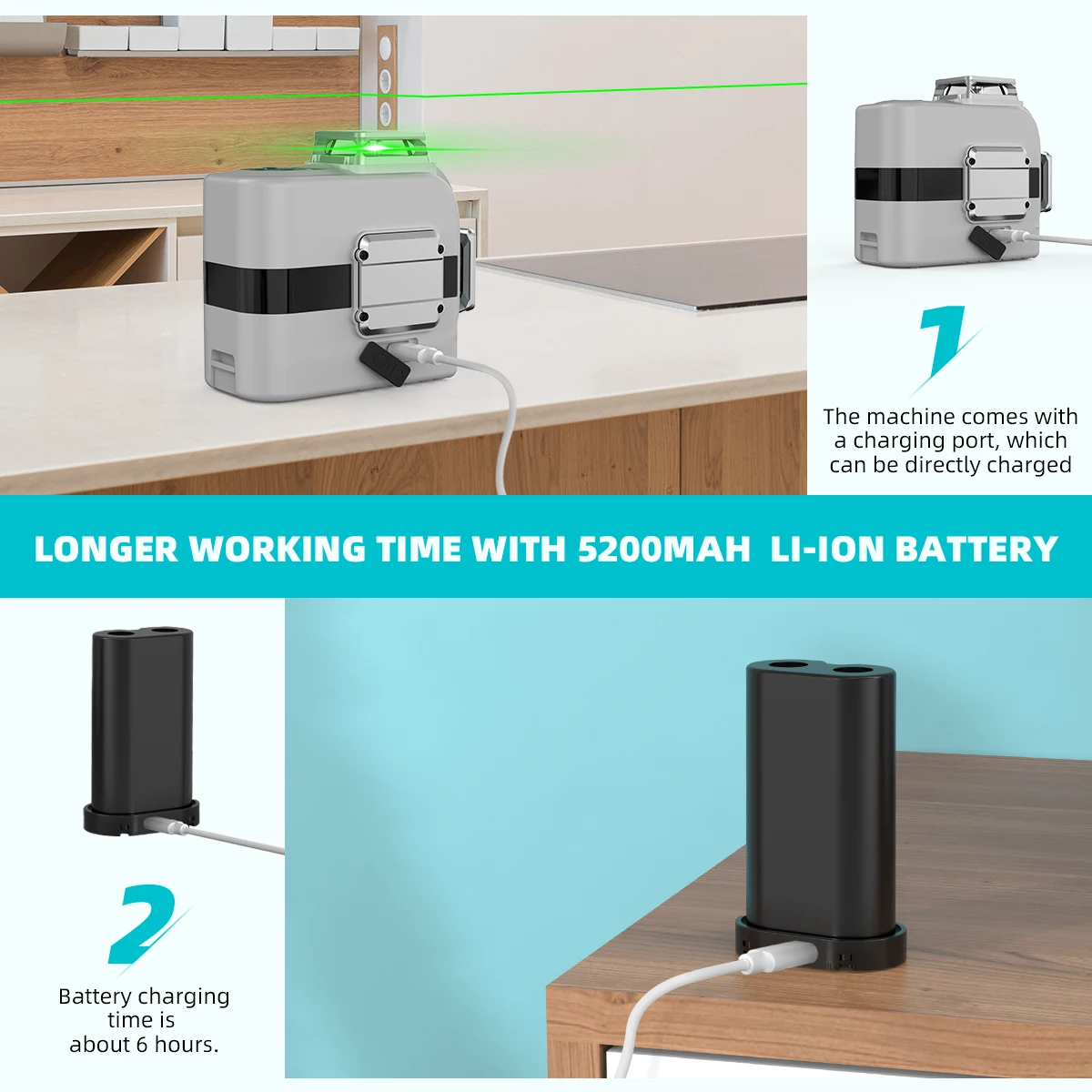

Large Capacity Lithium Battery
The laser level could be worked for longer time with 5200mAh li-ion battery. The device 7 batterycould be directly charged with the charging port
Pulse Mode For Long Distance & Outdoor
Extends working range up to 40-60m with the laser receiver.

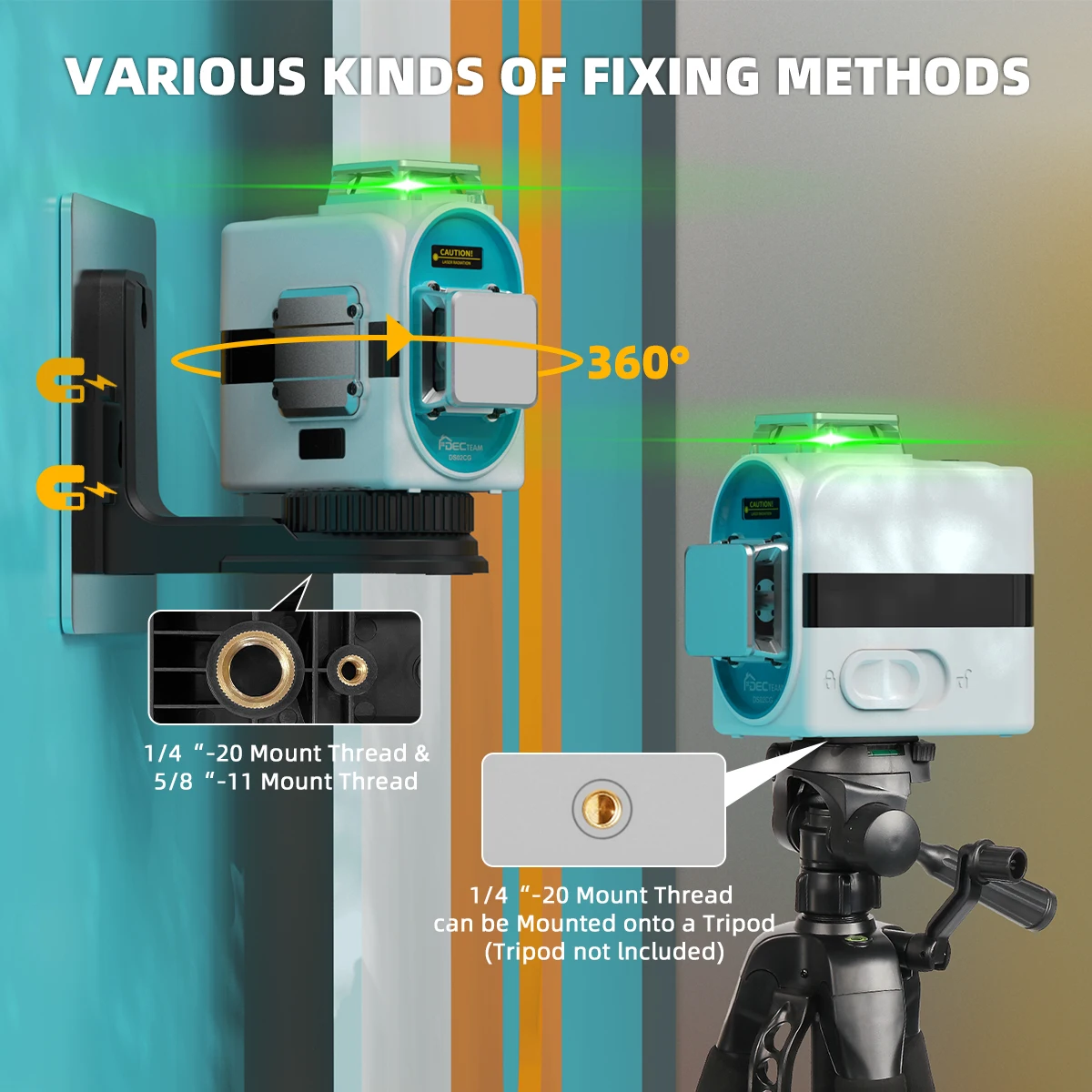

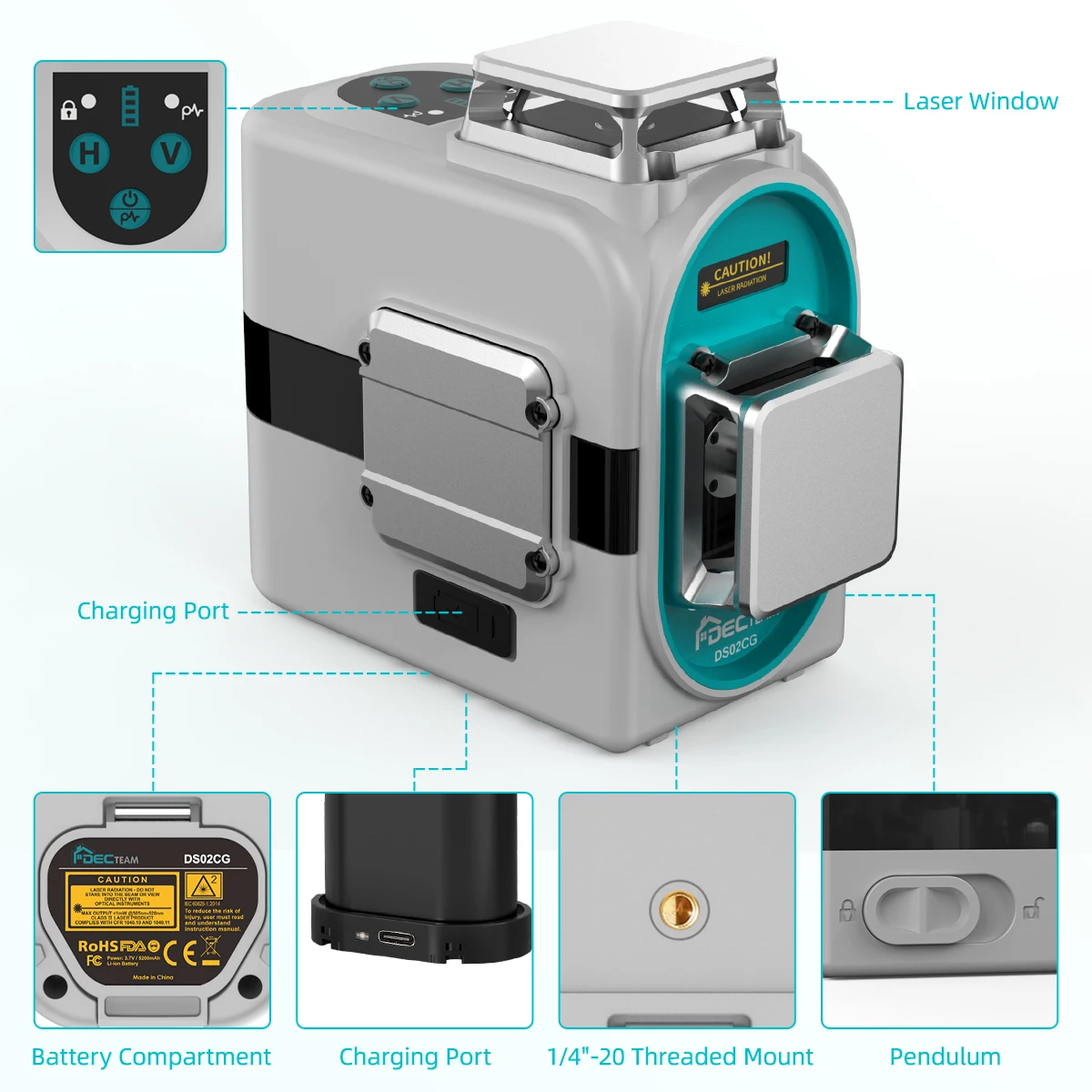

Muiltiple Mounting Way
DS02CG prepared with 1/4''-20 thread on the bottom . With the magnetic base ,the device can work on walls. He fine-tuning knob on the magnetic stand can be rotated 360 degrees, allowing the laser to cover the entire space.The green target board can enhance the laser line visibility.

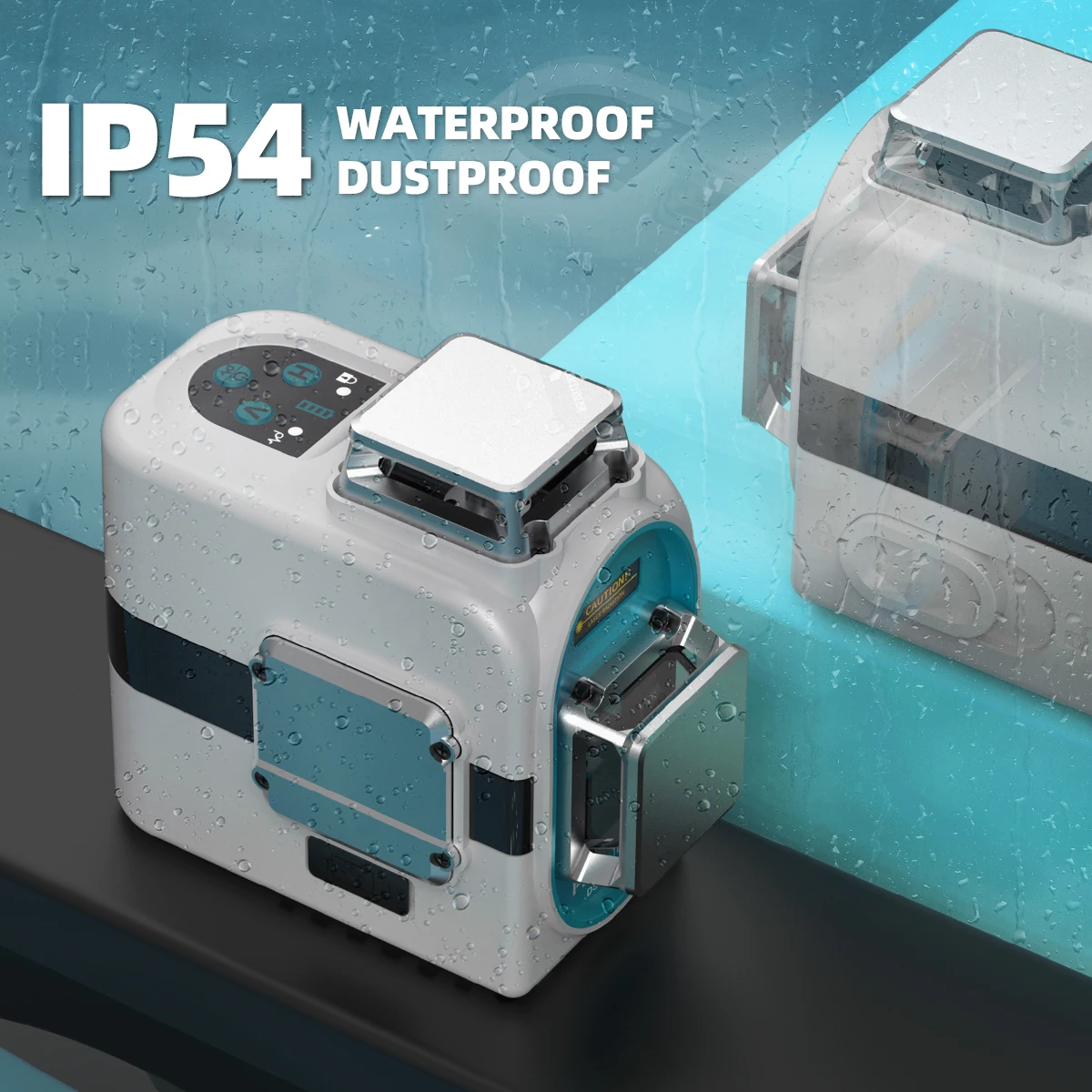

IP54 Protection Rating
This laser level has a high-quality housing, which is dust-proof, waterproof and shock-proof. Professional IP54 protection grade, can withstand harsh worksite conditions, to ensure that your work is carried out normally. This will be your first choice at the professional and cost-effective laser level.
