Decteam M04CG 4D 16 Lines Laser Level Specifications:
Laser Class:Class 2 (IEC/EN60825-1/2014),<1mW power output
Laser Light 16 Lines:4x 360° (4/8/12/16/lines are adjustable)
Laser Wavelength:510-525nm
Laser Beam Color:Green beam
Horizontal / Vertical Accuracy:±1/9 inch at 33Ft (±3mm/10m)
Reference Operating Time:About 5.5 hours with all laser beams on
Leveling Time:≤3s
Compensation Range:±3.0°+1°
Charging Time:About 5 hours
Charging Port:Type-C
Mount Size:1/4"-20
Working Distance:25m, 40m-80m with laser detector
Power Source:7.4V / 2600mAh Li-ion Battery
Storage temperature:Between -40℃and +80℃
Operating Temperature:Between -20℃and +50℃
IP Rating:IP54, waterproof, dustproof and shockproof, reliability and robustness

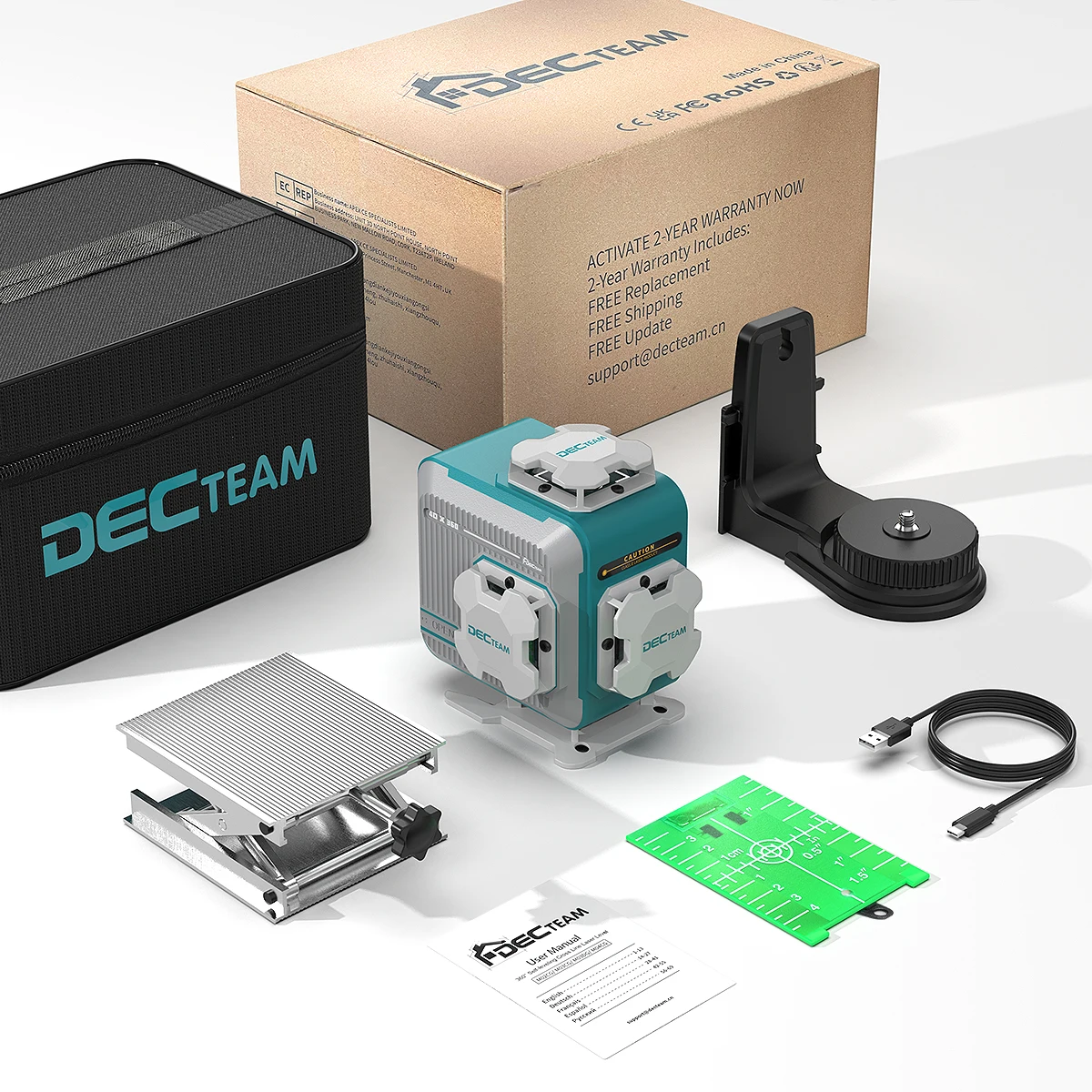

Package contents:
1x M04CG Laser Level
1x Lithium Battery 2600mAh
1x Magnetic L-Shape Bracket
1x Type-C Cable
1x Green Target Plate
1x Lifting Base
1x Multi-Languages User Manual
1x Soft bag
Decteam M04CG 16 Lines 4D Cross Line Laser Level Features:
1. Swithing Line Mode
The Laser line can be selected independently by pressing the "H" or "V" button.
2. Self-leveling Mode & Manual Mode
When the tools is beyond the self-leveling range at 3.0±1°, it will sound an alarm, and the laser beam will flash.In manual mode, you can lock the laser at any angle for better use.
3. Pulse Mode:
Extend the laser range up to 40m or 80m with Decteam laser detector in bright light or outdoor conditions.
4. Two Power Method Supplying
High-capacity lithium battery provided by Decteam M04CG laser level provides a high-capacity lithium battery which can be worked for 5.5 hours with all beams on with a single charge. It is also with a type-C charging port, it can be charged seperately in any condition.The device can be used directly by plugging the type-C charging cable without the battery.
5. Wide Application & Easy to Install
The M04CG laser level comes with a 1/4"-20 threaded port for easy mounting to a tripod or other mounting poles.It also equippes with a strong magnetic pivoting base, which allows for easy adsorption onto metal surfaces, ensures that you can achieve the required angle for any task effortlessly.
6. With Lifting Base
The laser level comes with a adjustable lifting base, which is more convenient for you to use for laying floor tiles.
7. IP54 Waterrpoof Dustproof
IP54, waterproof, dustproof and shockproof, reliability and robustness.
