Door Exit Push Button Release Switch Opener

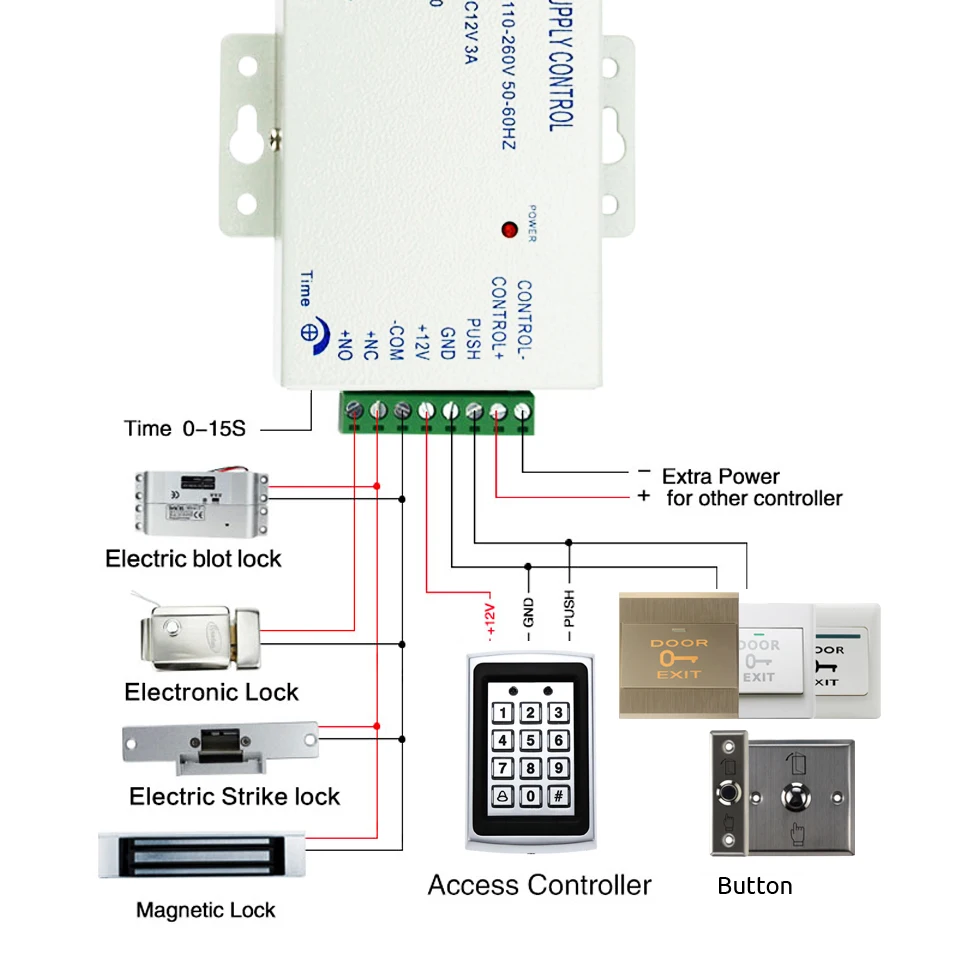

How the Exit Push button works?
When the button is pressed,the inner contactes are combined,forming circuirt connected,causing the power controller to be short-circuited,thereby driving the electric lock to unlock.
after releasing the button,the power supply is energized during the set time to achieve the entire door opening and closing process
Button02 Stainless Steel Door Exit Push Release Button
Features:
Silver stainless steel shell, safe and durable.
Looks simple, comfortable and beautiful.
Undergoing 100,000 times continuous clicking test, very durable.
Good to touch, easy to operate and use.
Activates electric strike, magnetic lock or other elctric lock via access control.
Works with most electronics access control , door phones with access control.
Flush mounting.
Specifications:
Contact output: NO COM
Applied temperature: -10~+55 Degree14-131F)
Applied humidity: 0~95% (relative humidity)
Material: Stainless steel
Square Type: Dimension: 91*28*25mm(Approx.) Weight: 38g

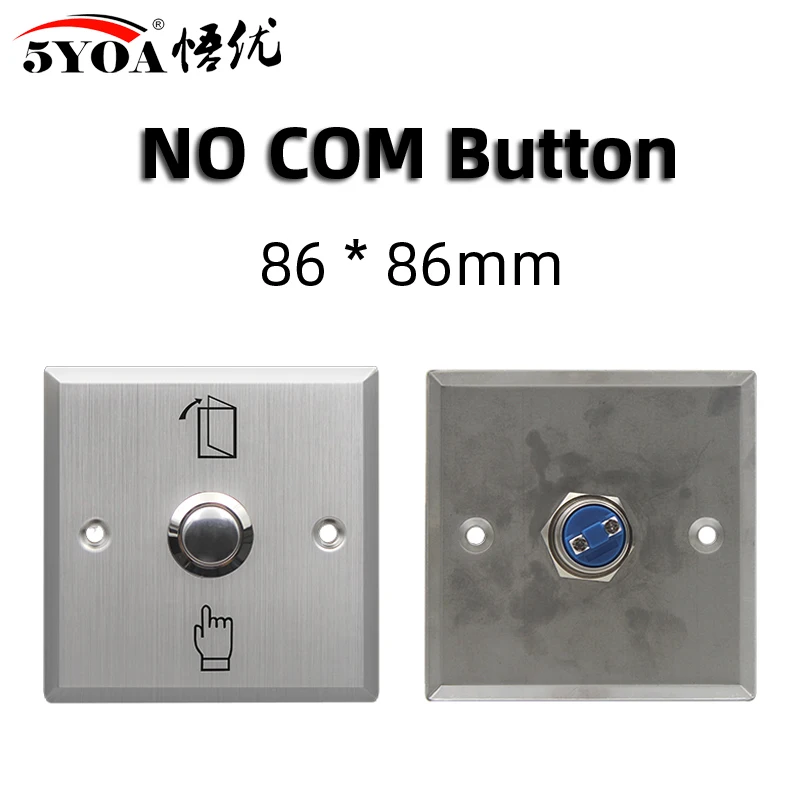

Rectangle Type: Dimension: 86*86*25mm(Approx.) Weight: 85g

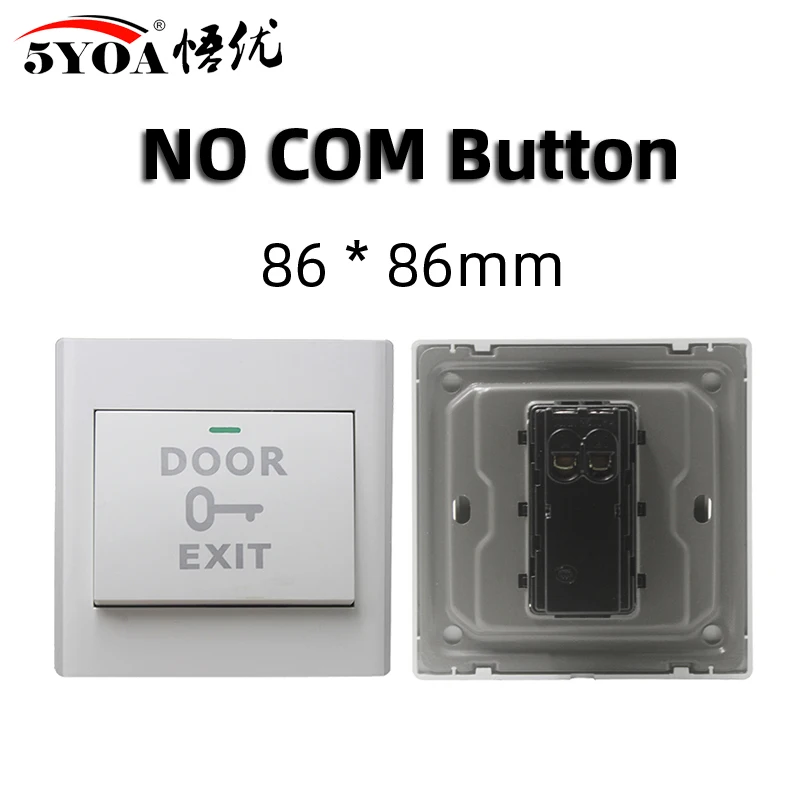

Button01 Plastic Classical Button
Output Contact: NO COM
Current Rating: DC 12-36V / 3A
Mechanical Life: 500000 tested
Panel Material: Hard Plastic
Size: 86*86mm(Approx.)
Weight: 53g

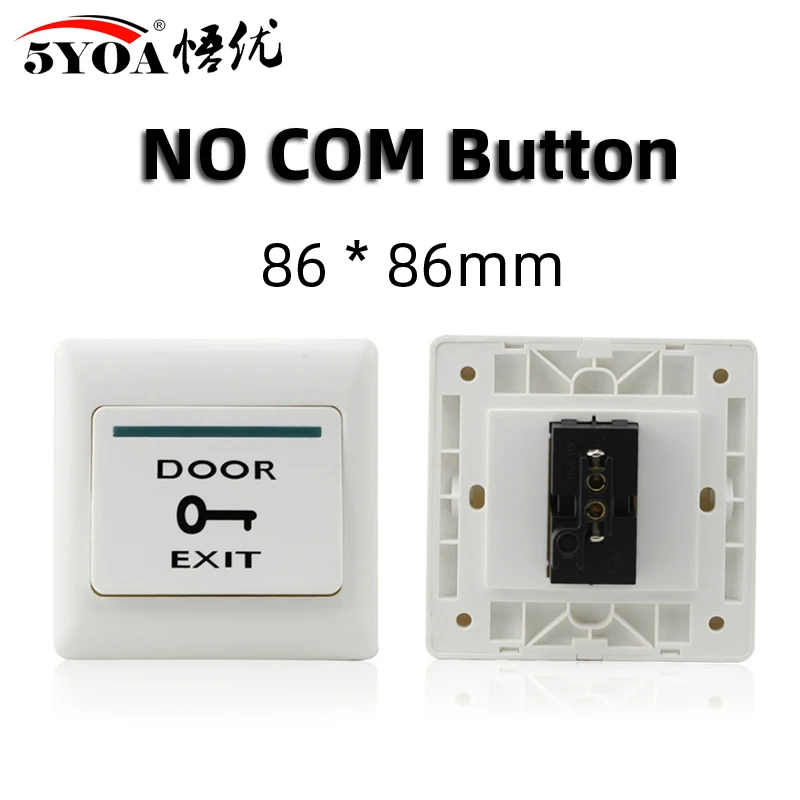

K5Button Plastic New Style Button
Output Contact: NO COM
Current Rating: DC 12-36V / 3A
Mechanical Life: 500000 tested
Panel Material: Hard Plastic
Size: 86*86mm(Approx.)
Weight: 60g

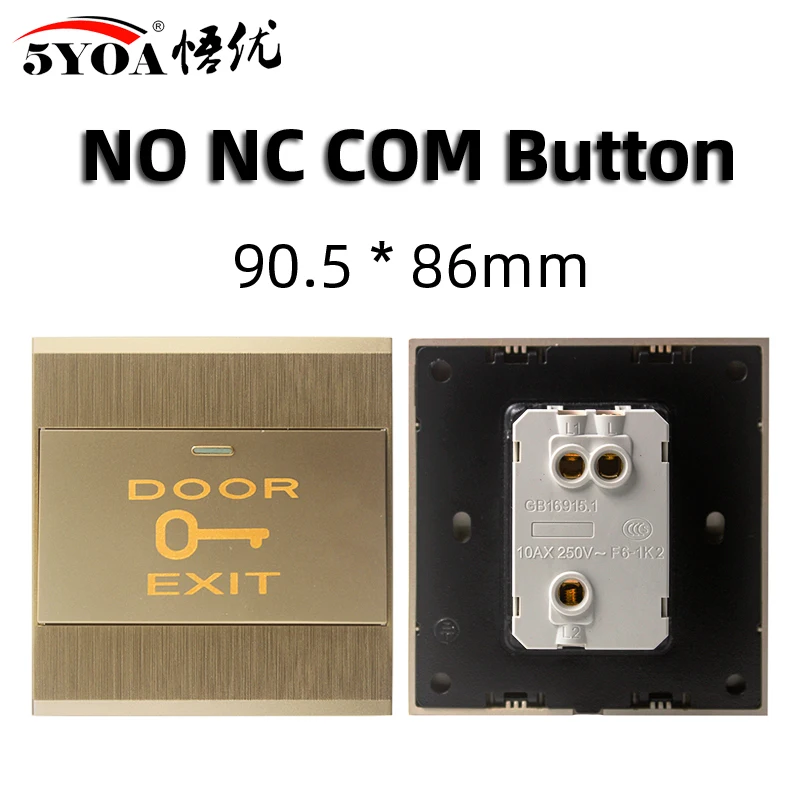

TButton High End Button
Output Contact: NO NC COM
Current Rating: DC 12-36V / 3A
Mechanical Life: 500000 tested
Panel Material: Hard Plastic
Size: 90.5*86*30mm(Approx.)
Weight: 125g
