Function:
- Brand new and high quality.
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Technical Specifications
- SSID: WiFiOBD
- IP: 192.168.0.10
- Subnet: 255.255.255.0
- Port: 35000
- Range: 50 ft (Line of sight)
- Antenna: Internal
- Power Consumption: 0.75 Watts (With Power Switch)
- Wifi Standard: 802.11a/b/g
- Operating Temperature: -15 to 100 Deg Celsius
- Plastic: Automotive Grade
- Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Support OBDII Protocols:
- 1.ISO15765-4 (CAN)
- 2.ISO14230-4 (KWP2000)
- 3.ISO9141-2
- 4.J1850 VPW
- 5.J1850 PWM
Package included:

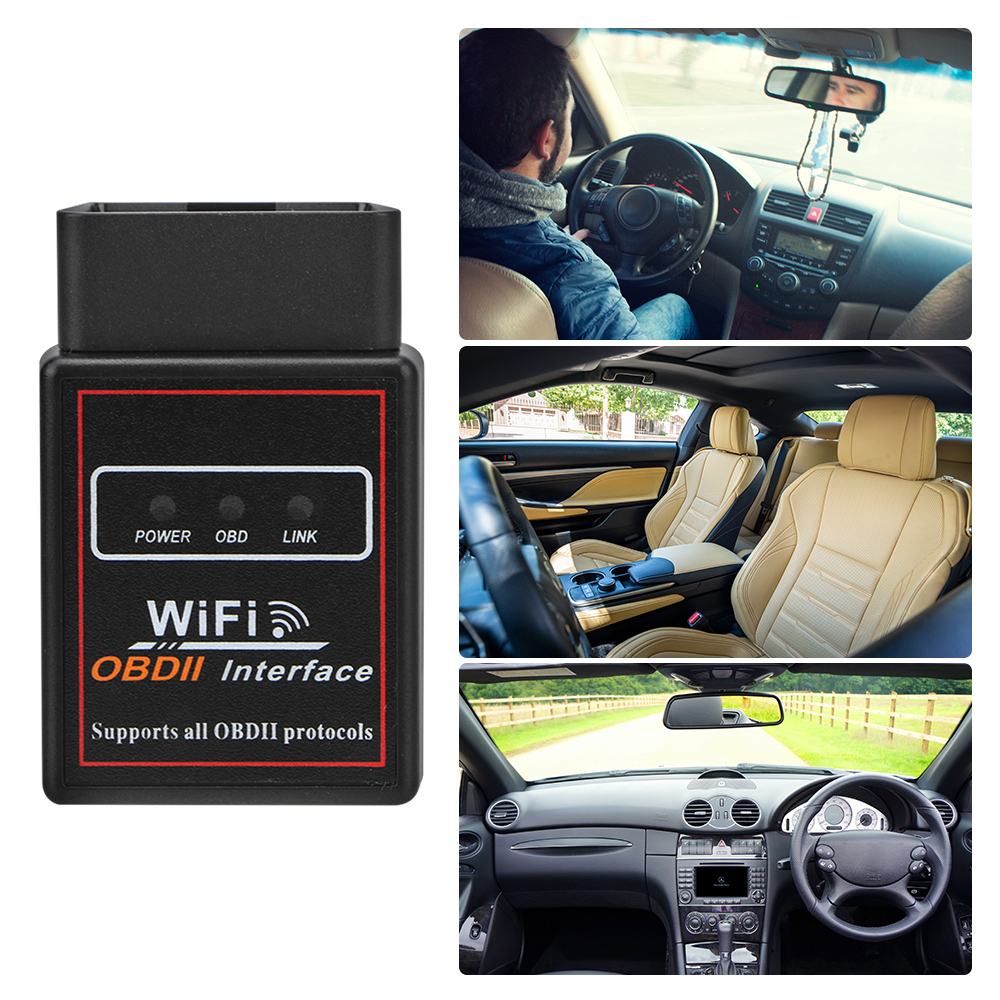

- 1 x WIFI ELM327
- 1 x CD software
