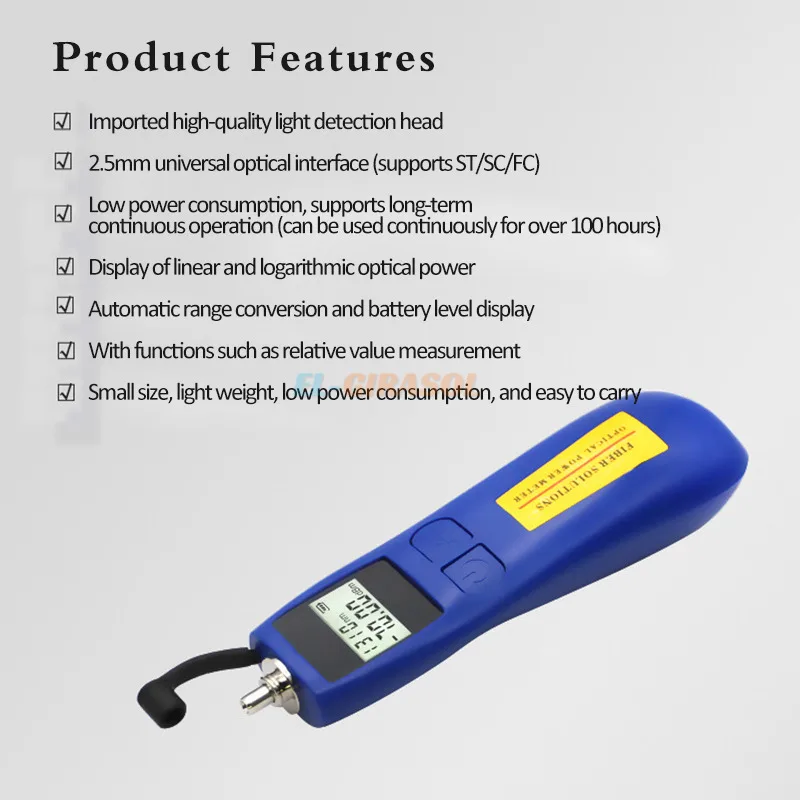

Product Features
1.Imported high-quality light detection head

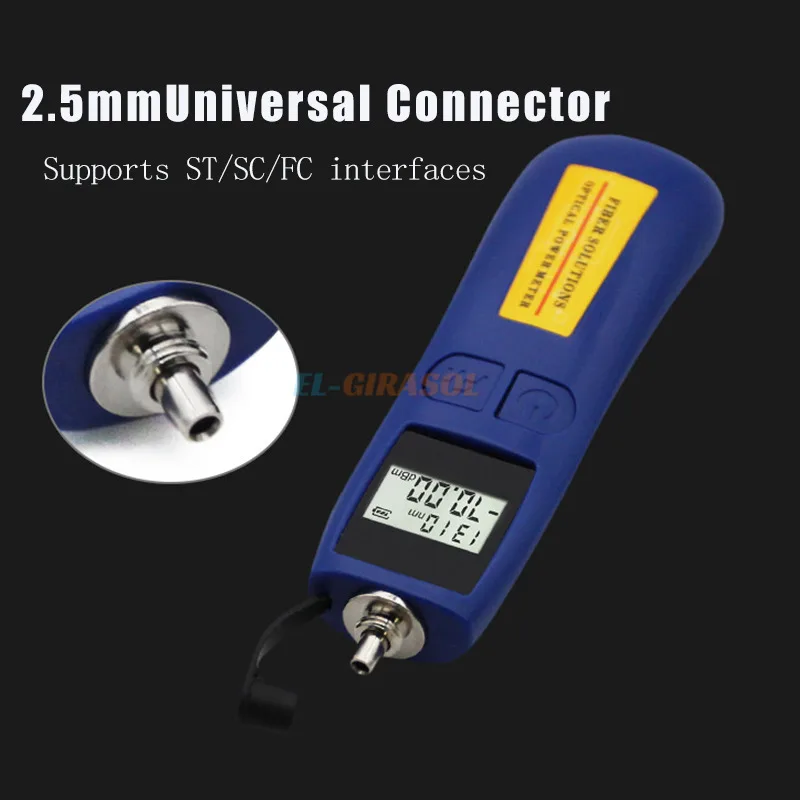

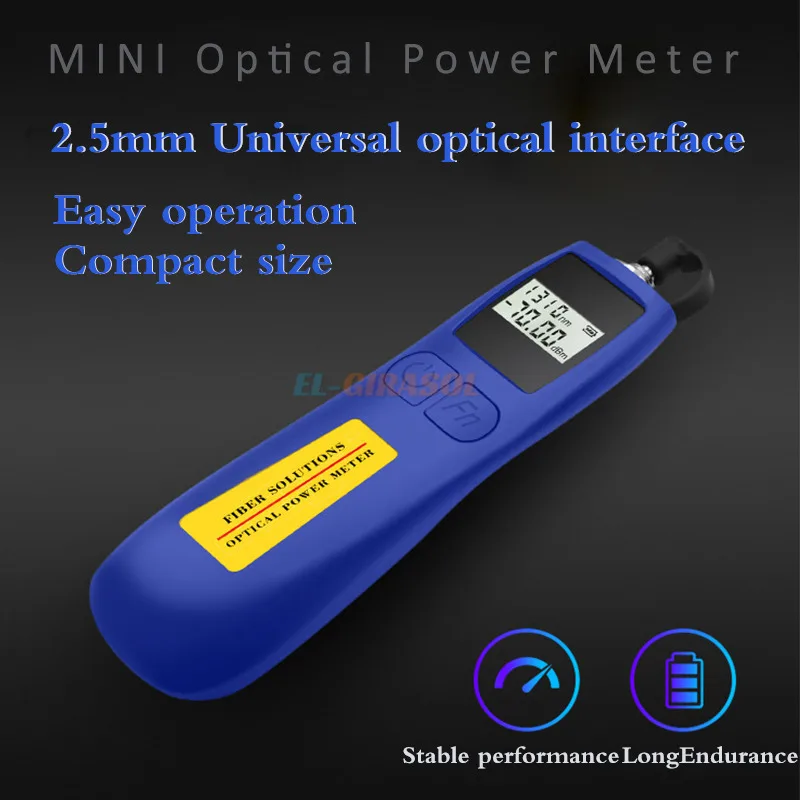

2.2.5mm universal optical interface (supports ST/SC/FC)
3.Low power consumption, supports long-term continuous operation (can be used continuously for over 100 hours)
5.Automatic range conversion and battery level display
6.With functions such as relative value measurement

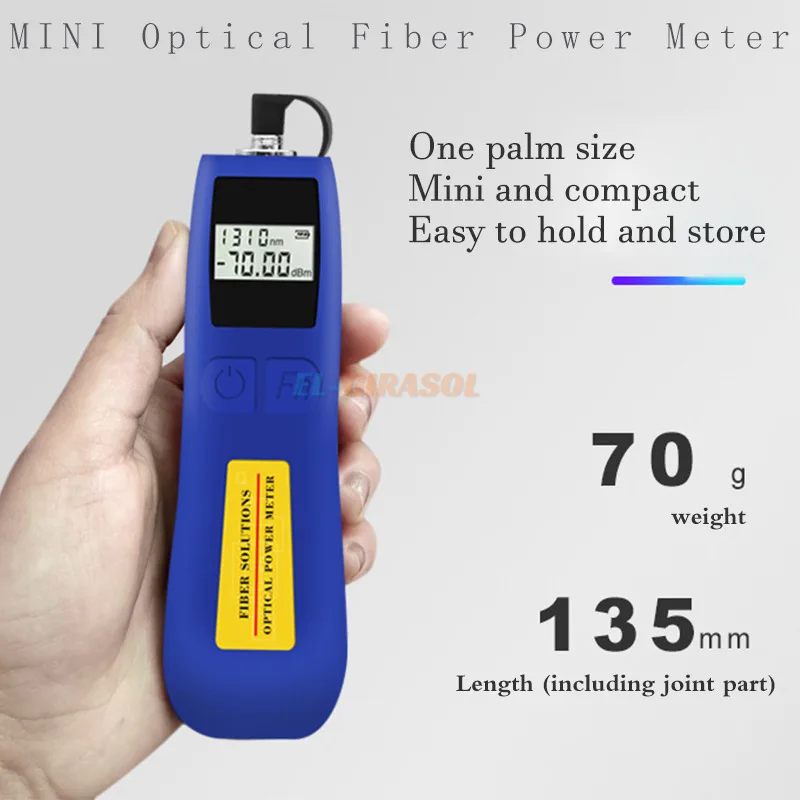

7.Small size, light weight, low power consumption, and easy to carry
Common problems and solutions
|
Fault manifestation |
Possible causes |
terms of settlement |
|
LED display is weak |
Insufficientpower supply |
Replacing the battery |
|
Backlight cannot be lit |
Insufficient power supply |
Replacing the battery |
|
Unable to display on startup |
Insufficient power supply Â
|
Restart/replace battery |
|
Unable to power on |
Insufficient power supply |
Replacing the battery |
|
LED display data saved unchanged |
Insufficient power supply |
Replacing the battery |
|
LED display data storage changes weakly |
Faulty or dirty optical adapter interface |
Check if the optical adapter connector is connected correctly; Clean the sensor end face |
|
The red light plate is blurry and the light is weak |
Laser malfunction or contamination |
Clean the laser end face with a purification cotton swab |
Maintenance and upkeep
1. Regularly keep the sensor end face clean, free of grease and pollution, do not use unclean or non-standard adapters, and do not insert the end face with poor polishing surface, otherwise it will damage the sensor end face
3. Carefully plug and unplug the optical adapter connector to avoid scratching the end face
4. Regularly clean the surface of the sensor
5. If not in use for a long time (such as one month), please remove the battery
