>>Parameter:

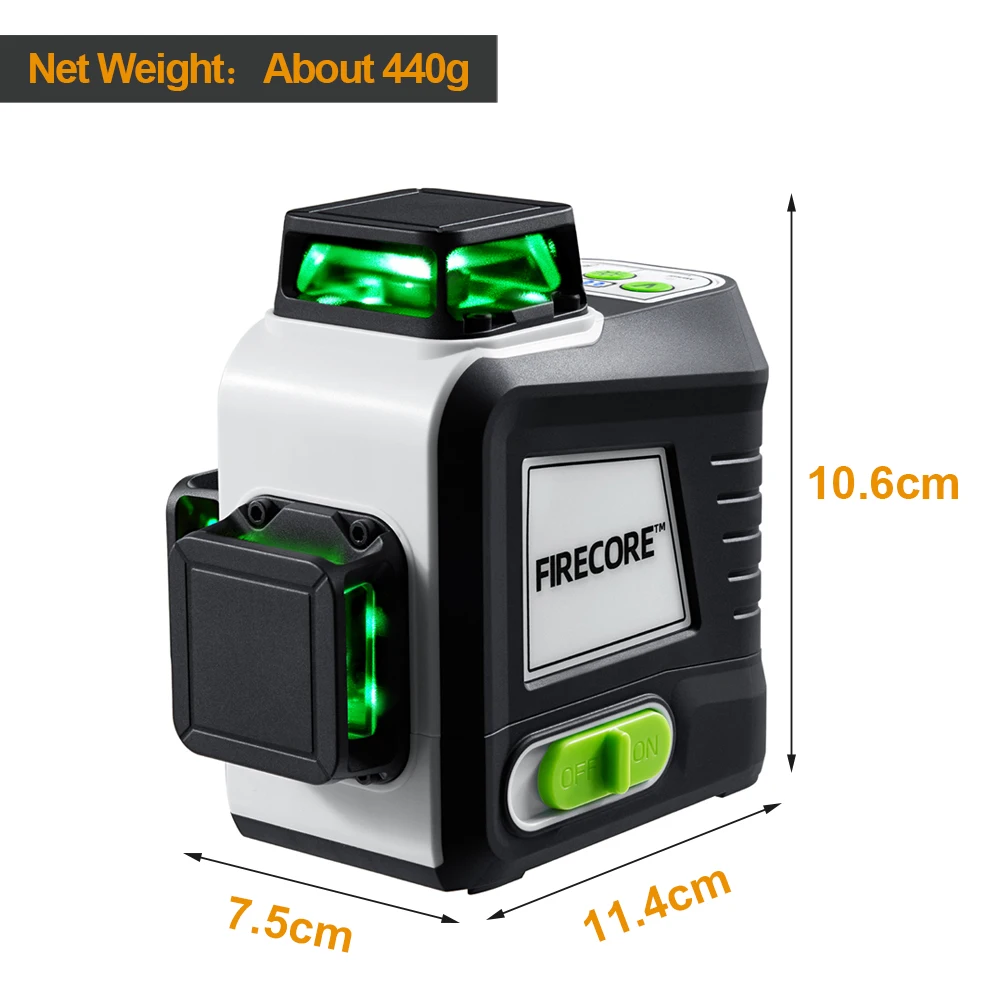

Model: G50
IP Rating: IP54
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1.5mm/7m
Self-leveling Range: ±4°

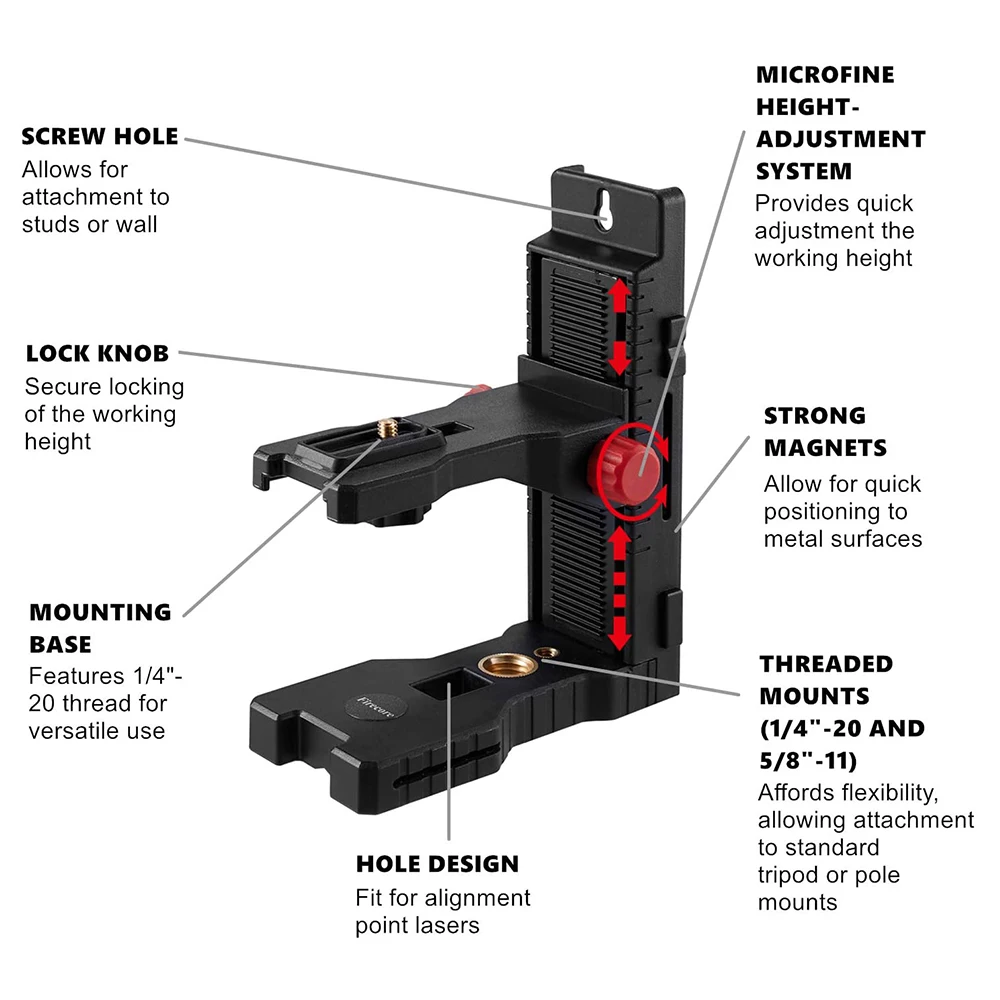

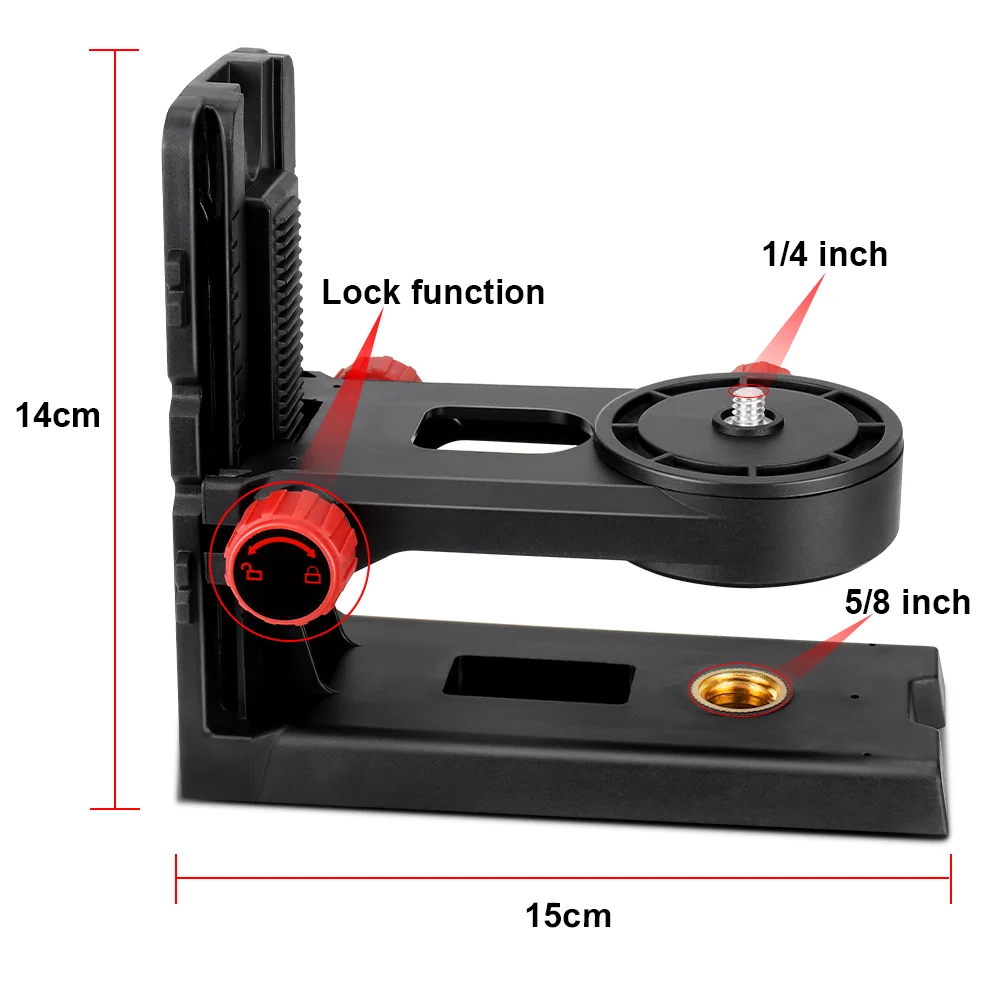

Mount Size: 1/4''
Leveling Type: Gravity pendulum
Working time (with all laser beams on): About 7 hours
Working range (Radius): 30m/(2-60m with FD30)

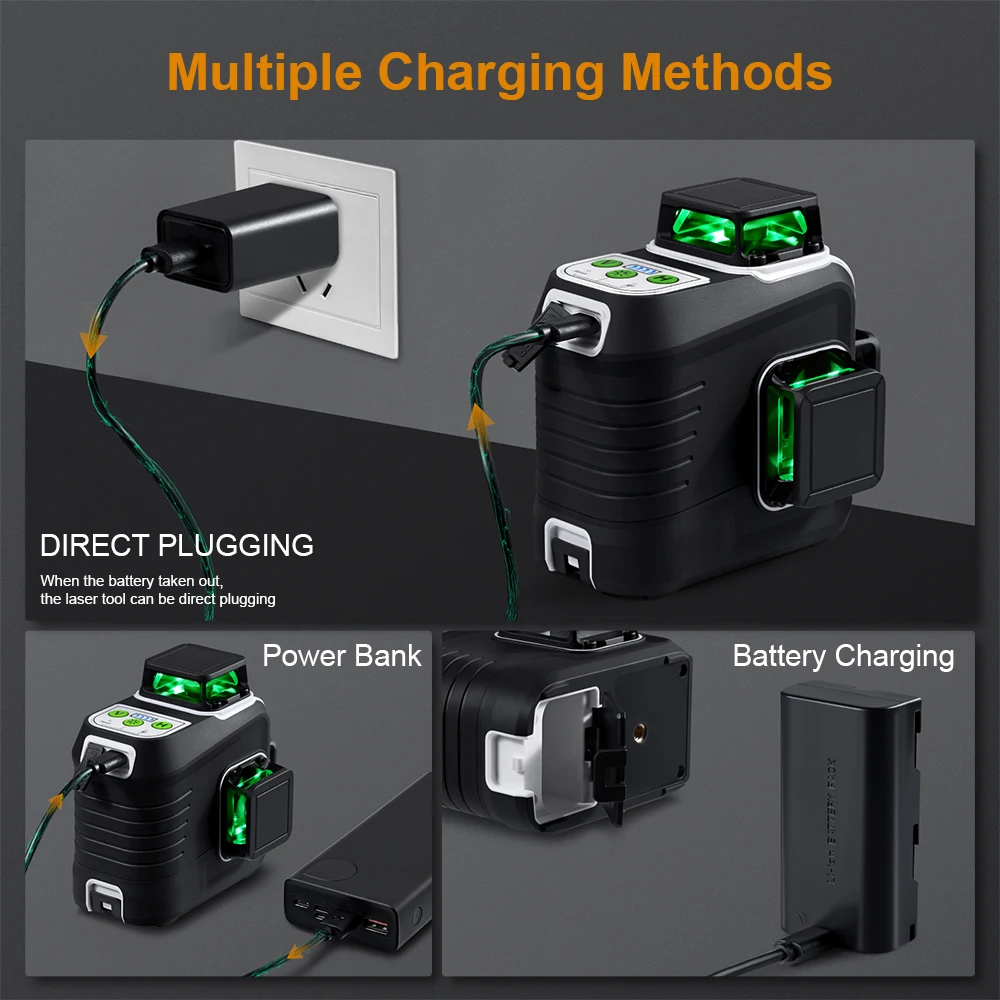

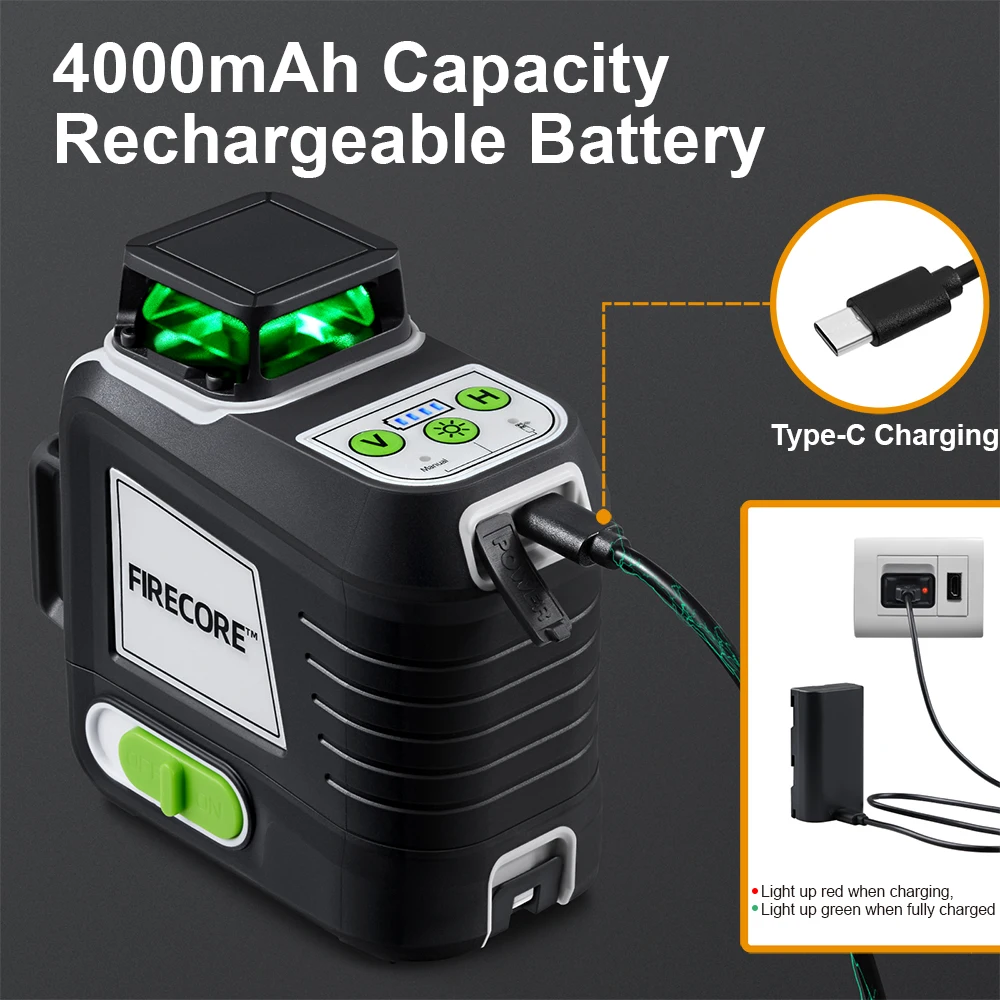

Power supply:Rechargeable 4000mAh lithium battery
Power type: EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

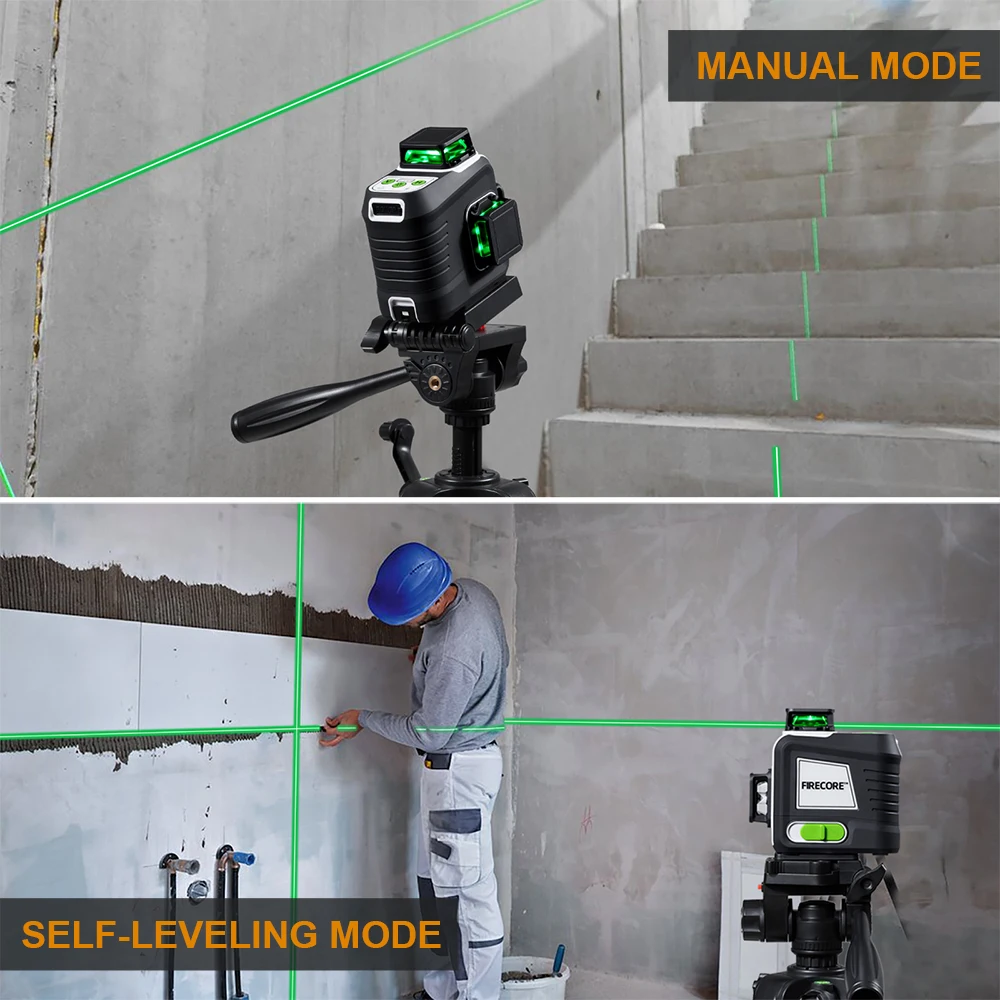

>>Self-leveling mode:
On state, the instrument will be self-leveling within 4°, when the instrument is using out of the leveling range, laser lines will keep flashing quickly.
>>Manual mode:

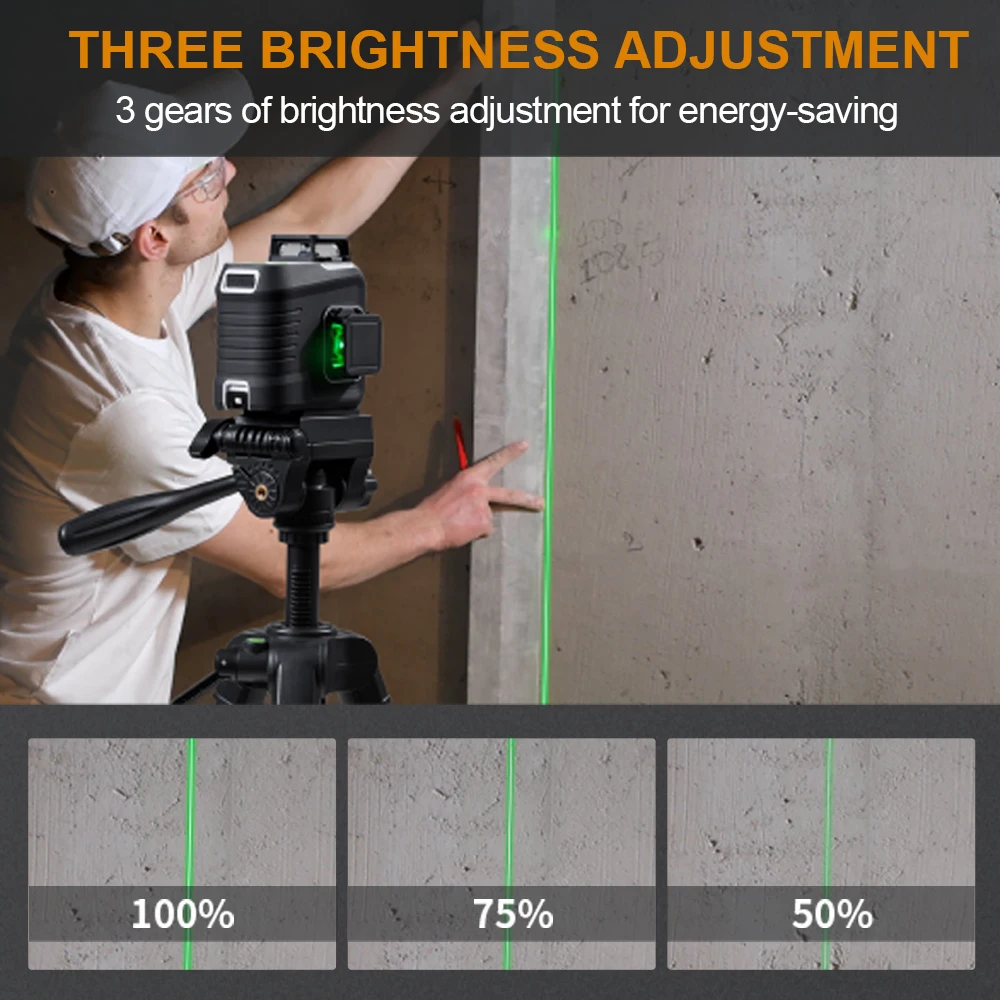

Off state, press and hold the middle button for about 3 seconds, the left side indicator will turn green.The laser line flashes slowly and can be operated at the angle you choose, Single-press middle button to adjust brightness cyclically, three gears are available. To turn off the measuring tool, just press and hold the middle button for 3 seconds.

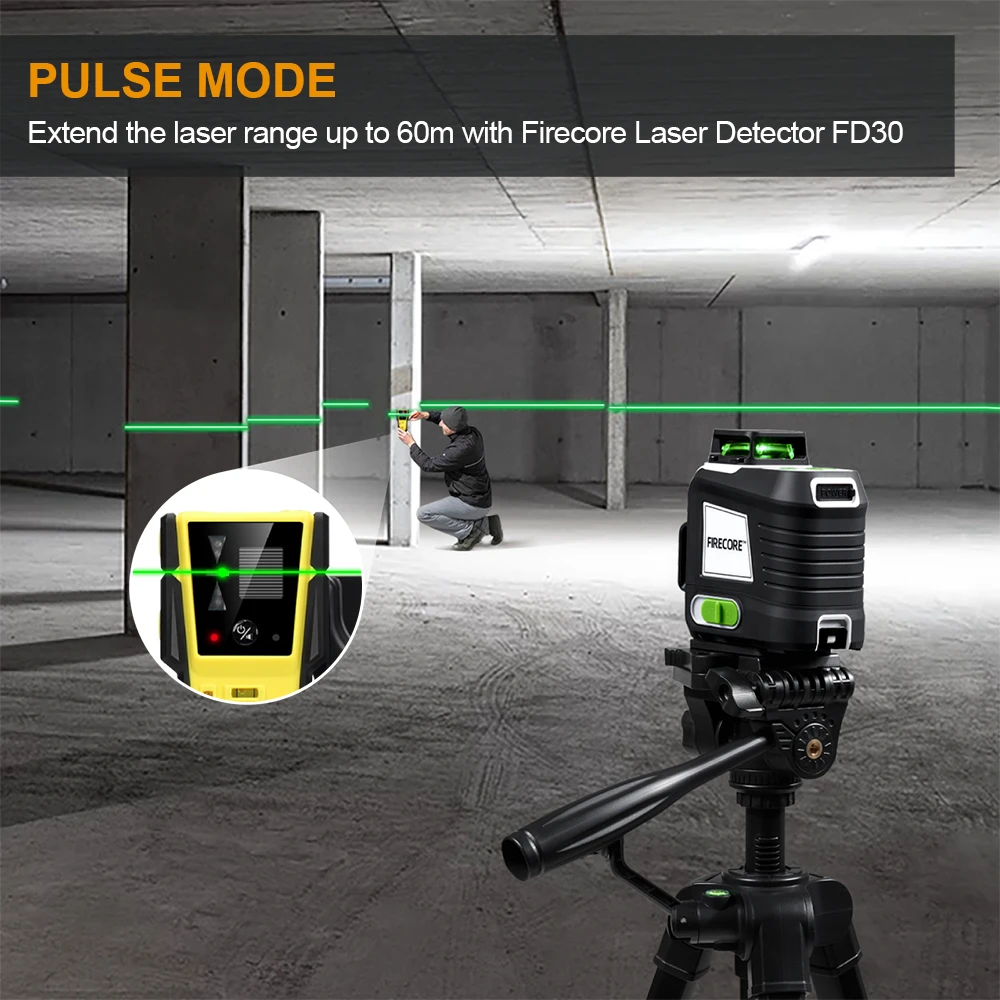

>>Pulse mode:

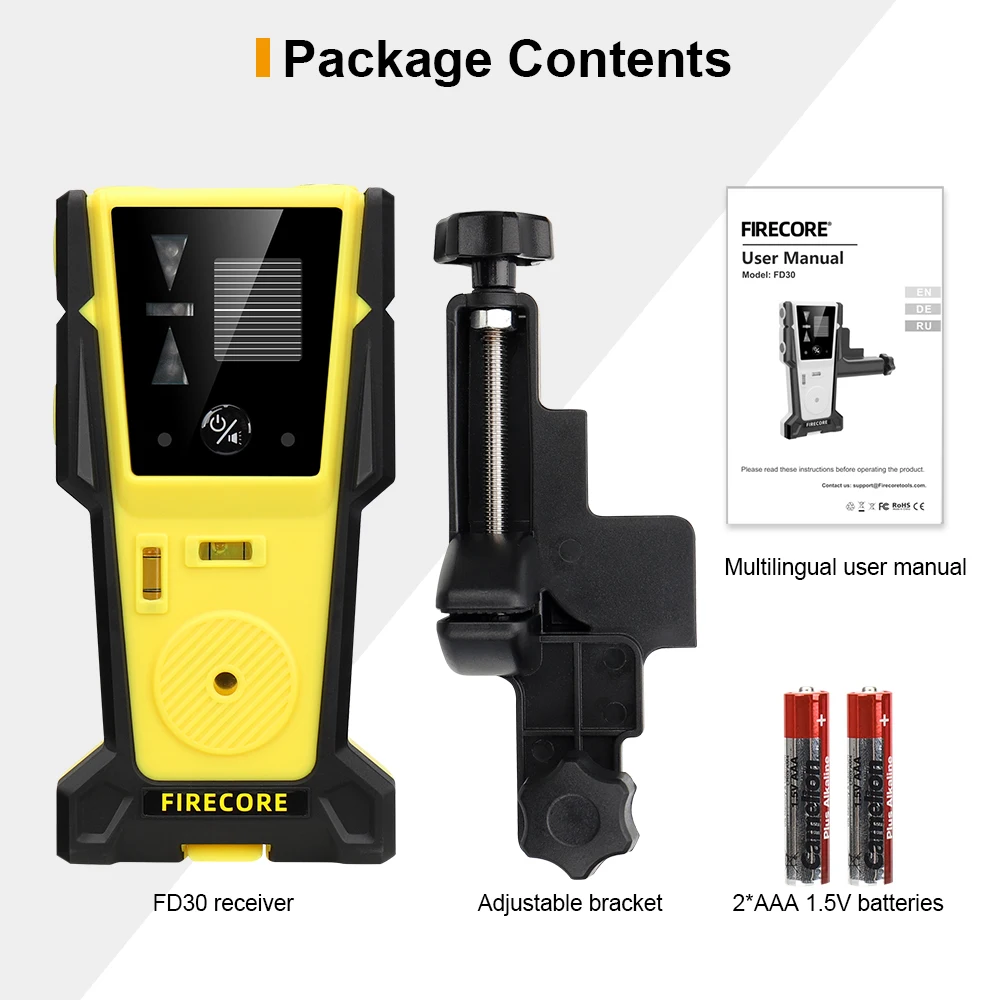

How to use the FD30 receiver with G50 laser level?
1: First, turn on laser level's pulse mode——Single press middle button to enter the pulse mode, the right side indicator light will turn green.
2: Second, turn on the FD30 receiver and search the laser lines. When the receiver detects the laser lines, it will make "Beep" sounds. it can turn off the sound.If you don't use the receiver for more than 5 minutes, it will shut down automatically
