Note: The customer chooses the official logistics channel AliExpress Standard Shipping for placing an order. Due to the shipping restrictions of the official logistics channel, the machine and battery will be sent in two packages.
The machine will be sent normally according to AliExpress Standard Shipping, and the battery will be sent through a dedicated logistics channel for the battery.
When you receive a package without a battery or a package without a machine, please do not worry, Because we split the package.
If you have any questions about the order, please contact customer service as soon as possible
>>Parameter:

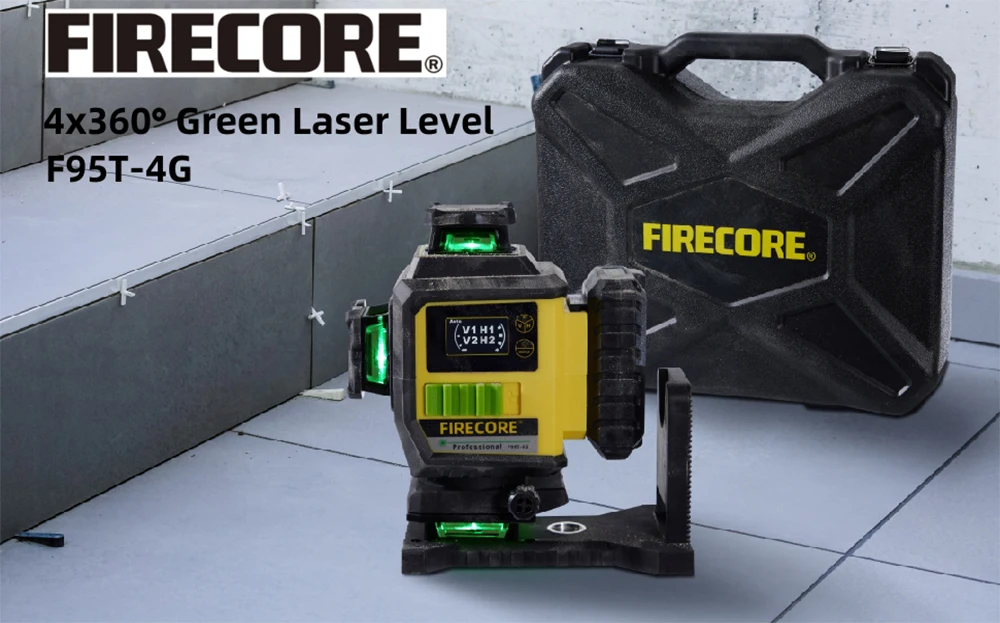

Model: F95T-4G

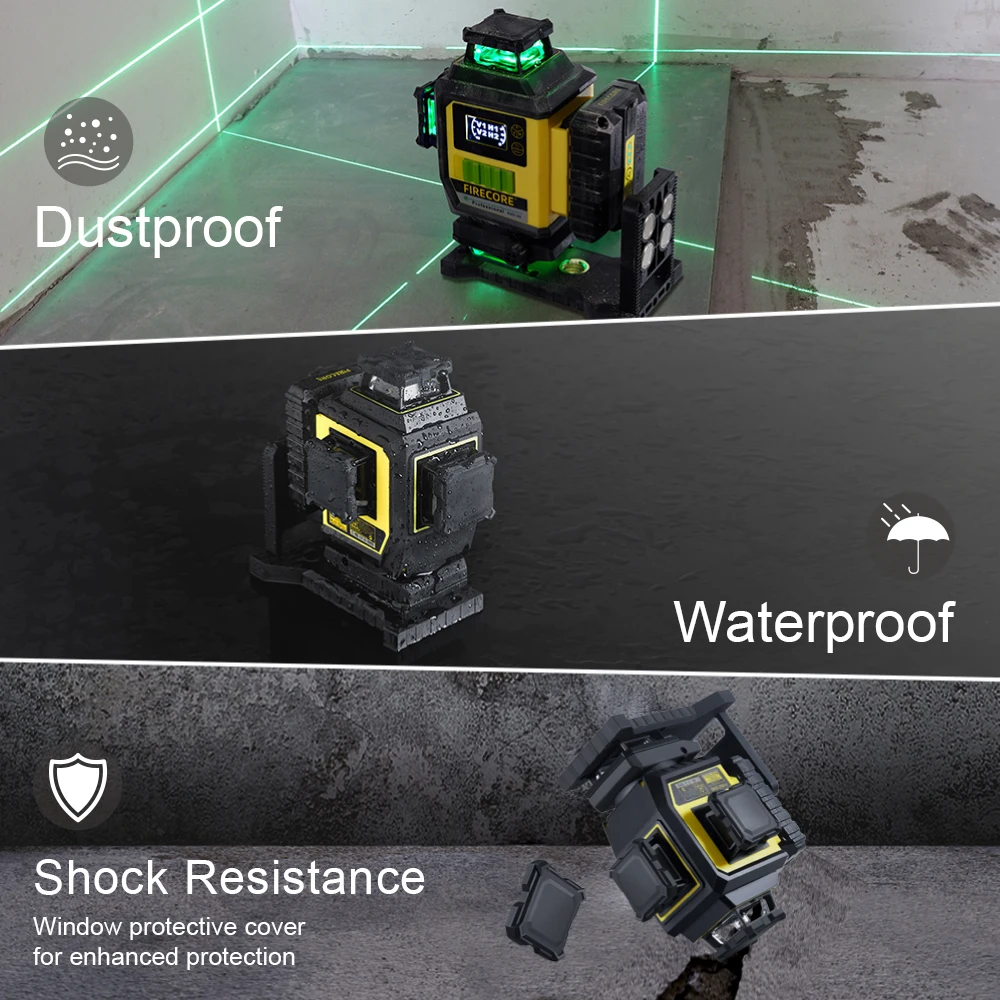

IP Rating: IP54
Laser class: Class 2 (IEC/EN 60825-1:2014)，<1mW
Laser Wavelength: 505-520nm

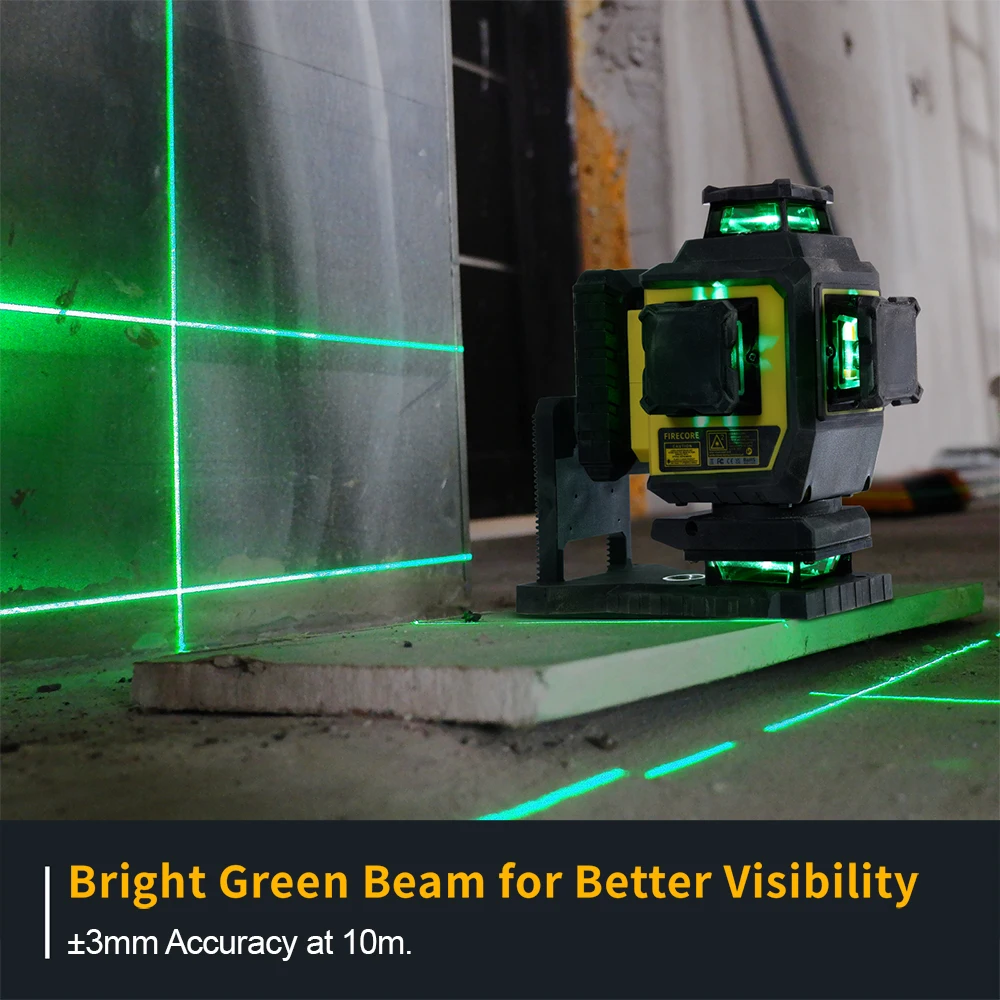

Horizontal/Vertical Accuracy: ±3mm/10m
Self-leveling Range: ±4°

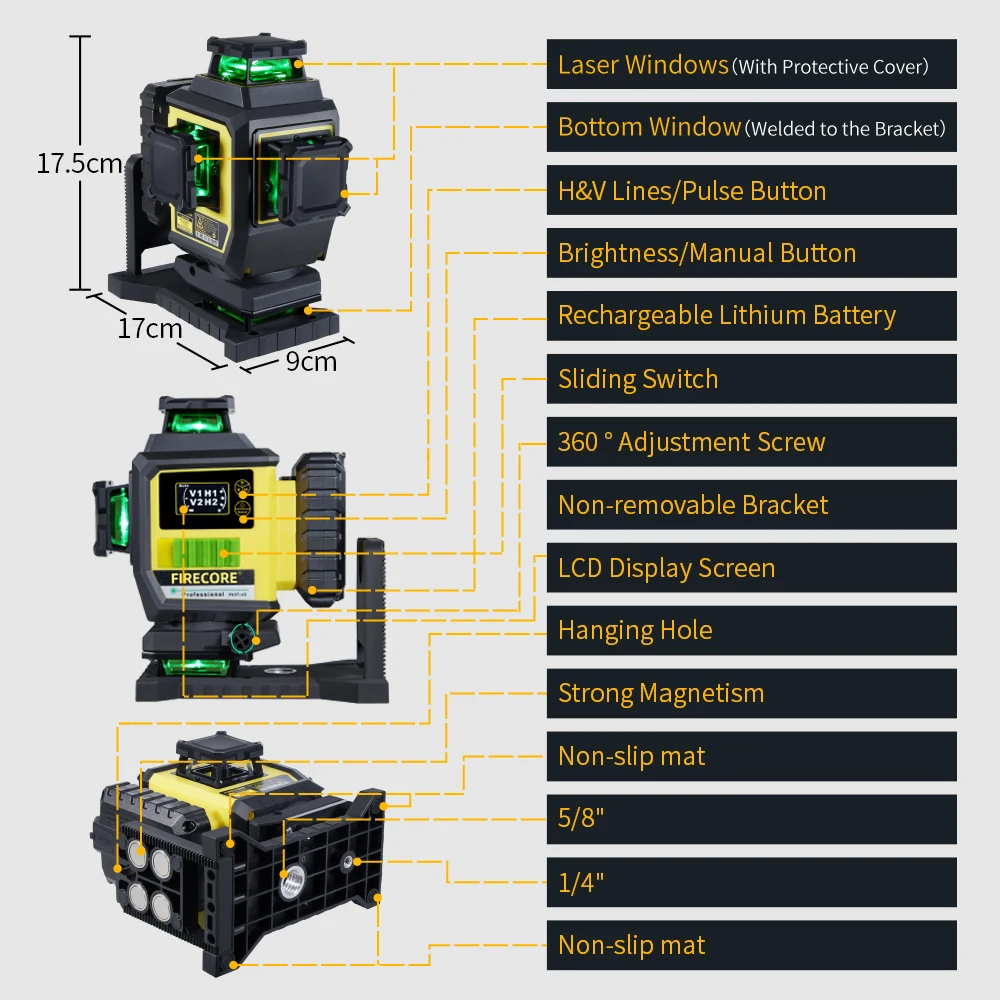

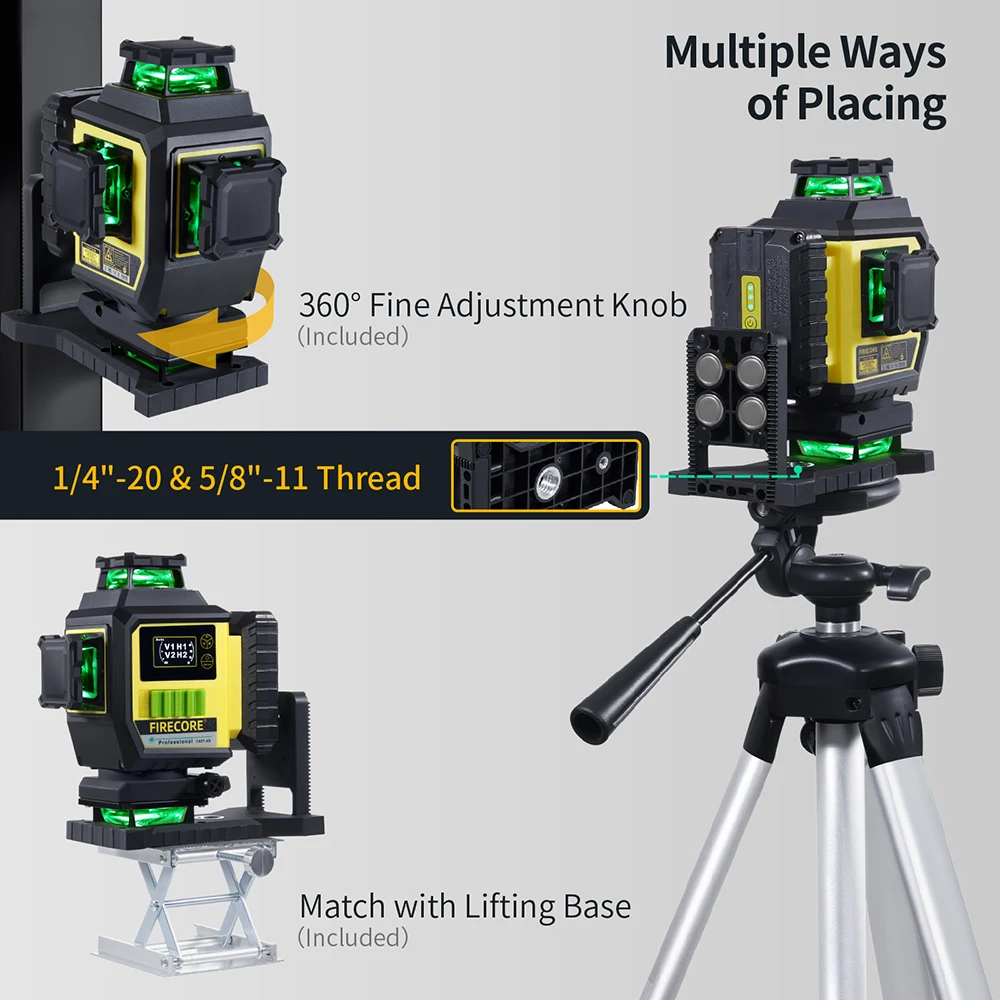

Mount Size: 1/4'' & 5/8''
Leveling Type: Gravity pendulum
Working time (with all laser beams on): Min.8 hours
Working range (Radius): 30m/(2-60m with the FIRECORE FD30 laser detector)

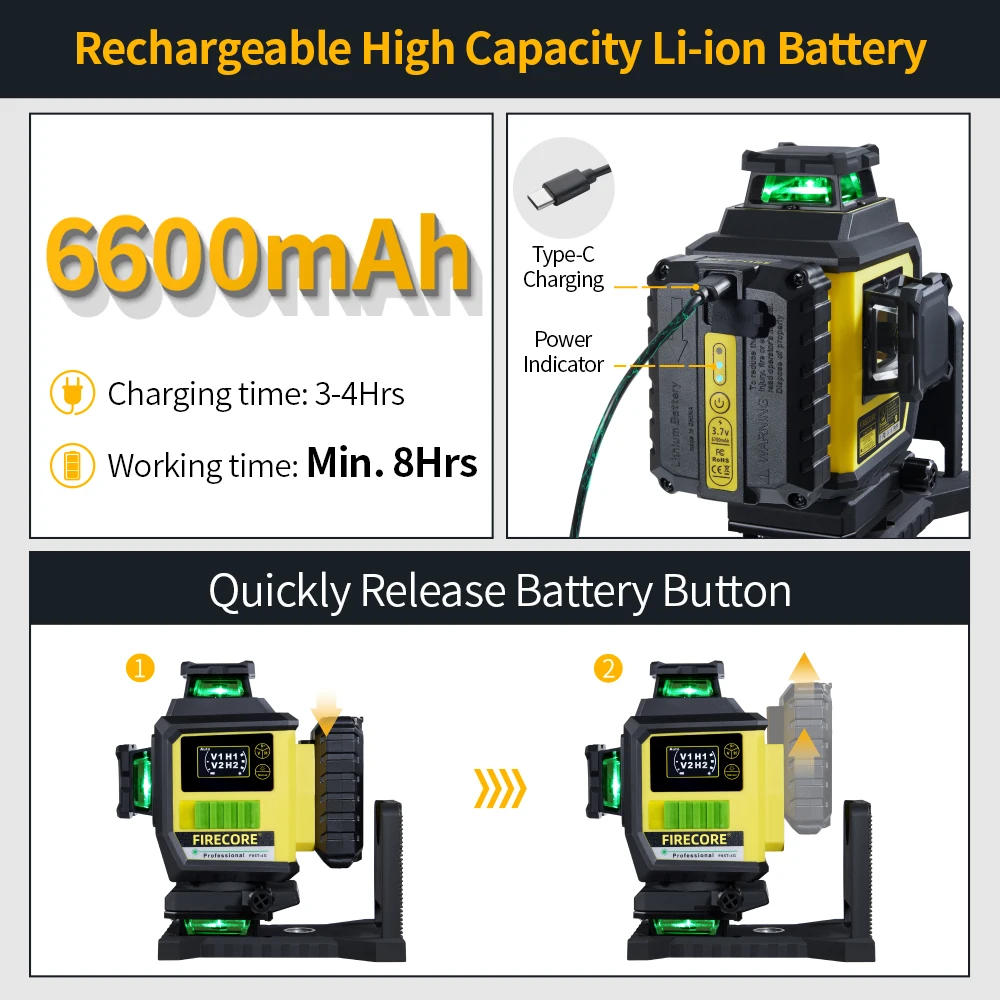

Power supply:Rechargeable 3.7V 6600mAh lithium battery
Power type: Type-C EU plug (send EU plug by default, if you need other plugs, please contact customer service)
Maintenance and after-sales: 1 year warranty

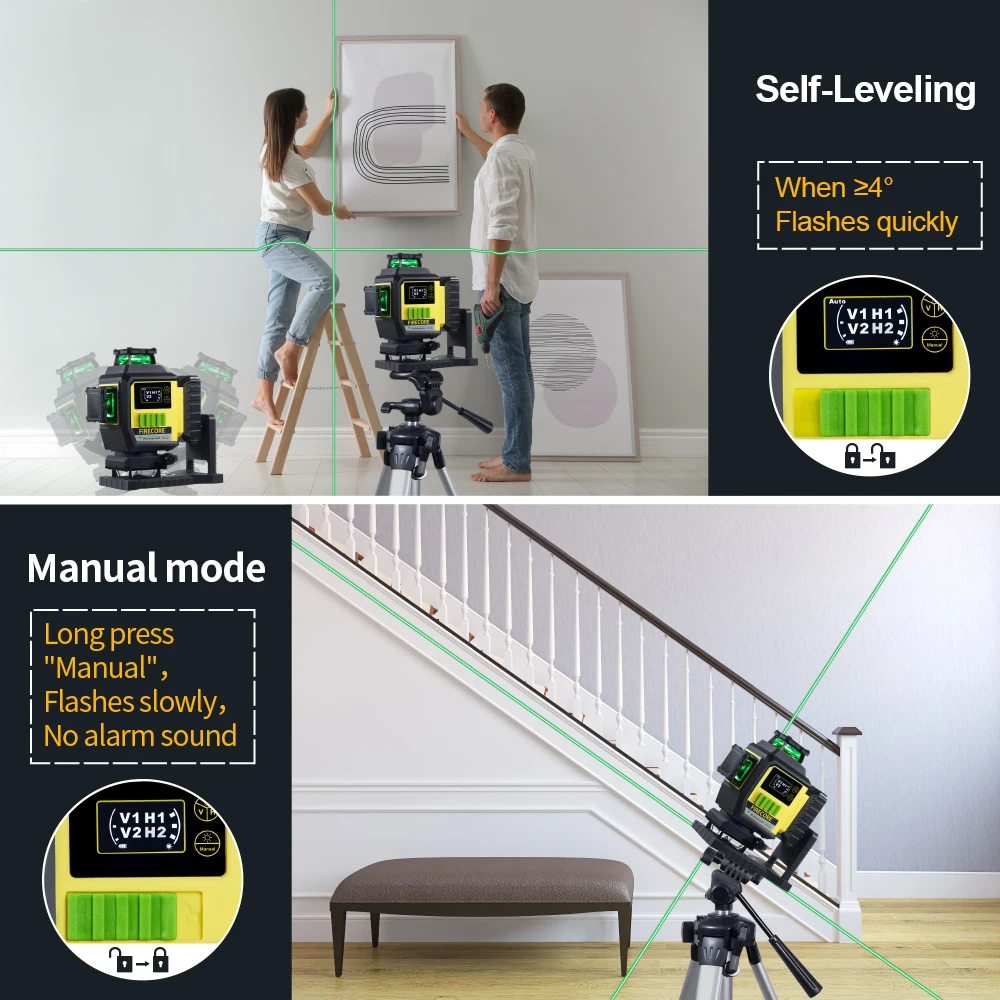

>>Self-leveling function:

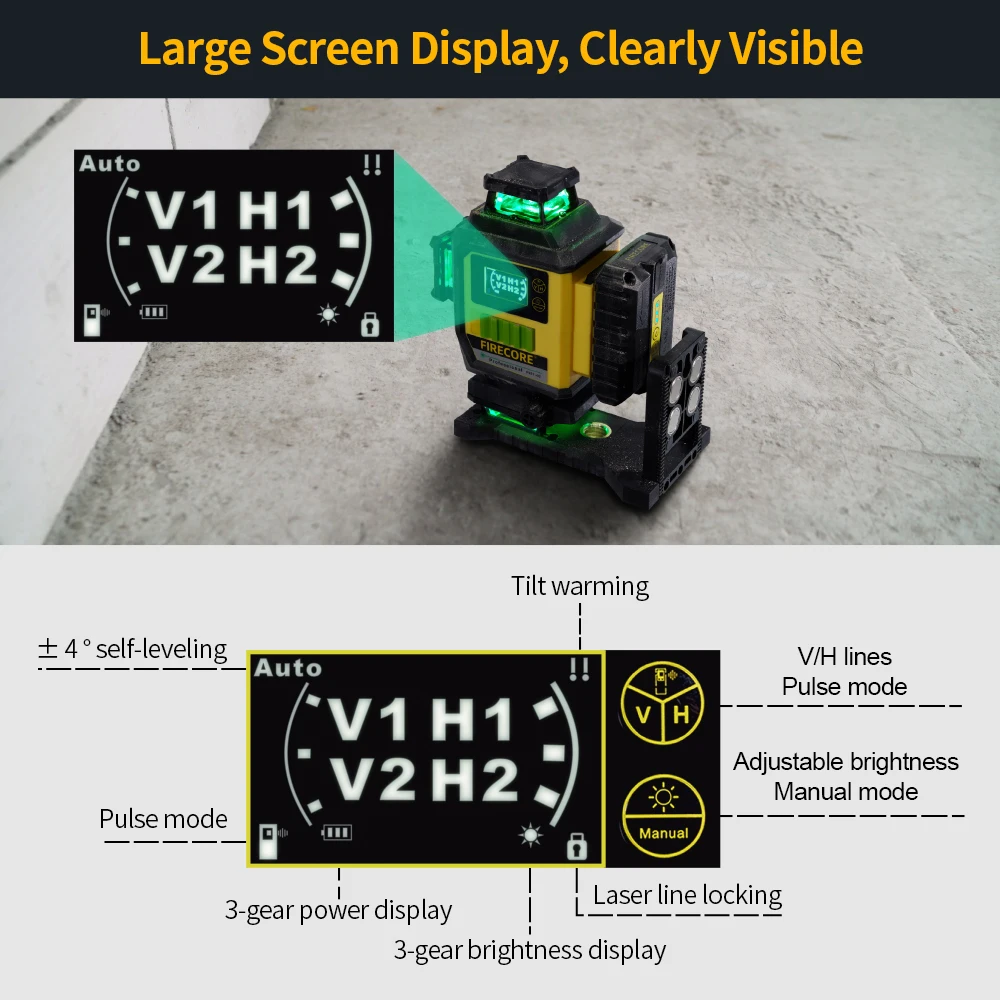

On state, when the inclination angle of the instrument exceeds 4º, "!!" prompt appears on the display screen, the laser line will flash quickly so that whether the instrument is flat or not can be detected.
>>Manual mode:
Off state, press and hold the "Manual" key for about 3 seconds until the laser ray appears, the lock icon prompt appears on the display screen, and after releasing the operation key, the laser line will flash slowly without alarm, and it can be operated at the angle you choose.Long press "Manual" key to turn off this mode.

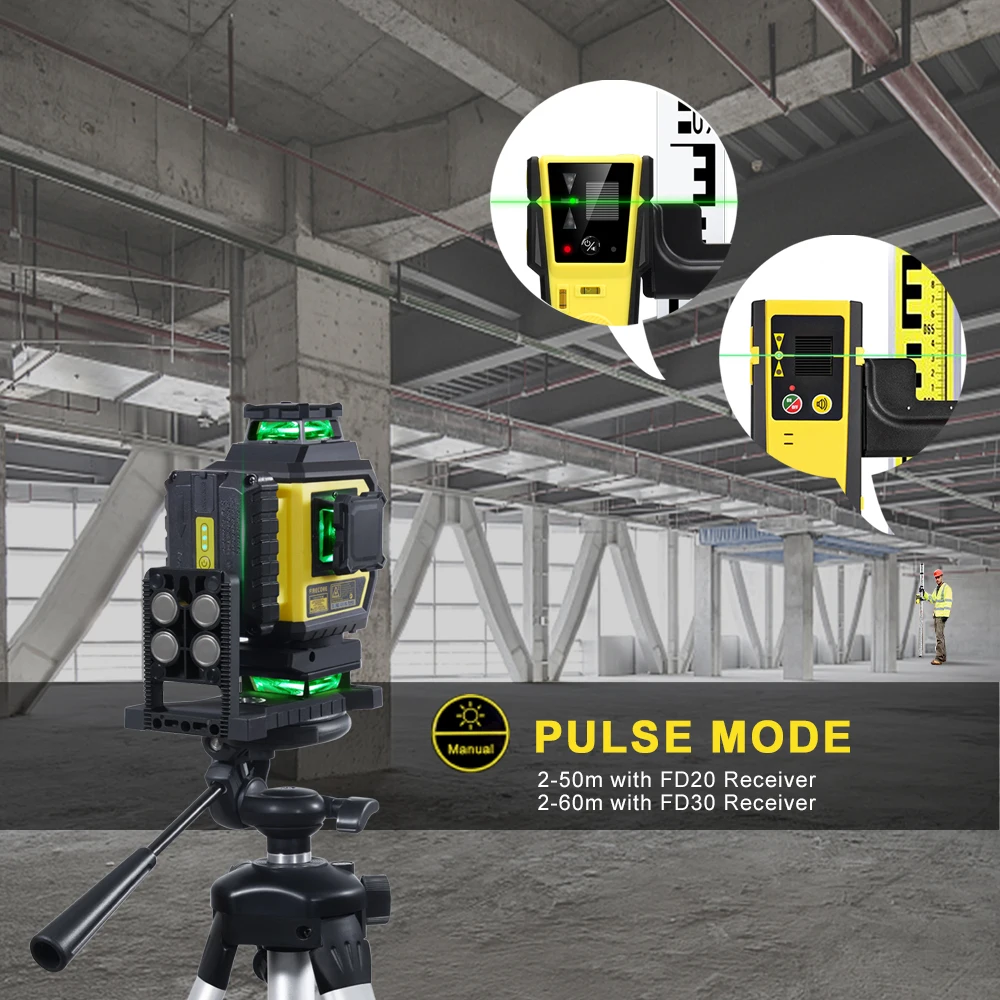

>>Pulse mode:
How to use the receiver with F95T-4G laser level?
1: First, turn on laser level's pulse mode——press and hold the receiver button for about 3 seconds, the laser line flashes 3 times and and then enters the pulse mode
2: Second, turn on the FD30 receiver and search the laser lines.
When the receiver detects the laser line, it will make "Beep" sounds.
