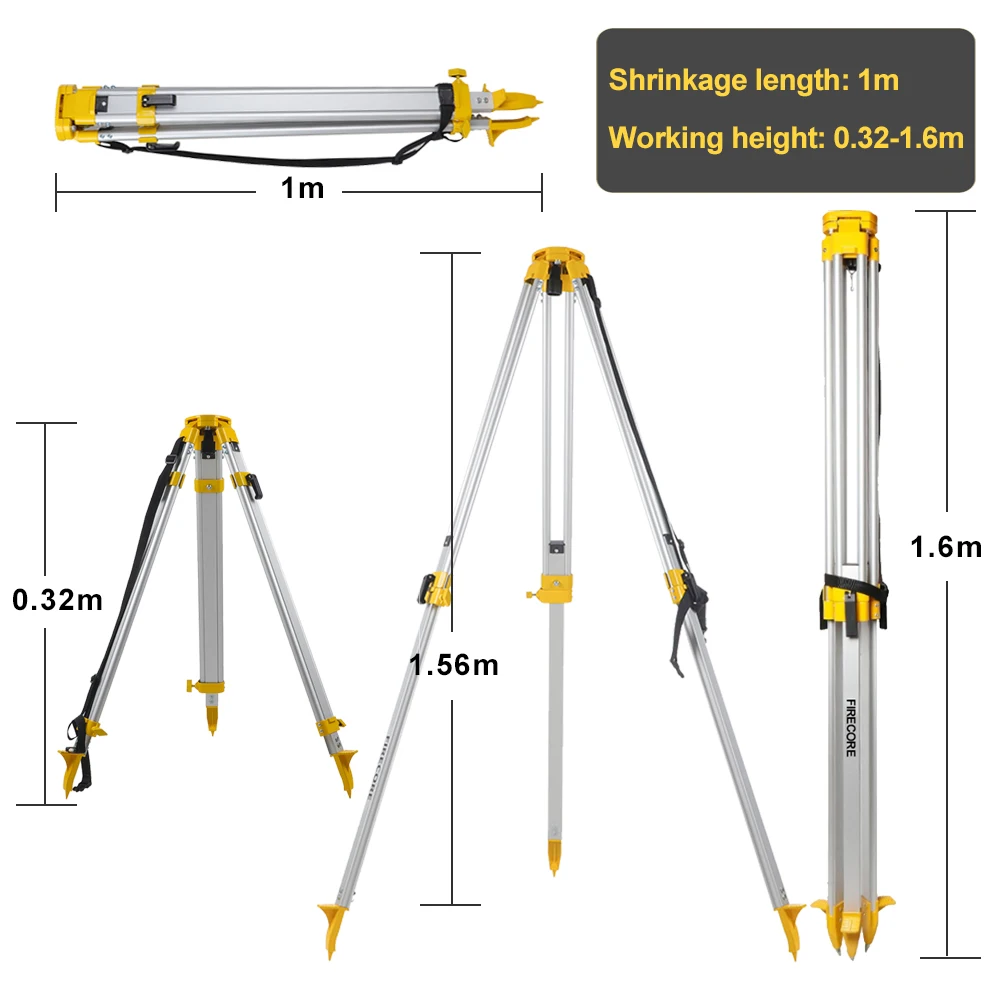

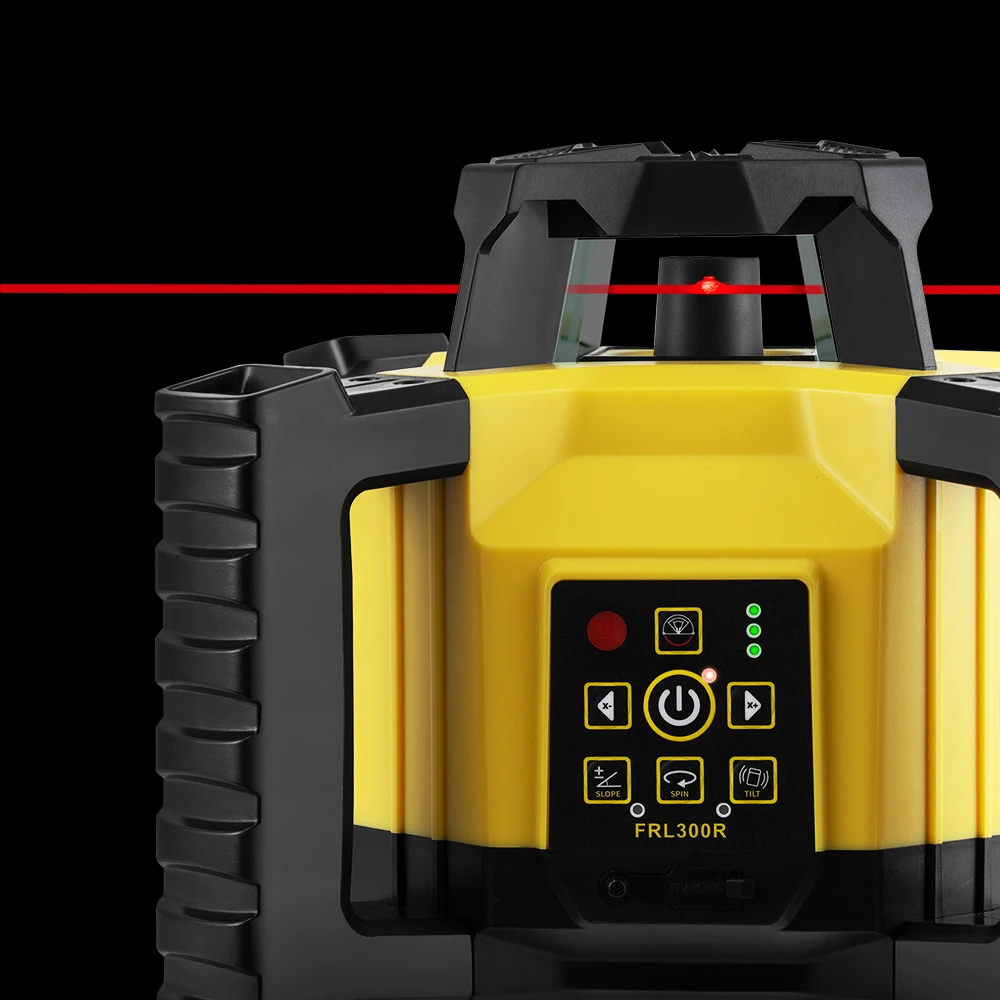

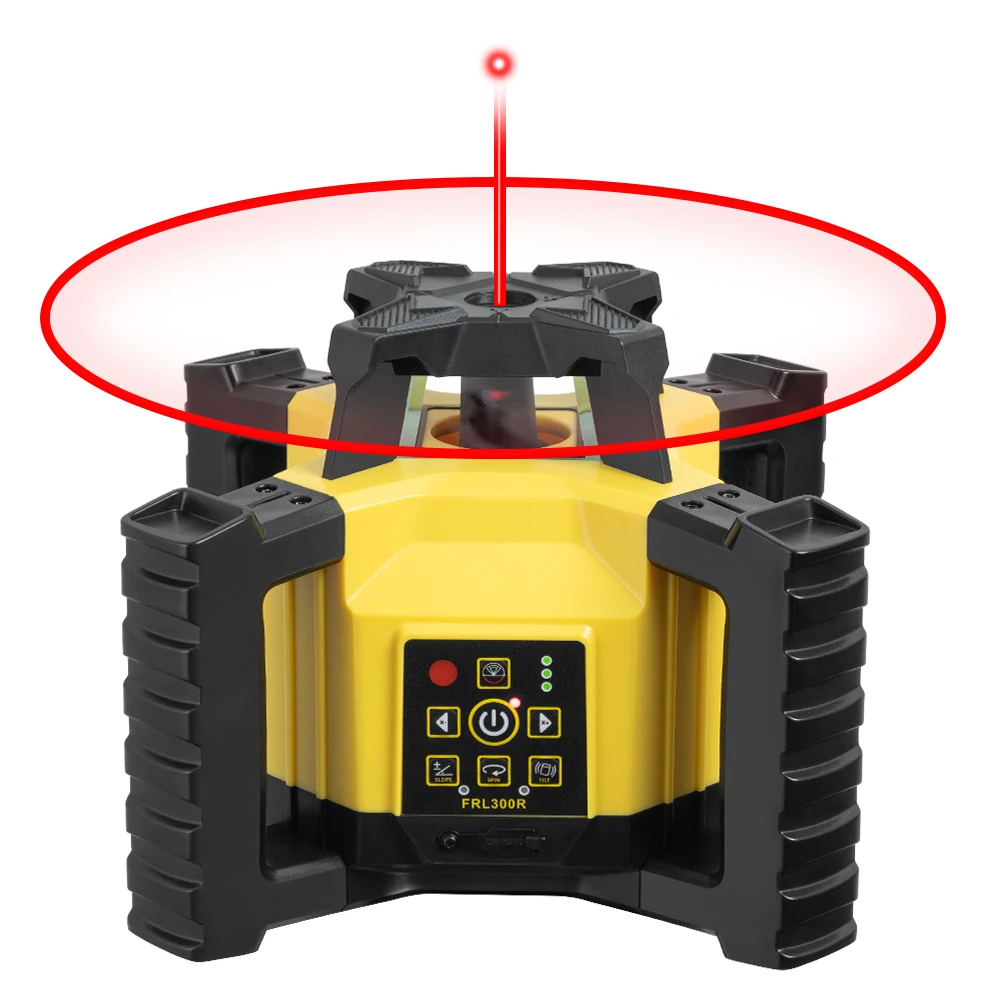

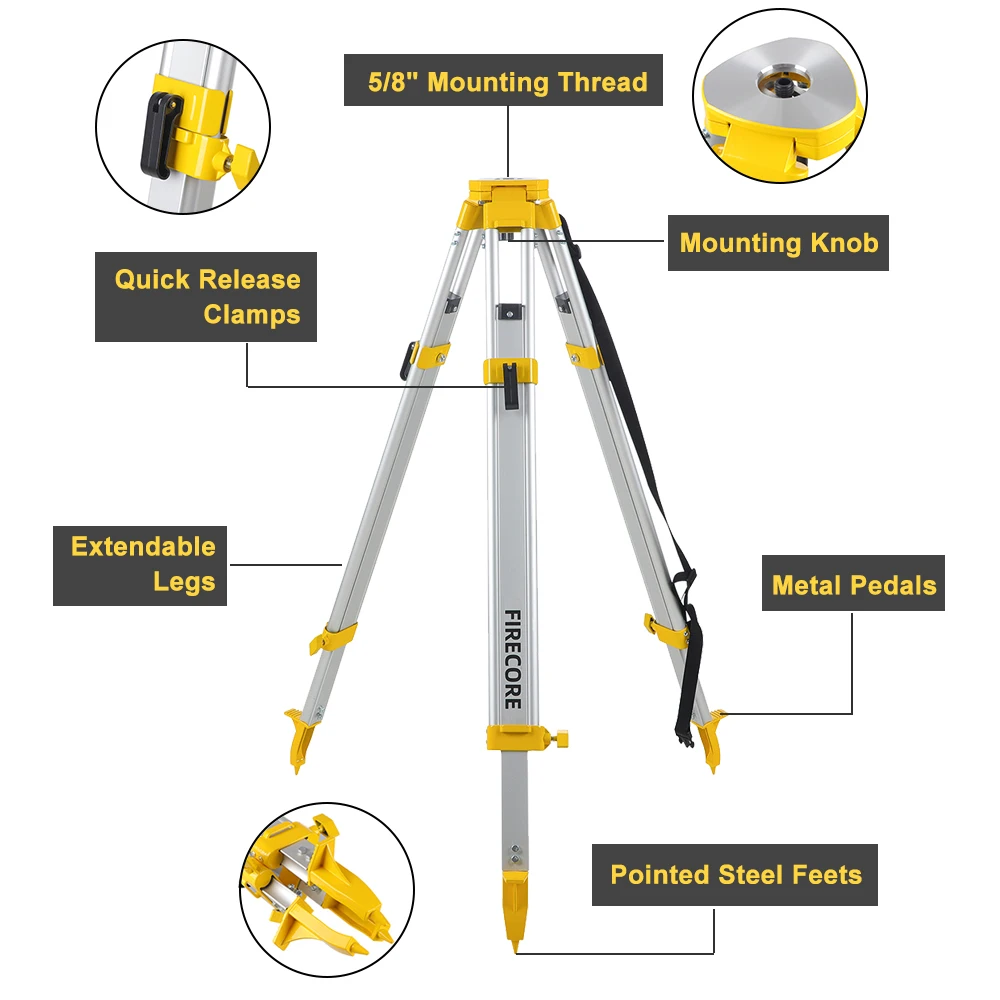

The Firecore FRL300R rotary horizontal machine is designed for use on indoor and outdoor construction sites. The red radiator is positioned horizontally. The operating range of a receiver using a laser transmitter can reach 300 meters in diameter. The degree of protection against dust and moisture is IP55.The device is powered by a powerful lithium-ion battery with a capacity of 1,500 mAh (operating time can reach 15 hours). This type of battery allows efficient operation of the equipment at subzero temperatures. The radiator rotation speed is 0 300 600 revolutions per minute. There is a standard 5/8-inch diameter threaded hole at the bottom of the rotating level for mounting on a geodetic tripod.
>>Parameter:
Model: FRL300R

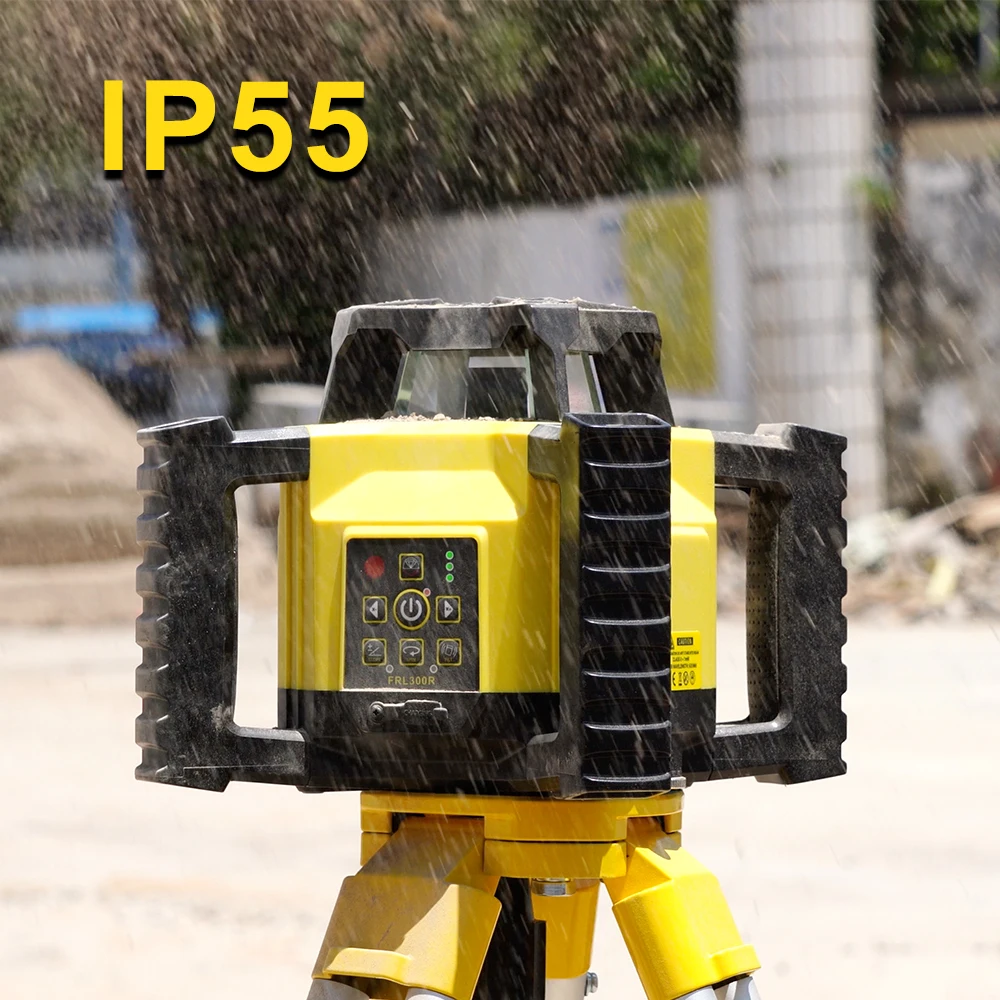

IP protection rating: IP55
Laser wavelength: 635 nm
Laser Class: Class 2 (IEC/EN60825-1/2014)＜1mW

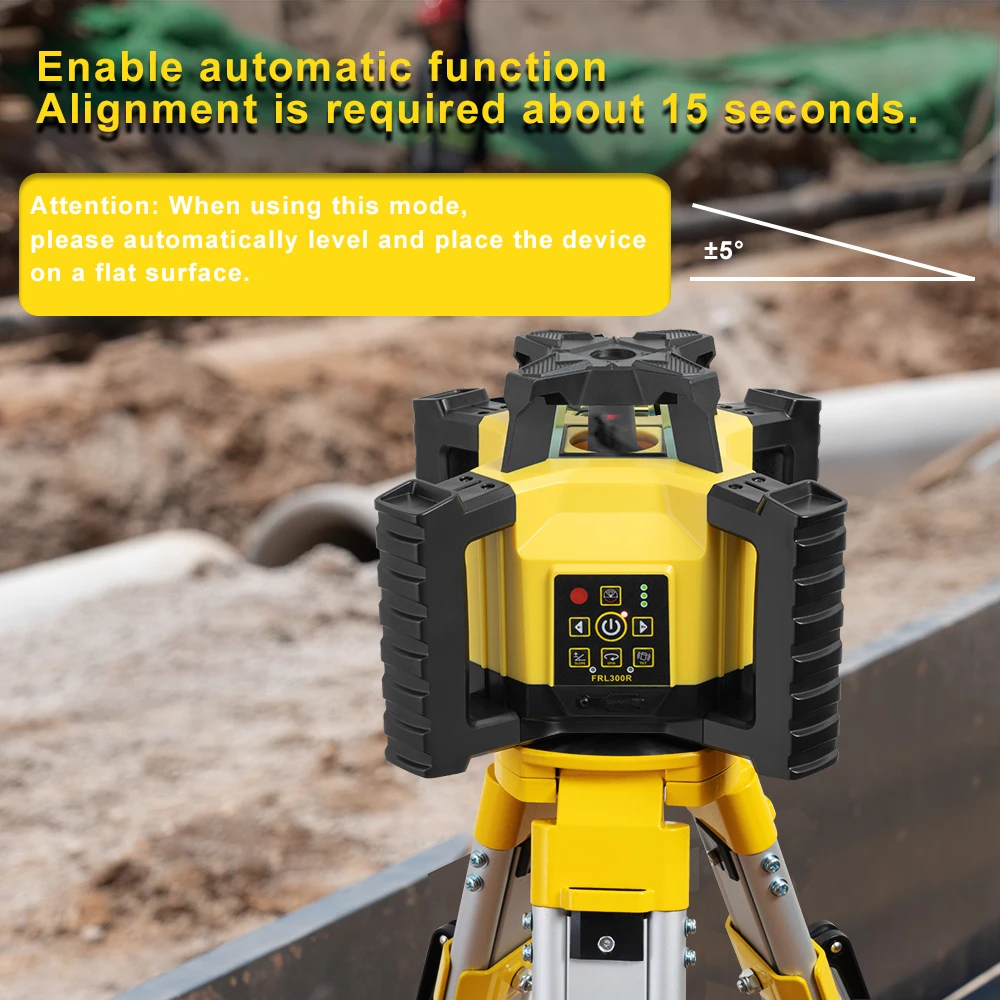

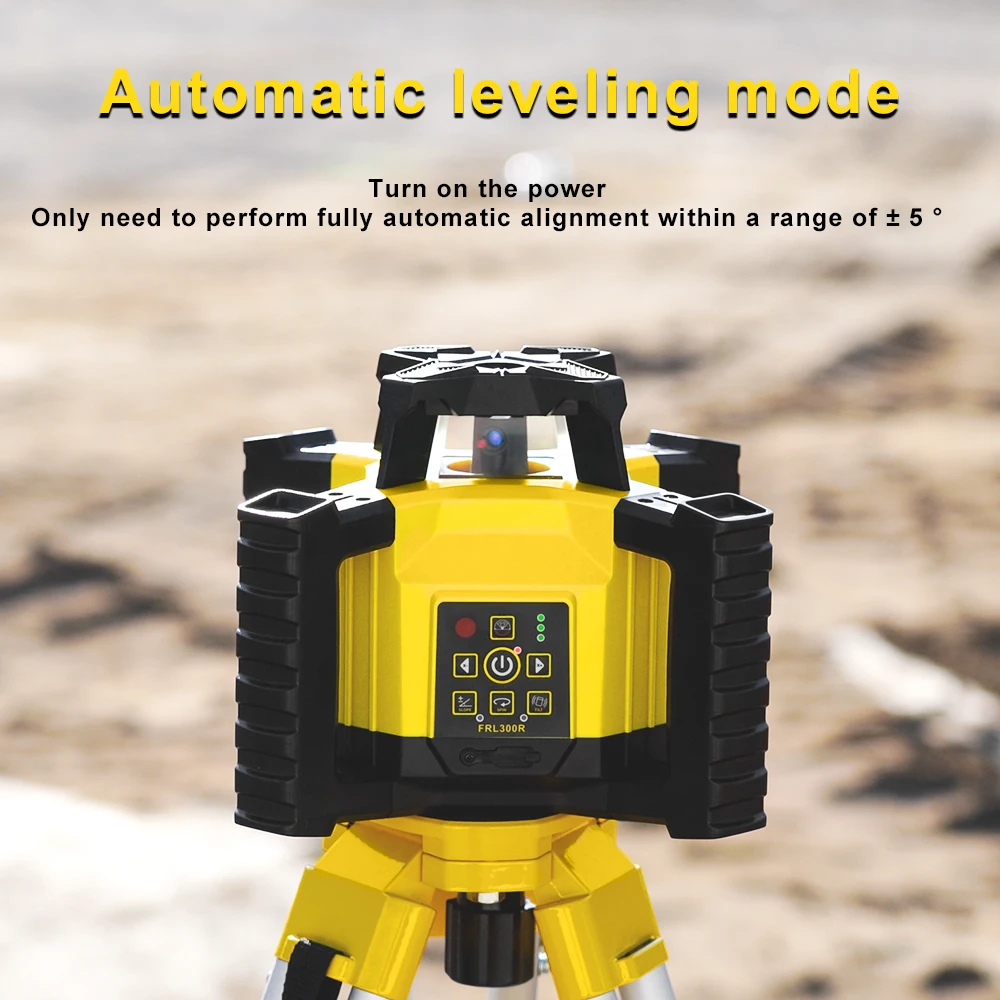

Alignment range: ± 5° (about 15 seconds)
Rotation speed: 0,300,600 rpm
Tilt adjustment range: ± 5°
Scanning angle in the direction of：0°,10°,45°,90°,180°
Horizontal/Vertical accuracy: ± 3 mm / 30 m
Operating range (radius): 30 m

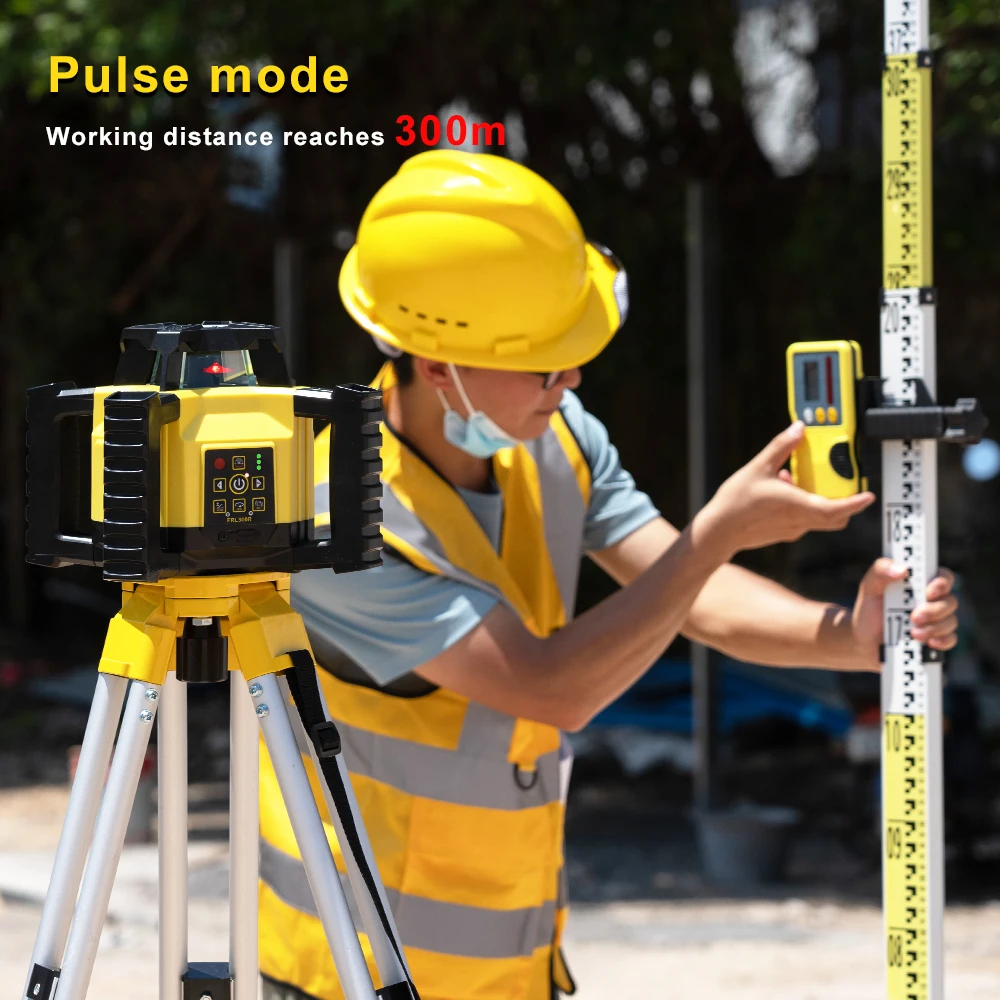

Working range with receiver (Diameter): 300 m

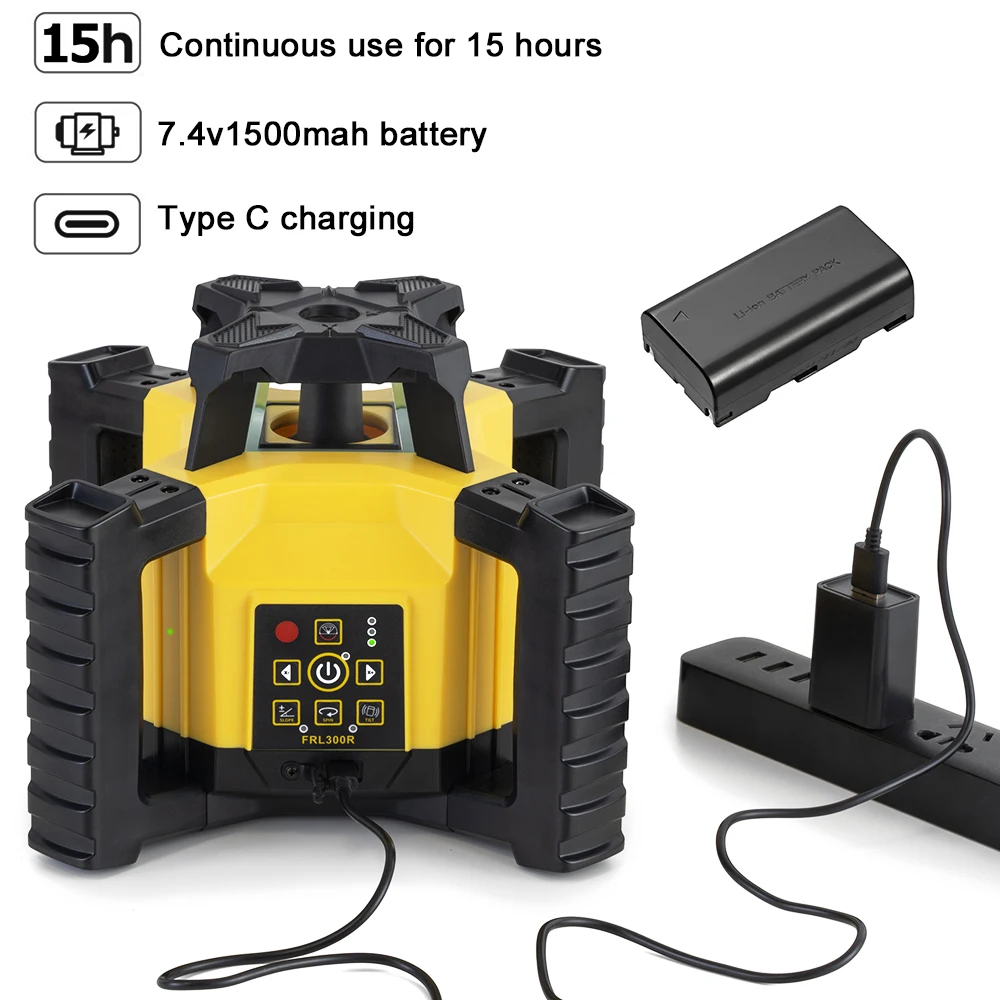

Power supply: 7.4V / 1,500mAh Lithium-ion battery
Charging Time: About 3.5 hours
Continuous working time: about 15 hours
Battery charger: USB 5V / 1A
Mounting Size: 5/8"
Operating temperature: -10℃ – 50℃
Storage temperature: -20℃ – 50℃
