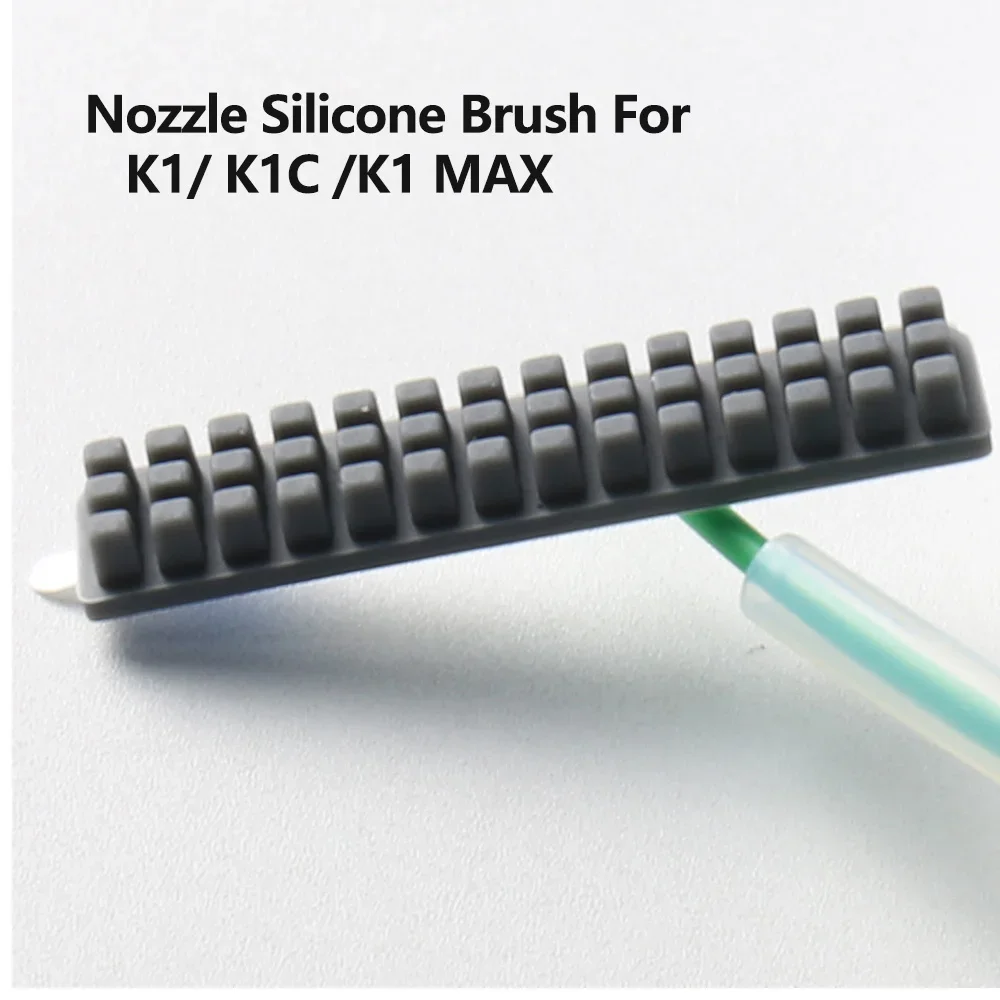

For Creality K1 K1C K1MAX Nozzle Silicone Brush 3D Printer Nozzle Cleaner Tool for K1 Series Nozzle brush 3D Printer Cleaning Accessories
Applicable models:
For Bambu lab A1 and For Creality KI/K1C/K1 MAX.If you can design the base, it is suitable for almost all models.
Top Quality

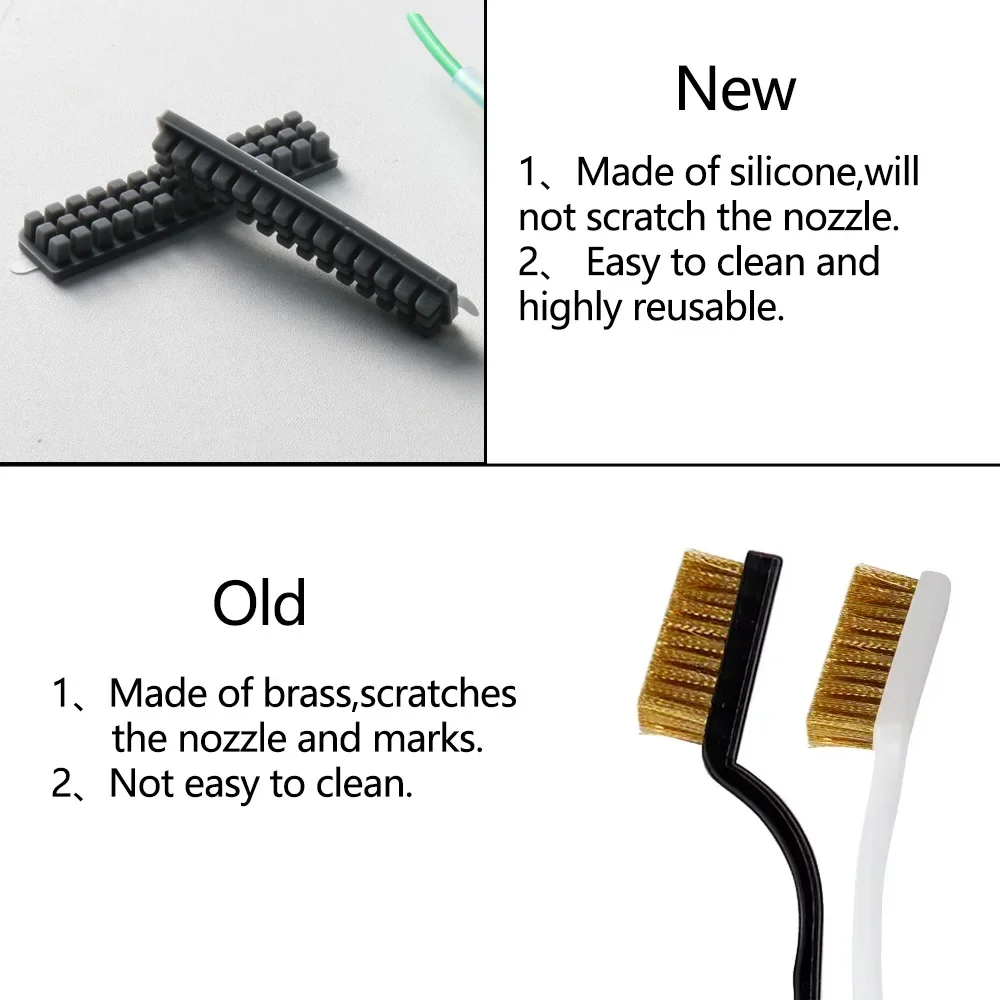

This replacement nozzle brush for 3D printers is made of high-quality silicone material with perfect abrasion and heat resistance for a long service life. The silicone component is soft and will not damage the nozzle surface. It's resistant to temperatures up to 260 degrees Celsius. It can withstand the high temperature of the nozzle, while also cleaning the filament extruded from the nozzle.
Features

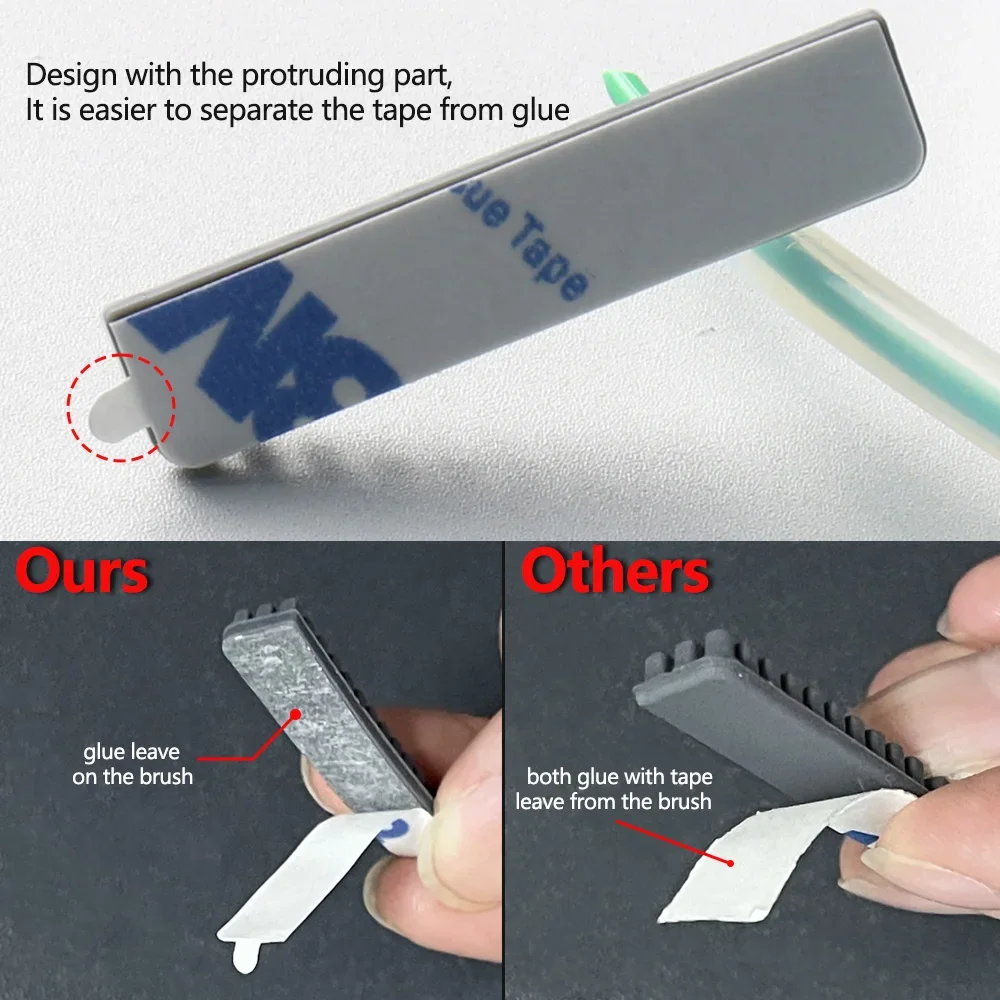

Our kit includes the printable mounting bracket, Grey. Almost without disassembly can be easily assembled. Just loose the screws on the lead screw motor mount, then tighten the bracket onto it. Peel off the back paper on the brush, stick and press it a bit for better adhesion. After install, please modify the G-code via slicer to drive the hotend extruder go through the brush before printing.

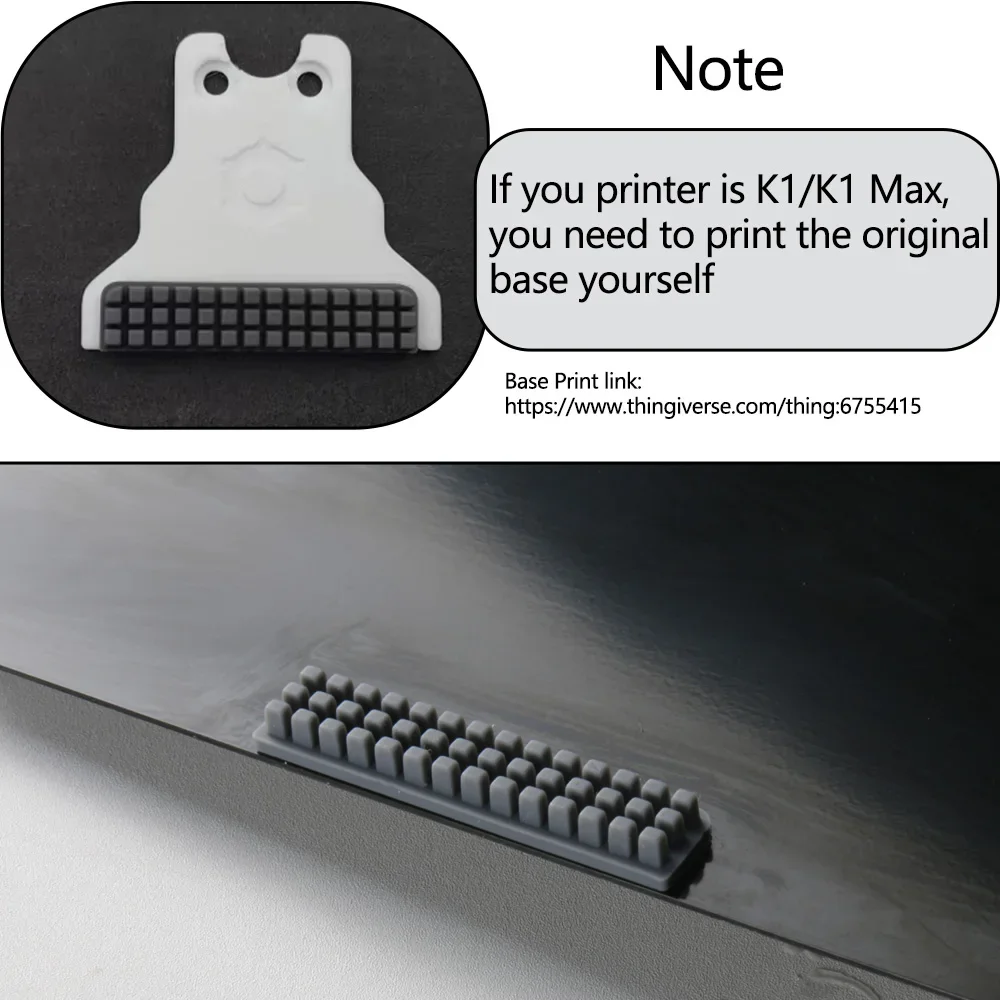

For K1/K1 MAX models Print link:
https://www.thingiverse.com/thing:6755415
Special recommendation: Use high temperature resistant consumables to print ABS, PA-CF, etc.)
Operation method

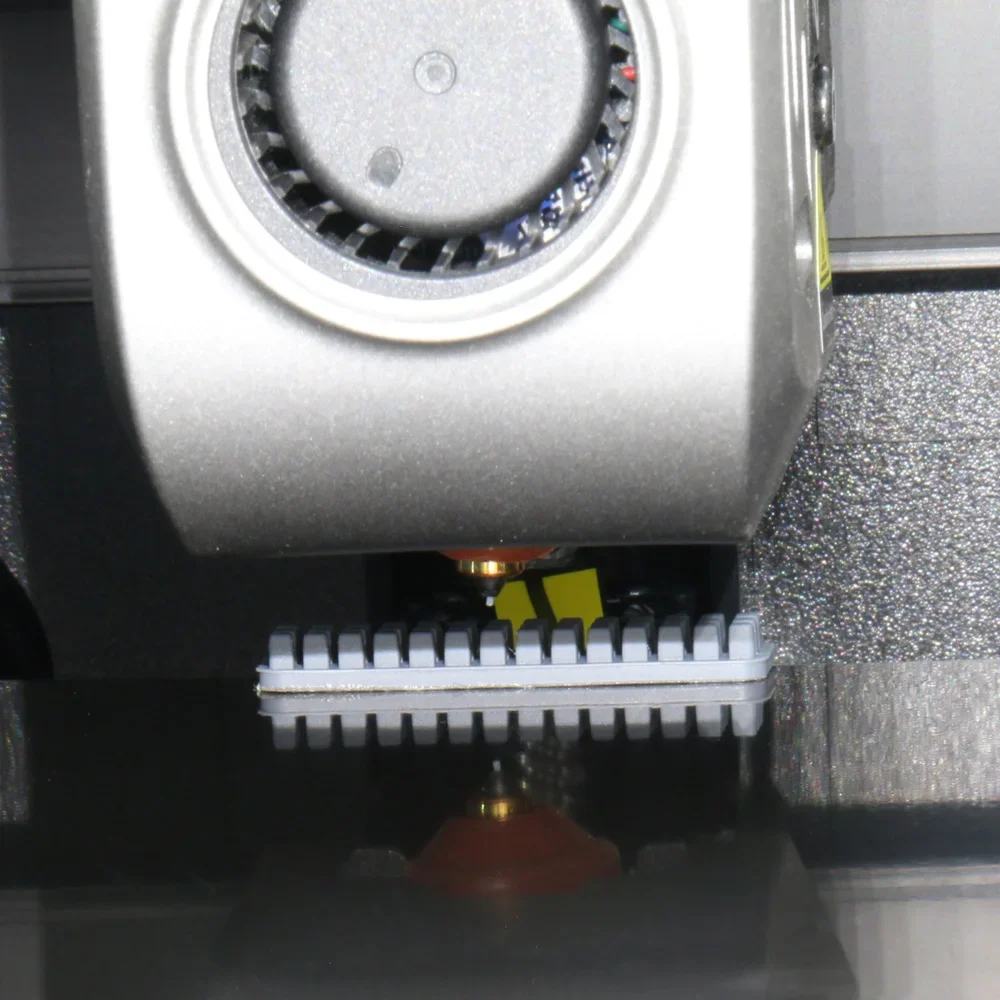

Modify the slicing software script to drive the machine to brush the cleaning brush before printing. Take K1 MAX as an example
Modify the position of the starting G code of the slicing software
Change
M140 S0
M104 S0
START_PRINT EXTRUDER_TEMP=[nozzle_temperature_initial_layer] BED_TEMP=[bed_temperature_initial_layer_single]
To
M140 S0
M104 S0
START_PRINT EXTRUDER_TEMP=[nozzle_temperature_initial_layer] BED_TEMP=[bed_temperature_initial_layer_single]
G1 Z10 Y305 X120 F3000 ; Go down
G1 Z4 F3000 ; go down G1 X170 F9000 G1 X120 F9000 G1 X170 F9000 G1 X120 F9000 G1 280F9000
