FTTH Tool Fiber Optic OPM Optical Power Meter Visual Fault Locator VFL 5/15km RJ45 Tester Cable Tracker Mini Red Fiber Pen
1.Buyer is responsible for the customs duty and local import taxes etc. The price here not includes the destination fee in buyer's side.
2.Important: Dear Brazil customer, please leave your CPF or CNPJ number after placing the order
3.For some special countries, like Brazil, Mexico, E-packet and China Post delivery time may be around 20-90 days
Bulk purchases please contact with us,we are factory have the best price for you.

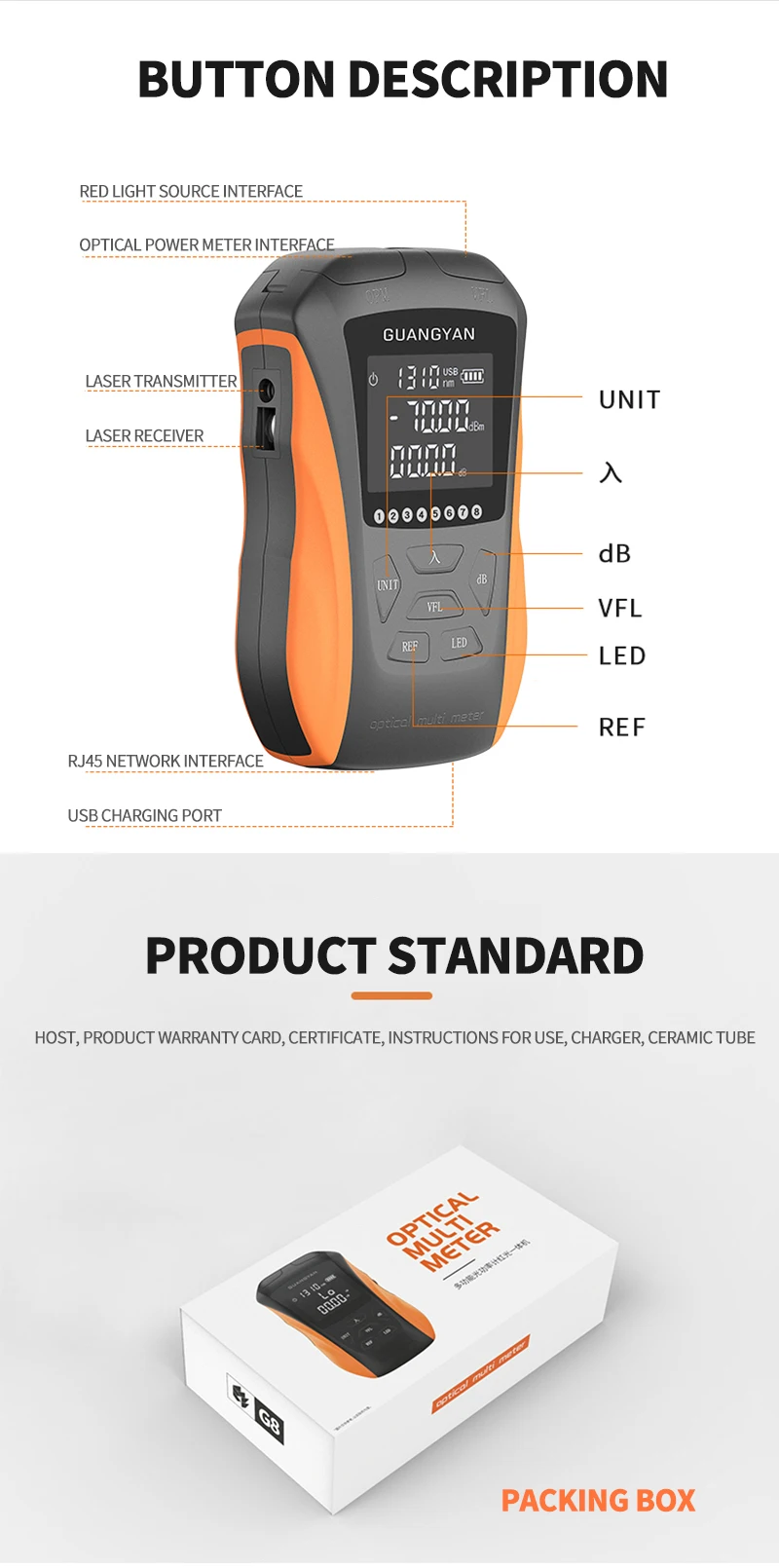

(4 IN 1)
Features:
1. Auxiliary lighting function: the main and auxiliary computers are equipped with LED lighting lights, and you can use the lighting with one button without turning on the machine.

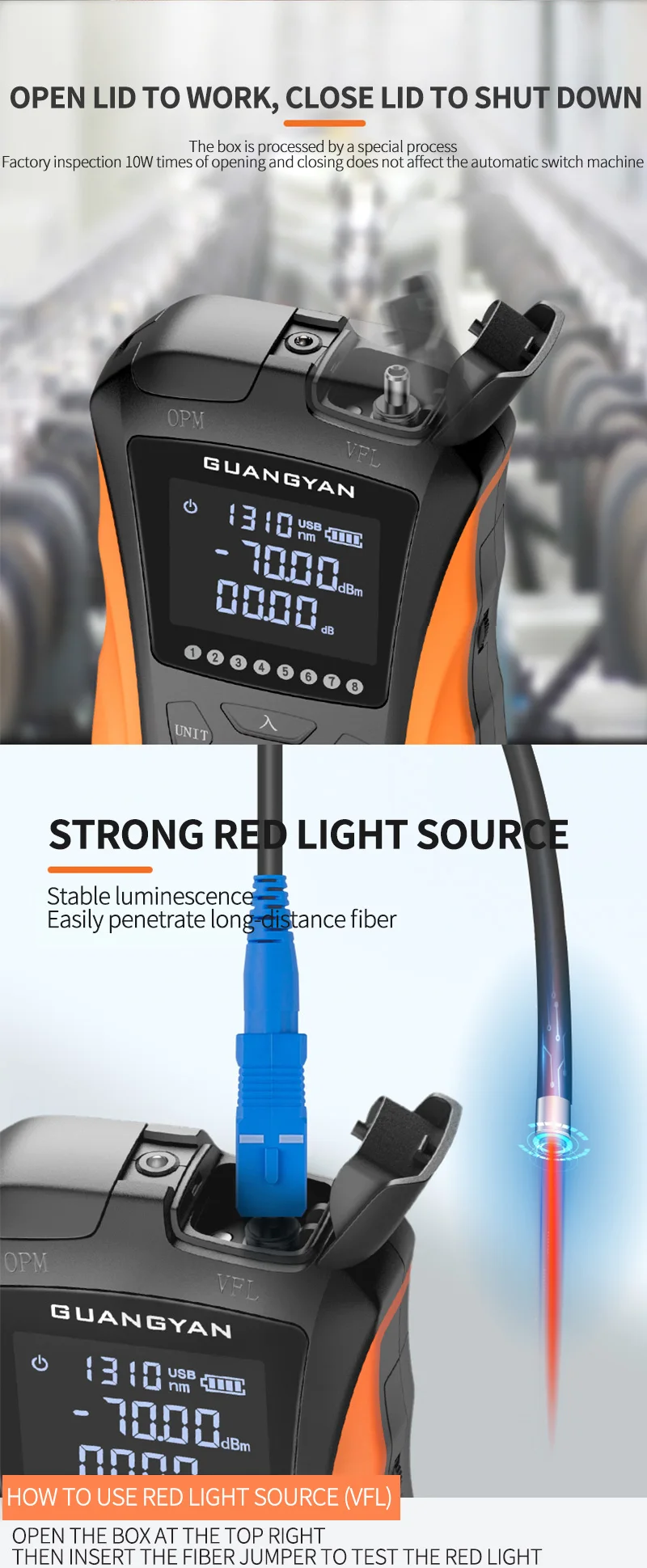

2. Powerful red light source: open the top right cover and insert the fiber jumper to test the red light. The light is stable, and it can easily penetrate the long-distance fiber.
3. Optical power detector: open the top left cover and insert the jumper to test. High precision, measurement error is less than 0.2dB (can be manually calibrated).
4. RJ45 pairing function: lightly press the button on the back of the main unit to take out the right side auxiliary unit. The main and auxiliary computers are plugged into the network cables, and they will automatically start to line up after turning on.

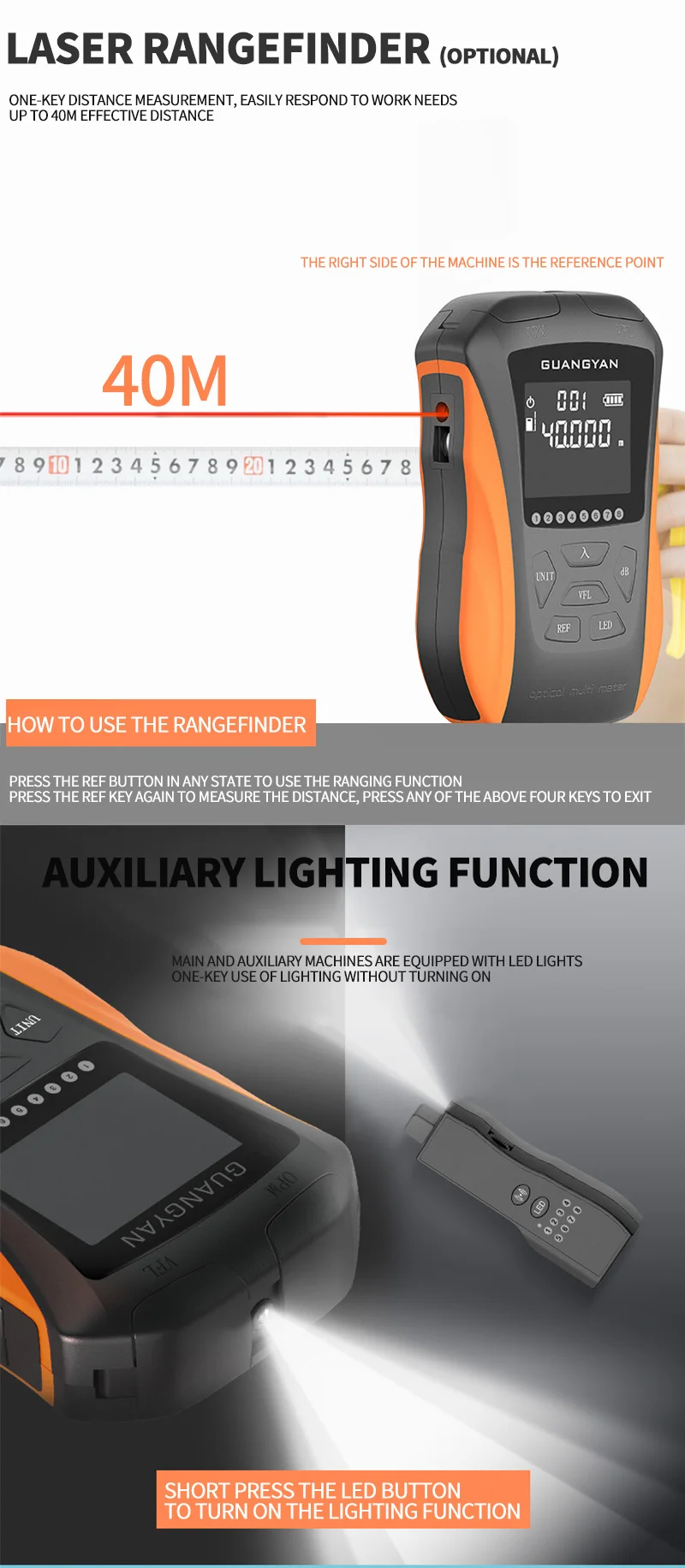

5. Laser rangefinder: press the REF key in any state to use the rangefinder function. One-key ranging, easily cope with the effective distance of up to 40 meters required for work.
Description:
This all-in-one machine integrates optical power meter, red light pen, alignment function, LED lighting and other functions in one, which is very practical.
Specifications:
Input voltage: 3~6v
Size: 115*71*30m
Battery capacity: 1100mah included)
Interface: Support SC/FC/ST interface
Measuring range: 5 km (-70 ~ + 3BM)
Package Included:
1 pc * Multifunction Power Meter(battery included)
(5 IN 1)
Features:

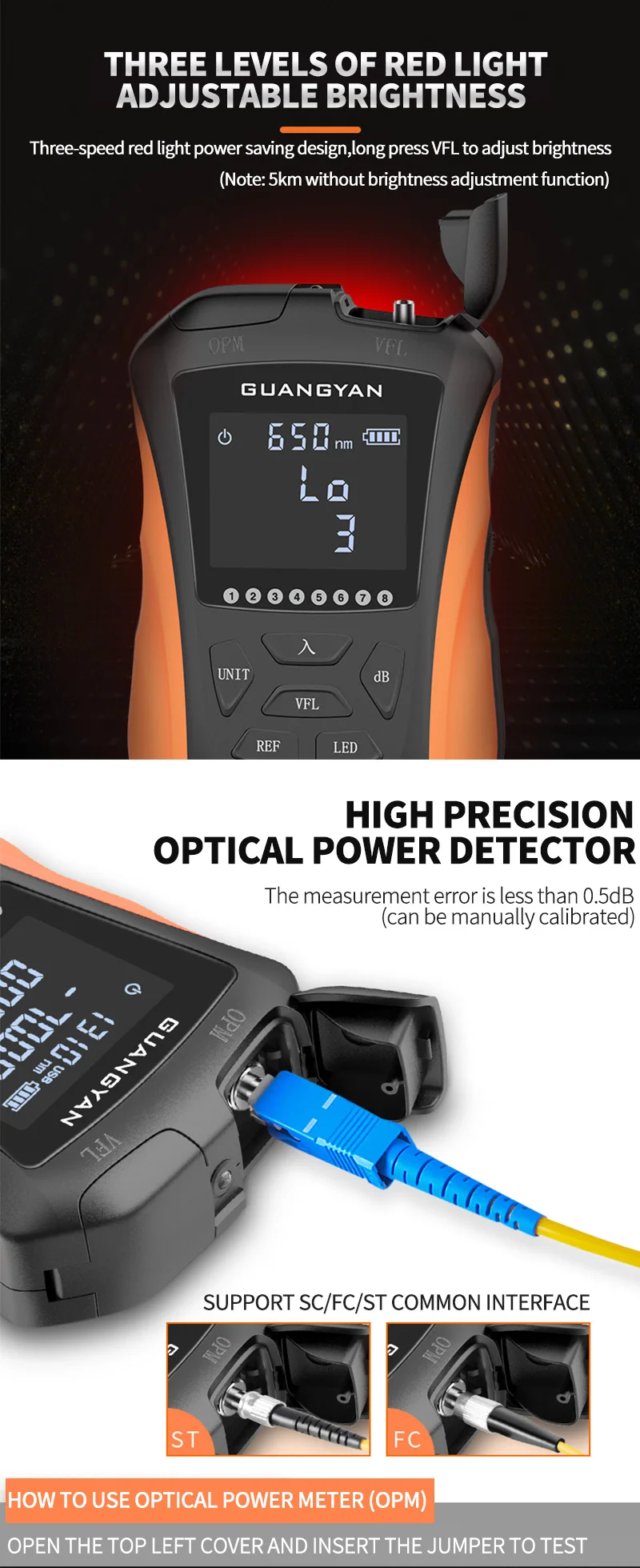

1. Three levels of red light: adjustable brightness, three levels of red light power saving design, long press VFL one key to adjust the brightness (Note: 5 kilometers without brightness adjustment function)
2. High-precision optical power detector: the measurement error is less than 0.5dB (can be manually calibrated). Support SCFCST common interface

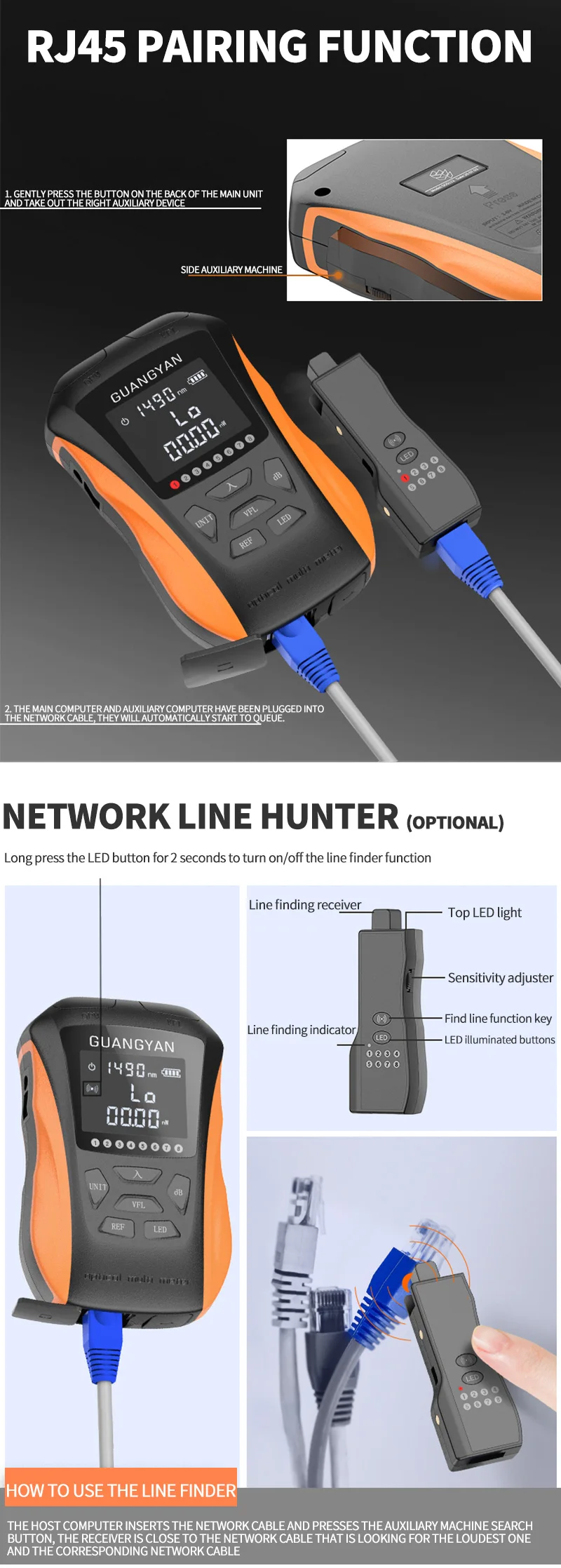

3. RJ45 alignment function: lightly press the button on the back of the main unit, take out the auxiliary machine on the right side, plug the main and auxiliary machines into the network cable, and automatically start the alignment after power on.
4. Auxiliary lighting function: the main engine and the auxiliary computer are equipped with LED lights, so you can use the lighting without turning on the computer.

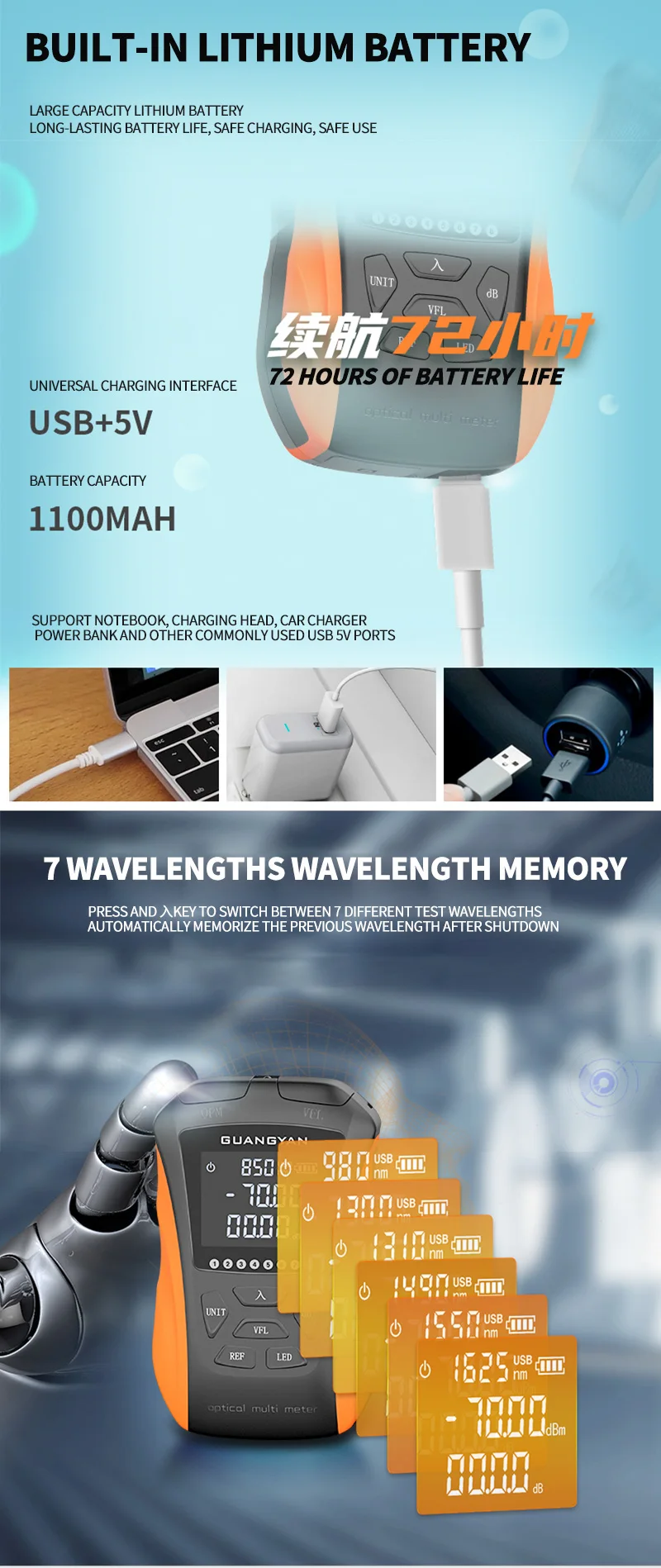

5. 7 wavelengths: support wavelength memory, press the key to switch 7 different test wavelengths, and automatically memorize the previous wavelength when it is turned off.

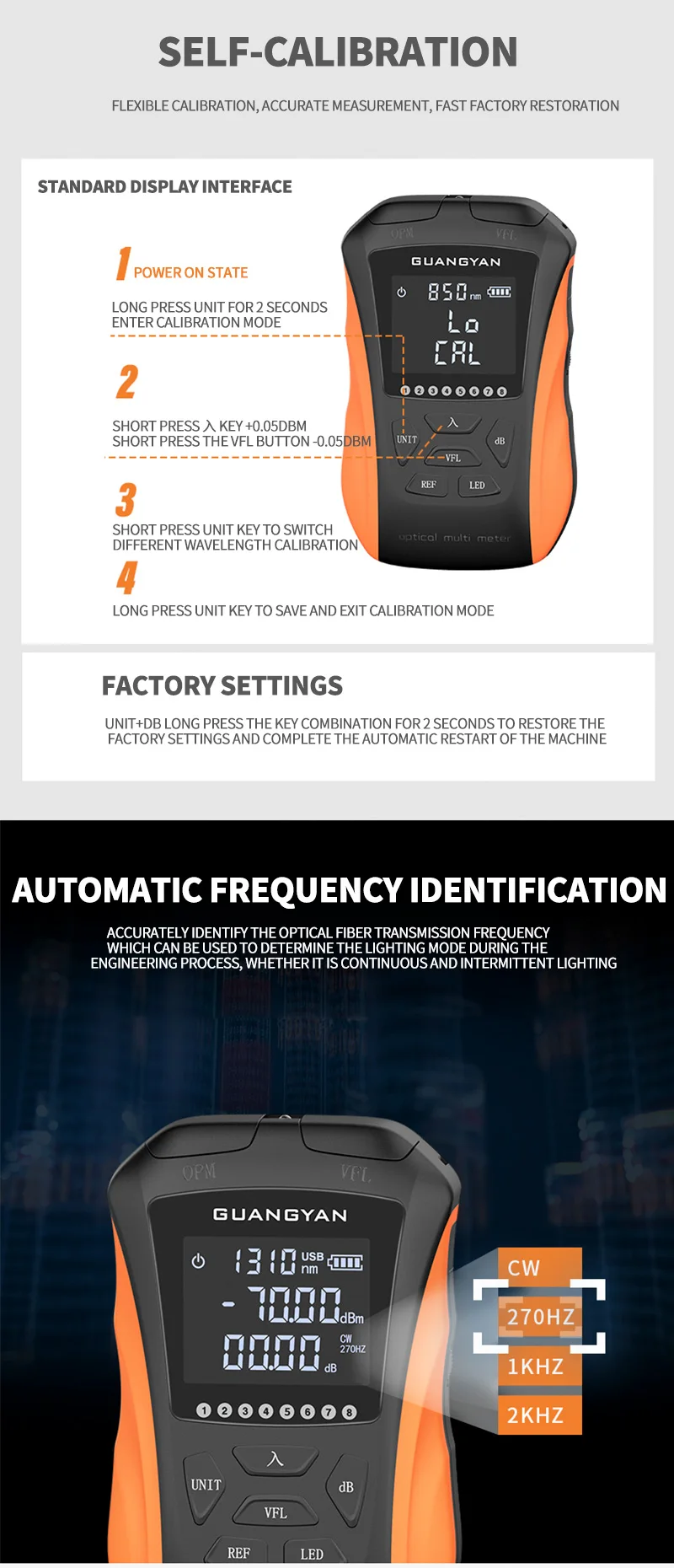

6. Frequency automatic recognition: Accurately identify the optical fiber transmission frequency, which can be used to determine the lighting method during the construction process, whether it is continuous and intermittent.
Description:
The optical power meter has a strong red light, supports network tracking, laser ranging, LED lighting, and network testing.

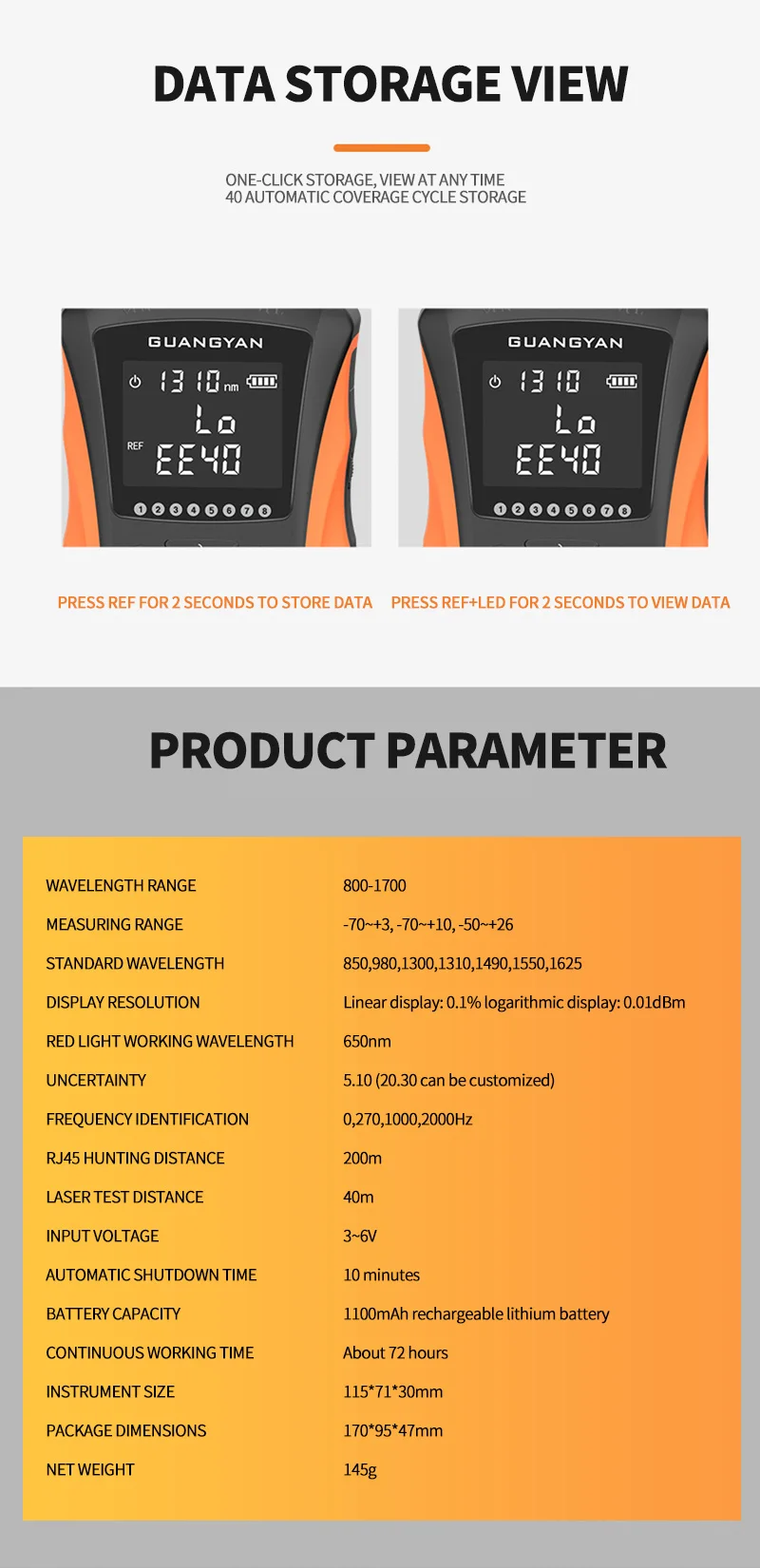

Specifications:
Charging interface: USB+5V
Wavelength range: 800~1700
Measuring range: -70~+10
Standard wavelength (nm): 850, 980, 1300, 1310, 1490, 1550, 1625
Display resolution: linear display: 0.1%, logarithmic display: 0.01dBm
Red light working wavelength: 650nm
Uncertainty: ±5%
Red light power: 5, 10 (20, 30 can be customized)
Frequency identification: 0, 270, 1000, 2000Hz
RJ45 tracking distance: 200 meters
Laser ranging distance: 40 meters
Input voltage: 3~6V
Automatic shutdown time: 10 minutes
Battery capacity: 1100mAh rechargeable lithium battery
Continuous working time: 72 hours (single power measurement)
Instrument size: 115*71*30mm
Distance: 15km
Package Included:
1* Host
1* Certificate
1* Instructions
1* Charging Cable
1* Ceramic Tube

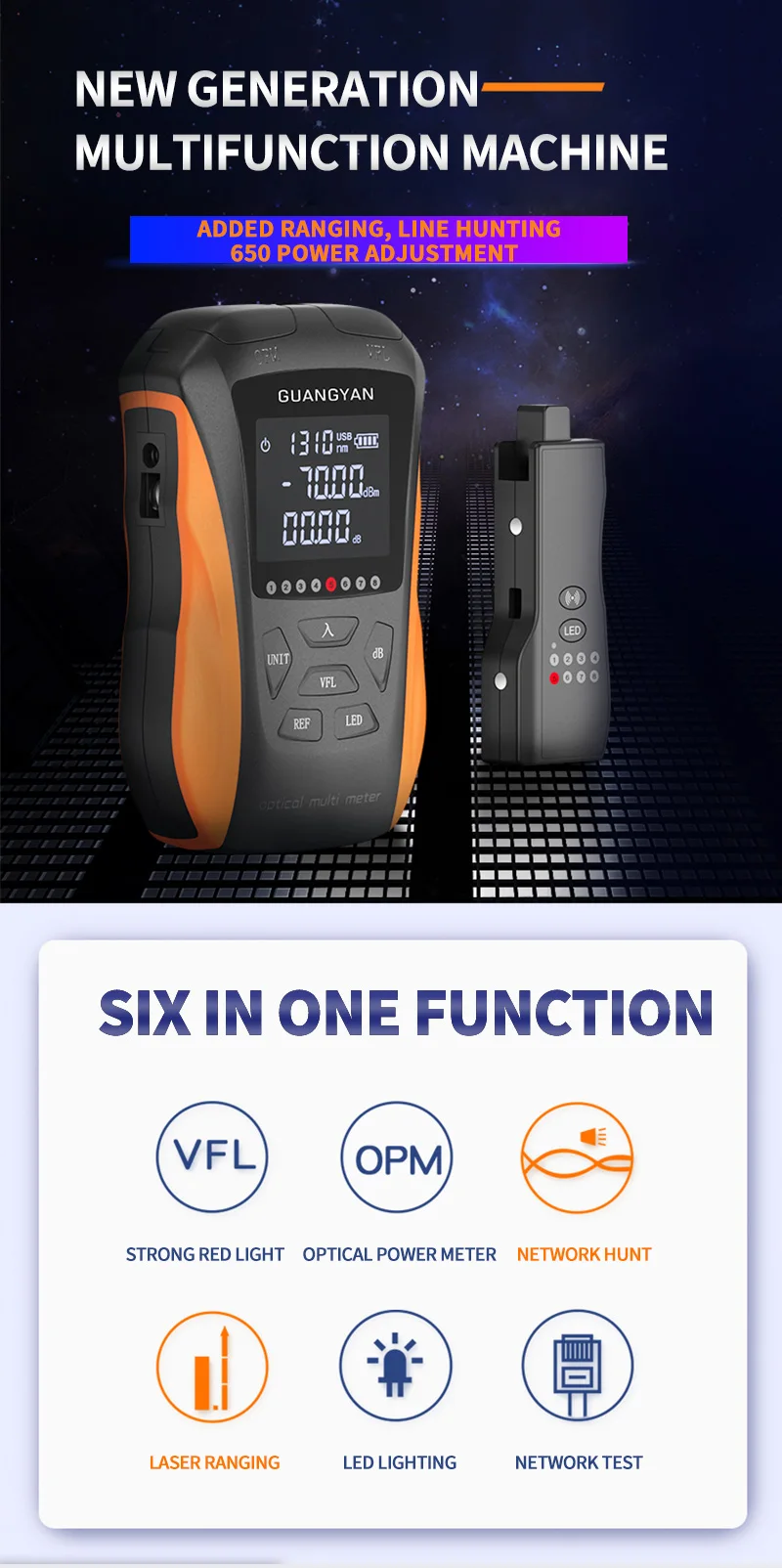

(6 IN 1)
Features:
1. Three levels of red light: adjustable brightness, three levels of red light power saving design, long press VFL one key to adjust the brightness (Note: 5 kilometers without brightness adjustment function)
2. High-precision optical power detector: the measurement error is less than 0.5dB (can be manually calibrated). Support SCFCST common interface
3. RJ45 alignment function: lightly press the button on the back of the main unit, take out the auxiliary machine on the right side, plug the main and auxiliary machines into the network cable, and automatically start the alignment after power on.
4. Auxiliary lighting function: the main engine and the auxiliary computer are equipped with LED lights, so you can use the lighting without turning on the computer.
5. 7 wavelengths: support wavelength memory, press the key to switch 7 different test wavelengths, and automatically memorize the previous wavelength when it is turned off.
6. Frequency automatic recognition: Accurately identify the optical fiber transmission frequency, which can be used to determine the lighting method during the construction process, whether it is continuous and intermittent.
Description:
The optical power meter has a strong red light, supports network tracking, laser ranging, LED lighting, and network testing.
Specifications:
Wavelength range: 800~1700
Measuring range: -70~+10
Standard wavelength (nm): 850, 980, 1300, 1310, 1490, 1550, 1625
Display resolution: linear display: 0.1%, logarithmic display: 0.01dBm
Red light working wavelength: 650nm
Uncertainty: ±5%
Red light power: 5, 10 (20, 30 can be customized)
Frequency identification: 0, 270, 1000, 2000Hz
RJ45 tracking distance: 200 meters
Laser ranging distance: 40 meters
Input voltage: 3~6V
Automatic shutdown time: 10 minutes
Battery capacity: 1100mAh rechargeable lithium battery
Continuous working time: 72 hours (single power measurement)
Instrument size: 115*71*30mm
Distance: 15km
Package Included:
1* Host
1* Certificate
1* Instructions
1* Charging Cable
1* Ceramic Tube
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
