Universal Garage Door Opening Receiver USB Sensor 2.4G Bluetooth 12 24V Remote Control Car Wireless Transmitter Receiver Gate

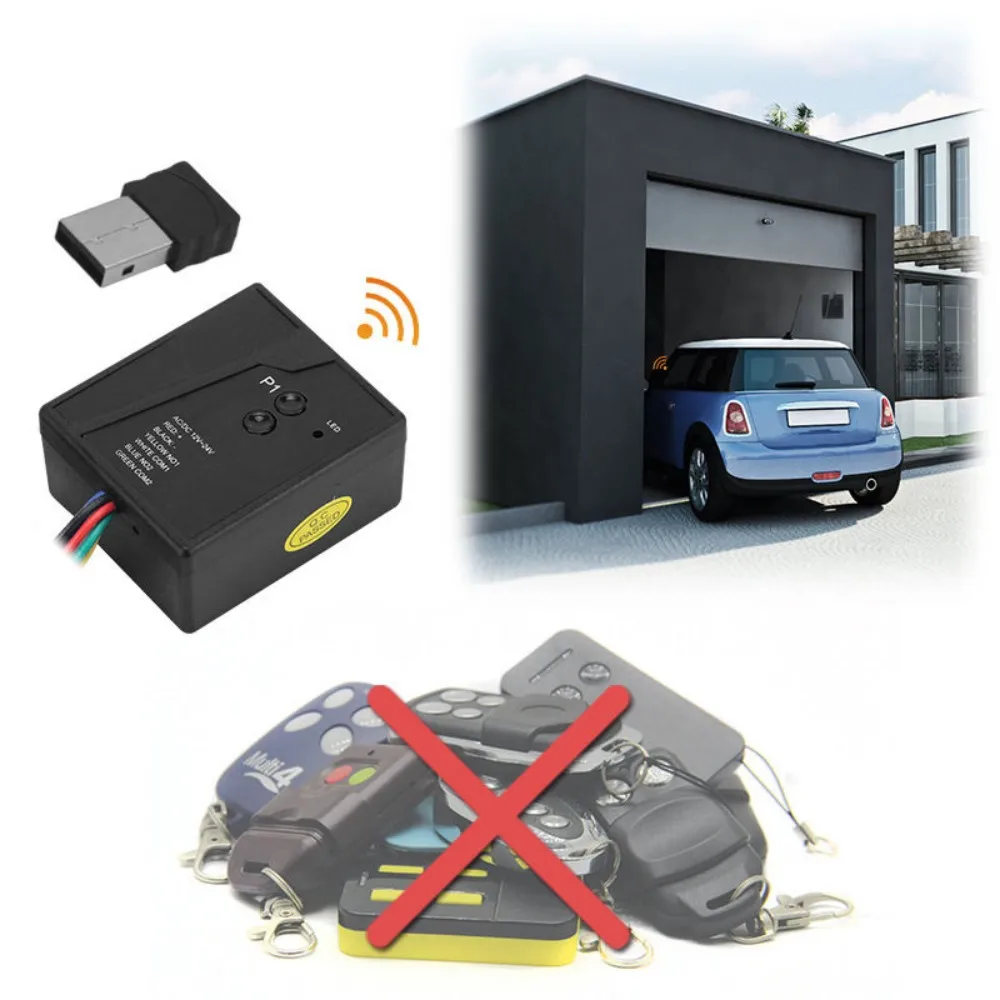

This device is Access Control System. It has a USB transmitter and wireless receiver. Connect the USB transmitter to your car's interface and connect the wireless receiver to your automatic gate opener. The door will open automatically when the car drives towards the door. It's hands-free and you don't need extra remote control or smartphone to control the door.
Specification
1. Channel: 2-CH
2. Frequency: 2.4G
3.Working Voltage for receiver: AC/DC 12-24V
4.Working Current for receiver: 18mA ± 2
5. Working Voltage for USB plug: DC 5V
6 Working current for USB socket: 1mA ± 0.5
7. Number of USB socket memory: 340pcs
8. Distance: 10m when inserting the USB socket into the car
How to do the program:
How to Code USB Sticker to Receiver
1. Learning Code: Press P1 button once on the receiver, then the USB sticker will code on the receiver as it supplies power to it. The LED flashes twice if the code is successful. Press the button again to exit learning mode or recode if unable to code. Each receiver can encode 340 USB plug at most.
2. Delete code: Hold the P1 button 5S, all code will be deleted when the LED flashes five times, then release the button.

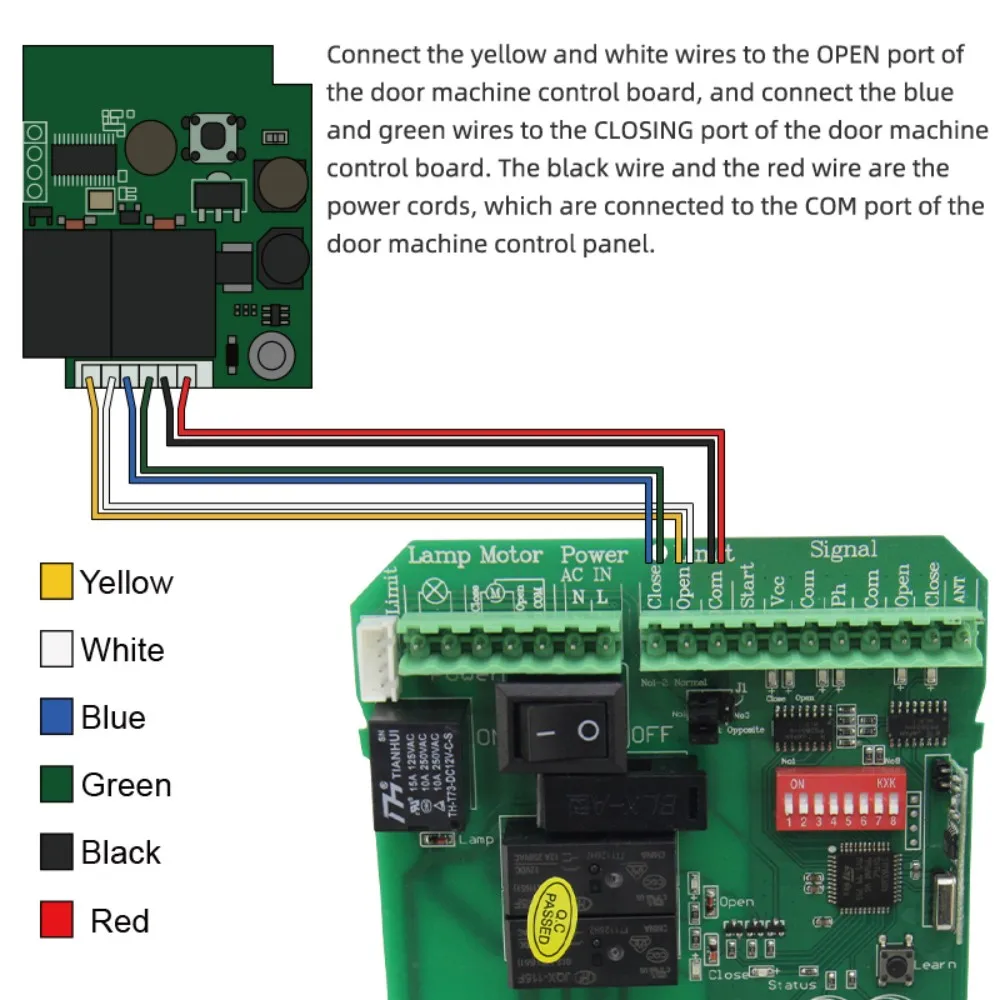

How to connect the wire and control the gate
The yellow line and white line are for the first channel. The blue line and green line are for the second channel. When supplying power to the USB plug, the first channel will be on and the port will be open.
If the gate motor has an automatic closing function, you do not need to use the second channel. If the gate motor does not have automatic closing function, you can connect the second channel and the door will close after 10s, disconnecting the power to the USB plug. Or the gate will close automatically when the car is not in the detection distance.
applications
This USB receiver and plug can be used for sliding gate motor, swimming gate motor, garage door and boom barrier. People can install the receiver on their gate motor and match the code of the receiver and the USB plug. When people drive their car with USB plug inserted into the charging port, the door will automatically open within 10 meters. The door will close automatically after the car enters the gate if the gate motor has the automatic closing function.
