Gigabit 100/1000M Mini Media Converte SFP SC Fiber Rj45 Port A/B Optic Transceiver 3km fibra Ethernet Switch With Power Supply

SKU: 1005005951953769

Original price was: $27.51.Current price is: $7.86.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

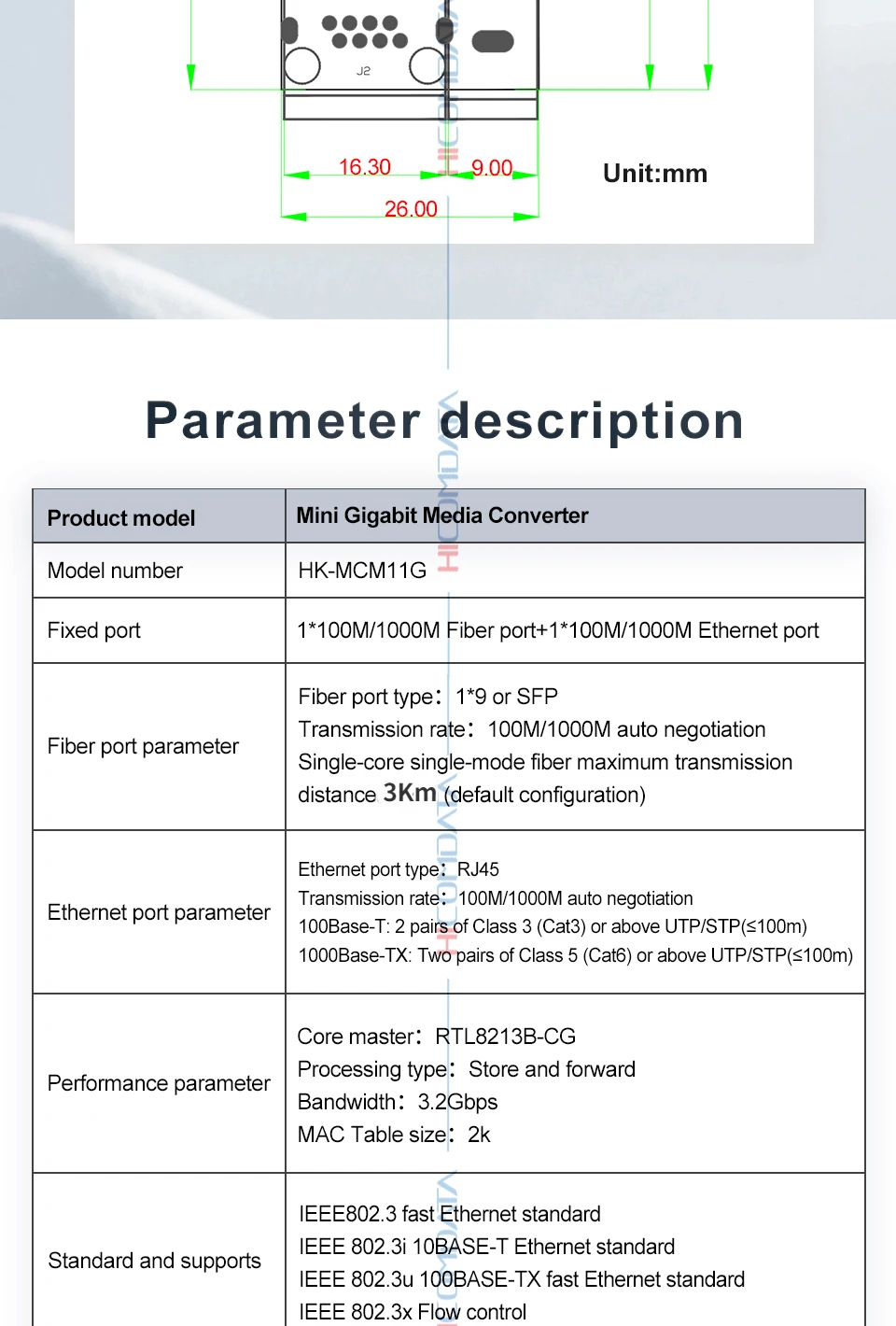

Description

Model number

HK-MC11GM

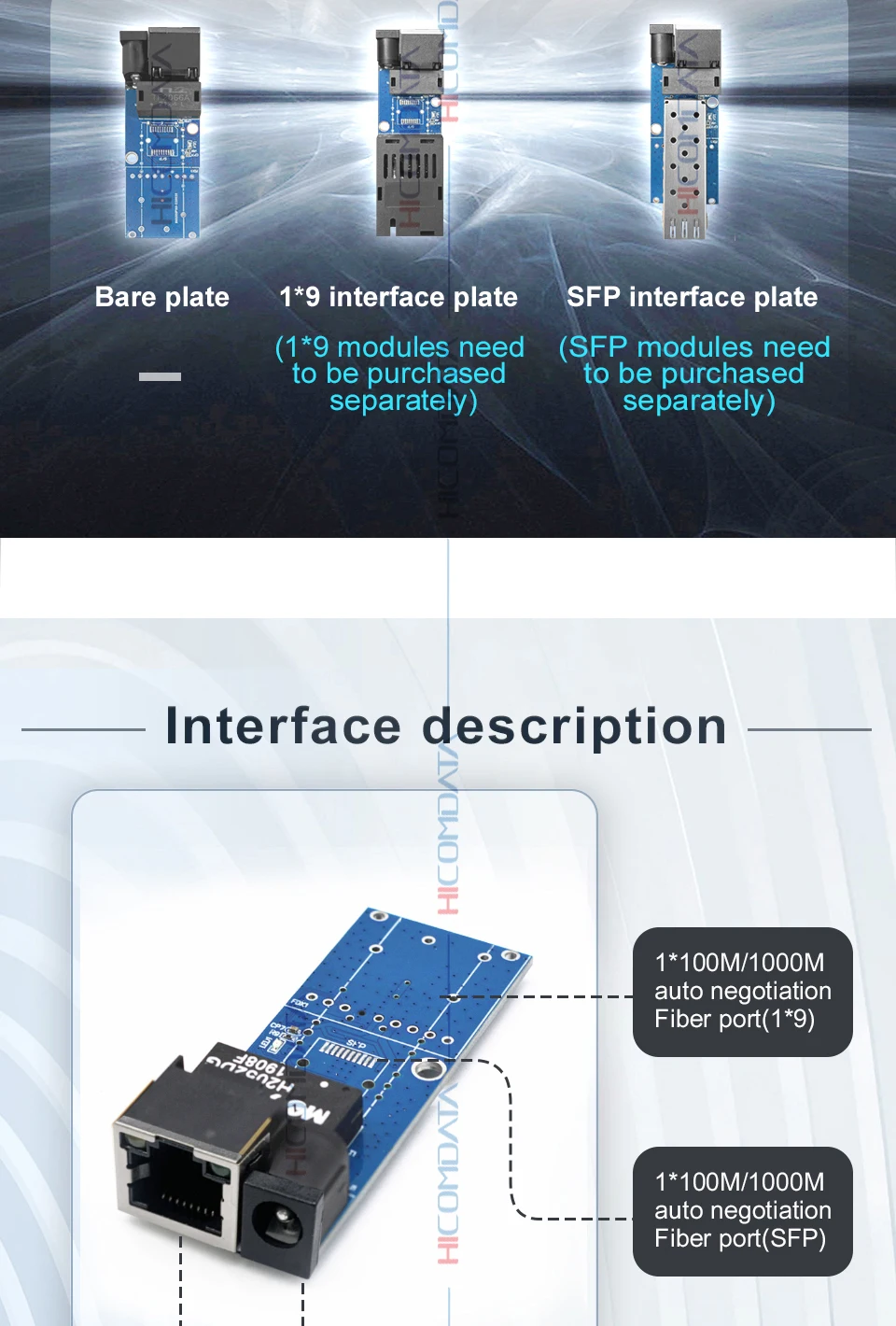

Fixed port

1*100M/1000M Fiber port+1*100M/1000M Ethernet port

Fiber port parameter

Connector: 1*9 module or SFP slot
Transmission rate:100M/1000M auto negotiation
Optical Wavelength: 1310nm
Distance: 500m～3km

Ethernet port parameter

Connector:RJ45
Transmission rate:100M/1000M auto negotiation
100Base-T: 2 pairs of Class 3 (Cat3) or above UTP/STP(≤100m)
1000Base-TX: 2 pairs of Class 5 (Cat6) or above UTP/STP(≤100m)

Performance parameter

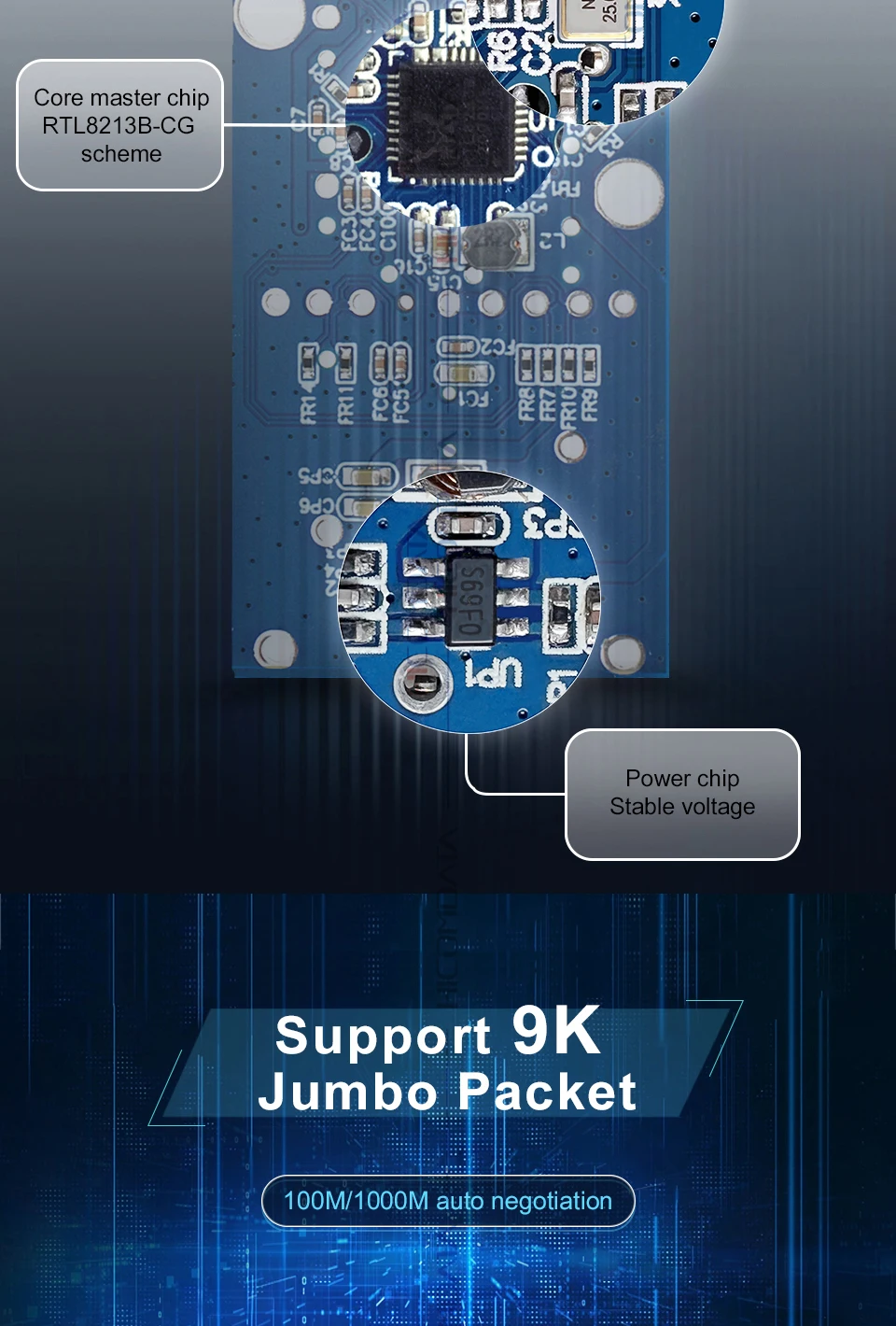

Core master:RTL8213B-CG
Forwarding mode: Store and forward
Bandwidth:3.2Gbps
MAC Table Size:2K

Standard and supports

IEEE802.3 fast Ethernet standard
IEEE 802.3i 10BASE-T Ethernet standard
IEEE 802.3u 100BASE-TX fast Ethernet standard
IEEE 802.3x Flow control

Default system mode

Gigabit Media Converter

Data rate

Fast Ethernet 1000Mbps full-duplex, 100Mbps full-duplex

Input Voltage

DC 5V-12V

Use environment

Working Temperature:-20℃～75℃

Storage temperature :-40℃～85℃

Working Humidity :10%～90% RH non-condensing

Storage Humidity:5%～90% RH non-condensing

Physical specification

Product size:68mm*36mm*22mm(L*W*H)

Weight

Bare machine 0.04kg

Finished product 0.08kg
