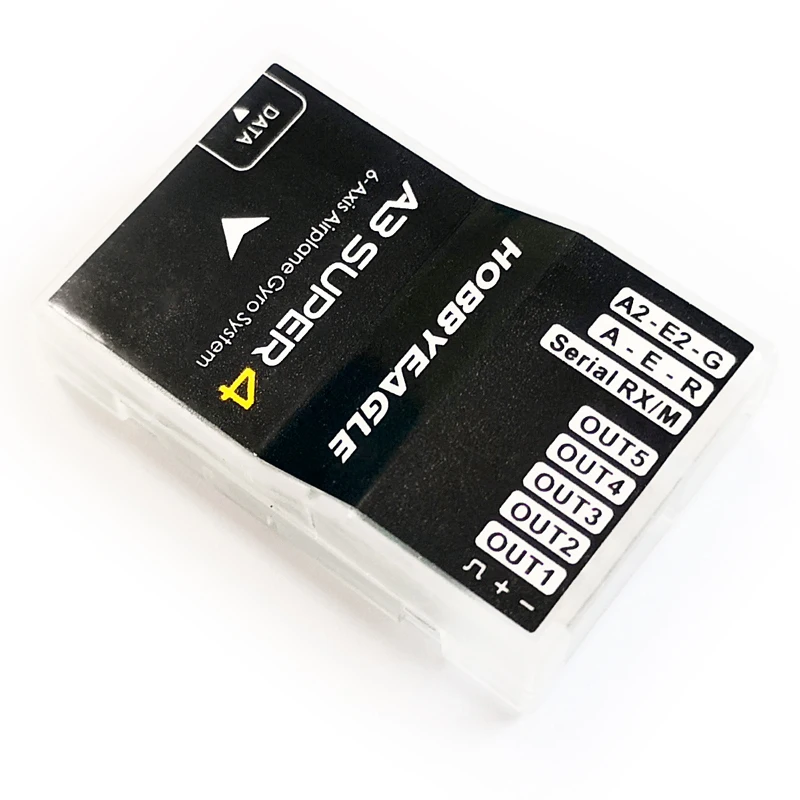

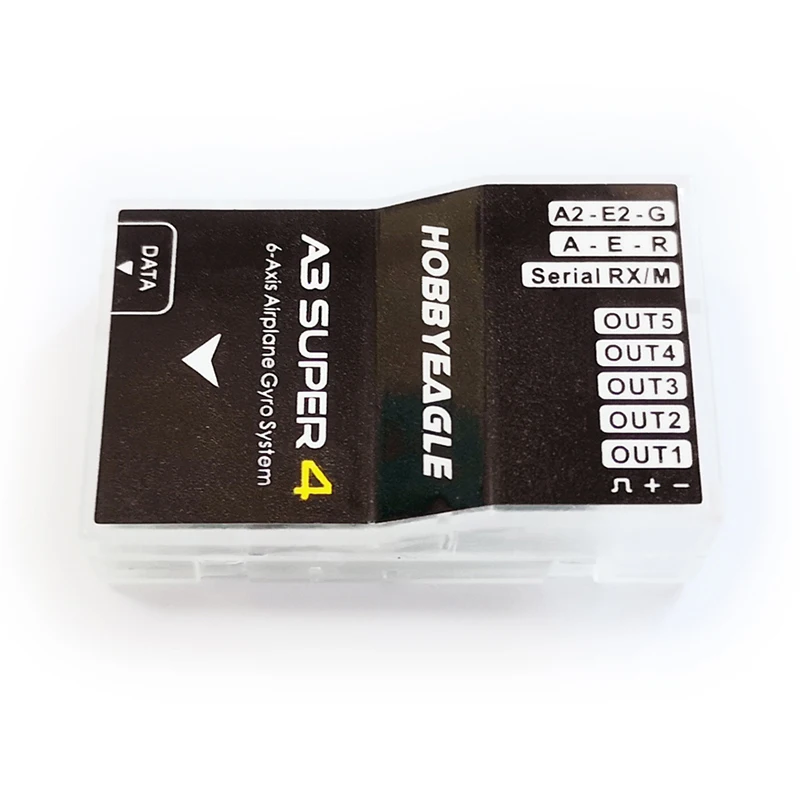

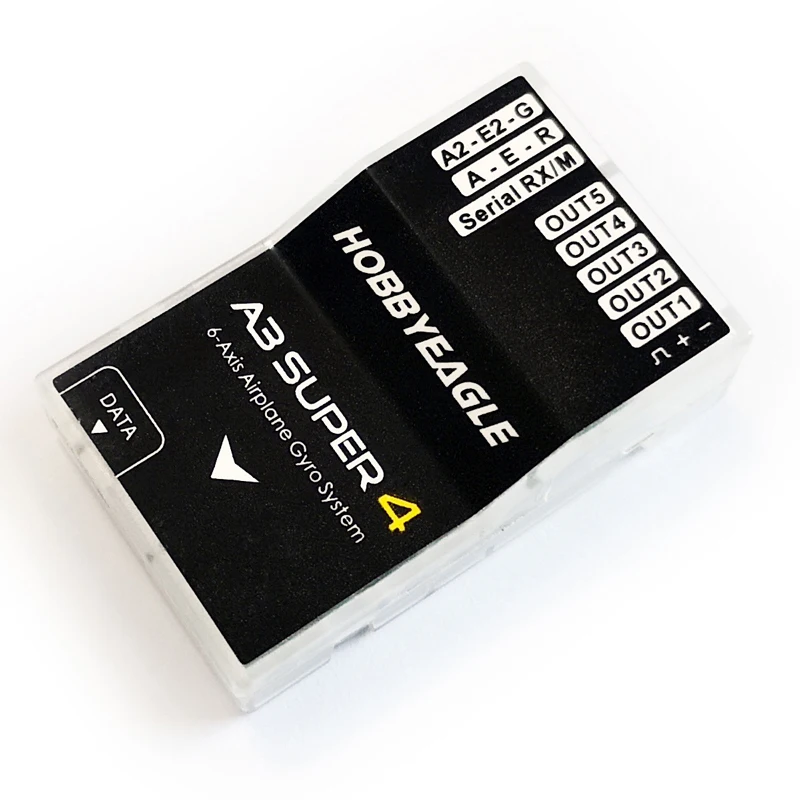

Item: Hobbyeagle A3 Super4 A3S4 Flight Controller
Parameters:
The A3 Super 4 it is a high-performance and powerful 6-axis gyroscope and balancer specially designed for fixed-wing aircraft models. On the basis of the previous generation, the hardware design is further improved, and the full support for multi-protocol digital serial receivers and the addition of customizable output interfaces make it more user-friendly and more reliable in use.
*32-bit processor, high-precision 6-axis MEMS sensor, Perfect hardware design and stable firmware for more reliable performance
*6 flight modes and 6-stage mode switching, including gyro off mode, normal stabilization mode, lock mode, angle mode, balance mode and hoist mode
*Full support for PWM, PPM and multi-protocol digital serial receivers
*Flexibly configurable output interface, providing 2 pass-through output channels
*Dual ailerons, dual elevator systems, built-in flying wing (delta wing) and V-tail mixing
*Remote overall gain adjustment
*Firmware can be upgraded, support setting card parameter adjustment
Specifications:
Material: ABS
Color: black
Size: 30*19.5*7.5mm
Main Controller: 32-bit MCU
Sensor: high-precision 6-axis MEMS sensor
Input Voltage: DC3.6V ~ 8.4V
Working current: 20mA@5V
Weight: 4.8g (excluding wires)
Notice: There is a copy of the imitation A3 flight control on the market, please pay attention to the model friends! We sell 100% authentic, S / N code can be inquired, the product is stable, reliable, safe! To ensure your flight safety, please choose genuine!
-
Package Included:
-
1 x A3 Super 4 Airplane Gyro Flight Controller Stabilizer
1 x Voltage Protector
1 x Programming Card
1 x USB Cable
1 x USB Adapter
1 x External LED module +1 x Connecor Cable
3 x Receiver Wires
4 x Tape Stickers
