MS7-H550-Pro

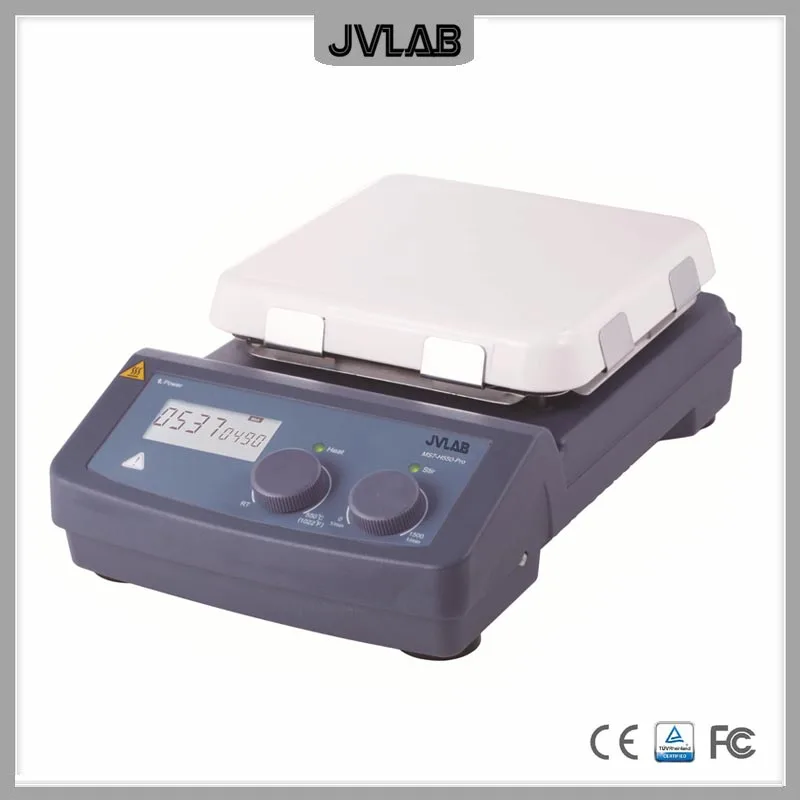

LCD Digital Magnetic Hotplate Stirrer
JVLAB 550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.
LCD Digital Magnetic Hotplate Stirrer
JVLAB 550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.
Features
- LCD display for precise monitoring of speed and temperature.
- Built-in PID controller ensures safe heating of the medium with overheating protection.
- Max. heating plate temperature 550°C.
- Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.

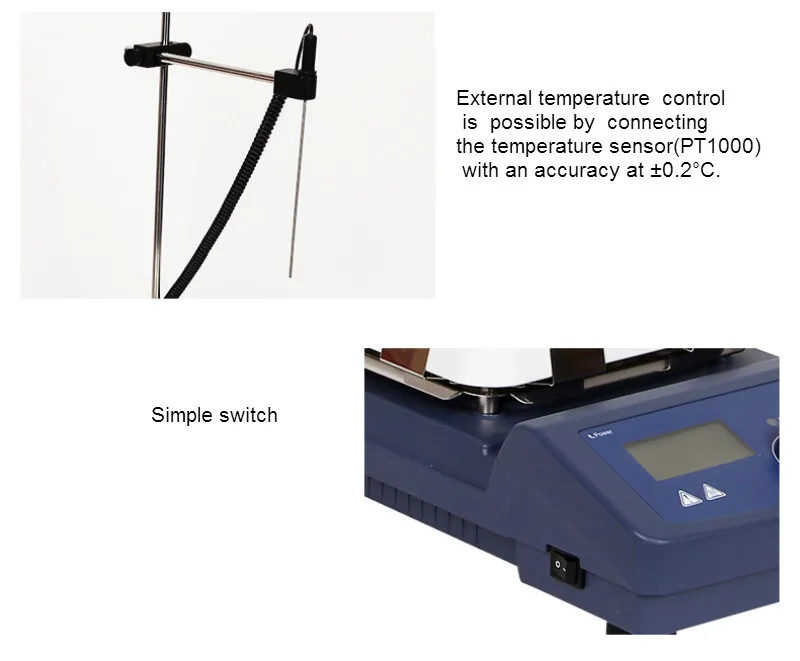

- External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C.
- Digital speed controlling, max. speed at 1500rpm.
- Outstanding brushless DC motor enables more stirring power.
- Two rotating knobs enable easy adjustment of speed and temperature.
- The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
- Remote function provides PC control and data transmission.
Main Parameter
Work plate Dimension [W x D]: 184x184mm (7 inch)
Work plate material: Glass ceramic
Motor type: Brushless DC motor
Motor rating input: 18W
Motor rating output: 10W
Power: 1050W
Heating output: 1000W
Voltage: 100-120/200-240V 50/60Hz
Stirring positions: 1
Max. stirring quantity, [H2O]: 20L
Max. magnetic bar[length]: 80mm
Speed range: 0-1500rpm
resolution: ±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room Temp.-550°C,increment 1°C
Temperature control accuracy: ±1 °C (<100°C) ±1%(>100°C)
Overheating protection: 580°C
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000 (accuracy ±0.2)
“Hot” warning: 50°C
Data connector: RS232
Protection class IP21
Dimension [WxDxH]: 215x360x112mm
Weight: 5.3kg
Permissible ambient temperature and humidity:5-40°C, 80%RH
About accessories

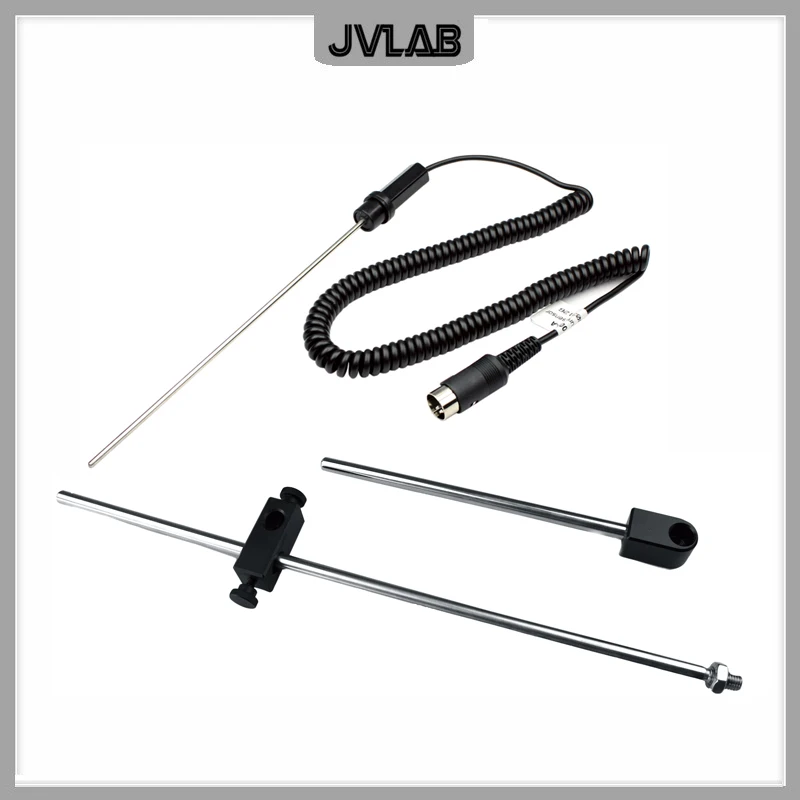

This product come with temperature sensor and support clamp for free, But it does not include the beaker, please pay attention when purchasing.
