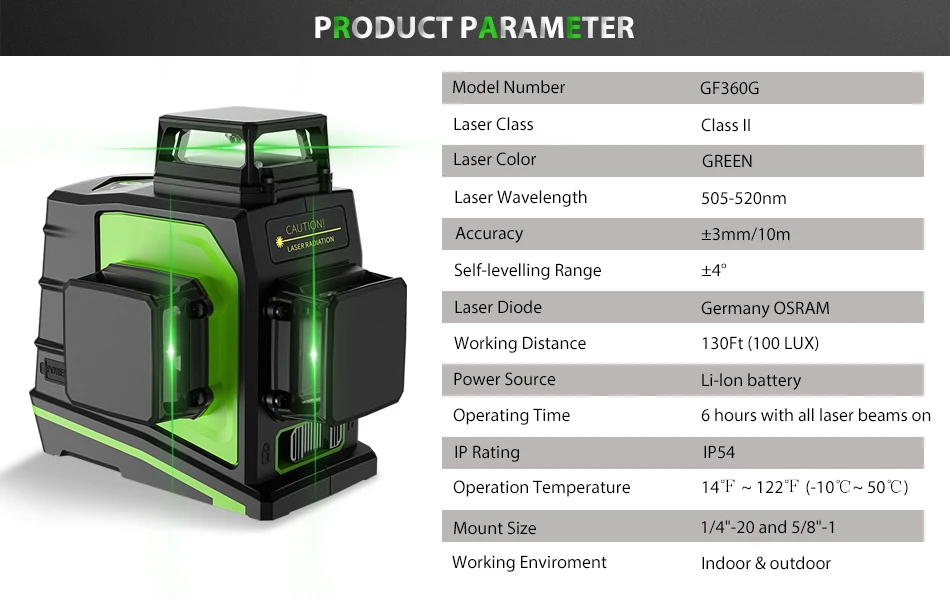

GF360G 3 x 360 Green Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Leveling Accuracy: ±1/9 inch at 33Ft

Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.

Leveling/Compensation Range: ±4°

Working Distance: 130Ft (100 LUX)

Operating Time: 6 hours with all laser beams on

Power Source: Li-ion battery

IP Rating: IP54

Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)

Mount Size: 1/4"-20 and 5/8"-1

WARNING:

Avoid direct exposure of the laser beam to the eyes.

Warning:
Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

Items in the Package:

1 x Huepar GF360G 3D Cross Line Laser Level

1 x Rechargeable Li-ion Battery

1 x Battery Charger&1 x Power adapter

1 x USB power cord

1 x Magnetic Pivoting Base

1 x Laser Target Plate

1 x User Manual

1 x Portable Bag

Features：

3 x 360° Multiple Line Switching Functions

This laser level projects three green beam laser lines in 360° laser planes – one horizontal and two vertical, so that users can accurately and quickly execute level, align, square and plumb applications

Users can employ the three independent 360° planes independently or together with the press of a button

Self-leveling Mode & Manual Mode

Self-leveling Mode: When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.The laser beam will flash when the tool is beyond self-leveling range 4° ± 1°

Manual Mode:When the pendulum locked, the laser tool can be placed for alignment at any angle.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

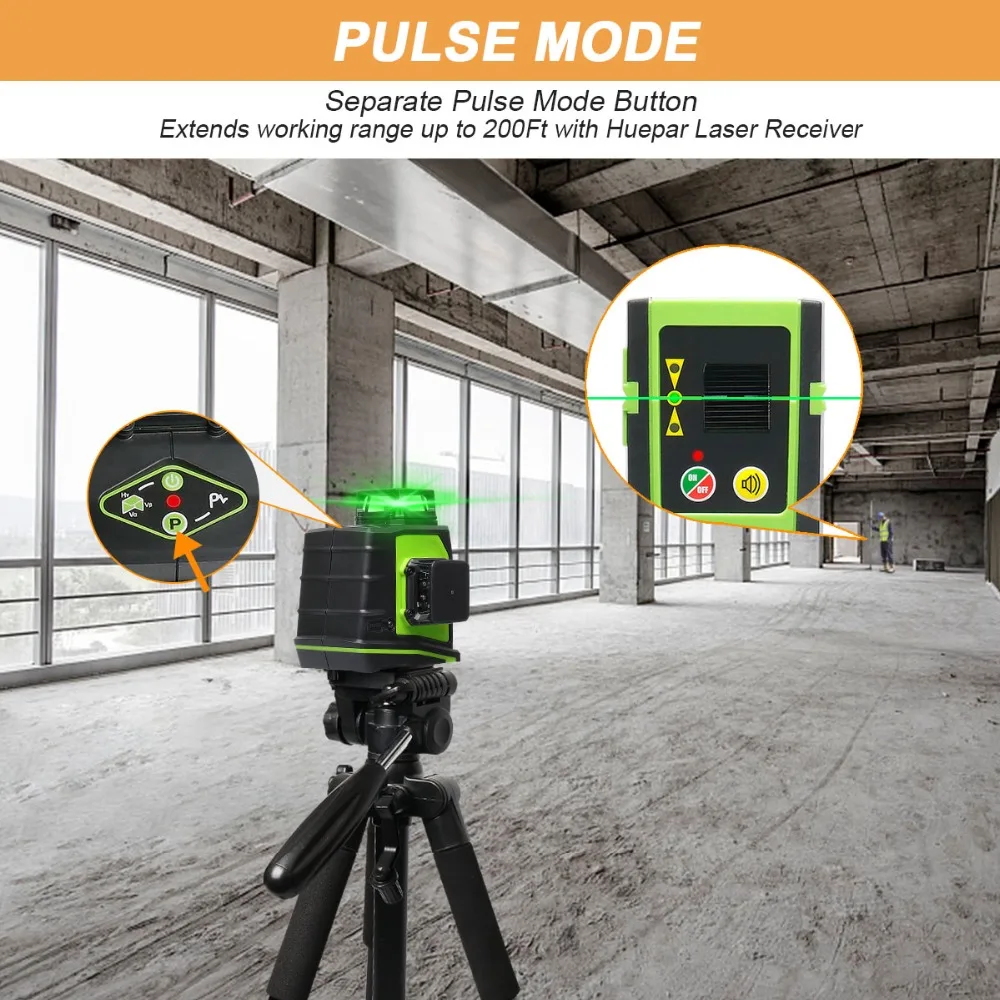

Pulse Mode

Turn ON the pulse mode:After power ON, short press the independent button "P" on the keypad to turn on the pulse mode.Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Detector (ASIN: B07L6FP48S).When the pulse mode is activated,the laser beams will become dimmer.It is compatible with Huepar LR-6RG / LR-5RG Line Laser Detector only. Keep the pulse mode on when using with a receiver.

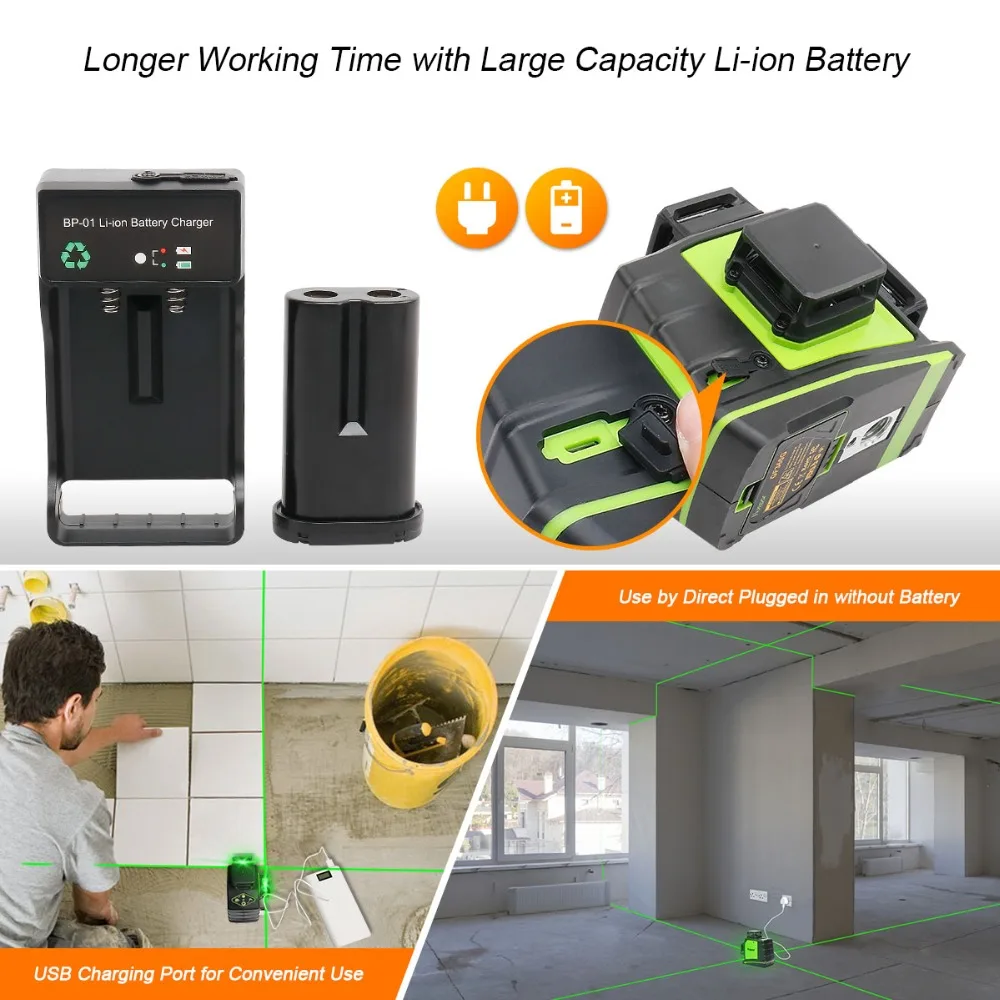

Dual Power Method

The level tool can be used at job site by plugged in directly even if take out the battery.Users can charge the battery independently with the battery charger.With USB charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.This laser level adopts rechargeable large capacity Li-ion battery.

Multiple Ways of Positioning

This laser level comes with180°Magnetic L Mount with tripod thread of 5/8-11-Inch and 1/4-20-Inch that has strong magnets to attach to steel studs, useful for turning it around at 180 degree horizontally and being fixed on tripod.

Two Mount Sizes:1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.

Easy to Use

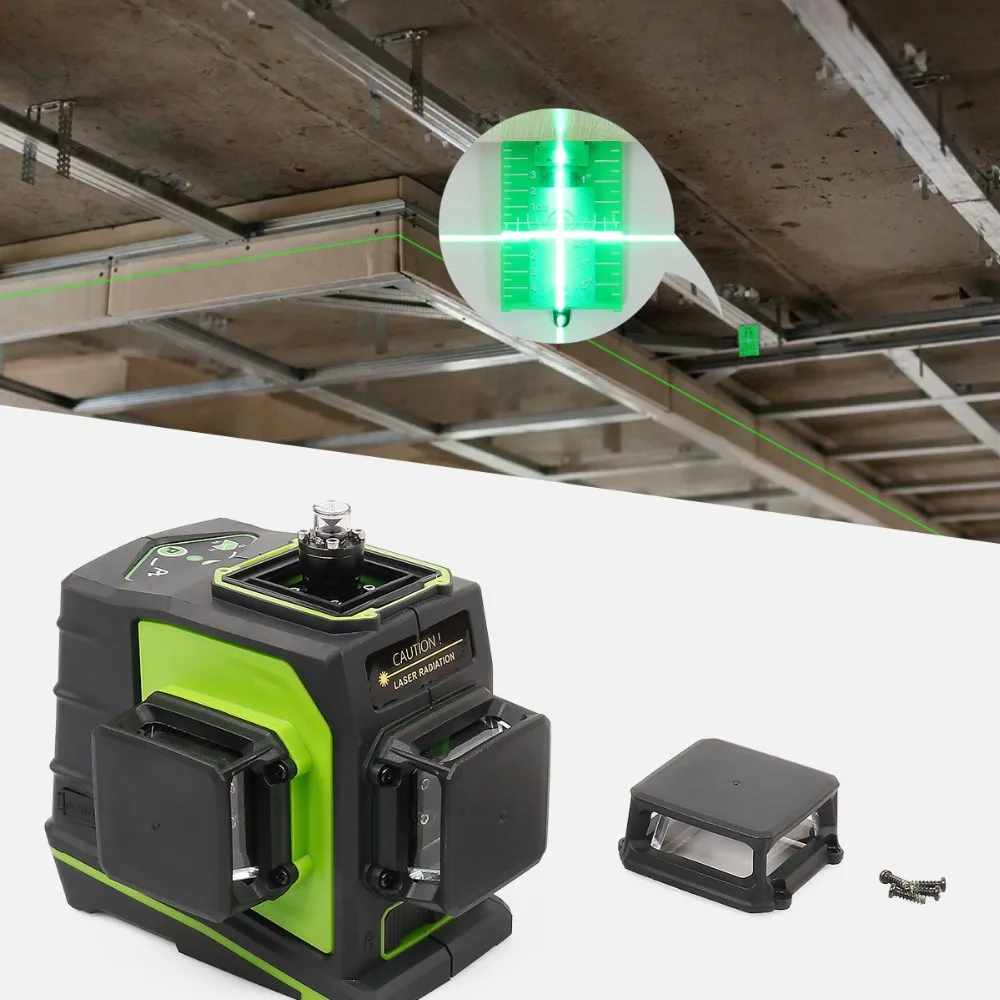

Green Target Plate increases the visibility of the laser beam.Over-molded laser window with stands hazardous job site conditions andcan be removed and replaced with a screwdriver. IP54 water/dust resistance ensures you work well in hazardous working conditions.
