Huepar 4D 16 Lines Laser Level Self-Leveling 360° Green Beam Cross Line Laser With Magnetic Bracket Li-ion Battery Lifting Base

Huepar 4D 16 Lines Laser Level Self-Leveling 360° Green Beam Cross Line Laser With Magnetic Bracket Li-ion Battery Lifting Base S04CG-LC

Huepar S04CG-L 4 x 360 Green Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Number of Lines: Two 360° horizontal floor laser lines & Two 360° Vertical laser lines

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.

Leveling/Compensation Range: ±3.5°

Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG

Power Source: Li-ion battery & 4×AA (LR6) batteries(if ship from China ,it is not include)

Operating Time: with Lithium Battery: 5 hours with all laser beams on; with AA Batteries: 0.5 hours with all laser beams on

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Mount Size: 1/4"-20

Warning: Do not aim the laser beam directly at the eyes.

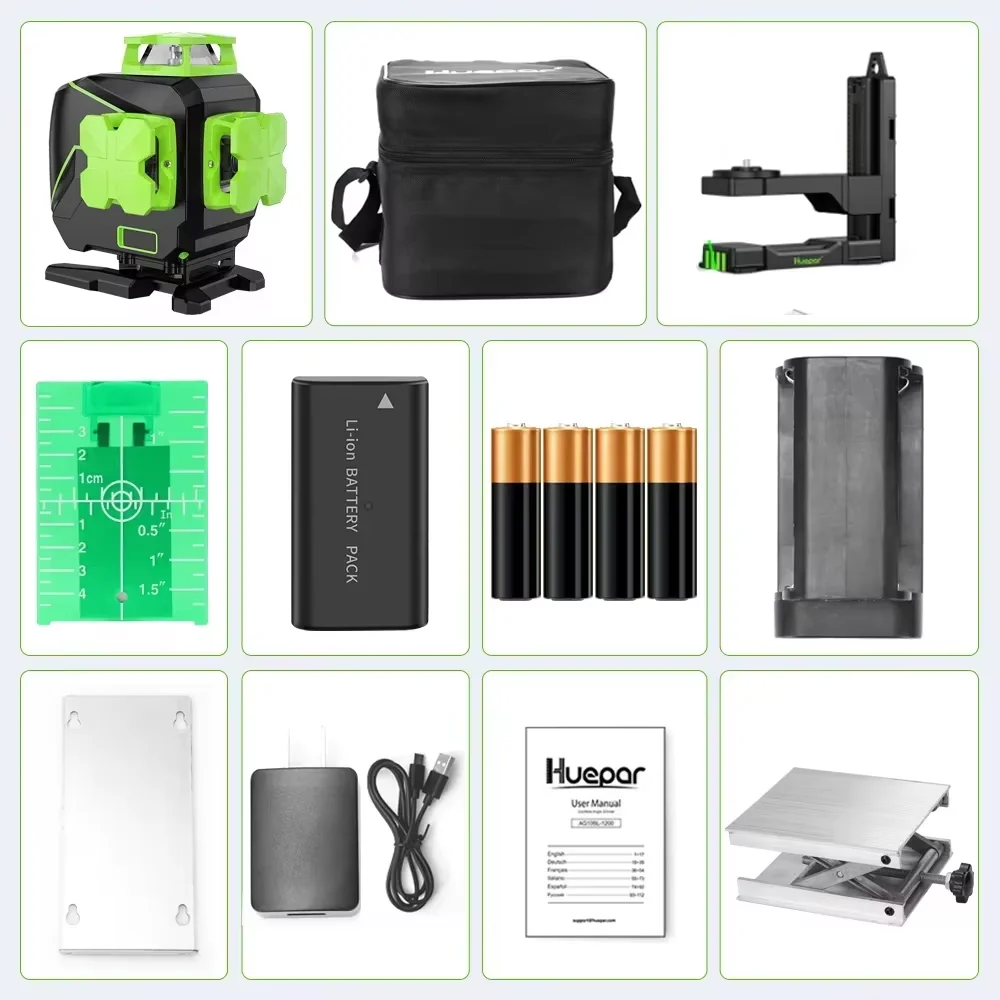

Package Included:

1 x 4D Green Tiling Laser Level S04CG-LC

1 x Rechargeable Li-ion Battery

1 x Power Adapter& Type-C cord

1 x AA Battery Holder

1 x Magnetic Bracket

1 x Lifting Base

1 x Wall Hanging Plate

1 x Target Board

1 x User Manual

1 x Portable Soft Bag

Huepar S04CG-L 4 x 360 Green Laser Level Feature:

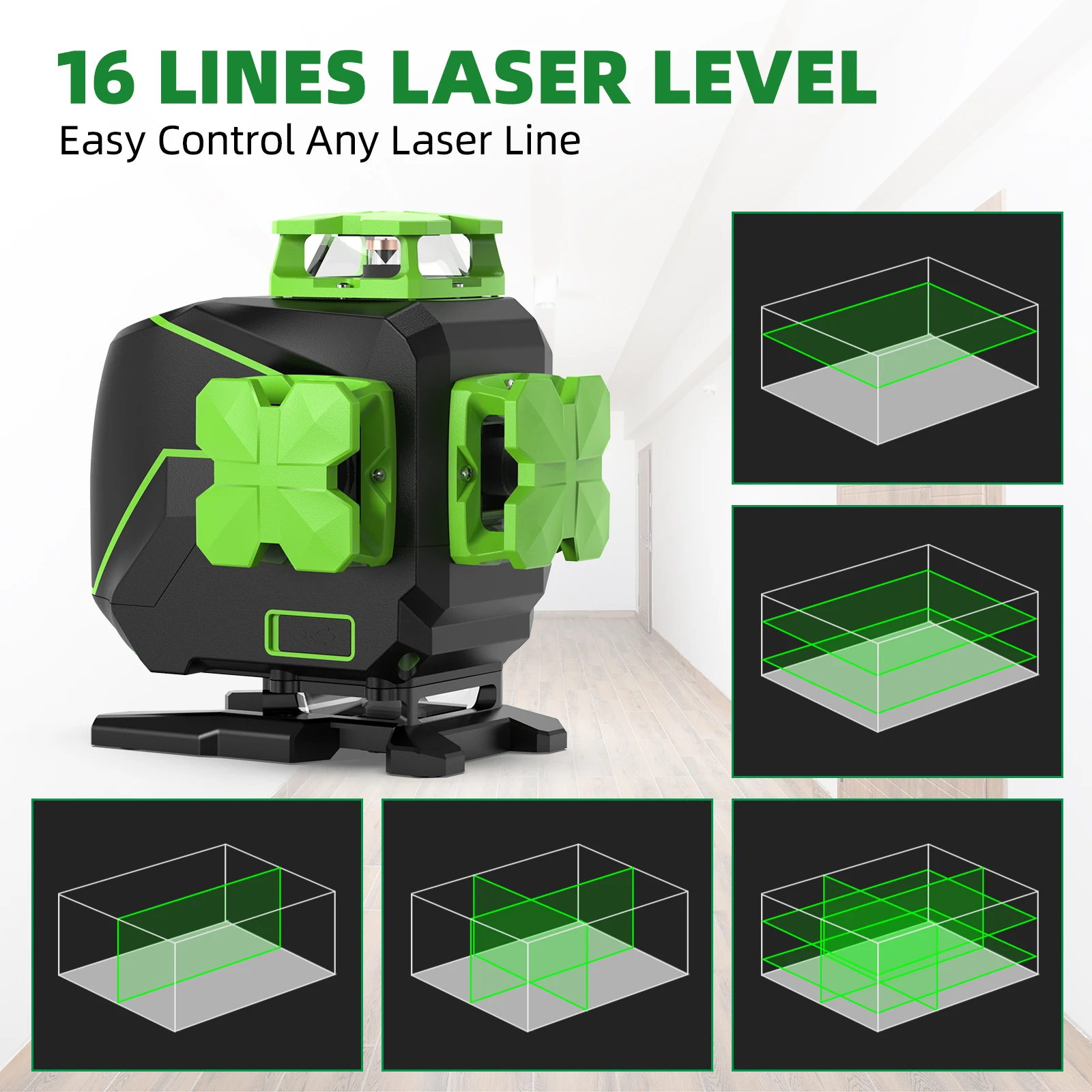

4 X 360°Laser Lines & Line Switching :

This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation.
Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.
Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
The four laser lines can be selected individually depends on job site applications.
Huepar S04CG-L laser level is a complete tool to cover the floor, wall, ceiling all around the room.

Self-leveling mode&Manual mode
Self-leveling mode:

Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

Manual mode:
When the pendulum is in the locked position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

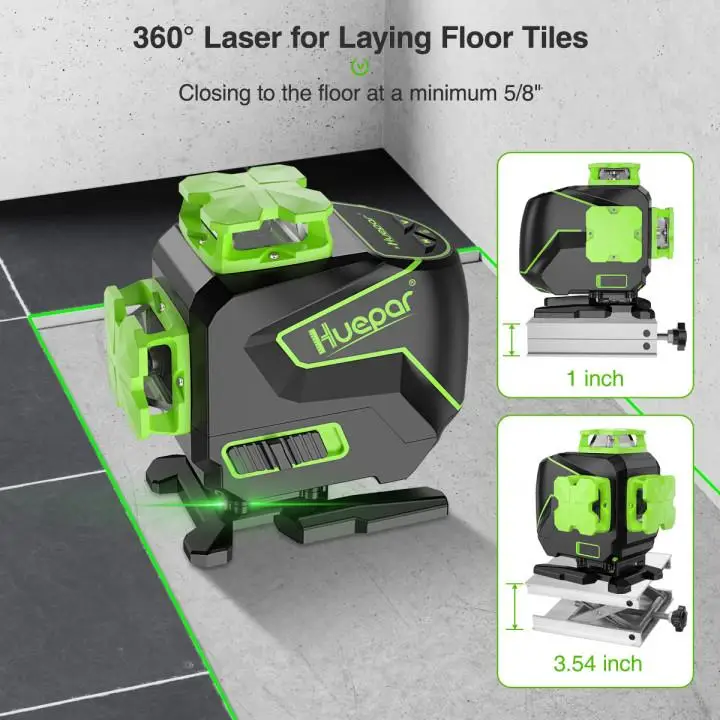

360° Horizontal Tiling Laser & Lifting Base:

Huepar S04CG-L floor laser tool generates one 360°horizontal tiling laser on the floor or wall providing all-around leveling coverage for the layout of tile, stone, brick, carpet and hardwood flooring.
With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height.

Pulse Mode:

After power on, short press the power button to switch ON/OFF the pulse mode.

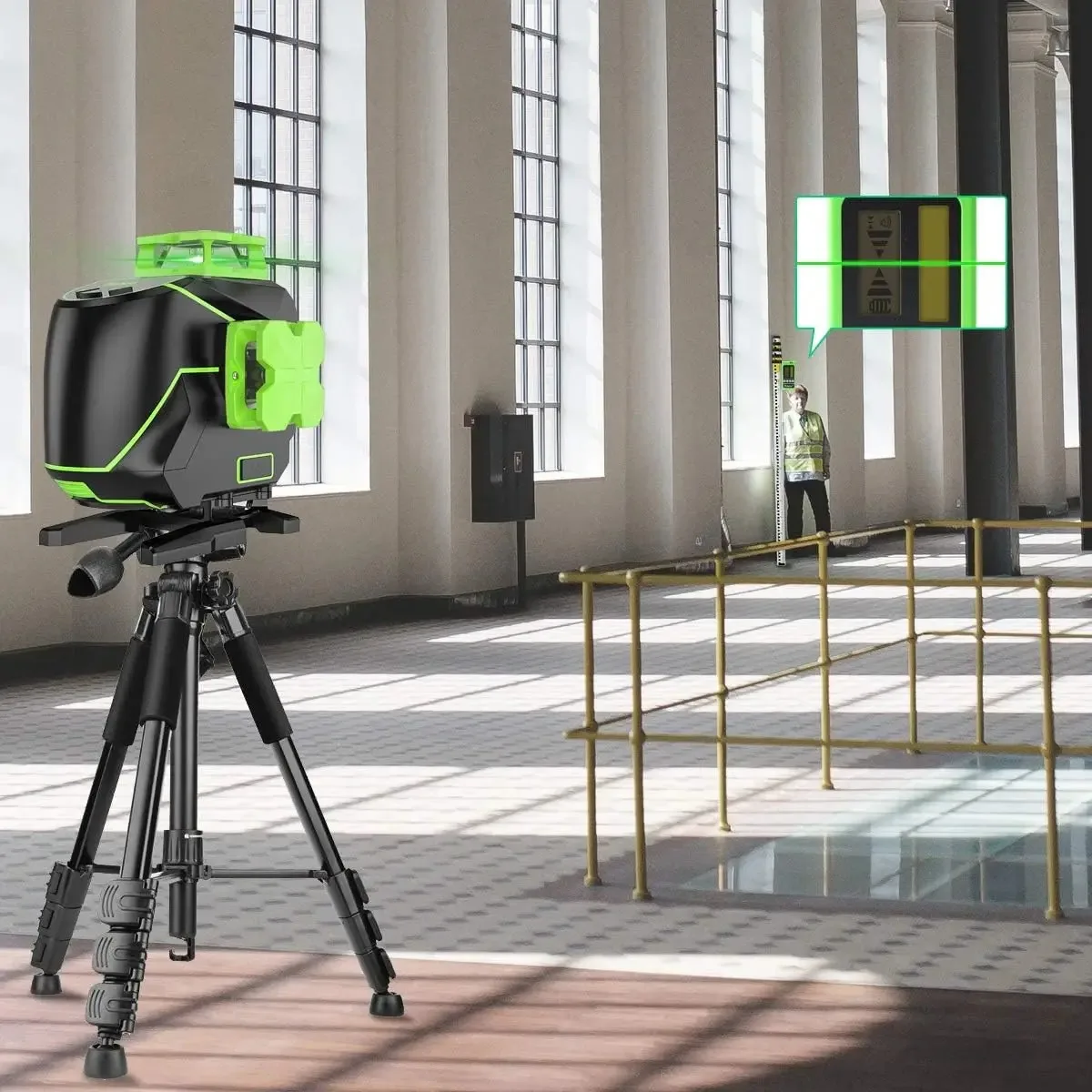

Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
Note: Keep the pulse mode on when using with a receiver.

Triple Power Methods:

This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.
Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.
The 16 lines laser level can be used at the work site by plugged in directly when taking out the battery.
With Type-C charging port, the laser level can also be charged by laptop, power bank, car charger, etc.

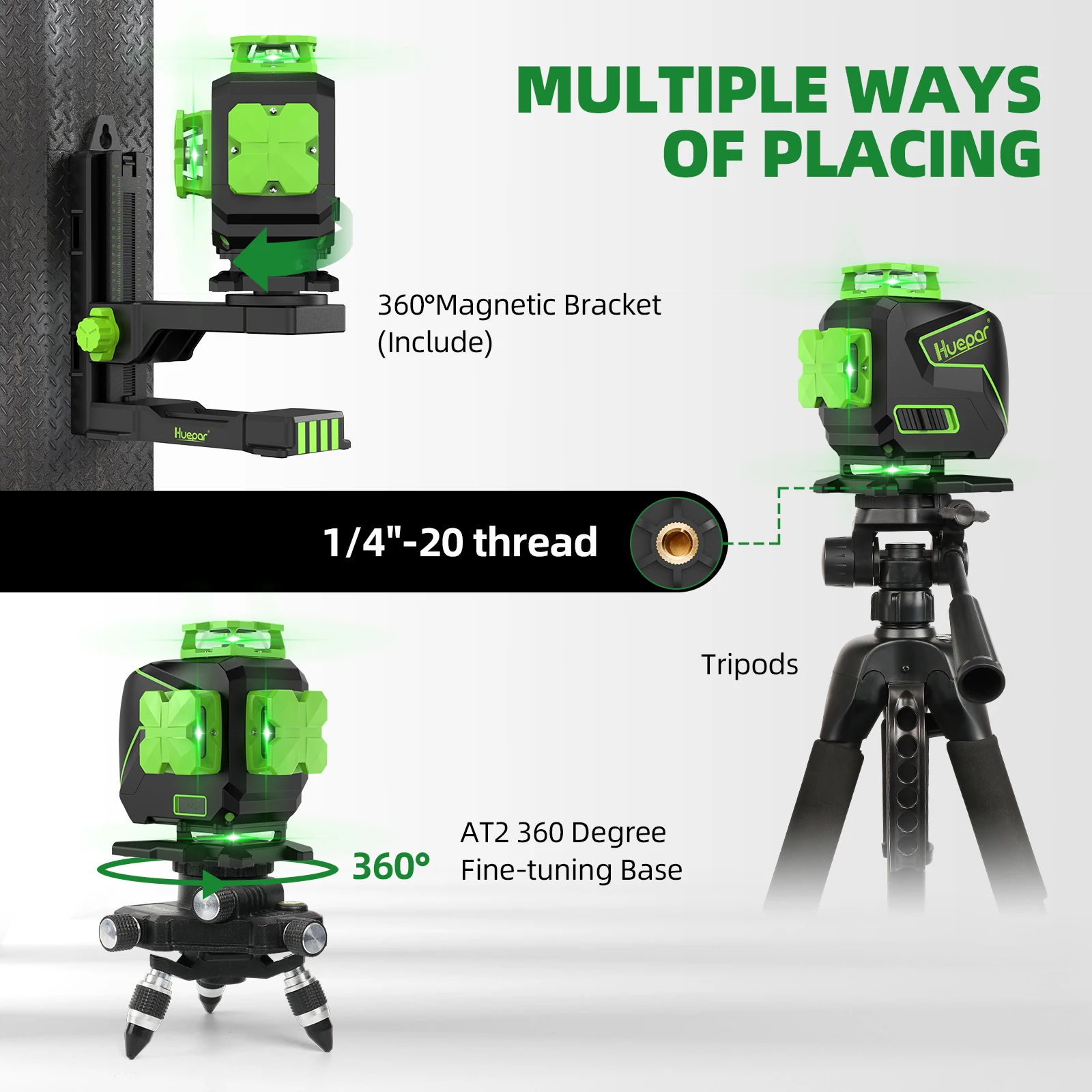

More Installation Methods:

1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.
360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
Green Laser Target Plate: Increases the visibility of the laser beam.

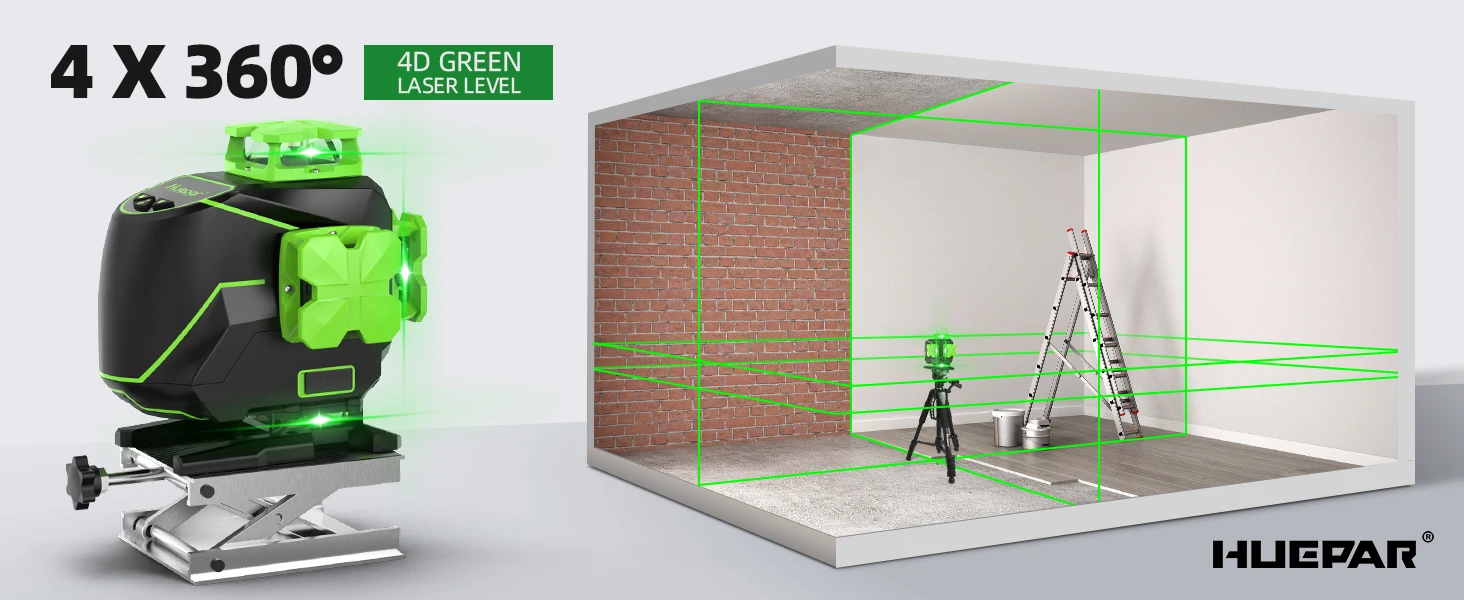

Suitable for Multiple Scenes:Huepar S04CG-L 4D Green Laser Level provides an all-in-one level and alignment solution for one-person job setup.
This 360° cross line laser tool is ideal for paving floor tiles, installing ceilings, door, window, or furniture carpentry, hanging wallpaper, etc.
The self-leveling laser tool enables complete coverage of the entire room.
