Huepar 703CG 12 Lines Laser Level with Laser Rangefinder 3D Self-leveling Cross Line Green Laser Adjust Bright Alignment Tools

Huepar 703CG 12 Lines Laser Level with Laser Rangefinder 3D Self-leveling Cross Line Green Laser Adjust Bright Alignment Tools

703CG 3 x 360 Green Laser Level With Laser Rangefinder Specifications:

Model:	703CG Green Beams Laser Level		Power Source:	3.7V/6600mAh Li-ion Battery
Laser Class:	Class 2 (IEC/EN60825-1/2014), <1mW		Operating Time:	About 10 hours
Laser Wavelength:	505-520nm		Charging Time:	About 4.0 hrs with 5V/2A adapter
Leveling Accuracy:	± 1/9" at 33Ft.		Mount Size:	1/4"-20 & 5/8"-11
Compensation Range:	±3.5°		IP Rating:	IP54
Self-leveling Time:	≤3 Seconds
Reference Working Distance:	30m, 98Ft.(60-100 LUX)		Work Temperature:	14℉~ 122℉(-10℃~ 50℃)
Reference Working Distance:	60m, 197Ft. with Laser Receiver		Storage Temperature:	-4℉~ 158℉(-20℃~ 70℃)

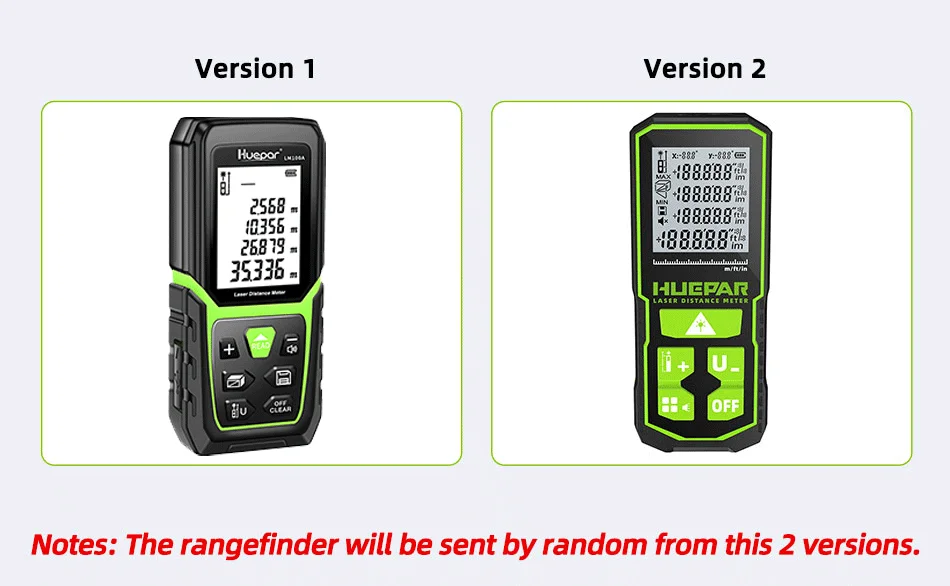

Measure Distance For rangefinder:	50 or 60m ( send by random)		Special Features	Dual Angle Measurement
Warning: Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

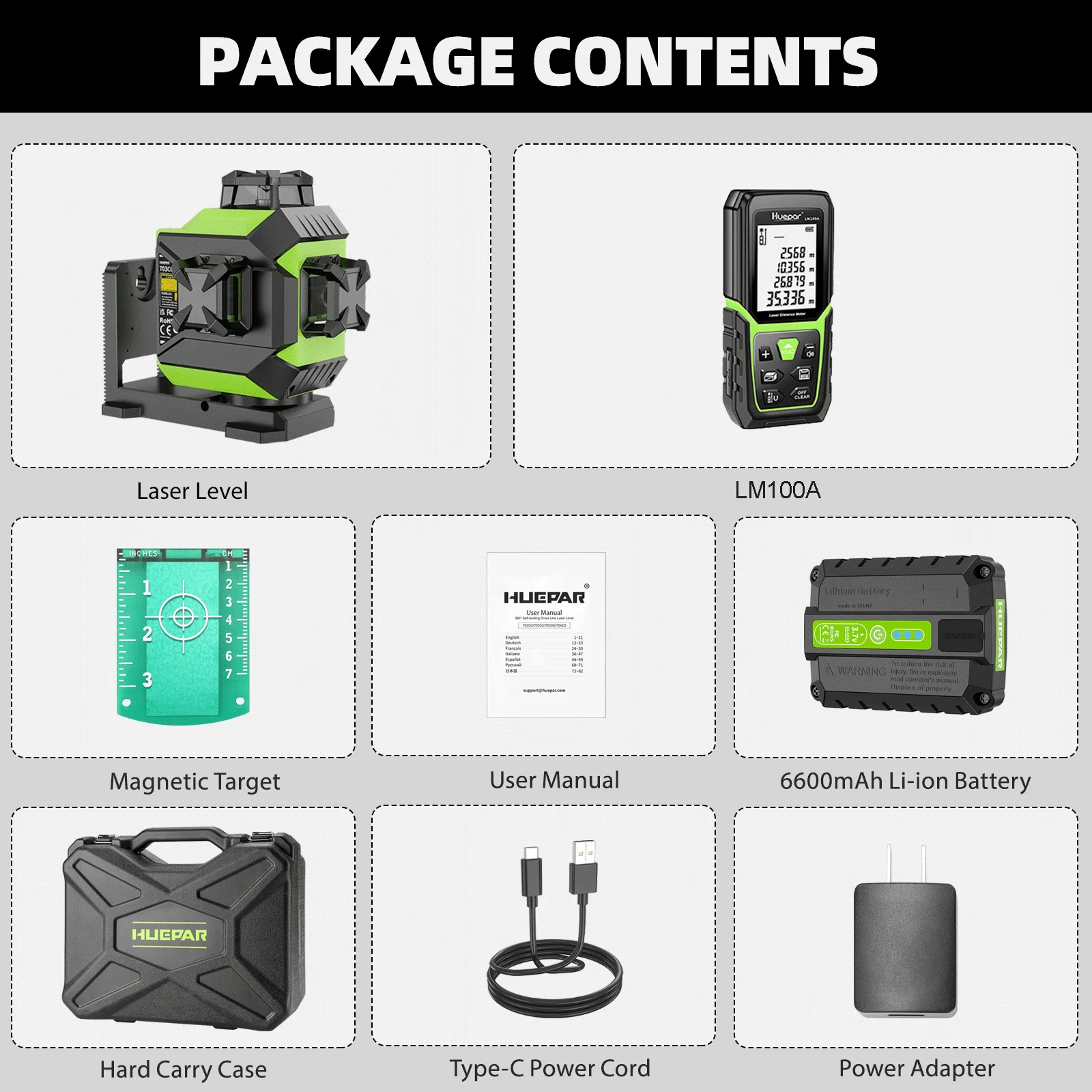

Package Contents: 1x 703CG Laser Level with integrated magnetic bracket "L" Base 1x Li-ion Battery with type-c charging port 1x Type-C Cable 1x Power Adapter 1x Hard Carry Case 1x Laser Target Plate 1x User Manual 1x 100M Laser Rangefinder ( LM100 or S100 )

High Protection Grade 3×360° Full Layout

• One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, and ceiling all around the room.

• The three laser lines can be selected individually depending on job site applications, you can easily choose to turn on/off any laser line to assist your leveling jobs, bright and clear.

• Ideal for paving tiles, installing photo, door, window, or furniture carpentry, hanging wallpaper, etc.

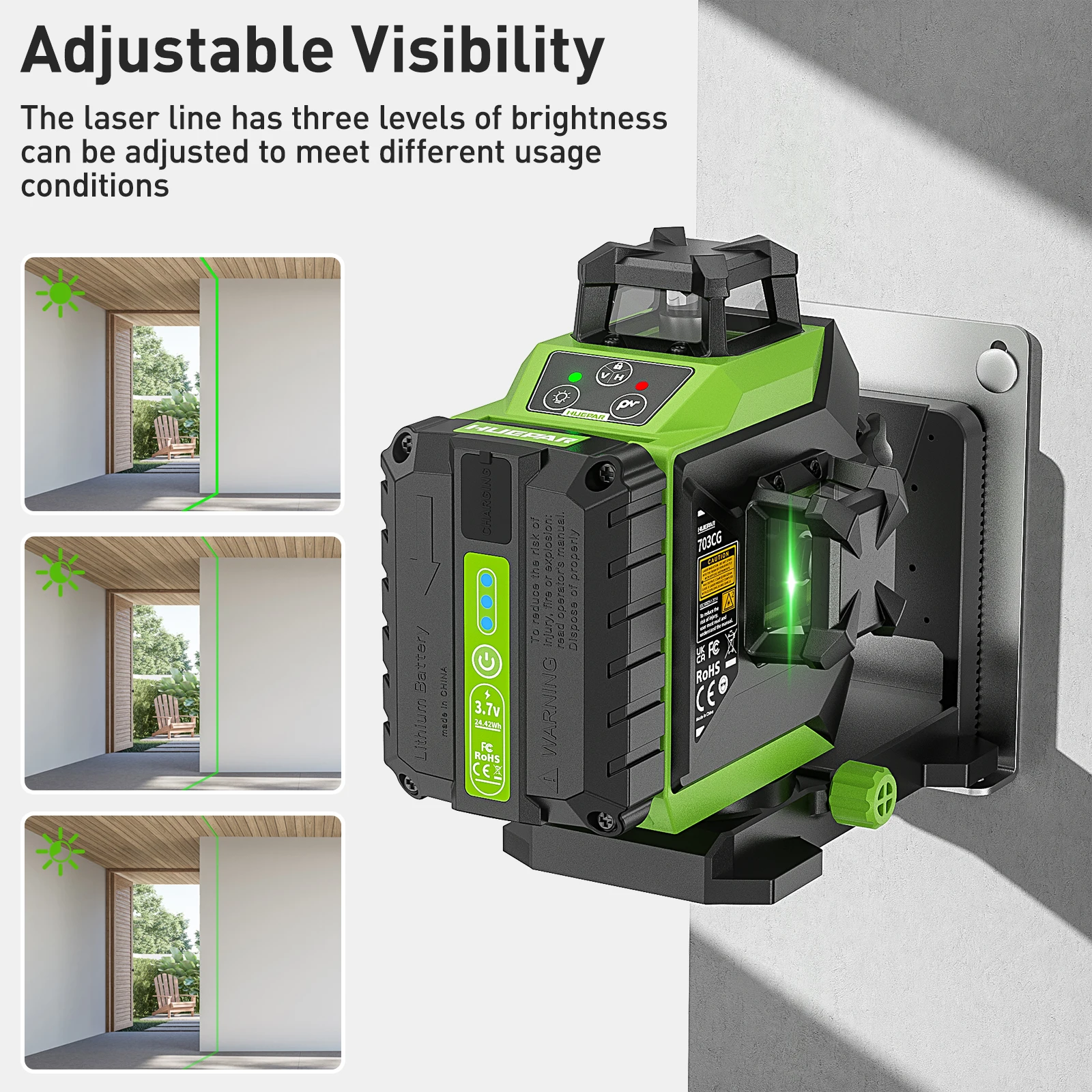

Light brightness adjustment

• Short press the “Light bulb” button to adjust the beam's brightness.

• When turning on the unit, the beam(s) is full brightness by default and the Power Indicator lights up in Green.

• Short press the “Light bulb” button to reduce the brightness. The power Indicator will be on and flash as a reminder.

• Short press the “Light bulb” button again to reduce the brightness further. The power Indicator will be on and flash quickly.

• Note: The brightness cannot be adjusted under pulse mode.

Self-leveling & Manual Mode

This 360 laser level can set 2 modes, self-leveling mode, and manual mode.

Self-leveling mode:

Unlock the pendulum, and enable the self-leveling mode, when the tool exceeds the self-leveling range by 3.5°±1°.

The laser beam(s) will blink about every 3-5 seconds to notify the user it is not self-leveling now.

Manual mode:

Once the pendulum is locked, it switches to manual mode, the self-leveling function is disabled, the cross laser tool is locked, and you can position the laser level at any angle you need.

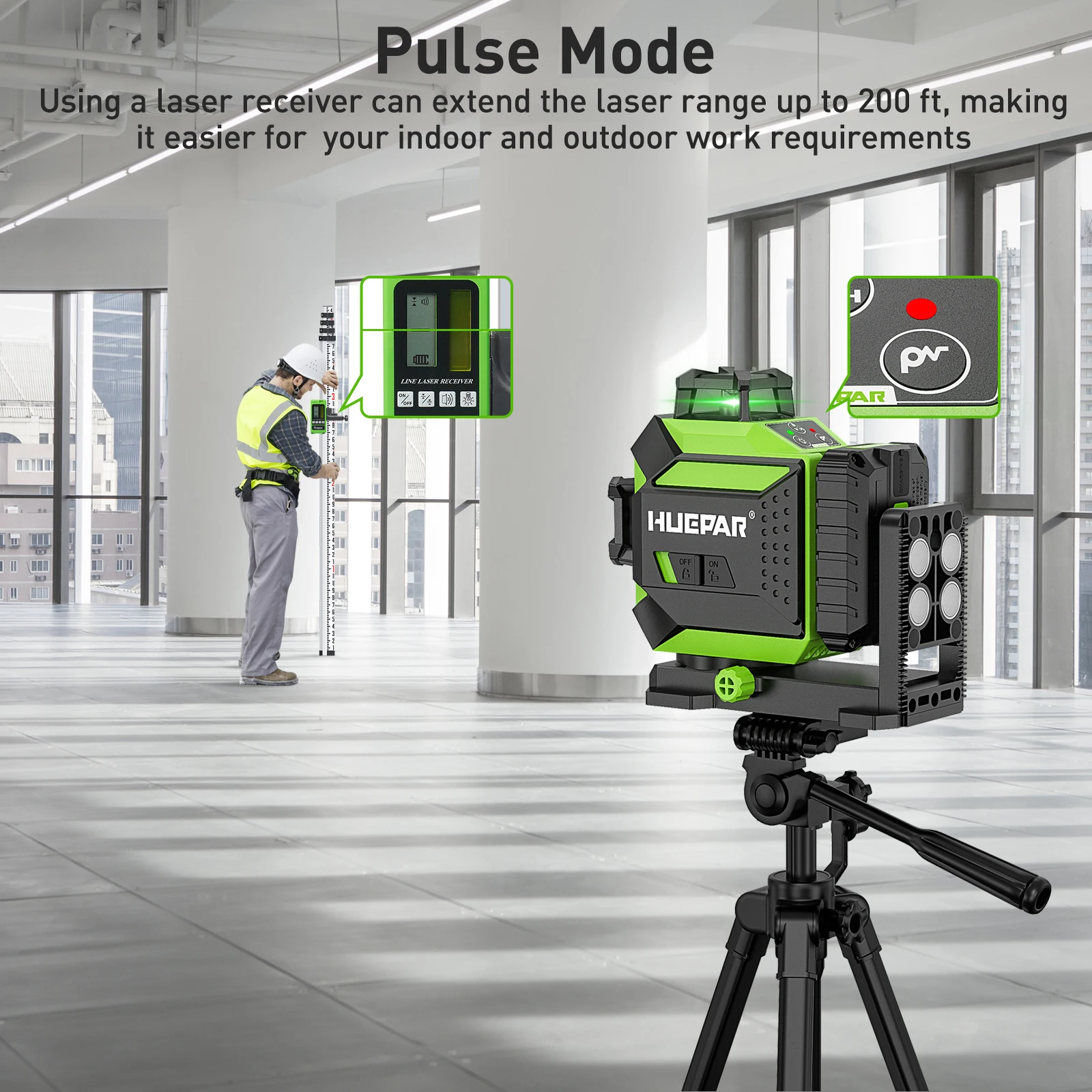

Power-Saving Outdoor Pulse Mode

• Turn ON the pulse mode: After powering ON, short press the "P" button to switch ON/OFF the pulse mode.

• Pulse mode extends the working range up to 60m/197ft in brighter working conditions when using Huepar Line Laser Detector (ASIN: B07L6FP48S).

• When the pulse mode is activated, the laser beams are dimmer, the pressure on the eyes is less when working at close range, and the working time can be appropriately extended.

• It is compatible with Huepar LR-6RG / LR-5RG/ LR-8RG Line Laser Receiver (need to purchase separately) only.

• Keep the pulse mode on when using a receiver.

Type-C Charging Port

• Power by a 3.7V / 6600mAh lithium battery with the Type-C charging port can be charged separately and provides up to 10 hours of running time.

• Direct input charging: When taking in the battery, the laser tool can be used at the job.

• Three battery indicators on the keypad allow users to know the current battery volume.

• Charging protection helps prevent overcharging.

High Protection Grade:

• The line laser reaches IP54 protection grade (shock resistant, waterproof, dustproof, shockproof, wear-resistant, impact resistant, cold and high temperature.).

• The durable and high-quality shockproof enclosure provides 4 Ft. collision protection.

• It's compact and lightweight for easy gripping, but large enough to sit stably, ideal for construction site work.

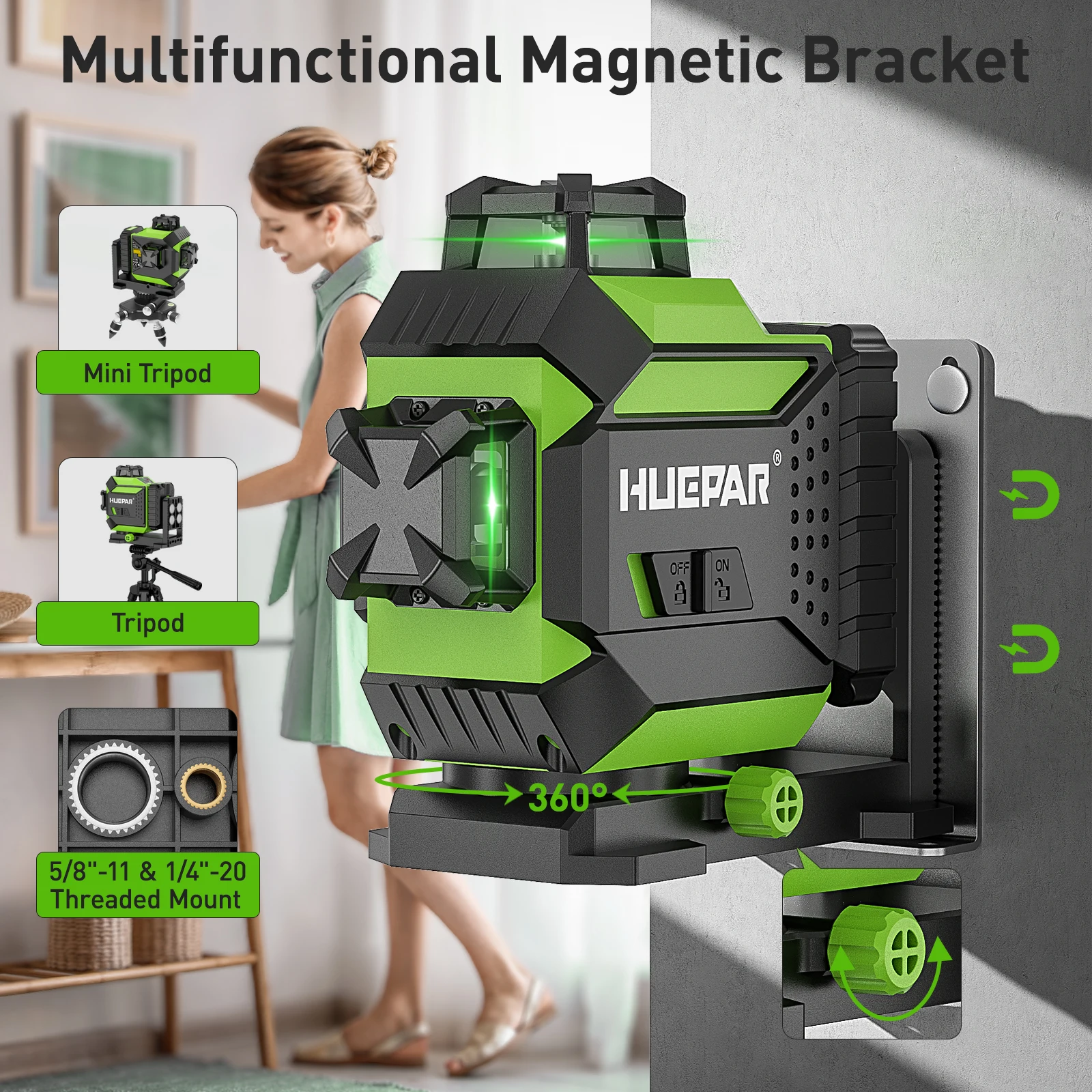

Integrated Flexible Magnetic Bracket Mounting Design

• The laser level is equipped with a 360° strong magnetic bracket （not removable）that allows for quick positioning to metal surfaces, helping hang the laser level for wall applications.

• And the 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket can suit different tripod threads.
