Product Description
|
Huepar DS02CG 2 x 360° Green Beam Floor Laser Level Specifications:
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision. |
GF360G
|
|
|
* Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
* Number of Lines: One 360° horizontal floor laser lines & One 360° Vertical laser lines * Laser Wavelength: 505-520nm * Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft. * Leveling/Compensation Range: ±4° * Working Distance (Line): 98Ft. , >164Ft. with Huepar Receiver LR-5RG/LR-6RG * Power Source: 2 x 5200mAh Li-ion batteries * Operating Time with one Lithium Battery: >5 hours with all laser beams on * Working Time: 8 hours * IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough * Mount Size: 1/4″-20 * Package: Hard Carry Case WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC /
EN60825-1 / 2014. It is allowed to use the device without any further safety precautions. |
1H360°/2V360°
|
|
|
Laser class
|
Class 2
|
|
|
Beam source
|
Green Beam
|
|
|
Laser wavelength
|
520nm
|
|
|
H/V accuracy
|
±3mm/10m;±1/9 In. at 33 Ft.
|
|
|
Self-leveling range
|
4°±1°
|
|
|
Self-leveling time
|
≤3s
|
|
|
Working distance (Line)
|
45m,≥60m with detector
|
|
|
Operating time
|
>5h(all lasers on)
|
|
|
Power source
|
Lithium battery
|
|
|
IP rating
|
IP54
|
|
|
Operating Temp
|
-10°C to 50°C
|
|
|
Storage Temp
|
-20°C to 70°C
|
|
|
Mount size
|
1/4” or 5/8″
|
|

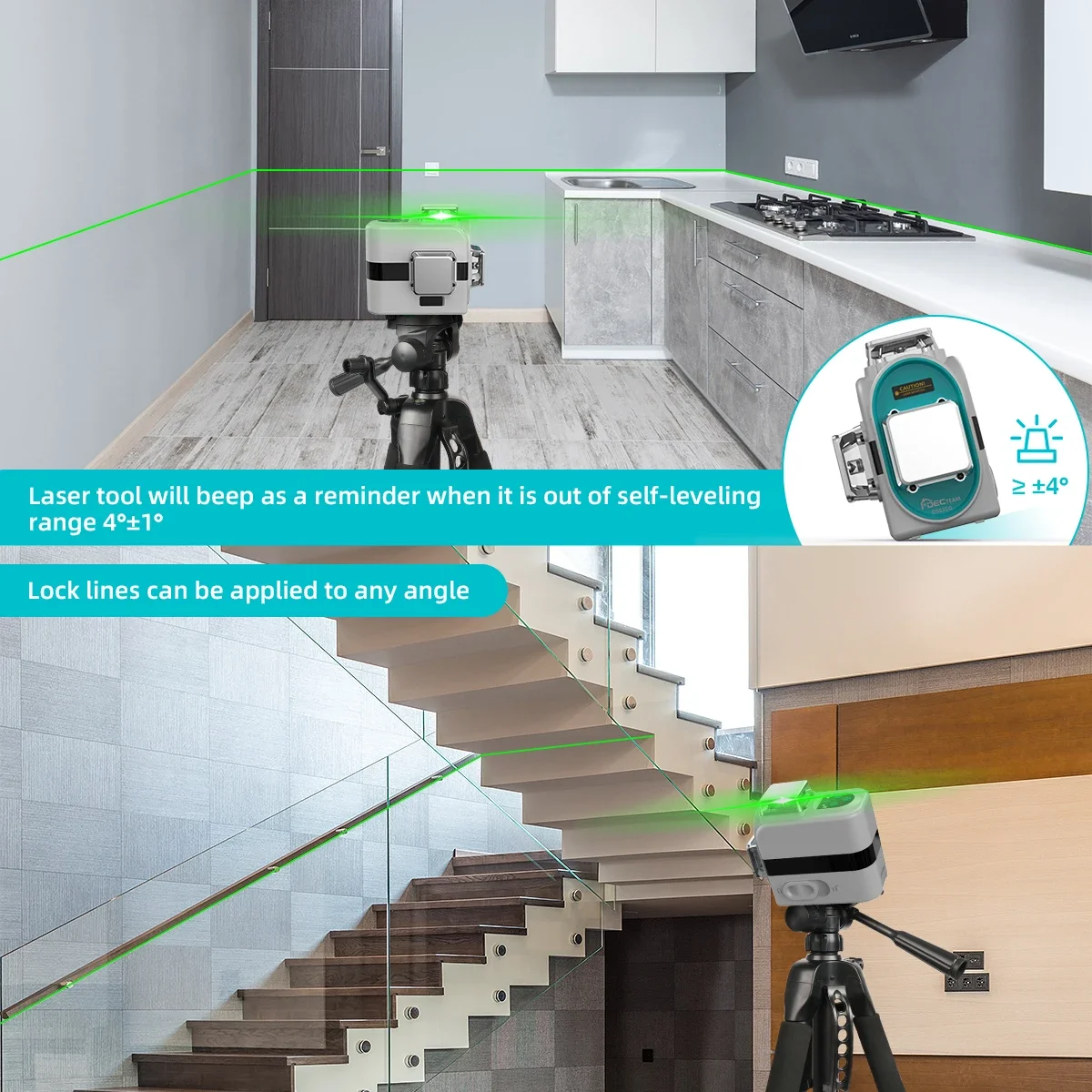

Self-leveling mode:
Once the pendulum unlocked, self-leveling mode is enabled.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it’s not self-leveling now.
The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum locked, the laser tool can be placed for use at any angle.
The laser beam will blink every 3-5 seconds to remind you it’s not self-leveling now.

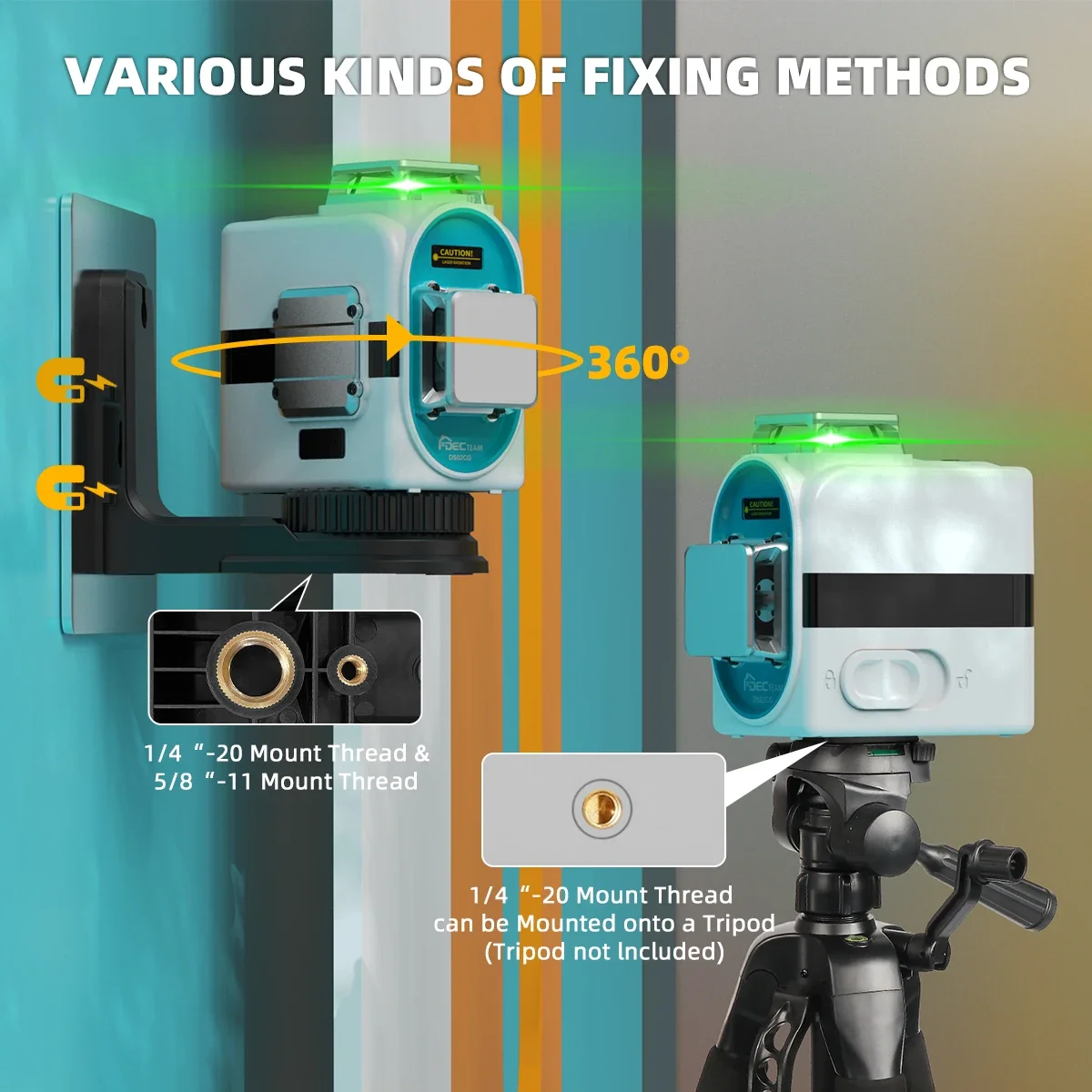

Multiple Installation Method:
360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel,supporting you to turn the laser level around at 360 degree , projecting lines at any angle.
With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.
Mount Size: 1/4″-20 mounting thread for temporarily fastening in place or being fixed on tripod.
With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.
Mount Size: 1/4″-20 mounting thread for temporarily fastening in place or being fixed on tripod.
Pulse Mode:
Turn ON pulse mode: Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode. Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver. It is compatible with Huepar LR-6RG&LR-5RG Line Laser Receiver only.
【Two Methods of Power Supply】
DECTEAM DS03CG Laser Level employed a large capacity of 3.7V / 5200mAh lithium battery(comes with a Type-C charging port, which can be charged separately), operating time about 6 hours. At the same time, the machine itself
comes with a Type-C socket, when taking out the battery, the laser tool can be used at the job site by plugged in. The battery indicator can help determine the current battery level to prevent low battery power and overcharging.
comes with a Type-C socket, when taking out the battery, the laser tool can be used at the job site by plugged in. The battery indicator can help determine the current battery level to prevent low battery power and overcharging.
Packaging
PAKAGING CONTENT
1 x Laser Level Tool
1 x Magnetic L-shape Bracket
1 x Lifting Base
1 x Hard-Shell Carrying-Case
2 x lithium batteries
1 x Green Laser Target
1 x Instruction Manual
1 x Lifting Base
1 x Hard-Shell Carrying-Case
2 x lithium batteries
1 x Green Laser Target
1 x Instruction Manual

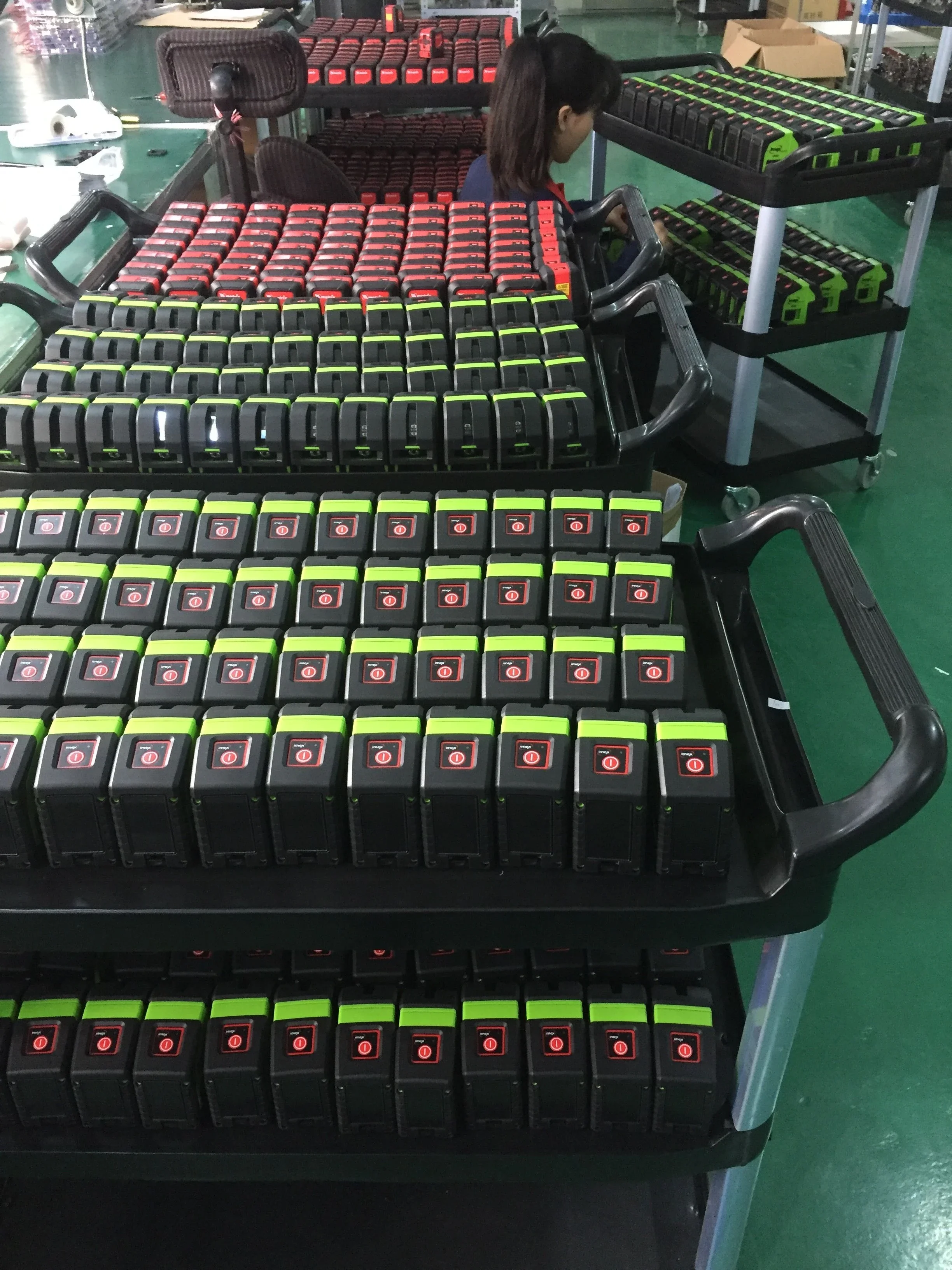

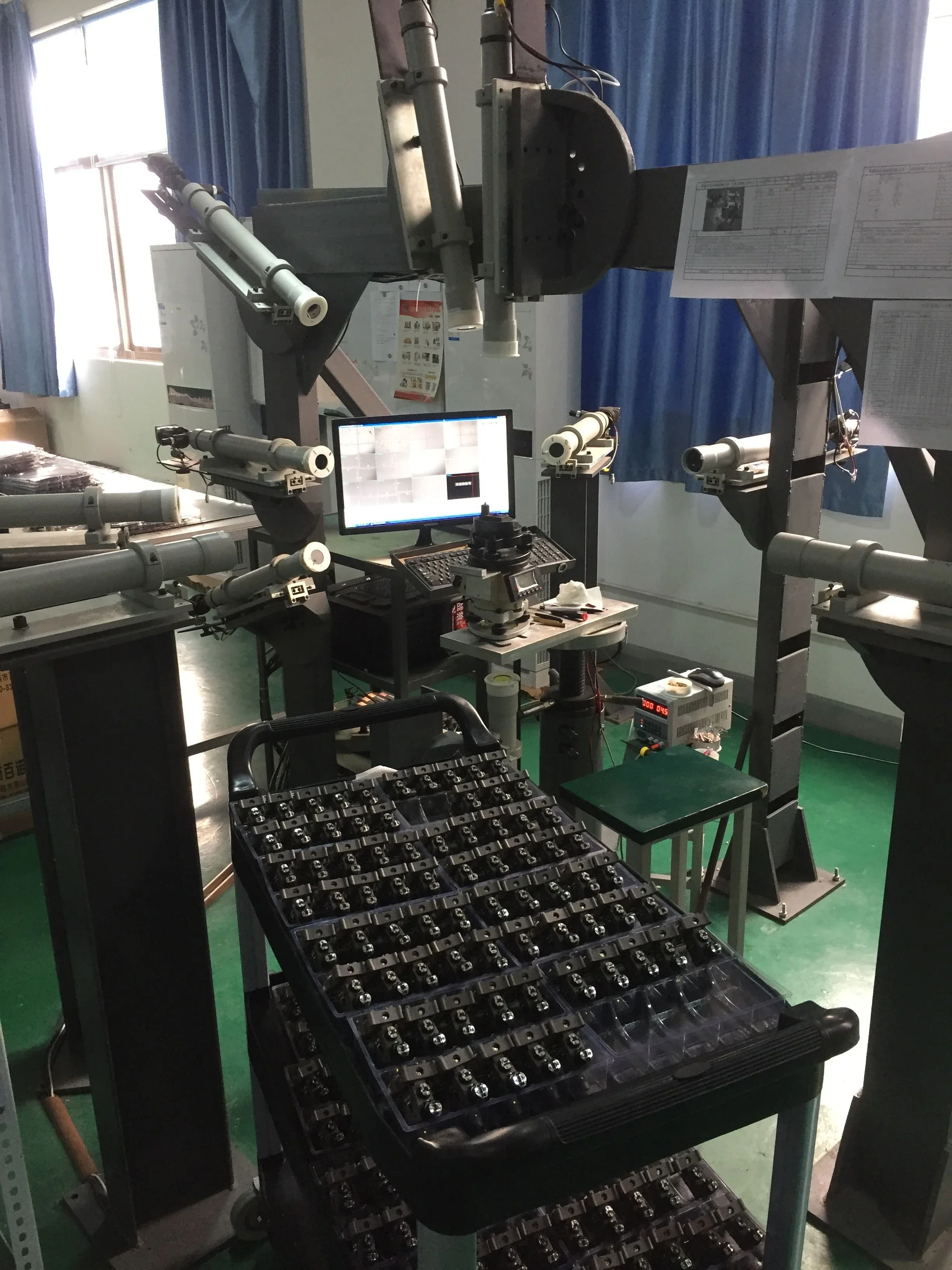

Company Profile
A quality oriented manufacturer for measuring tools that have been dedicating to supply reliable quality&high cost-effective&satisfactory after service to the high-end market.
