Huepar S04CG-C Set 4D 16 Lines Cross Line Laser Level LCD/Bluetooth/Remote Laser Tools With Detector Tripod Rangefinder Adapter

SKU: 1005008119719234

Original price was: $542.75.Current price is: $155.07.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

Huepar S04CG-C Set 4D 16 Lines Cross Line Laser Level LCD/Bluetooth/Remote Laser Tools With Detector Tripod Rangefinder Adapter

Huepar S04CG-C 16 Lines 4DGreen Laser Level Specifications:

Laser Class:

Class 2 (IEC/EN60825-1/2014),
<1mW power output

Screen Type:

LCD screen with backlight

Laser Wavelength:

505nm-520nm

Laser Diode:

Germany Osram Green Beam

Horizontal/Vertical Accuracy:

±3mm/10m(±1/9 inch at 33Ft)

Reference Operating Time:

About 5 hours with li-ion battery, About 0.5 hours with AA battery

Leveling Time:

≤3s

Charging Port:

Type-C

Compensation Range:

3.5°±1°

Mount Size:

1/4"-20

Working Distance:

≥20m, ≥40m with detector

Operating Temperature:

Between -10℃and +50℃

Power Source:

7.4V/2600mAhLi-ion battery& 4 x AA battery

Storage temperature:

Between -20℃and +70℃

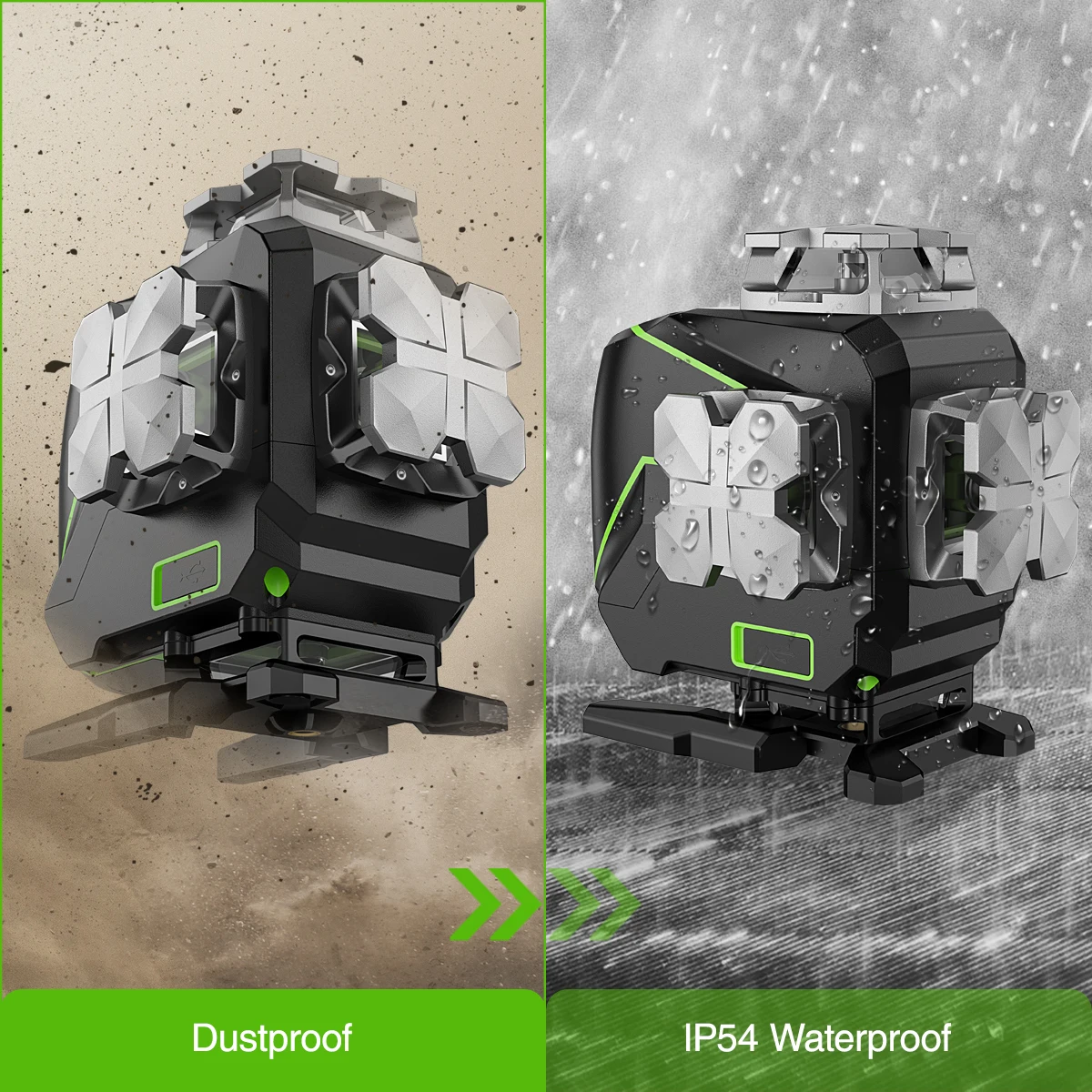

IP Rating:

IP54, waterproof, dustproof and shockproof, reliability and robustness

Warning:
Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.

   Package Contents – S04CG-C-SET-3 ( Main Photos):

  • 1 x Huepar S04CG-C Green Laser Level

  • 1 x Laser Receiver LR-8RG (or LR-5RG-GN or LR-6RG)

  • 1 x Tripod TPD14 or (TPD14A or TPD16)

  • 1 x 120M Rangefinder X6-LM120 ( or LM120A )

  • 1 x AT-2 Adapter

  • 1 x Hard-shell Carry Case

  • 1 x Wall Hanging Plate

  • 1 x Green Target

  • 1 x Multifunctional Wall Bracket

  • 1 x 2600mAh Li-ion Battery

  • 1 x Remote Control

  • 1 x AA Battery Compartment

  • 4 x AA battery ( AA battery is not included from China)

  • 1 x Power Adapter

  • 1 x Type-C Cord

  • 1 x Lifting Base

  • 1 x Multi-language manual

SET-1: S04CG-C – Basic Set

SET-2: S04CG-C+Receiver+Tripod

1 x Huepar S04CG-C Green Laser Level

1 x Hard-shell Carry Case

1 x Wall Hanging Plate

1 x Green Target

1 x Multifunctional Wall Bracket

1 x 2600mAh Li-ion Battery

1 x Remote Control

1 x AA Battery Compartment

4 x AA battery ( AA battery is not included if ships from China)

1 x Power Adapter

1 x Type-C Cord

1 x Lifting Base

1 x Multi-language manual

1 x Huepar S04CG-C Green Laser Level

1 x Laser Receiver LR-8RG (or LR-5RG-GN or LR-6RG)

1 x Tripod TPD14 or (TPD14A or TPD16)

1 x Hard-shell Carry Case

1 x Wall Hanging Plate

1 x Green Target

1 x Multifunctional Wall Bracket

1 x 2600mAh Li-ion Battery

1 x Remote Control

1 x AA Battery Compartment

4 x AA battery ( AA battery is not included if ships from China)

1 x Power Adapter

1 x Type-C Cord

1 x Lifting Base

1 x Multi-language manual

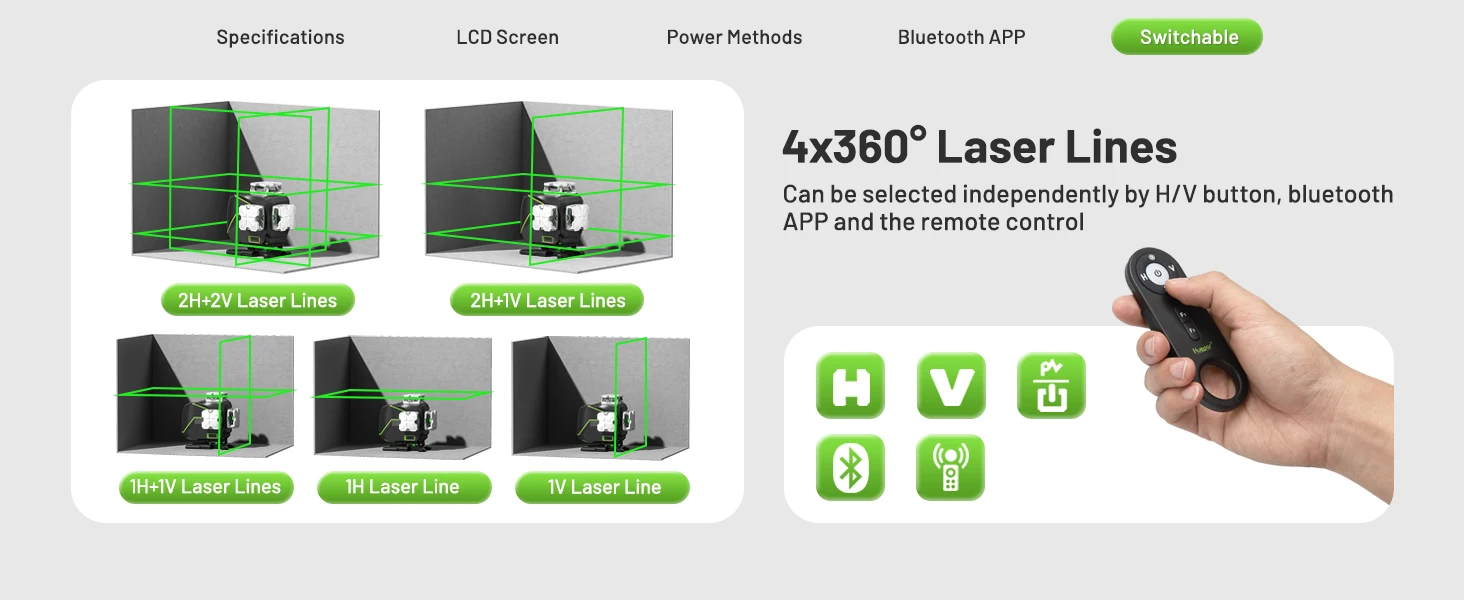

Line Switching:
  • Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
  • The laser lines can be selected separately according to job requirements.

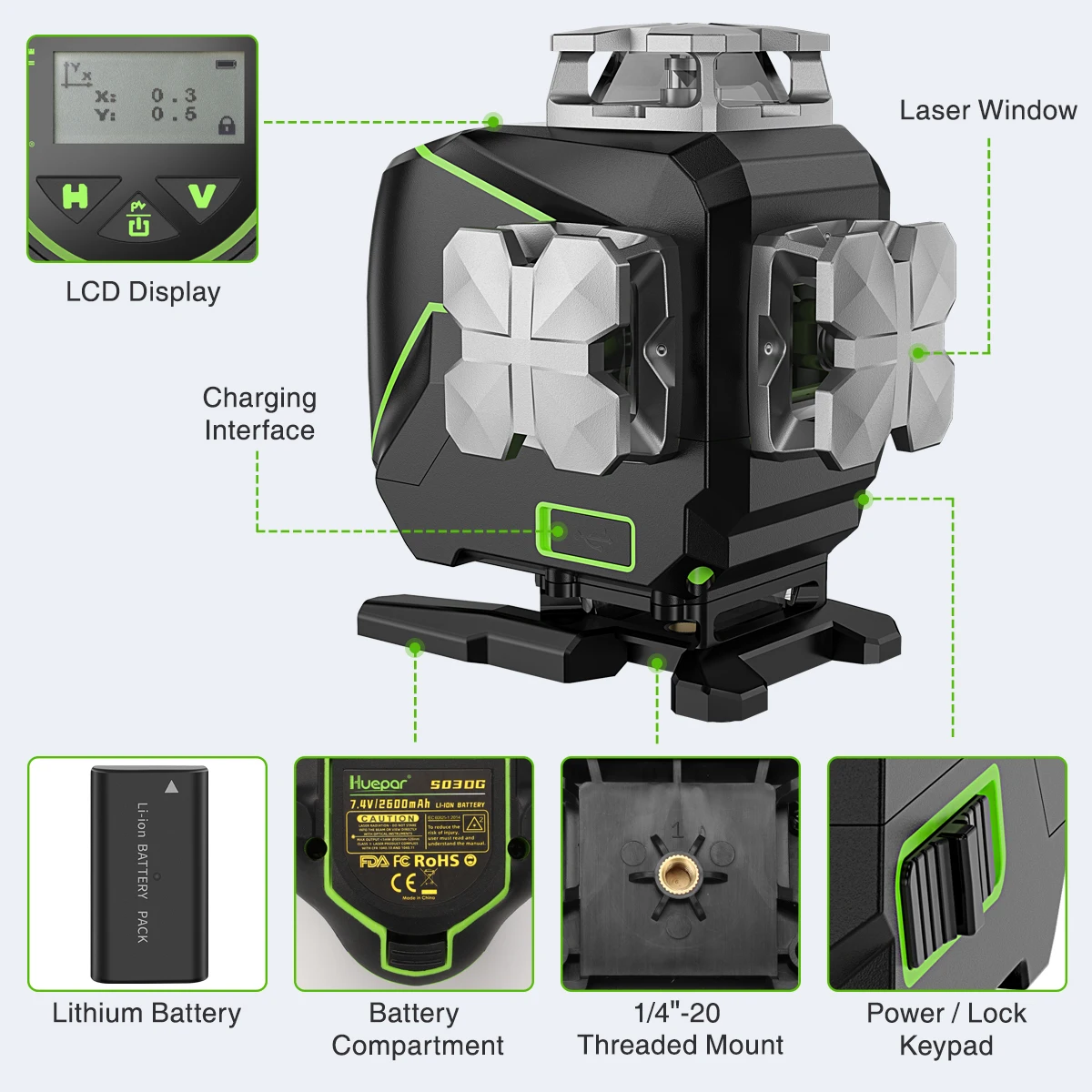

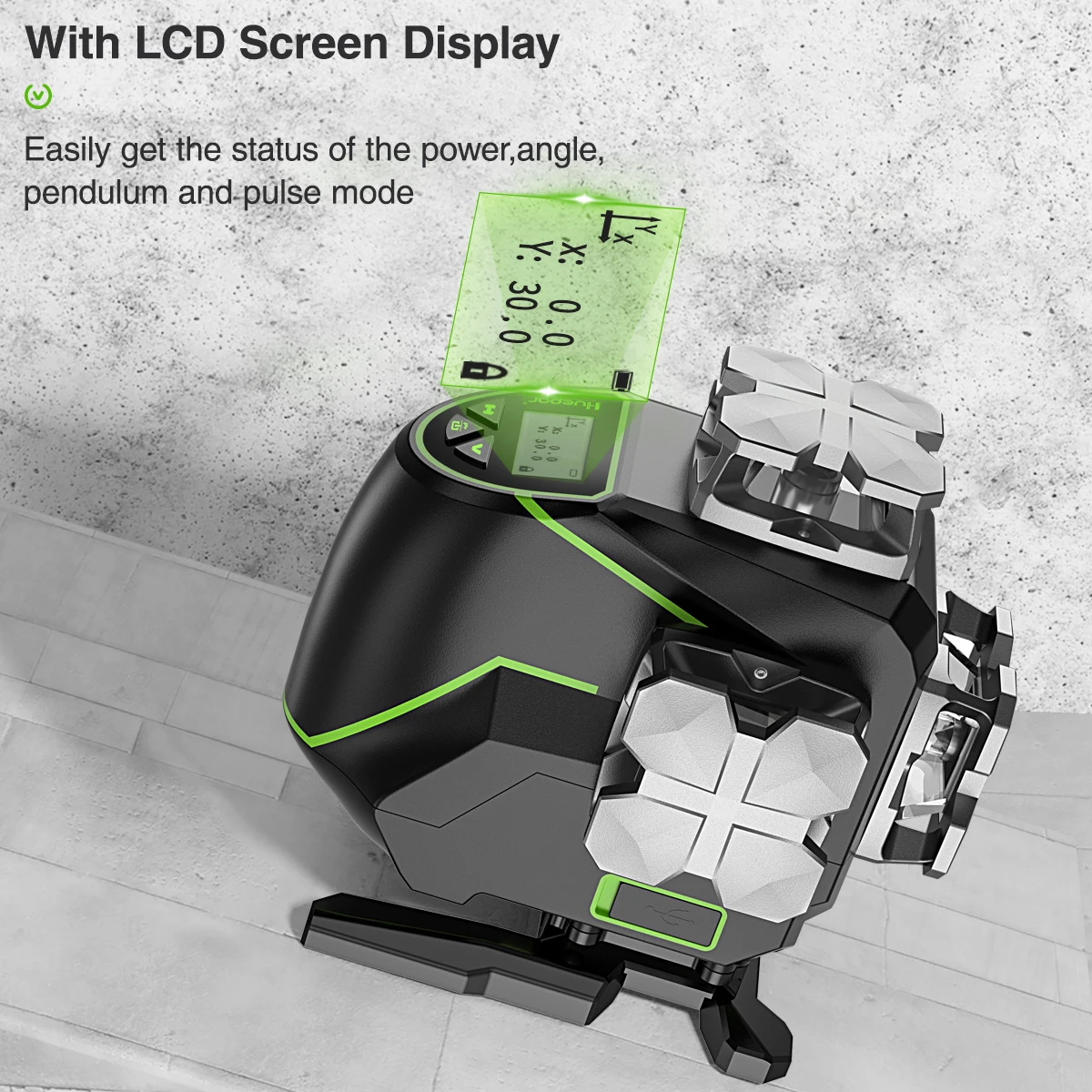

With LCD Display Screen:
  • The laser level kit features LCD screen display.
  • Users can easily get the status of the power, angle, pendulum and pulse mode on the display.
With Remote control:
  • The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.
  • With the remote control, users can also turn on/off the pulse mode and adjust the line visibility.

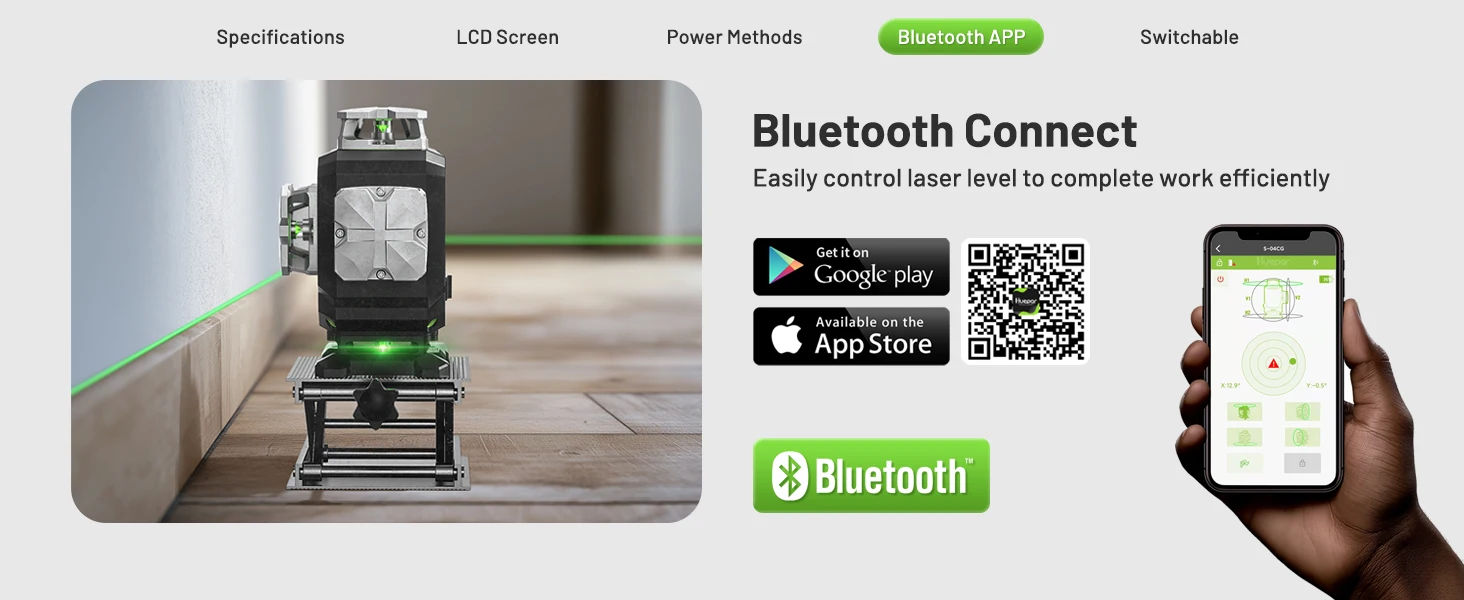

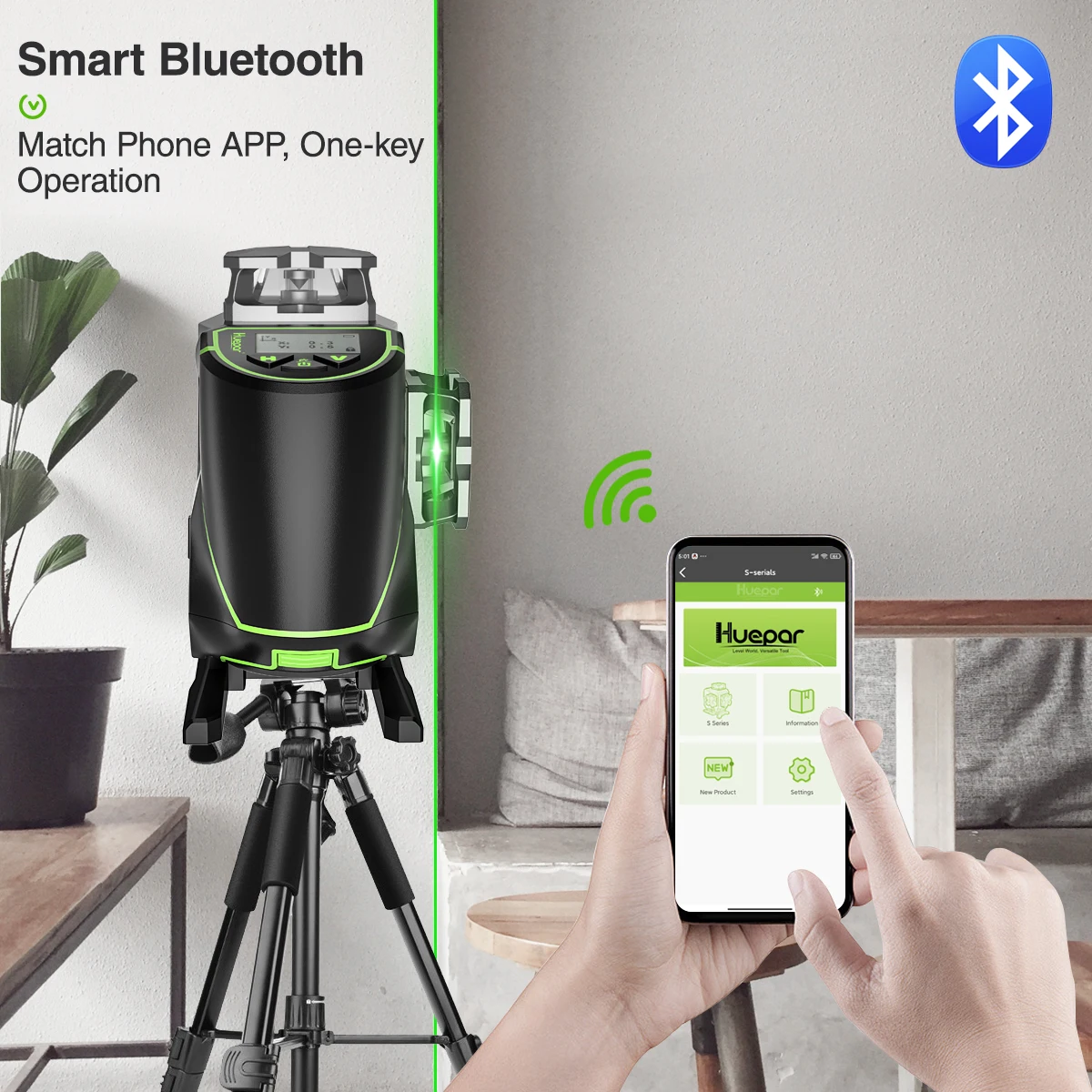

Connected With Smart Bluetooth:
  • Connect S04CG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.
  • The laser tool can connect two phones at the same time, whether on Android or iOS.
  • The functions of the laser tool can be easily operated with the Bluetooth feature.

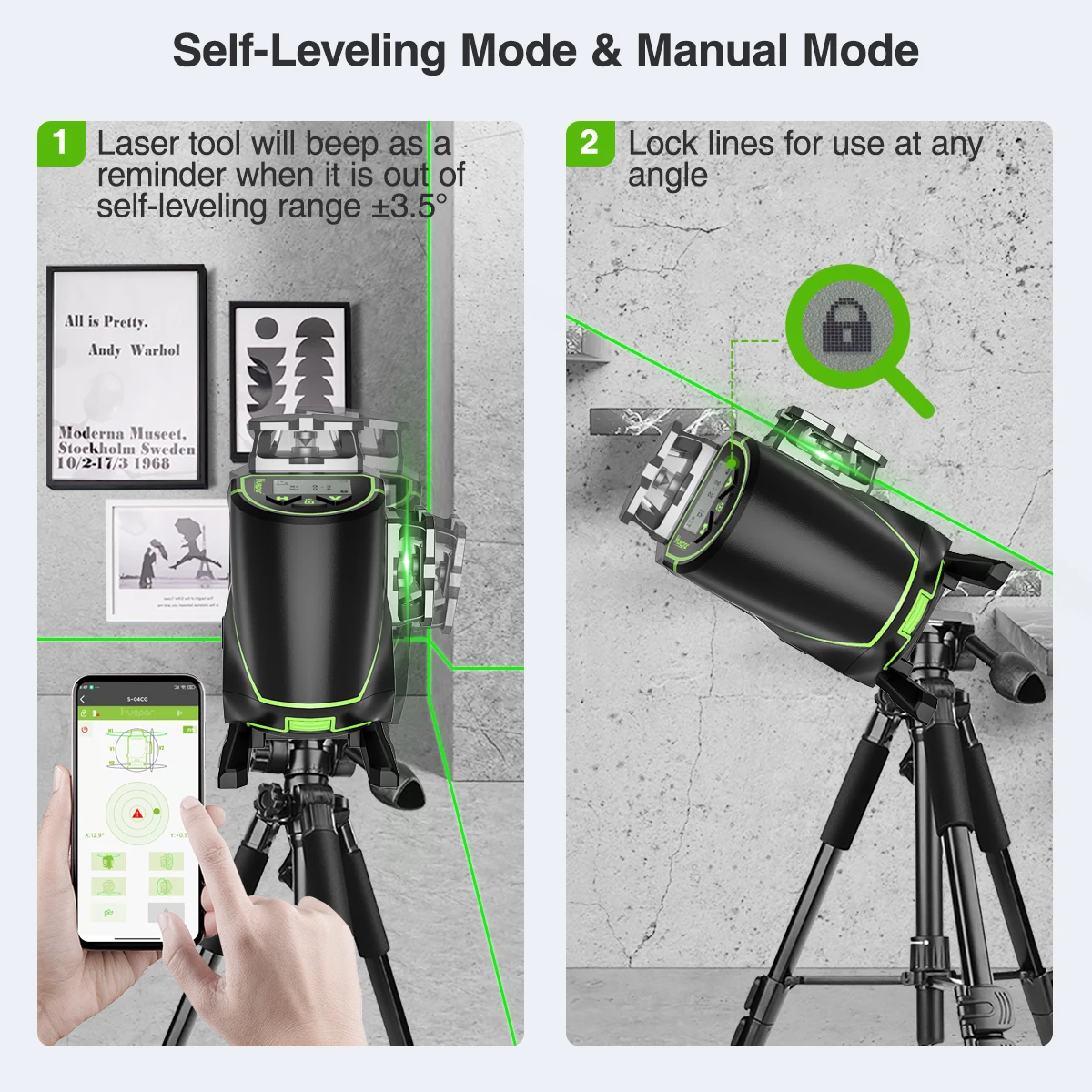

Self-leveling mode:
  • Once the pendulum unlocked, self-leveling mode is enabled.
  • The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
  • When the pendulum locked, the laser tool can be placed for use at any angle.
  • The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

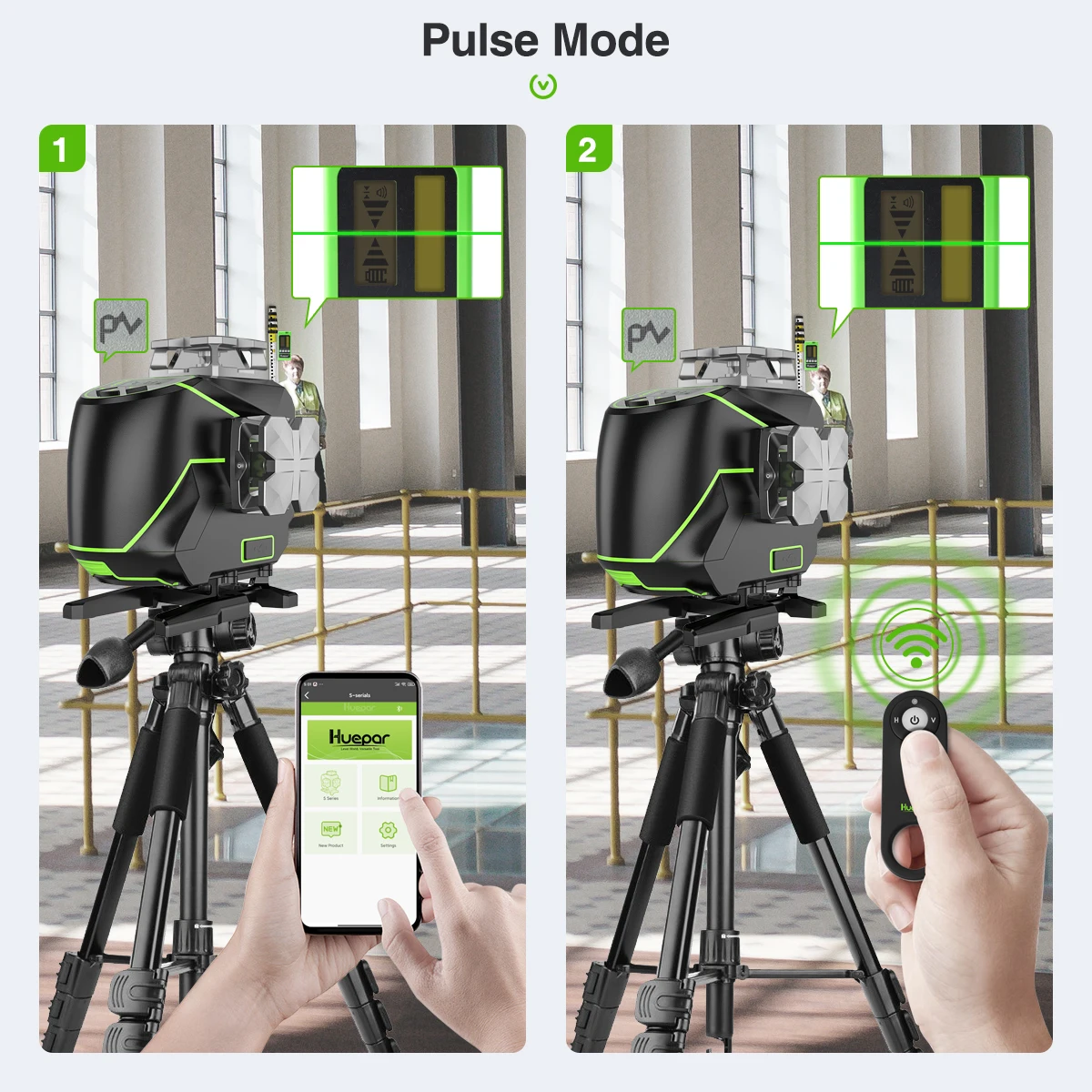

Pulse Mode:
  • How to turn on the pulse mode? – Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
  • Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
  • It is compatible with Huepar LR-6RG&LR-5RG&LR-8RG Line Laser Receiver only.

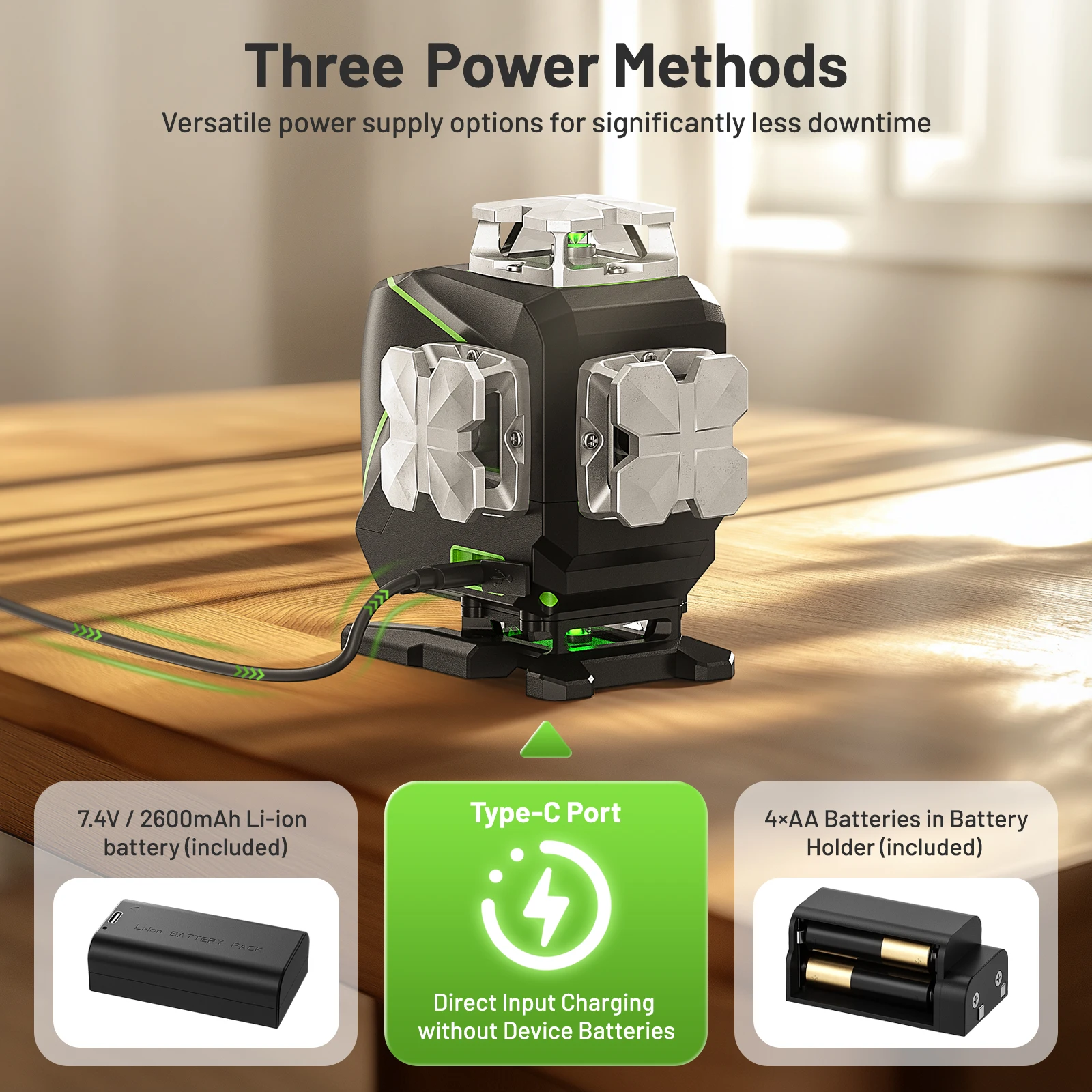

Diverse Power Supply:
  • Large-capacity li-ion battery: 5 hours of extra-long working.
  • AA battery: 4x AA battery for 0.5h usage.
  • Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
  • Charging protection help prevent the tool from overcharge.

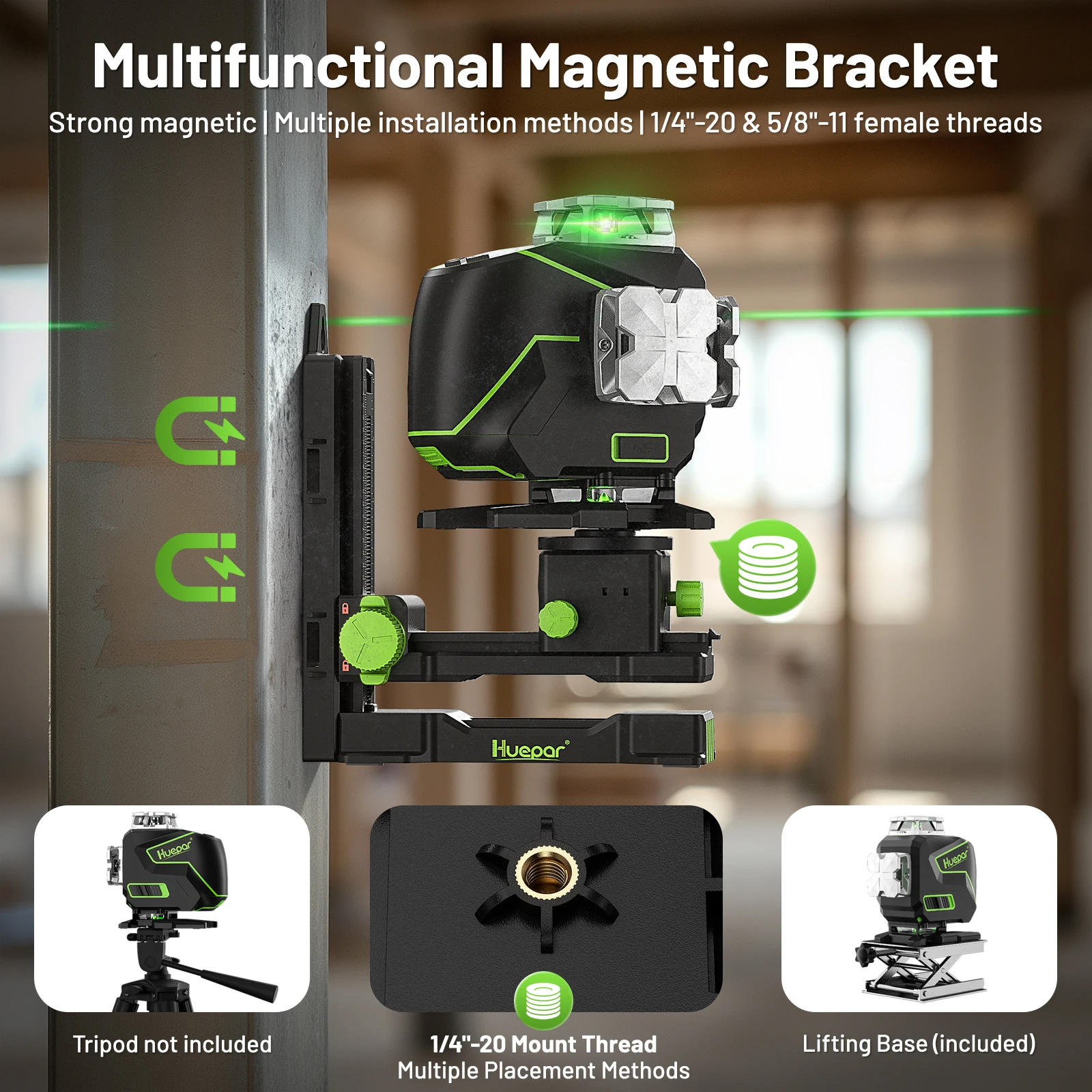

Multiple Installation Method:
  • Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel.
  • Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod.

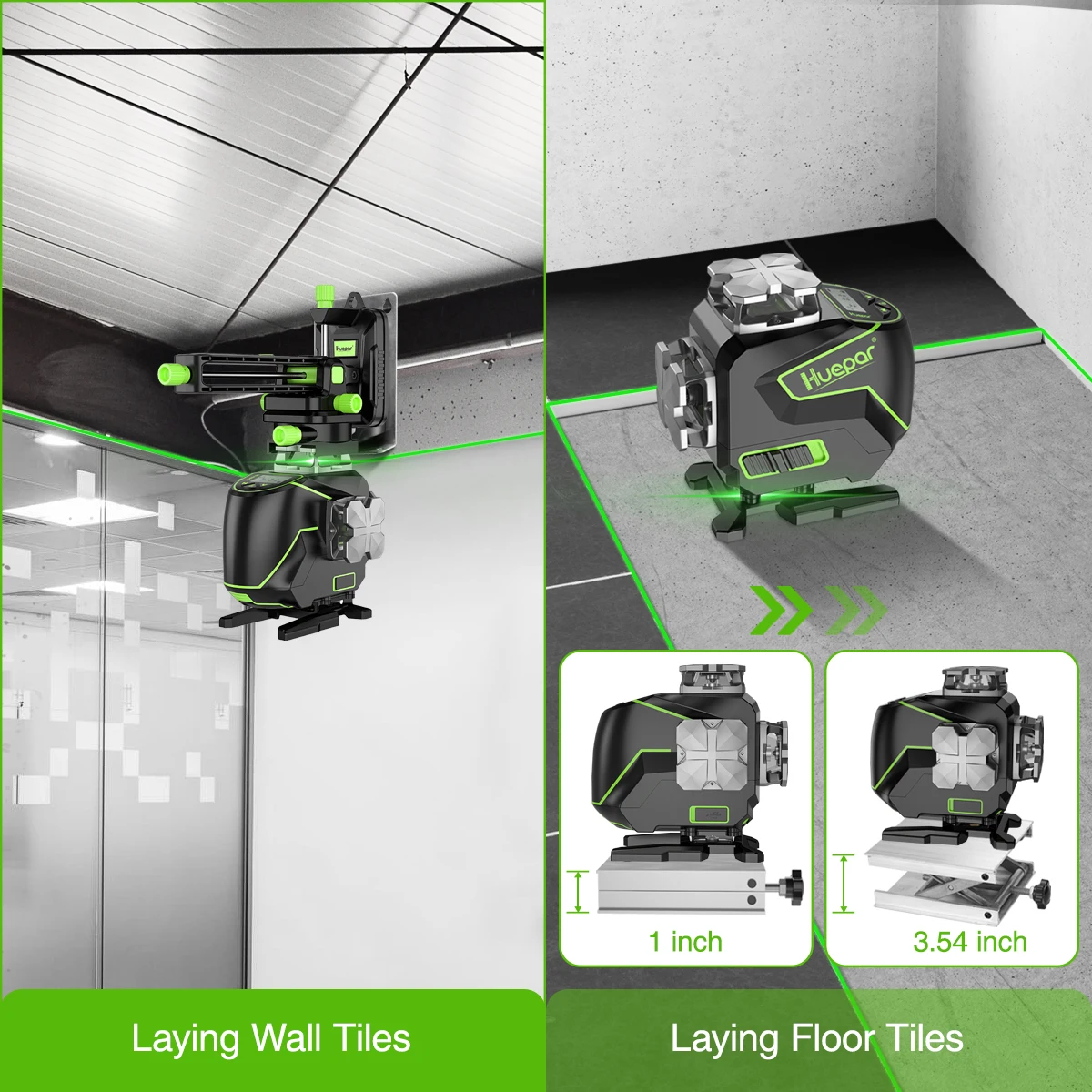

360° Laser for Laying Wall / Floor Tiles:
  • The Laser level can be suspended and hung on a wall bracket for laying wall tiles or ceilings.
  • Closing to the floor at a minimum 5/8"
  • With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.15 inch height.

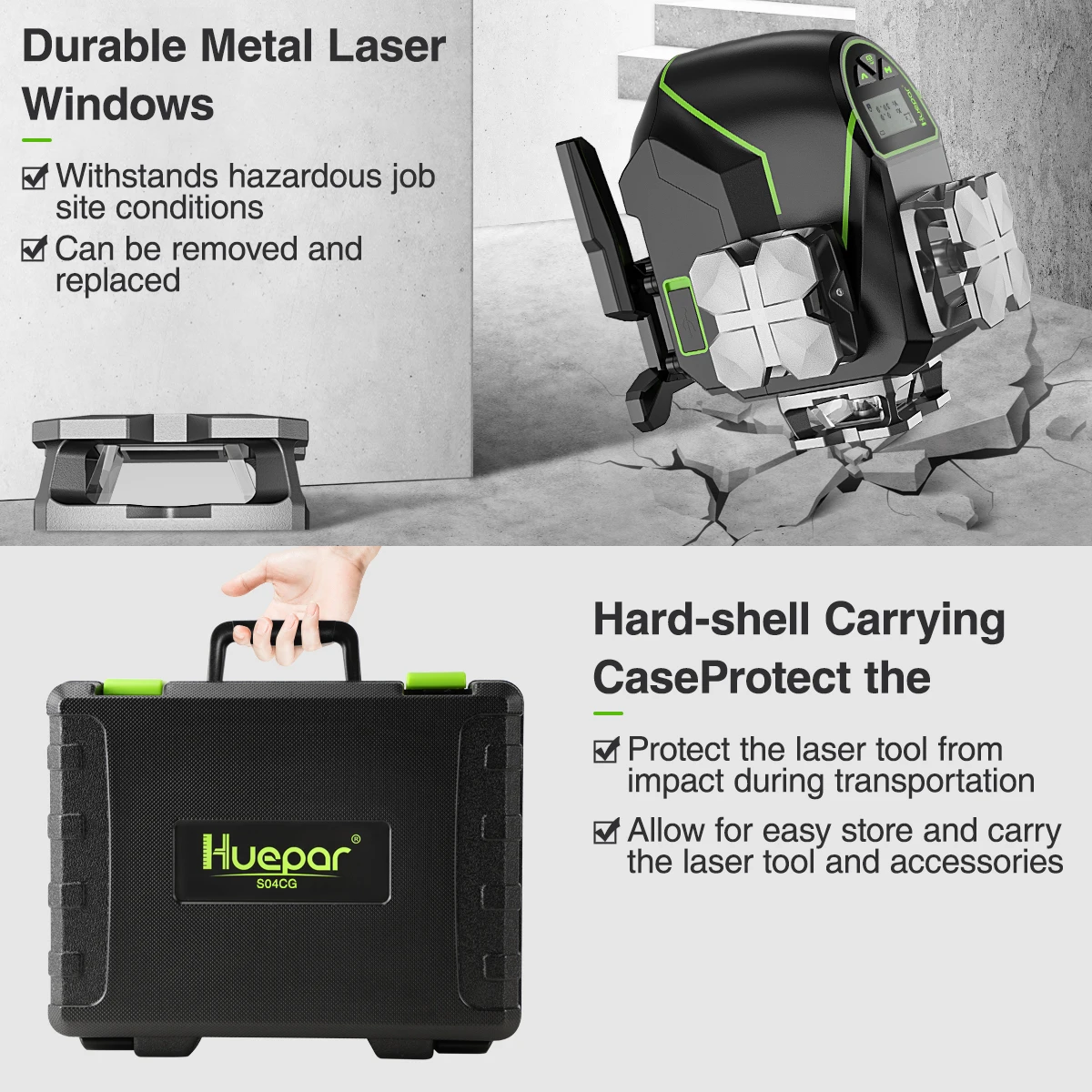

Durable metal laser windows:
Withstands hazardous job site conditions. It can be removed and replaced.
Hard-shell carrying case:
Protect the laser tool from impact during transportation. It is allow for easy store and carry the laser tool and accessories.

Imported Germany Osram Diode:

The laser device uses for imported Germany Osram diode, improve the accuracy and extend the working distance than other brand diode.

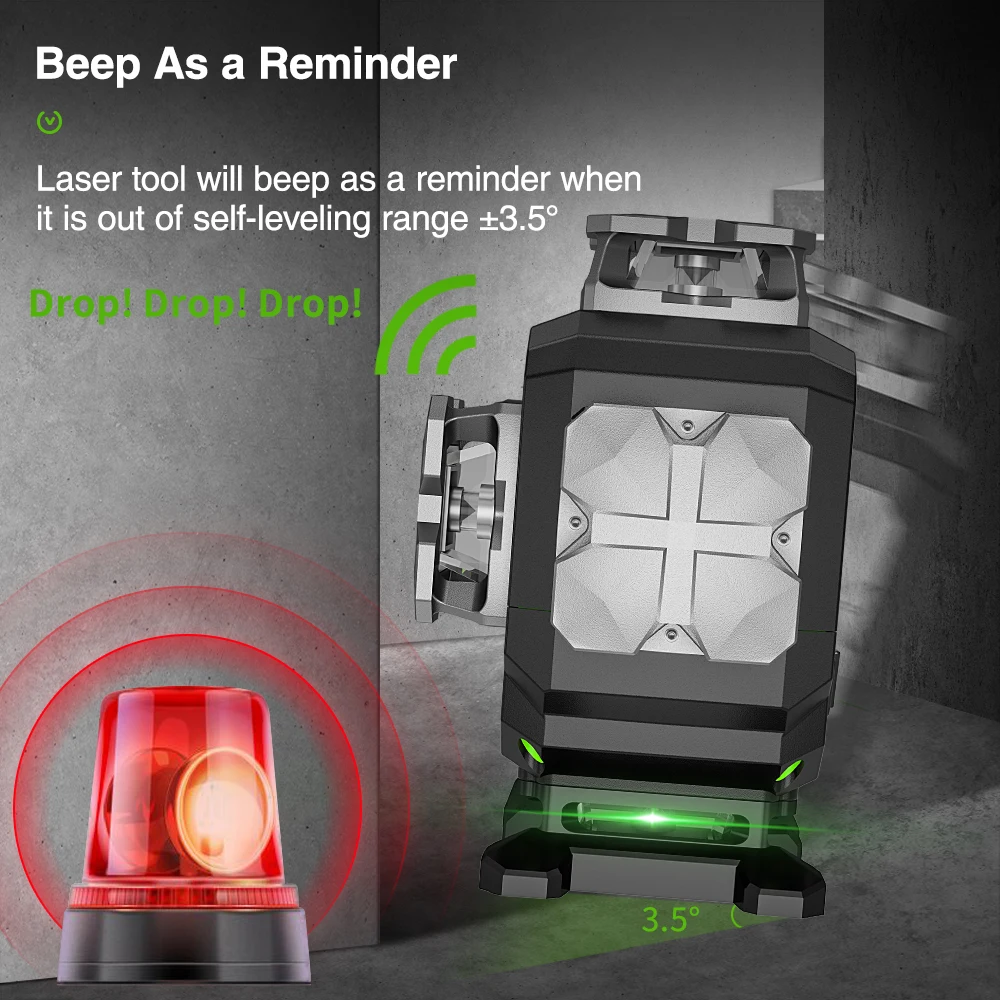

Beep as a reminder:
Laser tool will beep as a reminder when it is out of self-leveling range ±3.5°.
