Huepar W04CG Laser Level Green Cross 4D 16 Lines Bluetooth Lazer Leveler With Electric Rotating Base & Large LCD Screen & Remote
Huepar W04CG 4D 16 Lines Cross Laser Level Specifications:
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-530nm
Screen type: LCD screen with backlight
Horizontal/Vertical Accuracy: ±3mm/10m(±1/9 in.at 33 ft)
Leveling/Compensation Range: ±3°
Working Distance (Line): 20M(60-100 LUX), 40M with Huepar Receiver LR-5RG/LR-6RG/LR-8RG
Operating Time: 6.5 hours continual use with all laser beams on
Power Source: Li-ion Battery 11.1V(12.6V Max)2600mAh
Charging Time: About 3.5 hours.

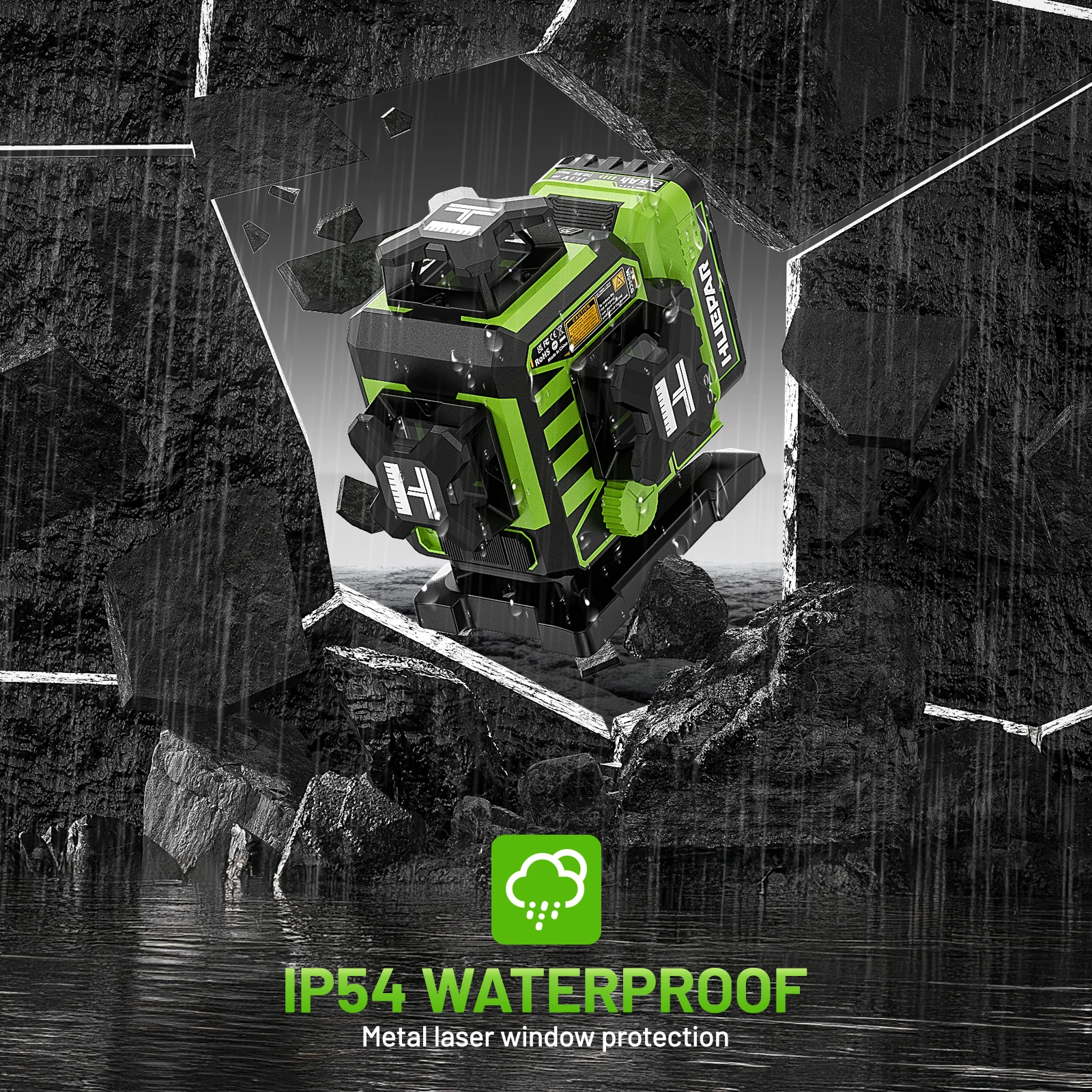

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
Mount Size: 1/4"-20 & 5/8"-11
Features: With electric base & Brightness adjust
Warning: Avoid direct exposure of the laser beam to the eyes.The laser would be affected by strong sun light when work outside.
|
|

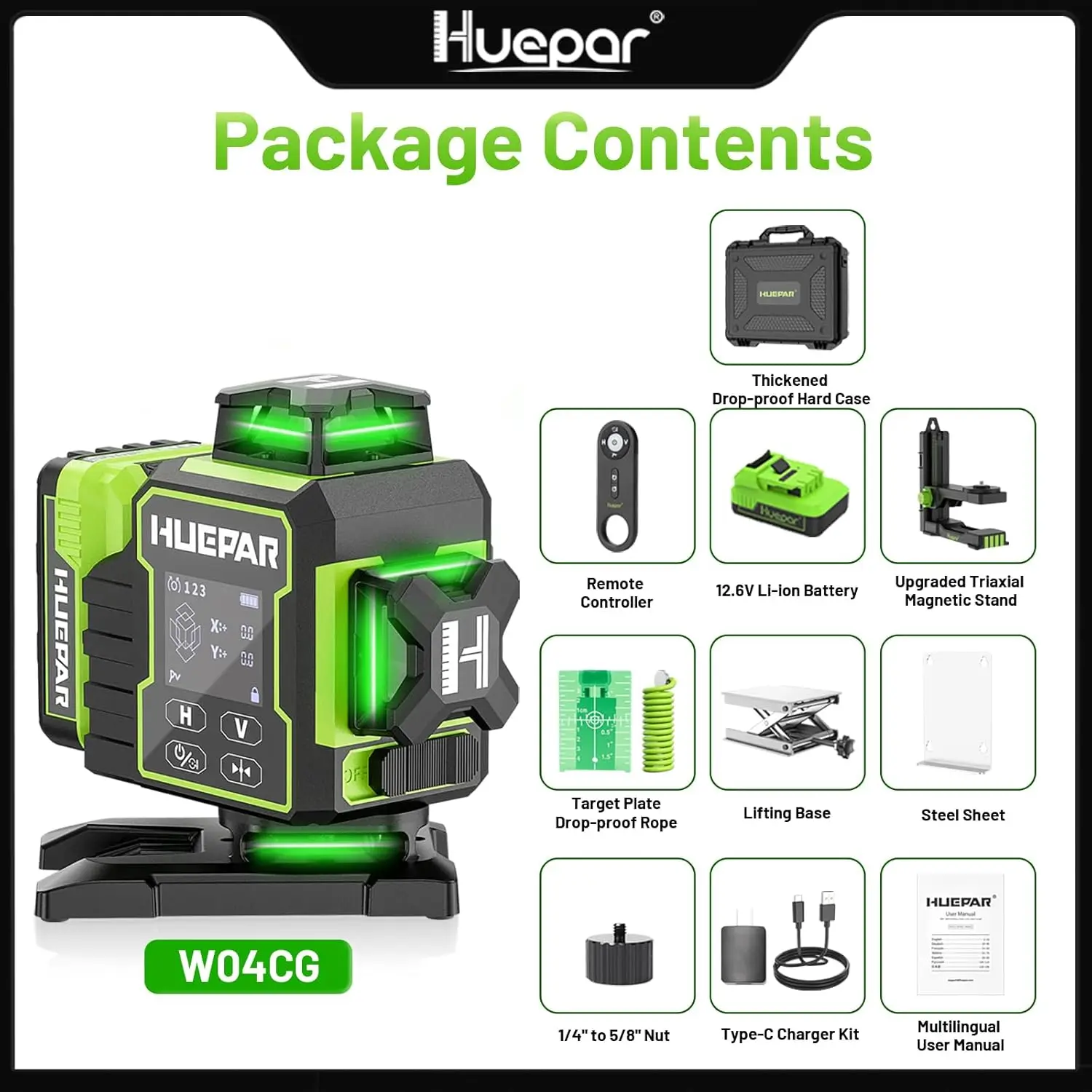

Package Contents:
|
-

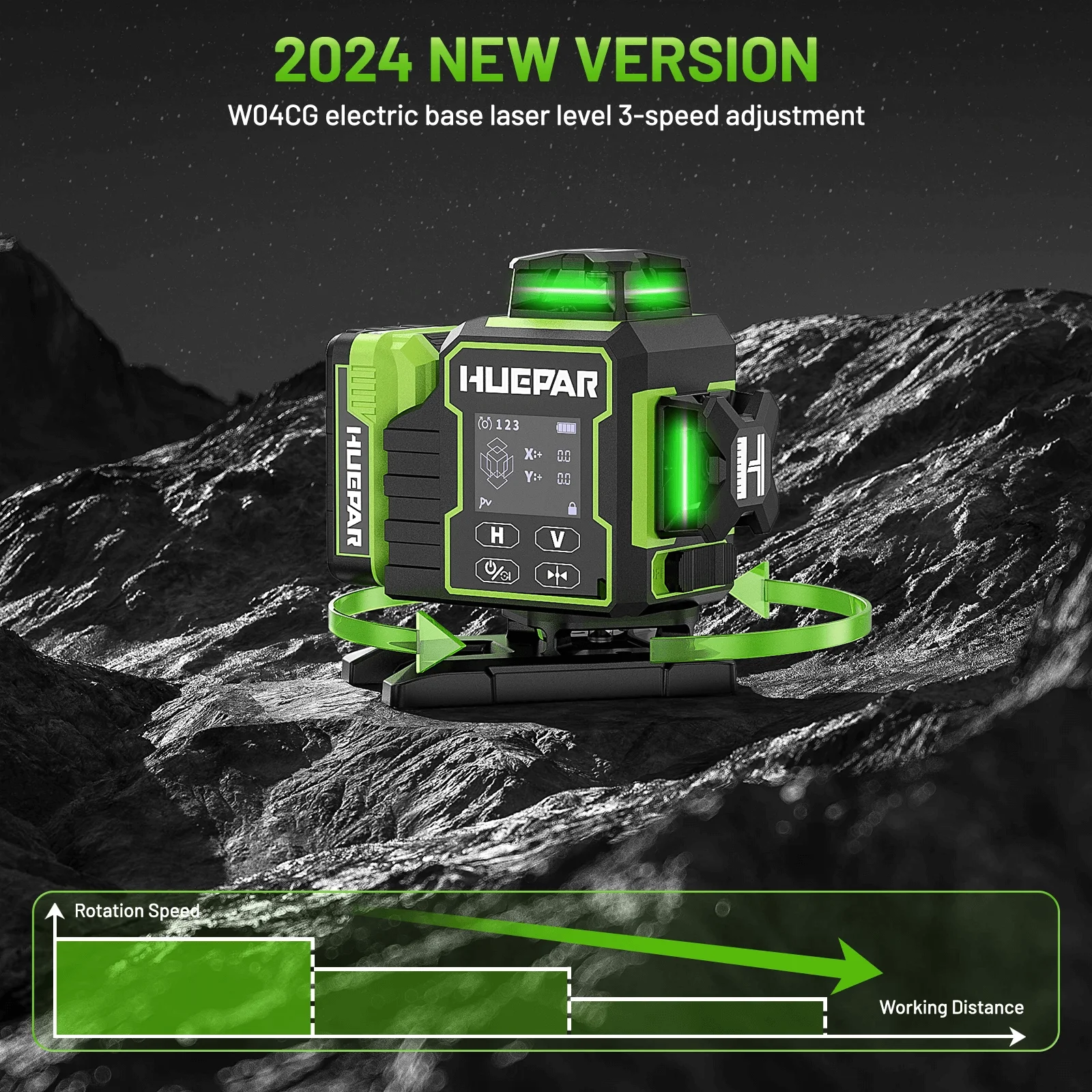

This W04CG self leveling laser level has its own electric rotating base.
-
It has three speeds: 9.1mm/s, 48mm/s, 240mm/s.
-
You can choose high speed to move the laser lines quickly to the target location, or medium or low speed to fine-tune the laser line to the target location.
-
You can control the rotation of the laser level within 65ft from the mobile phone APP or remote control.
-

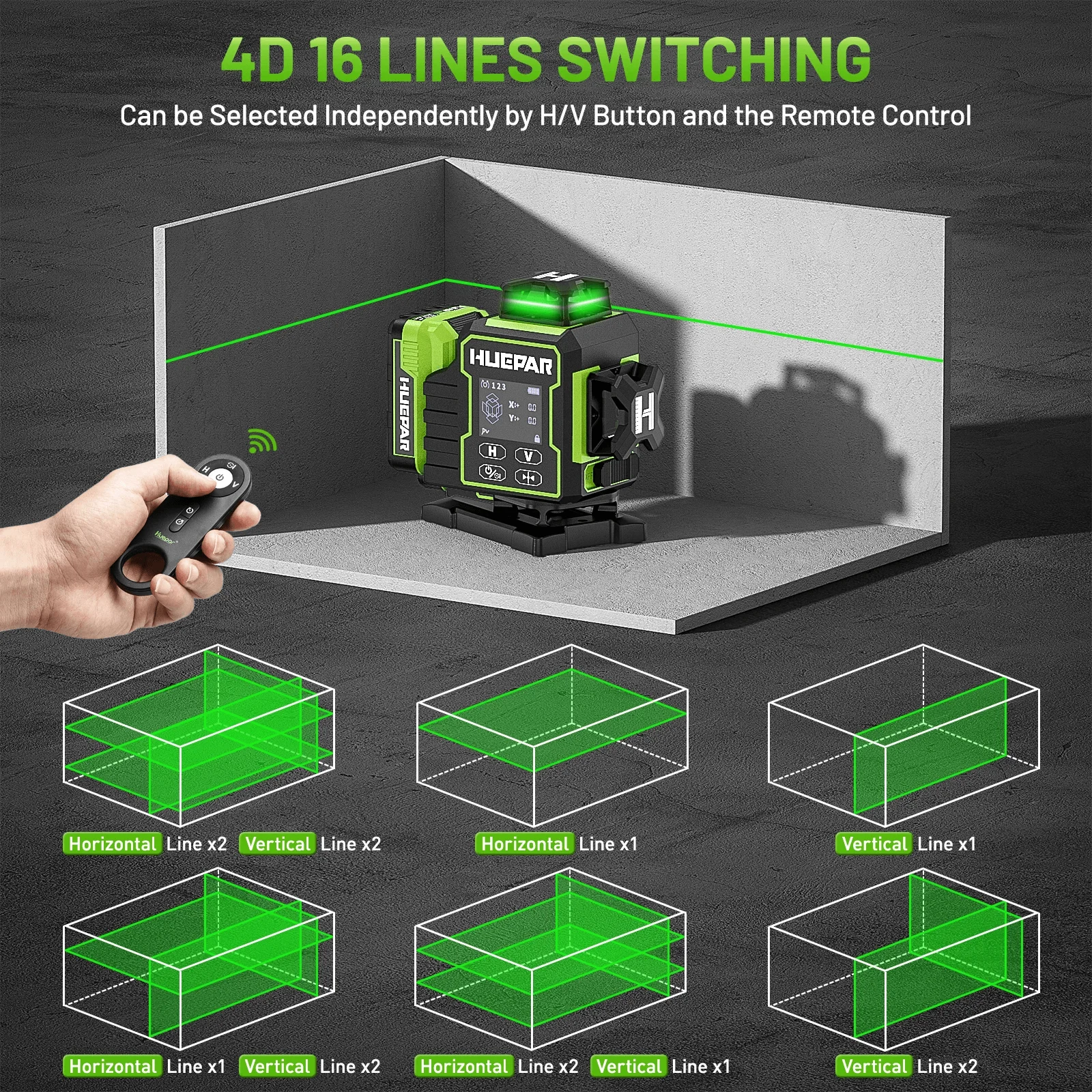

Short press H and V button on the keypad or remote control to switch the Horizontal and Vertical laser lines separately.
-
The laser lines can be selected separately according to job requirements.
-

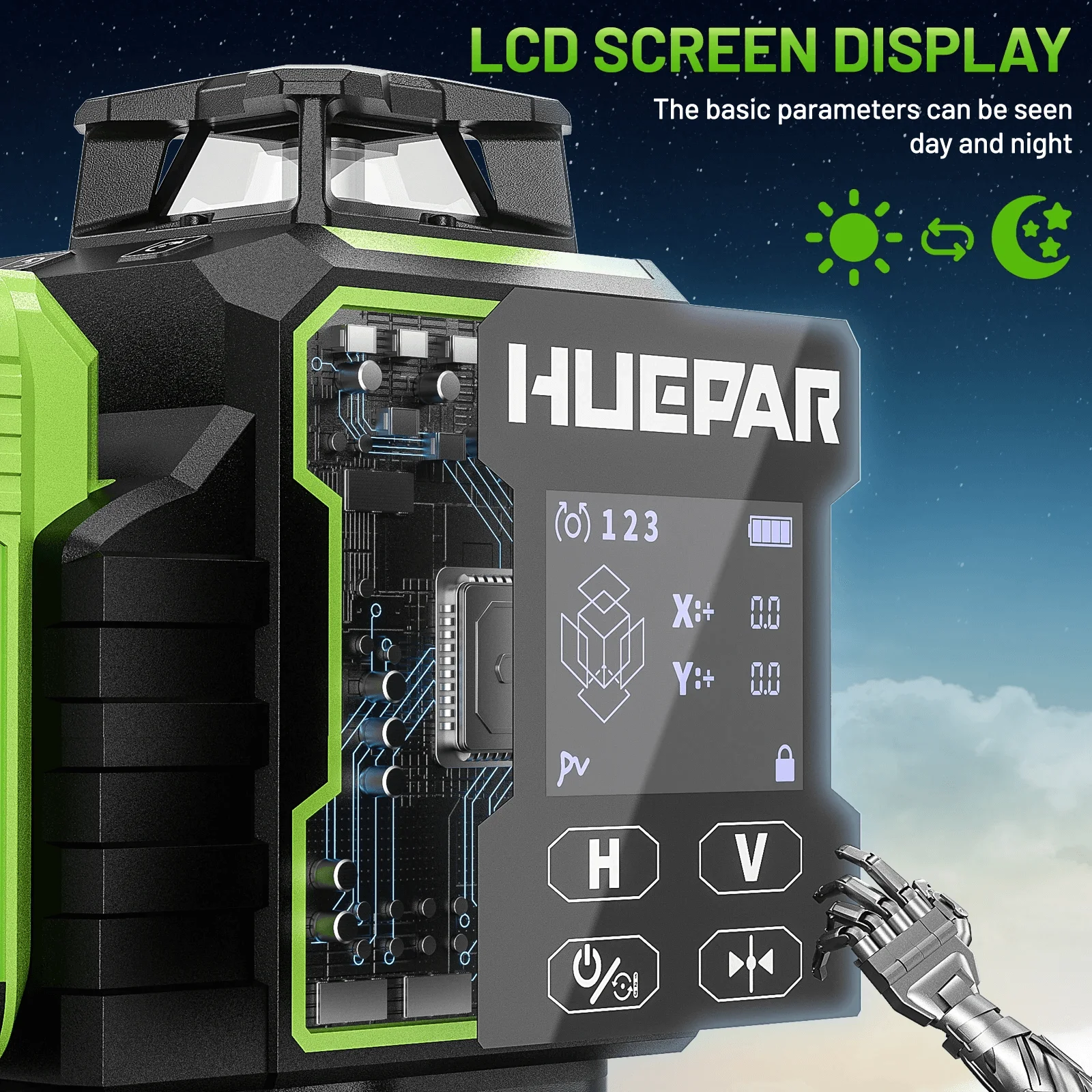

The large backlit LCD display of the green laser level clearly displays the laser lines in use, the tilt angle, battery power condition, pulse mode, self leveling mode, manual mode, and rotation speed.
-
The 4D laser level can be easily operated through the touch panel which is highly adaptable.
-

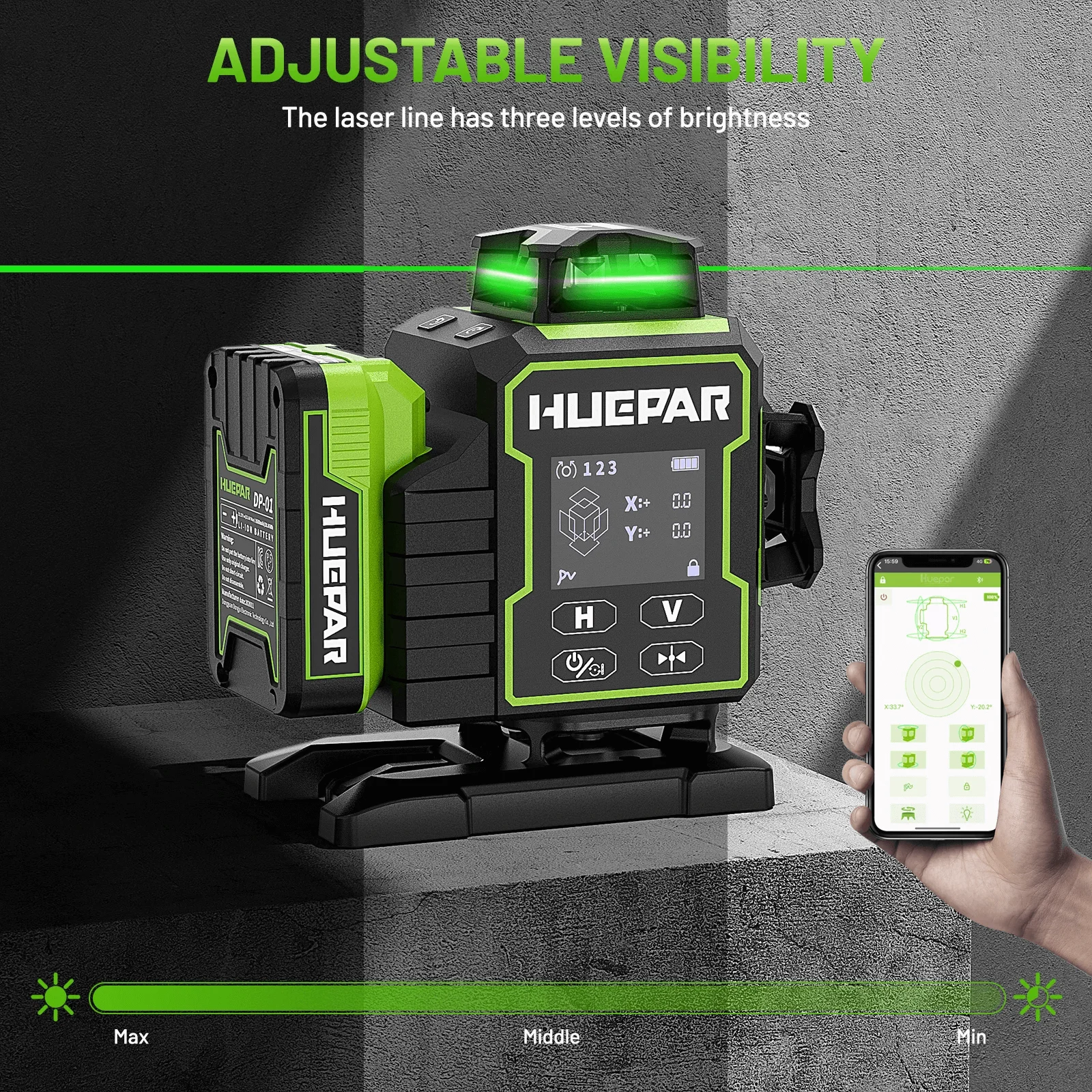

The Laser level has three levels of brightness for Min / Middle / Min.
-
The super bright green laser can be adjusted as your need in this 3 levels .
-

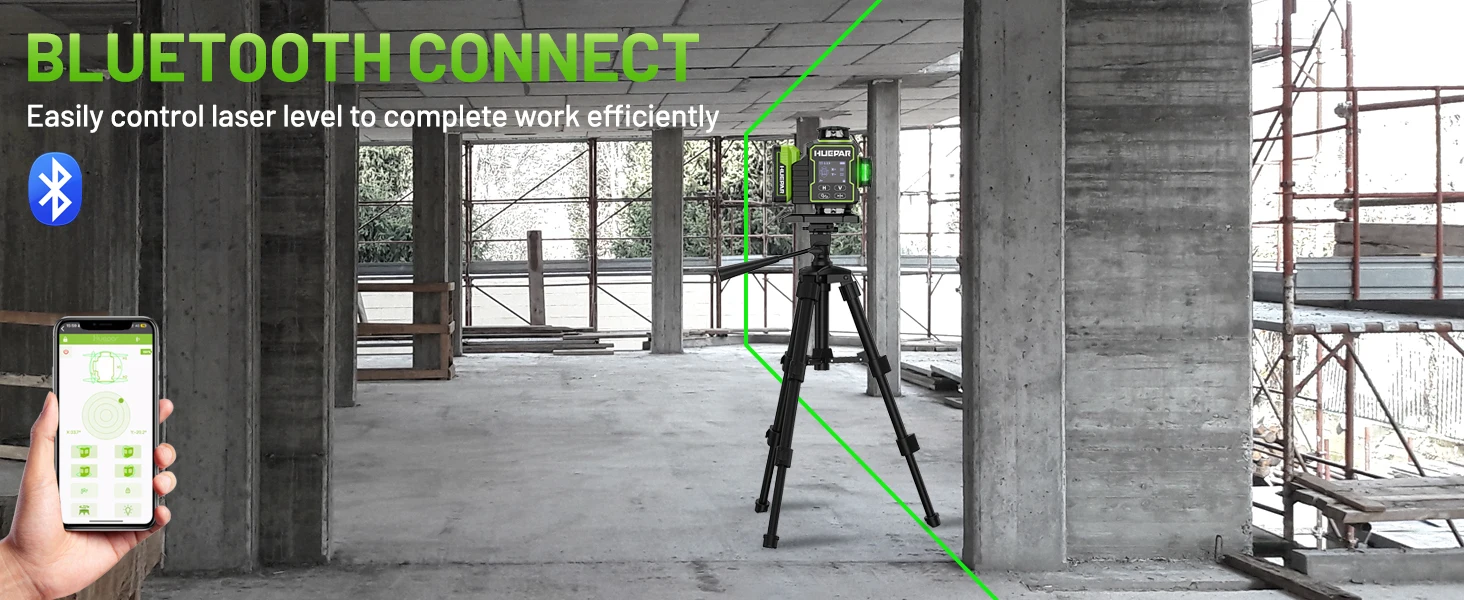

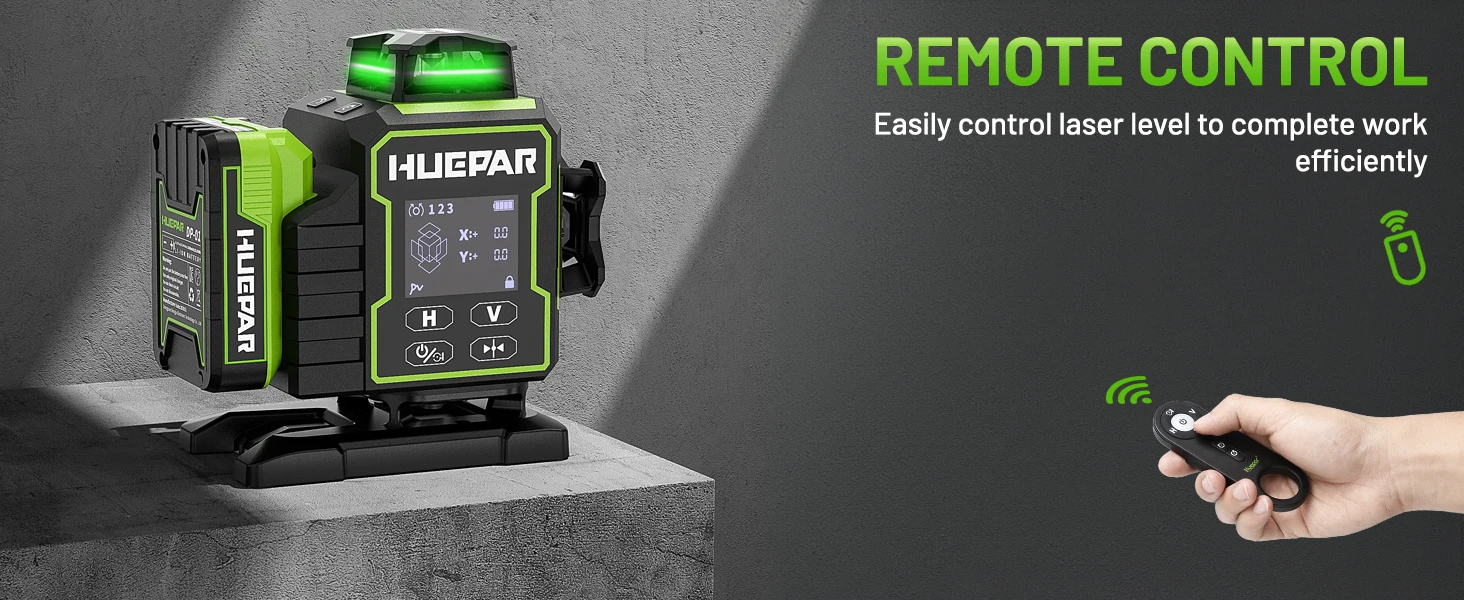

In addition to the key control, the 360 laser level is also equipped with mobile phone Bluetooth and remote control.
-
You can control various modes using the accompanying remote or your phone's Bluetooth connection. Control range up to 65 feet.
-

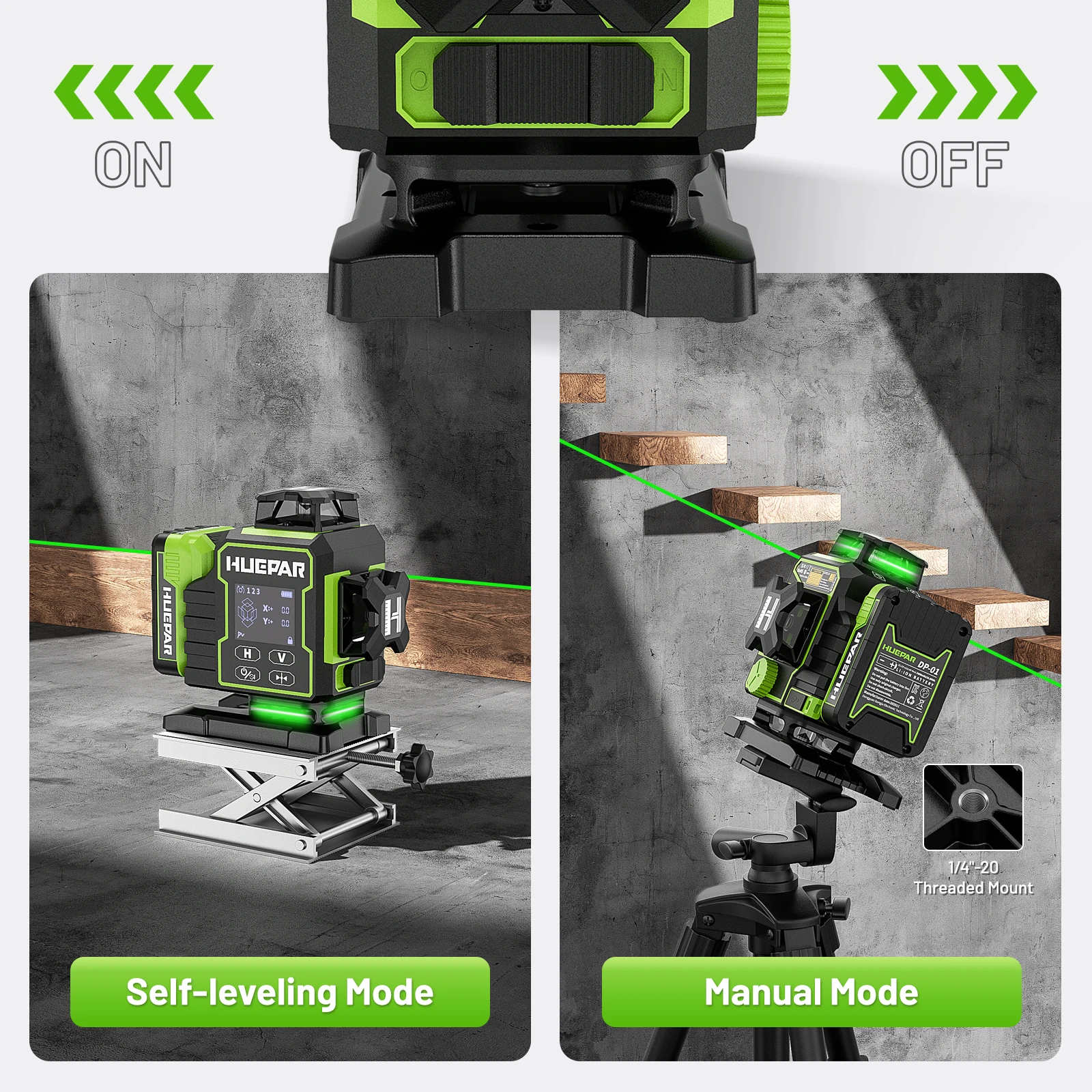

Slide the switch to ON position to turn on self-leveling mode, the Huepar 4d laser level will be automatically leveled within ±3°.
-
Slide to OFF position to turn on the manual leveling, which can be placed at any angle for use.
-
How to turn on the pulse mode? – Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
-
The laser level works well in bright outdoor daytime conditions using the pulse mode and Huepar's laser receiver, working distance up to 40m/130Ft.
-
It is compatible with all Huepar LR-6RG&LR-5RG&LR-8RG Line Laser Receivers.
:
-
Laser Level features a convenient Type-C charging interface that enables you to charge the device while it's in use, ensuring uninterrupted operation.
-
Large-capacity li-ion battery: 6.5 hours of extra-long working.
-

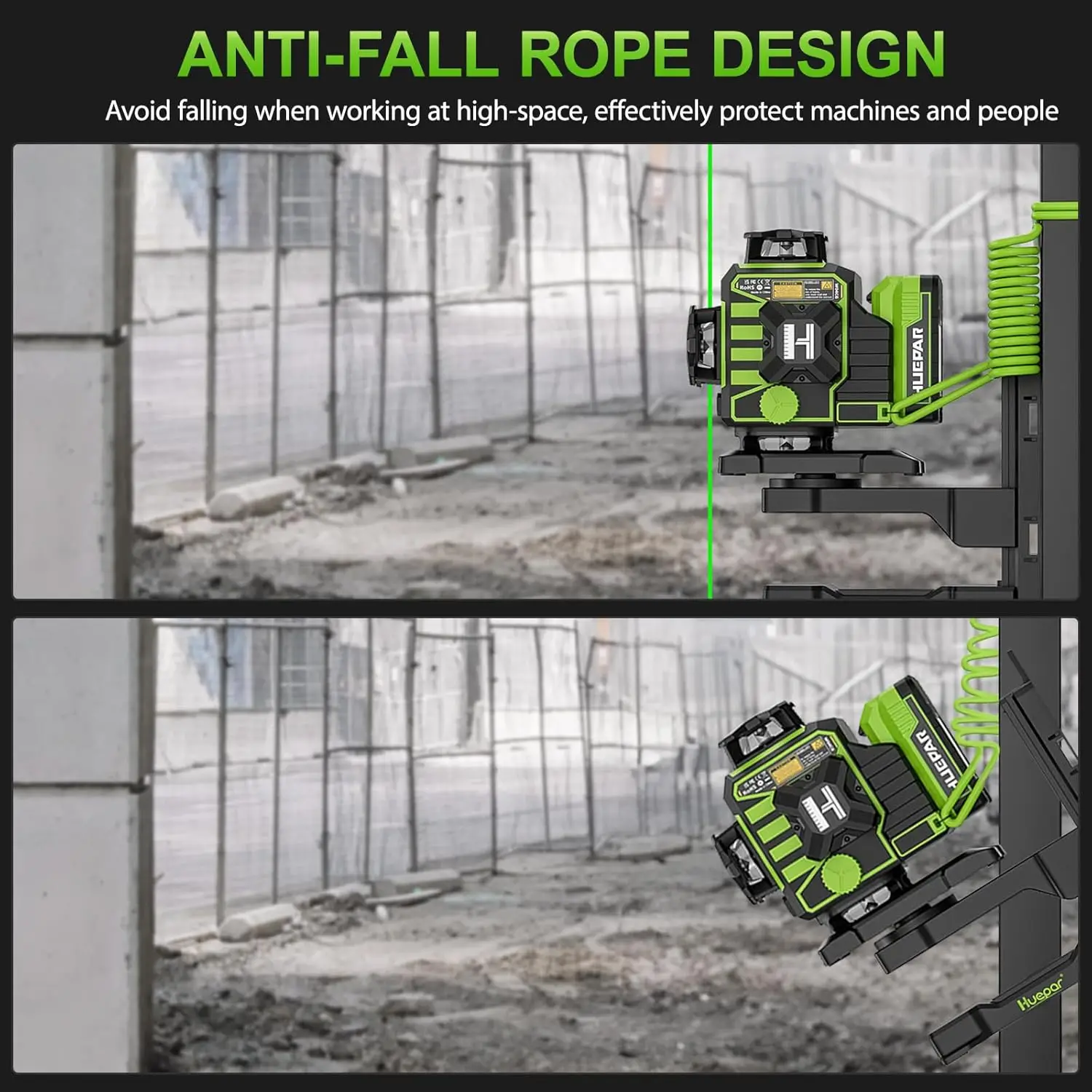

The Anti-fall rope avoid falling when working at high-space, effectively protect machines and people.
-

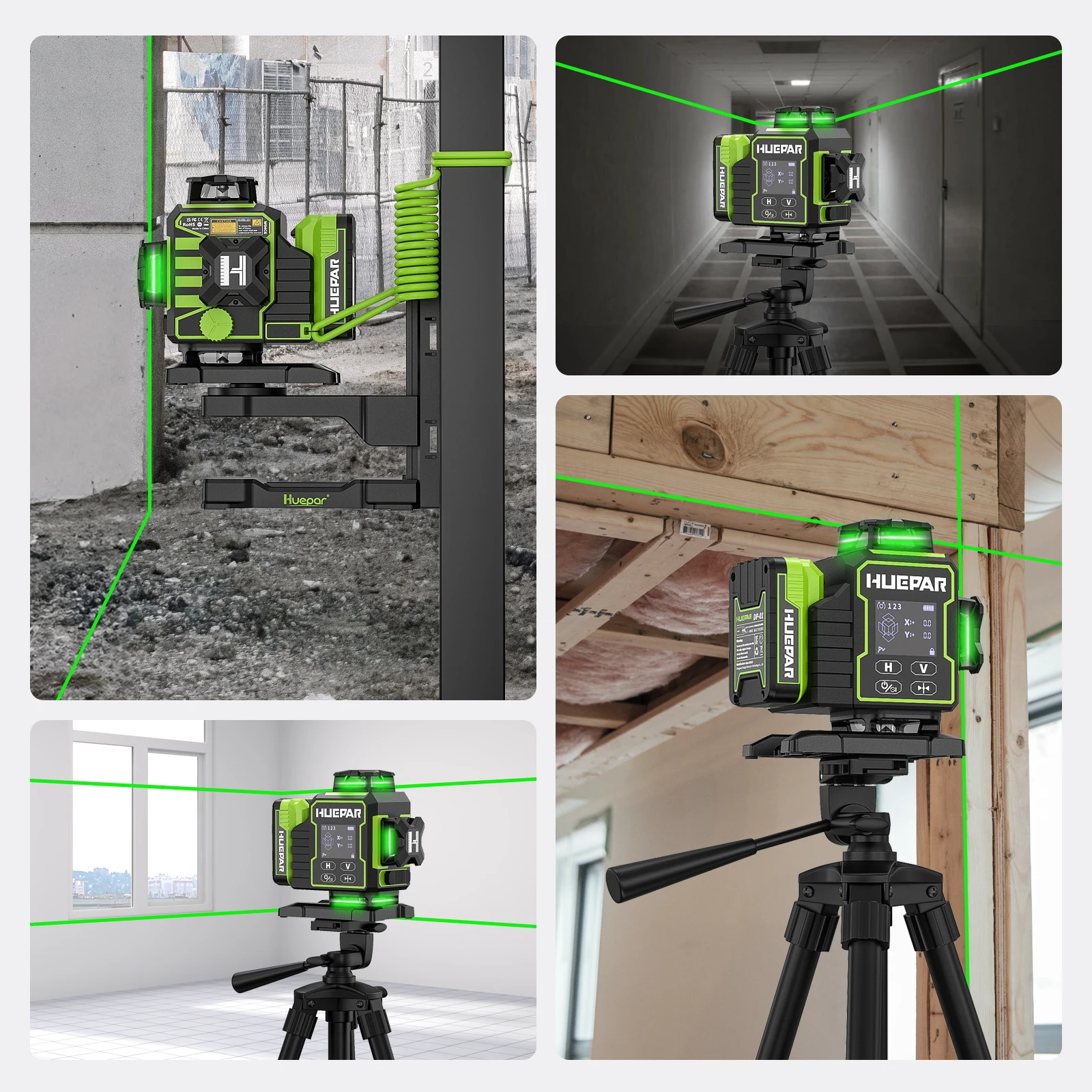

Strong Magnetic Wall Bracket: Allows for attachment to metal track and steel.
-
The laser offers 1/4"-20 and 5/8”-11 mounting thread to suit a standard tripod or pole mount.
-
Allows for height adjustments and stable placement, ensuring that the laser lines are accurately aligned with the work surface.
-

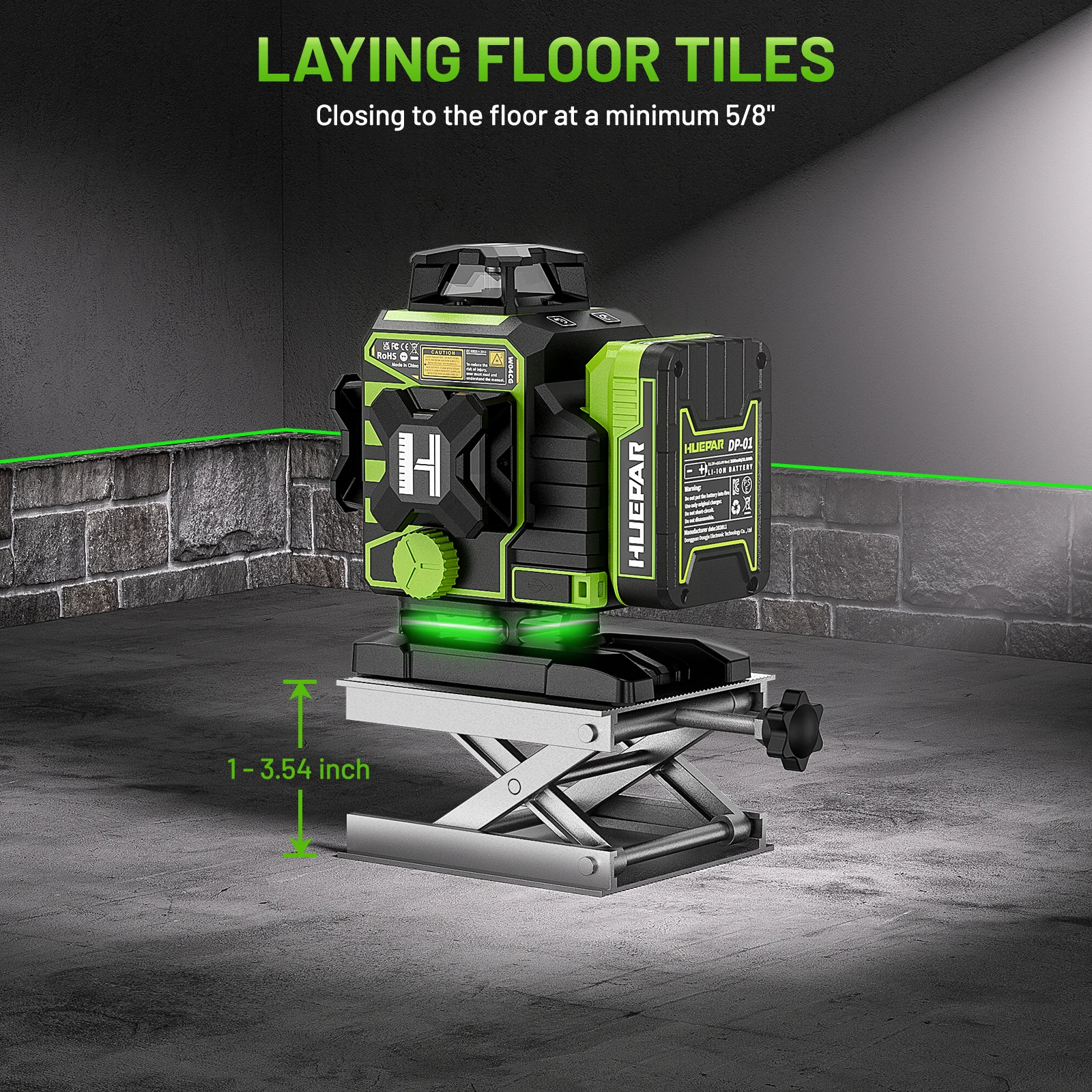

With the lifting base, the laser lines raise from the surface to project over and travel past uneven surfaces or obstructions between 1 inch and 3.54 inch height.
