New Wholesale Huepar Y011G Green Beam Cross Line Nivel Laser Level
Product Description

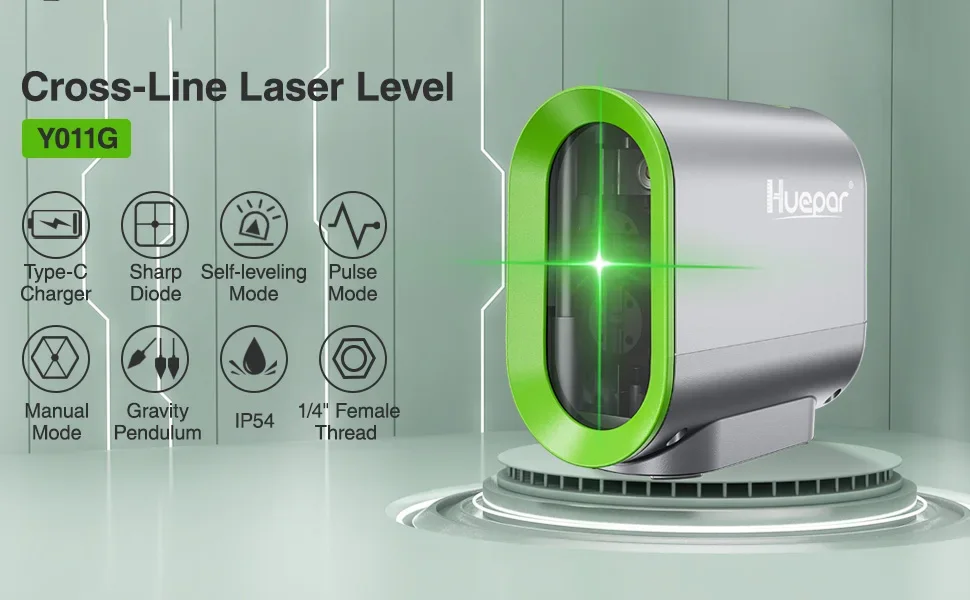

Huepar Y011G Self-leveling Green Laser Level Specifications:
● Laser Beam: Green Beam
● Projection: 2 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: 505-520nm
● Horizontal / Vertical Accuracy: ±3mm/10m
● Leveling / Compensation Range: 3.5° ± 0.5°
● Leveling Time: 3s
● Working Distance: 25m (100 LUX), 50m with Huepar Laser Detector LR-5RG / LR-6RG
● Operating Time & Power Source: 7 hours with built-in Li-ion battery 3.7V / 2200mAh
● Mount Size: 1/4″-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃
● Laser Beam: Green Beam
● Projection: 2 Green Laser Lines
● Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
● Laser Wavelength: 505-520nm
● Horizontal / Vertical Accuracy: ±3mm/10m
● Leveling / Compensation Range: 3.5° ± 0.5°
● Leveling Time: 3s
● Working Distance: 25m (100 LUX), 50m with Huepar Laser Detector LR-5RG / LR-6RG
● Operating Time & Power Source: 7 hours with built-in Li-ion battery 3.7V / 2200mAh
● Mount Size: 1/4″-20
● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
● Operating Temperature: Between -10℃ and +50℃
● Storage temperature: Between -20℃ and +70℃

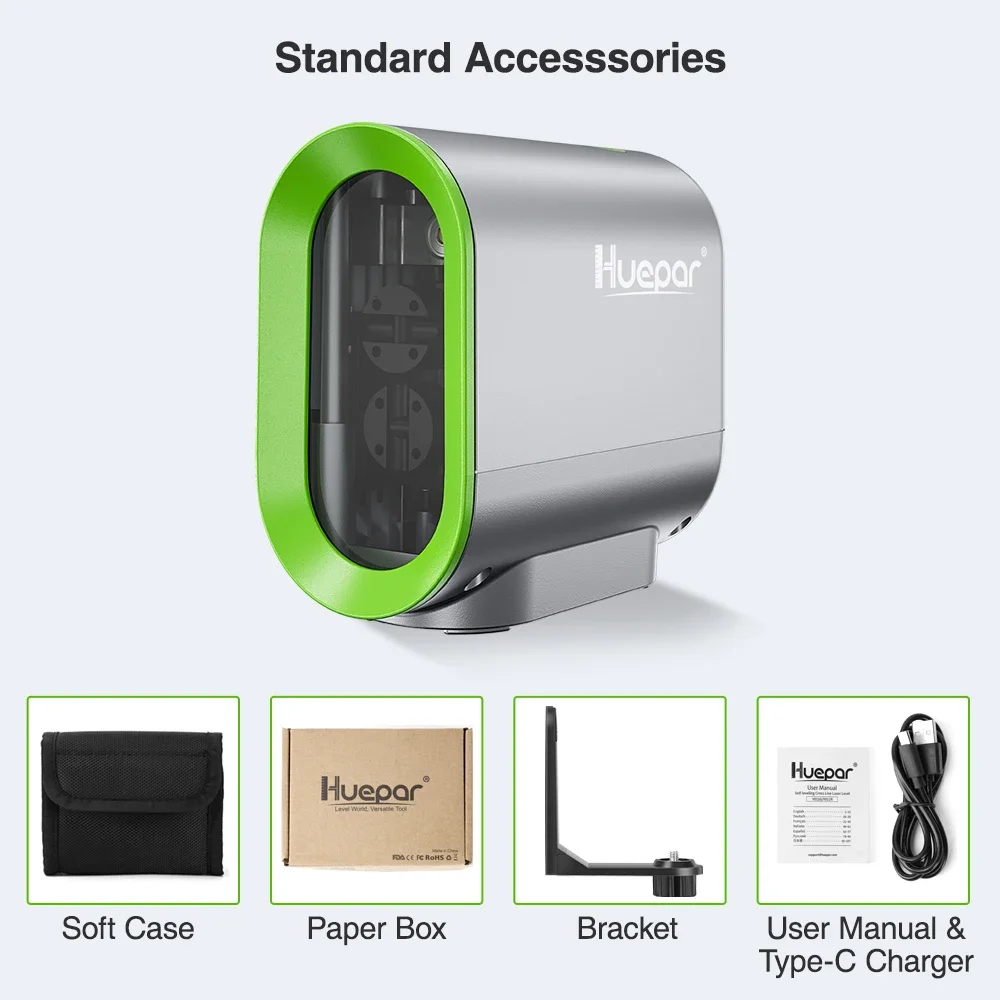

Package Contents
1 x Green Laser Level Y011G
1 x Type-C Charging Cable
1 x L-shape Magnetic Pivoting Base
1 x Carry Pouch
1 x Multilingual User Manual
1 x Type-C Charging Cable
1 x L-shape Magnetic Pivoting Base
1 x Carry Pouch
1 x Multilingual User Manual
Self-levelingMode & ManualMode:
Self-leveling mode:
When the laser tool is switched to the unlocked position, the self-leveling mode is enabled. The laser beam will flash when the tool is beyond self-leveling range 3.5° ± 0.5°.
Manual mode:
When the pendulum lock is in the locked position, you can place the laser tool at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it’s not self-leveling now.
Mini Cross Line Laser Level with Built-in Rechargeable Lithium Battery
When the laser tool is switched to the unlocked position, the self-leveling mode is enabled. The laser beam will flash when the tool is beyond self-leveling range 3.5° ± 0.5°.
Manual mode:
When the pendulum lock is in the locked position, you can place the laser tool at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it’s not self-leveling now.
Mini Cross Line Laser Level with Built-in Rechargeable Lithium Battery

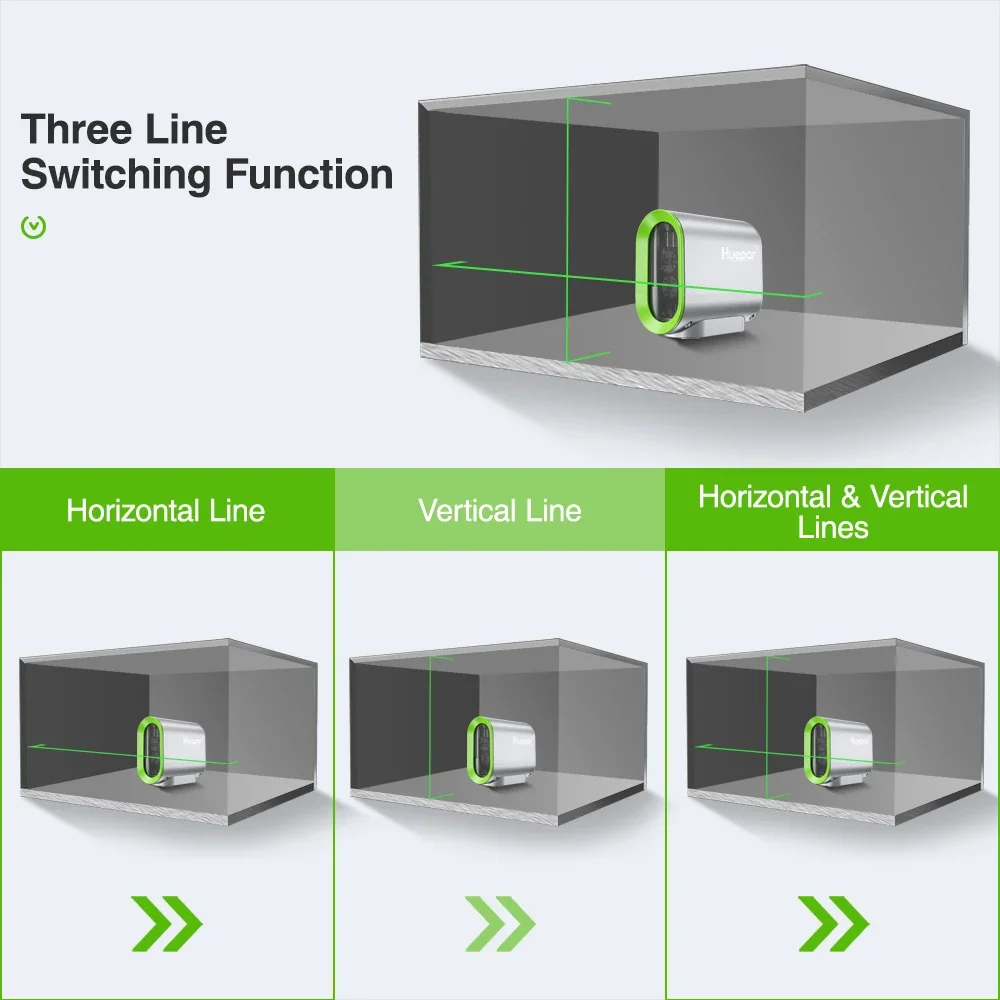

Three line switching functions:
Each time the power button is pressed once, the laser tool projects vertical lines,horizontal lines and cross lines in sequence.

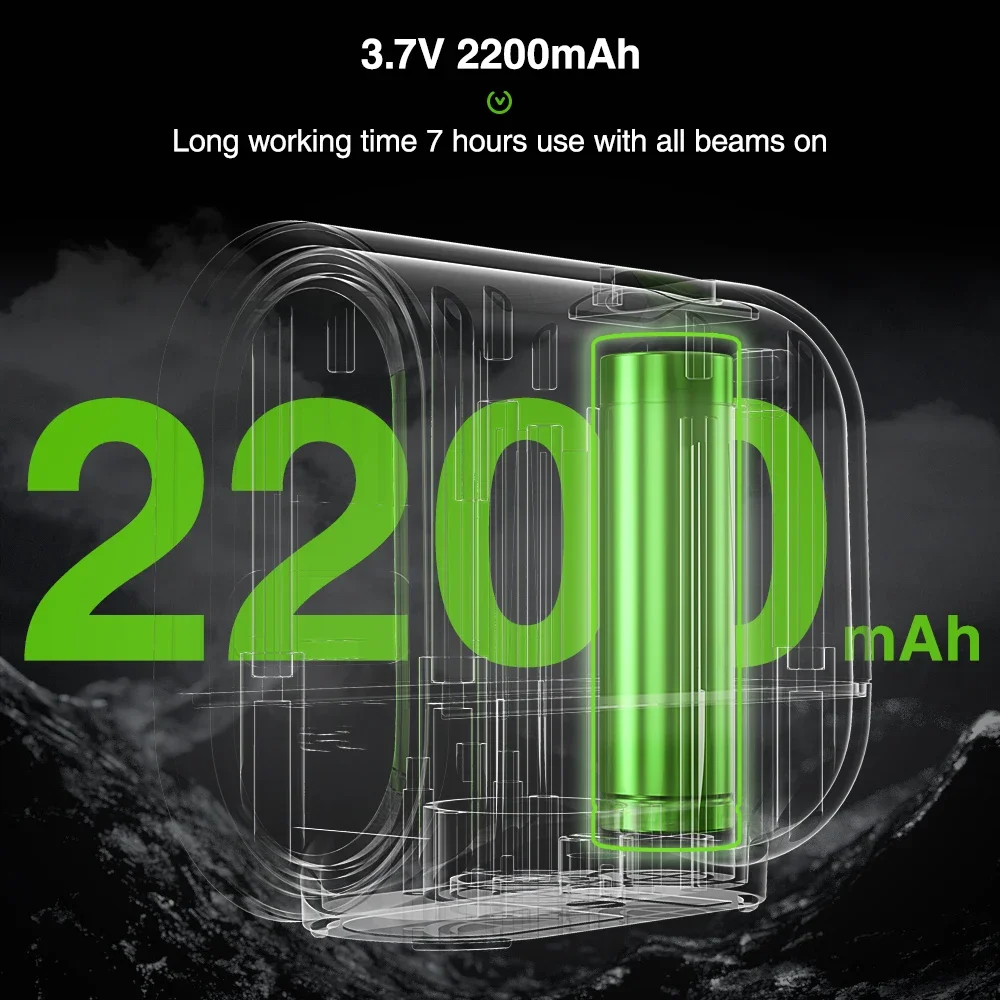

Built-inRechargeable Lithium Battery:
3.7V / 2200mAh Li-ionBattery: Provides up to 7 hours of continuous power uptime when fully charged.
Type-C Charging Port:The laser level can be charged by laptop, power bank, car charger, etc. With the power protection function, you can use your Android phone’s charging cable and adapter to charge the laser tool.
It is recommended to charge for more than 2.5hours before using.
OutdoorPower-savingPulseMode: When switch to pulse mode, the brightness of the laser line will be reduced to extend the working time and relieve eye strain. Extends the laser range up to 50m with Huepar Line Laser Detector (ASIN: B07L59G72J) in bright-light or outdoor conditions. It is compatible with Huepar LR-6RG/LR-5RG Line Laser Detector only.
Type-C Charging Port:The laser level can be charged by laptop, power bank, car charger, etc. With the power protection function, you can use your Android phone’s charging cable and adapter to charge the laser tool.
It is recommended to charge for more than 2.5hours before using.
OutdoorPower-savingPulseMode: When switch to pulse mode, the brightness of the laser line will be reduced to extend the working time and relieve eye strain. Extends the laser range up to 50m with Huepar Line Laser Detector (ASIN: B07L59G72J) in bright-light or outdoor conditions. It is compatible with Huepar LR-6RG/LR-5RG Line Laser Detector only.
Easy to Use:

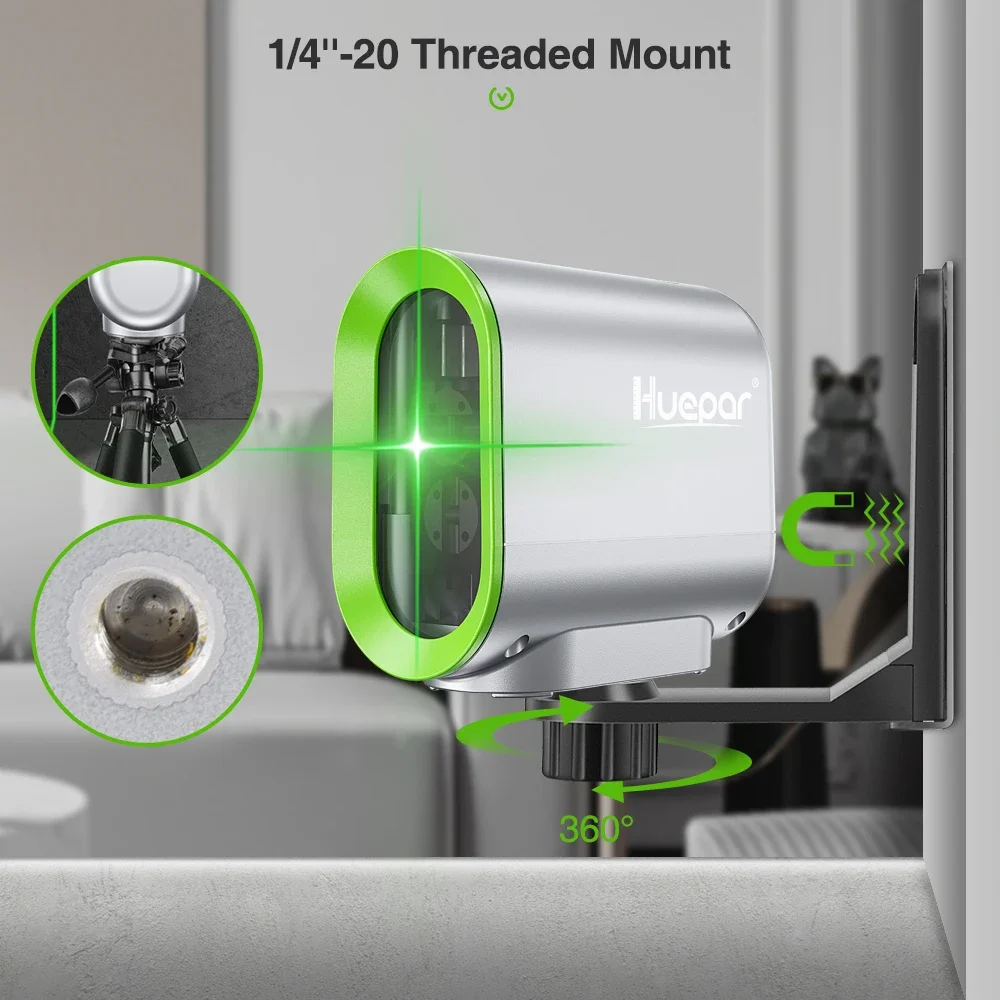

1/4″threaded mount:The cross line laser comes with 1/4″ female thread, allowing it to be attached to tripod or other mounting bases for positioning.
Magnetic pivoting base: With a metal L-shaped pivoting base that can be adsorbed onto metal, providing 360° free rotation and adjustments front and back within 3.5cm to fit different angles required.
Magnetic pivoting base: With a metal L-shaped pivoting base that can be adsorbed onto metal, providing 360° free rotation and adjustments front and back within 3.5cm to fit different angles required.
Specification
|
item
|
value
|
|
Warranty
|
2 years
|
|
Certification
|
FCC
|
|
Dot Numbers
|
0
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
Jiangsu
|
|
Brand Name
|
Huepar
|
|
Model Number
|
Y011CG
|
|
Size
|
118mmxX195mm
|
|
Precision
|
±3mm/10m
|
|
Wavelength
|
520±10NM
|
|
IP Rating: IP54
|
waterproof, dustproof and shockproof, reliability and robustness
|
|
Leveling time
|
≤3s
|
|
Laser line
|
Osram import Germany Laser
|
Company Profile
Packing & Delivery
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?

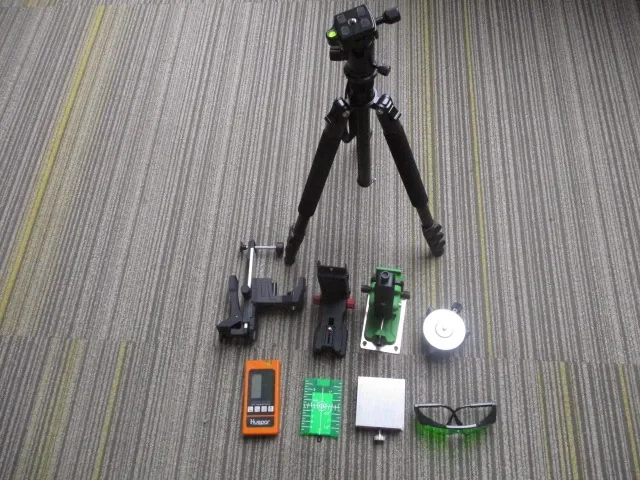

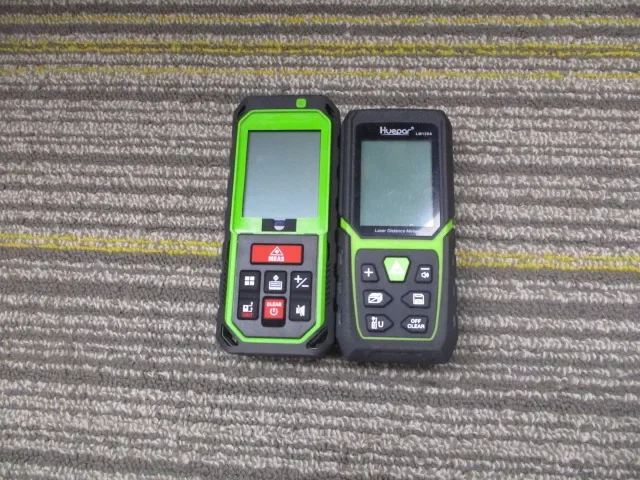

Laser Level,Laser Distance Meter,Accessories,Power Tool,Garden Tool
