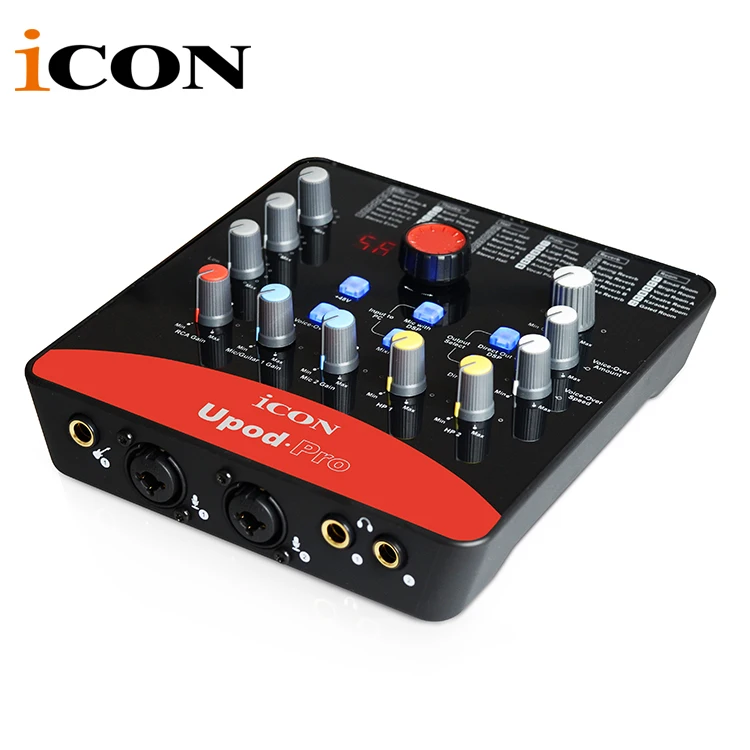

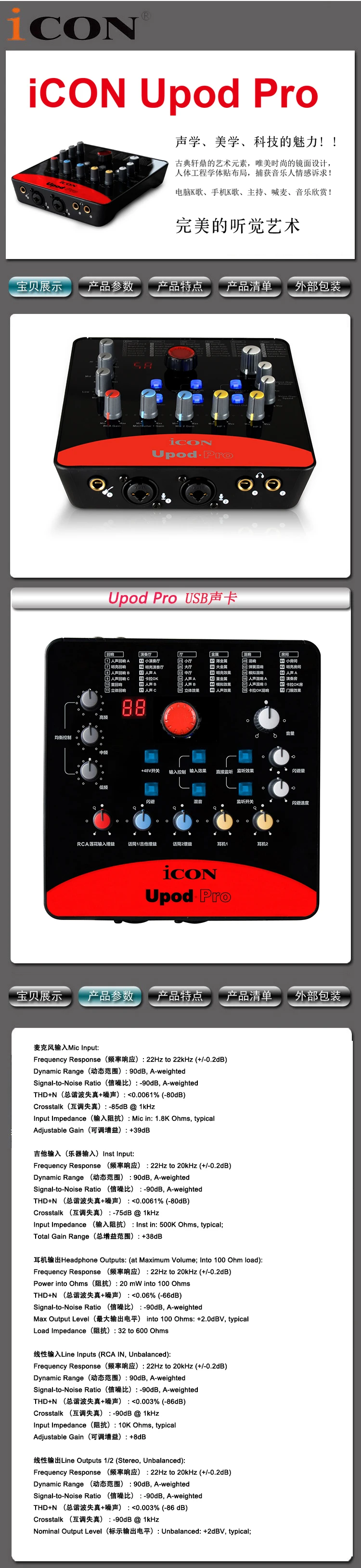

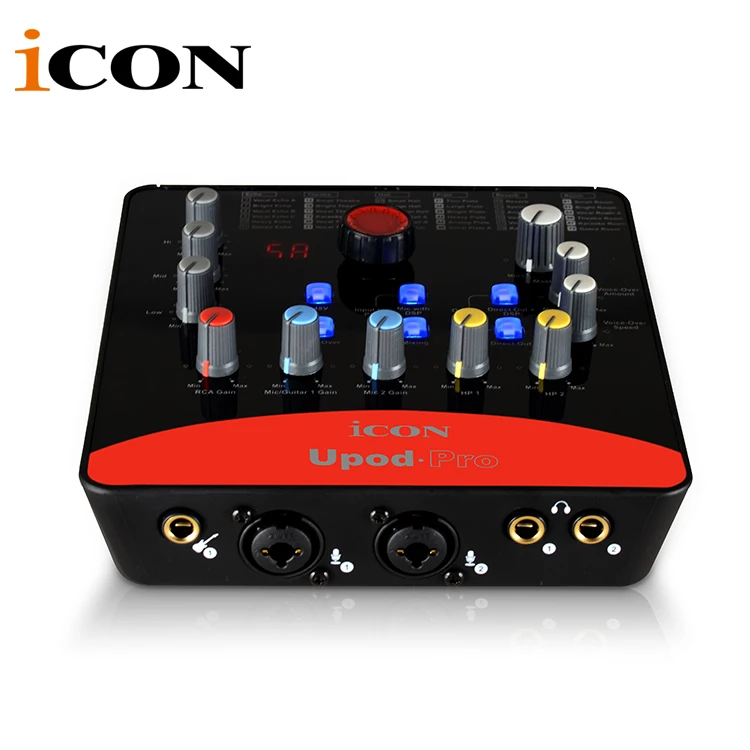

ICON upod pro USB external sound card 2 mic-In/1 guitar-In, 2-Out USB recording Interface use for computer phone singing song
the Sound card we sent is with English button!
Features:
*16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
*2×2 analog I/O full duplex recording and playback
*ICON innovative unique mic preamp with individual gain control.
*+48V phantom power equipped.

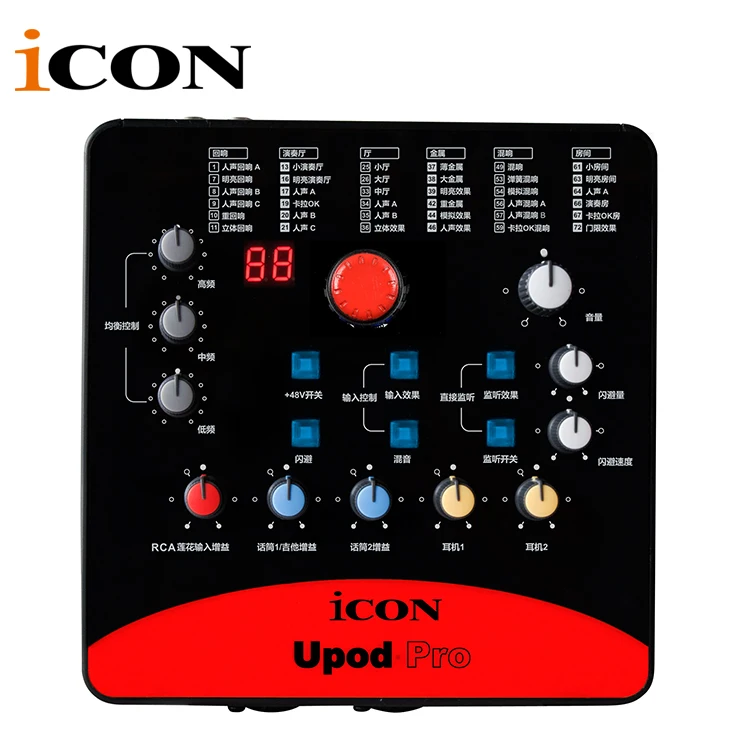

*Build-in ICON 16-DSP effect with control knob on the top panel.
*2 DSP parameter adjustment knobs on the top panel.

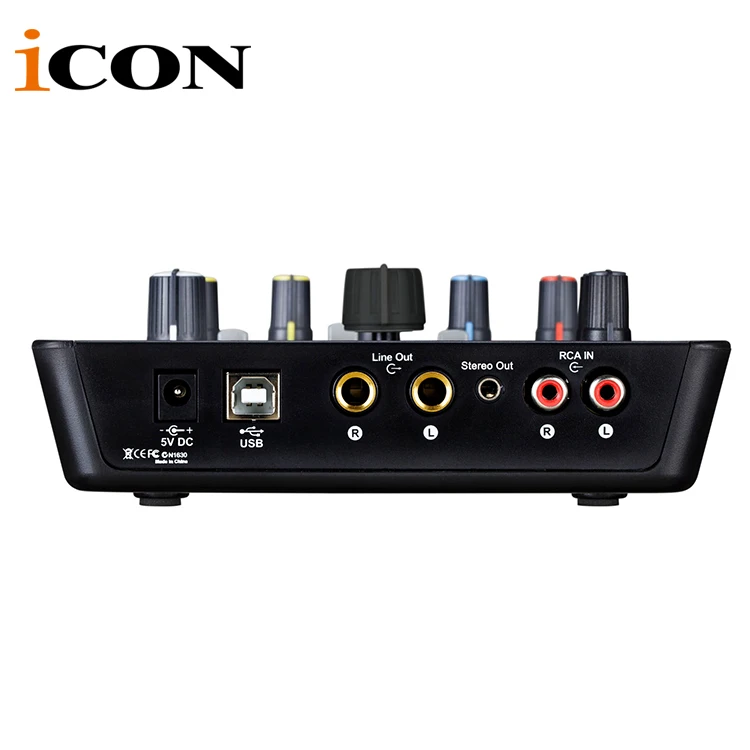

*2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
*Build-in stereo RCA input with individual gain control
*Allow to use as a stand-alone device with RCA input & DSP processing.
*Attenuator function button equipped for music fade out automatically when mic signal present.
*Buttons equipped for controlling mic signal (dry/wet) recording to PC.
*Buttons equipped for controlling monitoring signal (dry/wet).
*Master volume control on the top panel
*2 headphone outputs on 1/4” TRS jacks with individual volume control
*USB2.0 compatible and USB bus-powered
*Plug and play and no driver installation is needed.

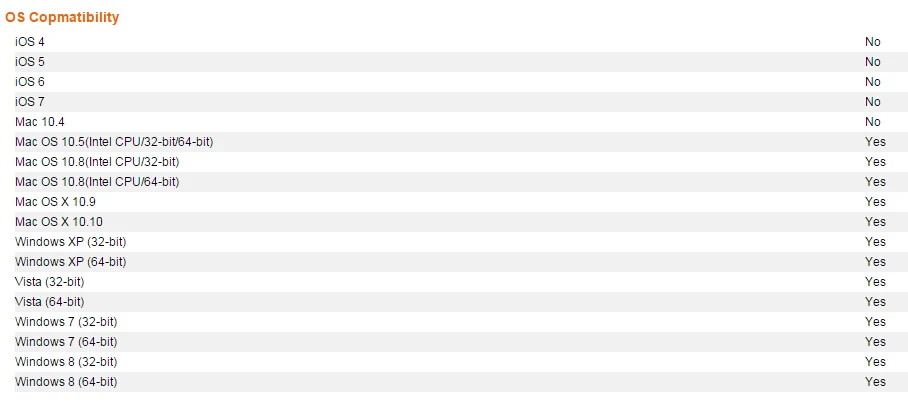

*Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
*Full duplex, simultaneous record/playback
Tech Specs:
Mic Input
Frequency Response ： 22Hz to 22kHz (+/-0.2dB)
Dynamic Range ：95dB, A-weighted
Signal-to-Noise Ratio ： -95dB, A-weighted
THD+N ：<0.0061% (-80dB)
Crosstalk ： -85dB @ 1kHz
Input Impedance Mic in : 1.8K Ohms, typical
Total Gain Range ：+39dB
Inst Input
Frequency Response ：22Hz to 20kHz (+/-0.2dB)
Dynamic Range： 95dB, A-weighted
Signal-to-Noise Ratio ：-95dB, A-weighted
THD+N ：<0.0061% (-80dB)
Crosstalk ：-85dB @ 1kHz
Input Impedance Inst in : 500K Ohms, typical
Total Gain Range ： +38dB
Line Inputs (RCA IN, Unbalanced)
Frequency Response ：22Hz to 20kHz (+/-0.2dB)
Dynamic Range： 95dB, A-weighted
Signal-to-Noise Ratio： -95dB, A-weighted
THD+N ：<0.003% (-86dB)
Crosstalk ：-90dB @ 1kHz
Input Impedance ：10K Ohms, typical
Adjustable Gain ：+8dB
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response ： 22Hz to 20kHz (+/-0.2dB)
Dynamic Range ：95dB, A-weighted
Signal-to-Noise Ratio ： -95dB, A-weighted
THD+N ： <0.003% (-86 dB)
Crosstalk ：-90dB @ 1kHz
Nominal Output Level Unbalanced : +2dBV, typical
Headphone Outputs (at Maximum Volume; Into 100 Ohm load)
Frequency Response ：22Hz to 20kHz (+/-0.2dB)
Power into Ohms ：20 mW into 100 Ohms
THD+N ： <0.06% (-66dB)
Signal-to-Noise Ratio ：-95dB, A-weighted
Max Output Level into ：100 Ohms +2.0dBV, typical
Load Impedance ：32 to 600 Ohms
