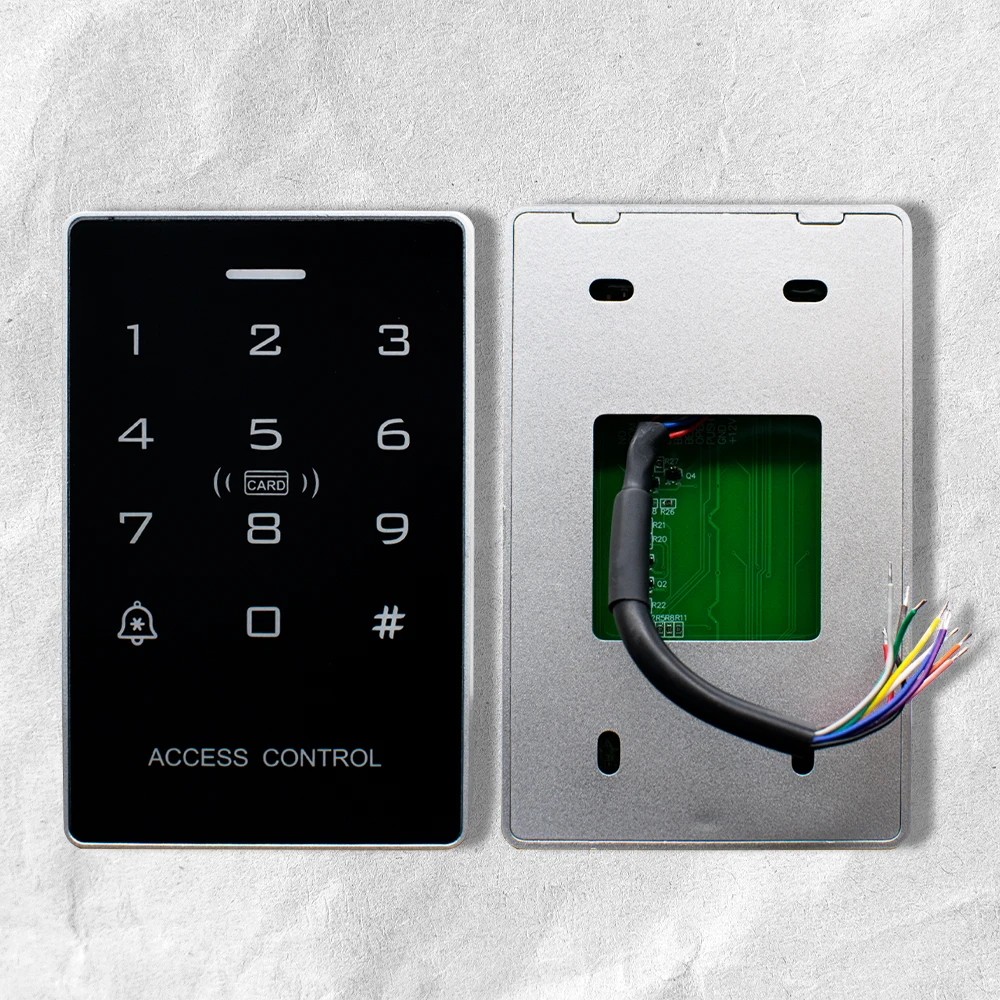

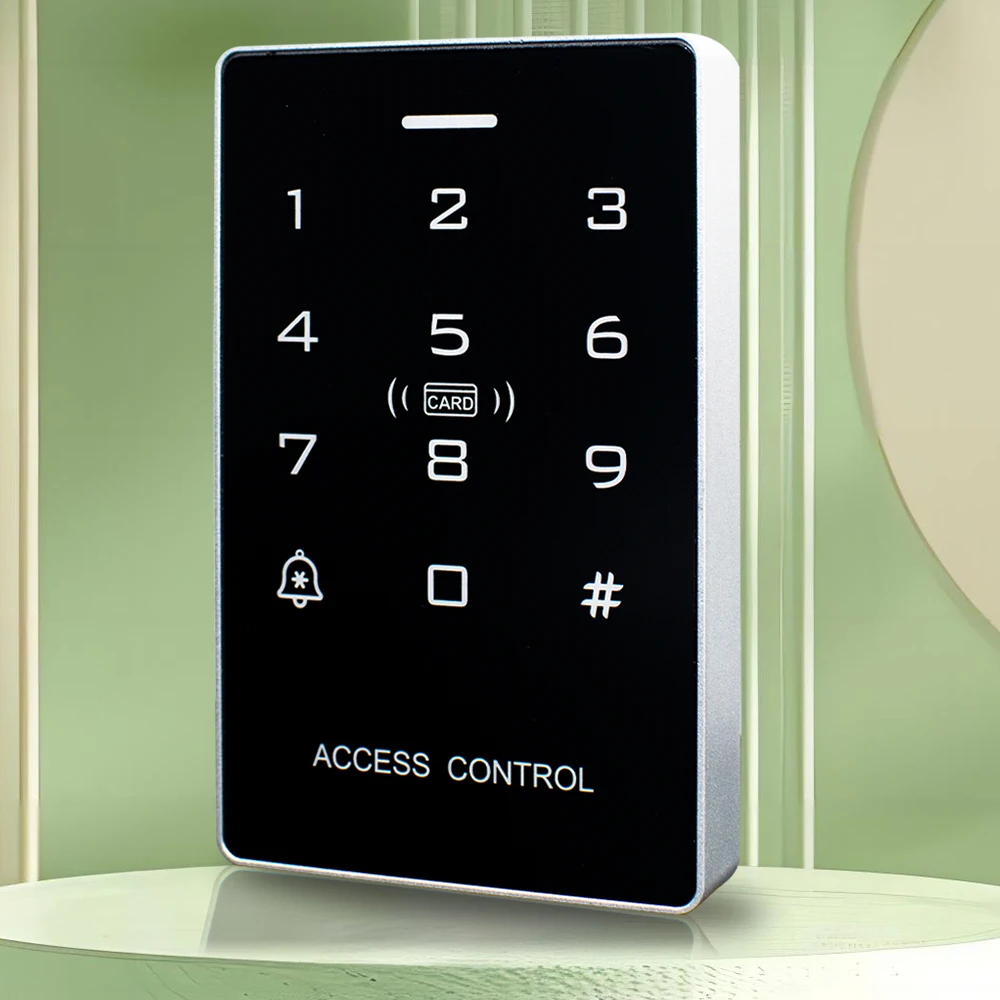

IP67 Waterproof Access Control Keypad Outdoor ID IC Access Controller Touch Door Opener System

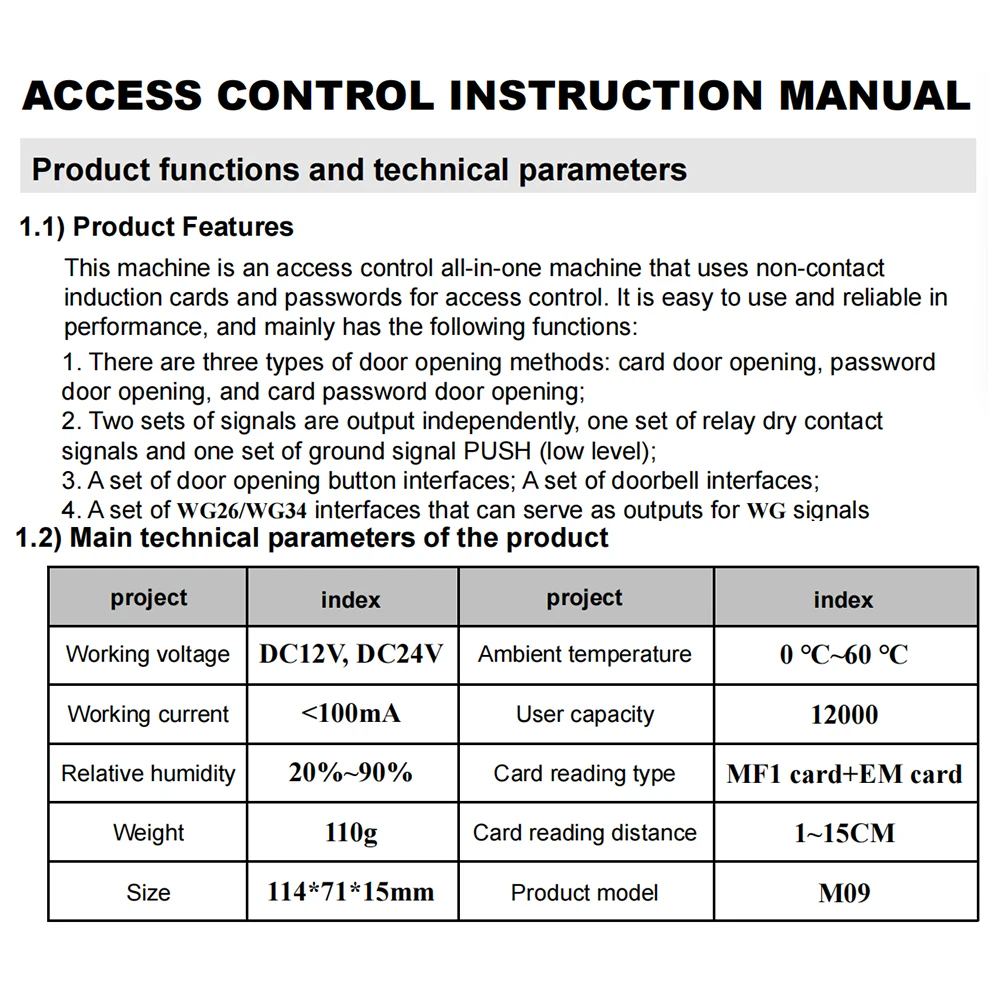

Product Features
This machine is an access control all-in-one machine that uses non-contact induction cards and passwords for access control. It is easy to use and reliable in performance, and mainly has the following functions:
1. There are three types of door opening methods: card door opening, password door opening, and card password door opening;

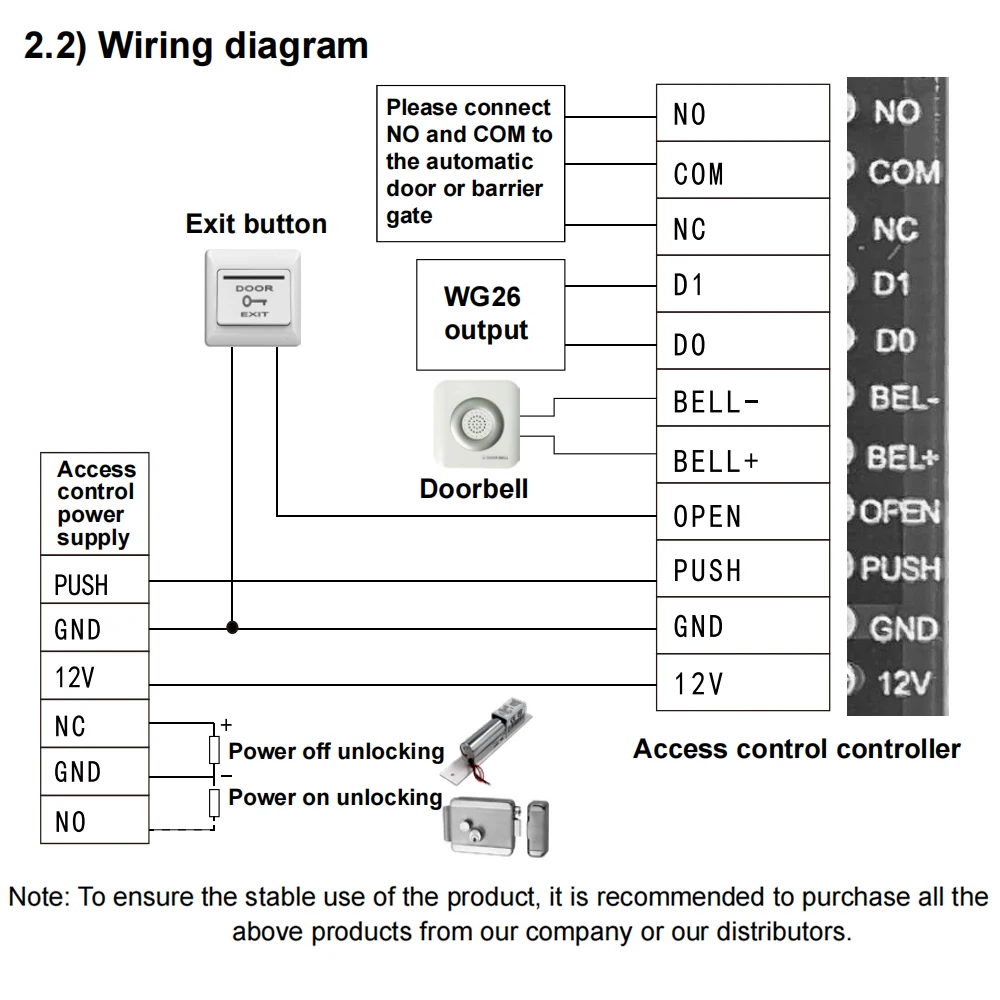

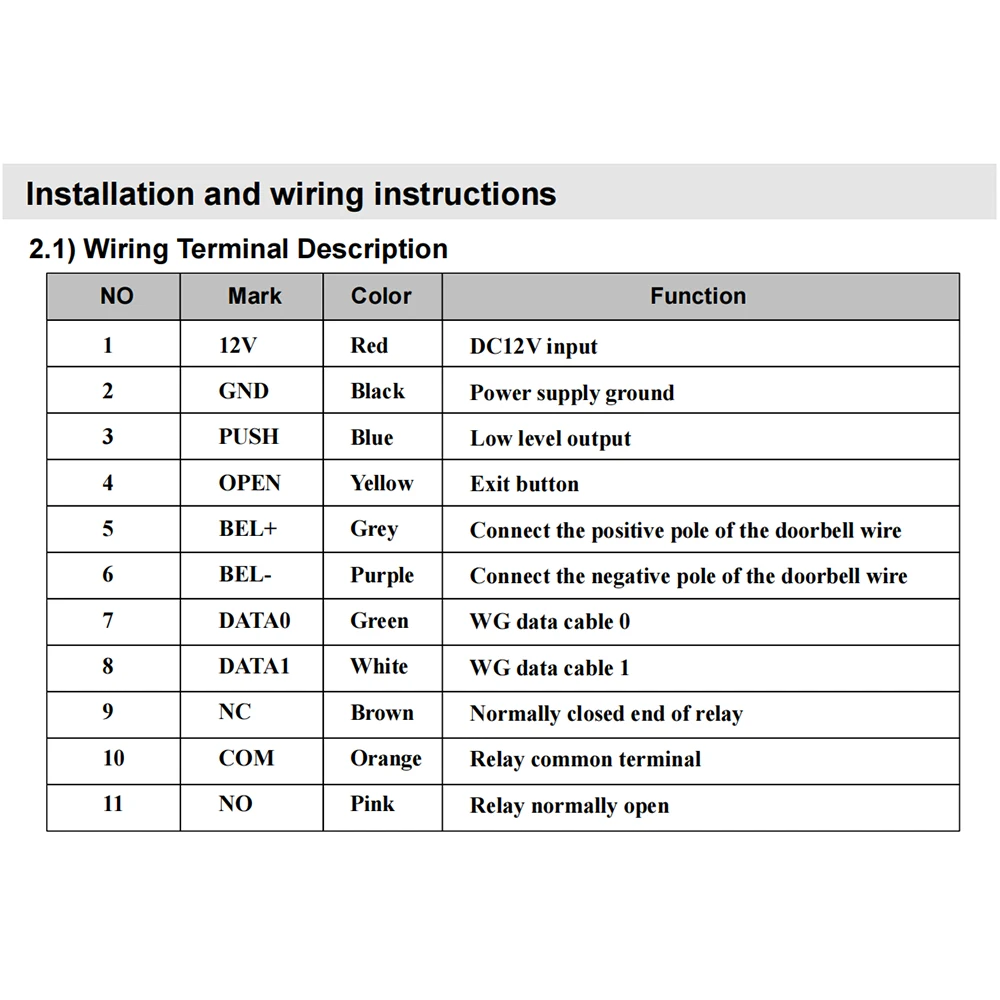

2. Two sets of signals are output independently, one set of relay dry contact signals and one set of ground signal PUSH (low level);
3. A set of door opening button interfaces; A set of doorbell interfaces;
4. A set of WG26/WG34 interfaces that can serve as outputs for WG signals
Specifications

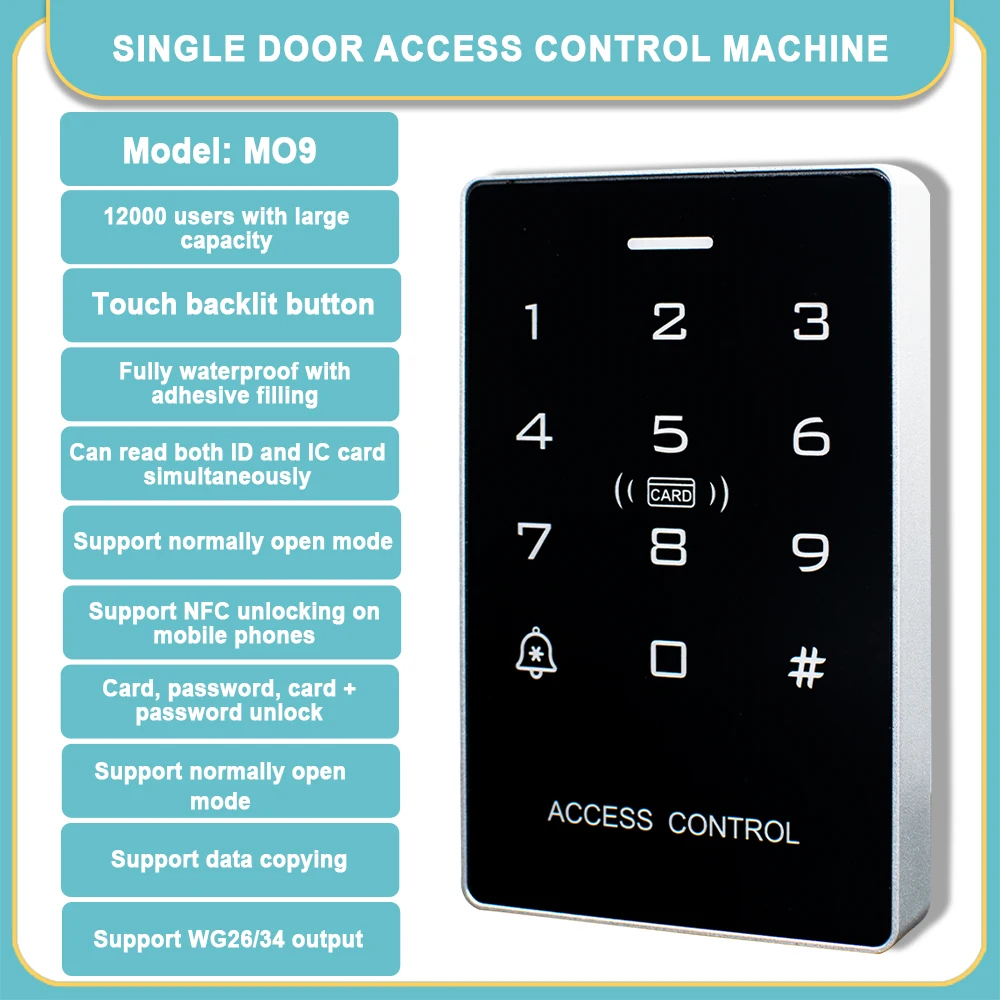

Model: M09 access control machine

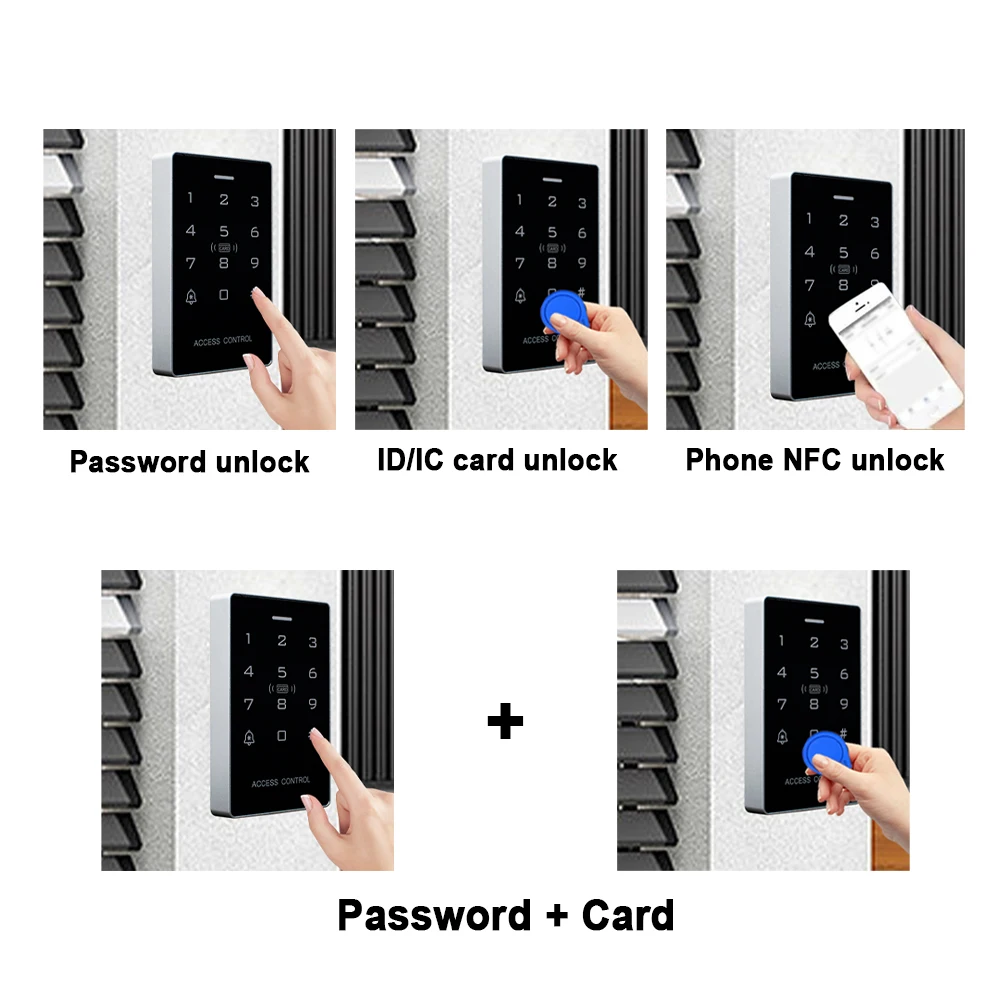

Induction mode: swipe card, password, swipe card and password
Card capacity: 12000
Card reading type: MFI card + EM card
ID+IC dual frequency card swiping

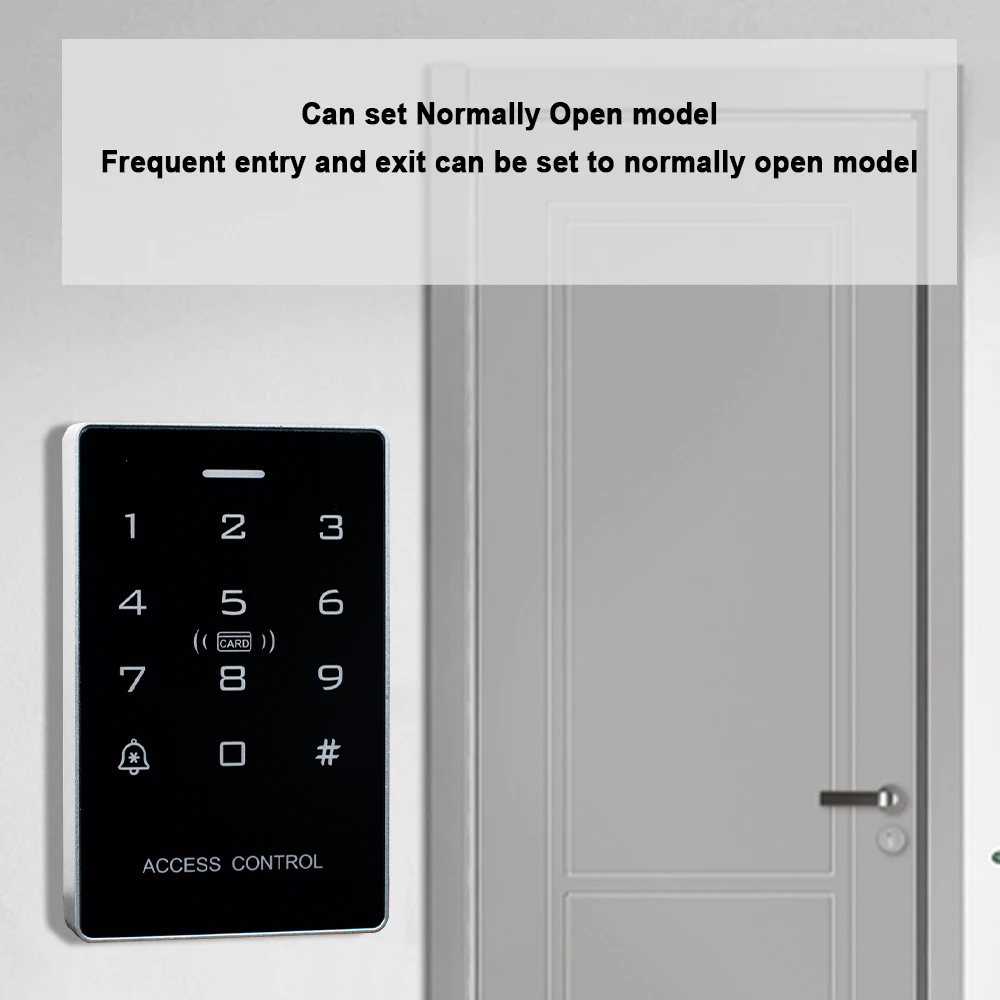

Normally open mode
Support management card mode
Card reading distance: 1-15cm
Password capacity: 128
Password + card: 32

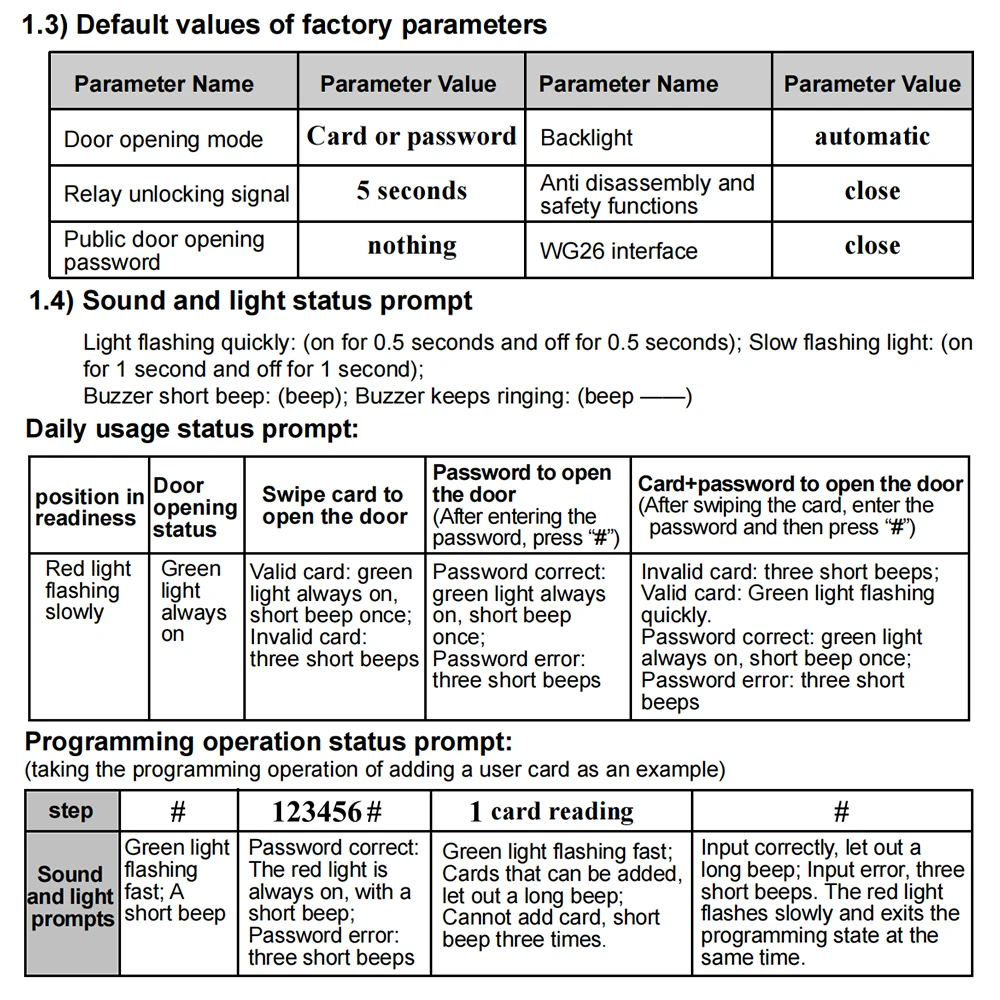

Door opening time: 5 seconds by default
Working voltage: DC12V, DC24V
Ambient temperature: 0-60 (℃)
Work current: <100mA
Relative humidity: 20%-90%
Waterproof grade: IP67

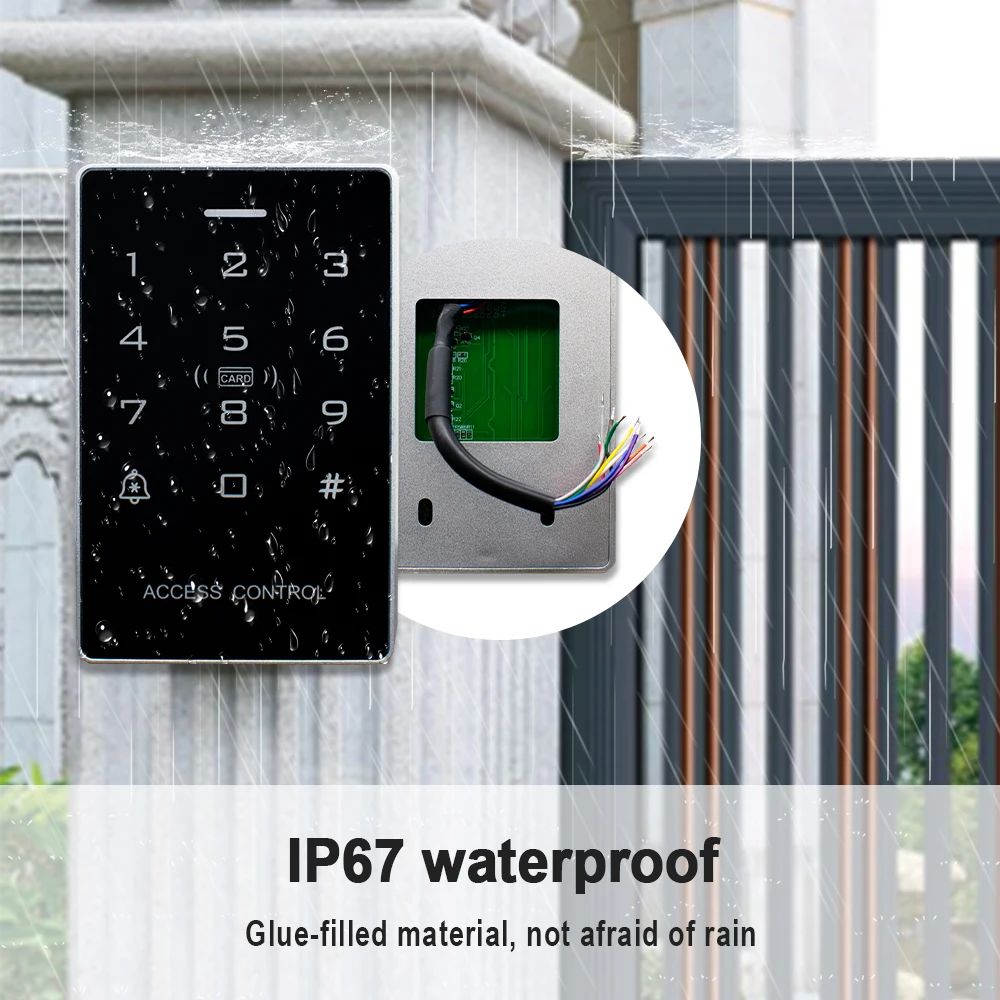

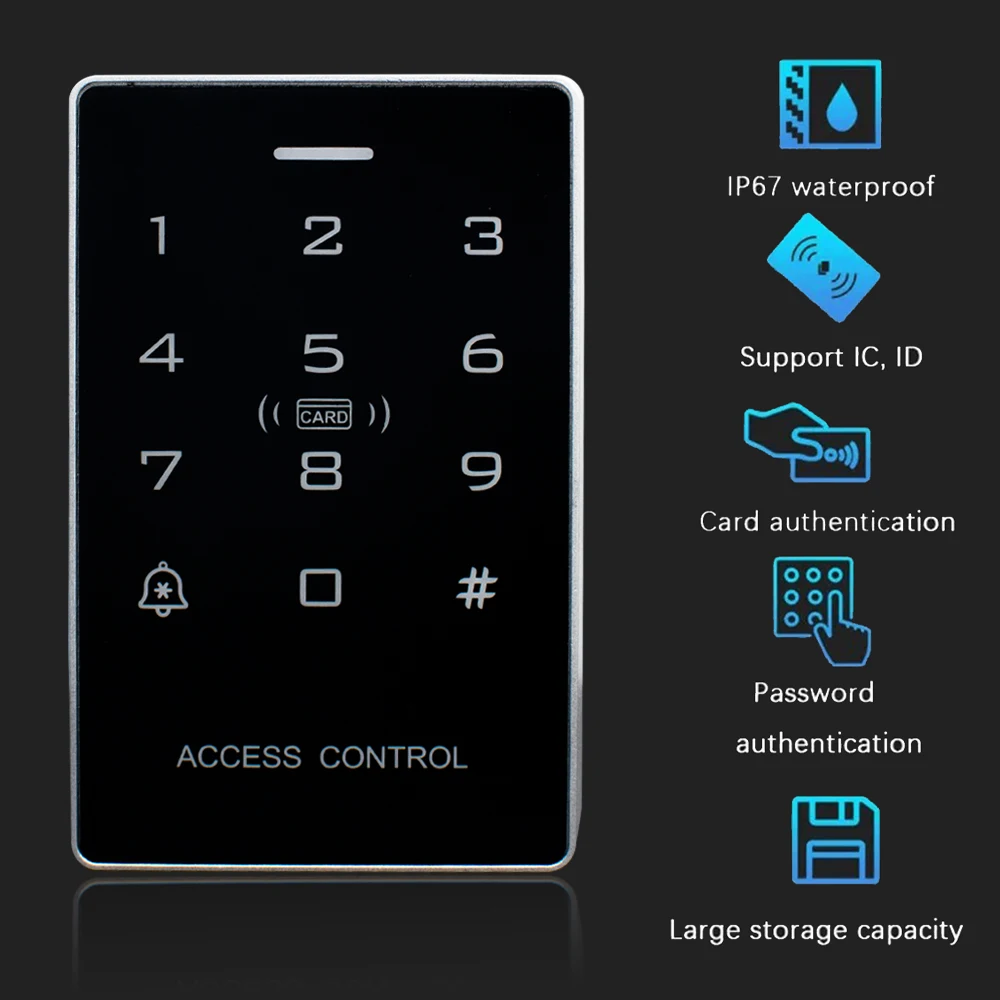

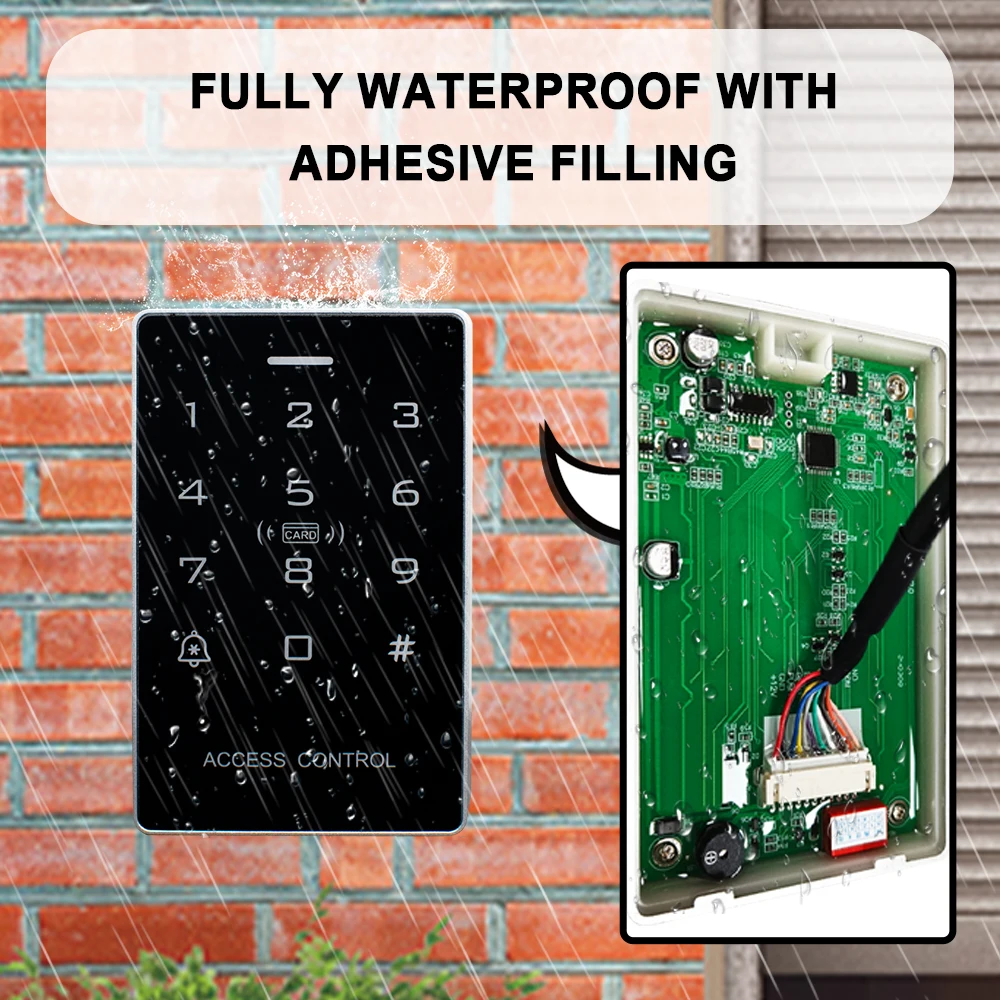

IP67 waterproof

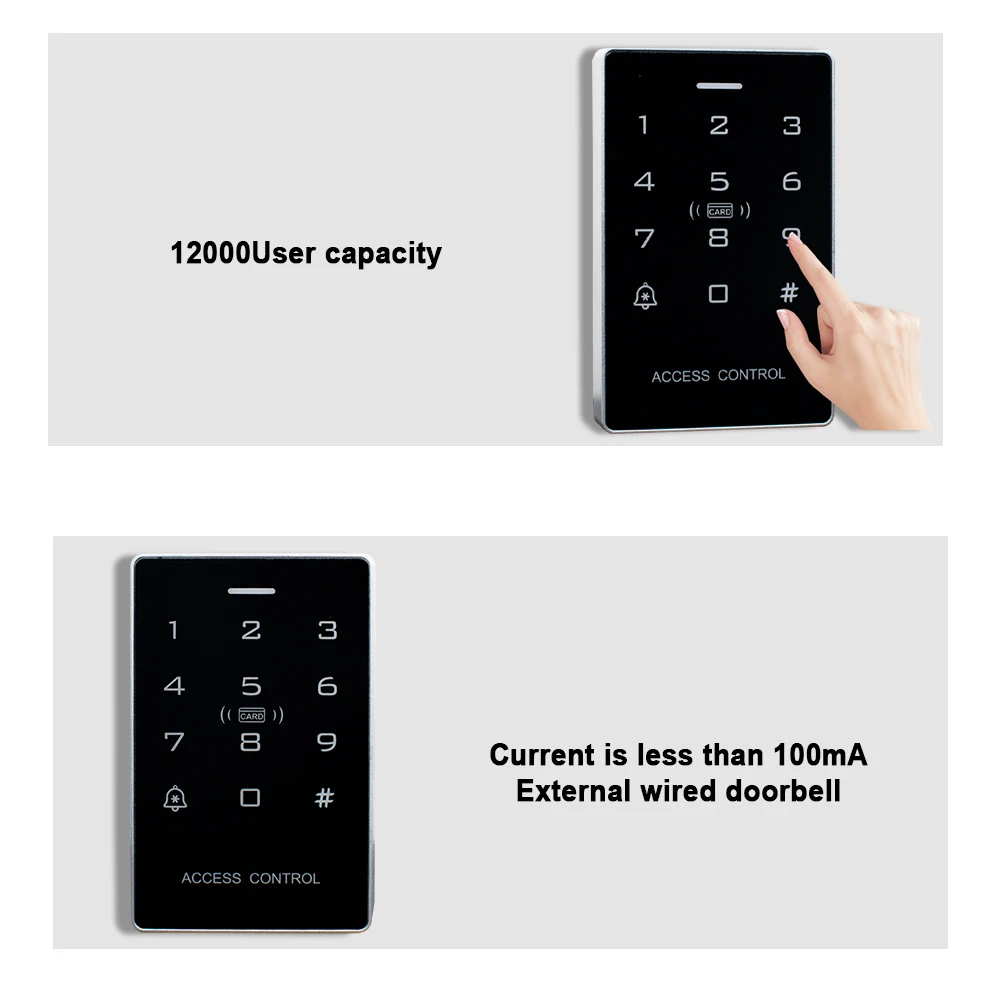

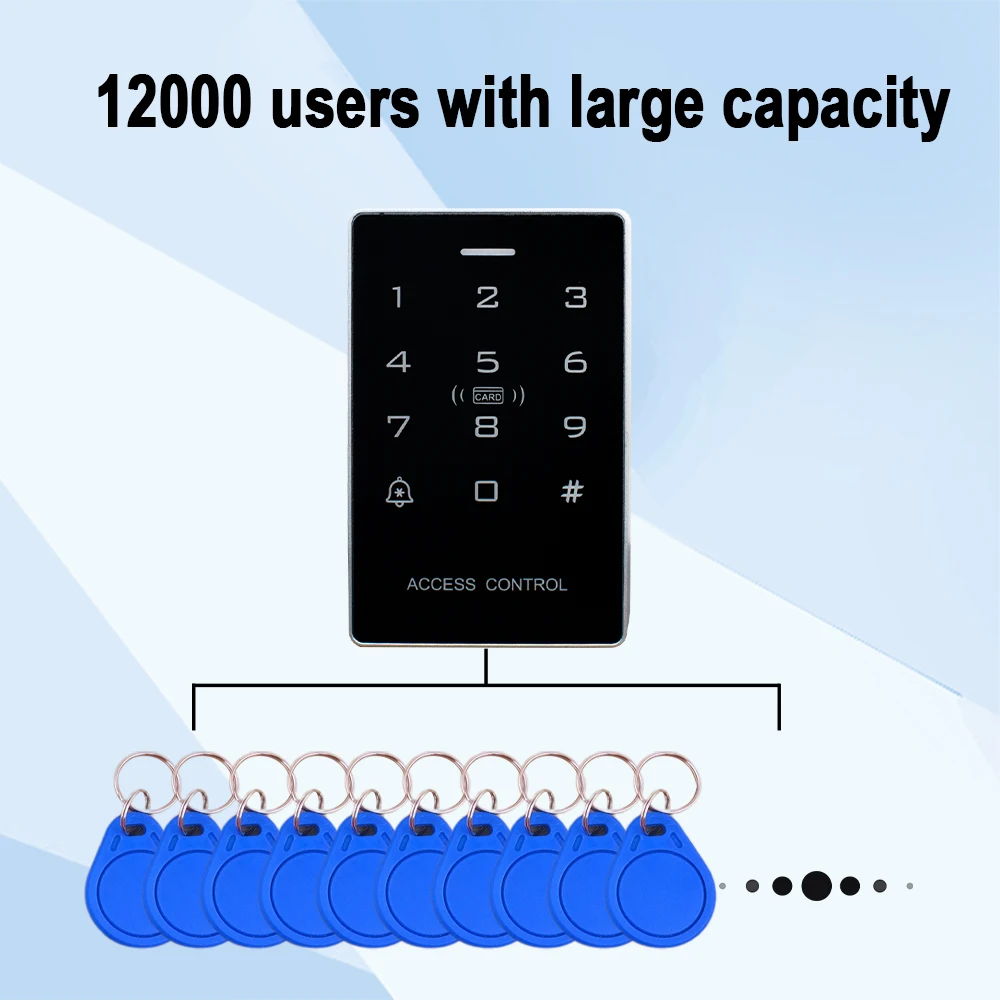

12000 users with large capacity
Include

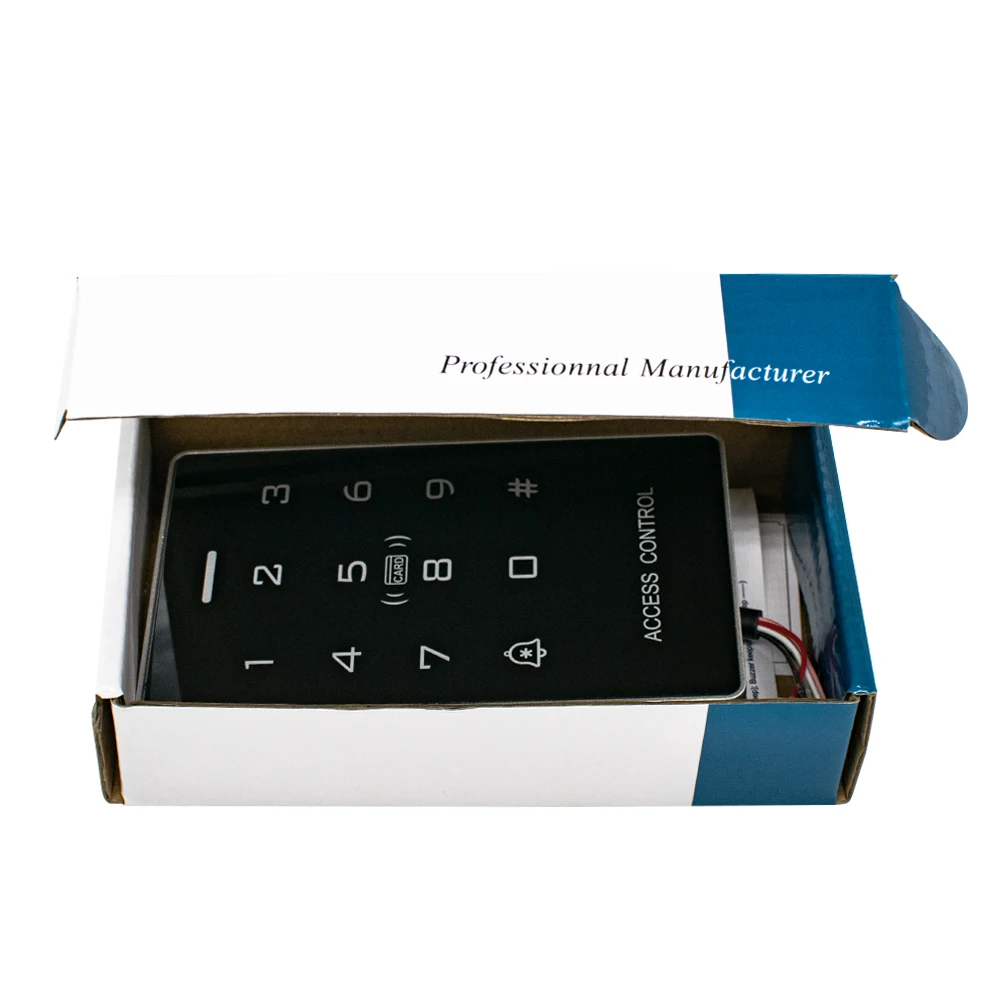

* Access control machine
* Product Manuals

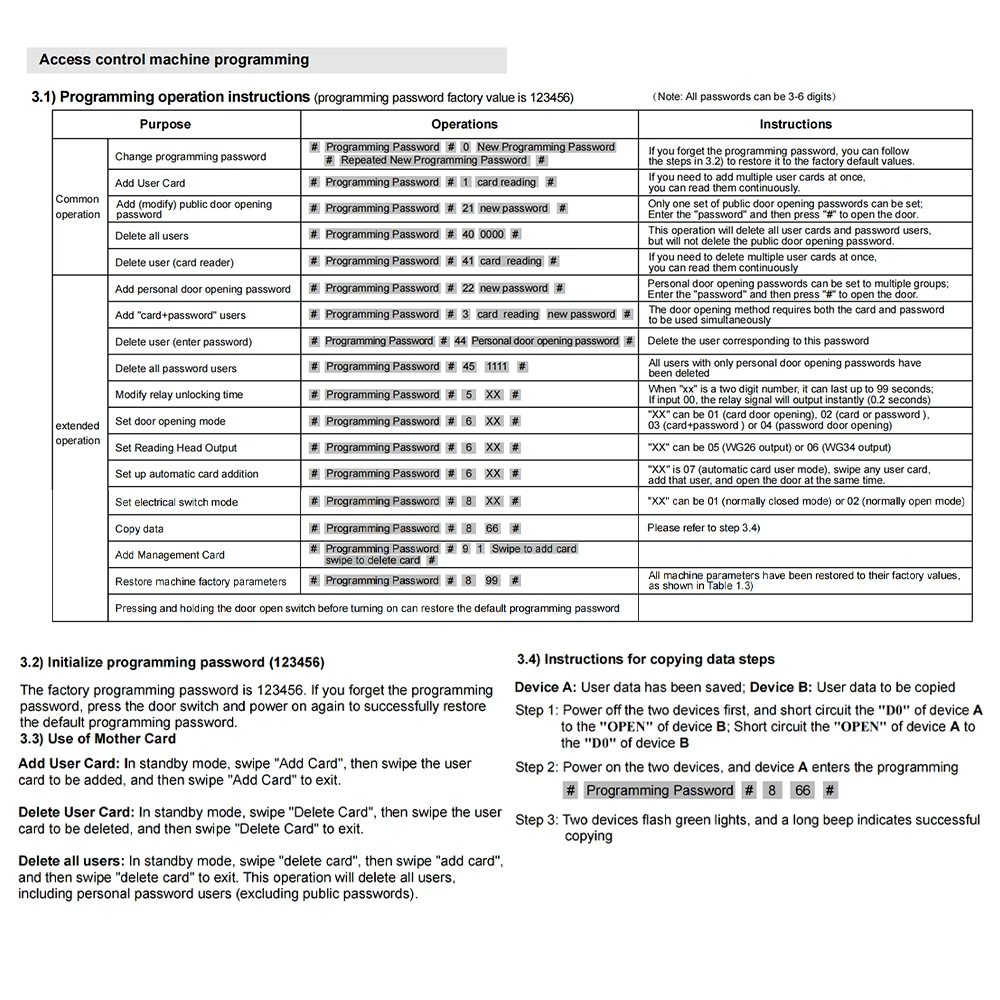

Product Manuals
