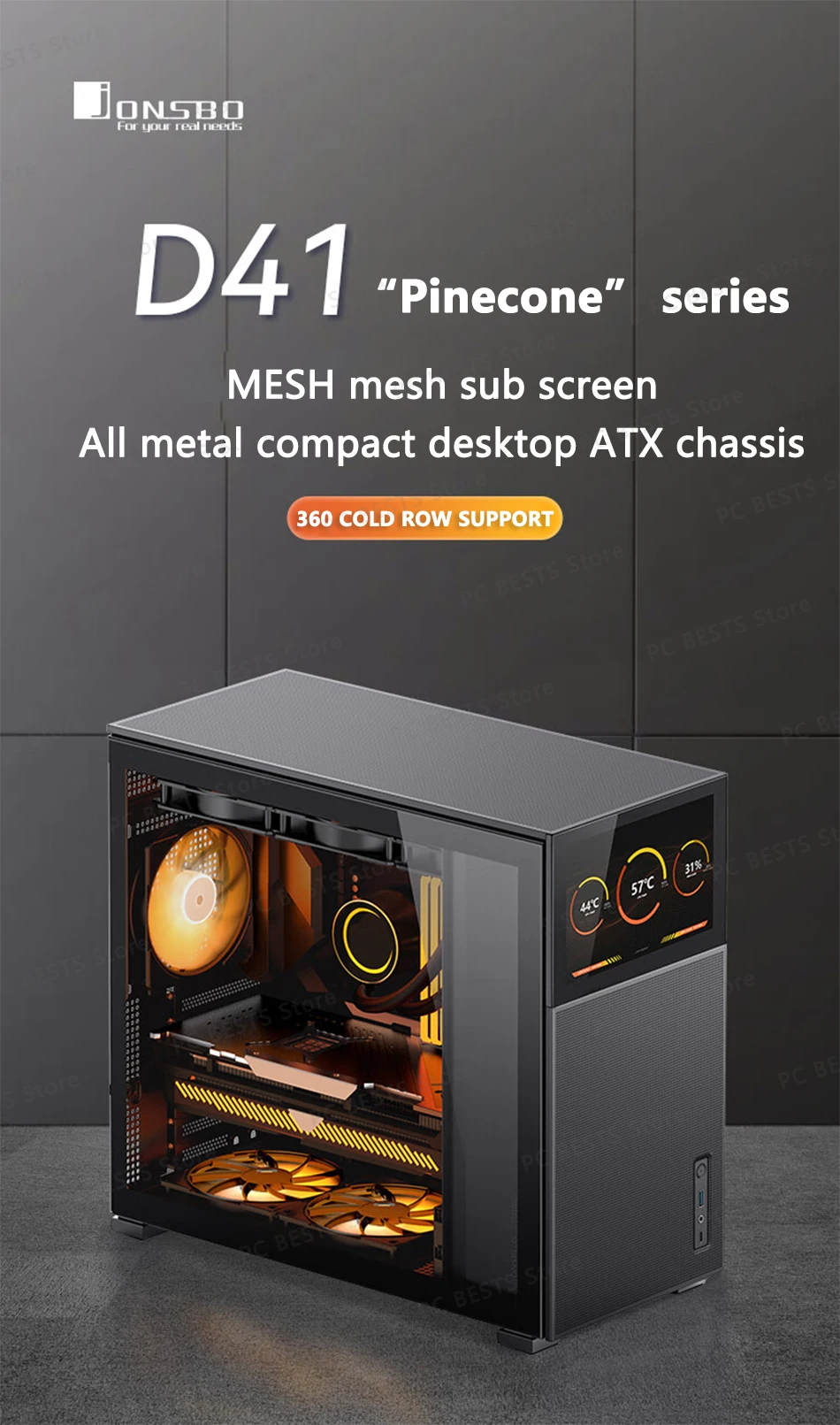

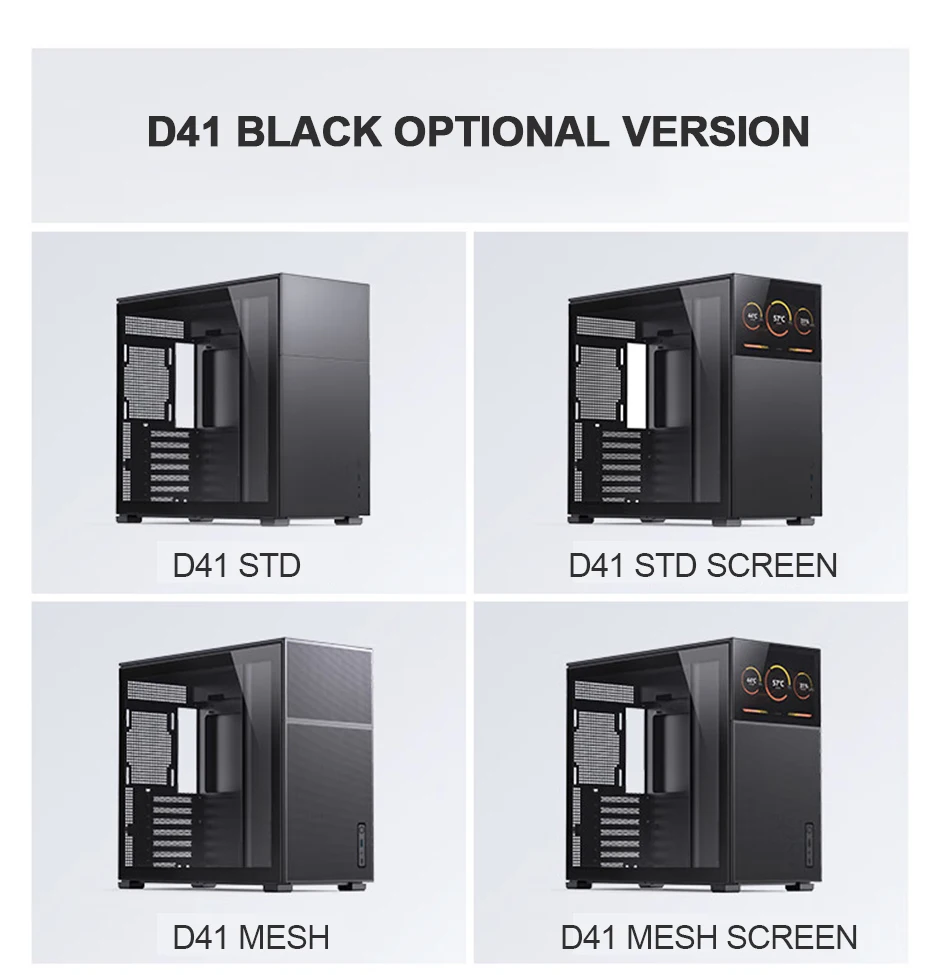

D41 STD·D41 MESH Black/White

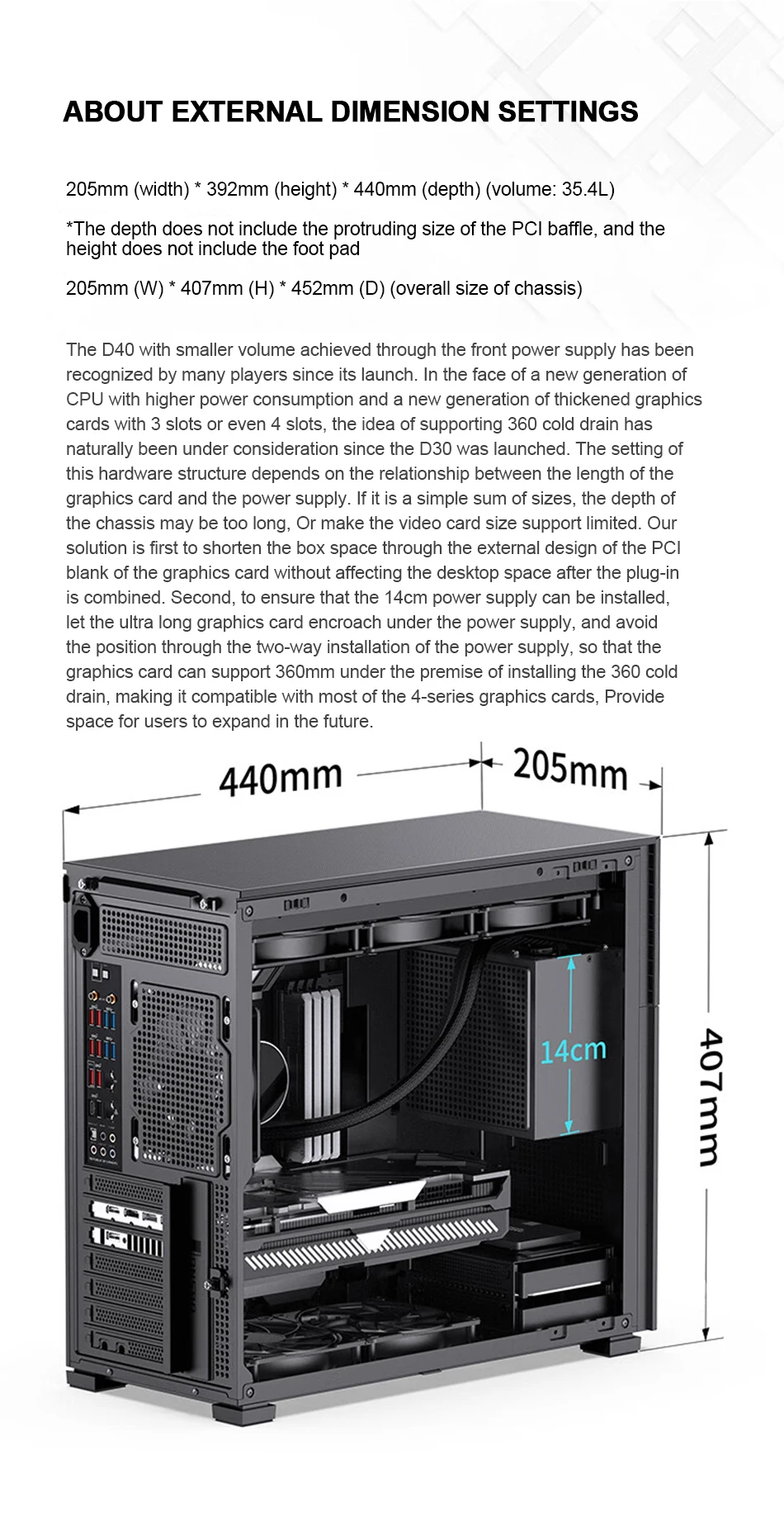

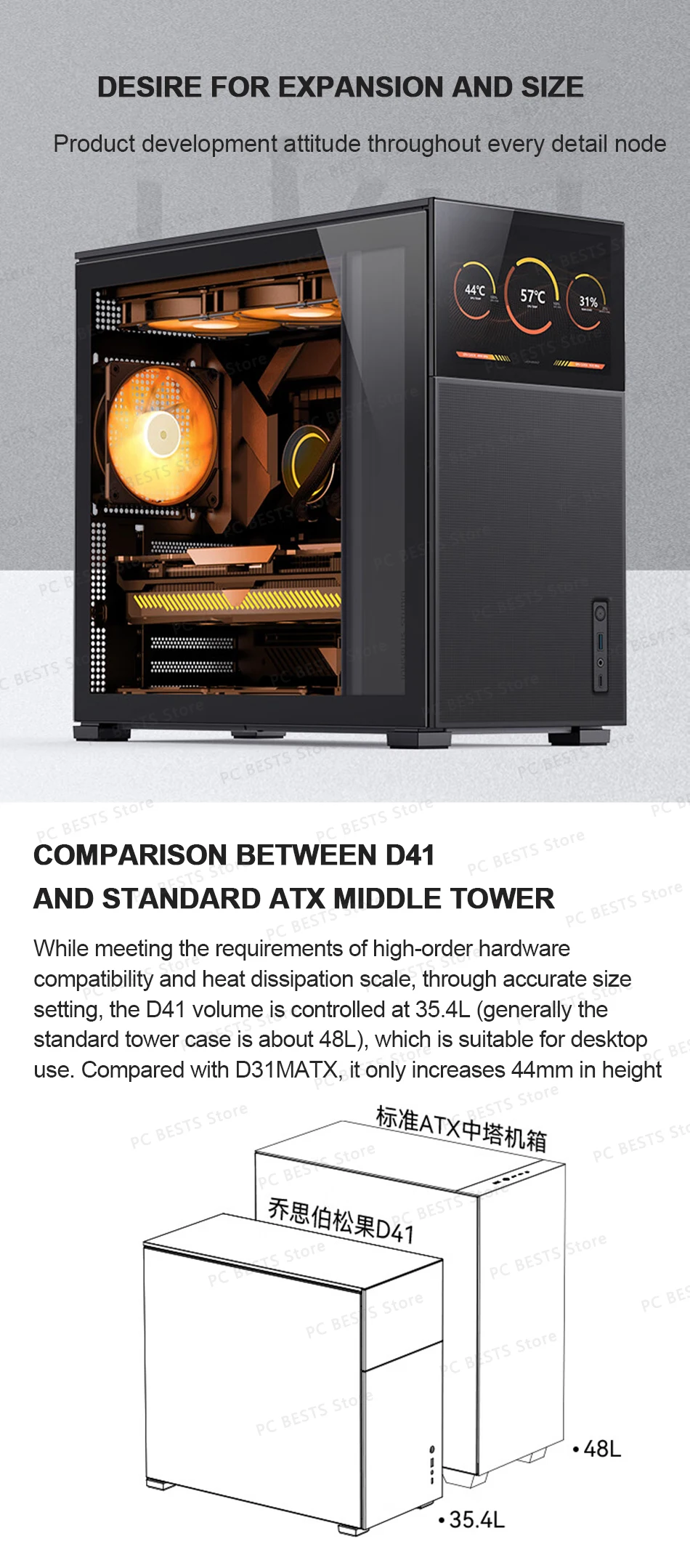

Dimension: 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)
*Depth does not include the PCI brackets outside the chassis,height does not include case stand

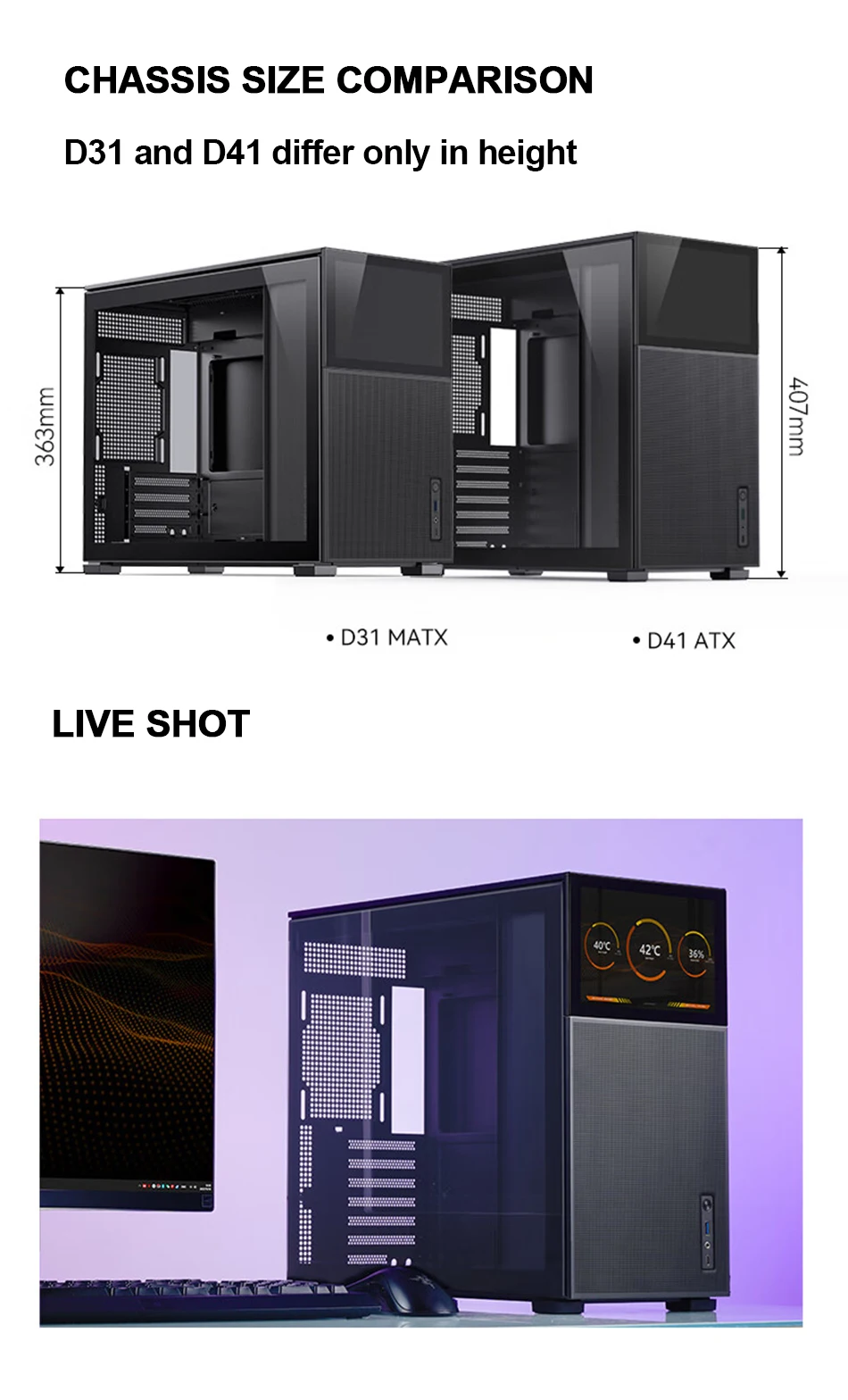

205mm (W) * 407mm(H) * 452mm(D) (overall size)
Material：0.6mm+0.7mm steel panel

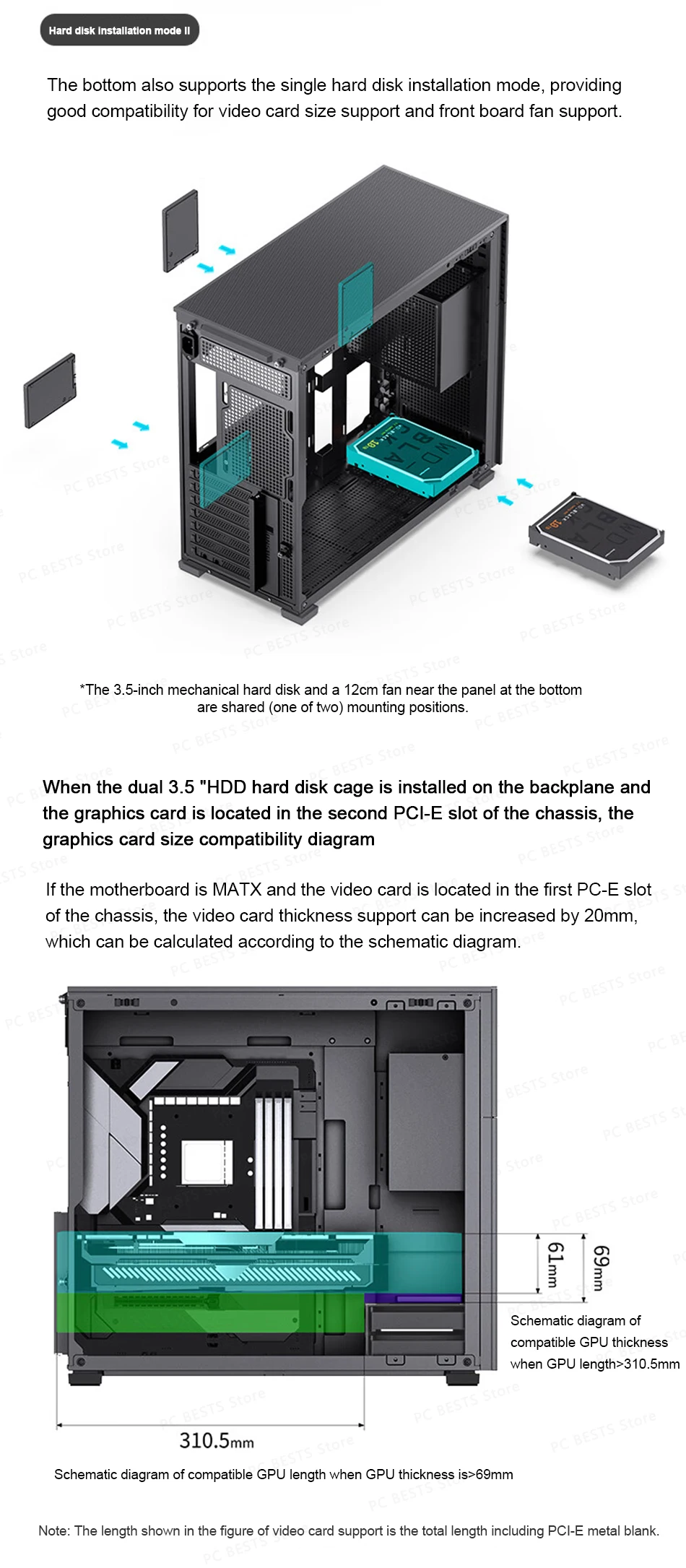

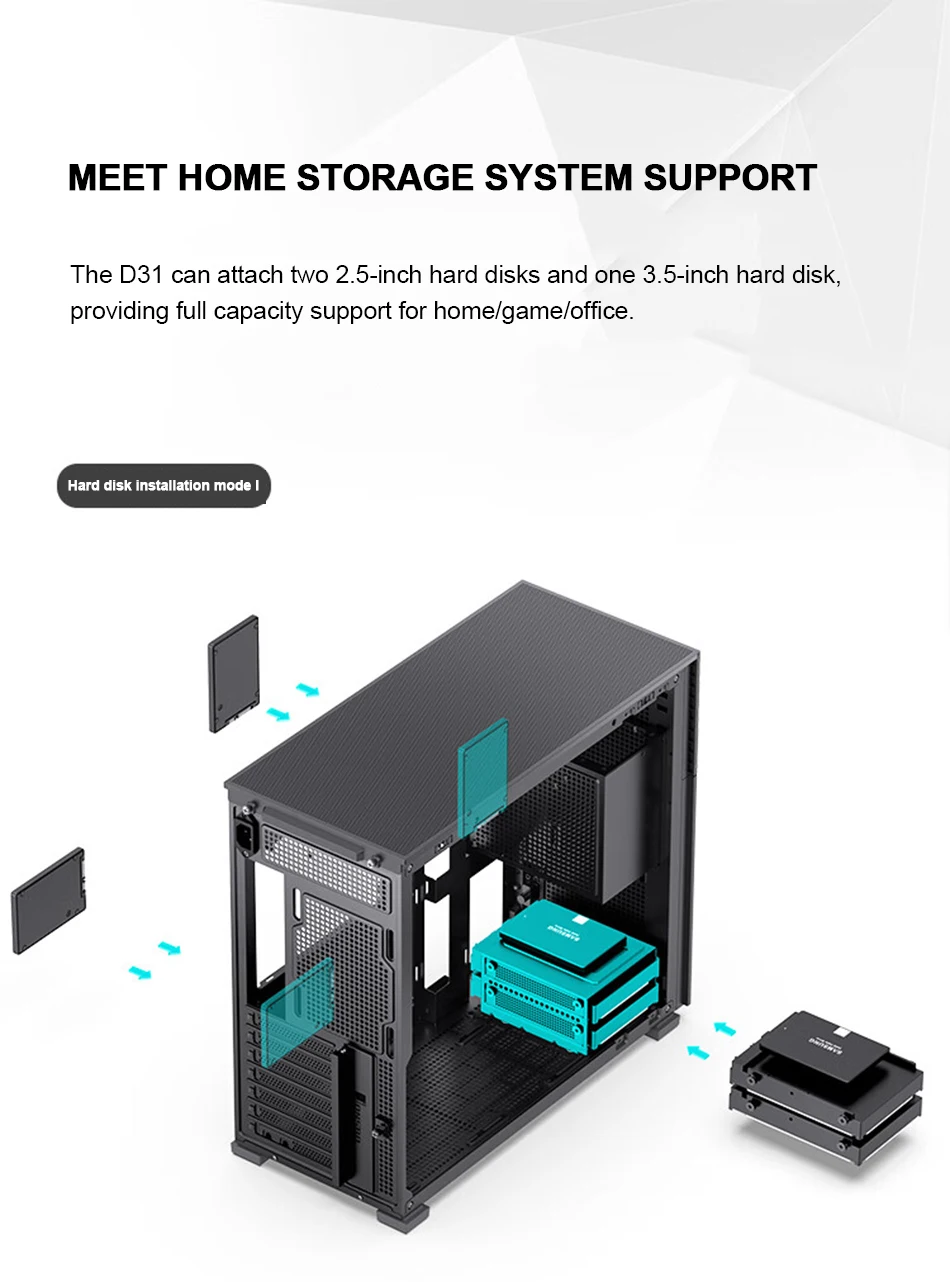

Drive Bay：2.5〞SSD*3+3.5〞HDD*2

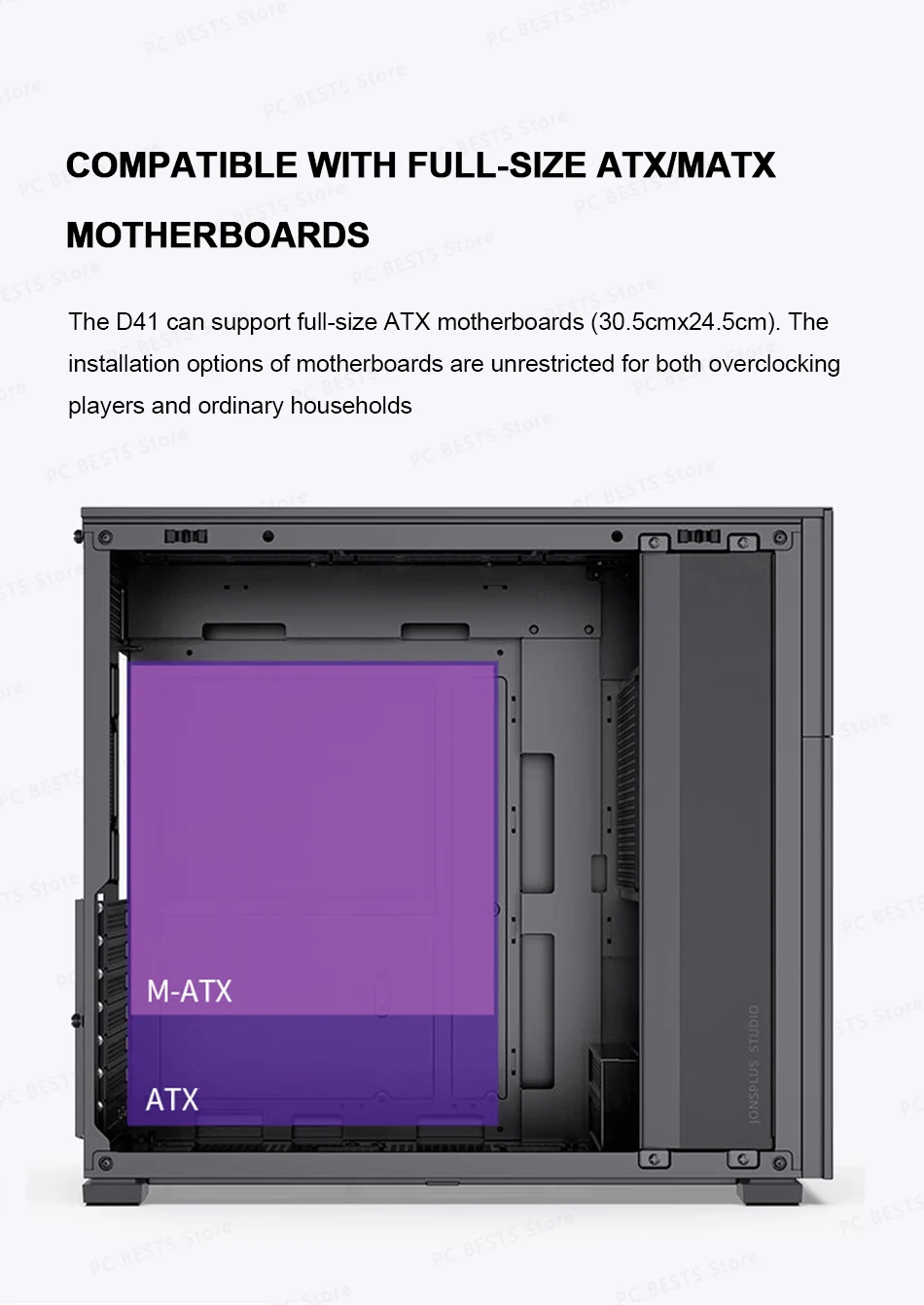

Motherboard：ATX / M-ATX
PCI expansion slots：7

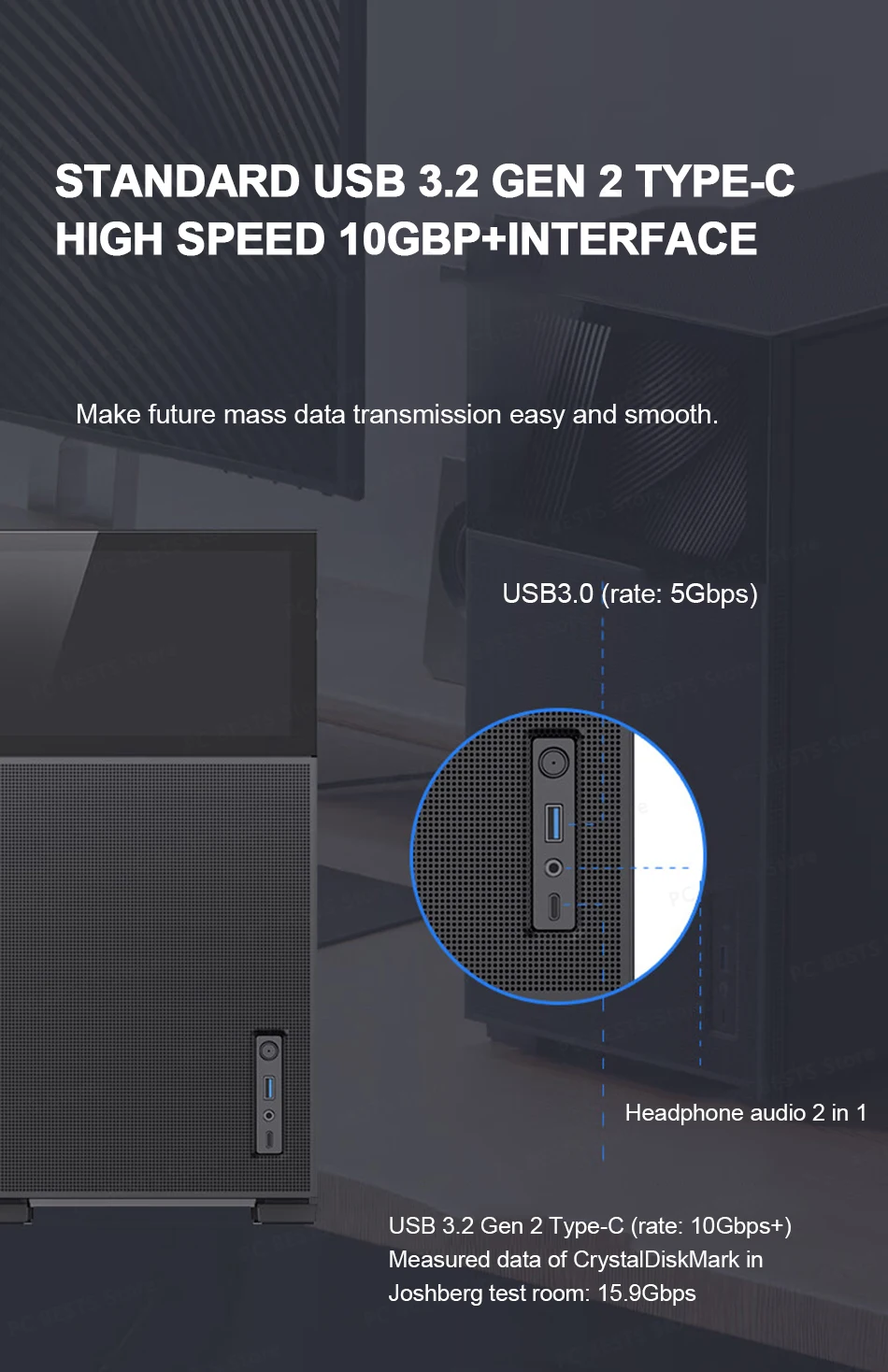

Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1

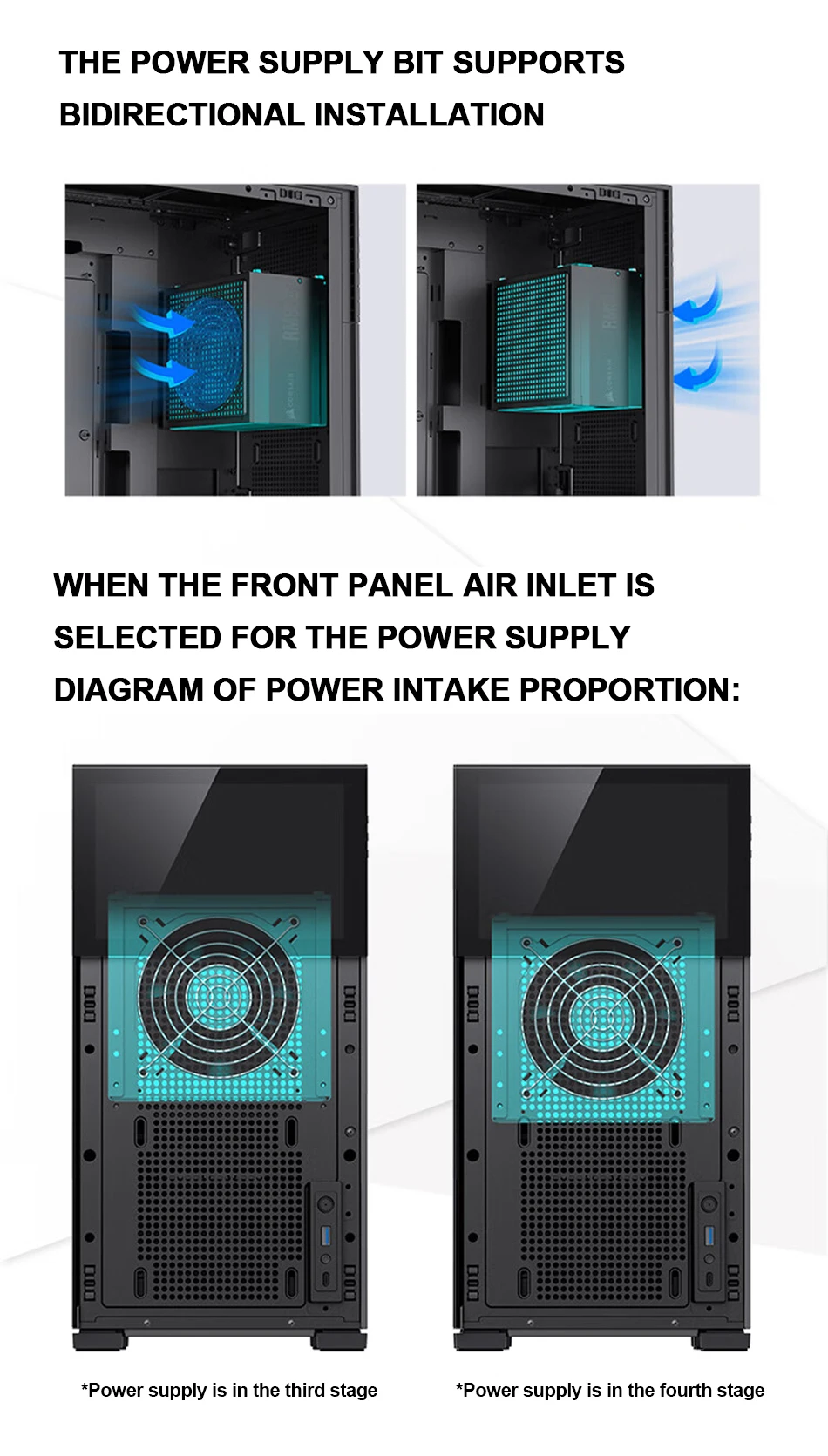

Power supply support：ATX

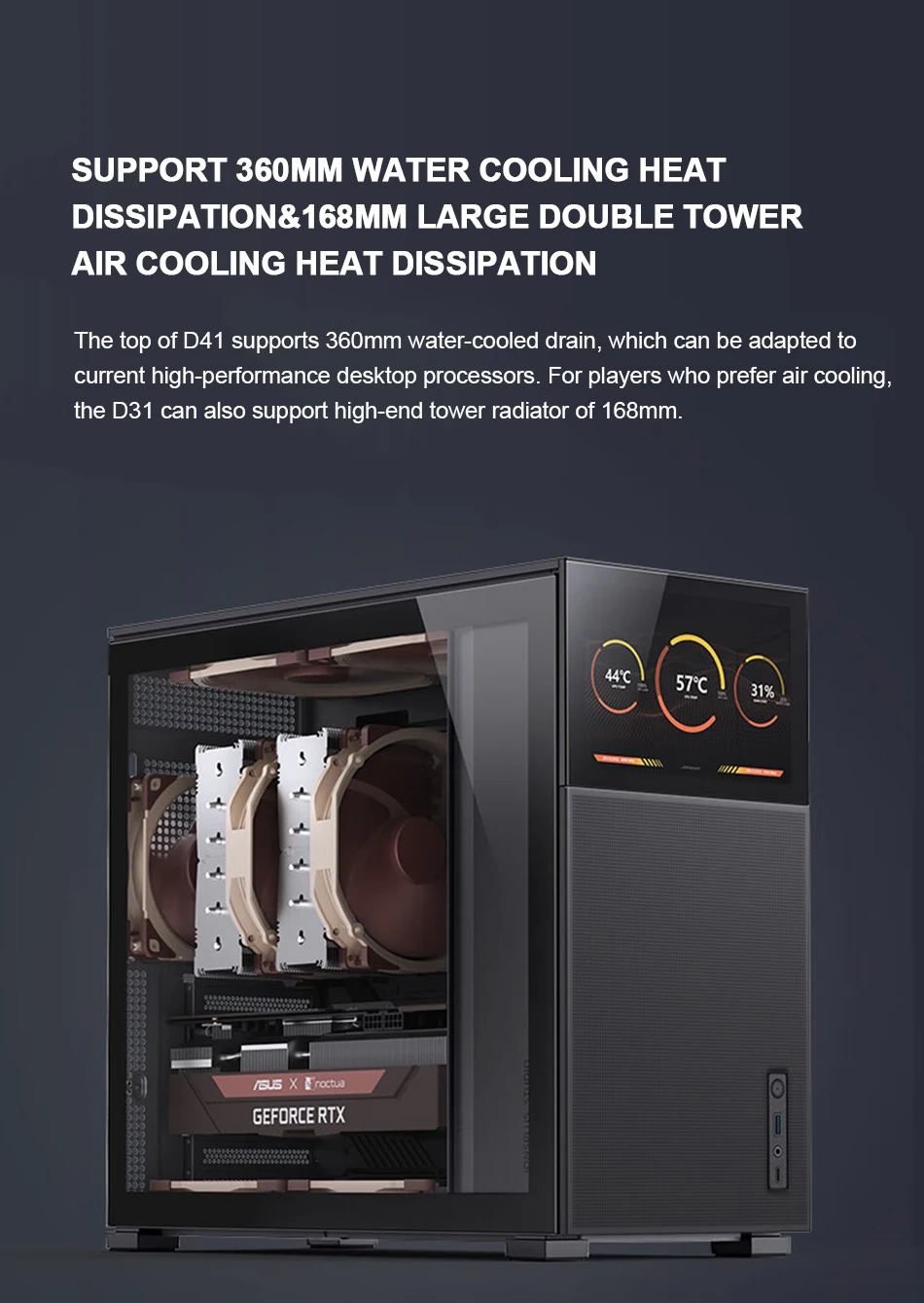

CPU cooler support：168mm

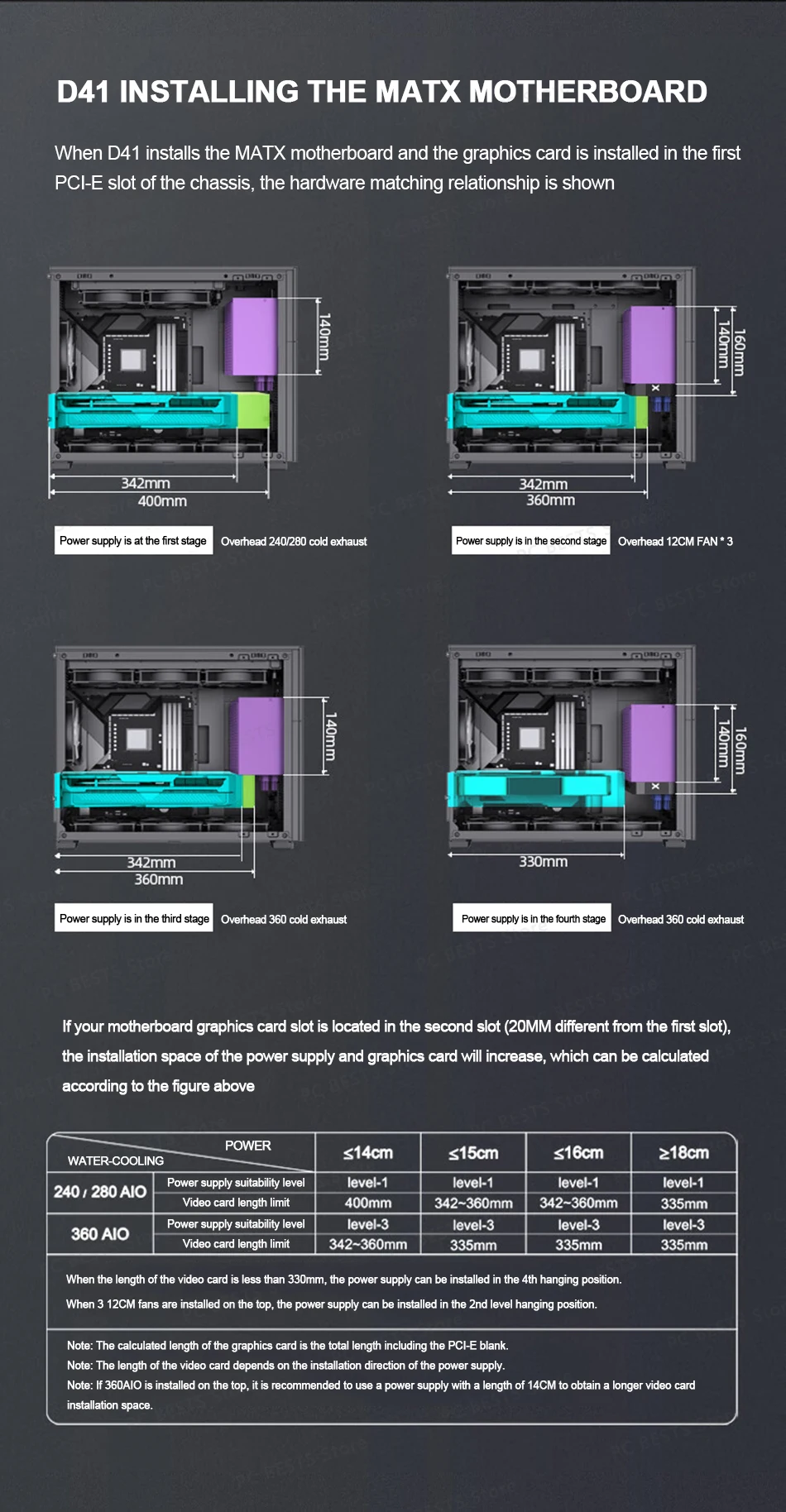

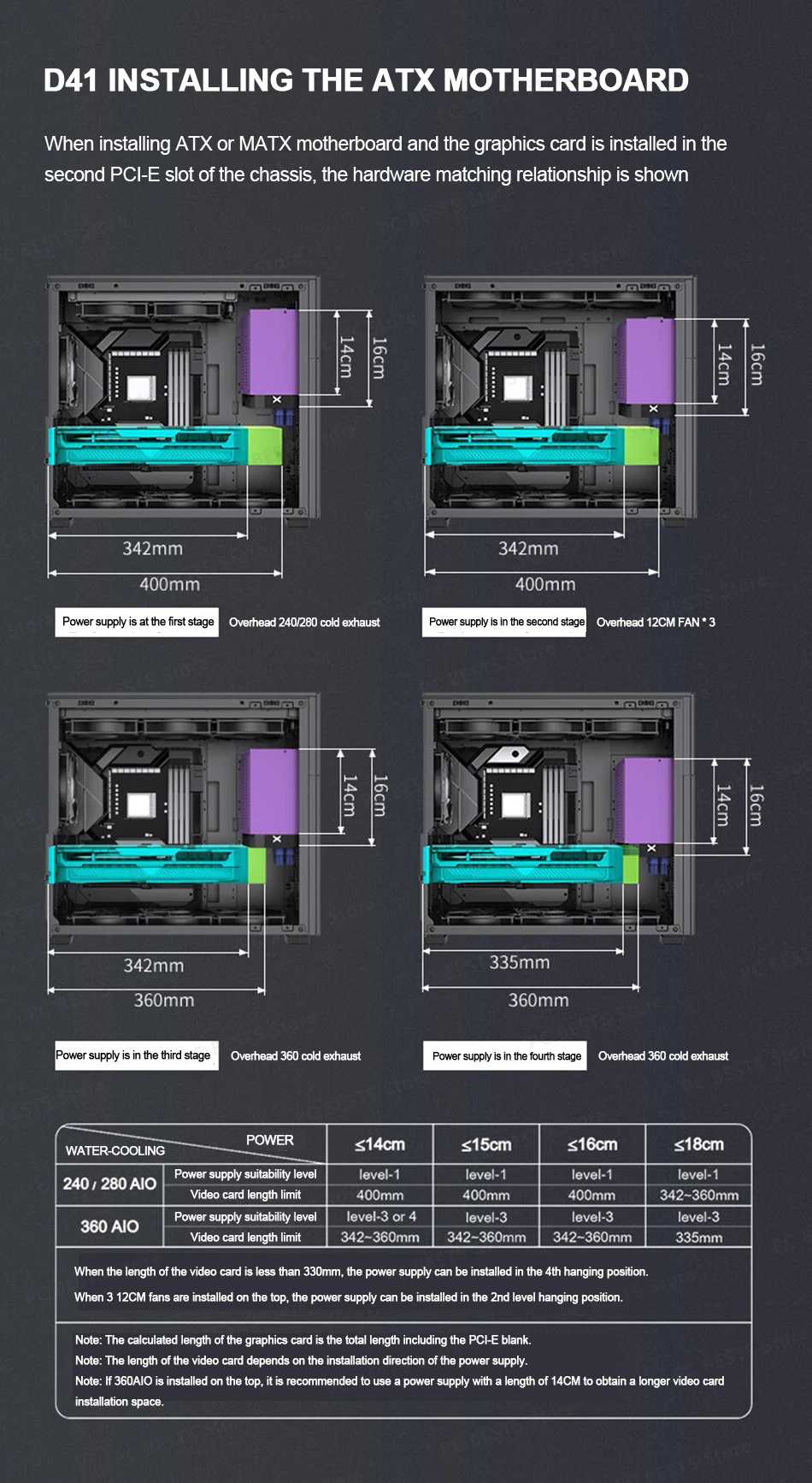

Graphics card support：330-400mm

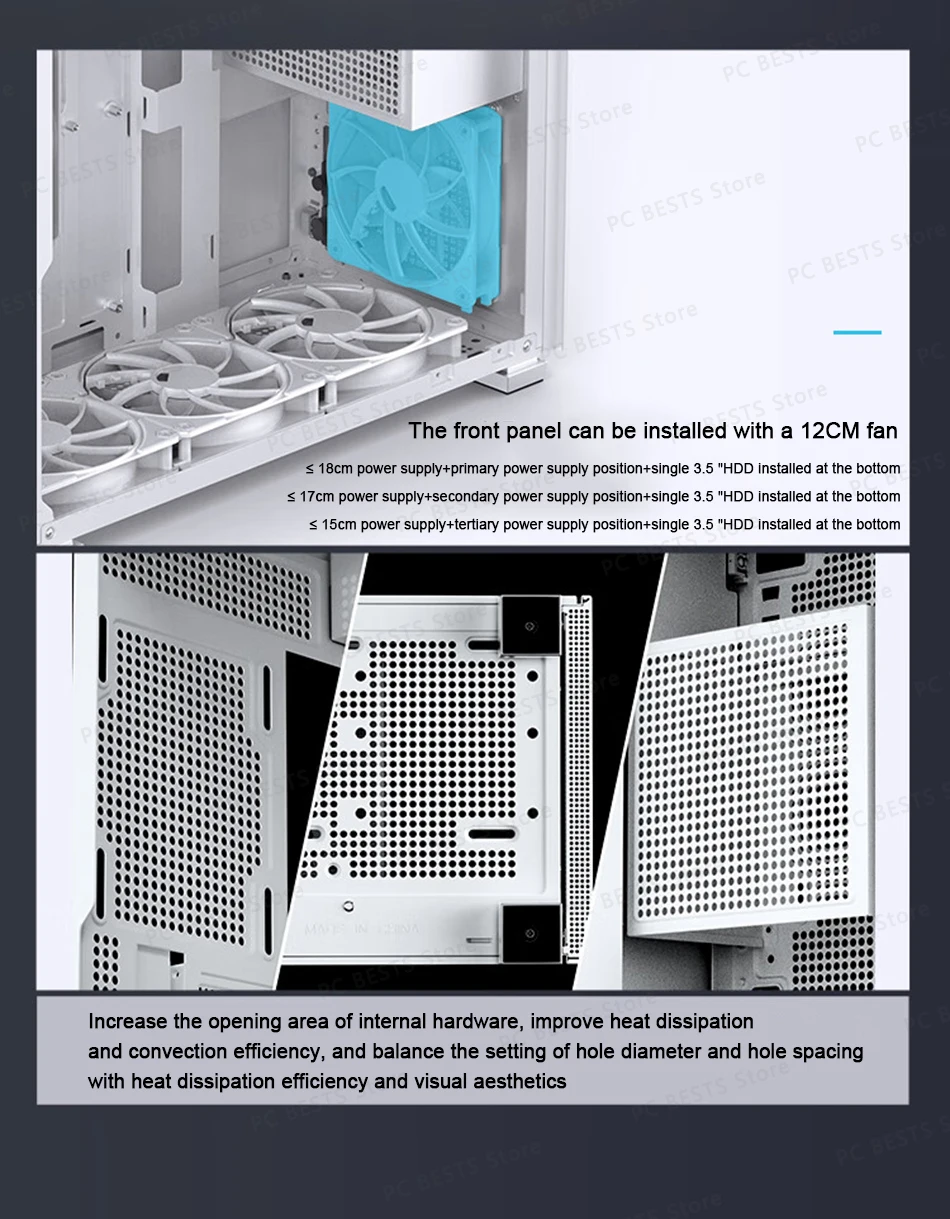

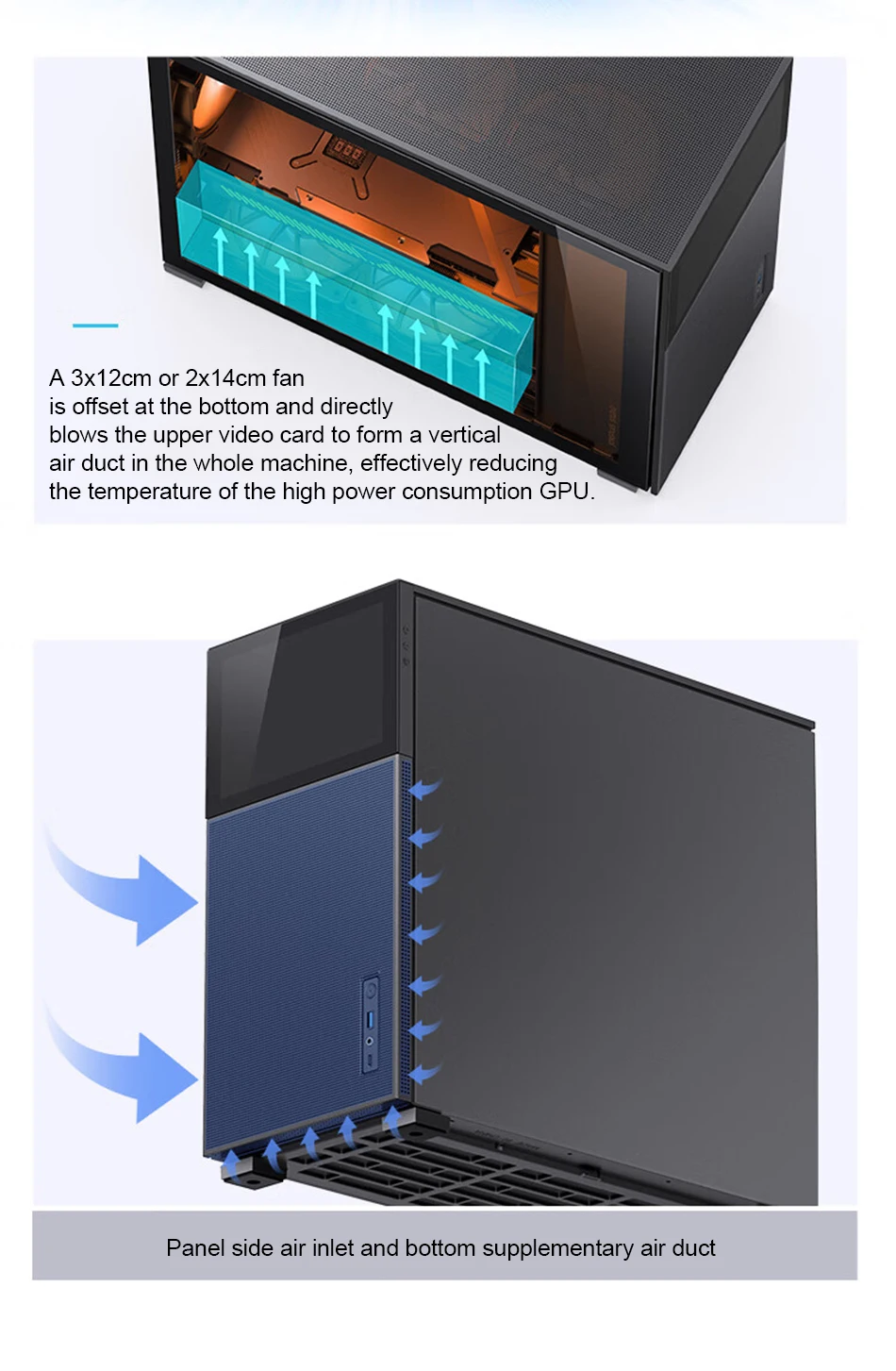

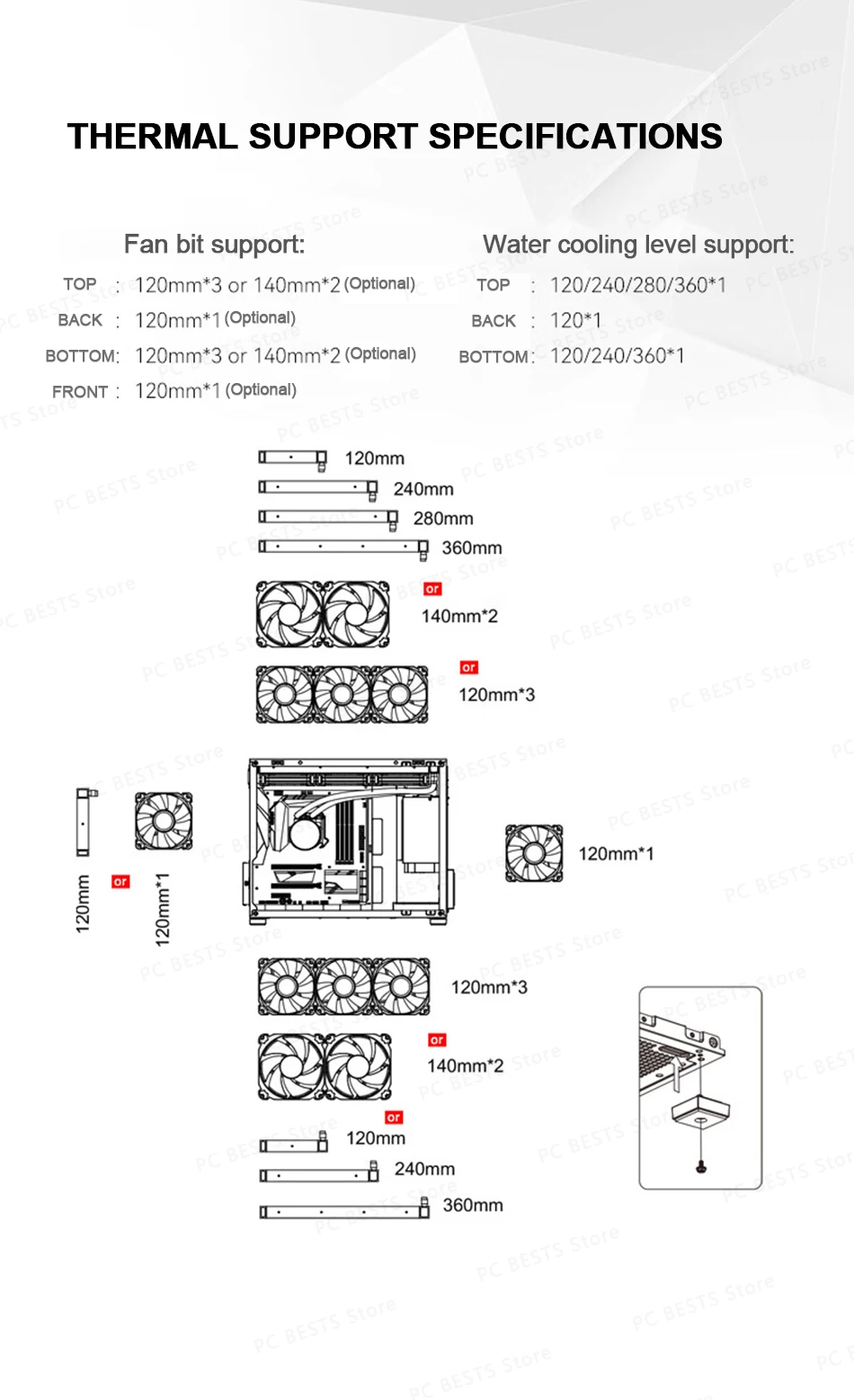

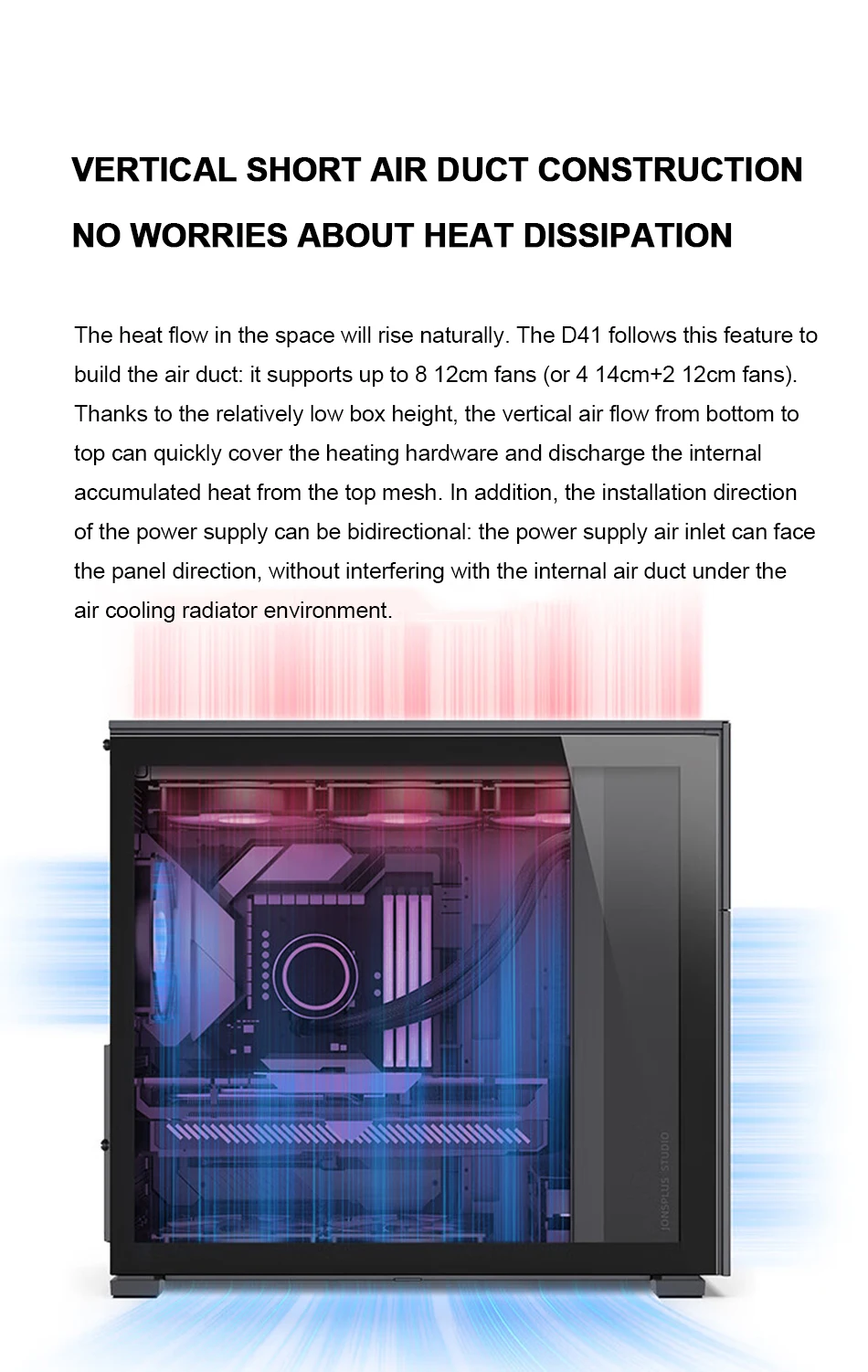

Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
Radiator support： Top 240/280/360*1 Rear 120*1 Bottom 240/360*1
Weight：Net 6.6KG

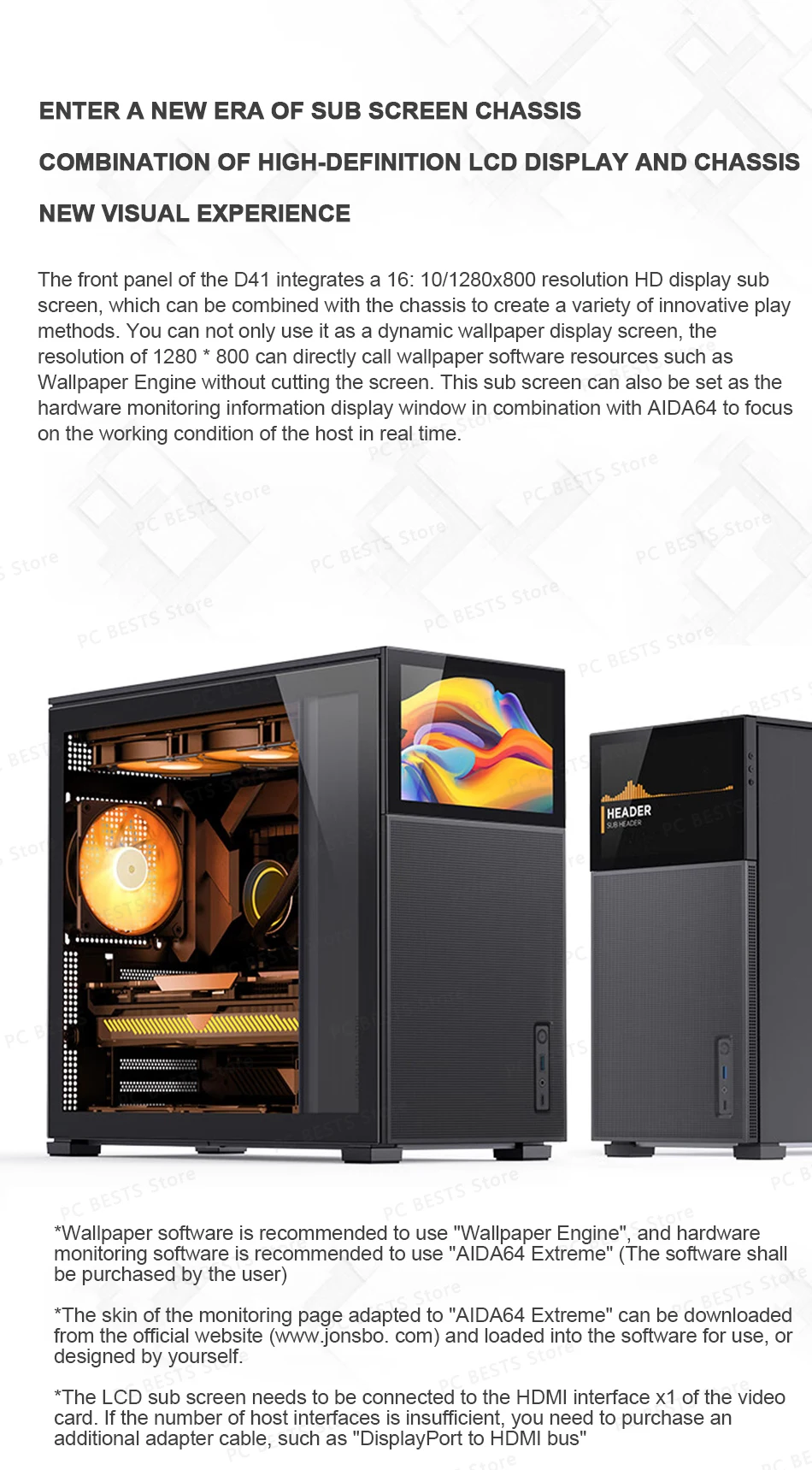

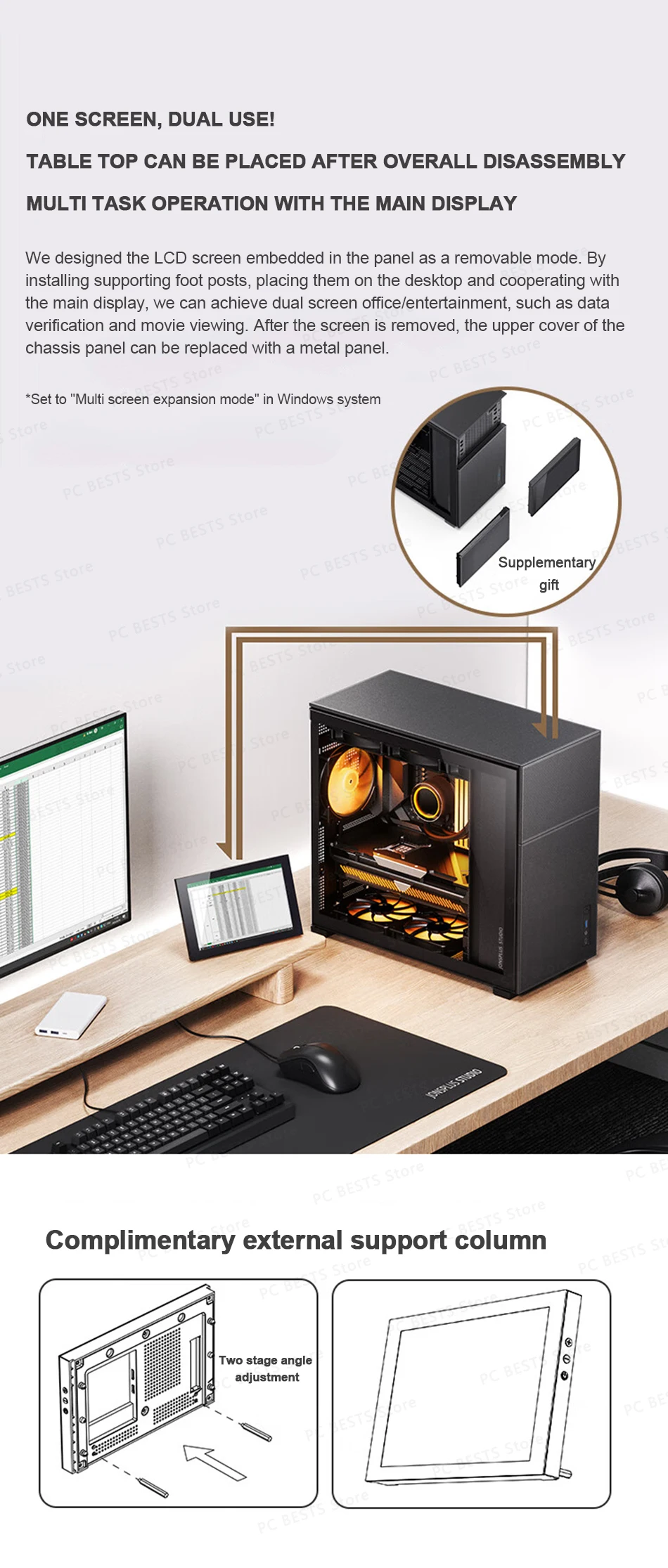

D41 STD SCREEN·D41 MESH SCREEN Black/White

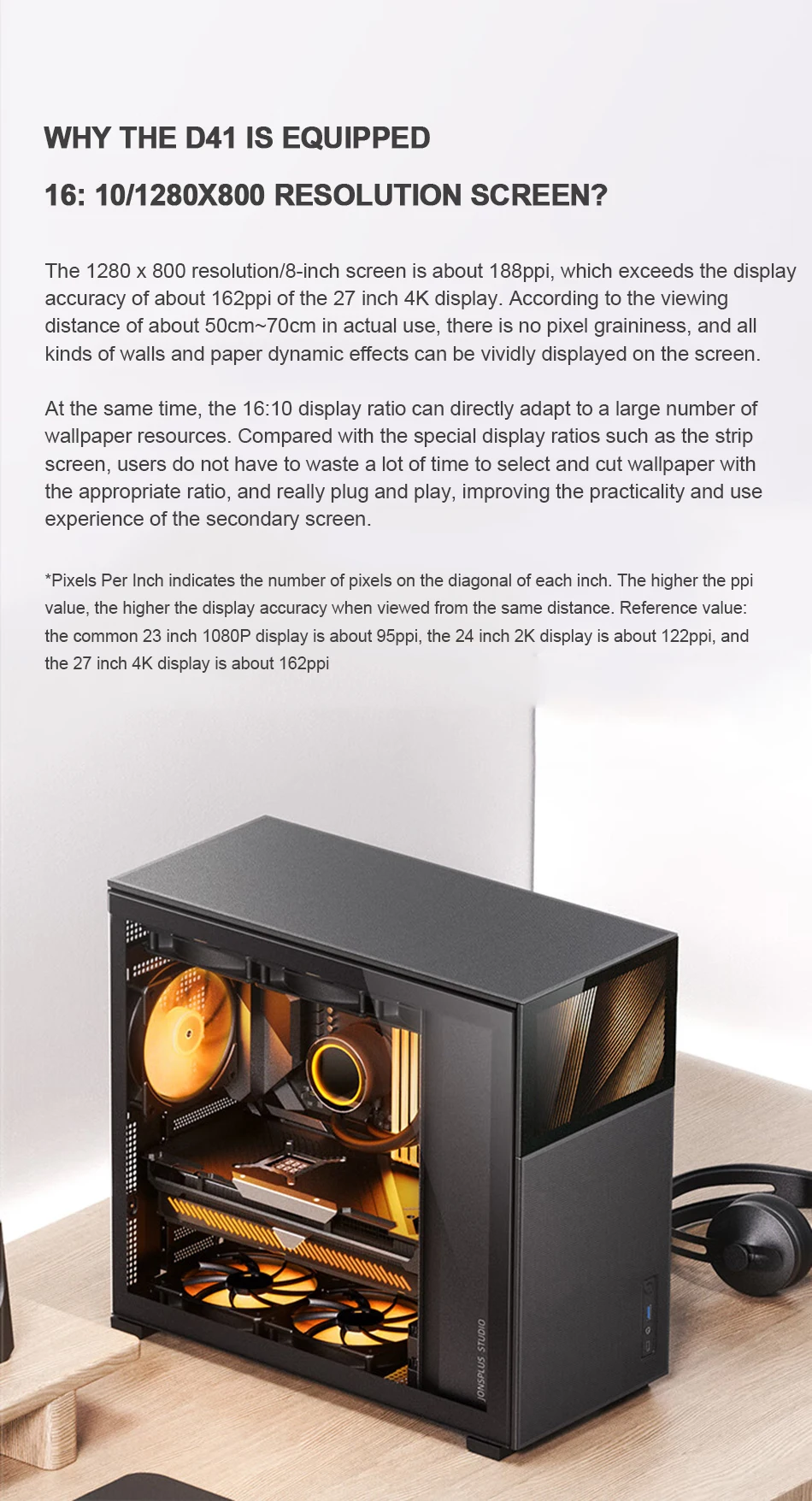

Screen display spec：
model：24.6mm(W) * 131.7(H) * 205.3(L)
Display size：8〞 Color TFT-LCD
Colors：16.7M
Resolution：1280*800
Response Time：30ms(Typ.)
Brightness：300cd/m2(Typ.)
Contrast Ratio：1000（Typ.）

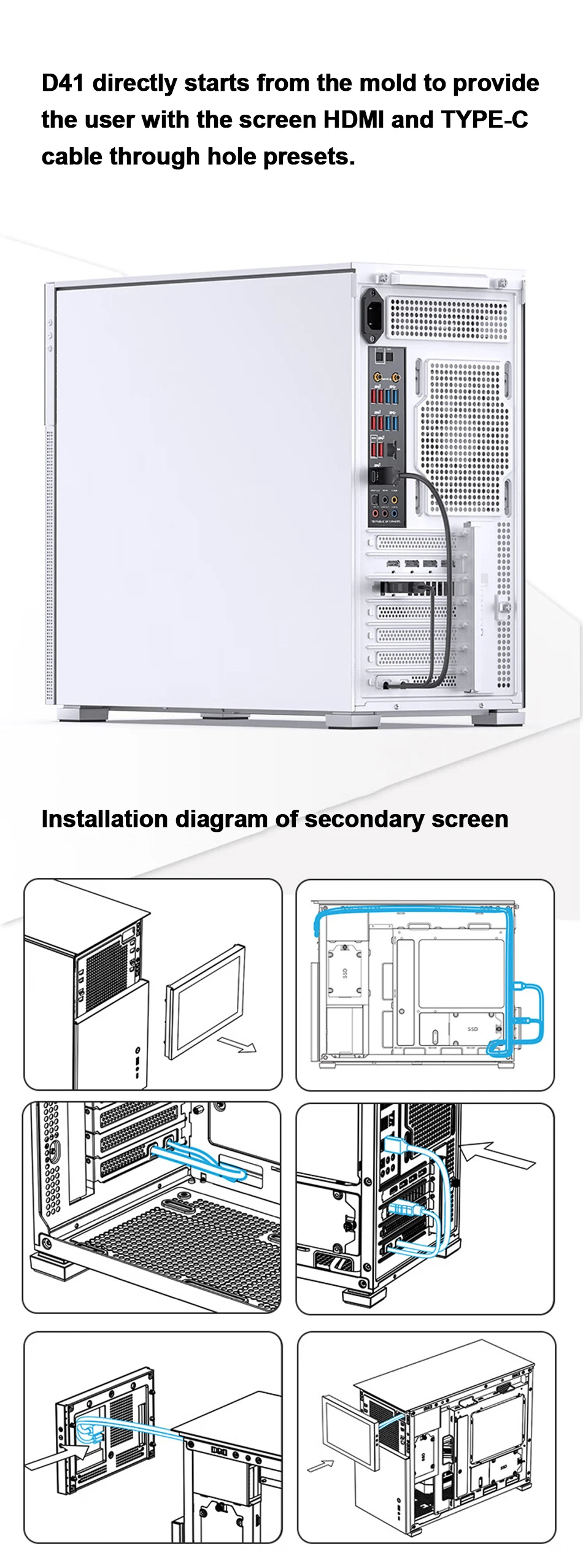

I/O：MINI-HDMI*1(Video Signal) TYPE-C*1
Refresh Rate(max.)：60Hz
Working Temperture：0-50℃
Product Specification：
Dimension: 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)
*Depth does not include the PCI brackets outside the chassis, height does not include case stand
205mm (W) * 407mm(H) * 452mm(D) (overall size)
Material：0.6mm+0.7mm steel panel
Drive Bay：2.5〞SSD*3+3.5〞HDD*2
Motherboard：ATX / M-ATX
PCI expansion slots：7
Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
Power supply support：ATX
CPU cooler support：168mm
Graphics card support：330-400mm
Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
Radiator support： Top 240/280/360*1 Rear 120*1 Bottom 240/360*1
Weight: Net 6.78KG
