Product parameters

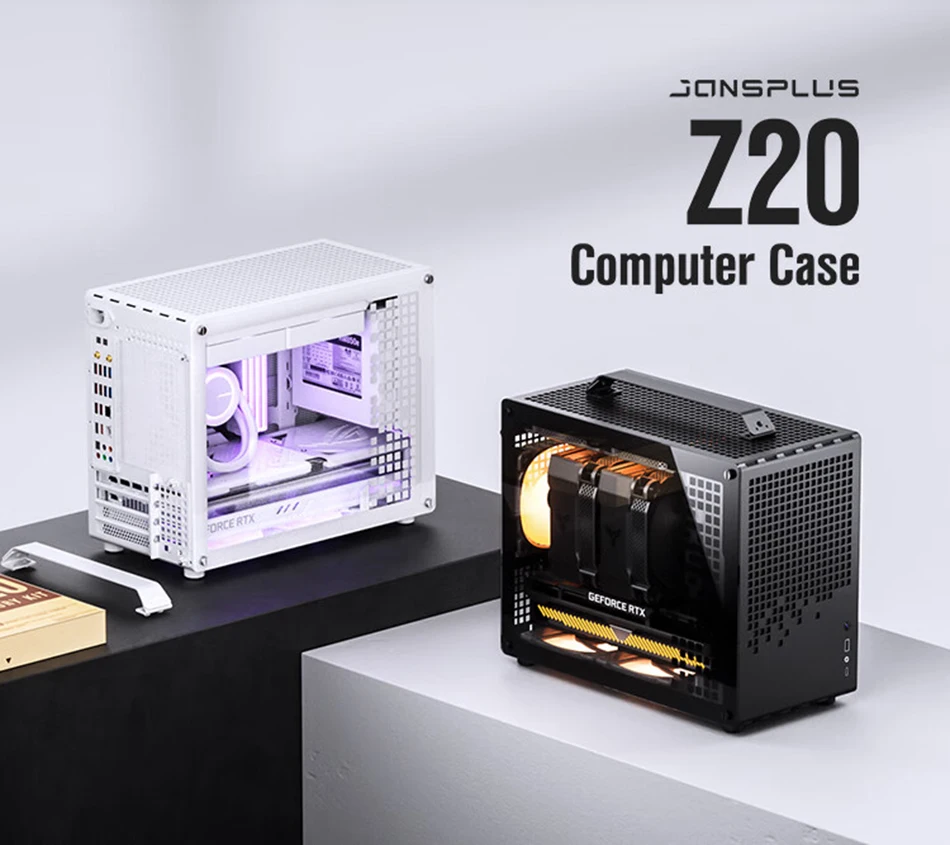

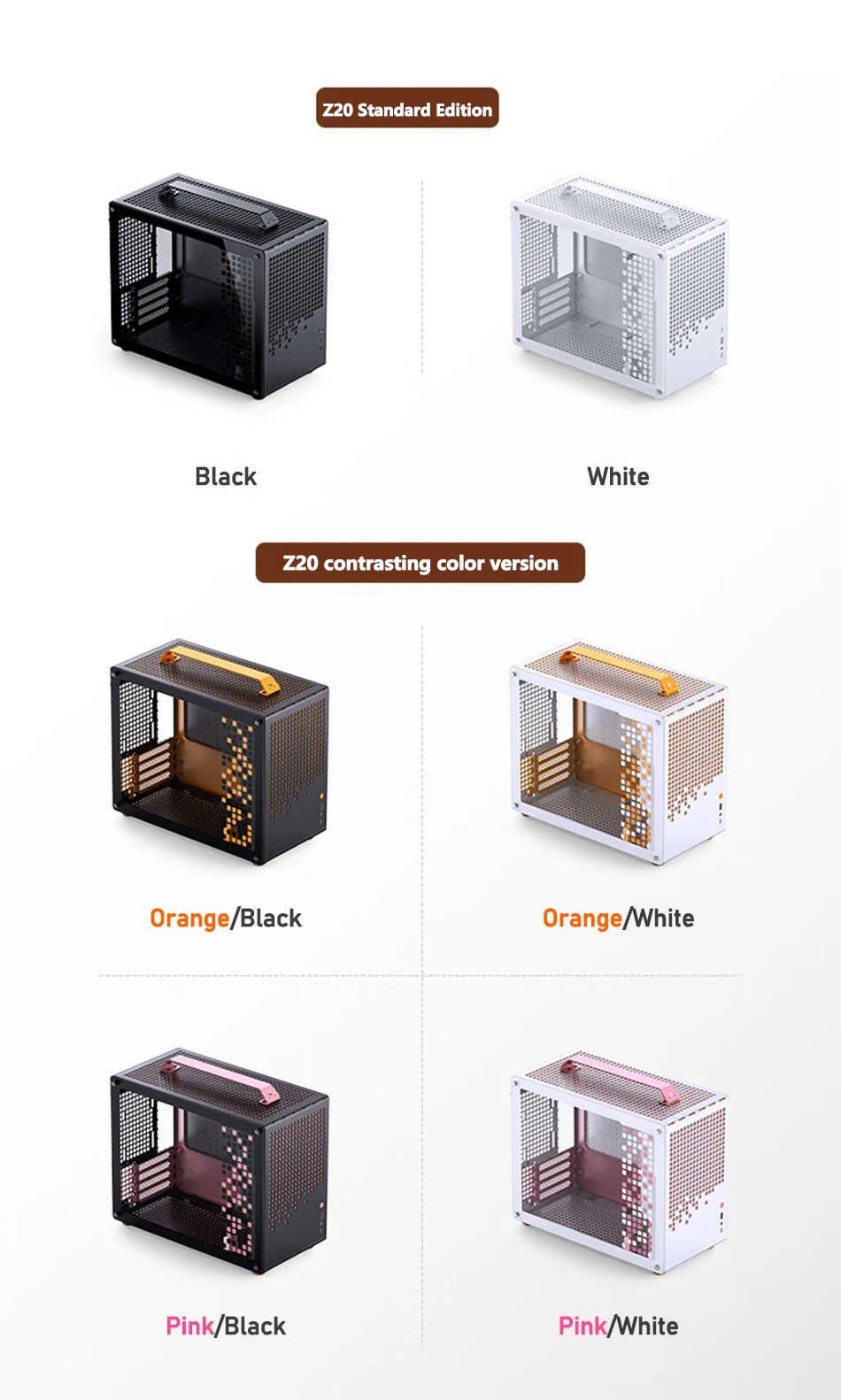

Product model: Z20 white/black

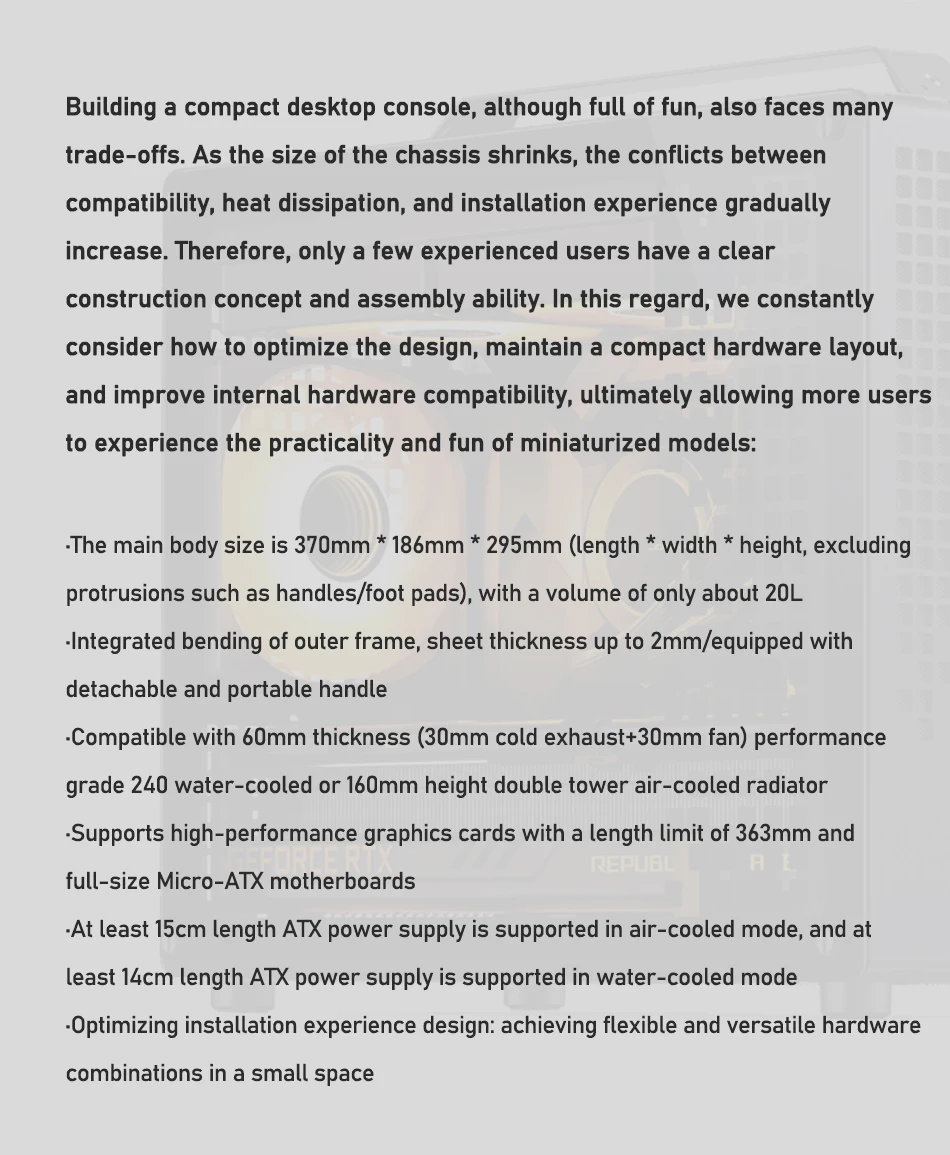

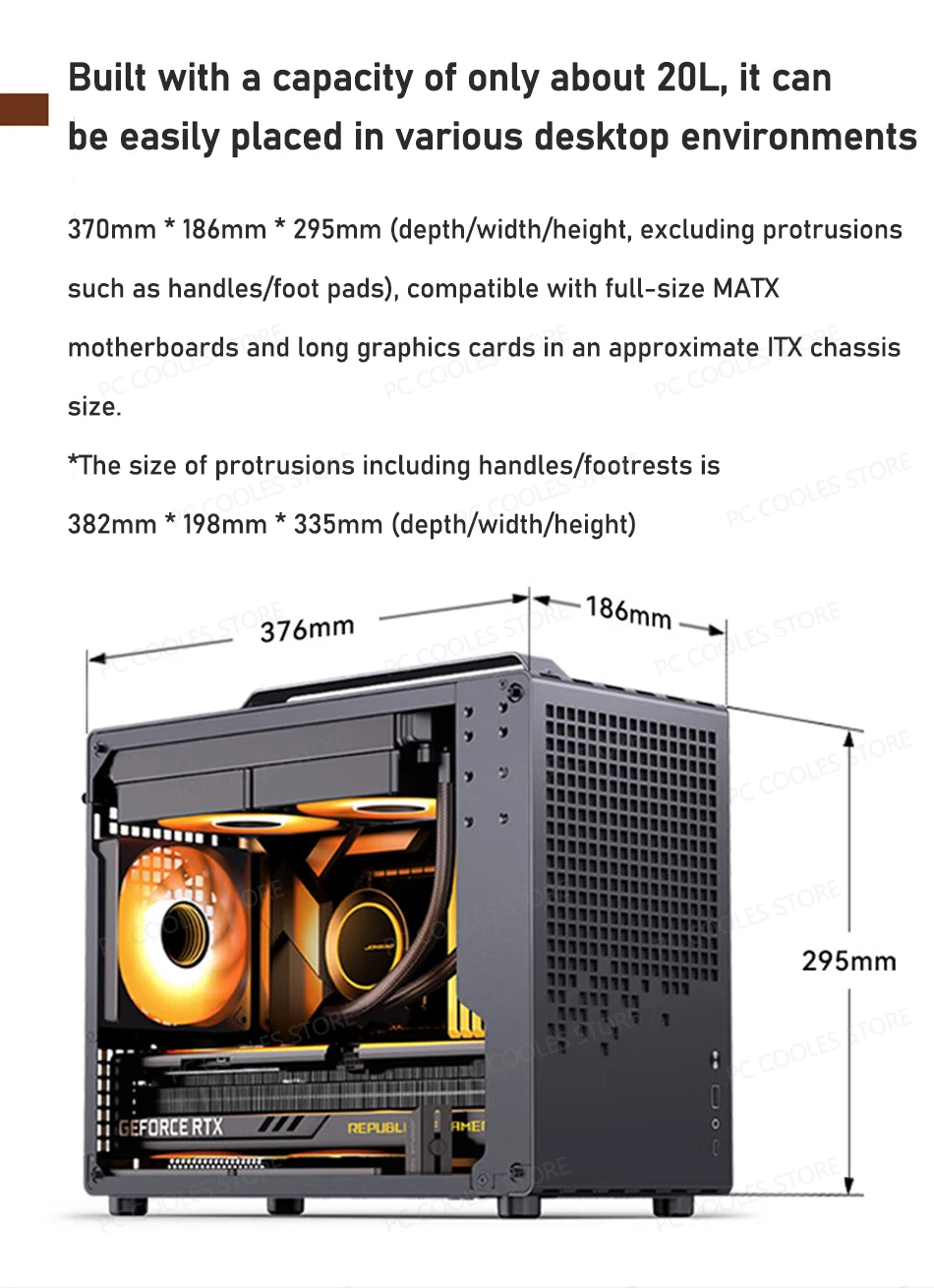

Case size (excluding protrusions such as handles/feet): 370mm x 186mm x 295mm (depth/width/height)
Case size (including protrusions such as handles/feet): 382mm x 198mm x 335mm (depth/width/height)

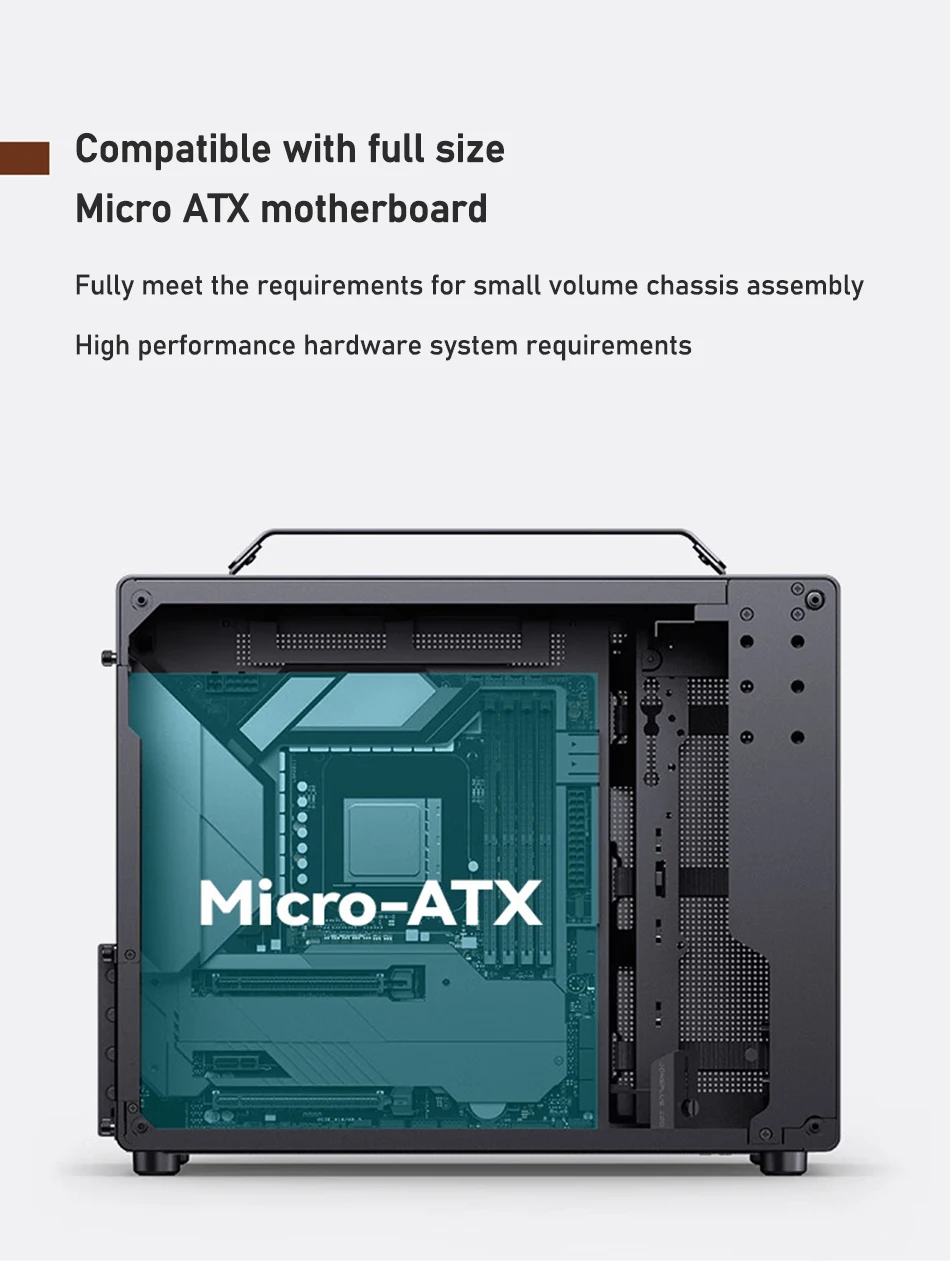

Motherboard support: Mini ITX/Micro ATX
Expansion slot: 4

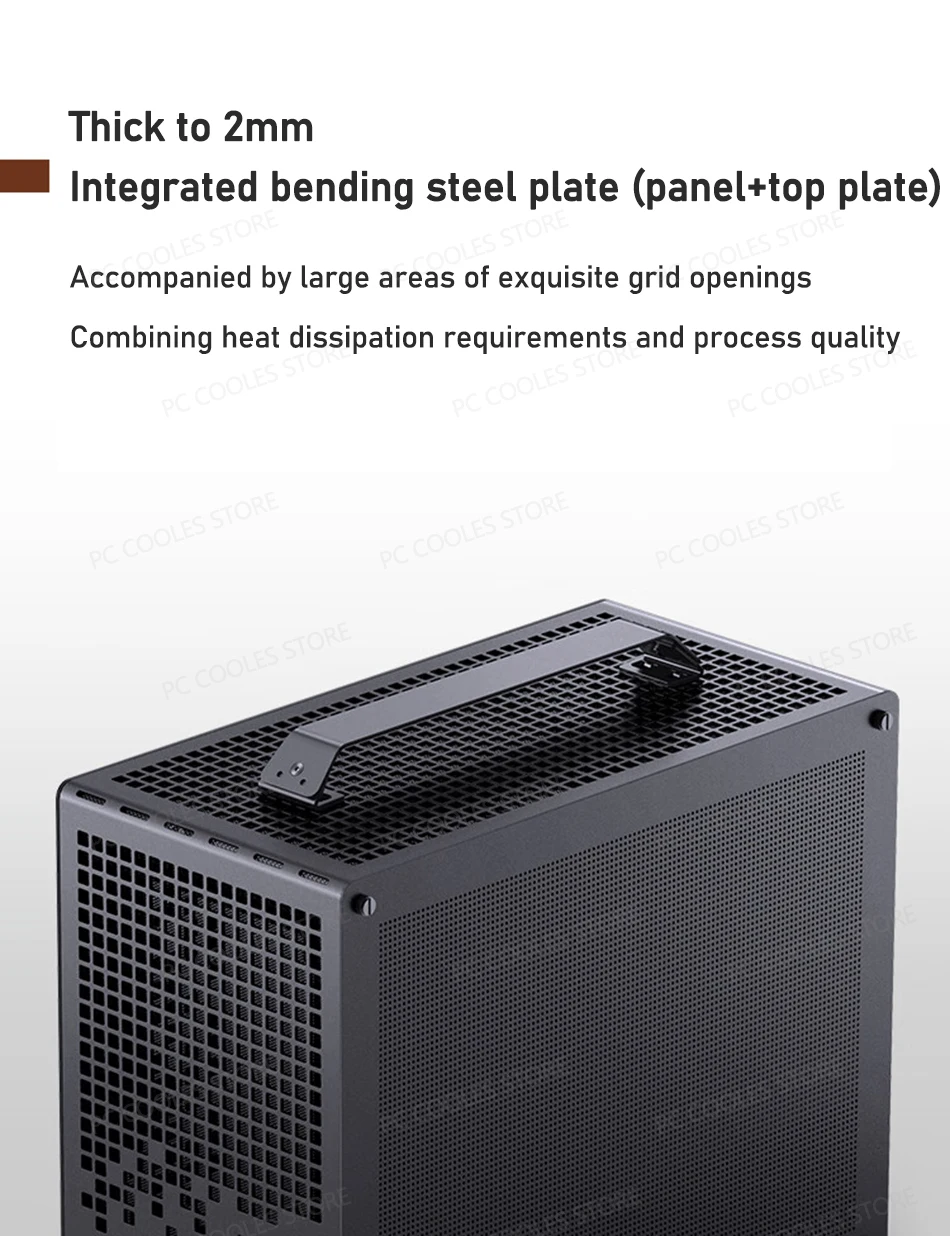

Case material: SPCC steel plate, tempered glass
Weight: net weight 5kg/gross weight 6.5kg

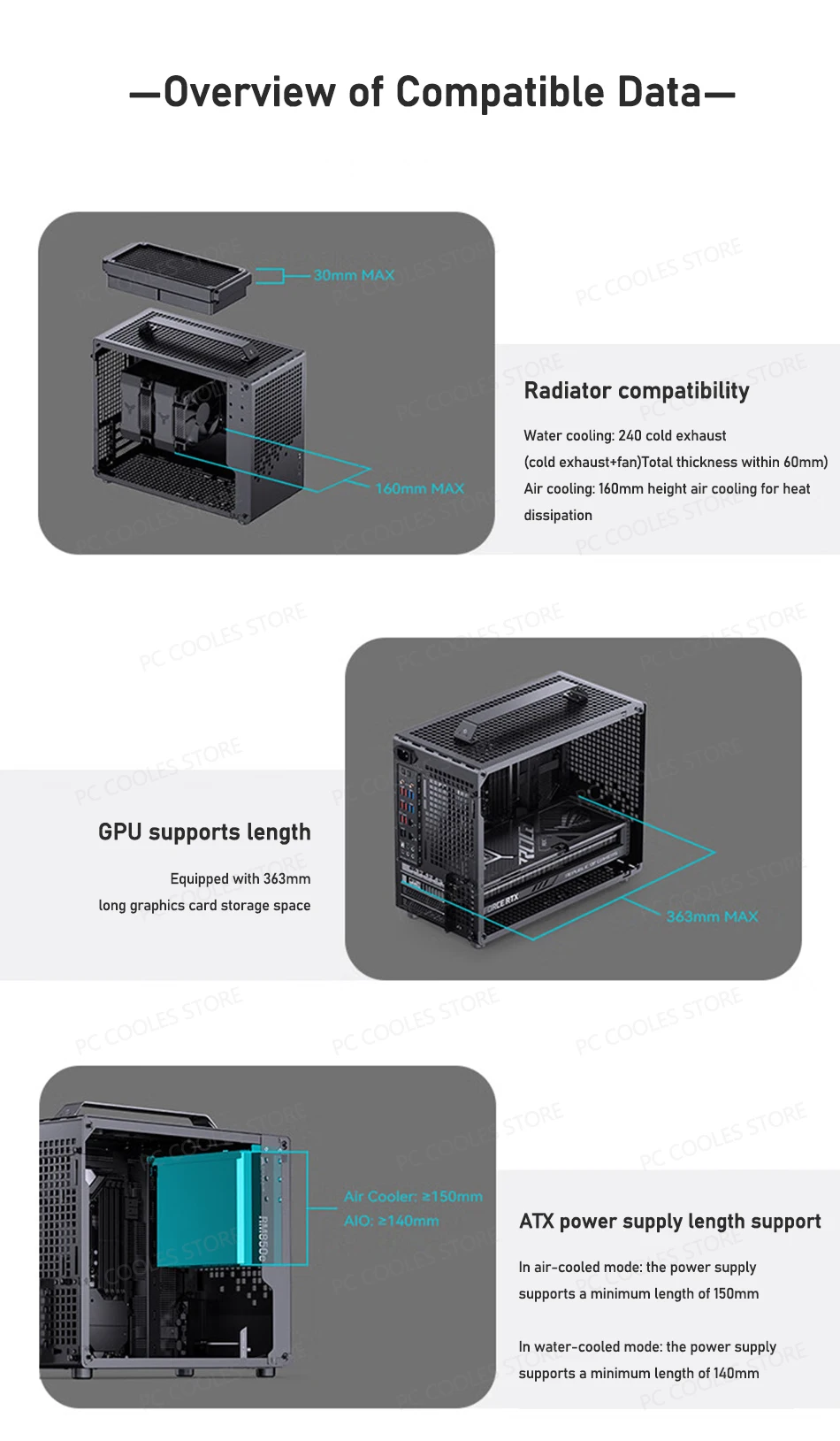

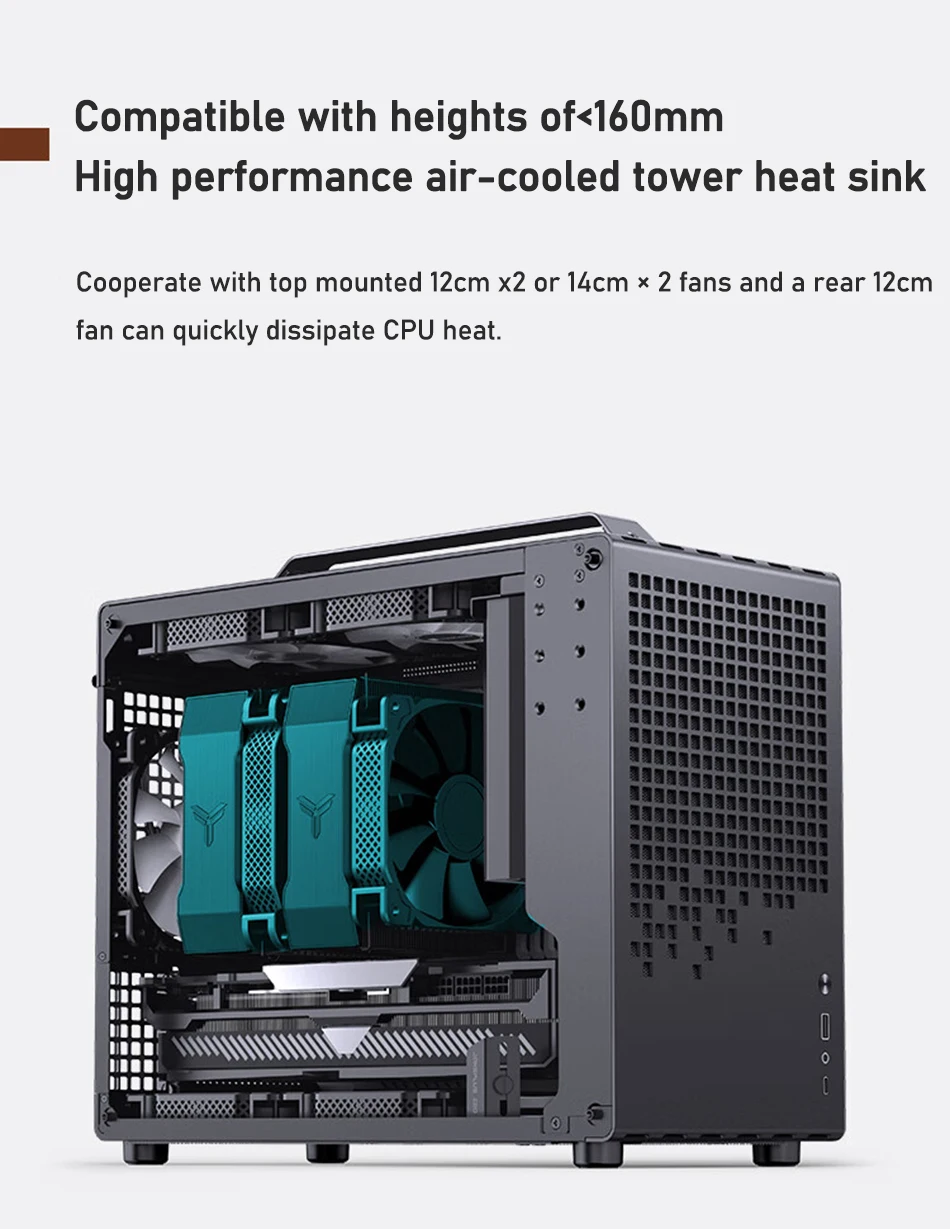

CPU air-cooled heat sink: height limit 160mm

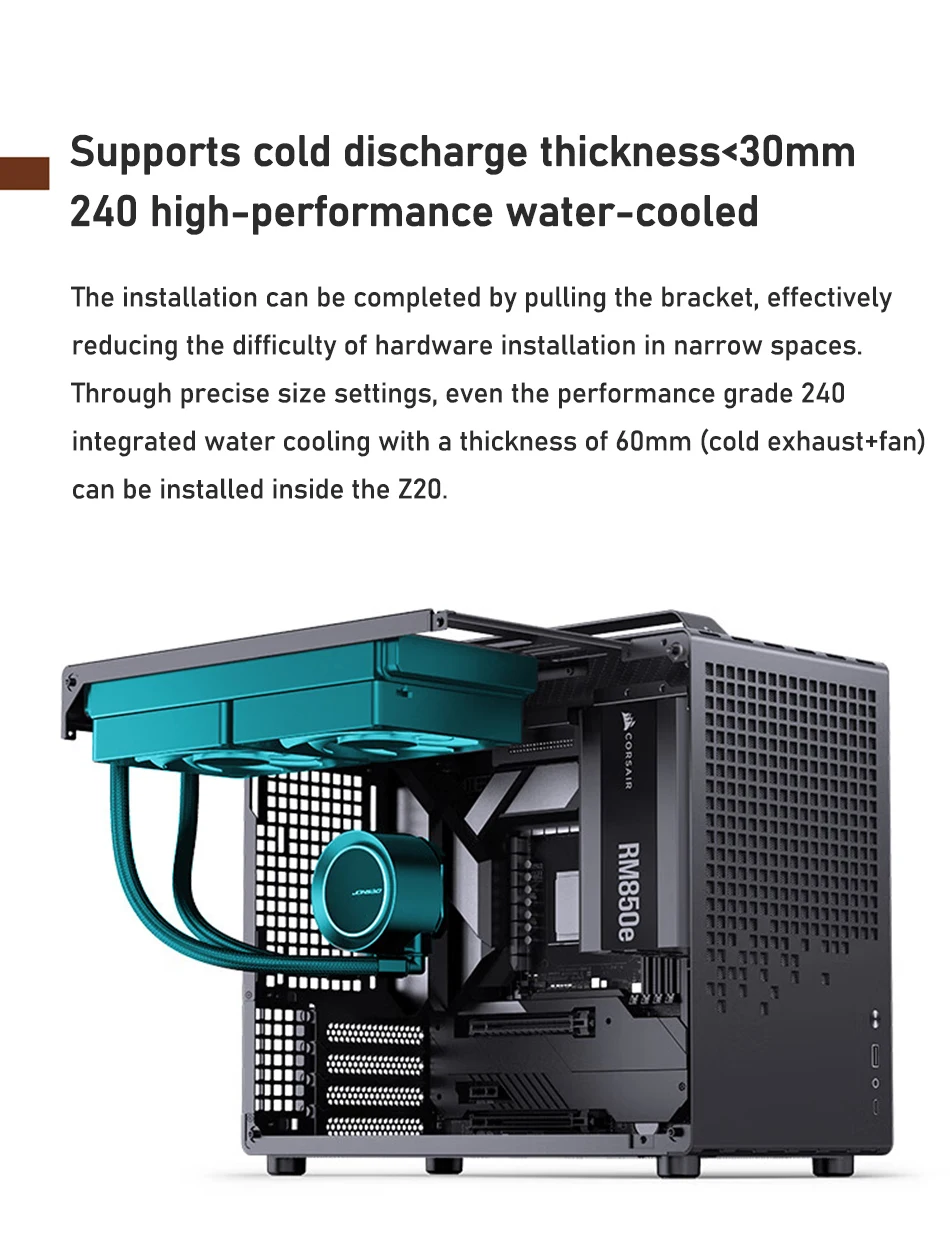

CPU water-cooled heat sink: top, 240mm

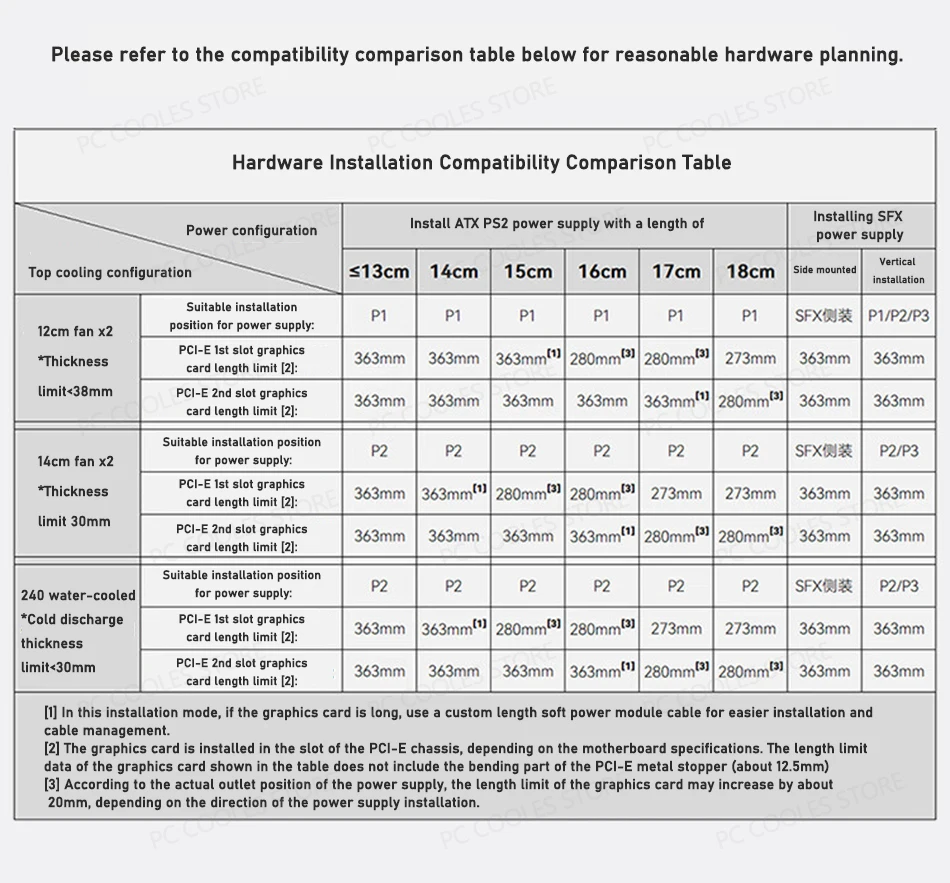

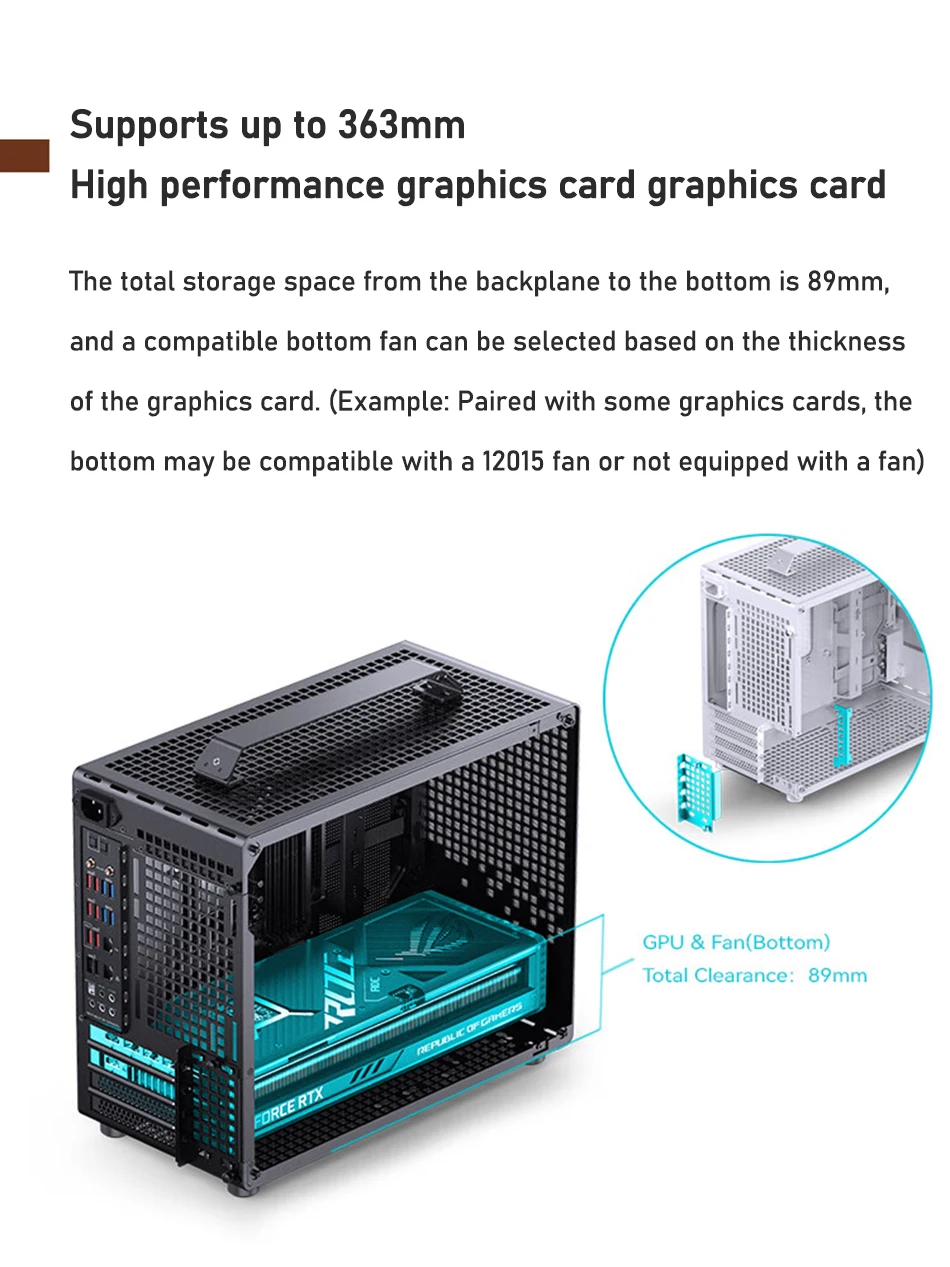

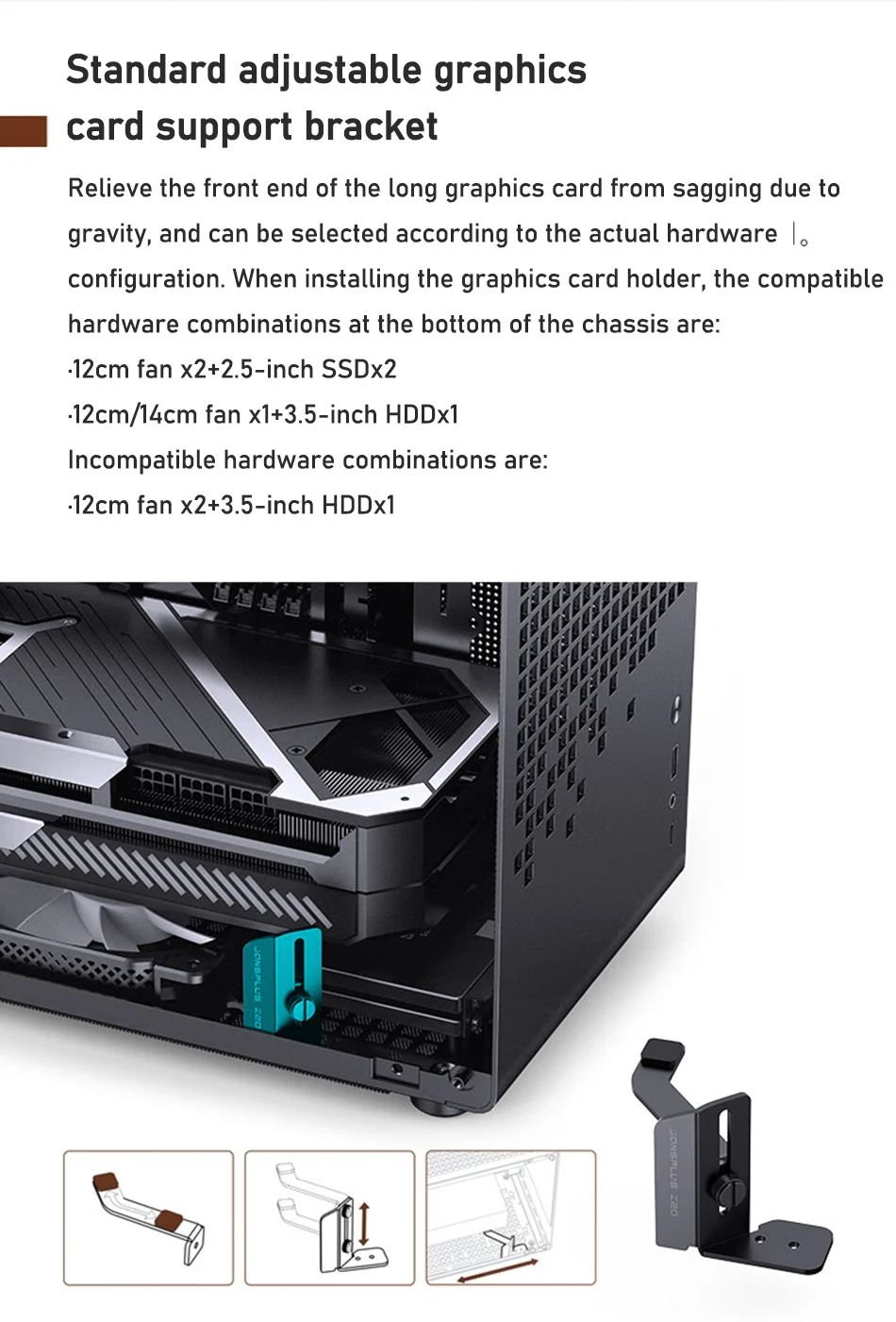

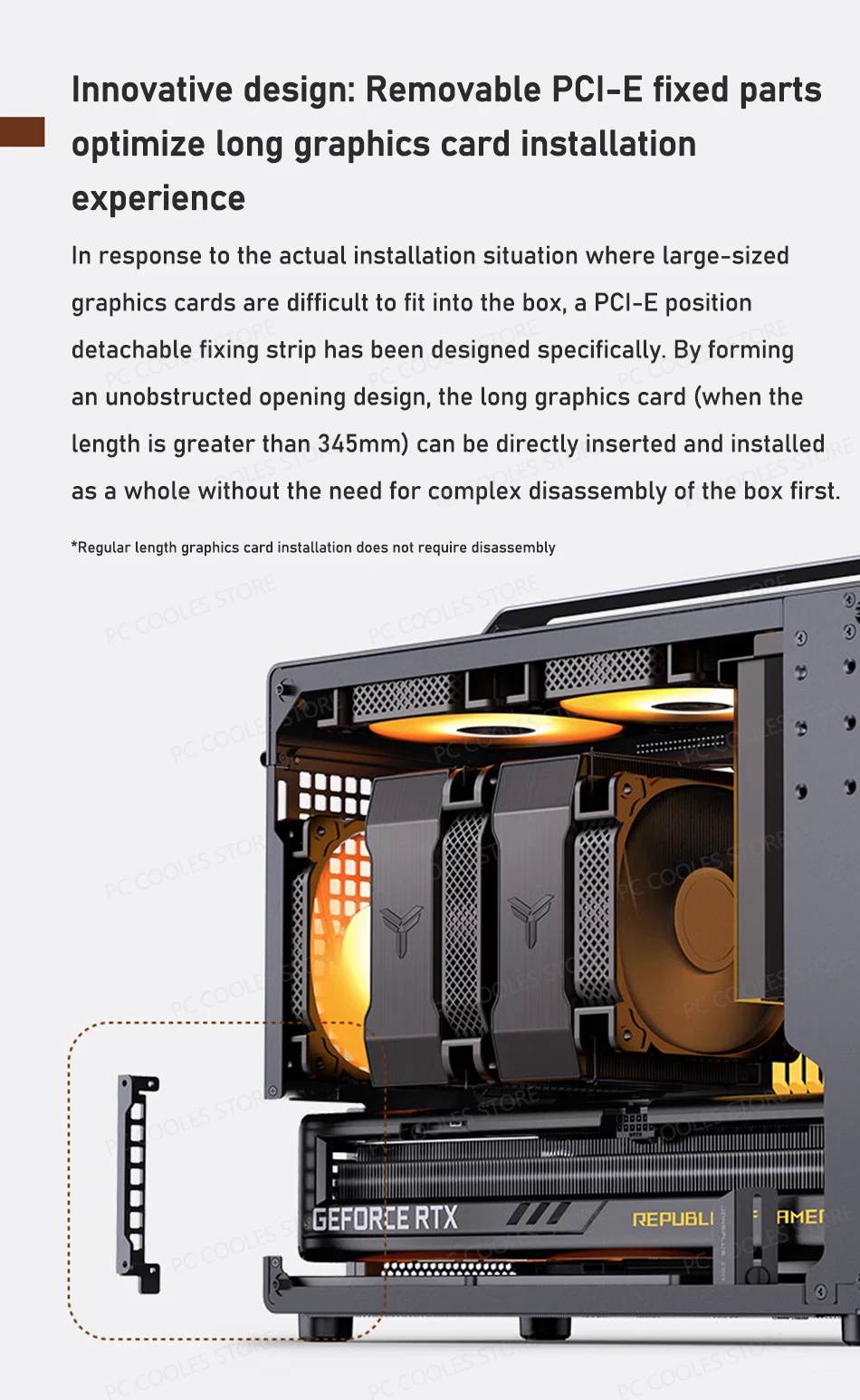

GPU compatible size: limited to 363mm in length, depending on other hardware configurations

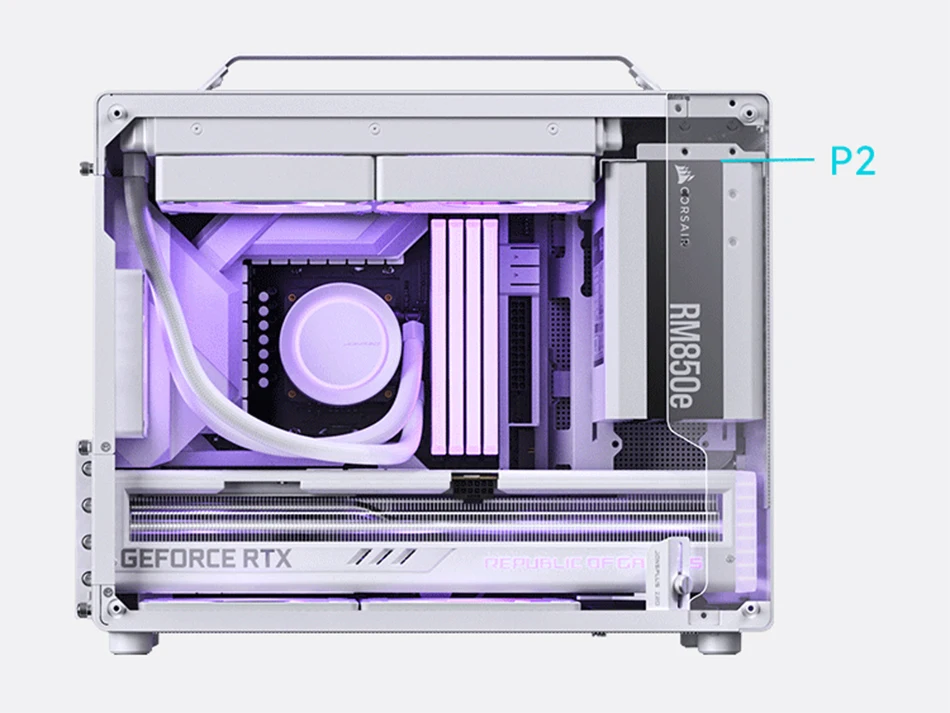

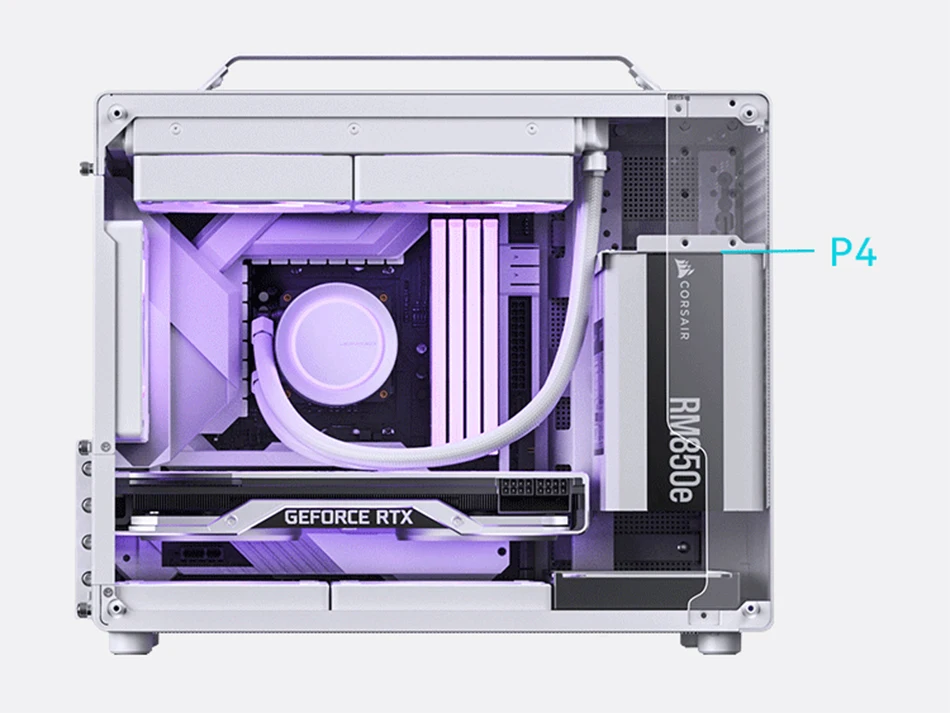

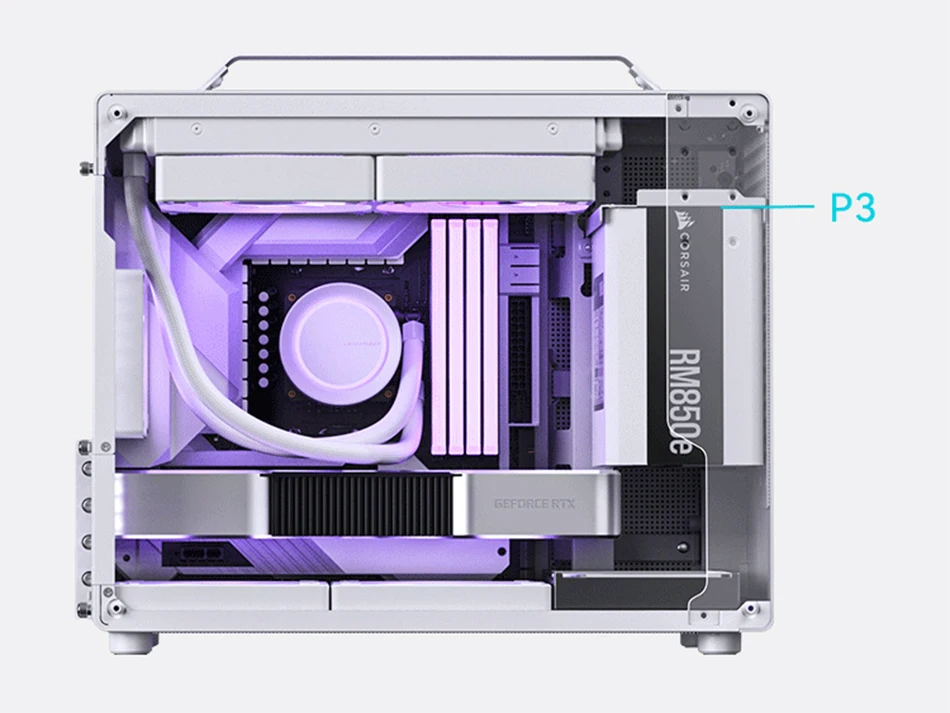

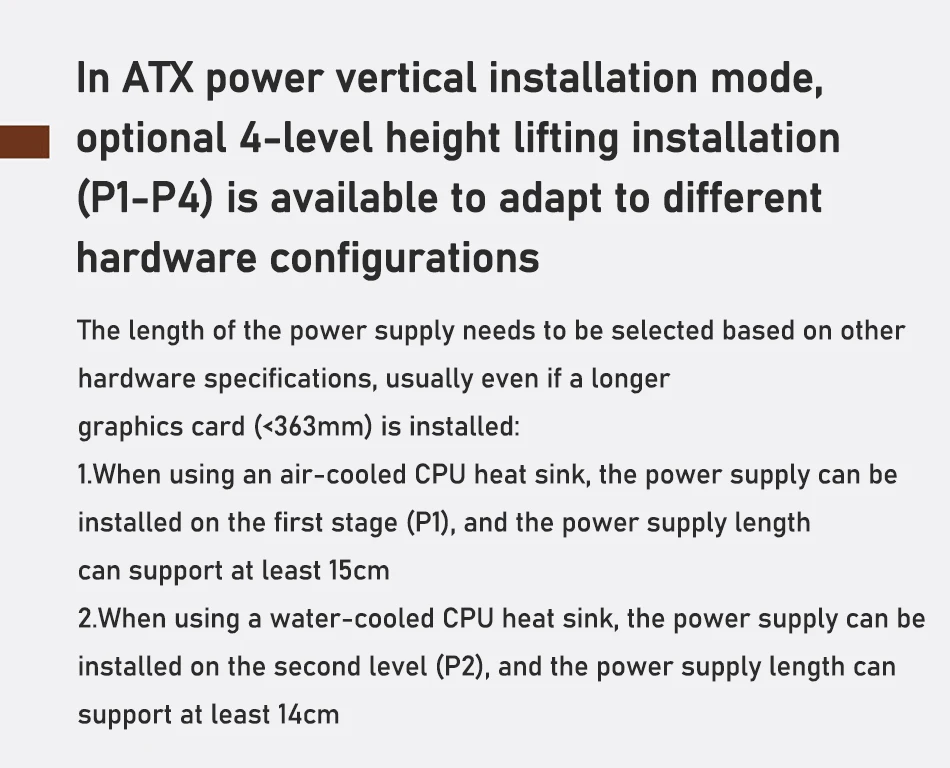

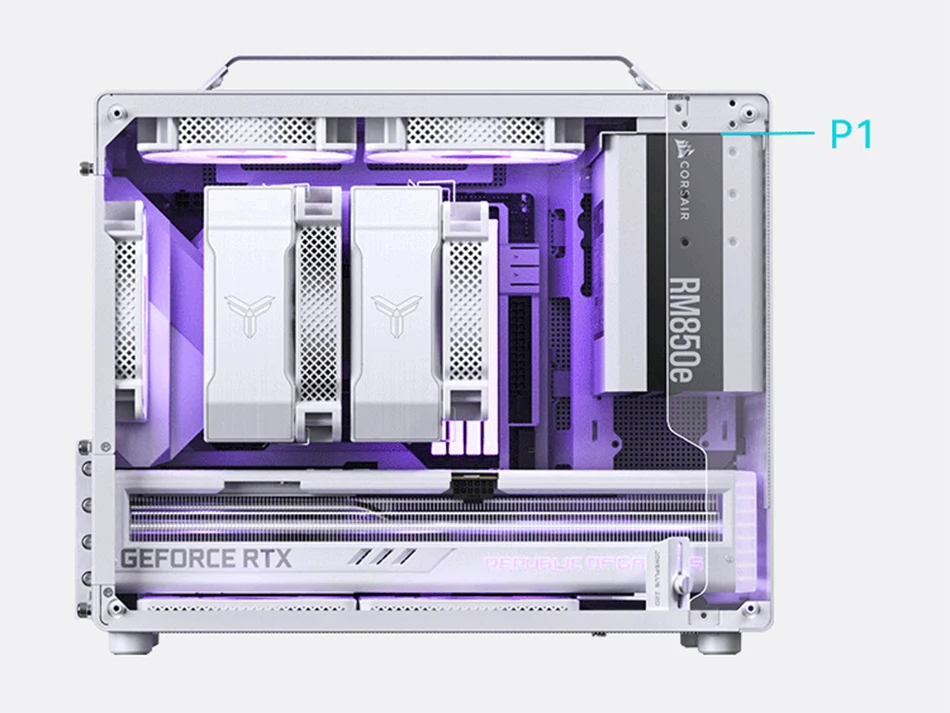

ATX PS2 power supply compatibility: limited to 180mm in length, recommended length ≤ 140mm, depending on other hardware configurations

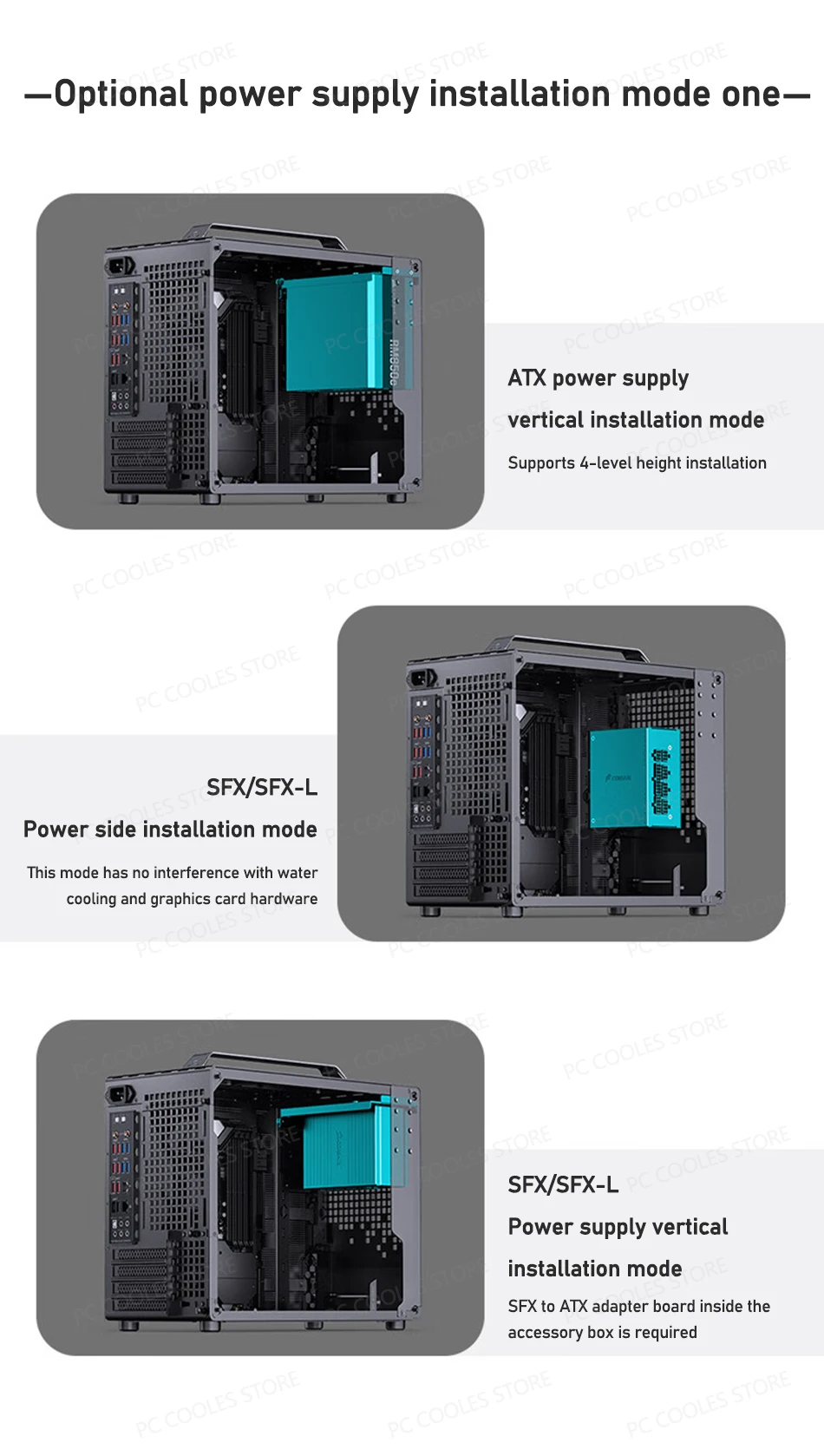

SFX power compatibility: SFX/SFX-L

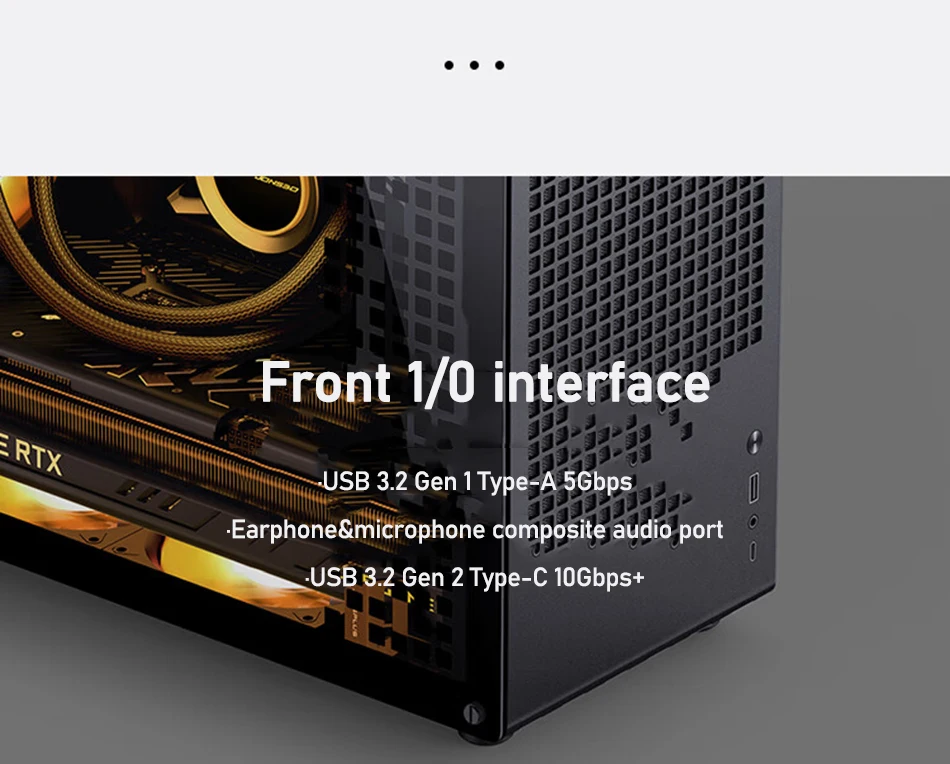

Front I/O interface: USB 3.2 Gen 1 Type-Ax1, USB 3.2 Gen 2 Type-Cx1, headphoneµphone composite audio port x1
Drive bits:

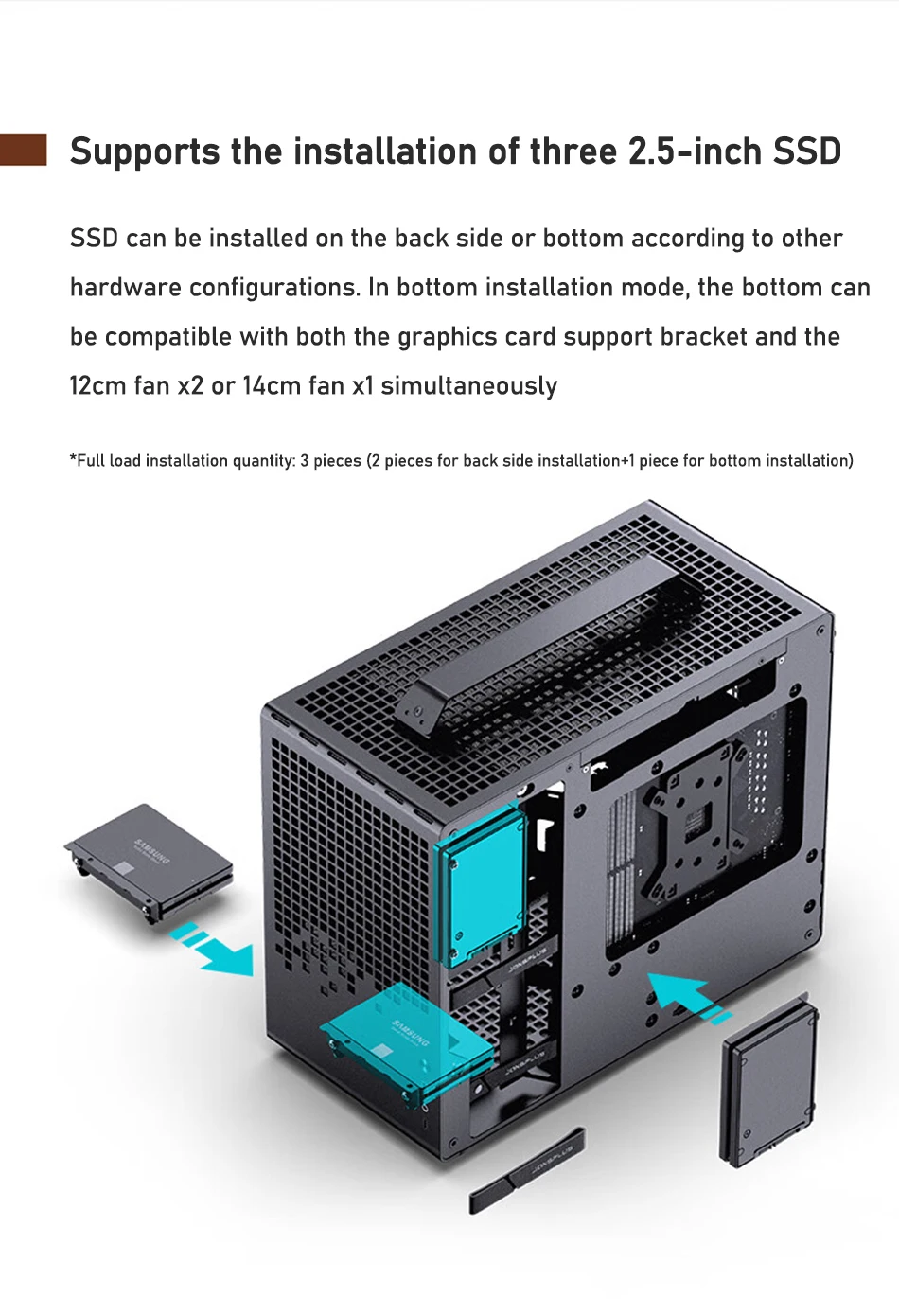

2.5 inches: up to 3, the specific number of assemblies depends on other hardware configurations

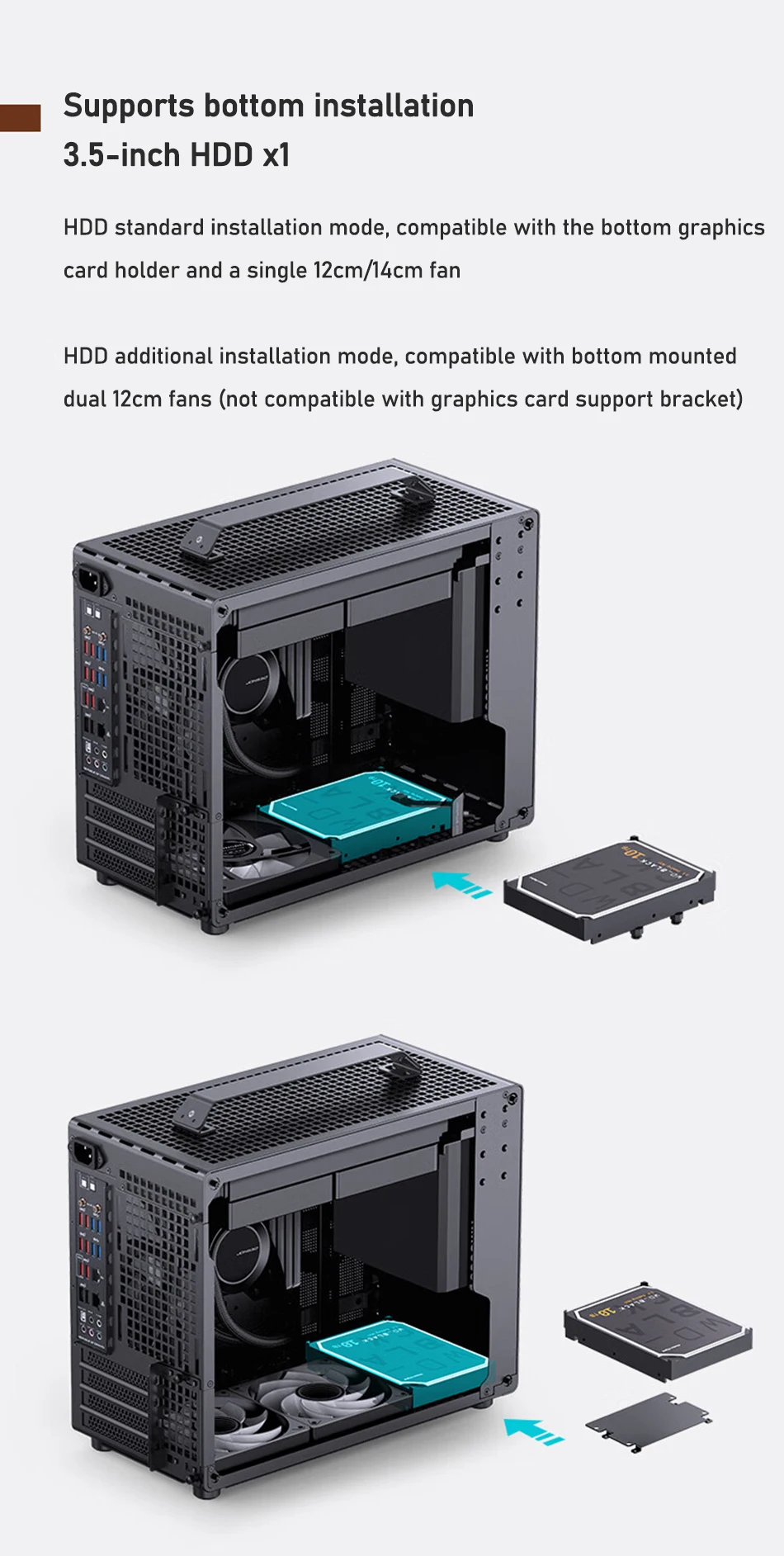

3.5 inches: up to 1, the specific number of assemblies depends on other hardware configurations

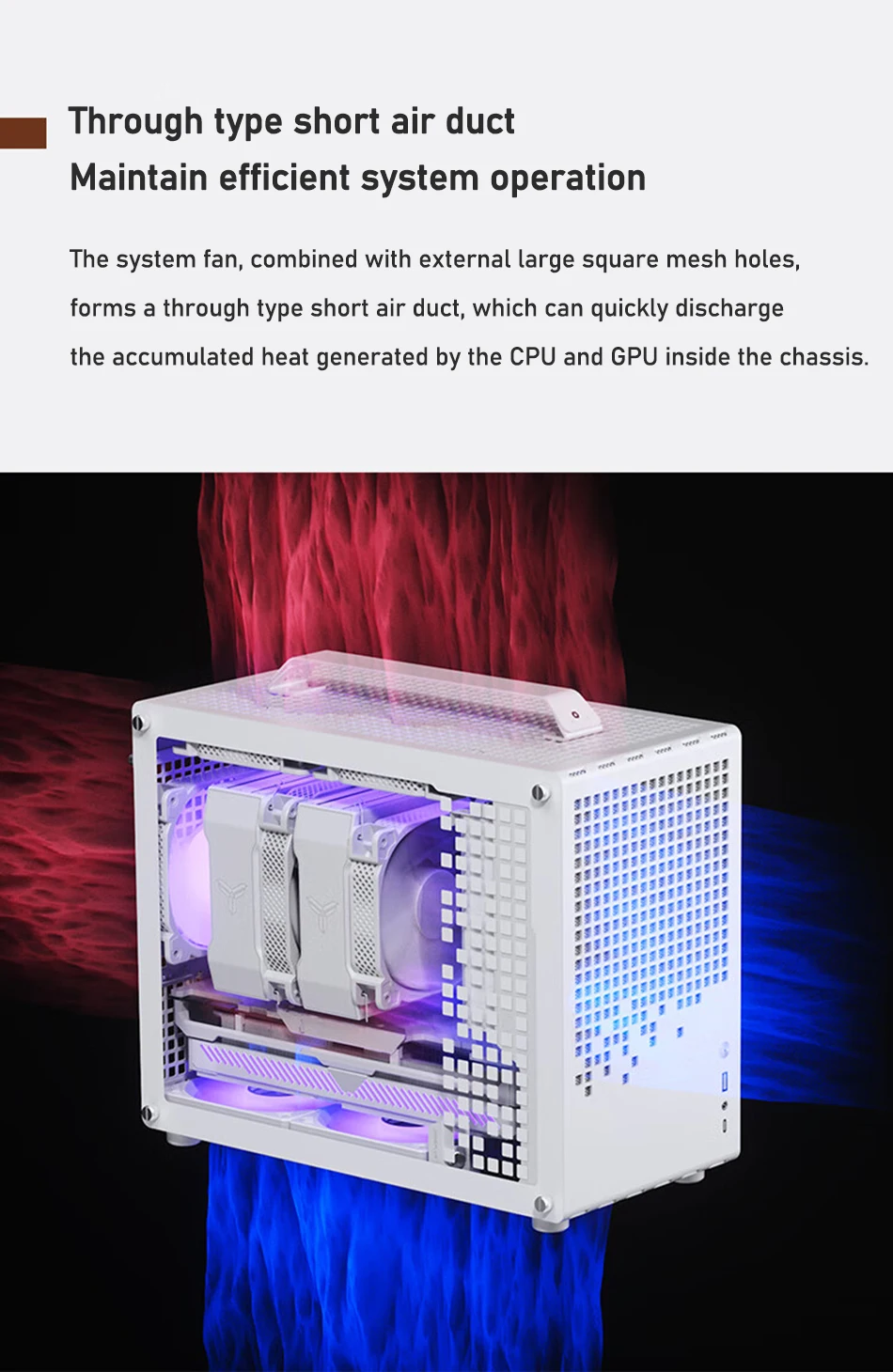

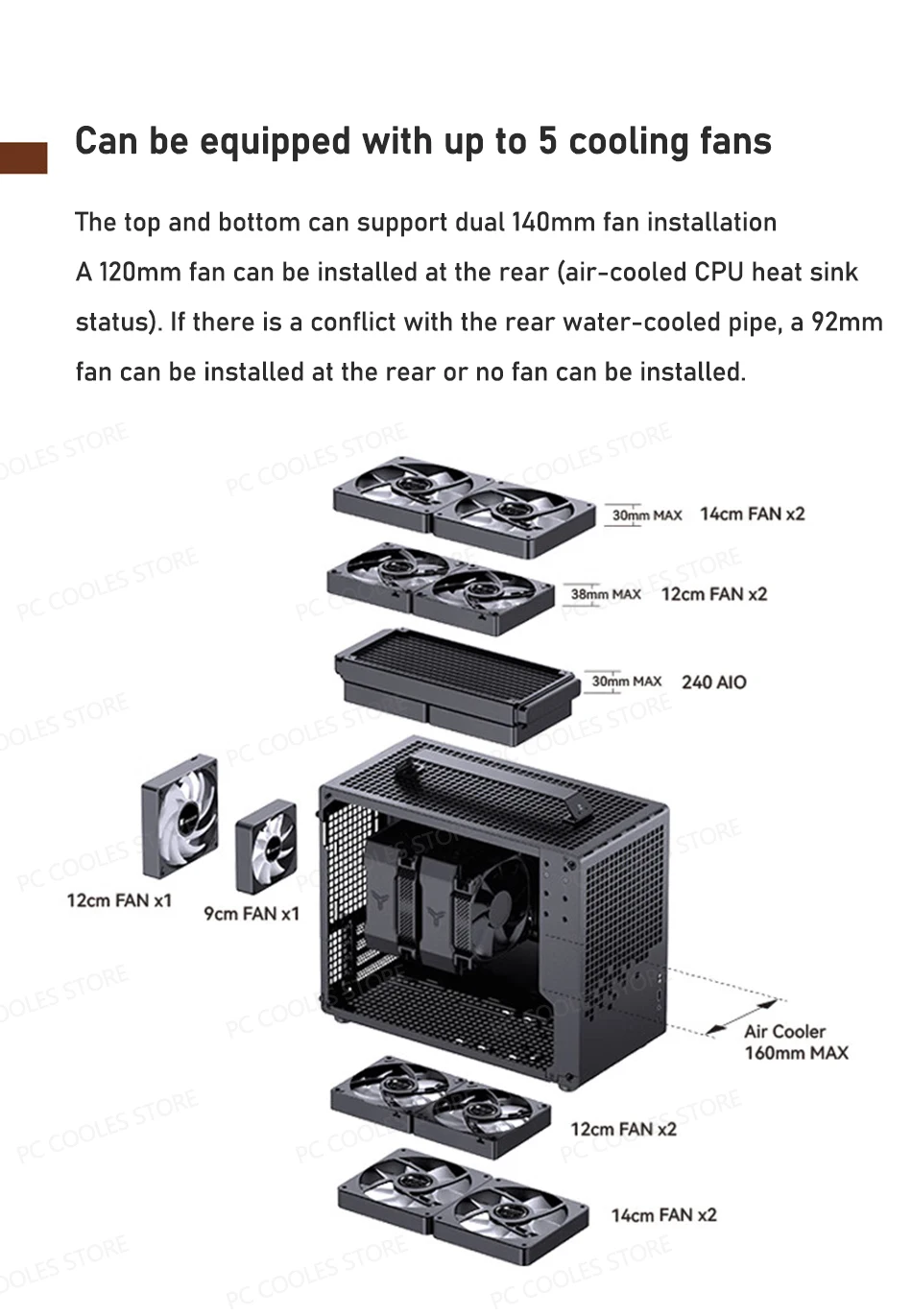

Fan support: top 2 x 120mm/2 x 140mm, rear 1 x 120mm/1 x 92mm, bottom 2 x 120mm/2 x 140mm, specific assembly quantity depends on other hardware configurations
