Product description:

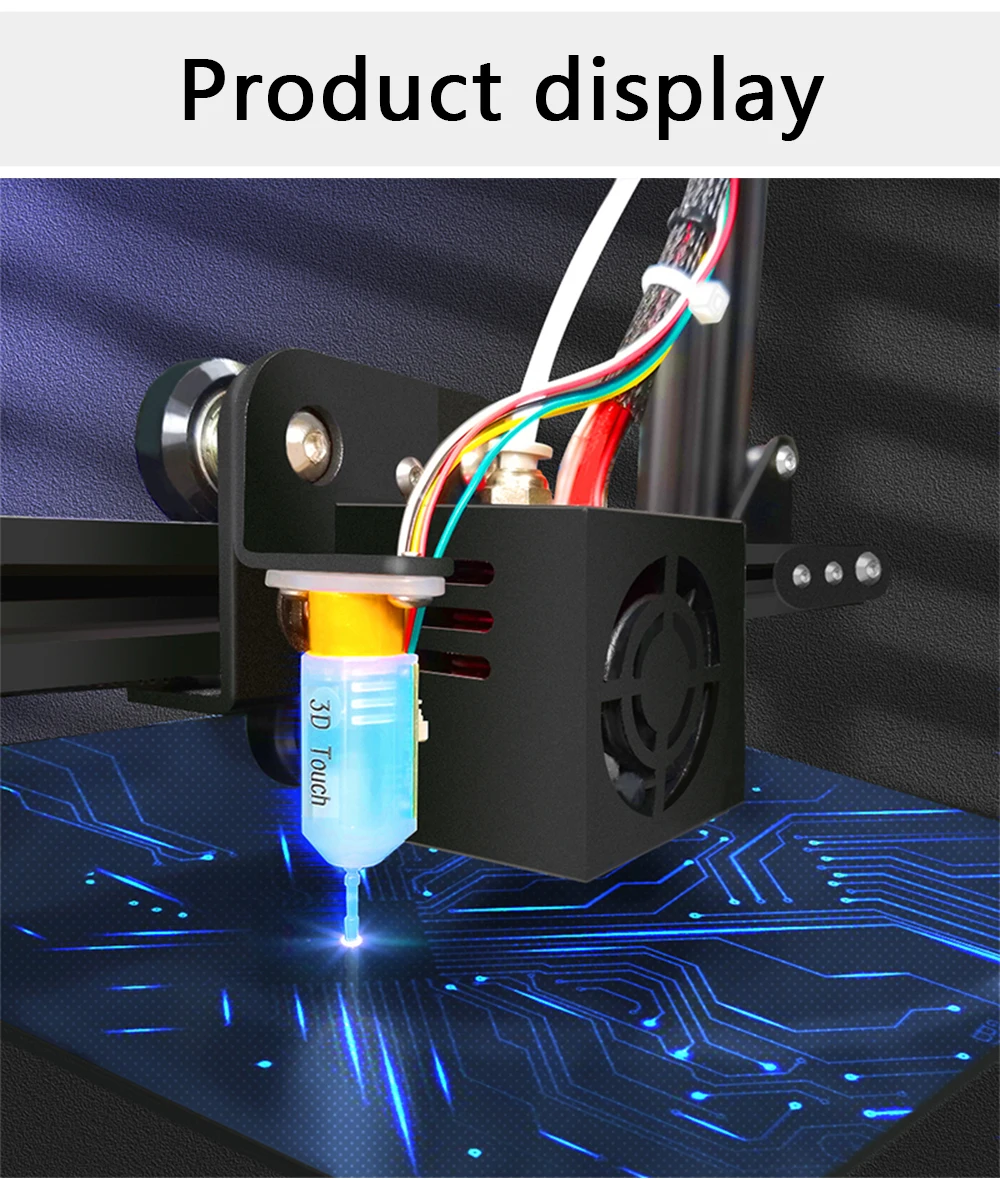

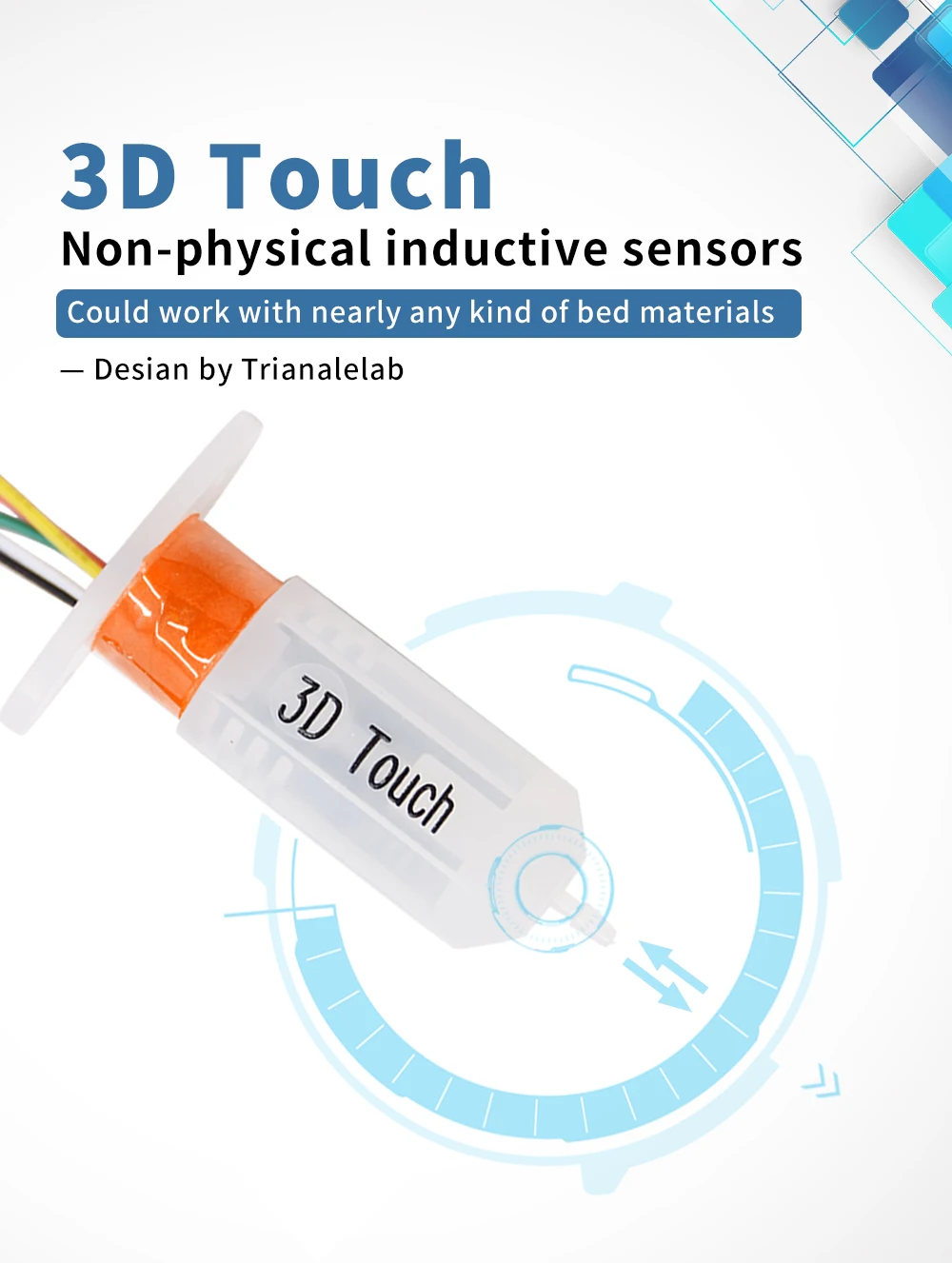

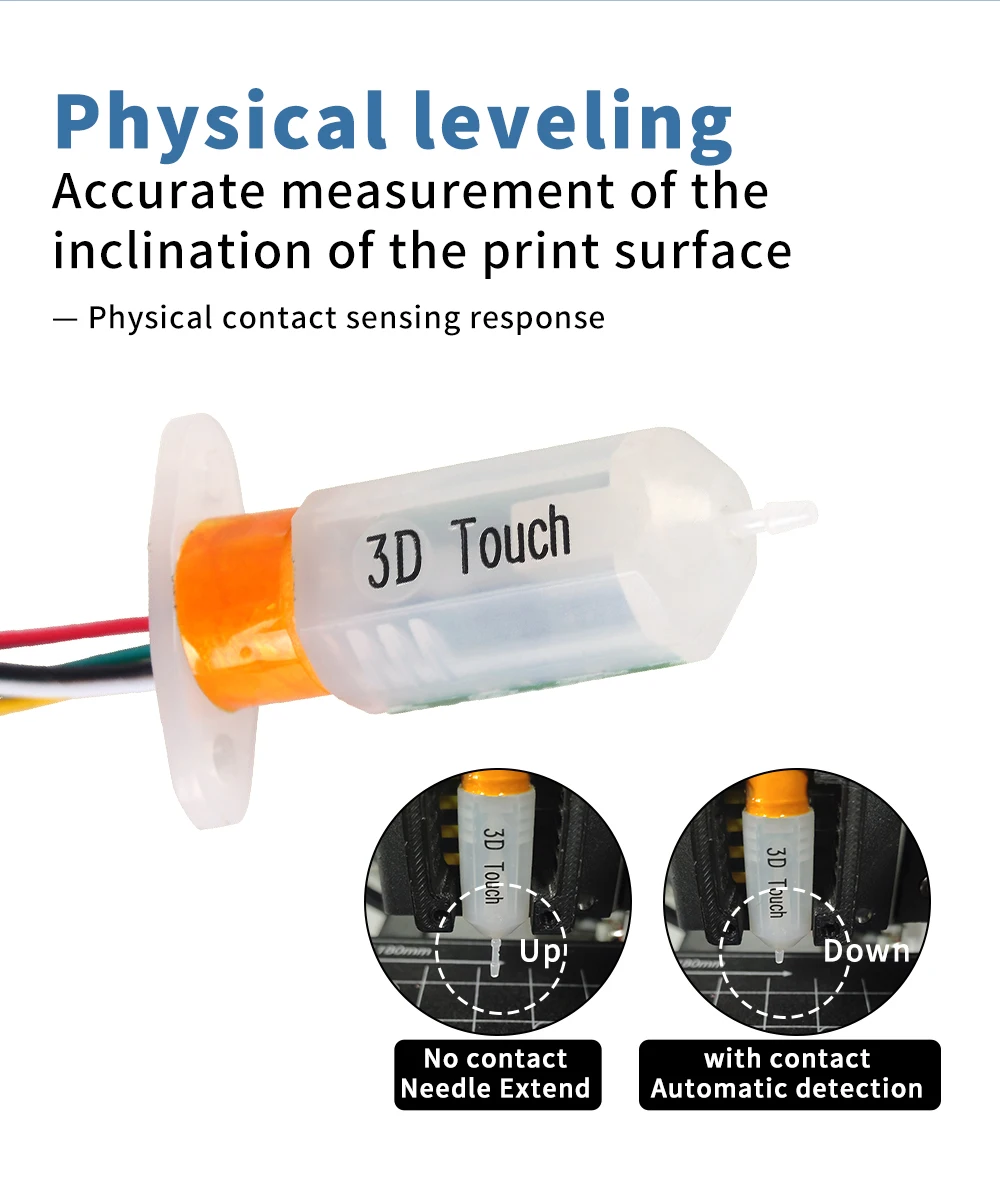

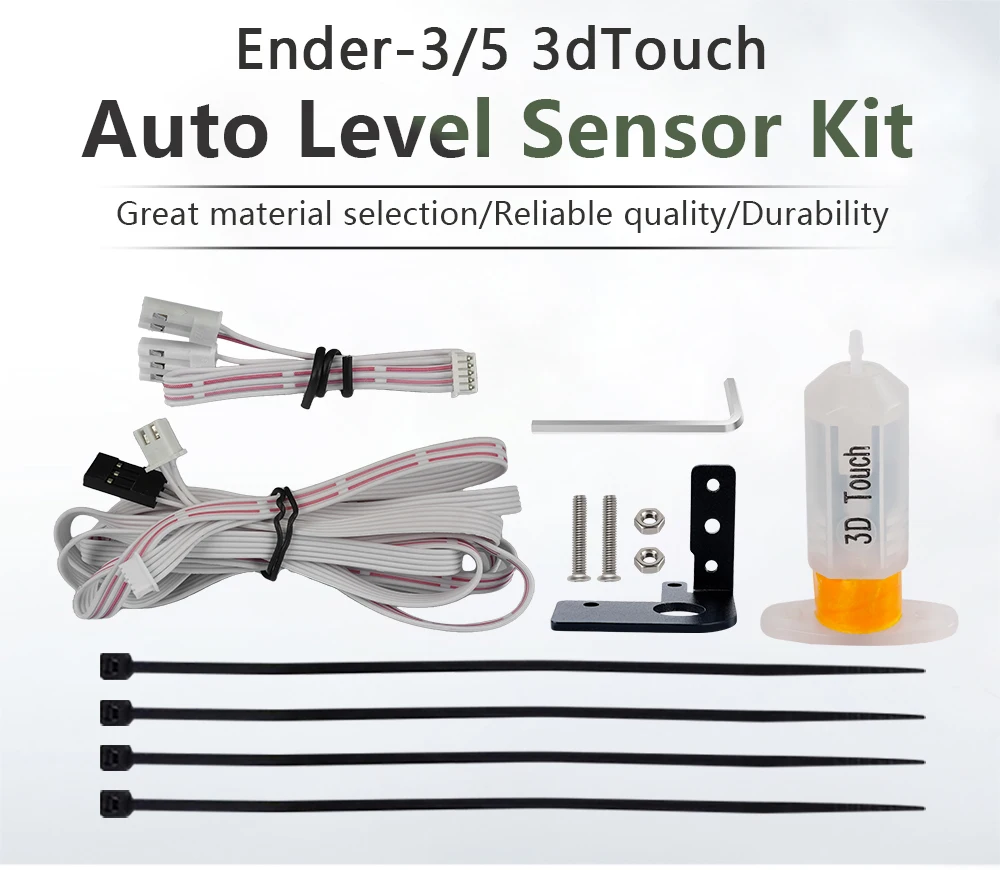

The 3D Touch automatic leveling sensor is a device that uses the Hall effect to achieve leveling. The position of the point can be obtained by touching the point on the hot bed, and then during printing, the Z-axis height can be adjusted to compensate, and printing can be achieved even when the platform is not flat.
Product parameters:
Voltage 5V
Current 15ma
Maximum (peak) current 300mA
Shell material PC
Shell color white translucent

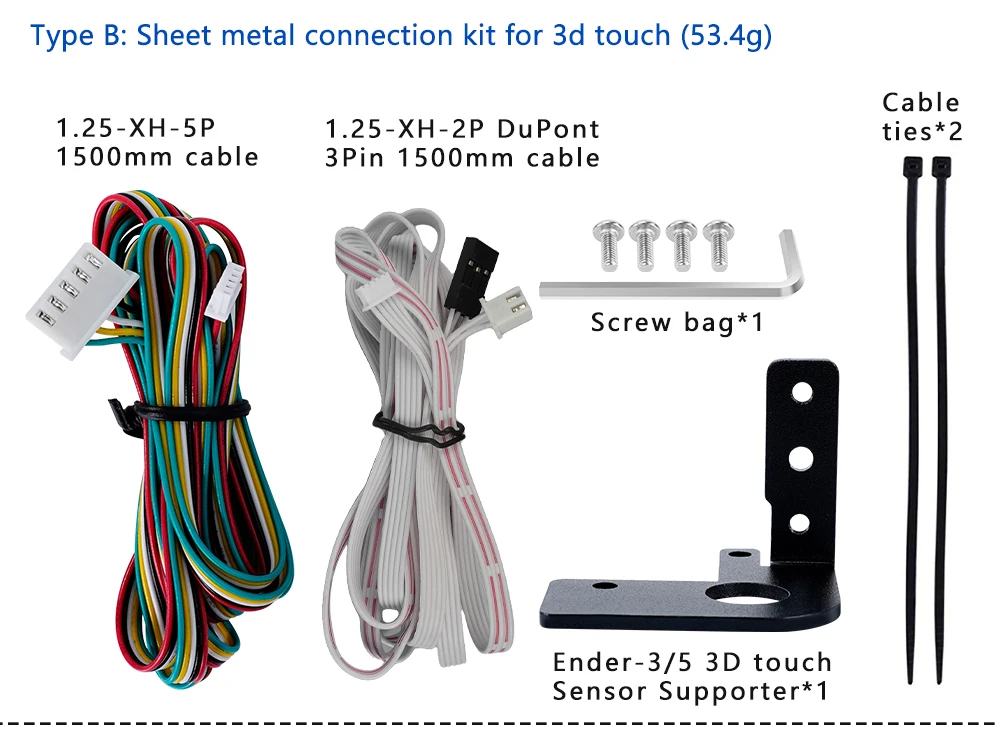

Line length Short line: 200mm Long line: 1000mm
3pin: green (-, GND)
Red (+5V)
Orange (signal line)
2pin: black (-, GND)
White: (Zmin)

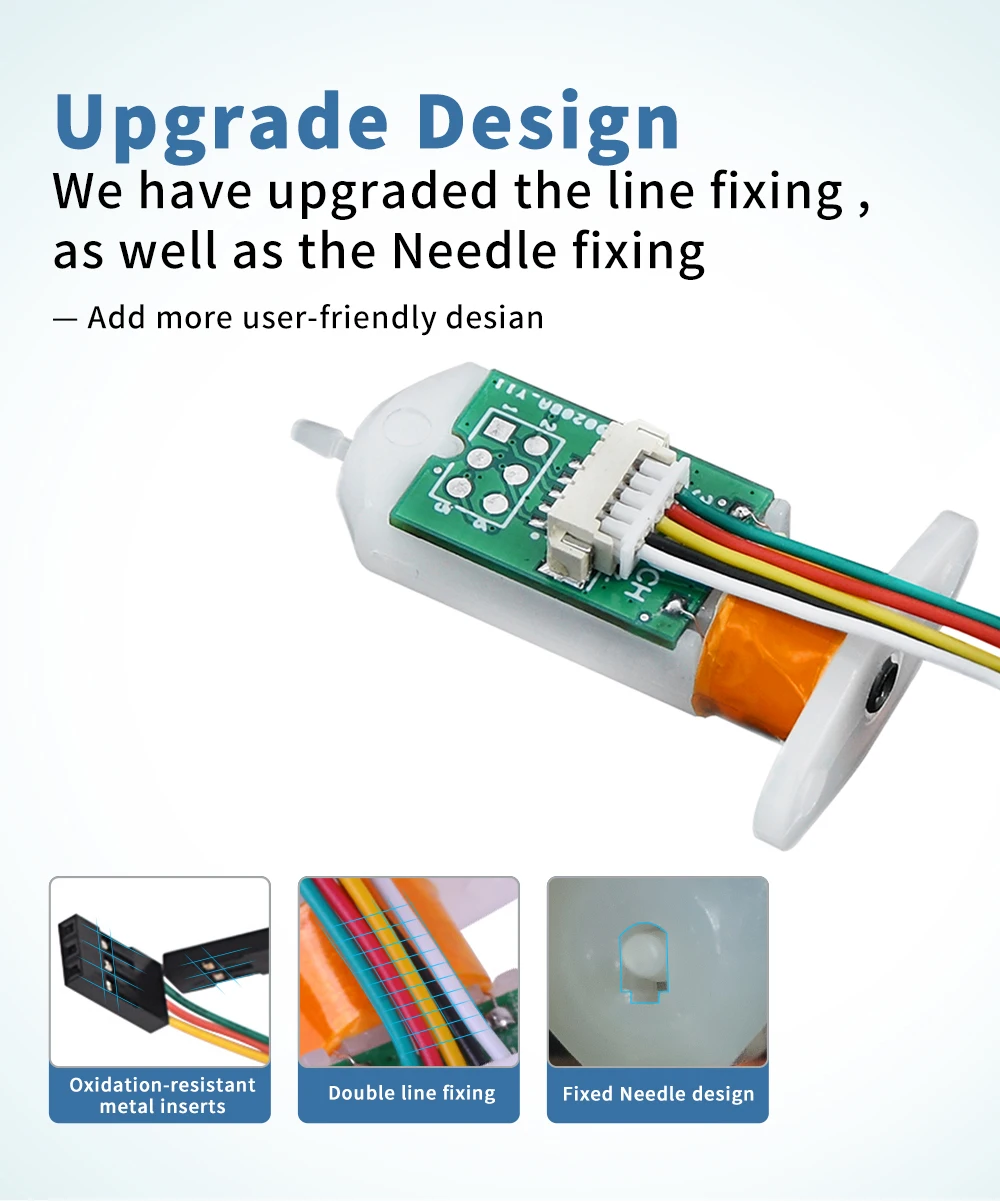

New Cable changed
In order to further improve the stability of the wire, some connecting wires have been replaced with new wires, which are inconvenient in function and have higher stability;
