Product description:

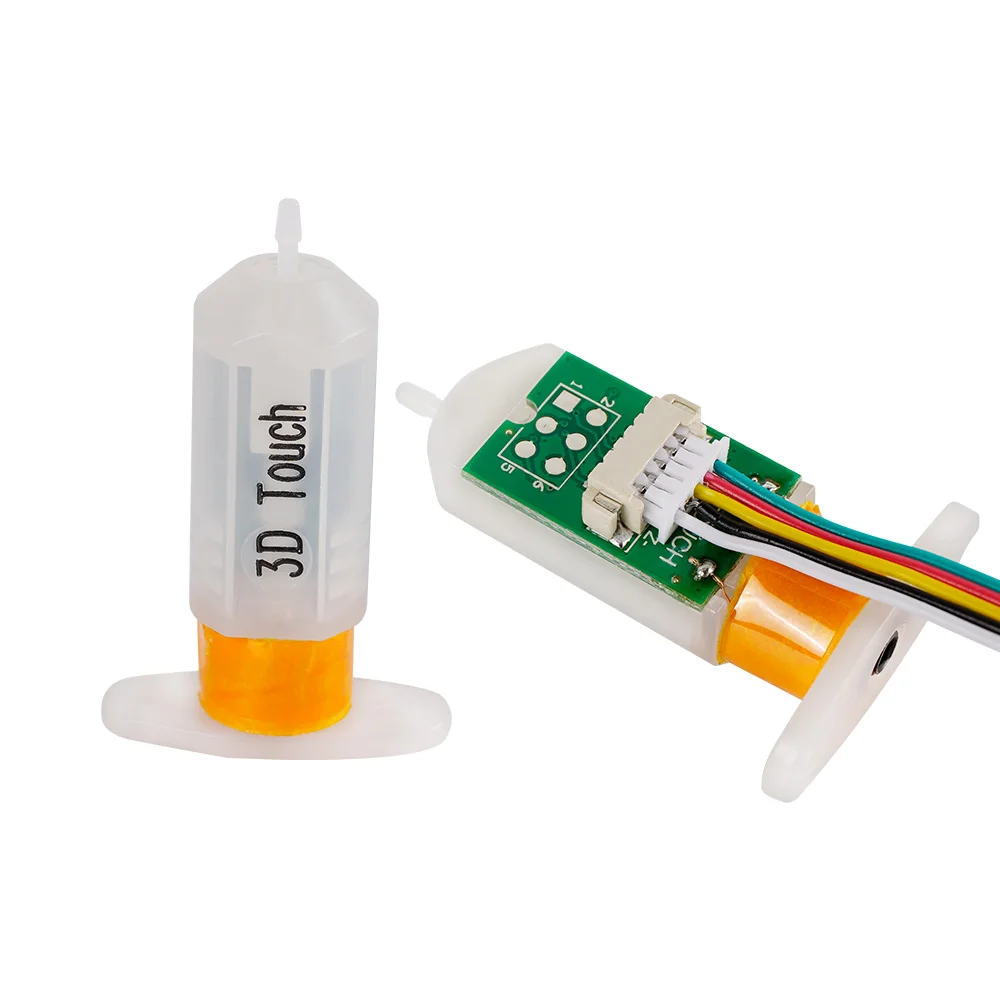

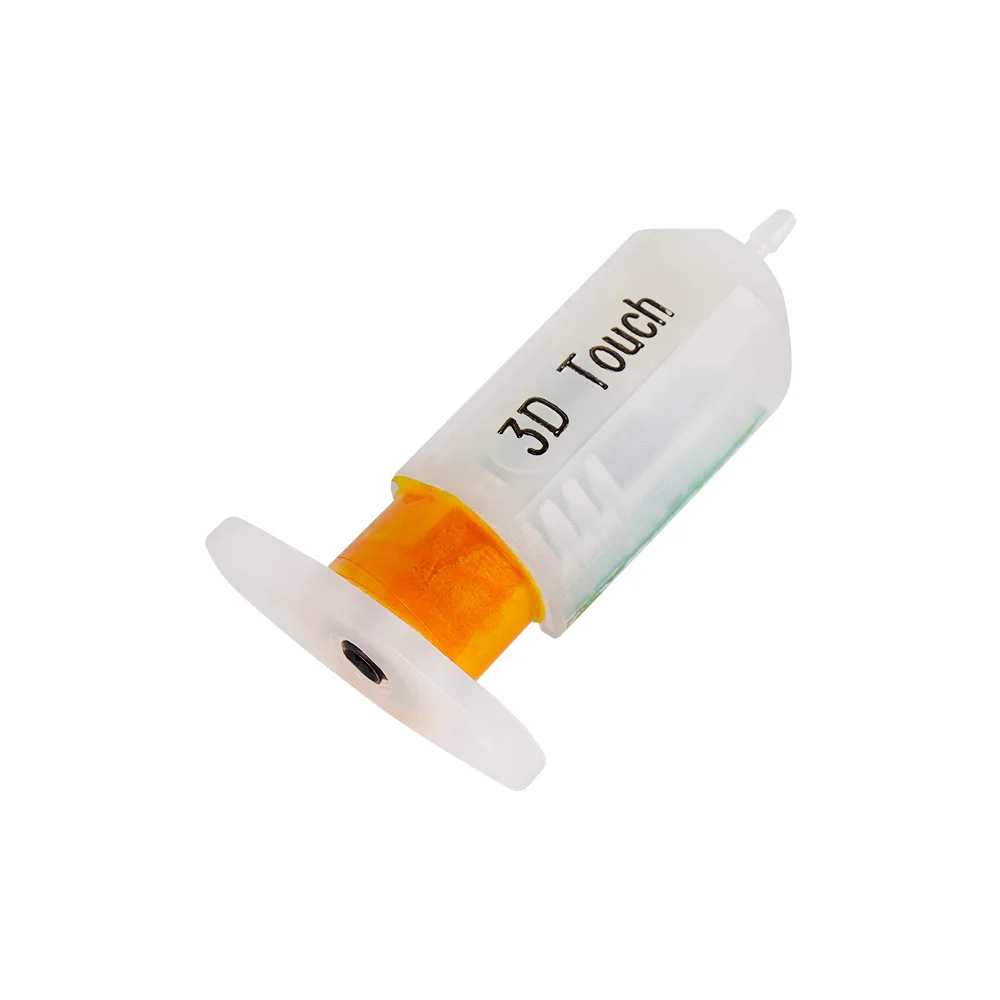

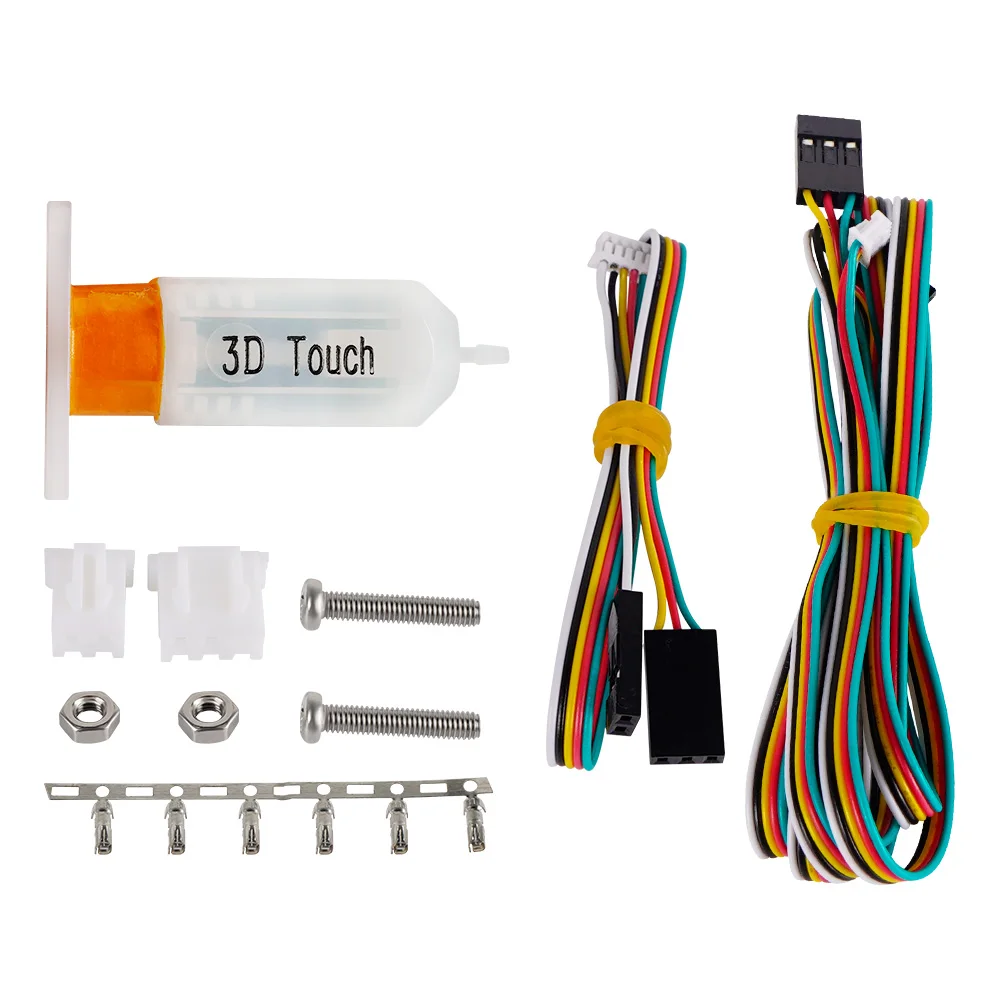

The 3D Touch automatic leveling sensor is a device that uses the Hall effect to achieve leveling. The position of the point can be obtained by touching the point on the hot bed, and then during printing, the Z-axis height can be adjusted to compensate, and printing can be achieved even when the platform is not flat.
Product parameters:
Voltage 5V
Current 15ma
Maximum (peak) current 300mA
Shell material PC
Shell color white translucent

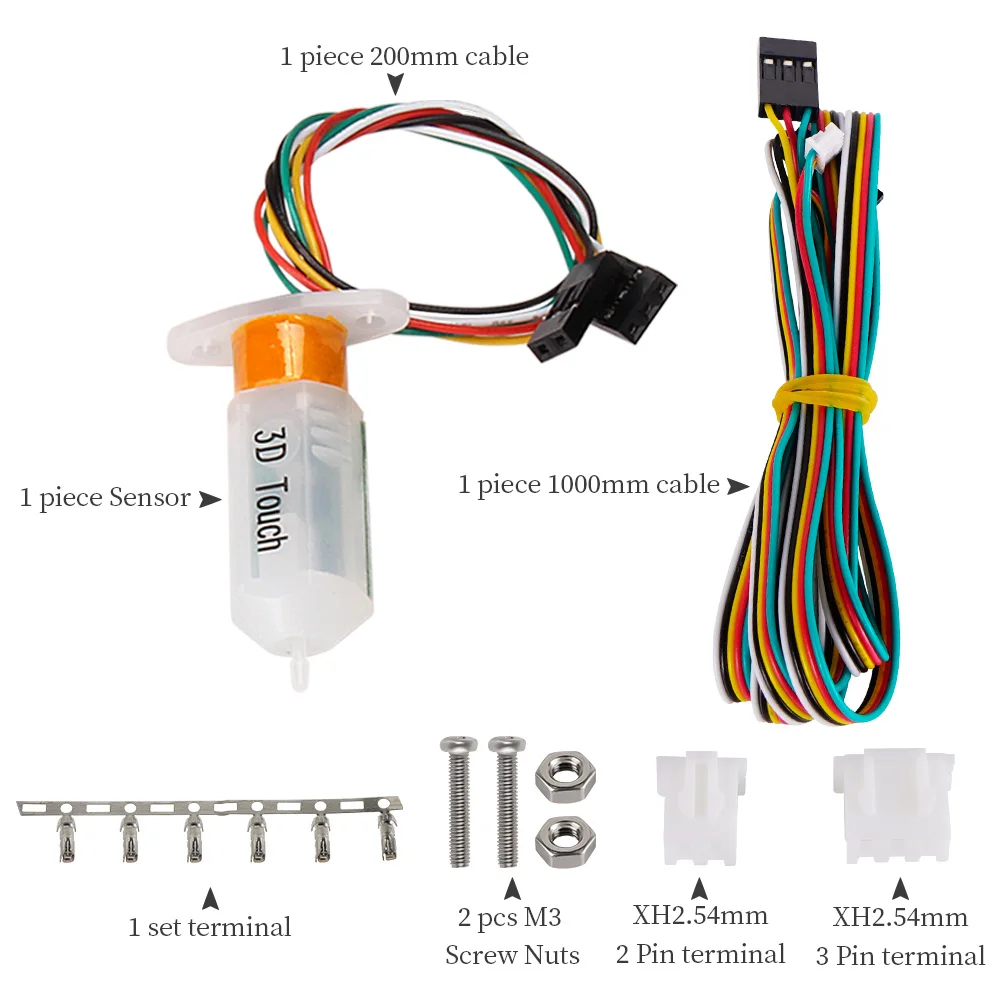

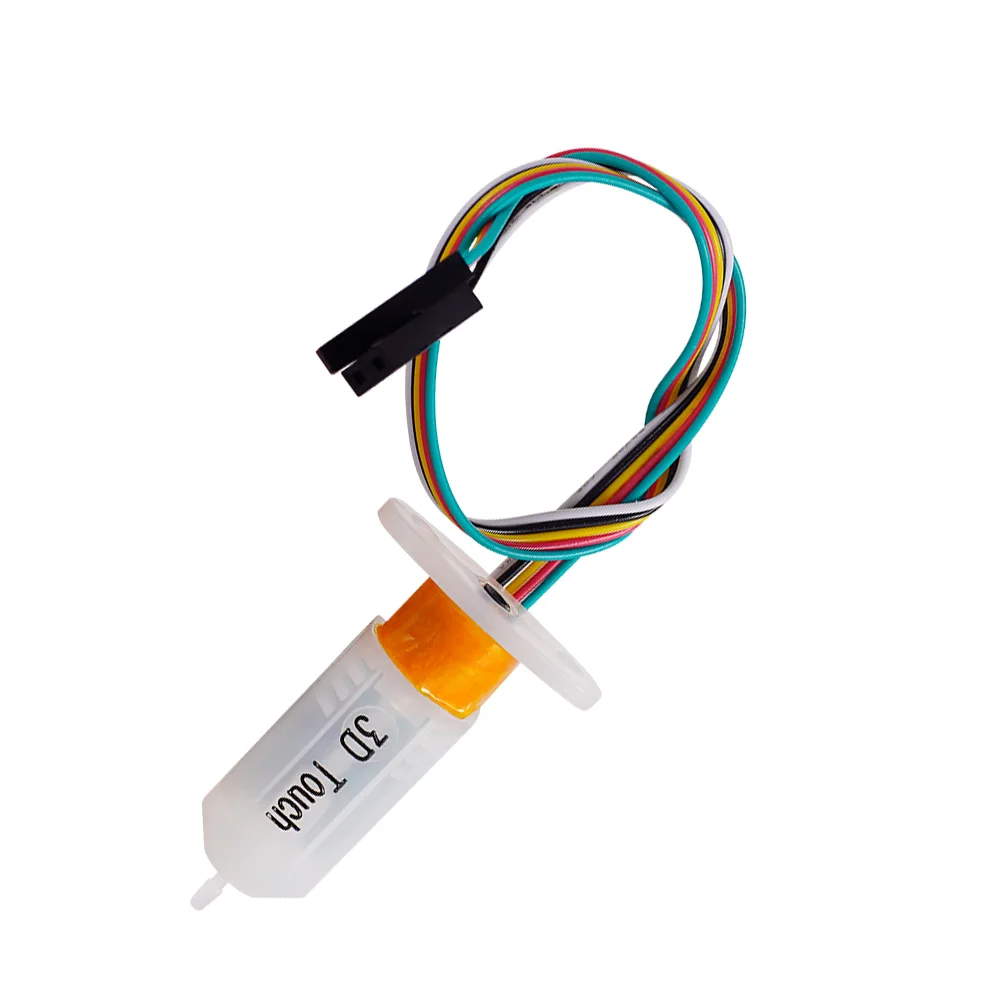

Line length Short line: 200mm Long line: 1000mm

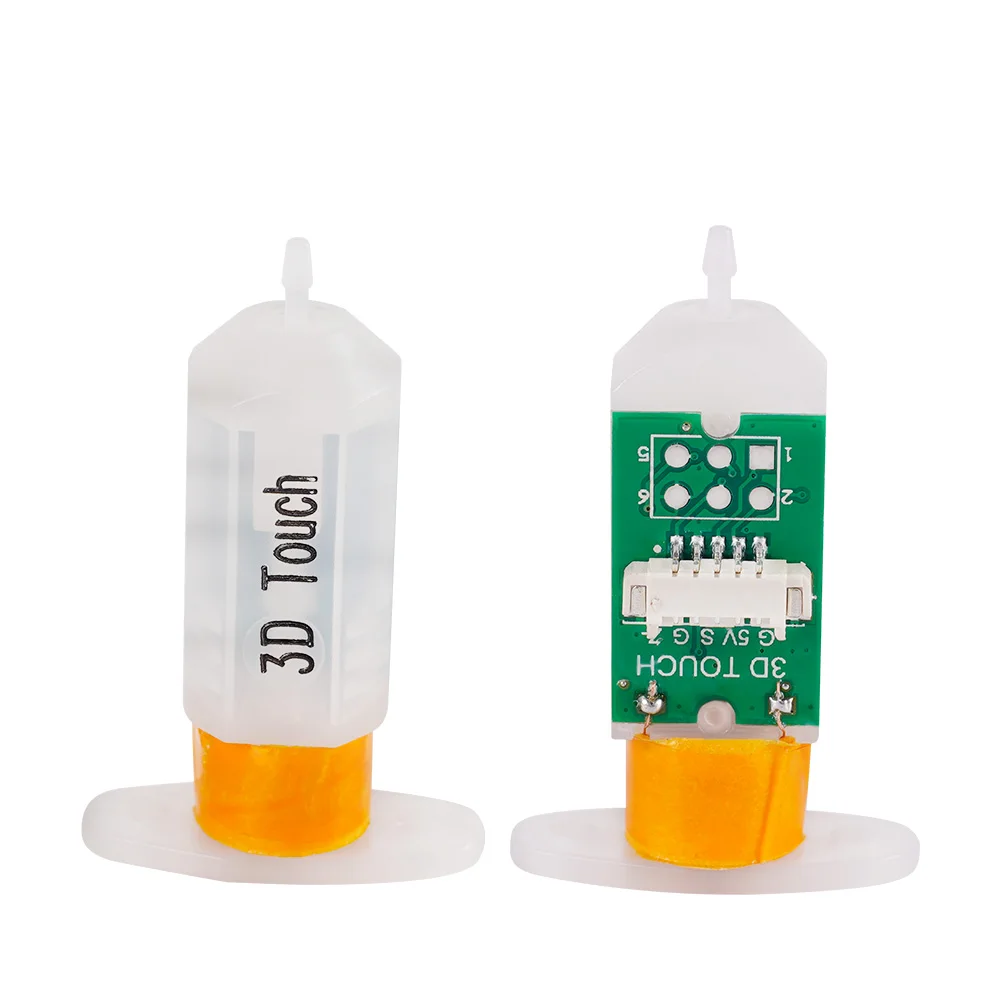

3pin: green (-, GND)
Red (+5V)
Orange (signal line)
2pin: black (-, GND)
White: (Zmin)
