2022 Newest Fiber Optical Identifier Komshine KFI-40V Identifies
dominant traffic direction, Easy test directly, convenient with 10mw
VFL function

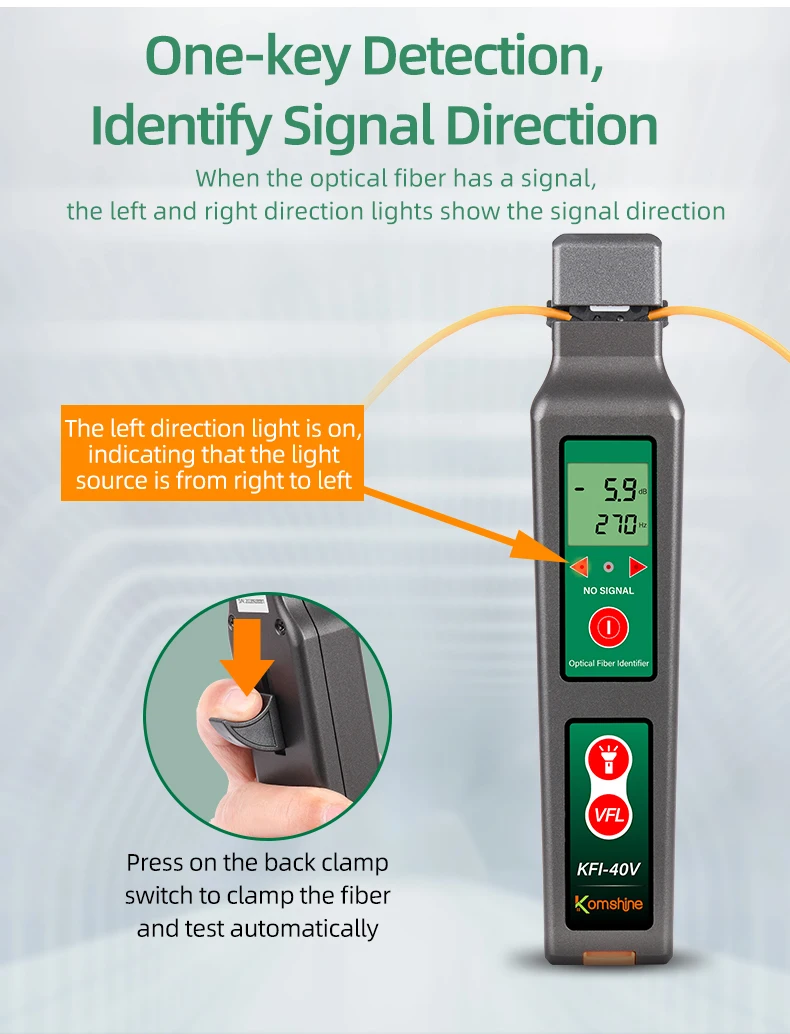

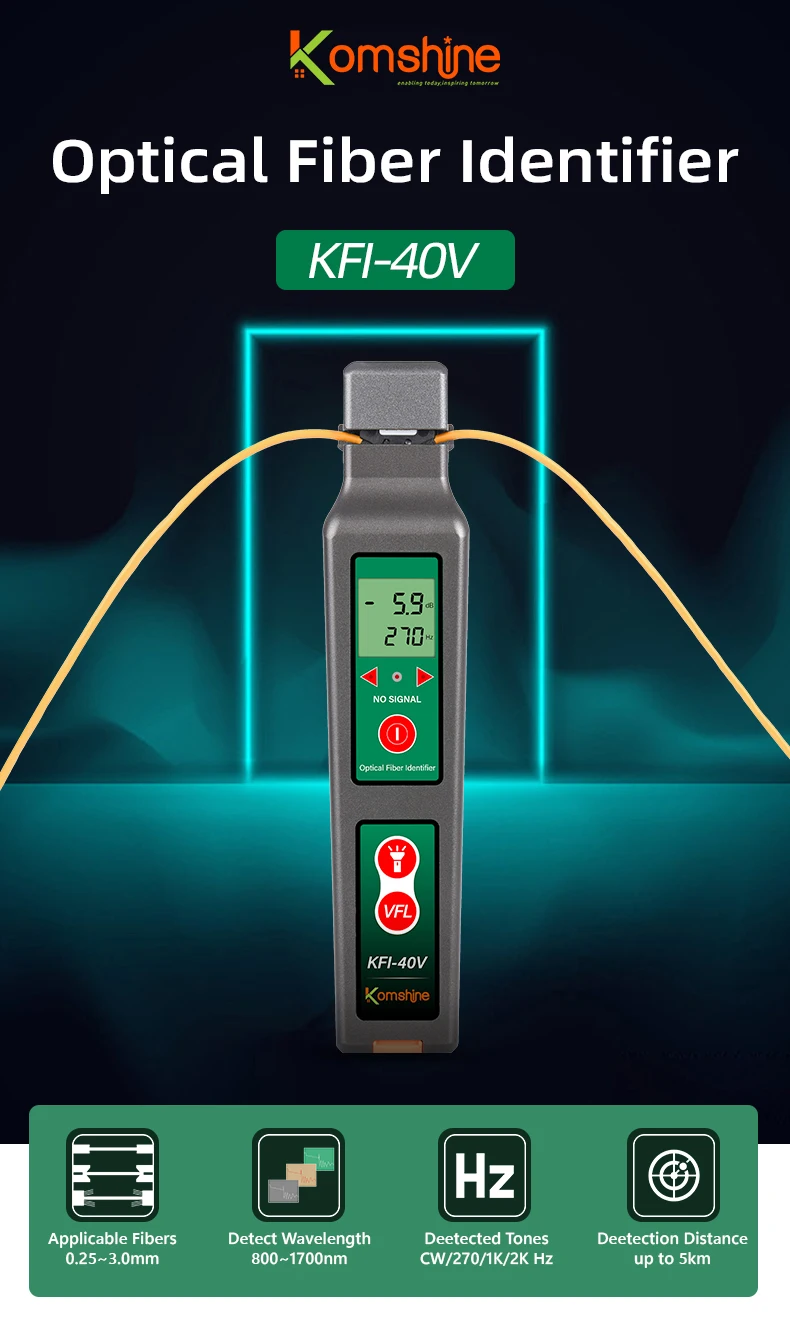

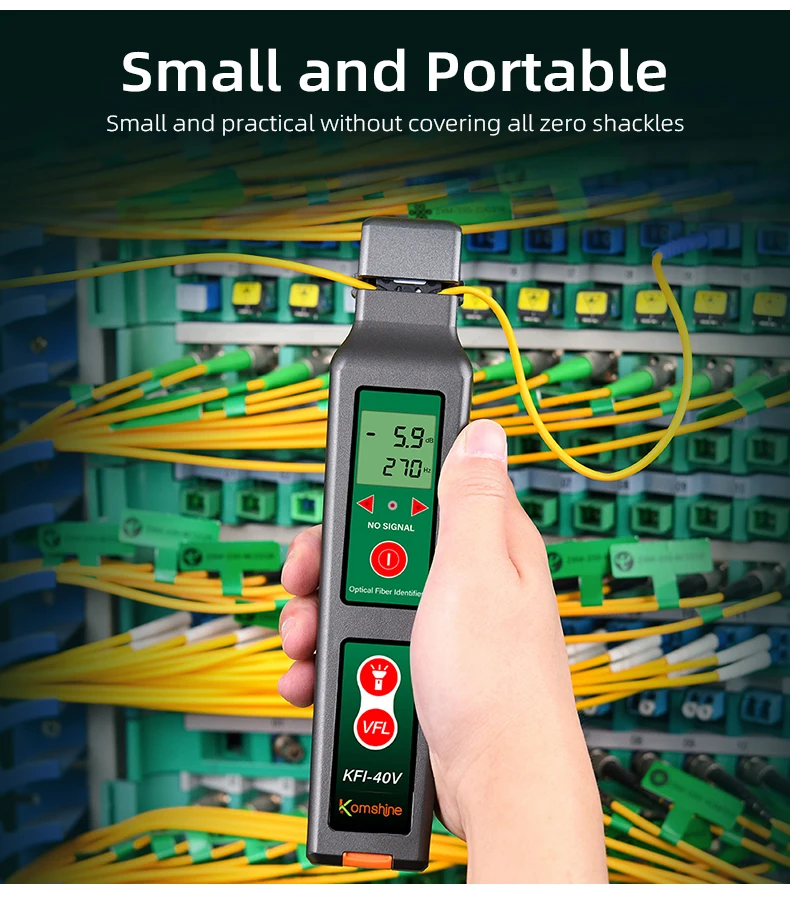

The KomShine KFI-40V Optical FiberIdentifier canquickly identify the direction of transmitted fiber and display the relative core power without any damages to thebeadedfiber. When the traffic is present, the intermittently audible tone is activated.

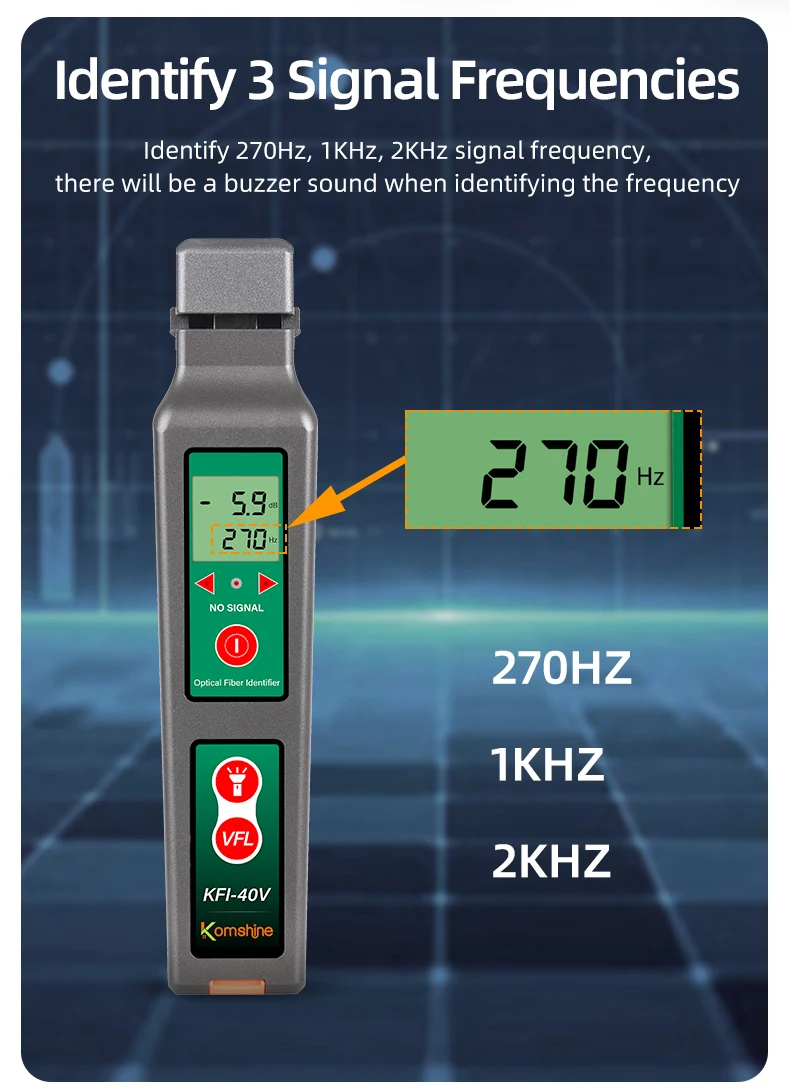

The KomShine KFI-40V optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.
There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.
Product characteristics:
● Suitable for 0.25/0.9/2.0/3.0mm
● IdentifiesdominanttrafficEasy test directly,convenient and audible alarm. efficient.
● Approximate core power
● Identifies3 common test tones.
● Low false detection & ins
● Small and Practical. No need to
● Very easy to operate. replace the chucks.
● Battery low indication.
● Battery low indication
● Built in VFL, 2.5mm universal connectors, strong stability, testing distance is up to 10KM

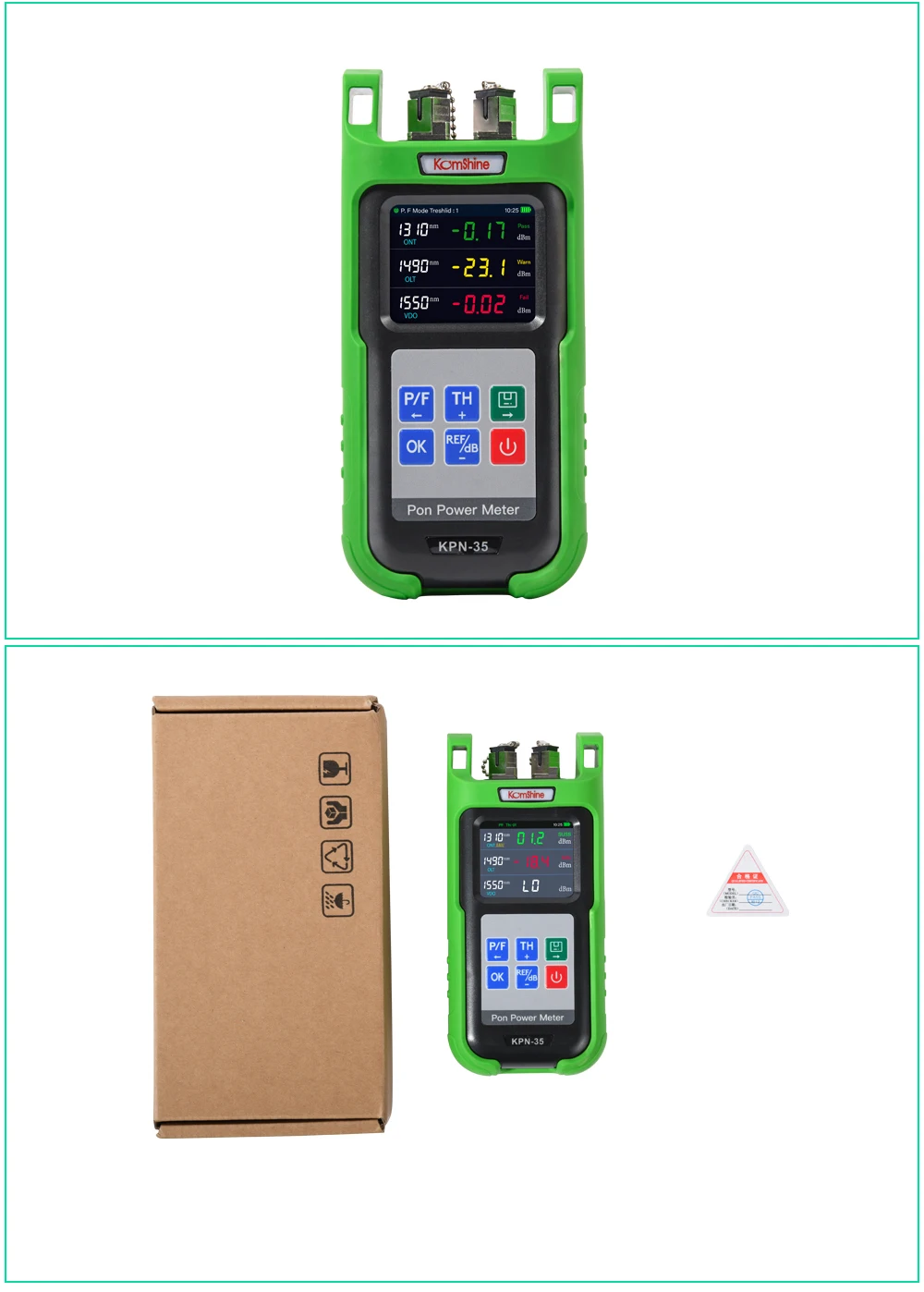

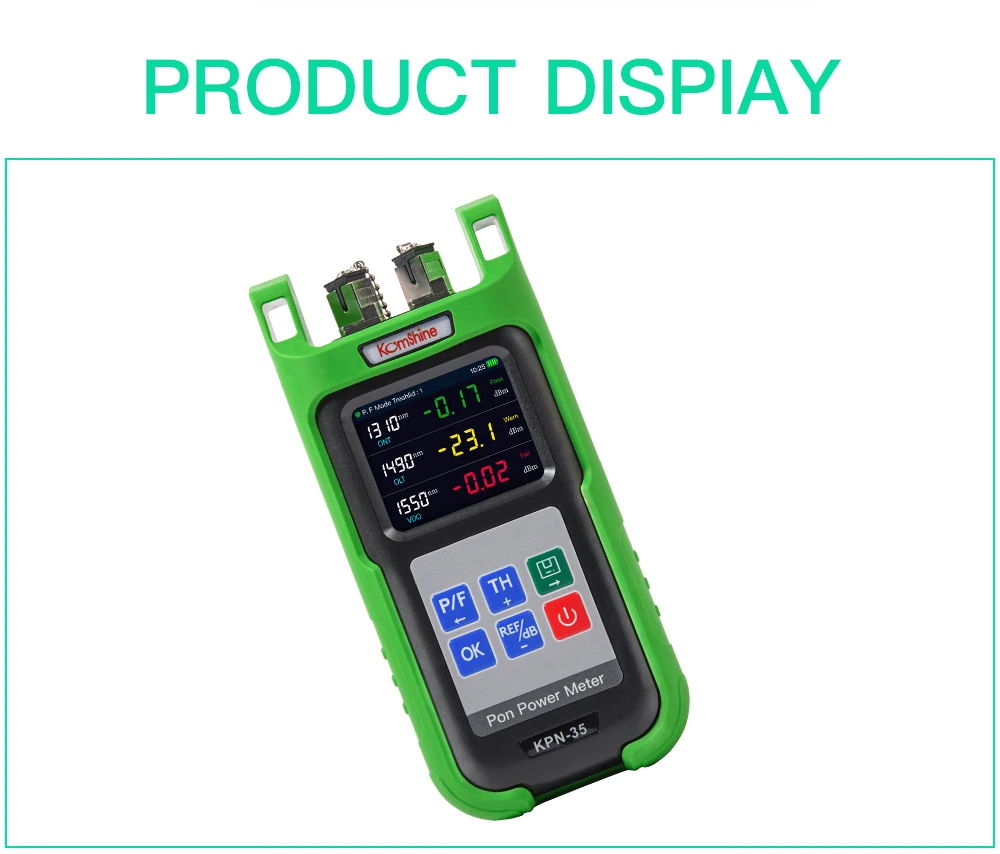

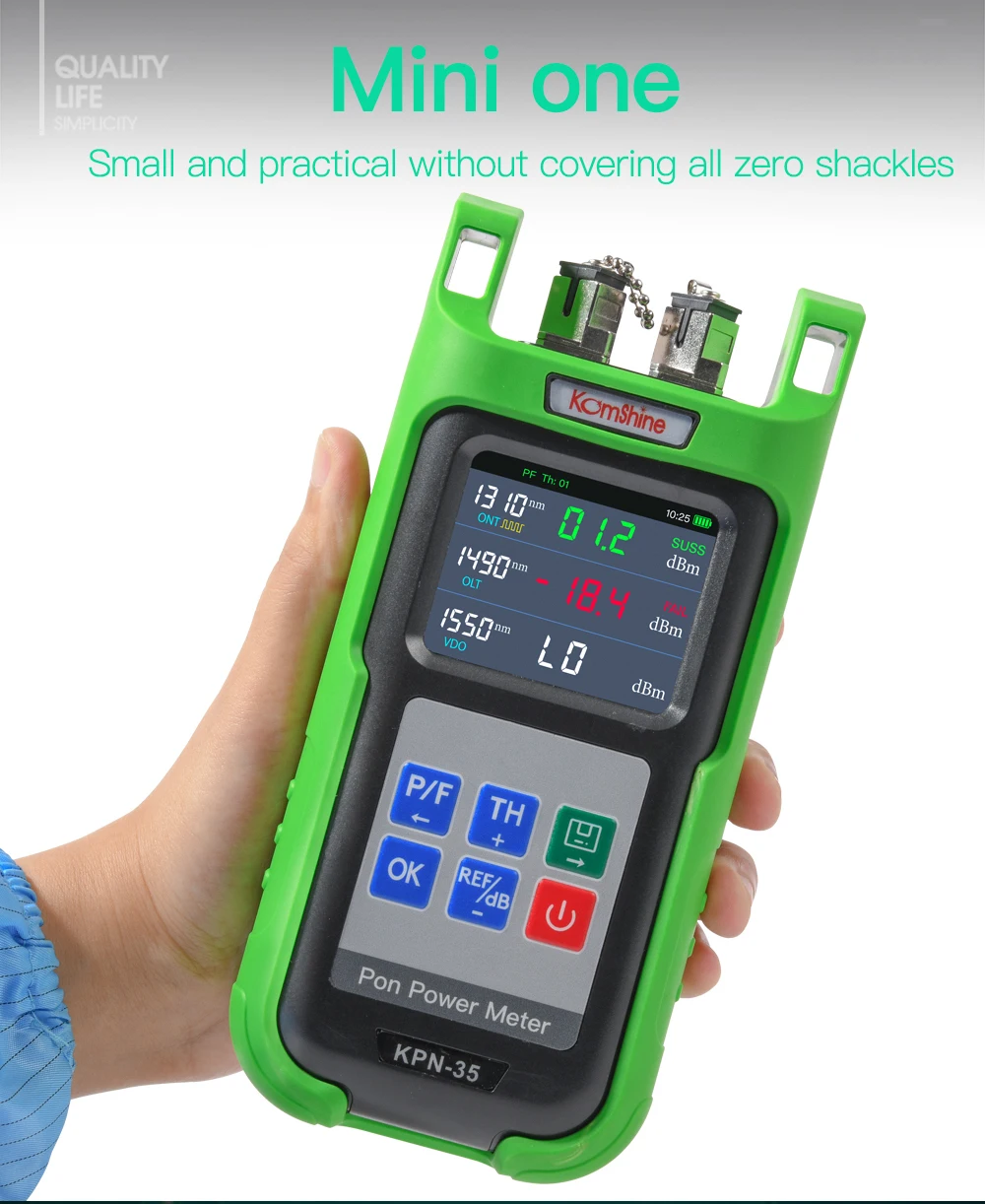

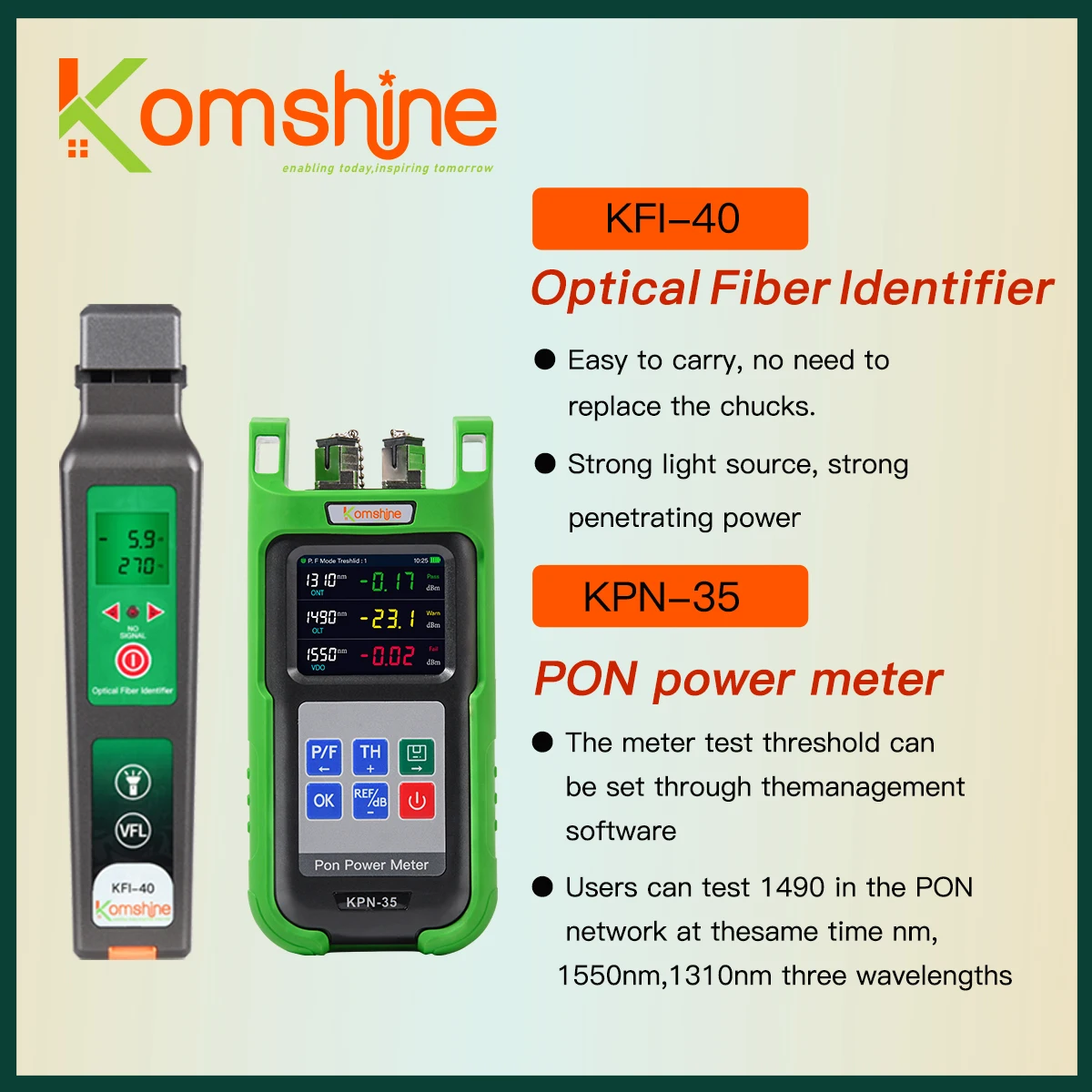

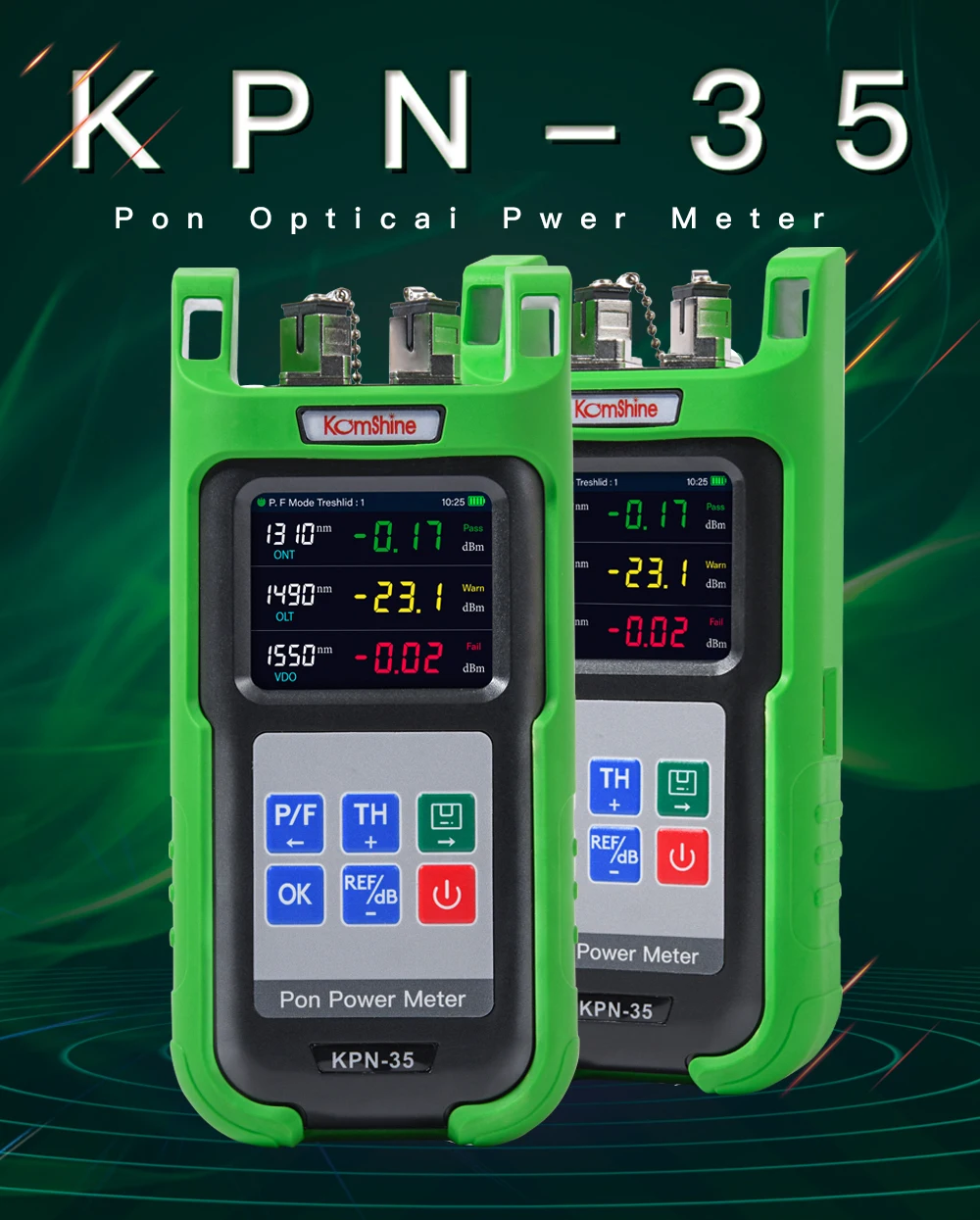

PON Fiber type KOMSHINE KPN-35 PON Optical
Power Meter for EPON GPON APON, ONT for 1310,
OLT for 1490/1550nm
Benefits and Features:
Designed to meet any FTTx application

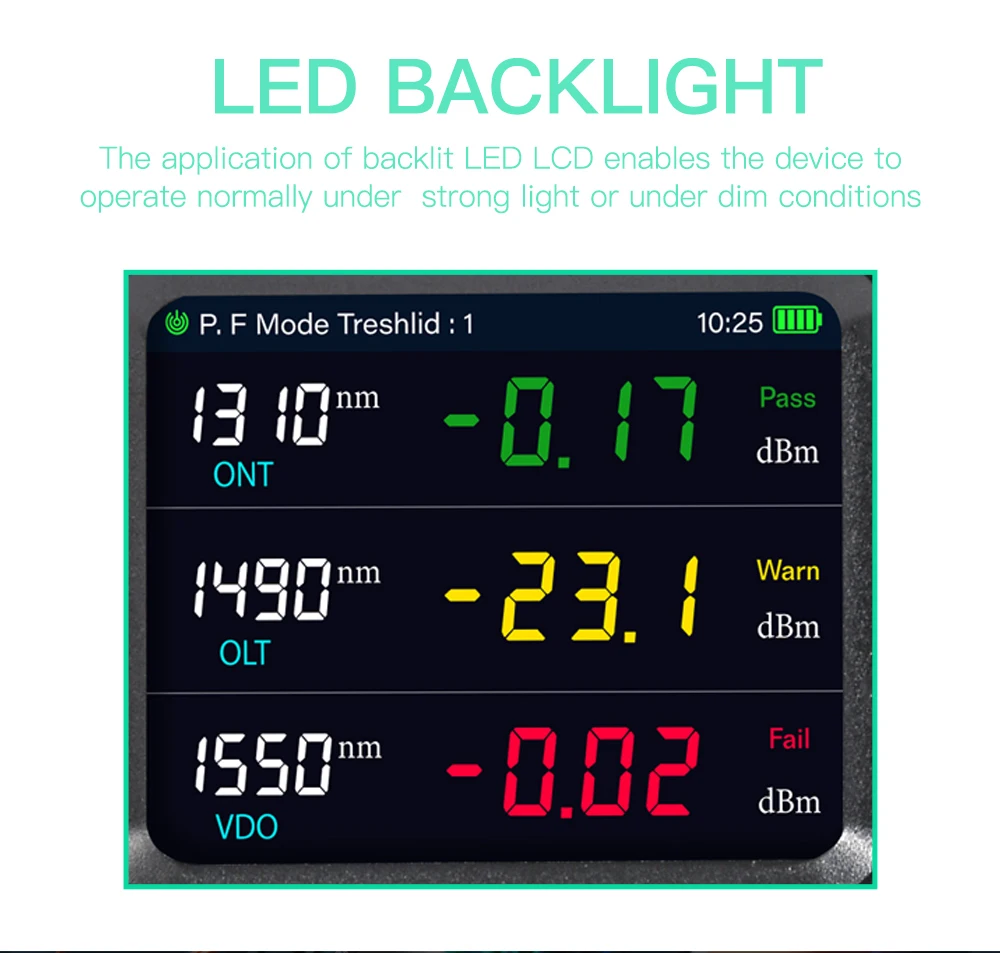

The KPN-35 is a passive optical network (PON) power meter, which enables the user to quickly validate PON network installations. This compact test equipment is able to measure all three EPON wavelengths ( 1310 nm, 1490 nm, 1550 nm ) simultaneously, with user defined pass/ fail thresholds to simplifyinterpretation. Results can be downloaded to a PC for further analysis..
Smallest, Lightest and Fastest

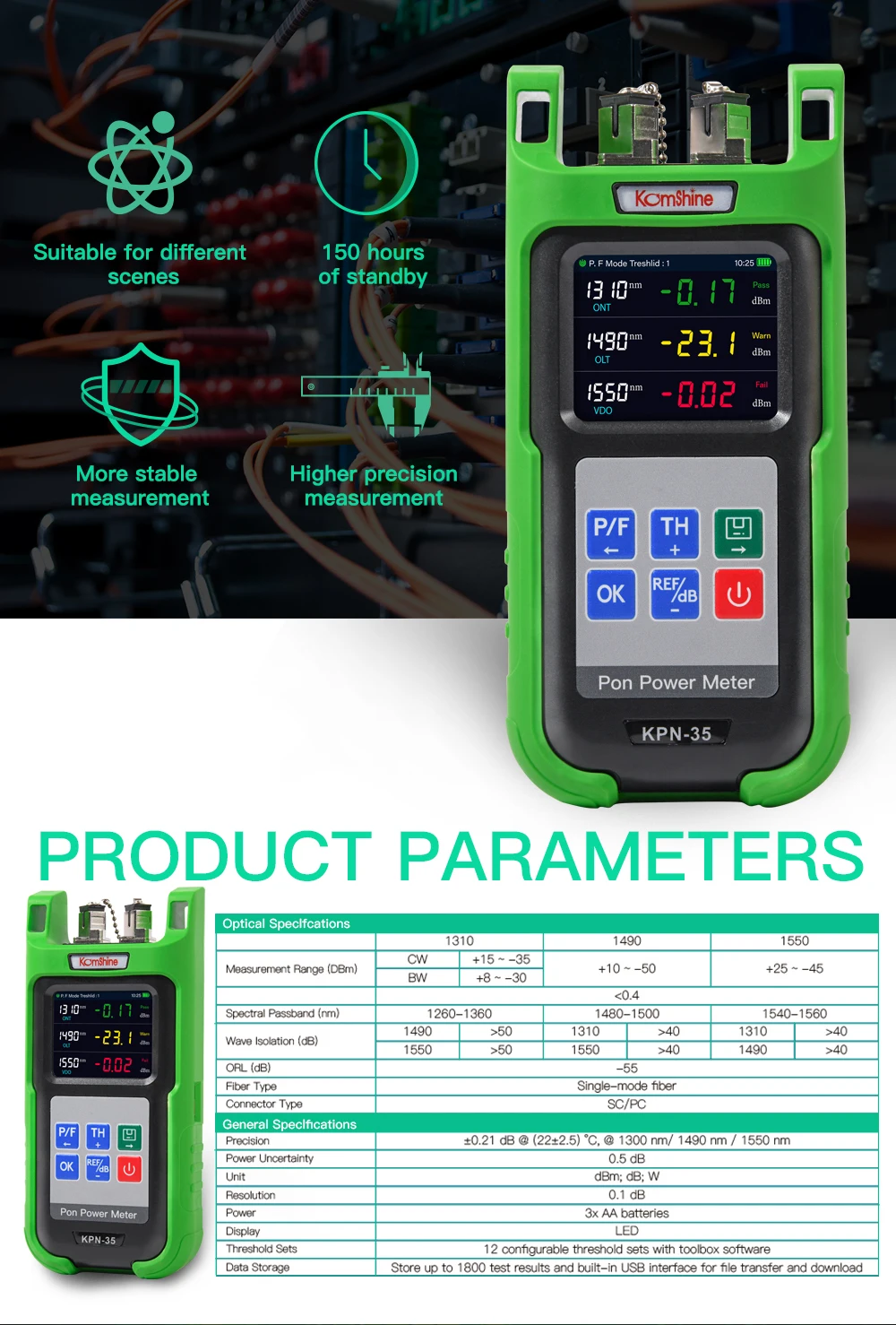

Specifications:
Measurement Range (DBm):
1310 1490 155
+15 ~ -35 cw +10 ~ – 50 +25 ~ – 45
+8 ~ – 30 bw
Spectral Passband (nm):
1260-1360 1480-1500 1540-1560

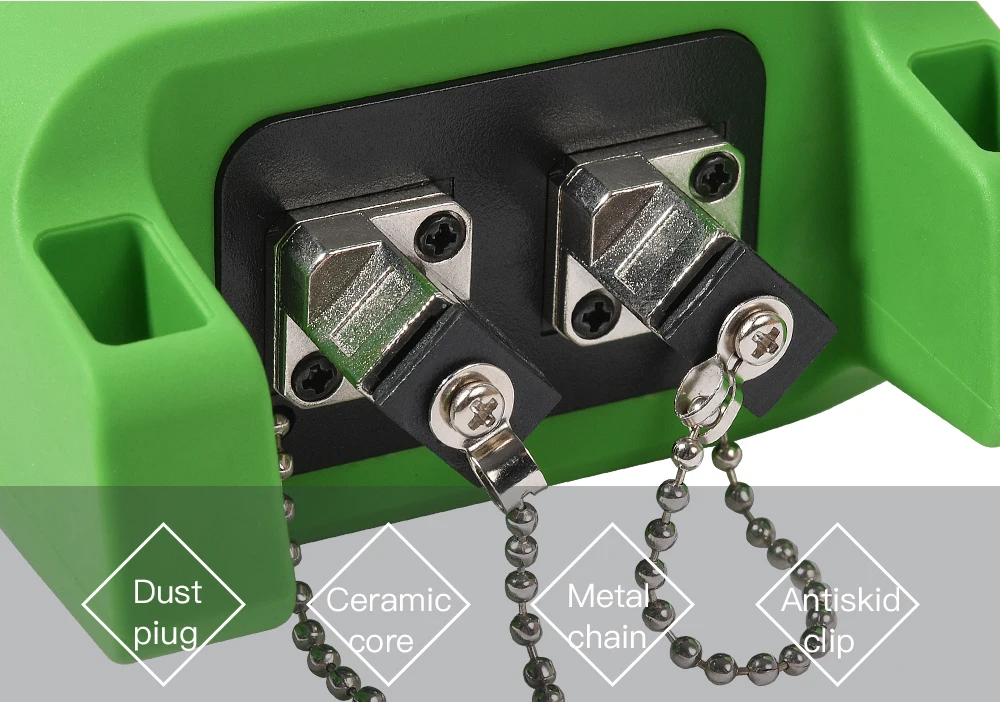

Connector Type: Single-mode fiber
Connector Type: SC/PC
Power Uncertainty: 0.5 dB
Resolution: 0.1 dB
