KT-RR80 Lab Use Round Plate 20-80 rpm Rotator Mixer for Centrifuge Tube Sample Mixing Machine
General Introduction:
The KT-RR-80 analogue tube disk rotator is perfect for all laboratory applications that require gentle tube mixing. It can mix a variety of tubes including 8 x 5ml tubes, 16 x 15 ml or 8 x 50 ml centrifuge tubes. This disk tube rotator is ideal for mixing blood samples to avoid coagulation, keeping biological samples in suspension and aerating cultures.
Features:
-
Streamlined design, beautiful appearance.
-
The disc rotating mixing method makes sample collection convenient and quick, plug and play.
-
With buckle design, the sample is firmly fixed and visible in all directions, so the sample status can be observed at any time.
-
Adjustable angle rotation to meet the angle control requirements of different samples.
-
Brushless DC motor drive, large drive and long service life.
-
It has large low-speed operation torque, strong power and wide mixing range.
Applications:
Suitable for various experimental analyses, suspension mixing, tissue sample washing and sedimentation,
extraction, dissolution, etc. for comparative analysis and mixing of samples.
Technical Data:
Model |
KT-RR-80 |
Type of Movement |
Rotating |
Speed Range |
20-80rpm,stepless speed regulation |
Permissible Shaking Weight (kg) |
1 |
Power |
20W |

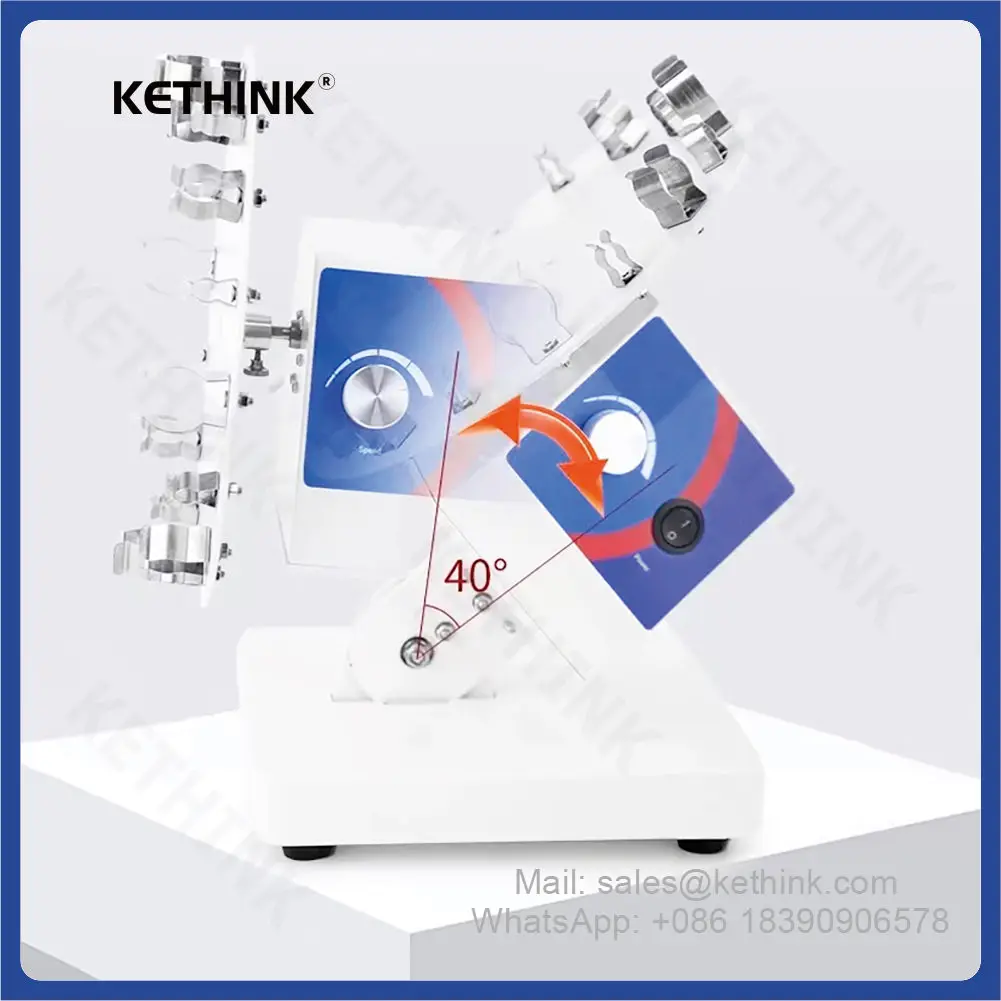

Turntable Tilt Angle |
40°-80° |
Motor |
Brushless DC |
Housing Material |
Steel plate electrostatic spraying |
Rotor Material |
Aluminum |
Clips Material |
Metal |

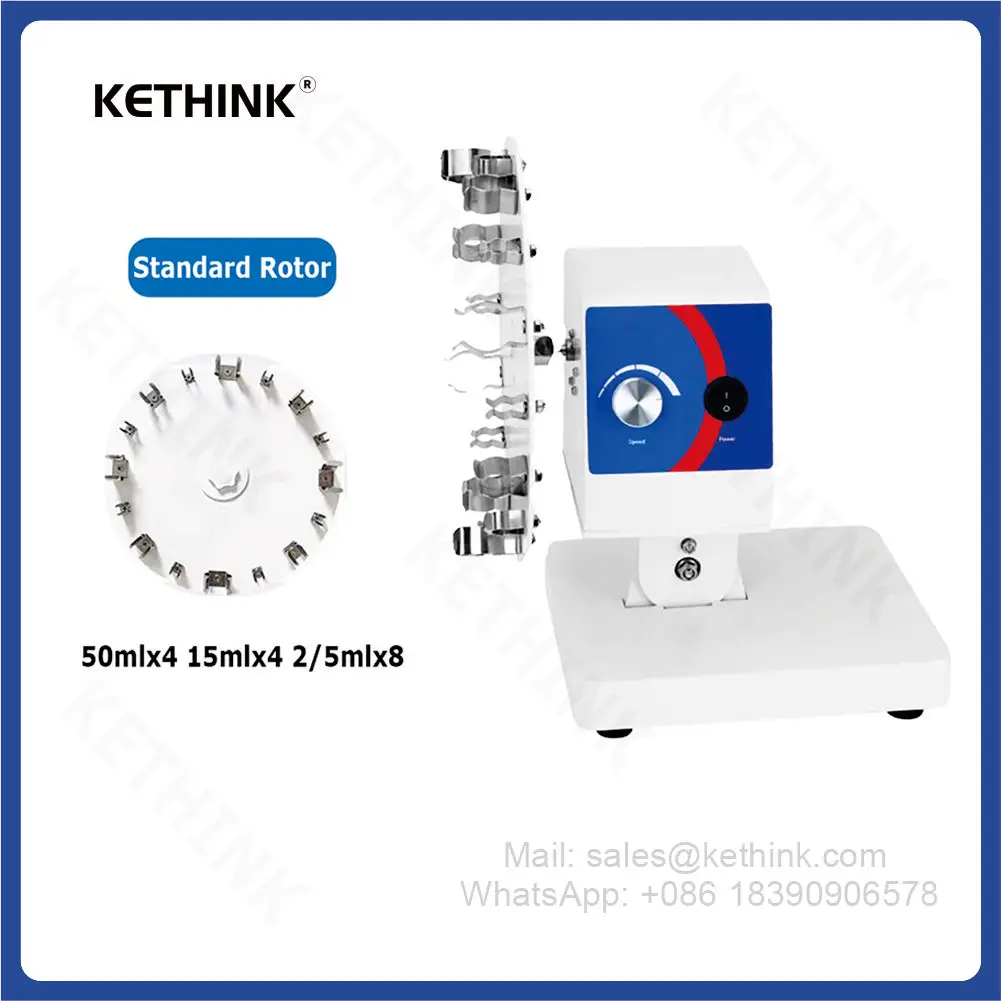

Standard Rotor |
Centrifuge tube 50MLx4, 15MLx4, 5MLx8 |
Voltage |
100-240V 50-60HZ |
Permissible Ambient Temperature(°C) |
5-40 |
Permissible Relative Humidity(%) |
80 |
Instrument Size(mm) |
205*205*320 |
Packing Size(mm) |
350*290*290 |
Net Weight |
3.8kg |
Gross Weight |
4.6kg |

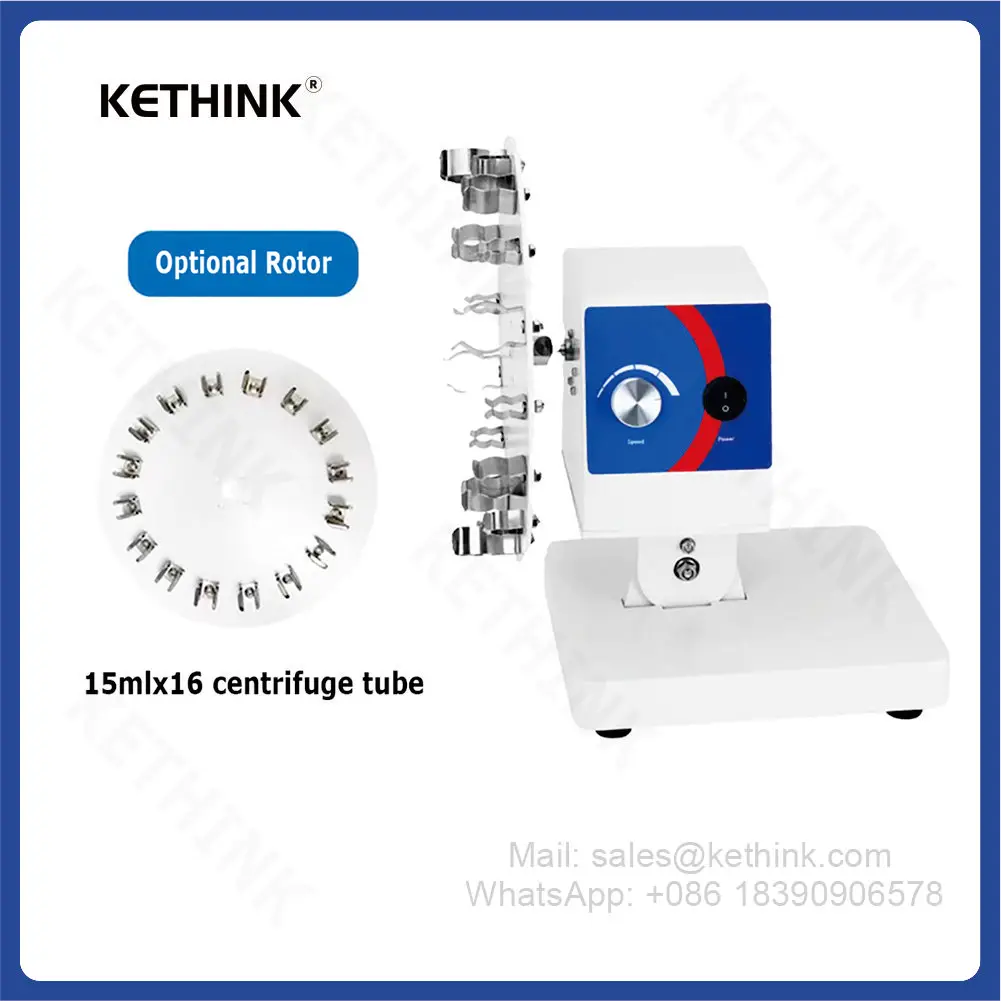

Optional Rotor:
NO 1 Rotor |
Centrifuge tube 50MLx8 |
NO 2 Rotor |
Centrifuge tube 15MLx16 |
NO 3 Rotor |
Centrifuge tube 5ML/2MLx24 |
