Tips:
1.Up to 8KM distance,it mean point to point,if you want to reach long distance and better signal ,we suggest that you buy 2pcs
2.Wi-fi signal is affected by many factors,such as trees, walls, buildings, trucks, etc., raw network signals, etc.
3.if you buy one pcs ,it does not have package box,please do not worry damaged in transit,we pack it very well.
4.The CPE Bridge provides different wi-fi protocols and bandwidth Settings, and different protocols and broadband will bring different network speeds and transmission distances.
FAQ:
Q1: How to pair Bridges?

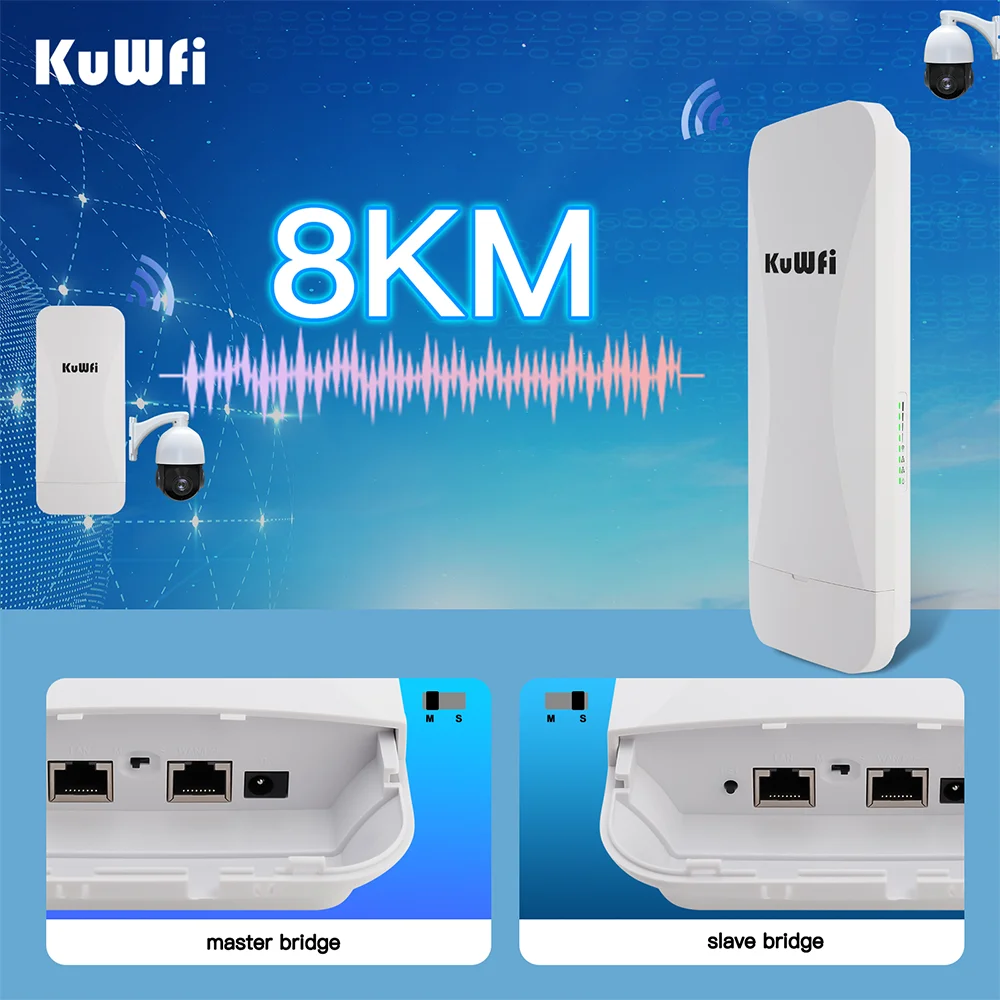

A1: If you need to expand the wifi signal, you must first pair the two Bridges and then secure them to the designated place.Set one of the Bridges as the Master Bridge and move the switch on the bridge to the "M" end.The other Bridge is set as the Slave Bridge, and the switch on the bridge is moved to the "S" end.
Then you need to press the "RST" button of both Bridges at the same time for one second, and the Bridges will automatically pair.
Q2: i can not log in web ui page for the bridge?
A2: If you need to manage the bridge, you must use a computer to connect to the bridge.
Then set a static IP address for the network to access the WEB UI page.you can set static ip address type 192.168.188.10 and Subnet mask type 255.255.255.0.And then you can log in web ui page 192.168.188.253 in browser.Since the static IP address is set only to change the bridge Settings, restore the original IP Settings after the setting is complete. Otherwise you won't be able to access the Internet.
Q3: Outdoor wi-fi bridge is less than described distance?
A3: The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach described distance.
Q4: The bridge Wi-Fi signal is weak or the transmission distance is short?
A4: Adjusting the wifi protocol and bandwidth of the bridge will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.
Q5: Does the bridge support 360-degree signal transmission?
A5:The bridge uses panel antennas, so it does not support 360-degree transmission. It is recommended that when installing, the two Bridges are face to face, which can improve the stability of Wi-fi signal transmission.
Q6: Can't find a Wi-Fi signal?
A6: Press the reset button for 10-15 seconds.Please try to reset the device, most problems can be solved easily.
Q7: Outdoor wi-fi bridge is not powered
A7: Please connect product's WAN or POE port with adapter's POE port.If connect correctly ,still not power ,please change the adapter and rj45 lan cable to try.
Description：

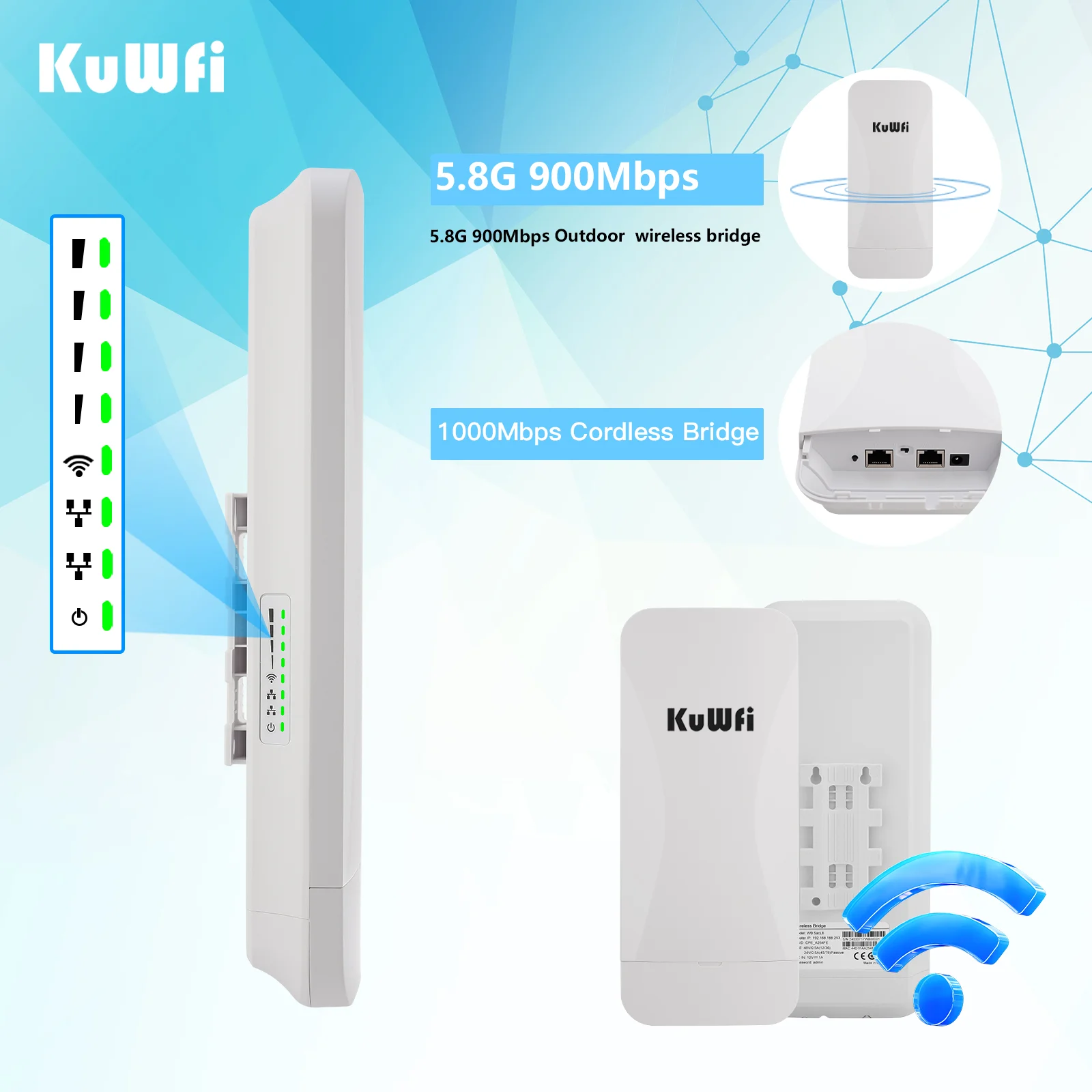

WB5G08 is a high-performance, high-speed outdoor long-distance wireless bridge. It has the characteristics of long transmission distance, strong penetration ability, and strong anti-interference ability.

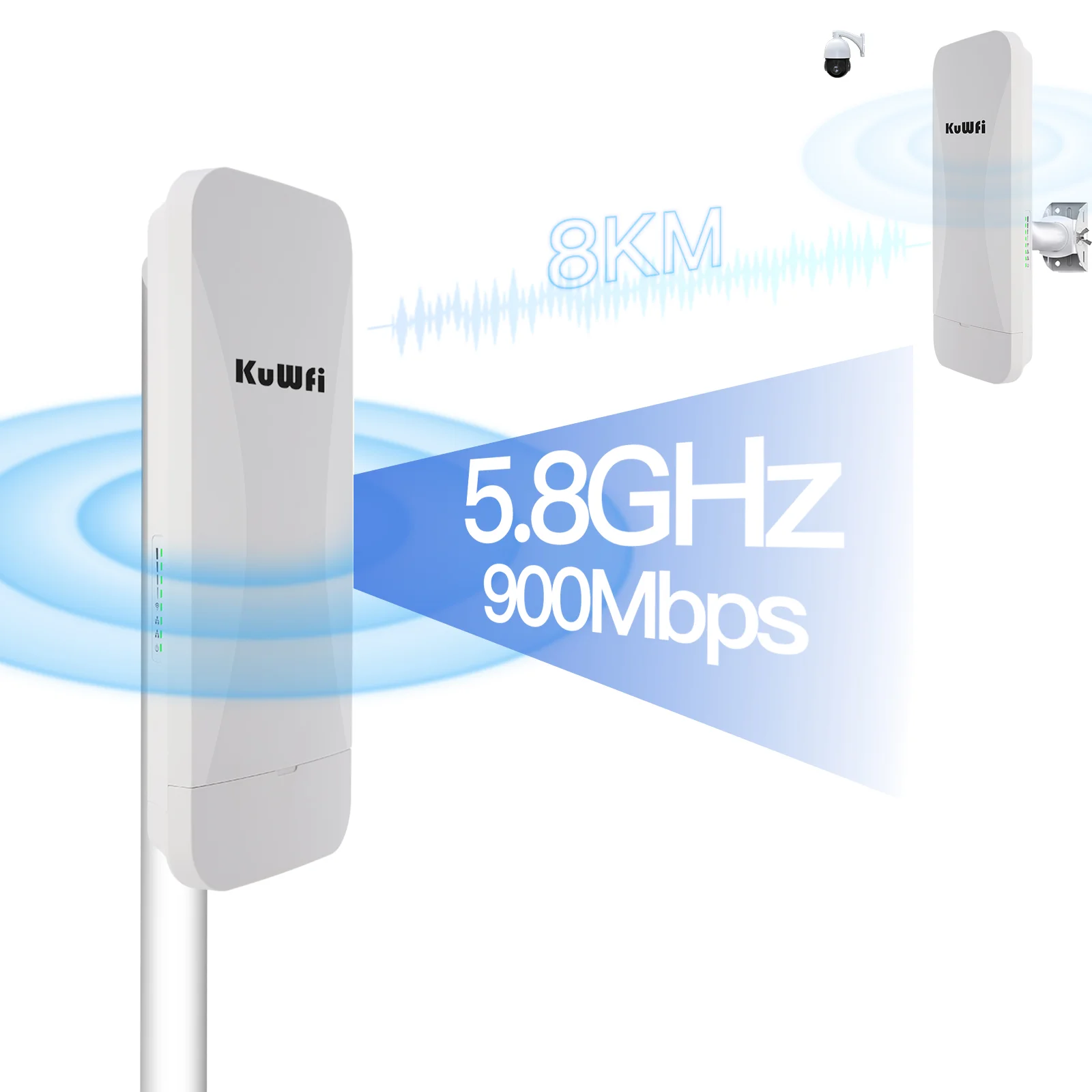

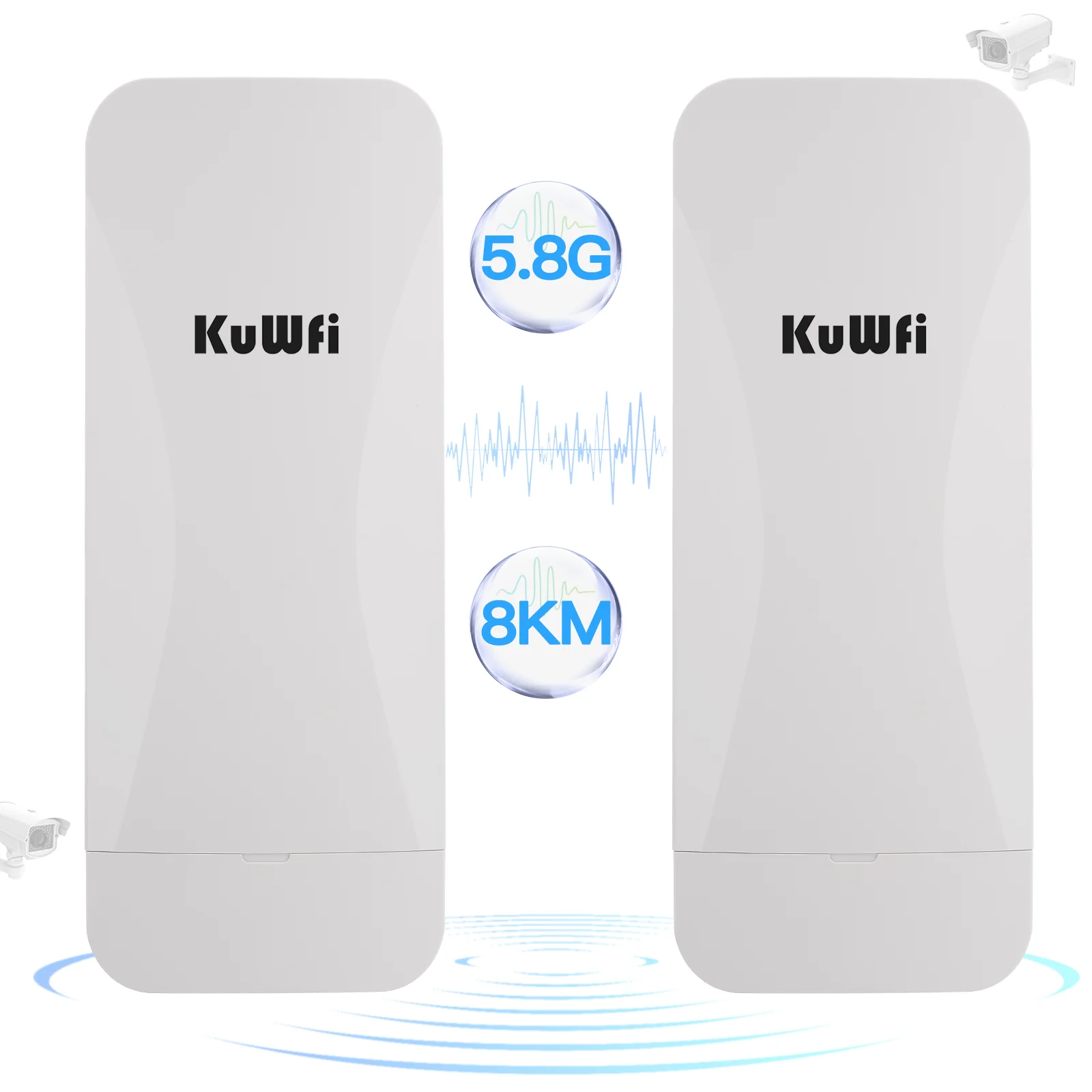

WB5G08 is outdoor CPE with 5.8Ghz Wi-Fi 900Mbps data rate. Built-in 18dBi directional antenna, which can meet wireless transmission within 8KM.

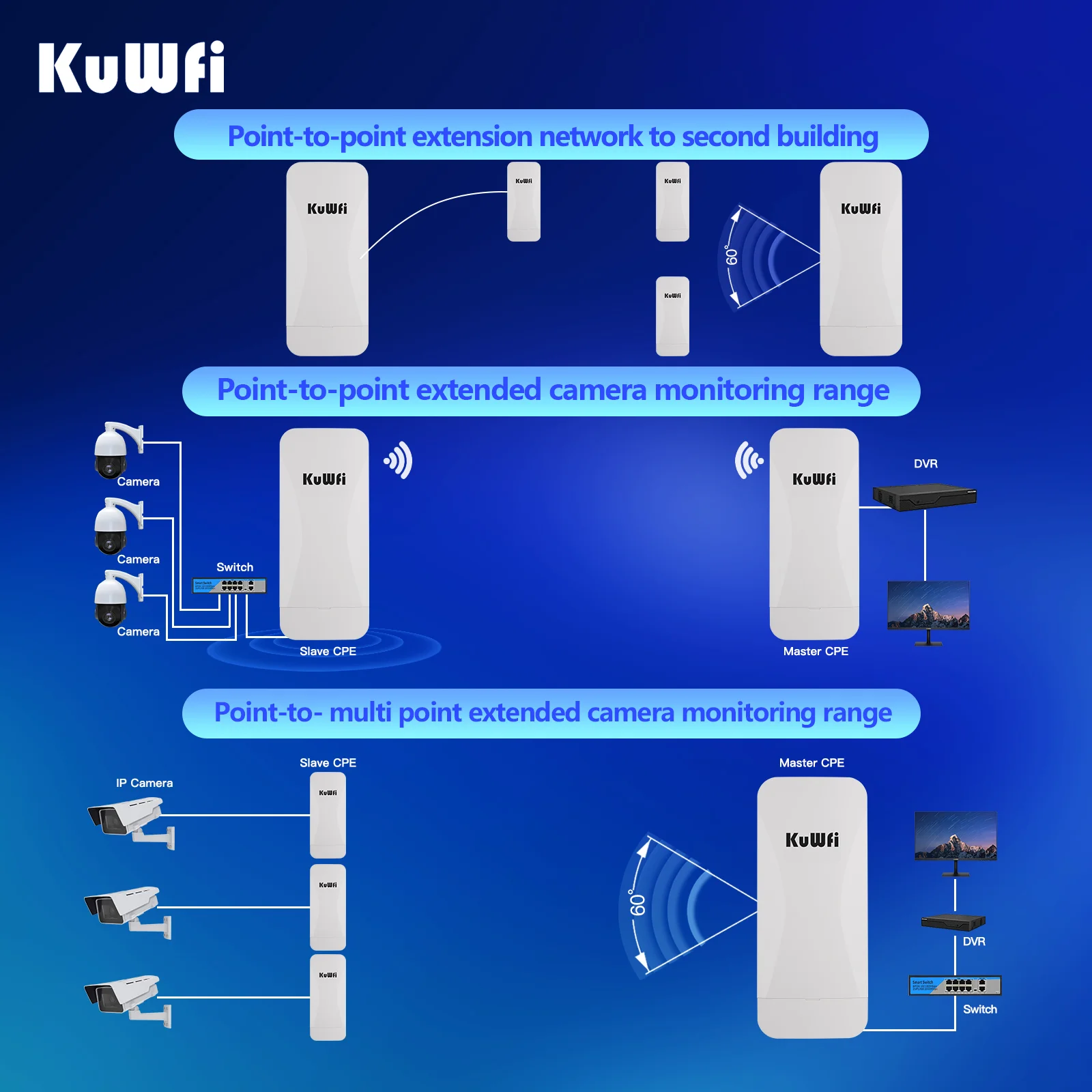

It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with operation switch on device, easy to setup bridge operation mode, no need to access into GUI, avoid the complex setup program, then simple to view the connection status and signal strength by LED signal lights, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
1.900Mbps 5.8Ghz Outdoor CPE Bridge
The CPE Bridge has a maximum rate of 900Mbps for 5.8GHz Wi-fi network.The CPE Bridge provides different wi-fi protocol and bandwidth Settings, which users can set according to different requirements.

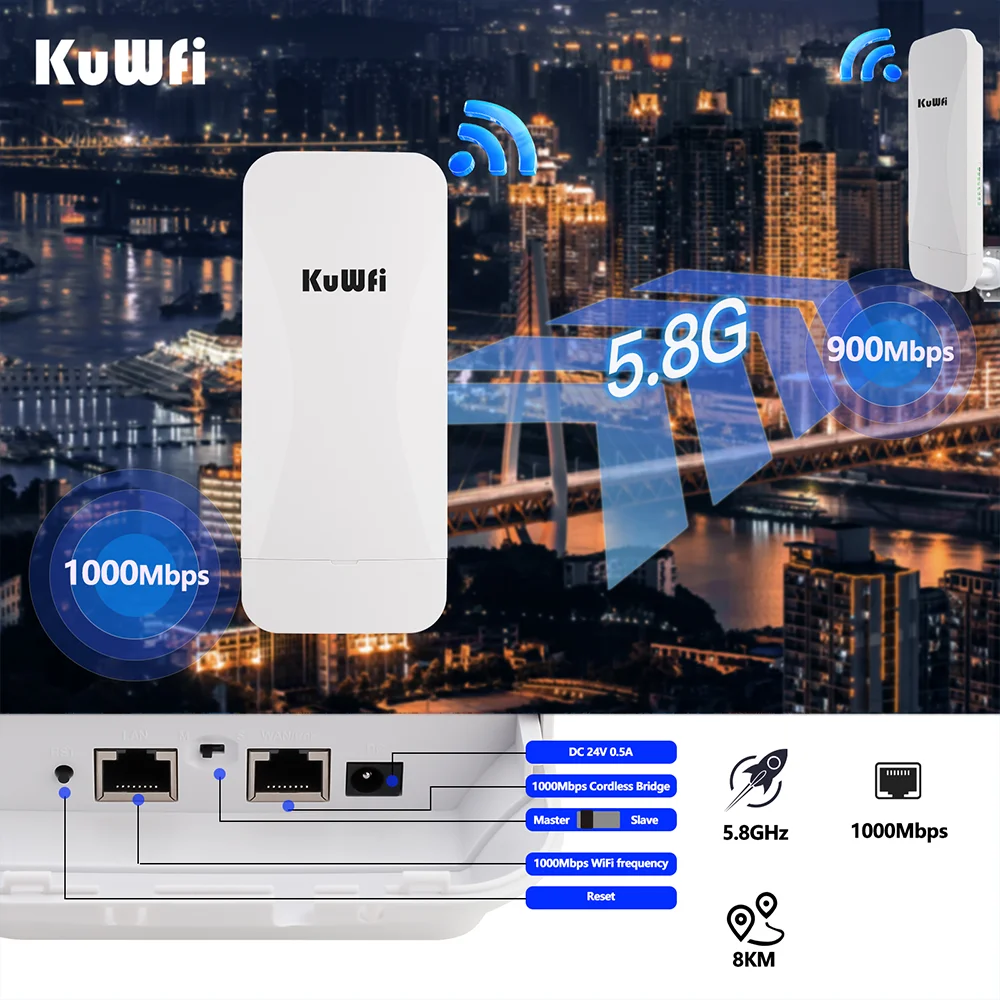

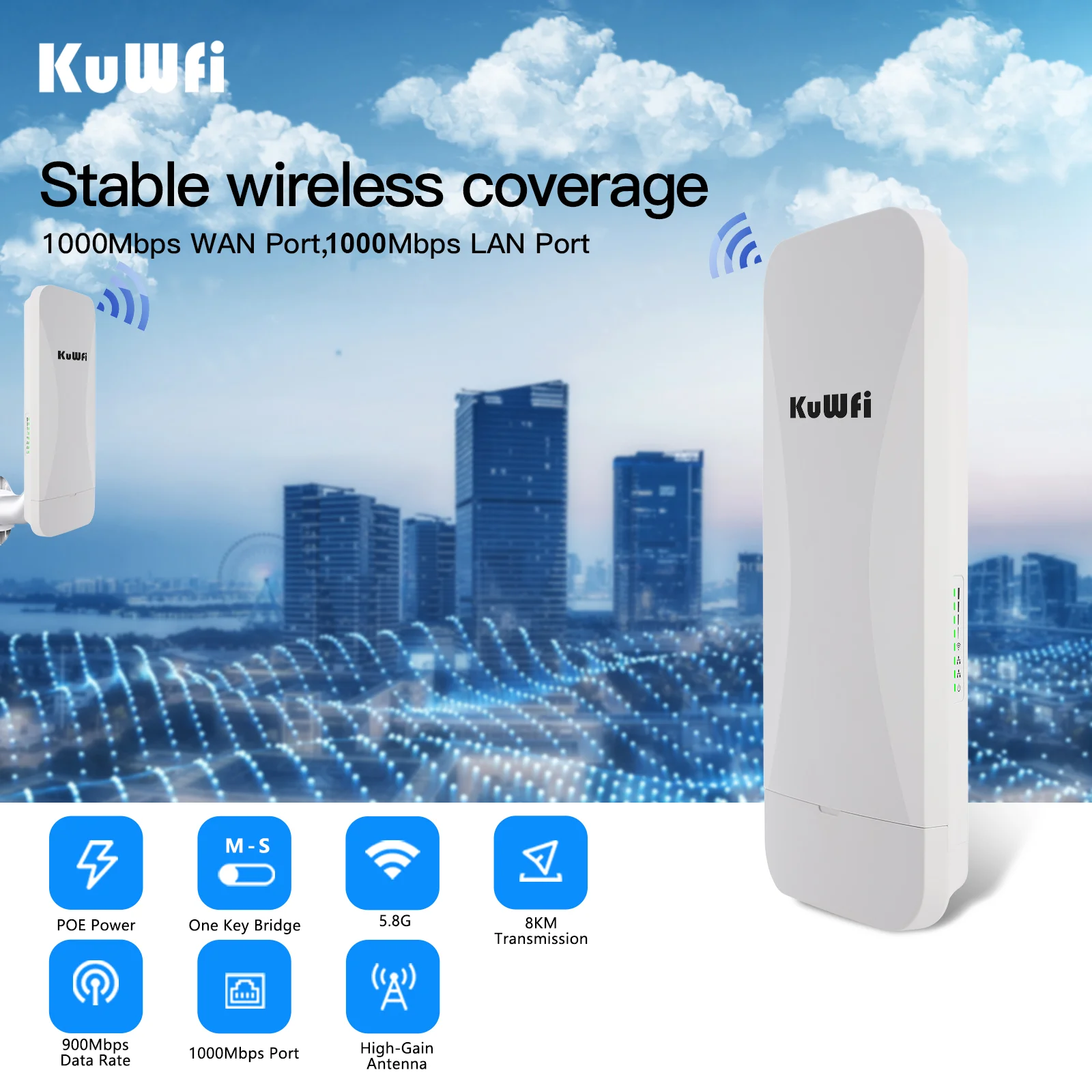

2.With Gigabit WAN LAN RJ45 Port
The CPE Bridge with gigabit WAN LAN port, allowing users to connect to other network devices via wired and enjoy faster network.
3.AP Mode and Repeater mode
The Wi-Fi Bridge supports universal AP mode and Repeater mode, with a wider range of user application scenarios.

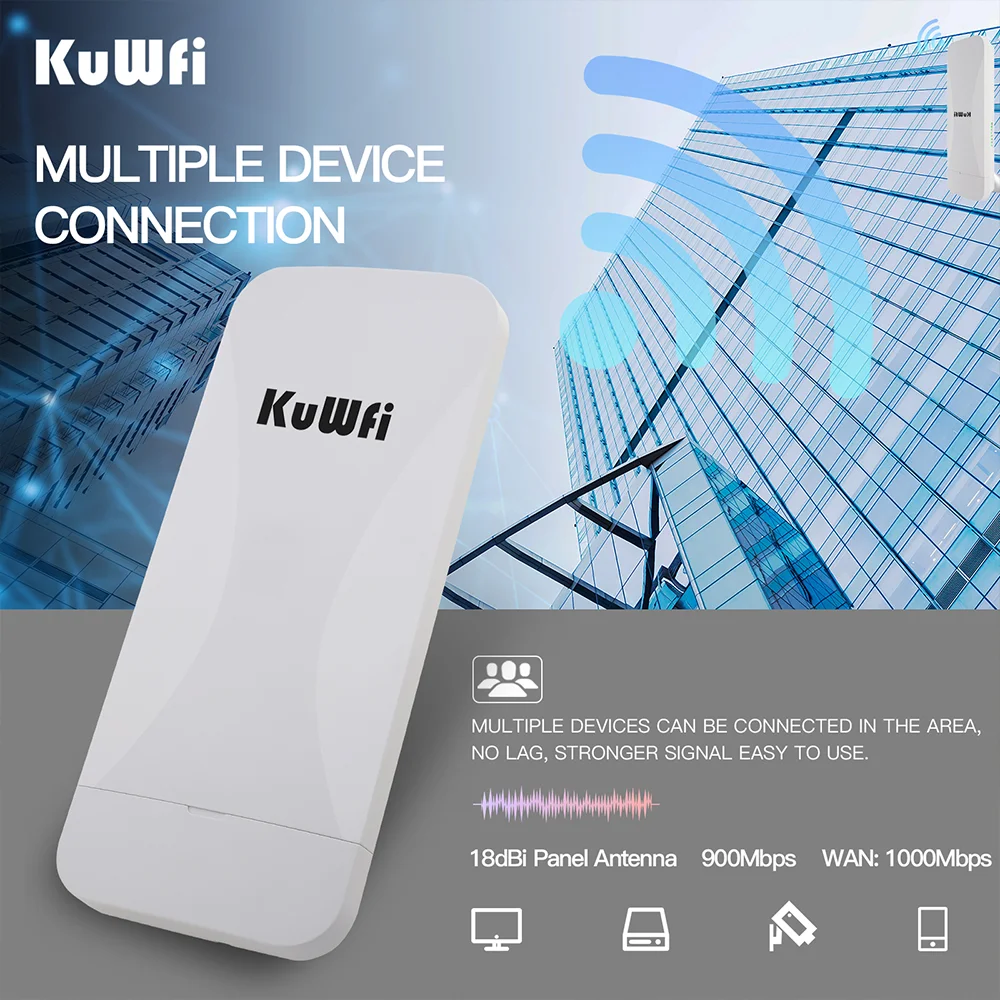

4.Built in 18dBi Antenna
Built-in 18dBi antenna, PTP/PTMP connect distance up to 8KM, very suitable for outdoor wi-fi camera monitoring.Therefore, the seller recommends that users adjust the Wi-fi Settings of the bridge themselves and select the applicable Wifi protocol and bandwidth.

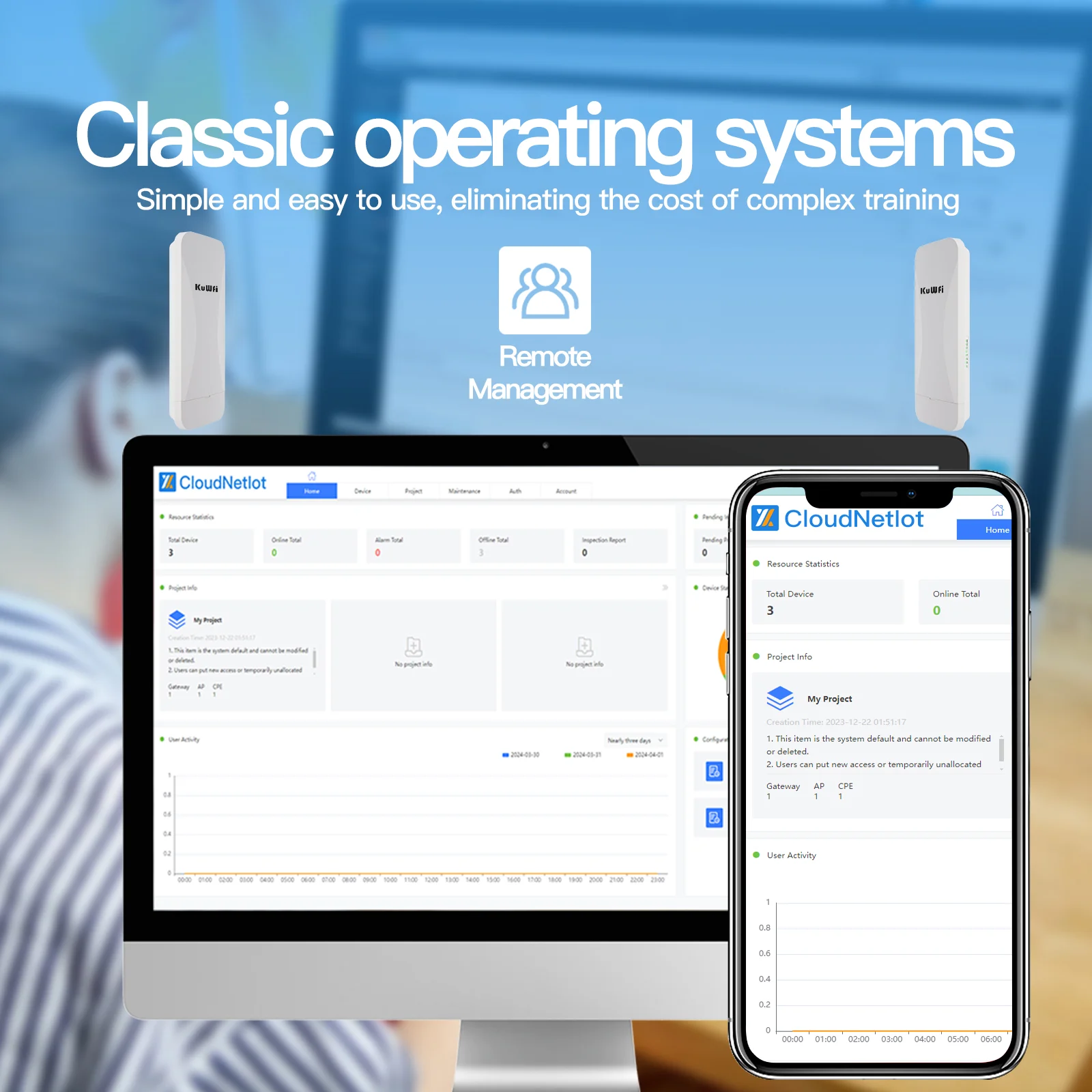

5.Clound Remote Management
Supports remote control of network Bridges through cloud server, you can control the bridge anytime, anywhere.Help you complete the setting faster and easier.
6.Support One-click pairing

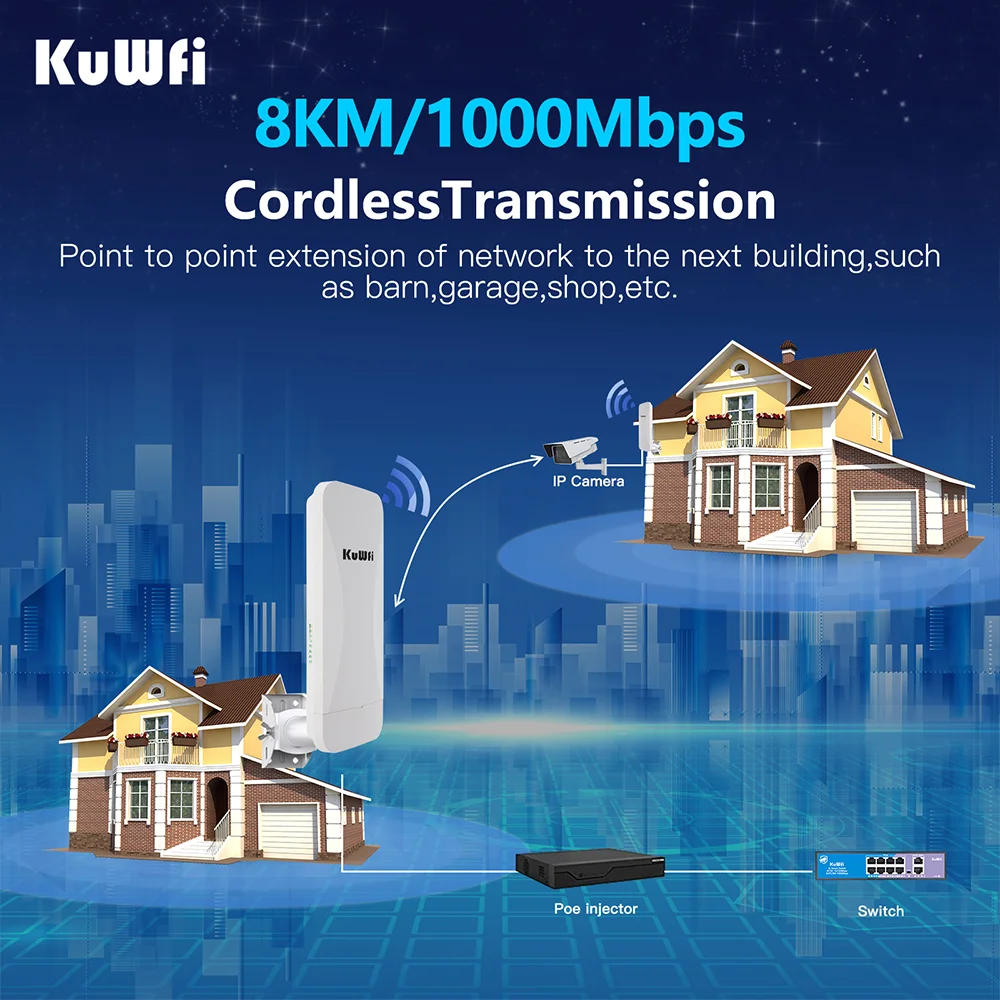

Through the buttons on the bridge, the two Bridges can be pairing with one click, eliminating the tedious pairing process.Realize point-to-point connection.One Master Bridge can be paired with multiple Slave Bridges.

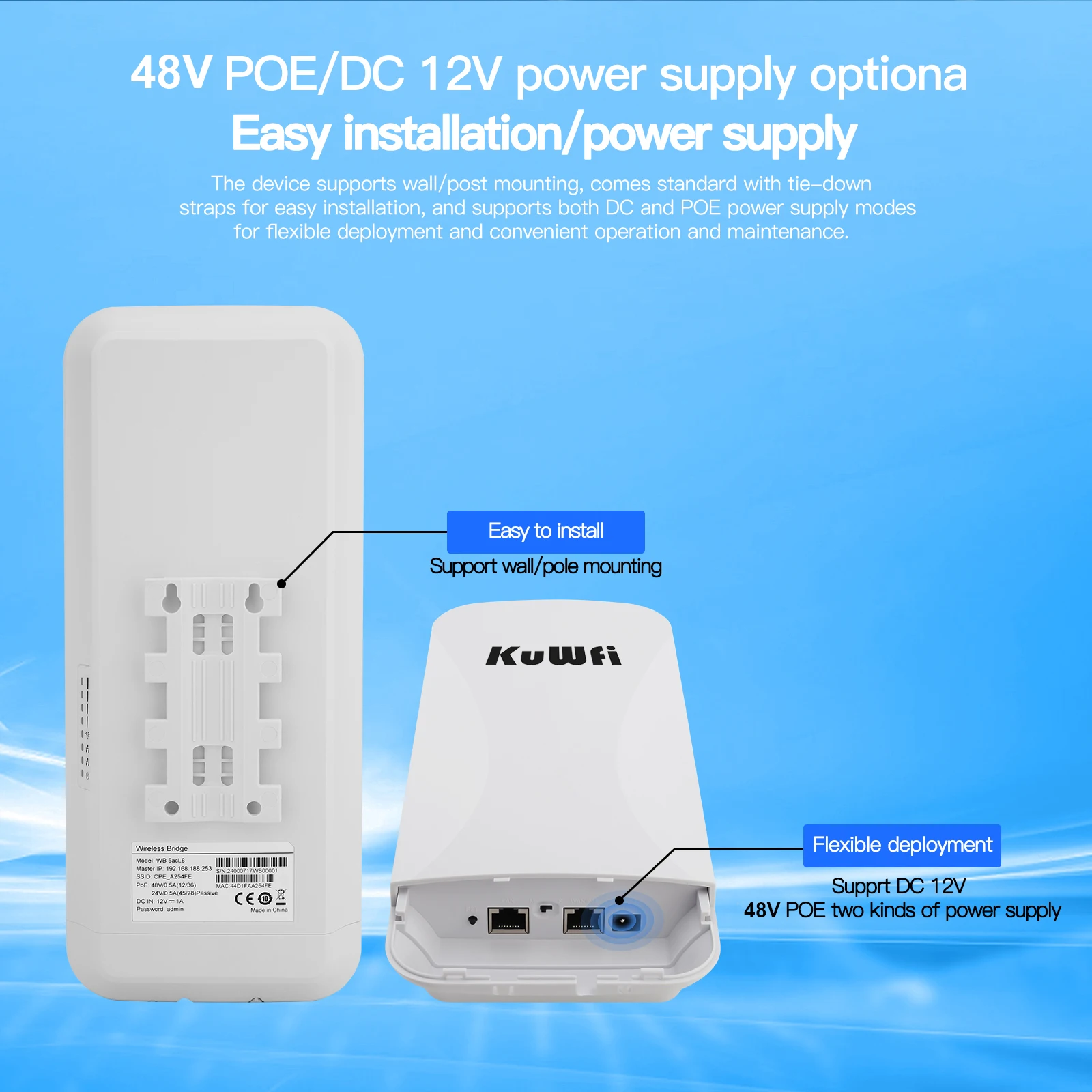

7.Suppor 48V POE and DC 12V Power Supply
The CPE Bridge supports 48V PoE power supply .The power supply mode of POE solves the problem that the network bridge can be placed remotely through the network cable.In addition, it also provides DC 12V power supply mode. (Please note that there is no DC power supply in the package, additional purchase is required)

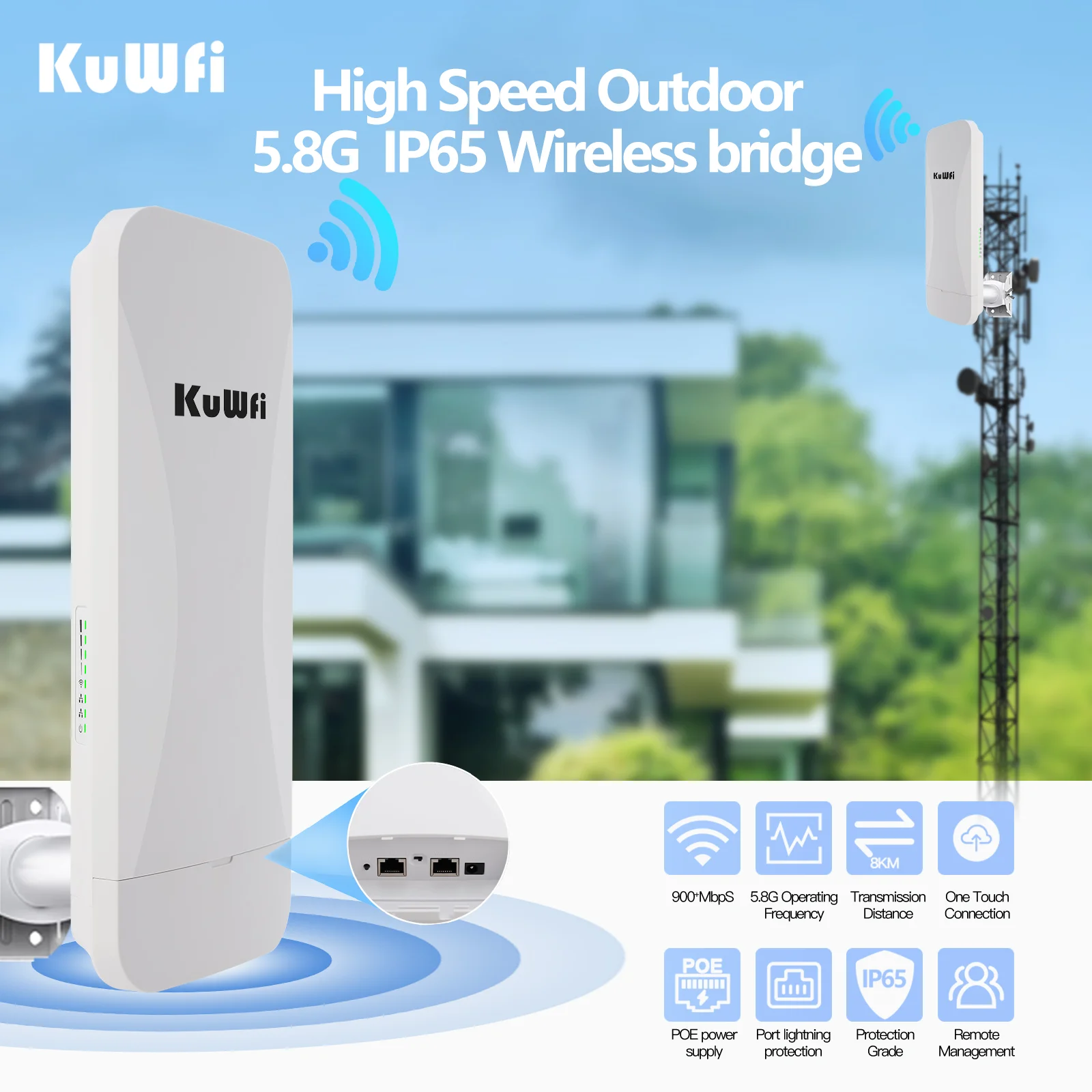

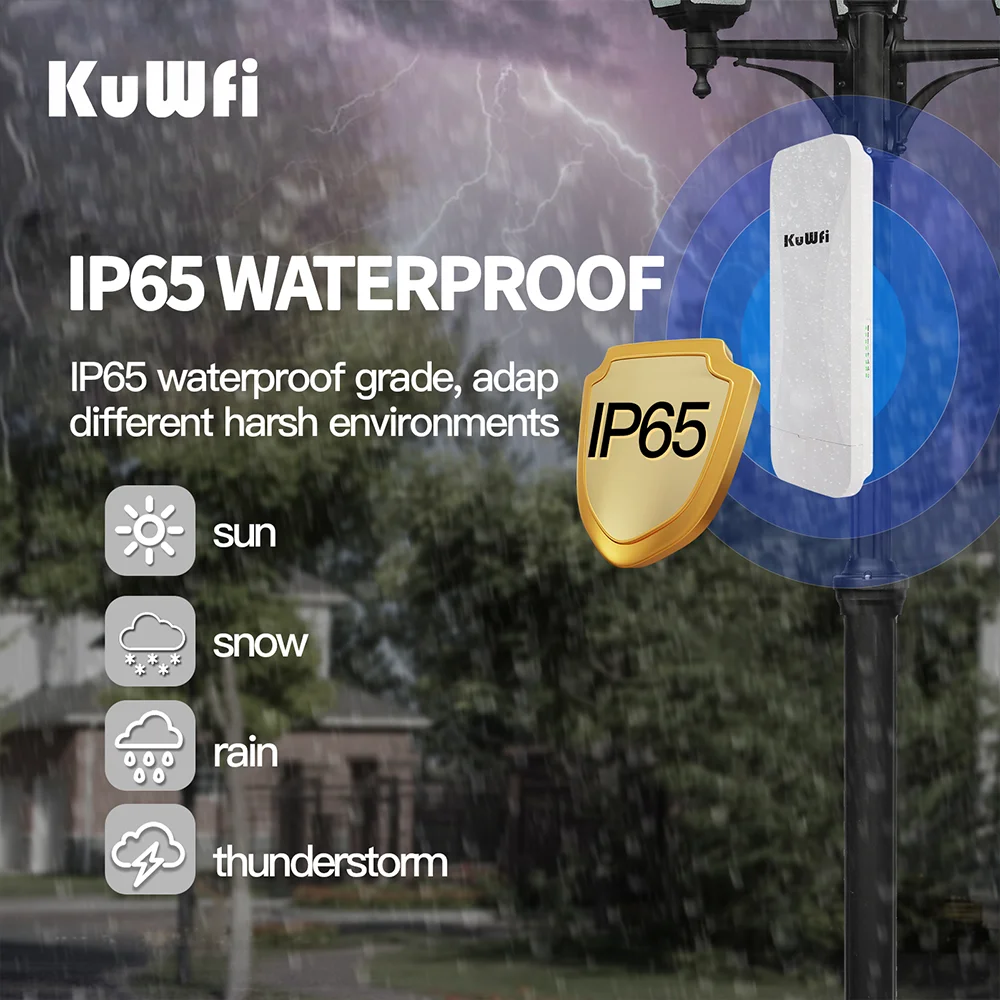

8.IP65 Outdoor Waterproof & 4KV Lightning Proof
Adopt outdoor ABS plastic shell, simple and elegant.Support professional 4KV lightning protection, IP65 water-proof, dust-proof, suit for multiple harsh environments.
9.Additional Network features
The CPE Bridge provide VLAN Settings,DHCP server and Cloud server Settings are provided to meet various needs of users.
Specification:
CPU: QCA9563+QCA9886+QCA8334
Flash: 16MB
5.8G frequency: 5.150GHz～5.850GHz
5.8G WIFI protocol: 802.11 a/n/ac
Max Rate: 867Mbps
WAN/POE Port: 1*10/1000Mbps,Supprt 48V POE
LAN Port: 1*10/1000Mbps
Antenna: Built-in 18dBi Antenna
Outdoor Waterproof Level: IP65
Size: 168mm*86mm*42.5mm
Power: POE 48V, DC 12V/1A(Package not include DC Power)
Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ 70°C
Humidity: 5%~95% (Non-Condensing)
Packing list:
1/2pcs CPE Bridge
1/2pcs Ethernet Cable
1/2pcs POE Power Supply
1pc Quick Start Guide
