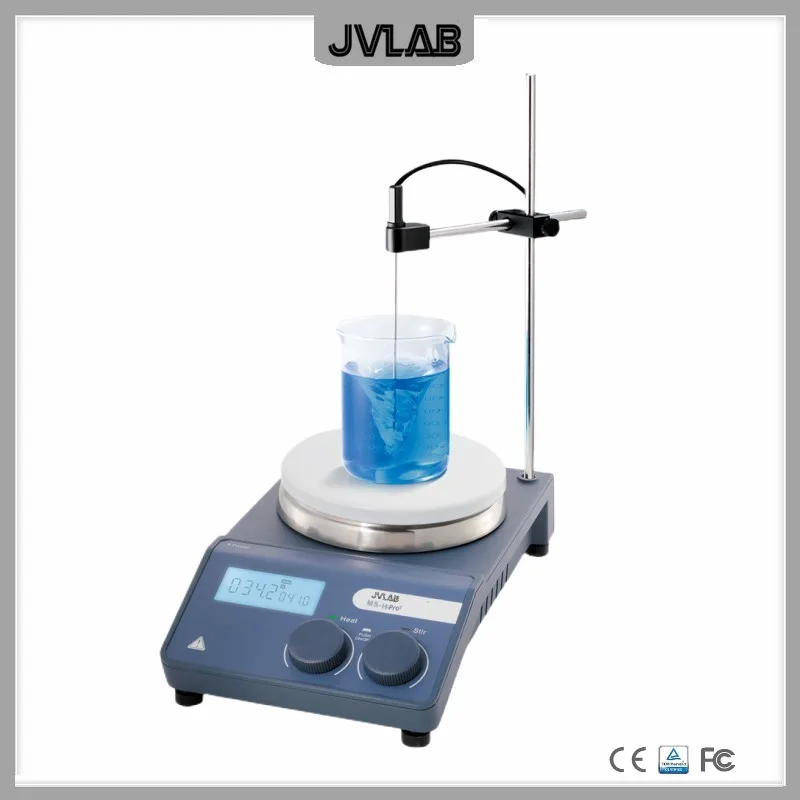

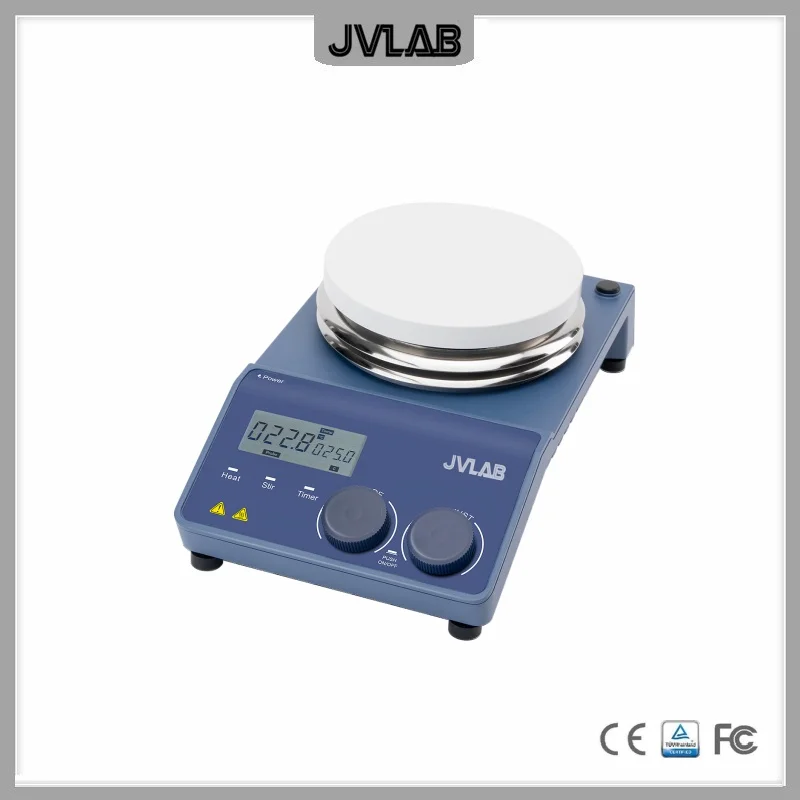

LCD Digital Magnetic Hotplate Stirrer With Timer Stainless Steel With Ceramic Coated Hotplate 5” Up To 340C Stir Kit MS-H-PT

Features
Brushless DC motor is maintenance free and explosion-proof.
Digital temperature control with max. temperature at 340°C.
Digital speed control with max. speed up to 1500rpm.
Max. stirring quantity of H2O at 20L.
Safety circuits provide overheating protection.
The "HOT" warning will  flash if the  plate temperature is above 50°C even when the hotplate is turned off.
Wide range timer function from 1min to 99h59min.
High-resolution LCD display shows actual temperatures, speed and the time.
External  temperature  control  is  possible  by  connecting  the temperature sensor(PT 1000) with accuracy at ±0.2°C.
Stainless  steel  work  plate  with  ceramic  coating  provides  good chemical-resistant  performance.
Remote function provides PC control and data transmission.
A wide variety of accessories are available.

Parameter
Work plate dimension: φ135mm(5 inch)
Work plate material: stainless steel cover with  ceramic
Motor type: Brushless DC motor
Motor rating input: 18W
Motor rating output: 10W
Power: 550W
Heating output: 500W
Voltage: 100-120/200-240V, 50/60Hz
Stirring positions: 1
Max. stirring quantity[H2O]: 20L
Max. magnetic bar[length]: 80mm
Speed range: 100-1500rpm
resolution±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room  temp.-340°C, increment 1°C
Temperature  control accuracy: ±1°C(<100°C)
±1%(>100°C)
Over  temperature protection: 360°C
Temperature  display accuracy: ±0.1°C
External  temperature sensor: PT1000 (accuracy ±0.2)
"Hot" warning: 50°C
Timer function: 1min to 99h 59min
Data connector: RS232
Protection class: IP42
Dimension[WxDxH]: 160×280×85mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C,  80%RH
