Feature:

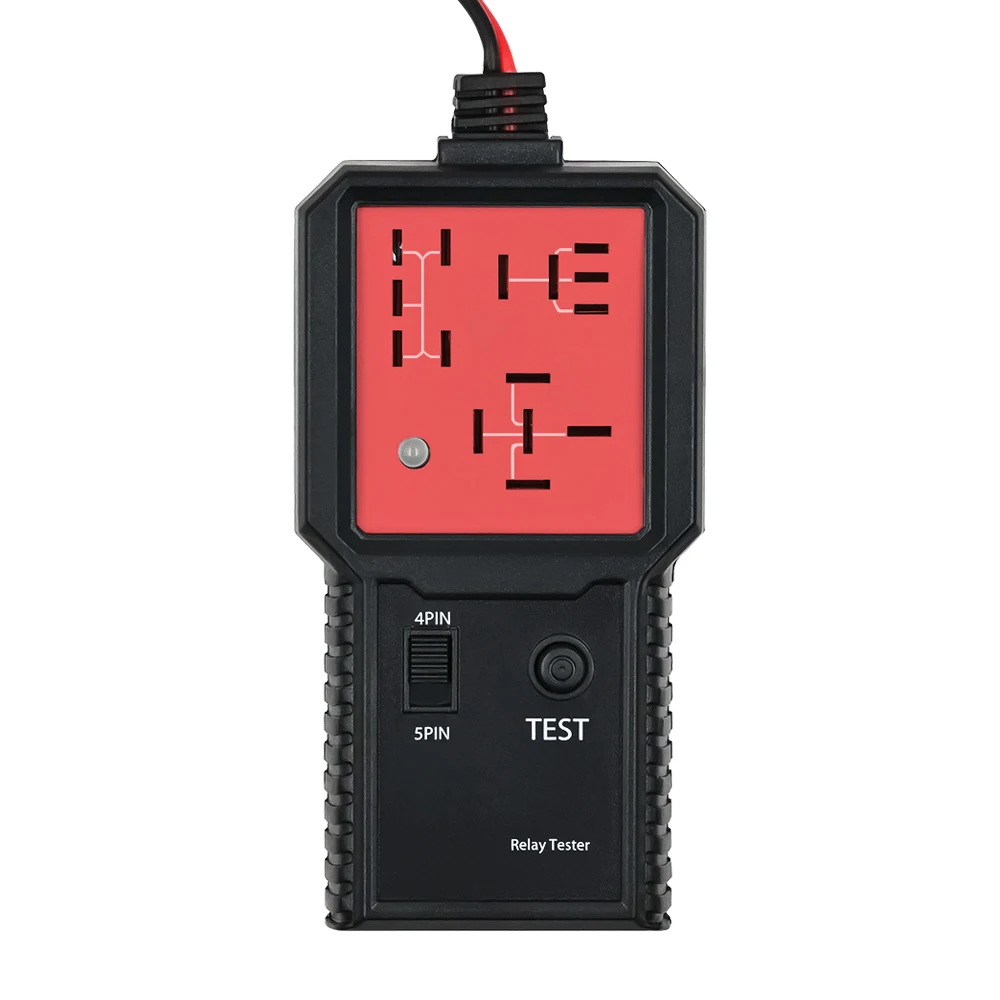

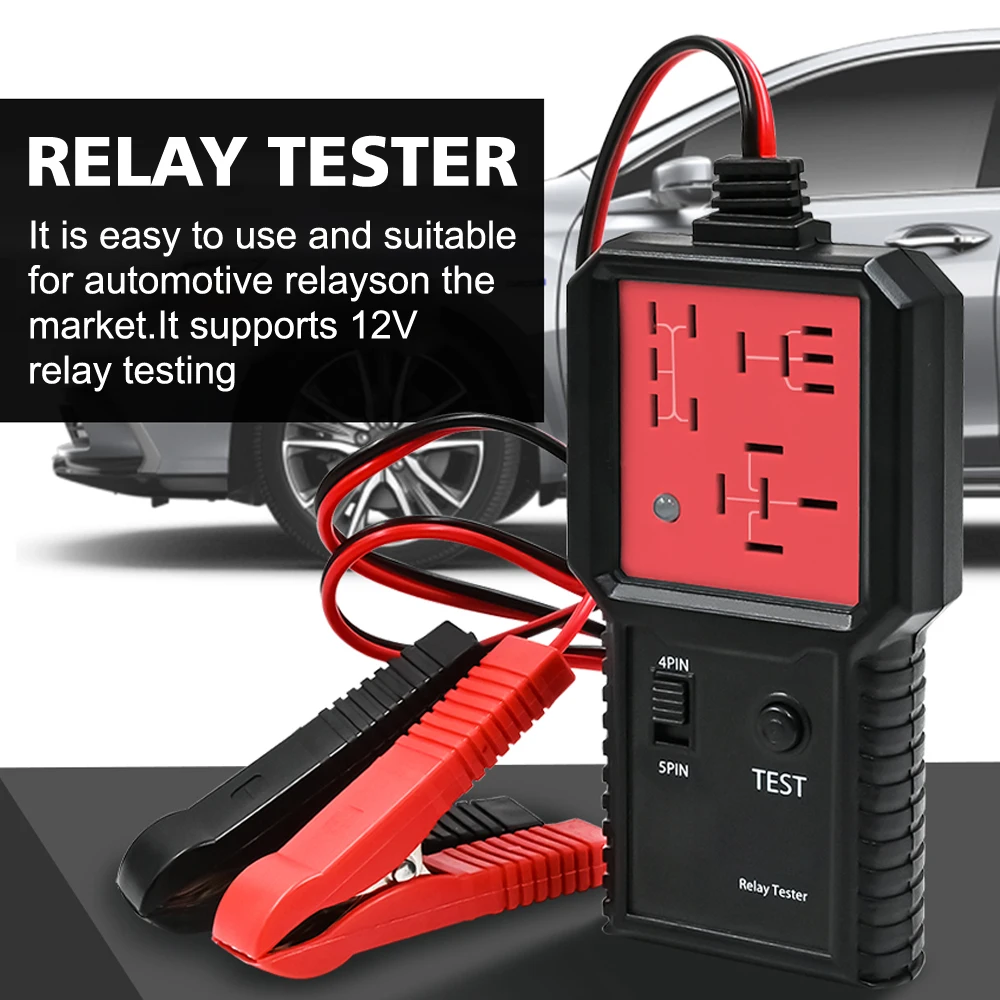

Can quickly detect whether your relay is normal, simple to use, suitable for the market of automotive relays, support 12V and 24V relay test. For testing, the device needs to be connected to a 12v car battery. When testing, turn the switch to 4PIN or 5PIN according to the pin position of the relay. After pressing the test button, the tester lights up with a green LED light and blinks, indicating that the relay is normal. If the test button is pressed, the red LED light indicates that the relay is abnormal.

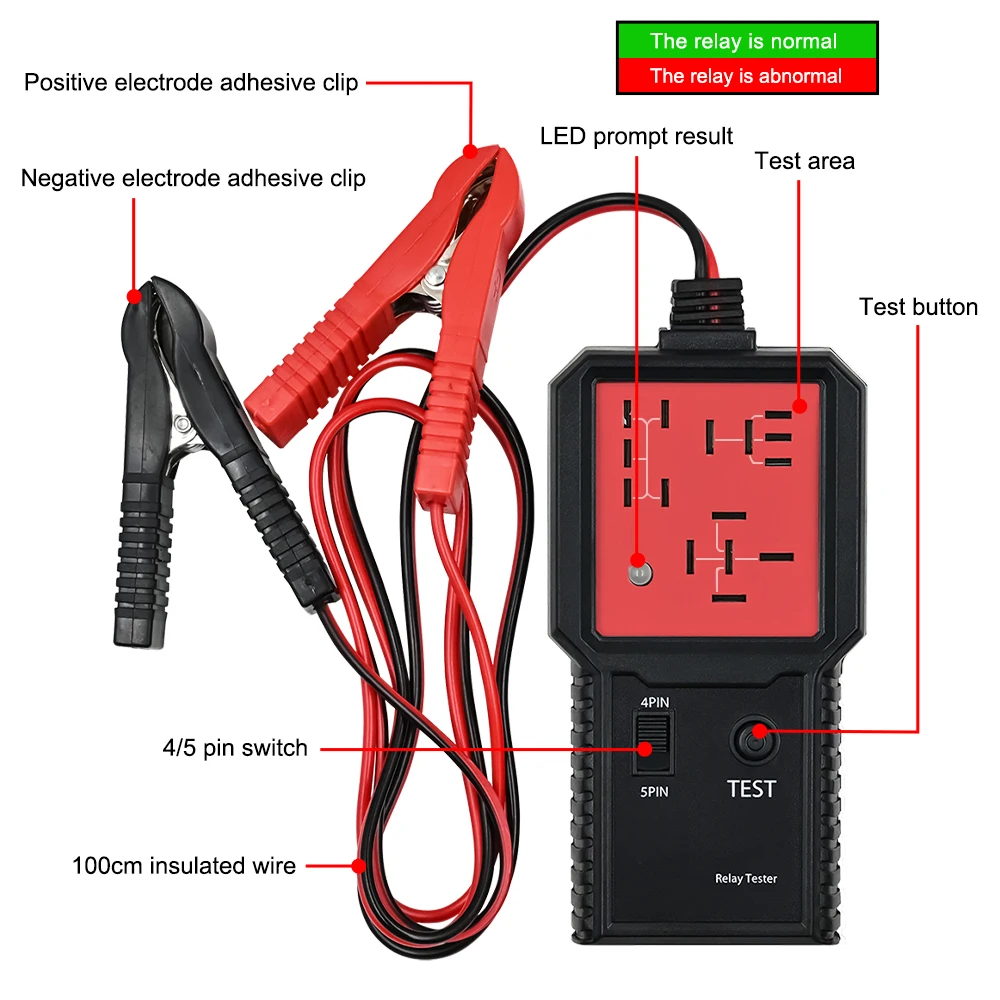

1. When testing, clip the red clip to the positive electrode of the battery and the black clip to the negative electrode of the battery
2. When testing the 12V relay, connect it to the 12V battery.
3. If the indicator is red after the power supply is connected, you can insert the relay
4. Test 4-pin relay Switch to 4-pin and test
5 pin relay Turn the switch to 5 pin. 5. After the access relay adjusts the pin switch, you can press the button
6. When the foot position is wrong or the relay is damaged during the test, the red LED light will be lit during the test.
7. When the foot position is set correctly, the tester will light a green LED light and blink green for 10 times, indicating that the relay is normal.
Can quickly detect whether your relay is normal, simple to use, suitable for the market of automotive relays, support 12V and 24V relay test. For testing, the device needs to be connected to a 12v car battery. When testing, turn the switch to 4PIN or 5PIN according to the pin position of the relay. After pressing the test button, the tester lights up with a green LED light and blinks, indicating that the relay is normal. If the test button is pressed, the red LED light indicates that the relay is abnormal.
1. When testing, clip the red clip to the positive electrode of the battery and the black clip to the negative electrode of the battery
2. When testing the 12V relay, connect it to the 12V battery.
3. If the indicator is red after the power supply is connected, you can insert the relay
4. Test 4-pin relay Switch to 4-pin and test
5 pin relay Turn the switch to 5 pin. 5. After the access relay adjusts the pin switch, you can press the button
6. When the foot position is wrong or the relay is damaged during the test, the red LED light will be lit during the test.
7. When the foot position is set correctly, the tester will light a green LED light and blink green for 10 times, indicating that the relay is normal.
Product Description:
Test voltage 12v
List:
Relay *1
