Scope of application: electric bicycle light group modification
Working status description:
Running lights: When the switch of running lights is turned on, the headlights and taillights will turn on
Horn: The horn starts to work when the horn button is pressed, release to cancel
Brake light: When the brake signal line and the controller brake low pressure signal are connected normally, the brake light will turn on at the same time of braking, and the brake light will turn off when the brake is canceled (the KT controller part of the brake light will be constant, and the brake will be brighter, which is a normal phenomenon)
Turn signal: When the turn switch in the specified direction is flipped, the turn signal in the corresponding direction starts to work and blinks at a frequency of about 800ms each time
Total net weight: 360g
Package weight: approx. 0.46KG (small carton)
Cross border bulk and small batch all individual cartons, either complete packaging, or put the carton inside the large box.

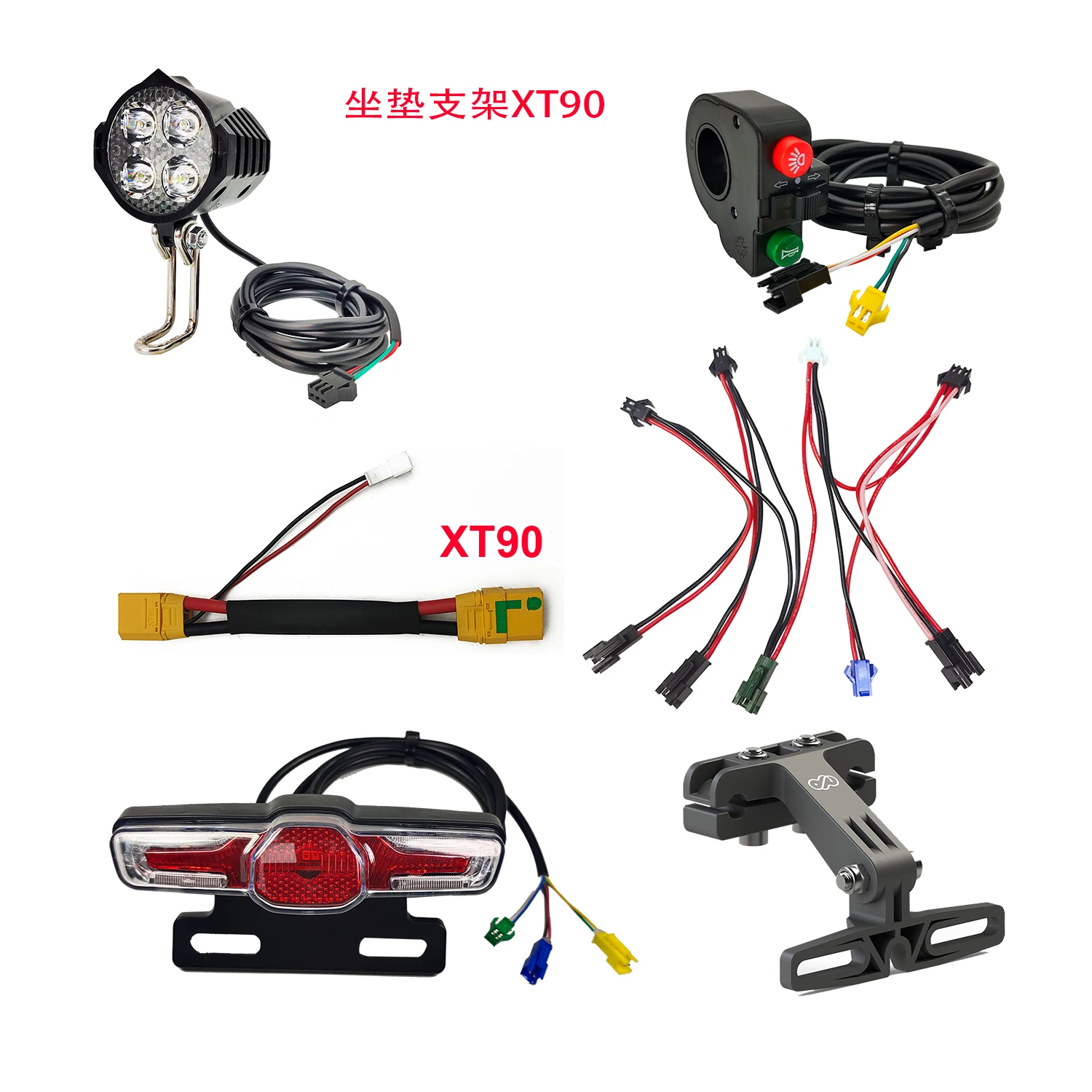

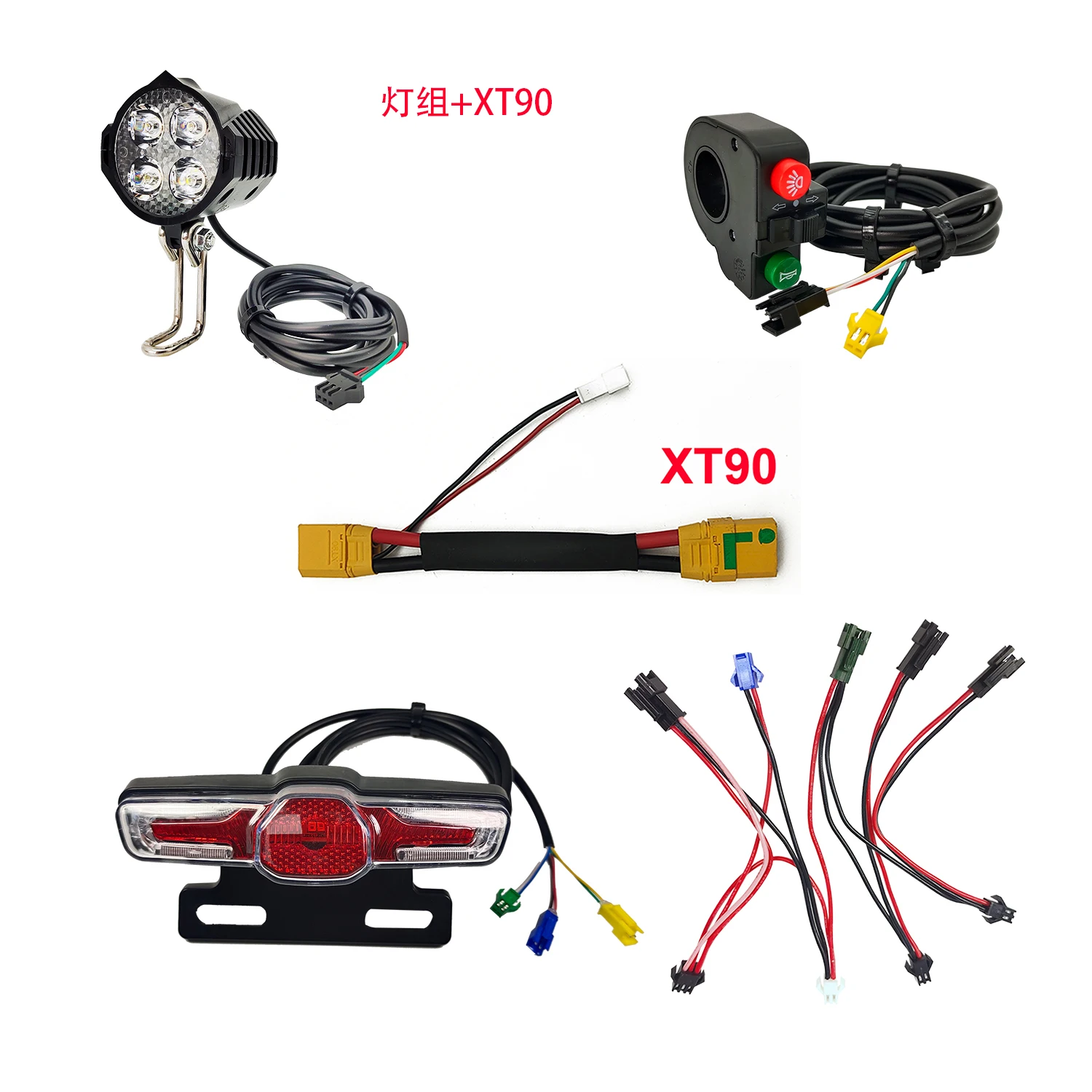

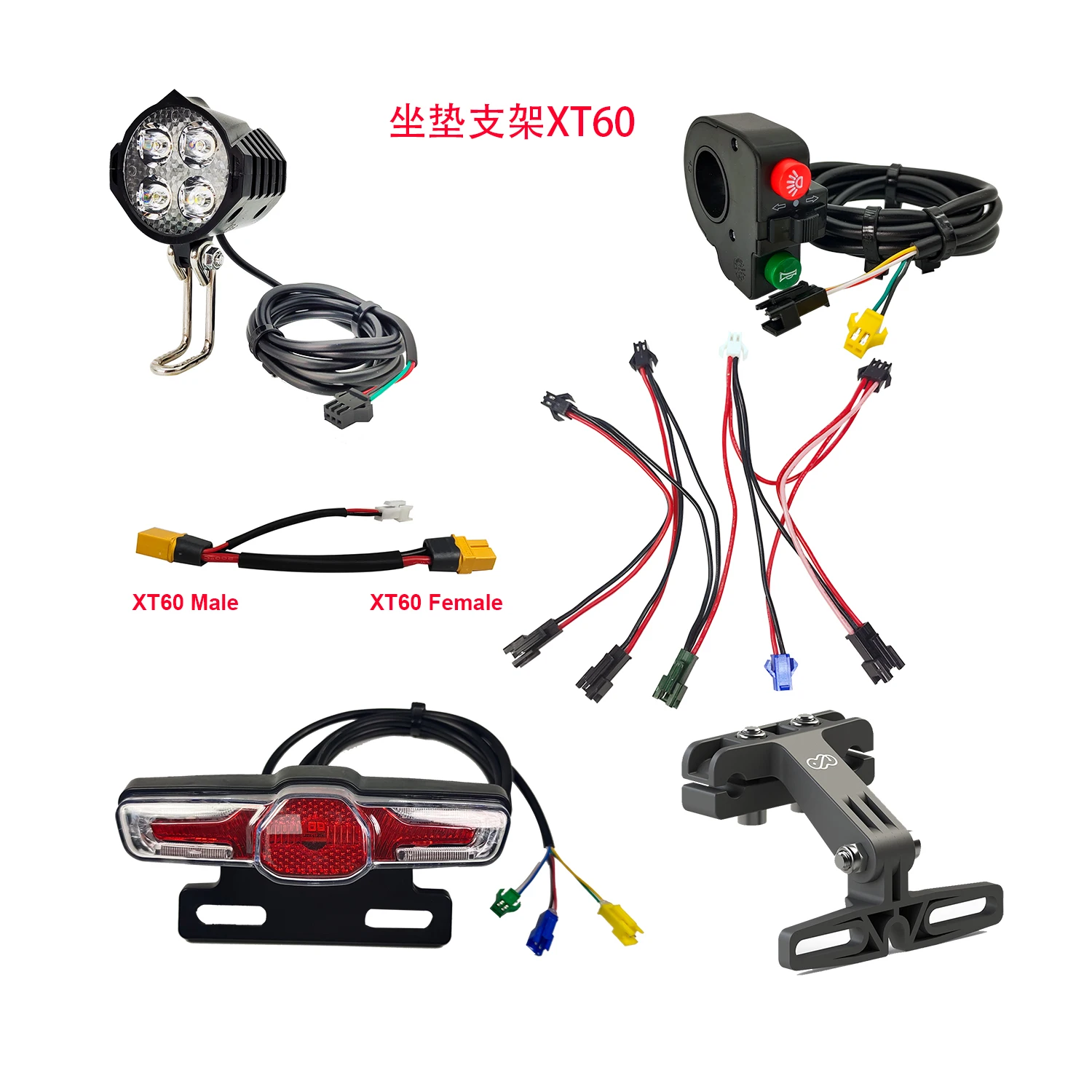

Packing list:
1, headlight *1
2, 3-in-1 switch *1
3, taillight *1
4, light group conversion wire (20AWG silicone wire) *1
5, seat cushion taillight mounting bracket *1 (optional)
6, XT60T XT60T Lamp set Power adapter *1 (optional)

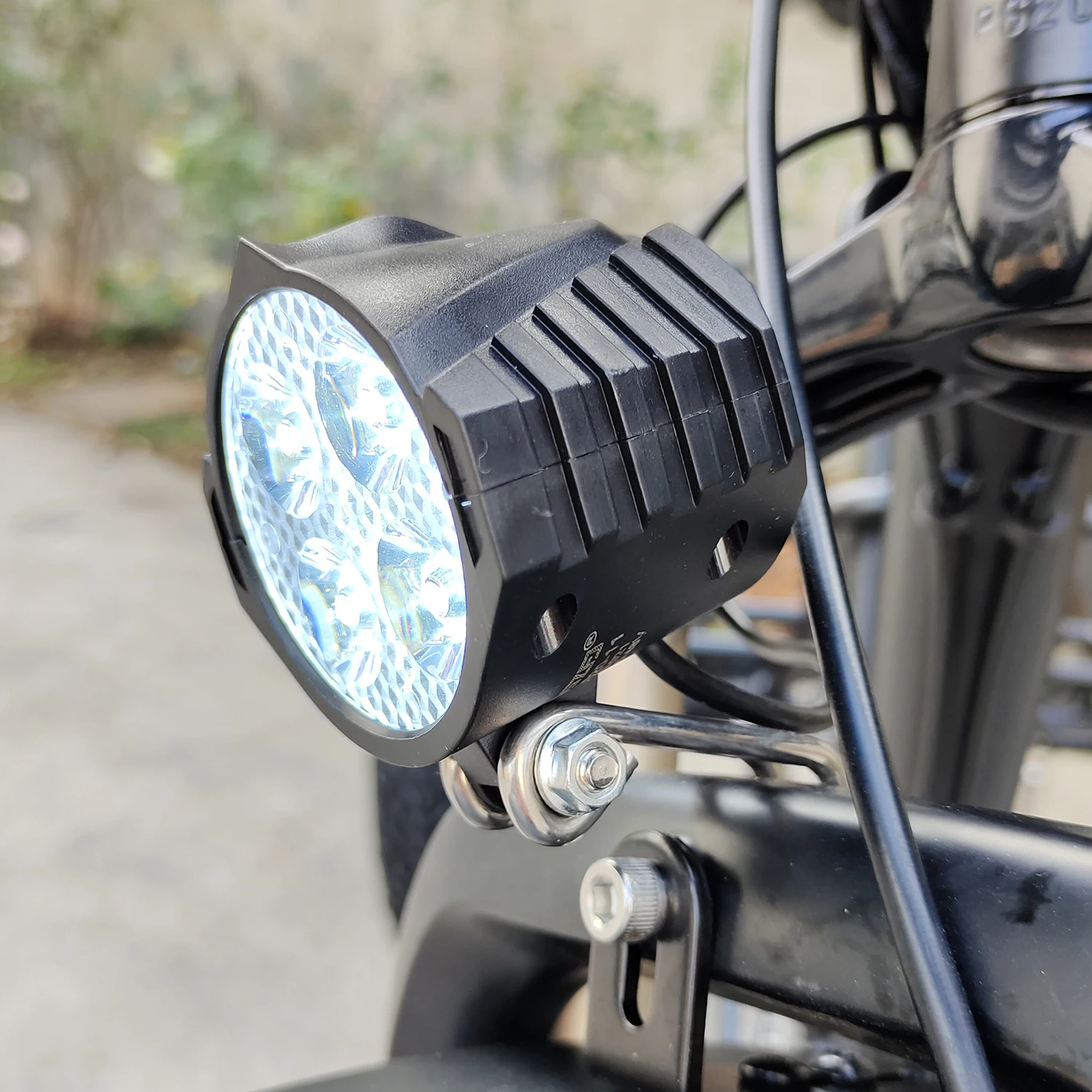

Headlight parameters D21:
1, headlight net weight: 100g
2, shell material: plastic
3, suitable voltage range: 12V-60V
4, power: 59mA/2.8W
5, luminous flux: 180-220LM
6, horn power: 44mA/2.1W
7, speaker volume: 80-100dB
8, line sequence: Red-Horn+ Black-GND Green-Lamp+
9, CQC certification: CQC19134228086
10, product size: 62*50*70mm
11, line length: about 1.5M

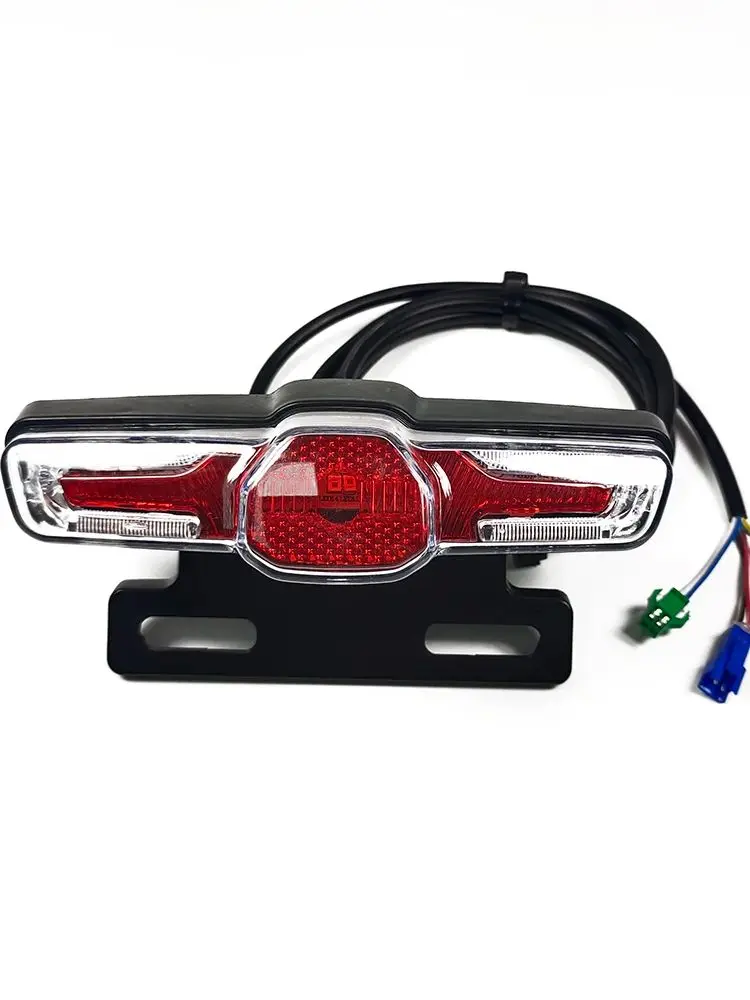

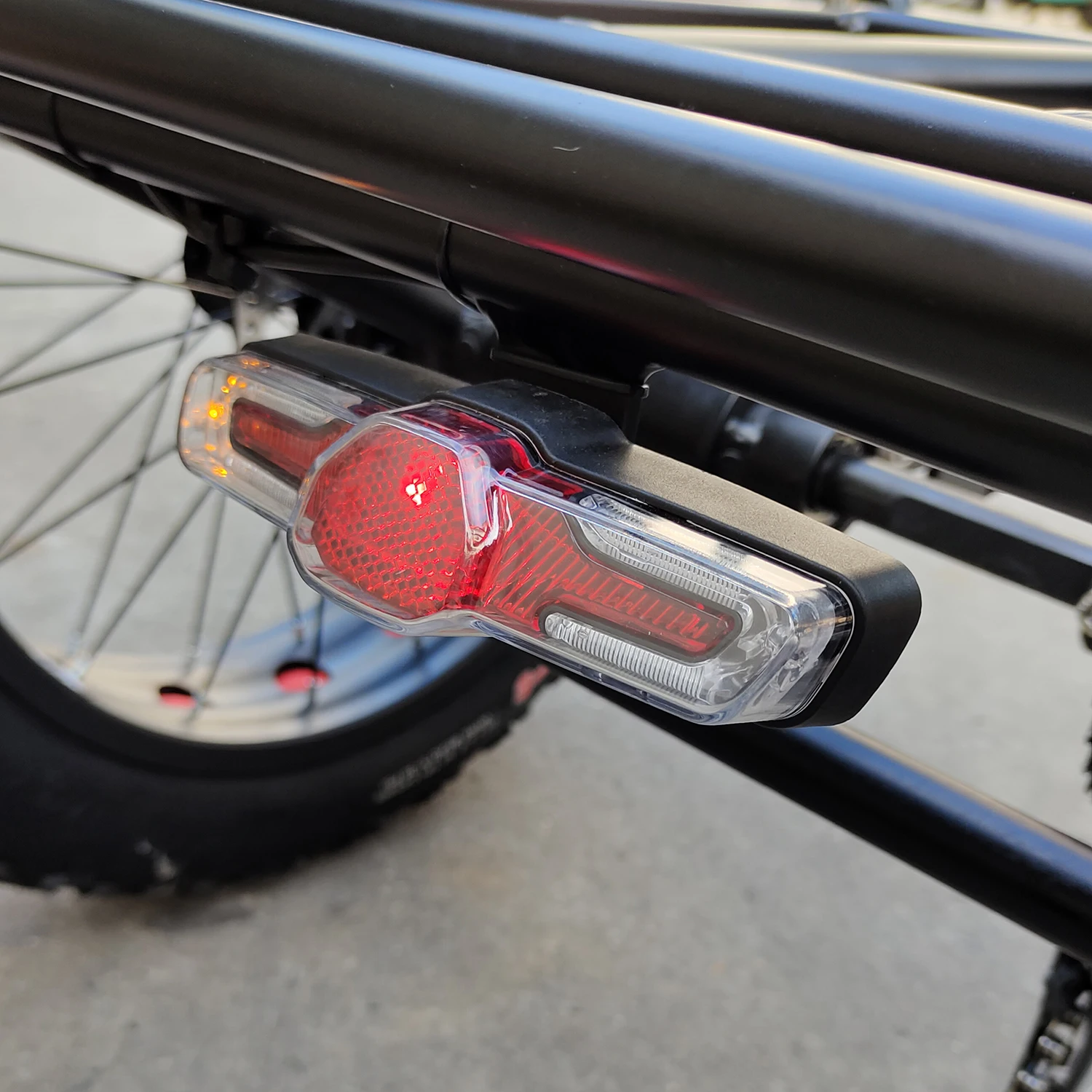

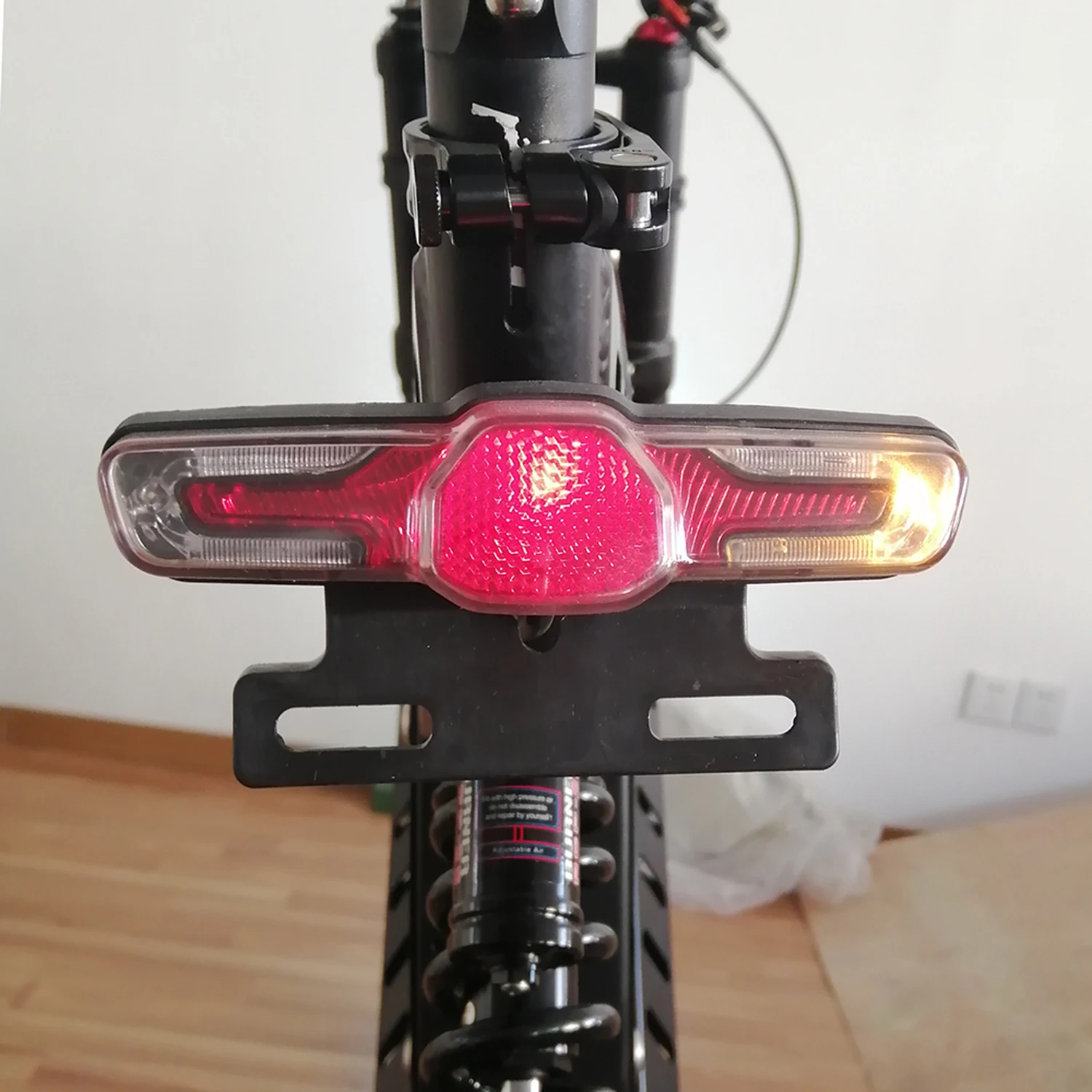

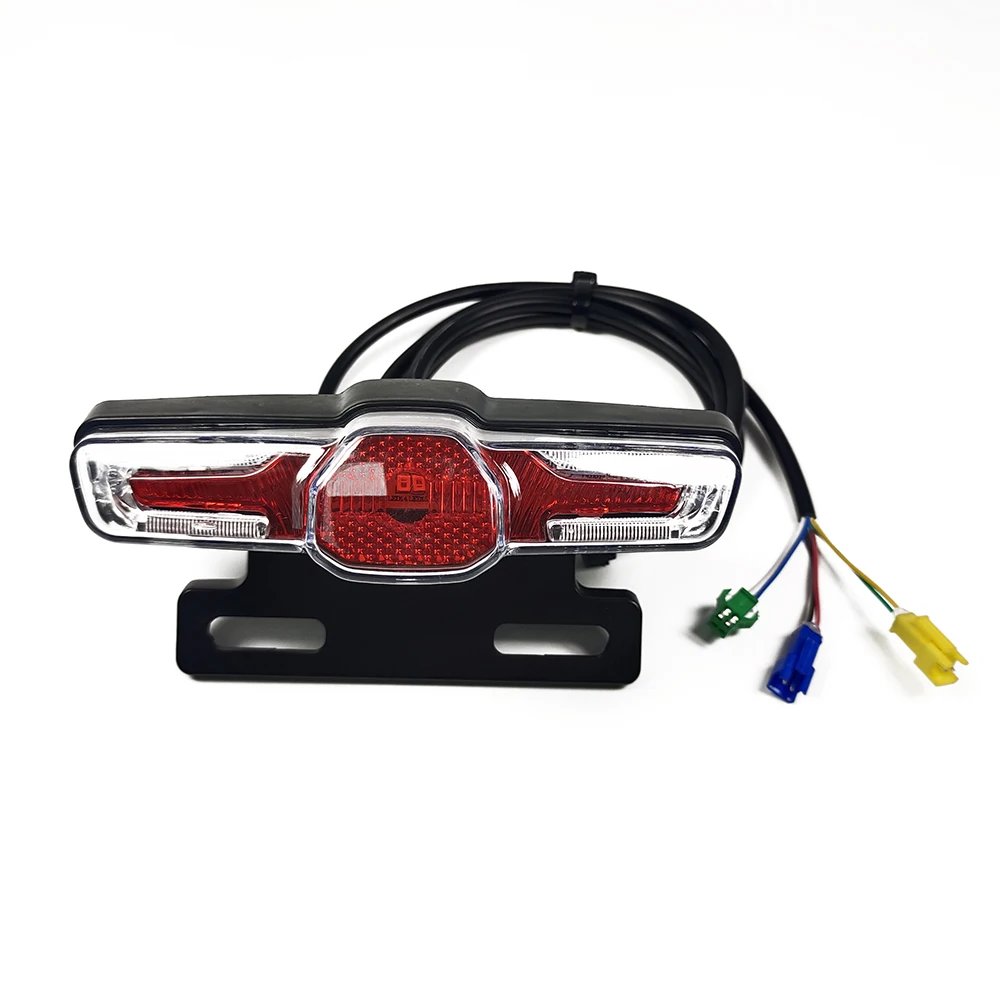

Taillight parameters:
1, tail light net weight: 120g
2, shell material: plastic
3, applicable voltage range: 24-60V
4, power: 1.5W
5, the number of light sources: 14
6, luminous flux: 15LM
7, product size: 132*65*40mm
8, CQC certification: CQC19134228085
9, line length: about 1.5M

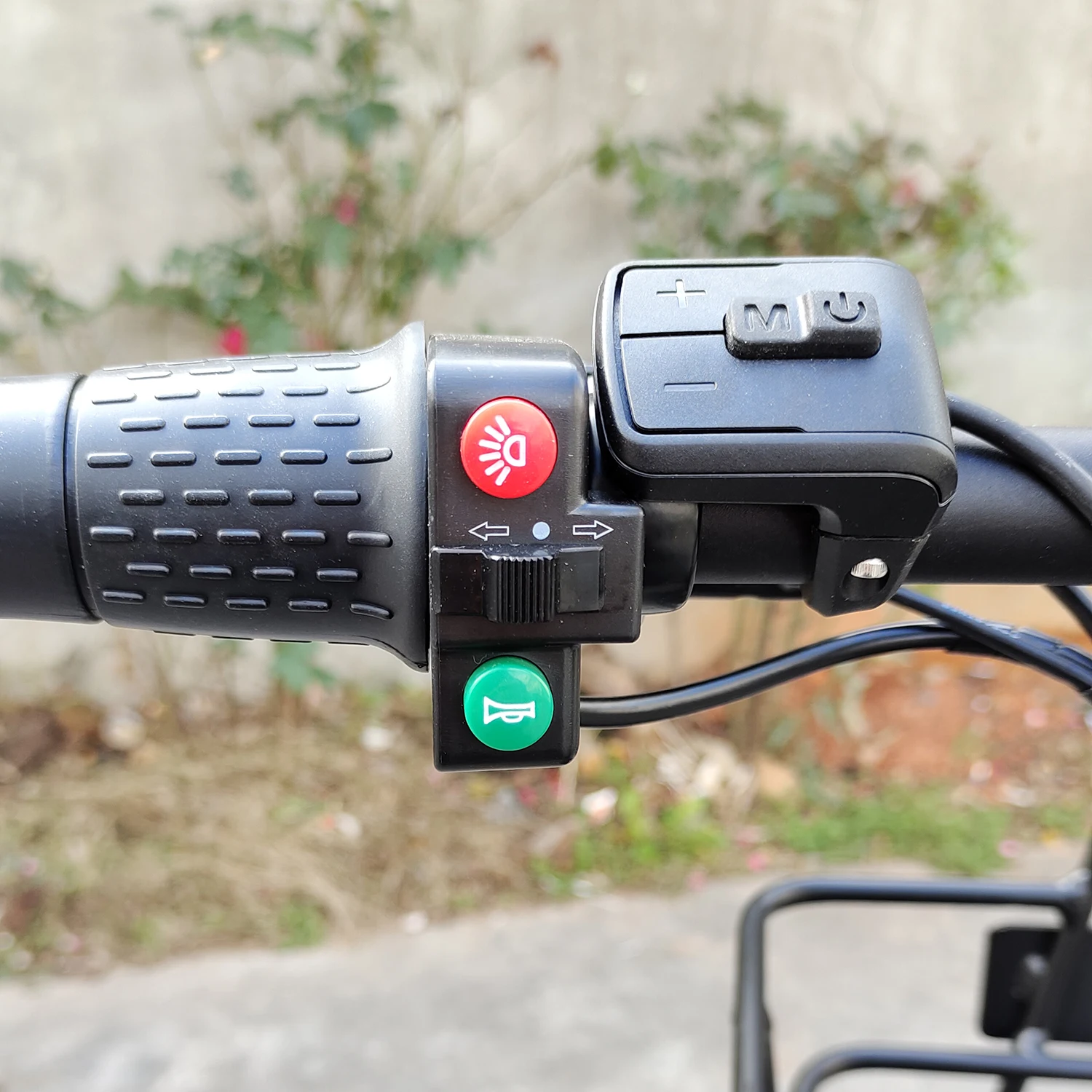

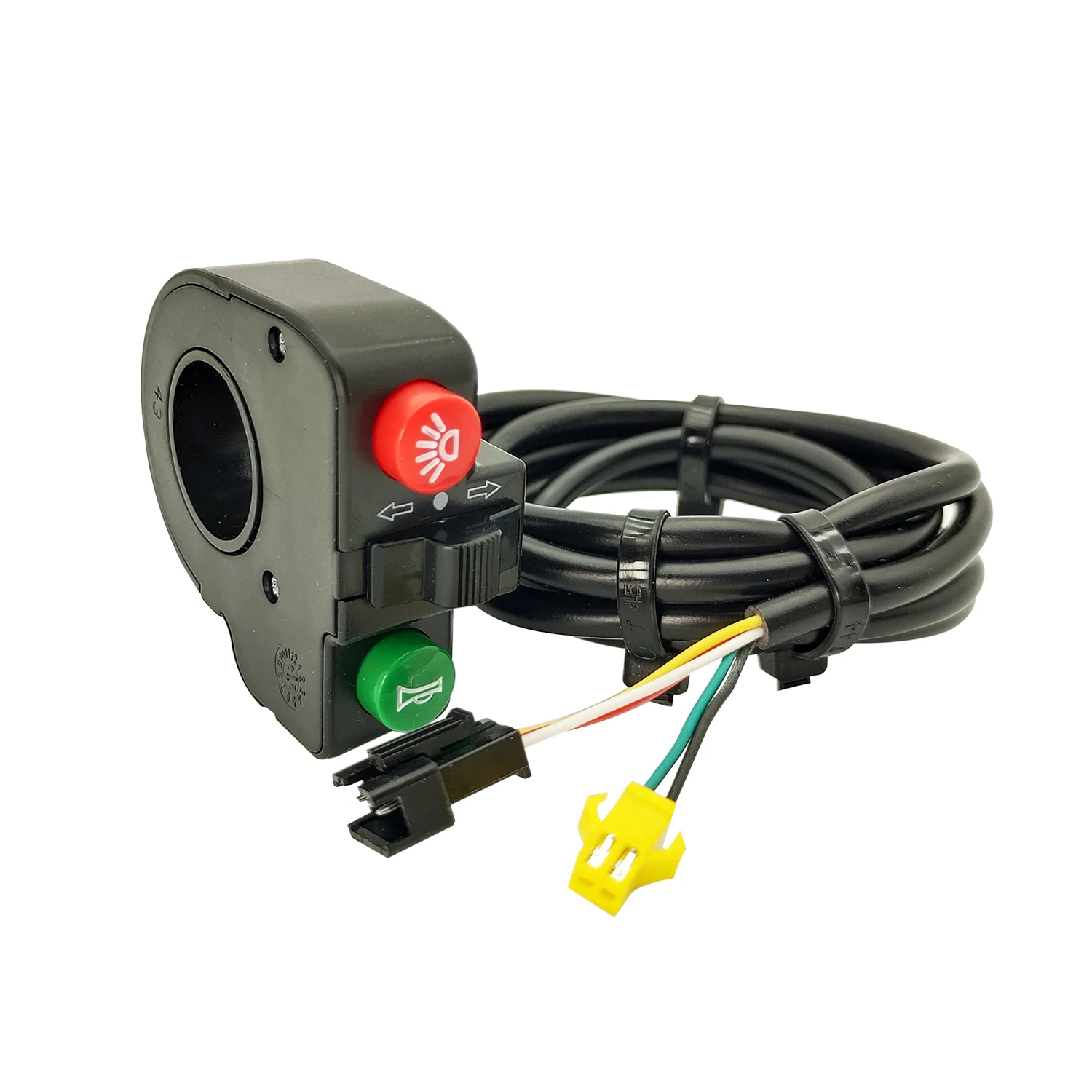

Switch parameters:
1, switch net weight: 92g
2, shell material: plastic
Product size: 26*53*61mm
Line length: about 1.5M
Lamp group connection line:
1, product net weight: 13g
2, wire specification: 22AWG high temperature resistant soft silicone wire
3, folded length: 140mm

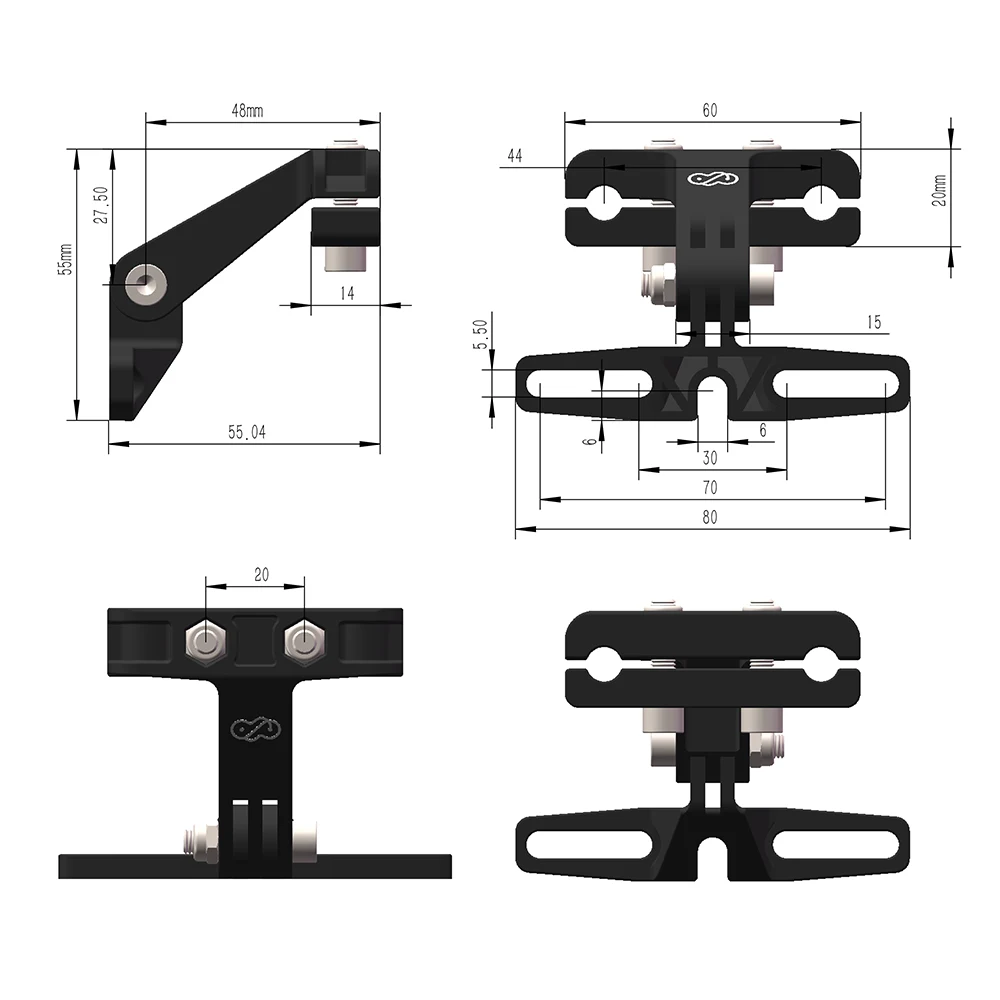

Seat advance mounting bracket:
Net weight: about 60g
Screw material: 304 stainless steel screws + nuts
Support material: ABS plastic
