M5STACK Atom JoyStick Programmable Dual-joystick Remote Controller For Stamp Fly Drone Development Board Kit M5StampS3

SKU: 1005007492379805

Original price was: $142.91.Current price is: $40.83.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

M5STACK Atom JoyStick Programmable Dual-joystick Remote Controller

 Product Features

  • STM32F030F4P6

  • Equipped with M5AtomS3

  • Compatible with Atom Lite, Atom Matrix, AtomS3 Lite, AtomS3

  • Dual joysticks, dual buttons, toggle switch

  • WS2812 RGB LEDs

  • Dual high-voltage lithium battery charging circuits

  • Battery detection

Applications

  • Drone control

  • Robot control

  • Smart cars

  • DIY projects

 Package Includes

1x Atom JoyStick
1x 300mAh high-voltage lithium battery
 Specification


Specification    Parameter
MCU:    STM32F030F4P6
RGB:    WS2812C
Charging IC:    [email protected]
Battery:    300mAh
Charging Current:    500mA
Button:    Left/Right Button
Buzzer:    Built-in Passive Buzzer@5020
operating temperature    : 0-40°C
Product Size:    84*60*31.5mm
Packaging Size:    162*99*36mm
Product Weight:    63.5g
Packaging Weight:    96.7g


 Product details

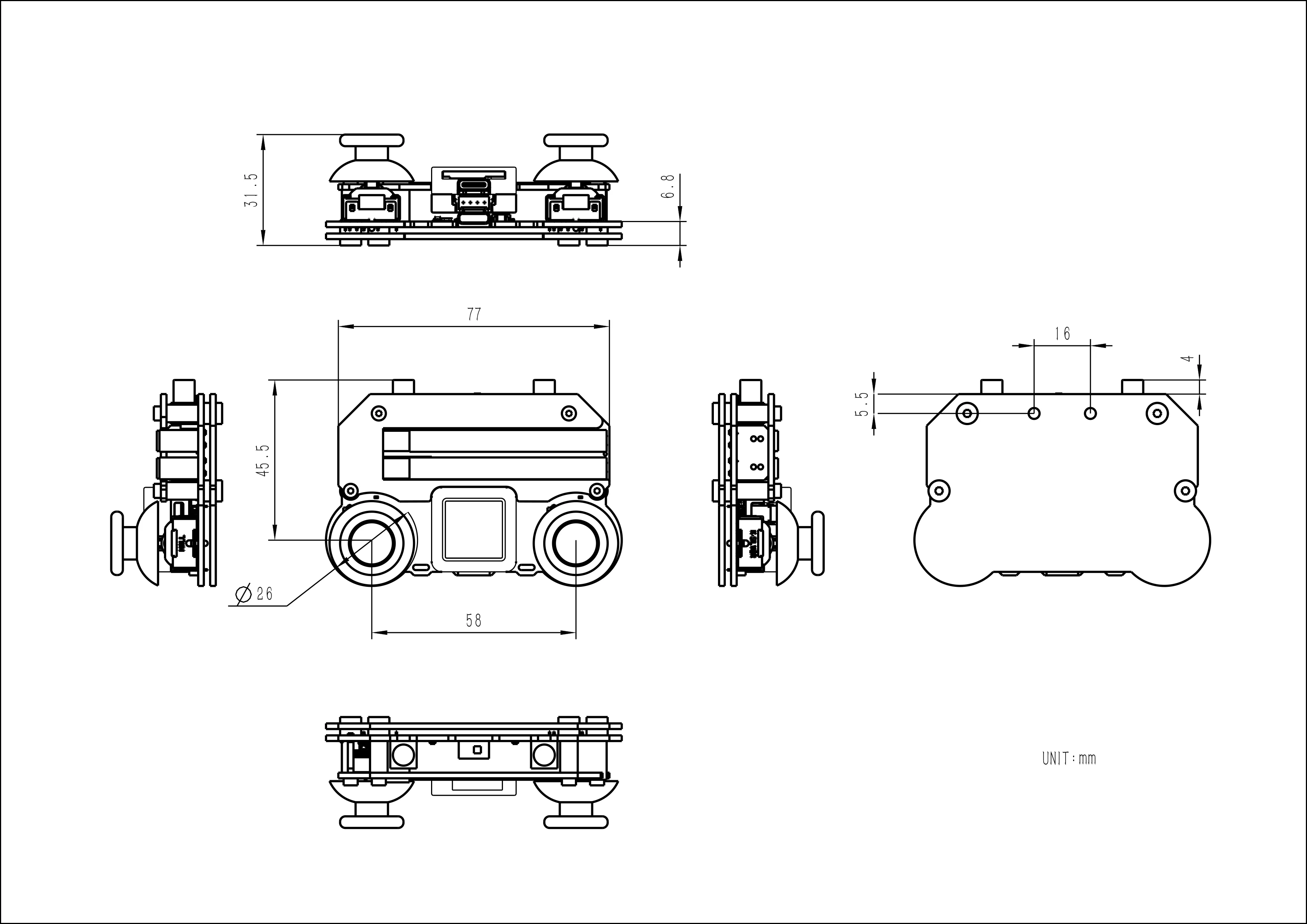

Module Size

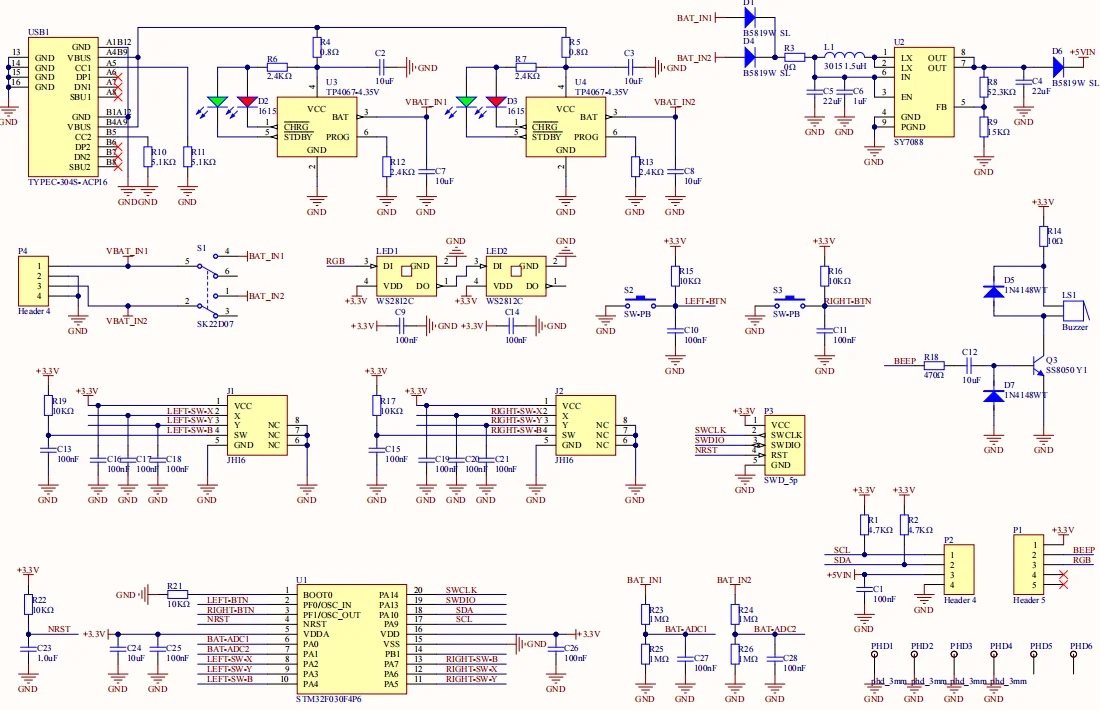

Schematic Diagram
 PinMap

Buzzer and RGB LEDs

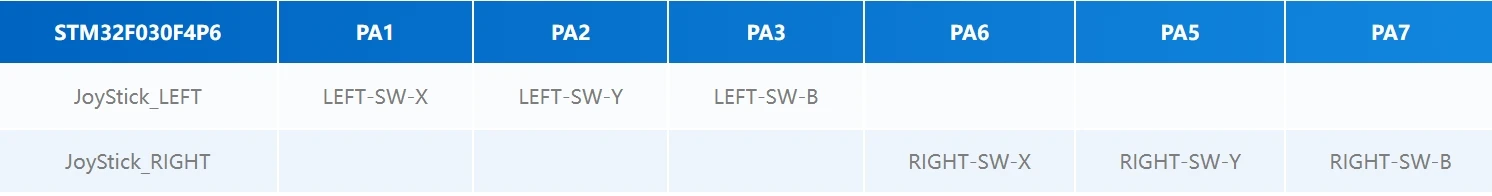

Joysticks

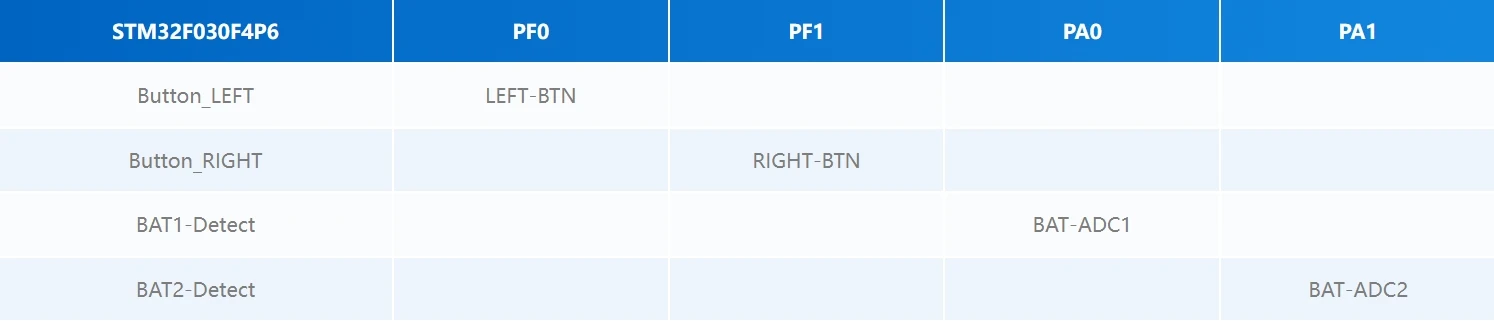

Buttons and Battery Detection

 Product Description

M5Atom Joystick is a versatile programmable dual-joystick remote controller featuring the AtomS3 as the main controller, with an STM32 handling co-processing functions. It is equipped with two 5-way joysticks with hall sensors, two function buttons, and built-in RGB LEDs for human-machine interaction and status indication. The device includes two high-voltage battery charging circuits. It comes pre-loaded with the Stamp Fly control firmware and communicates with Stamp Fly via the ESP-NOW protocol. The firmware source code is open-source. This product is suitable for drone control, robot control, smart cars, and various DIY projects.


 Kindly Remind

Usage Reminder
For the first use of the Atom JoyStick, please follow the tutorial below to flash the flight firmware. This is required to pair it with the StampFly for flight operations.

When the battery is depleted, insert the battery into the charging slot of the Atom Joystick. Connect the data cable to the Atom Joystick to start charging.

 Product Description

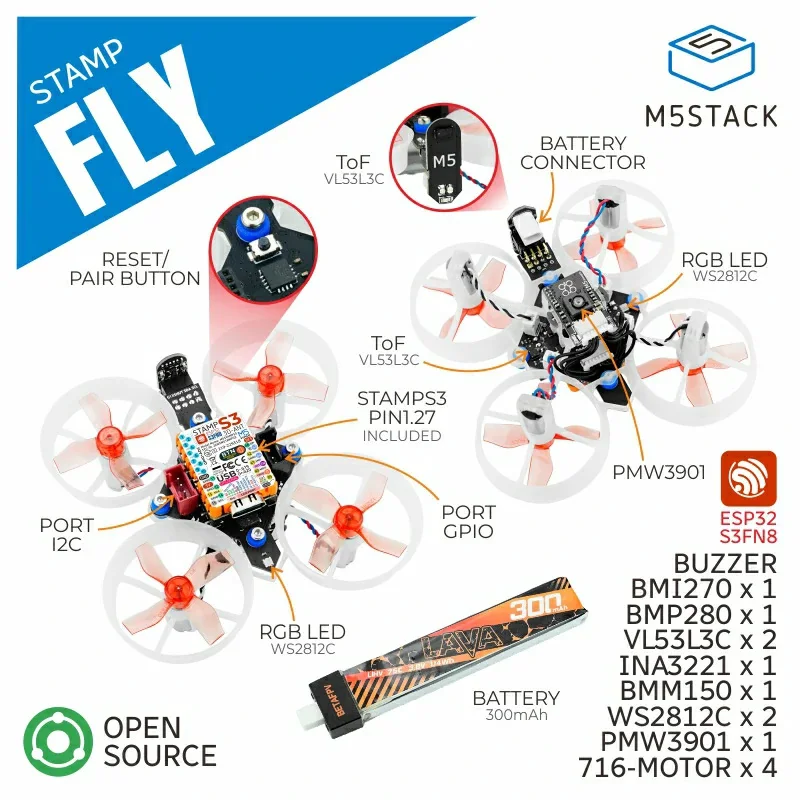

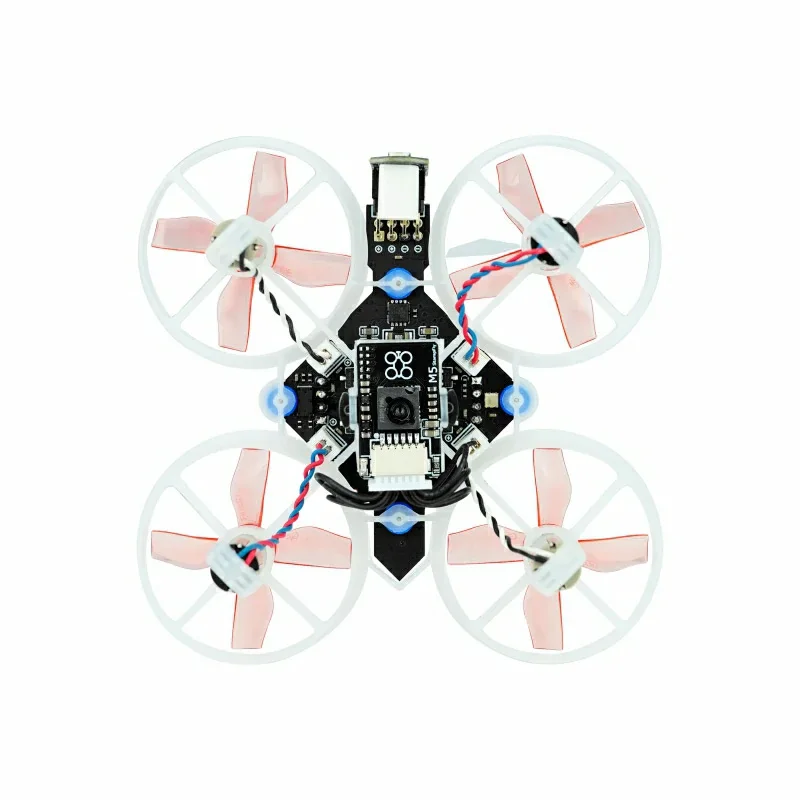

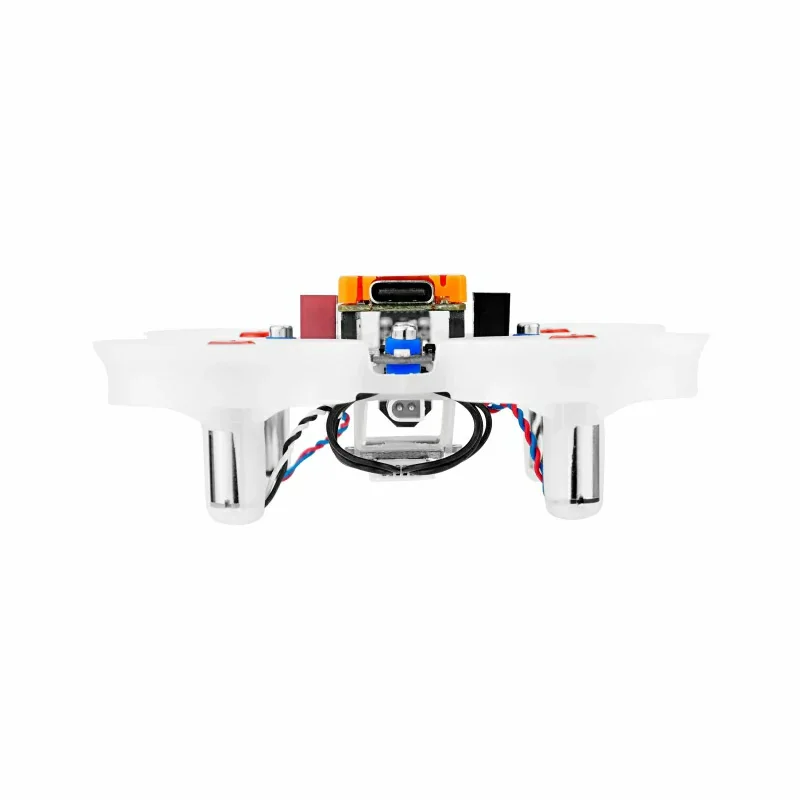

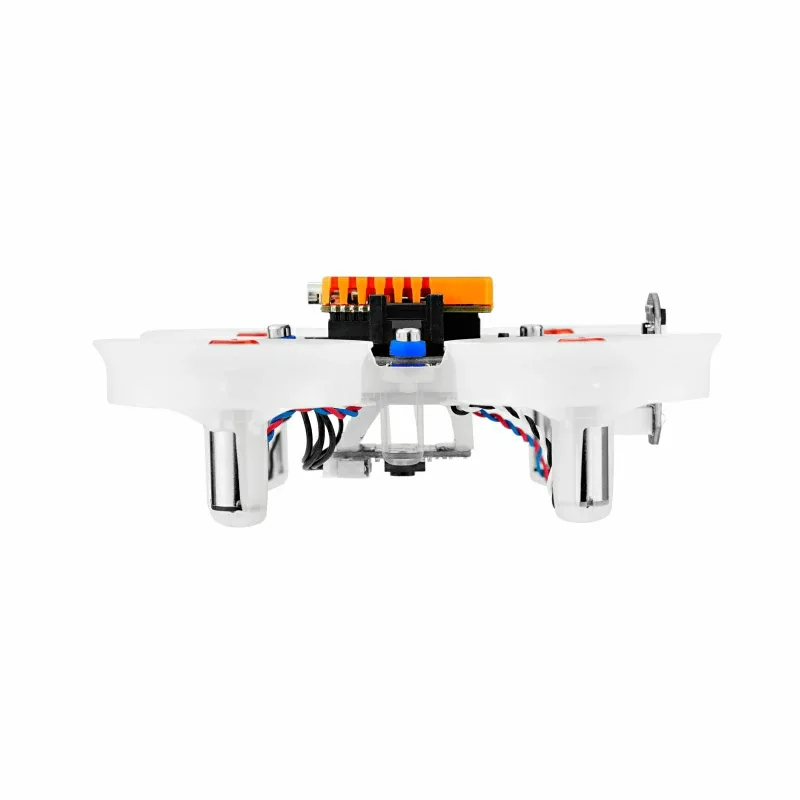

M5Stamp Fly is a programmable open-source quadcopter kit, featuring the StampS3 as the main controller. It integrates a BMI270 6-axis gyroscope and a BMM150 3-axis magnetometer for attitude and direction detection. The BMP280 barometric pressure sensor and two VL53L3 distance sensors enable precise altitude hold and obstacle avoidance. The PMW3901MB-TXQT optical flow sensor provides displacement detection. The kit includes a buzzer, a reset button, and WS2812 RGB LEDs for interaction and status indication. It is equipped with a 300mAh high-voltage battery and four high-speed coreless motors. The PCB features an INA3221AIRGVR for real-time current/voltage monitoring and has two Grove connectors for additional sensors and peripherals. Preloaded with debugging firmware, the Stamp Fly can be controlled using an Atom Joystick via the ESP-NOW protocol. Users can choose between automatic and manual modes, allowing for easy implementation of functions like precise hovering and flips. The firmware source code is open-source, making the product suitable for education, research, and various drone development projects.

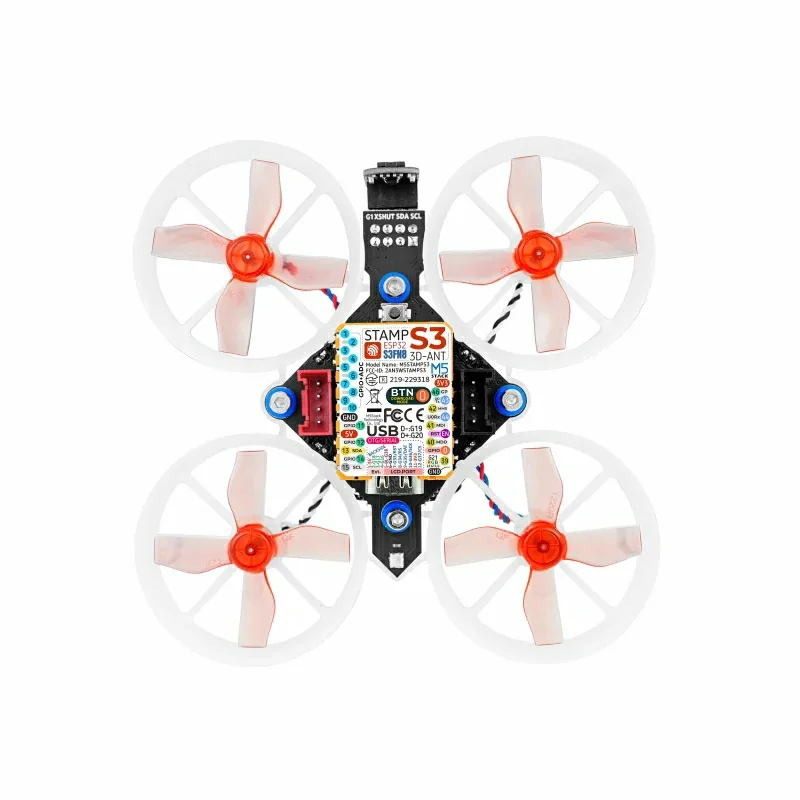

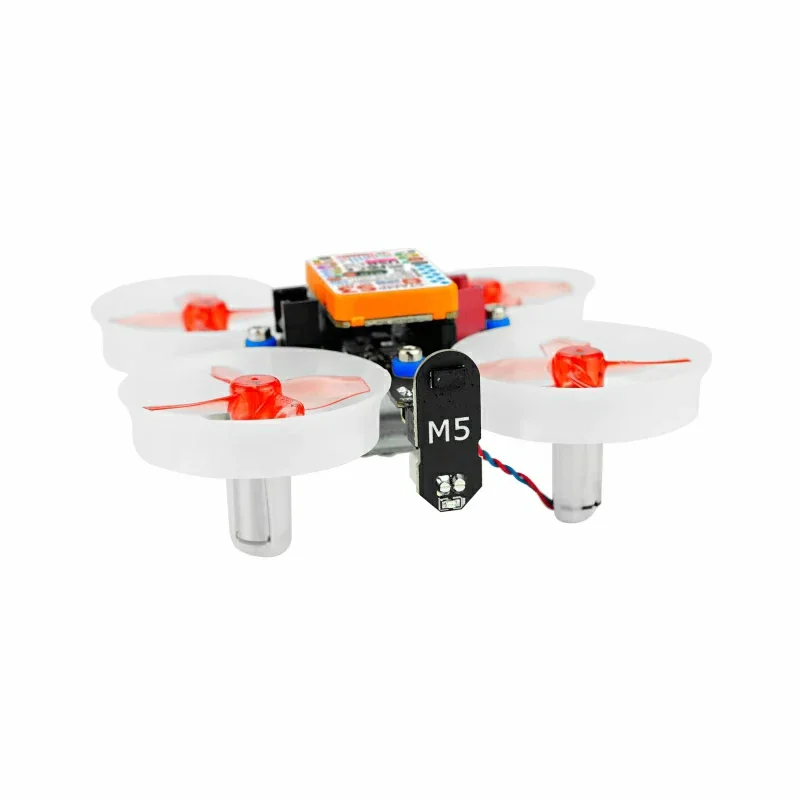

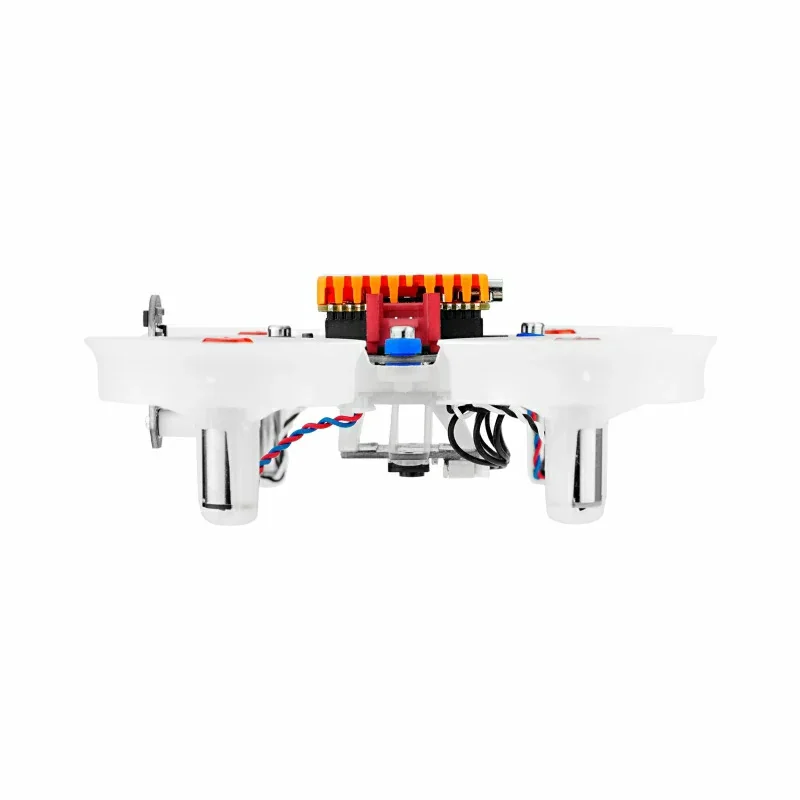

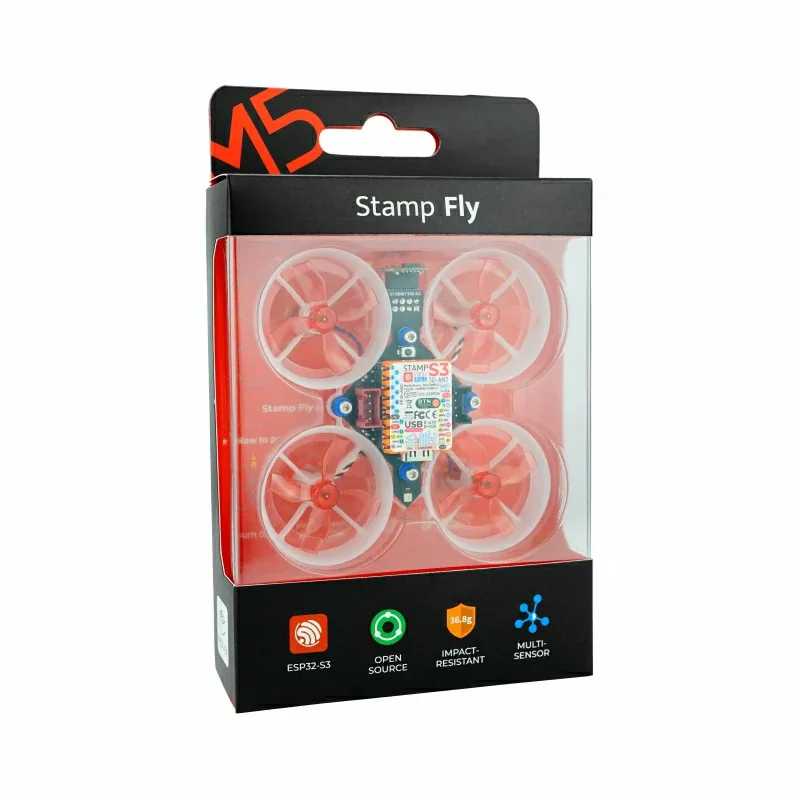

M5STACK Stamp Fly Programmable Open-source Quadcopter

 Product Features

  • M5StampS3 as the main controller

  • BMP280 for barometric pressure detection

  • VL53L3 distance sensors for altitude hold and obstacle avoidance

  • 6-axis attitude sensor

  • 3-axis magnetometer for direction detection

  • Optical flow detection for hovering and displacement detection

  • Buzzer

  • 300mAh high-voltage battery

  • Current and voltage detection

  • Grove connector expansion

Applications

  • Education

  • Research

  • Drone development

  • DIY projects

 Package Includes

1x Stamp Fly
1x 300mAh high-voltage lithium battery
 Specification

Specification Parameter

M5StampS3: ESP32-S3@Xtensa LX7, 8M-FLASH, WiFi, OTGCDC support

Motor: 716-17600kv

Distance Sensor: VL53L3CXV0DH/1 (0x52) @ max 3m

Optical Flow Sensor: PMW3901MB-TXQT

Barometric Sensor: BMP280 (0x76) @ 300-1100hPa

3-axis Magnetometer: BMM150 (0x10)

6-axis IMU Sensor: BMI270

Grove: I2C+UART

Battery: 300mAh 1S high-voltage lithium battery

Current/Voltage Detection: INA3221AIRGVR (0x40)

Buzzer: Built-in Passive Buzzer @ 5020

operating temperature : 0-40°C

Product Size: 81.5*81.5*31mm

Packaging Size: 162*99*36mm

Product Weight: 36.8g

Packaging Weight: 70.7g


 Product details

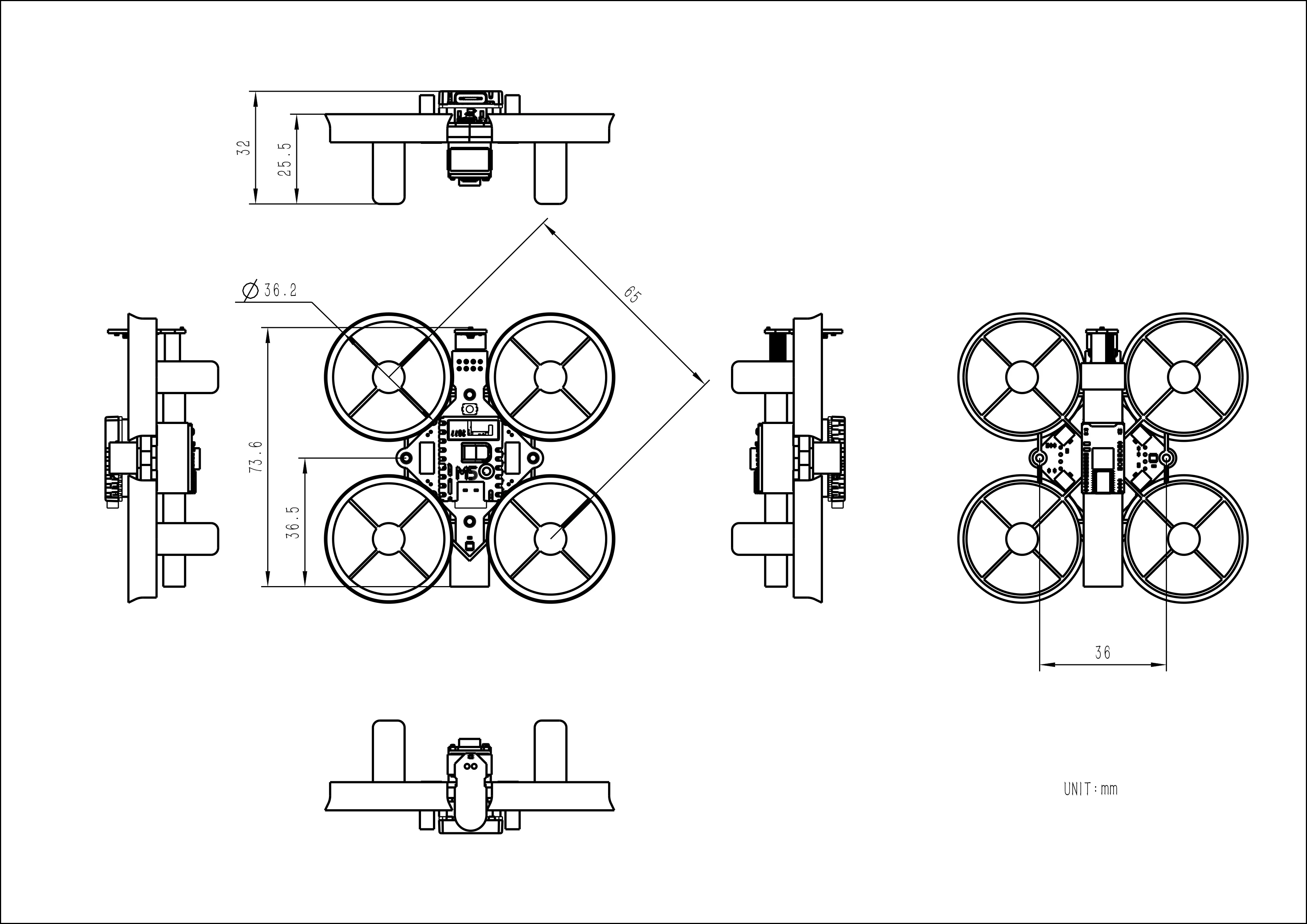

Module Size

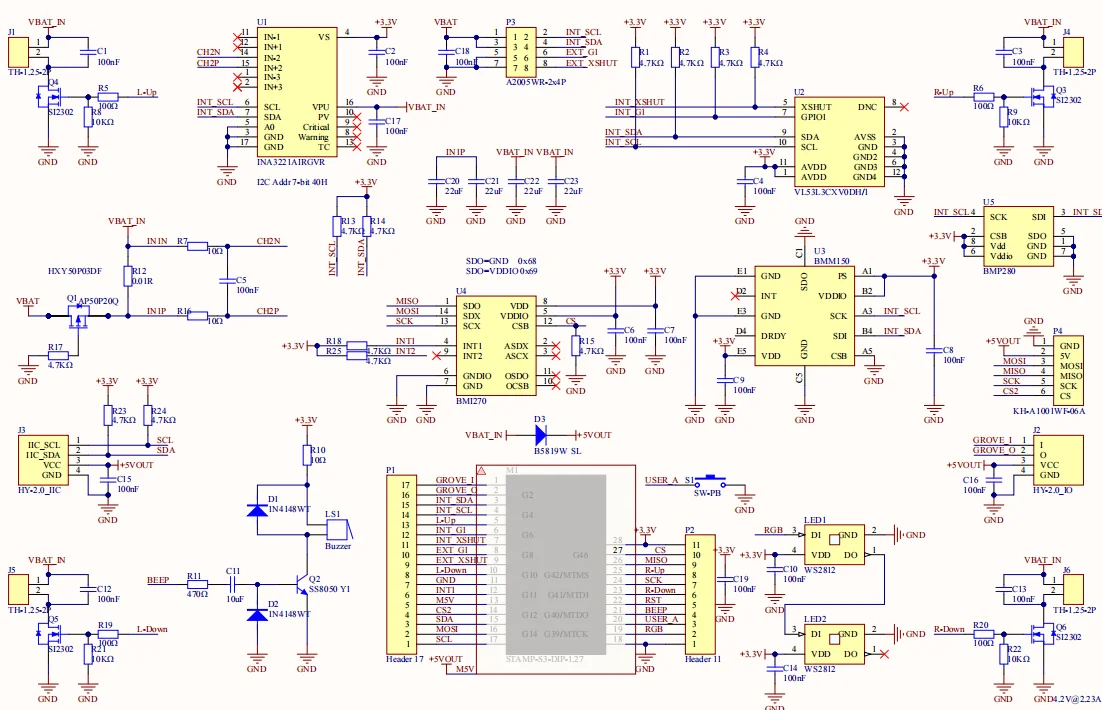

Schematic

 PinMap

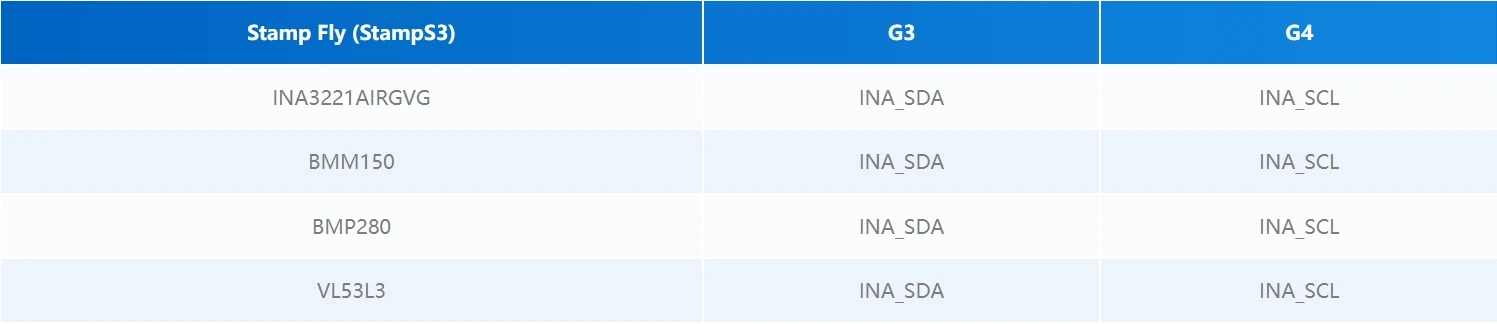

I2C Interface

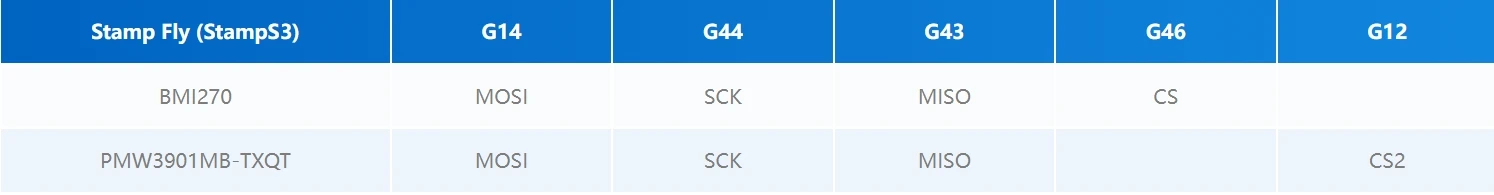

SPI Interface
Grove Interface
Buzzer and RGB LEDs
