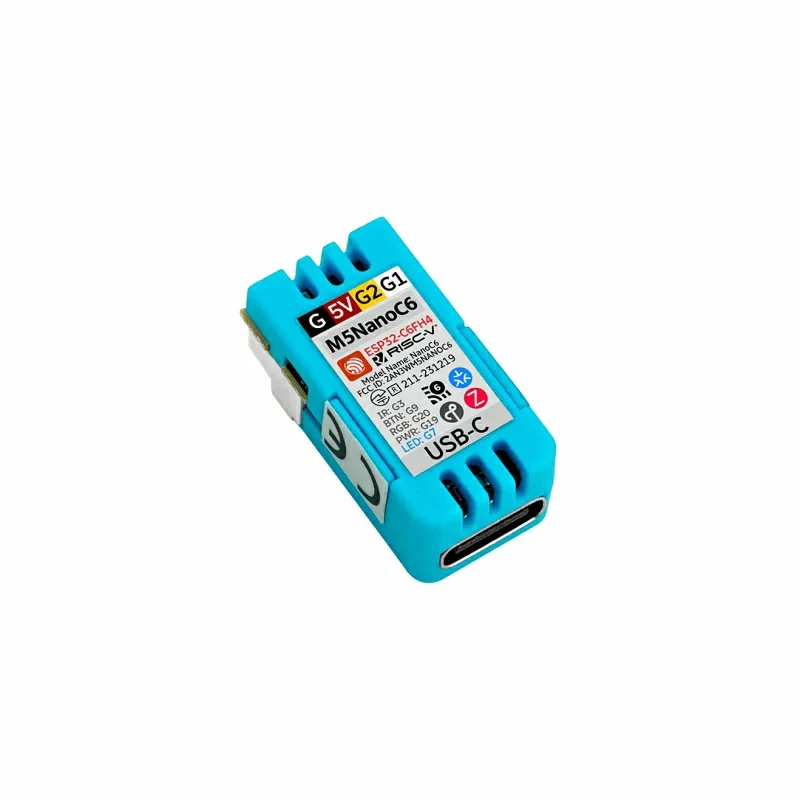

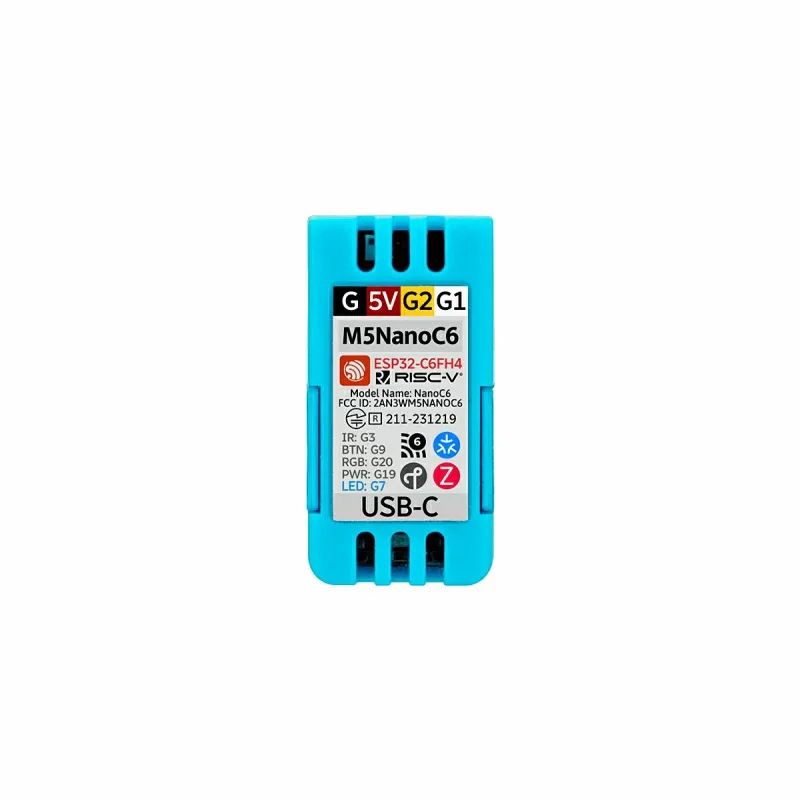

M5Stack M5NanoC6 IoT Development Board Kit
-
Support 2.4Ghz Wi-Fi 6, Zigbee, and Thread, Matter wireless protocols.
-
Built-in infrared LED and RGB
-
Grove port
-
Ceramic antenna
-
Small in size
-
Intelligent housing system
-
Industrial control system
-
Environmental monitoring system
-
Agricultural iot systems
-
Medical treatment
-
Consumer electronic
-
Service robot

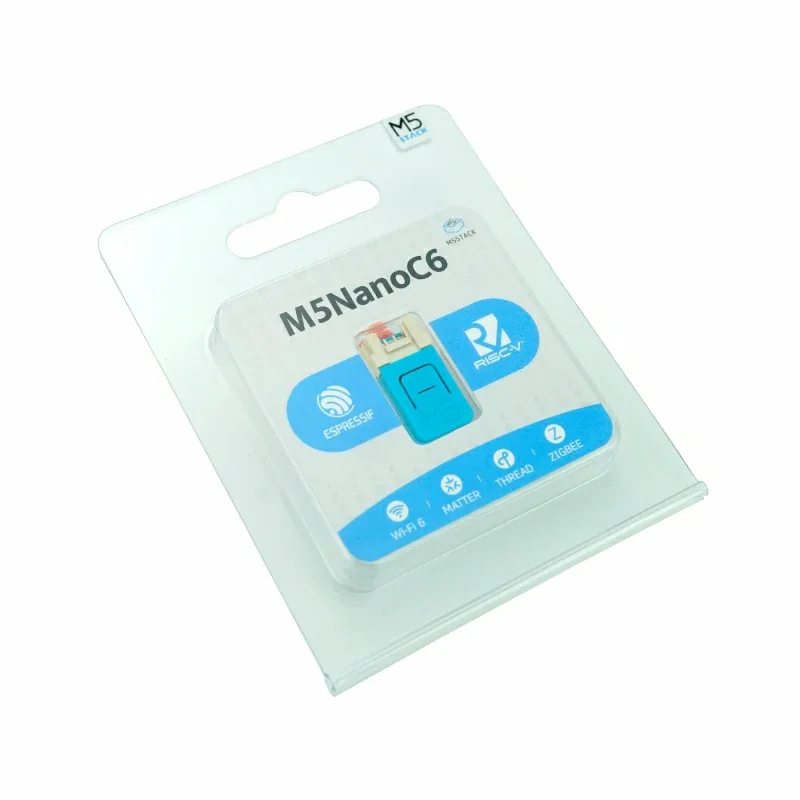

1x M5NanoC6
Specifications
Resources Parameters
SoC: ESP32-C6FH4@RISC-V 160MHz, 4M Flash, Wi-Fi 6, Zigbee 3.0, Thread 1.3, Matter, CDC
WIFI protocol: 2.4GHz Wi-Fi 6 protocol (802.11ax) and backward compatible with 802.11b /g/n
RGB: WS2812
IR remote control parameters: The infrared emission distance of < 0° is 632CM; The infrared emission distance of < 45° is 83CM; The infrared emission distance of < 90° is 29CM
Grove outputs maximum current: DC 5V@600mA(Output capacity depends on USB power supply)
Standby current （Deep Sleep Mode): Type-C Power supply DC [email protected]; Grove power supply DC 5V@50uA
Standby current (ULP Mode): Type-C Power supply DC 5V@252uA; Grove power supply DC [email protected]
Operating current: In WIFI mode: DC [email protected]
WI-FI stretch test (antenna back up, back alignment test): 54.9m
Operating temperature: 0-40°C
Product Size: 23.5*12*9.5mm; Package Size: 110*81*11mm
Product Weight: 2.5g; Package Weight: 11.2g

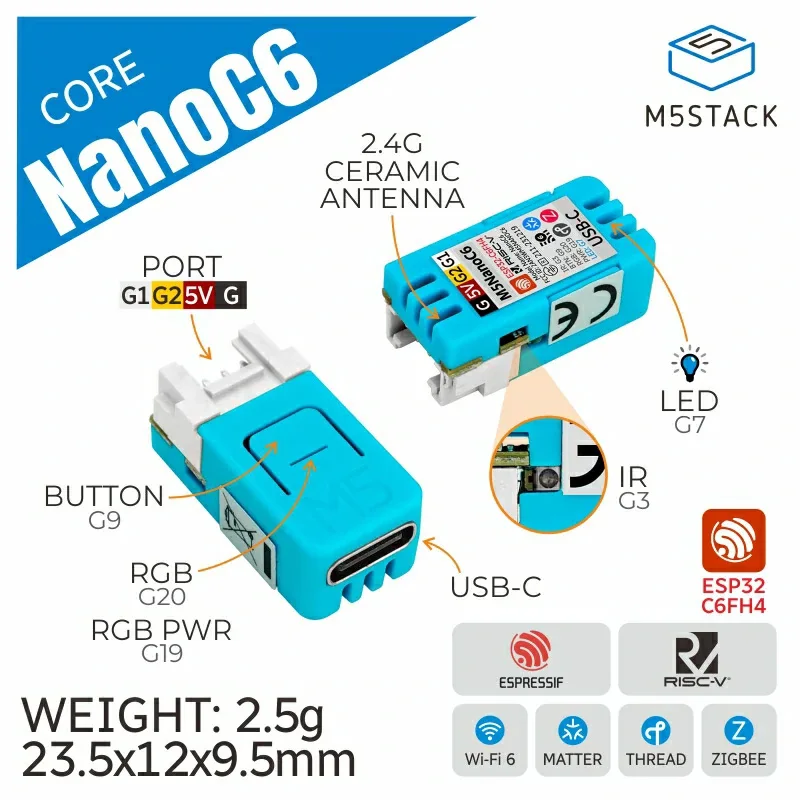

 PinMap
Please note
1, The burning program needs to enter the download mode: press and hold the key (GPIO9), and then connect the data cable to enter the download mode.
2, The M5NanoC6 is the first WiFi-6-enabled core control board that supports the 2.4GHz Wi-Fi 6 protocol (802.11ax) and is backward compatible with 802.11b /g/n.
3, The WiFi 6 protocol has higher speed, greater capacity, lower latency, and stronger security than previous WiFi protocols.
