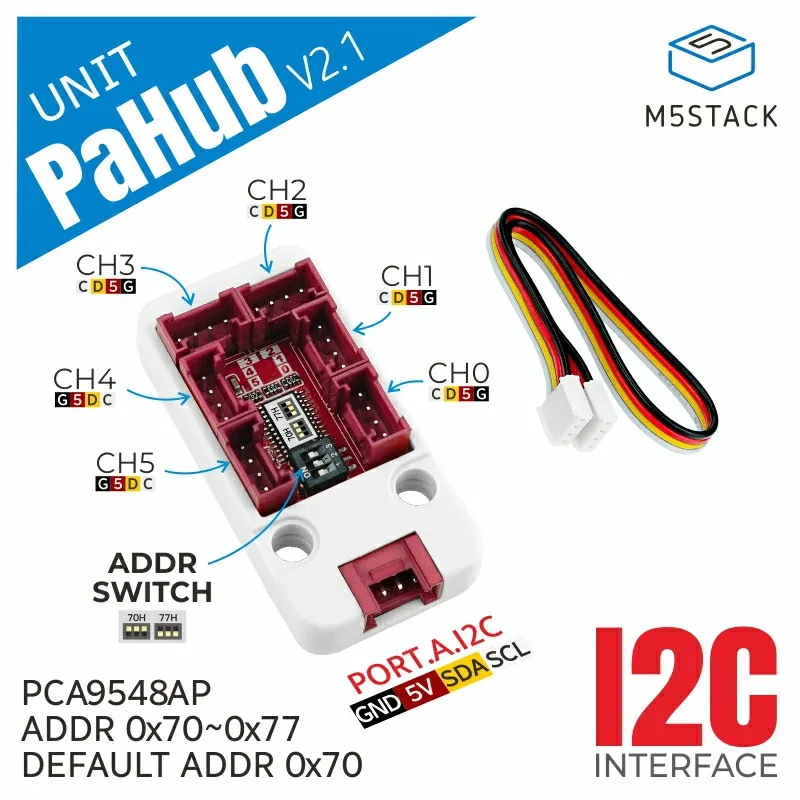

M5Stack PaHub v2.1 Unit I2C Multiplexer


 Product Features

  • I2C HY2.0-4P PORTA expansion

  • Allows multiple-unit nesting

  • 6 extended Grove ports

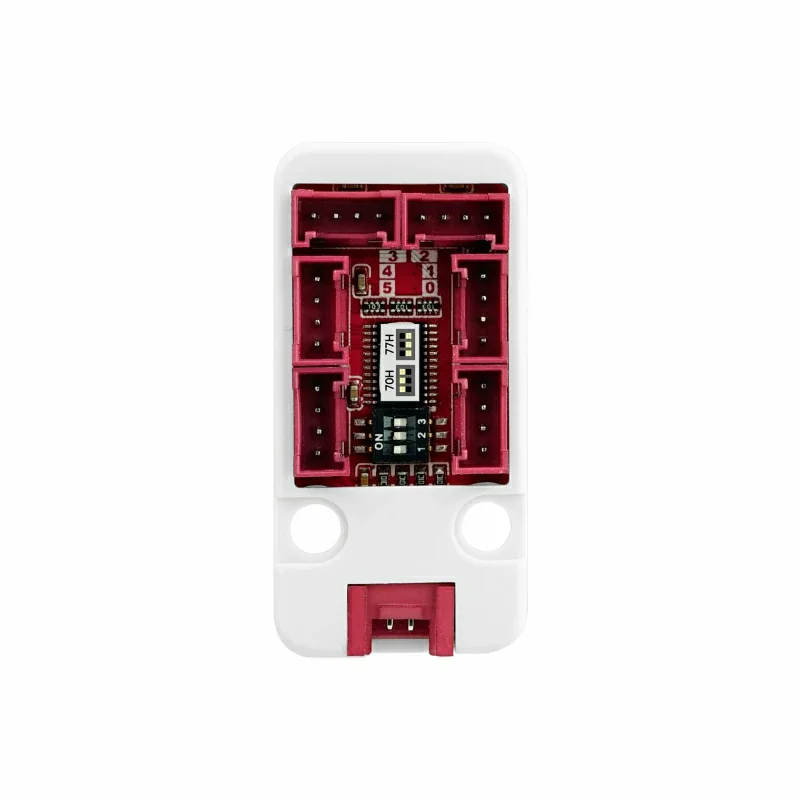

  • DIP switch for I2C address selection

  • LEGO-compatible holes

Applications

  • I2C expansion

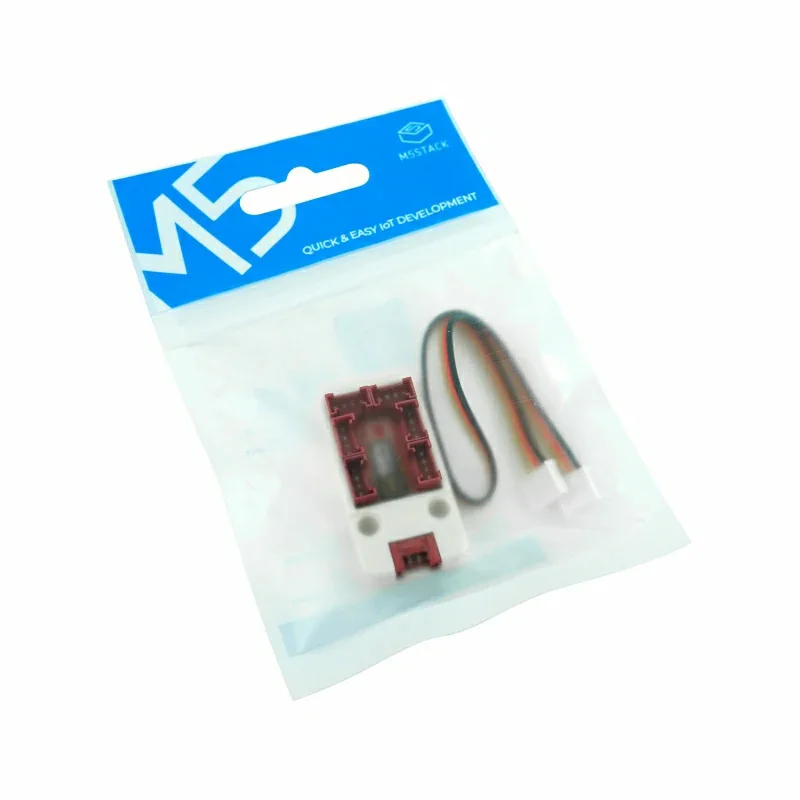

 Package Includes

1x Unit PaHub v2.1
1x HY2.0-4P cable (20cm)
 Specification

Specification Value

I2C Multiplexer IC: PCA9548AP

Communication: I2C:0x70~0x77 (Default: 0x70, adjustable via DIP switch)

Operating Temperature: 0-40°C

Product Dimensions: 48*24*12mm

Packaging Dimensions: 136*92*12mm

Product Weight: 7.1g

Packaging Weight: 12.9g

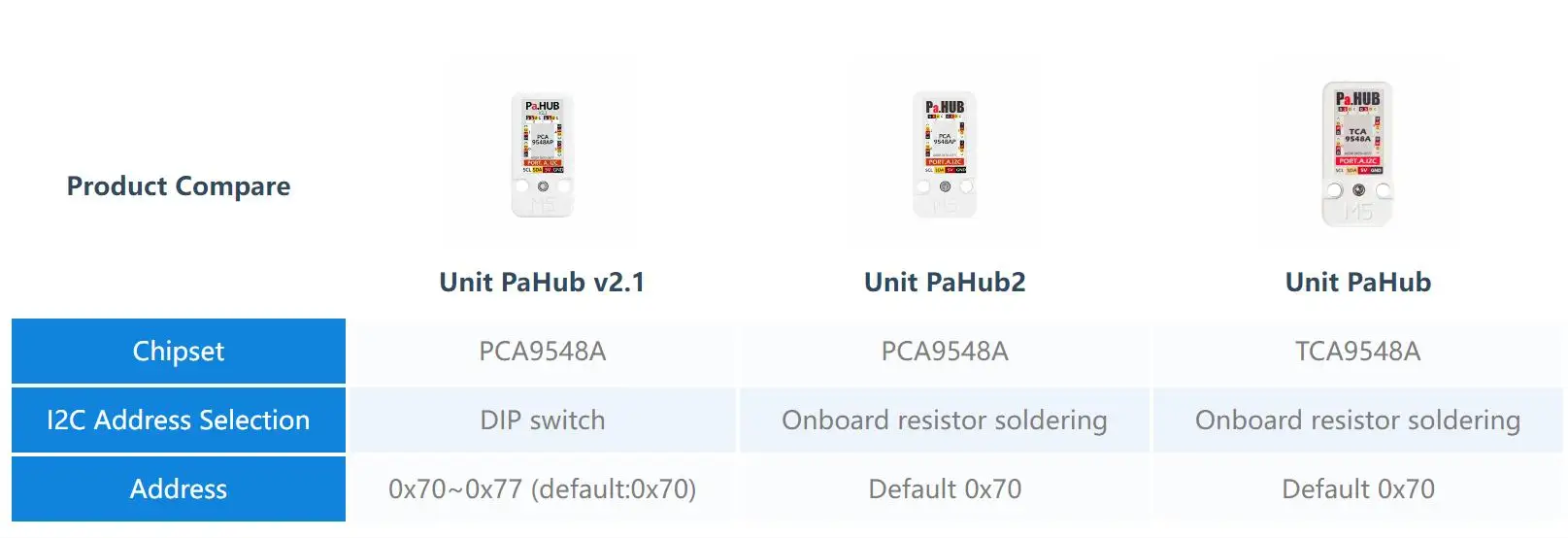

 Product Comparison
 Product details

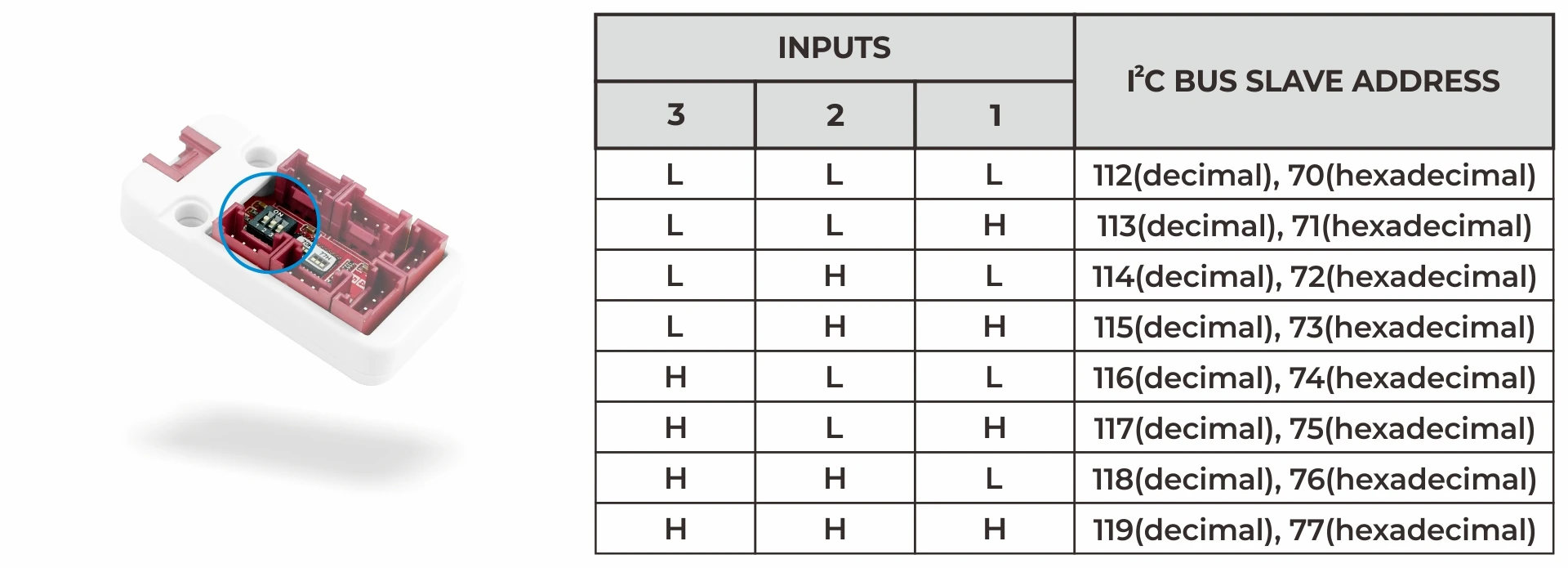

Supports device address modification via DIP switch, allowing users to adjust the I2C address by configuring the corresponding truth table settings.

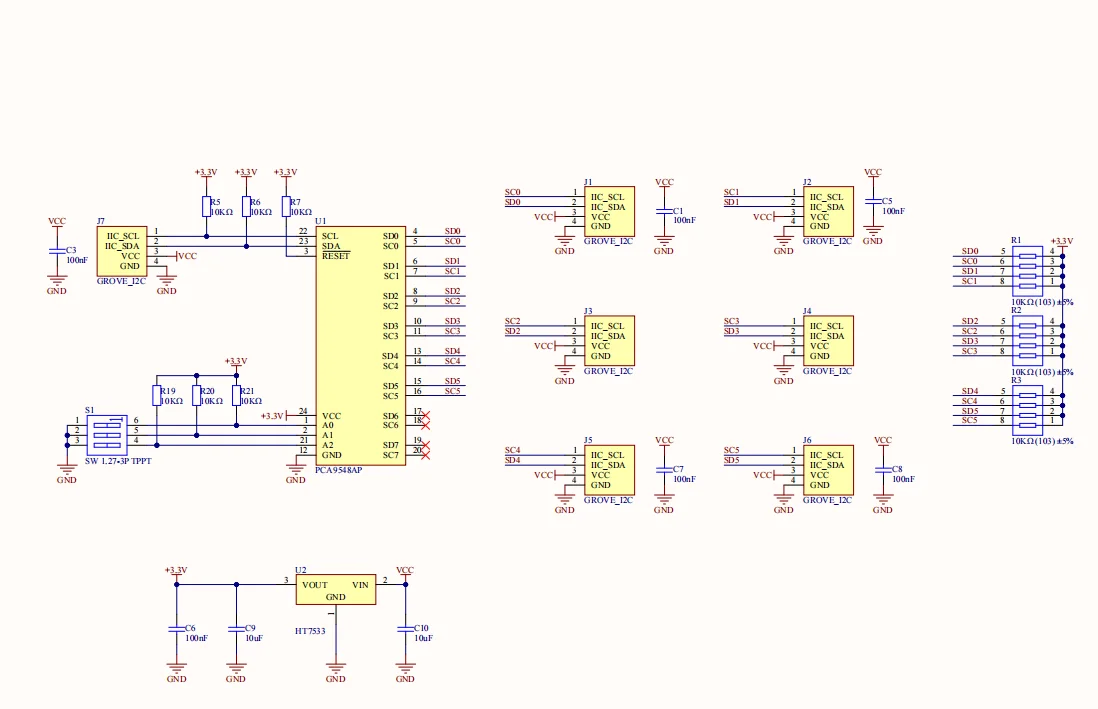

Schematics

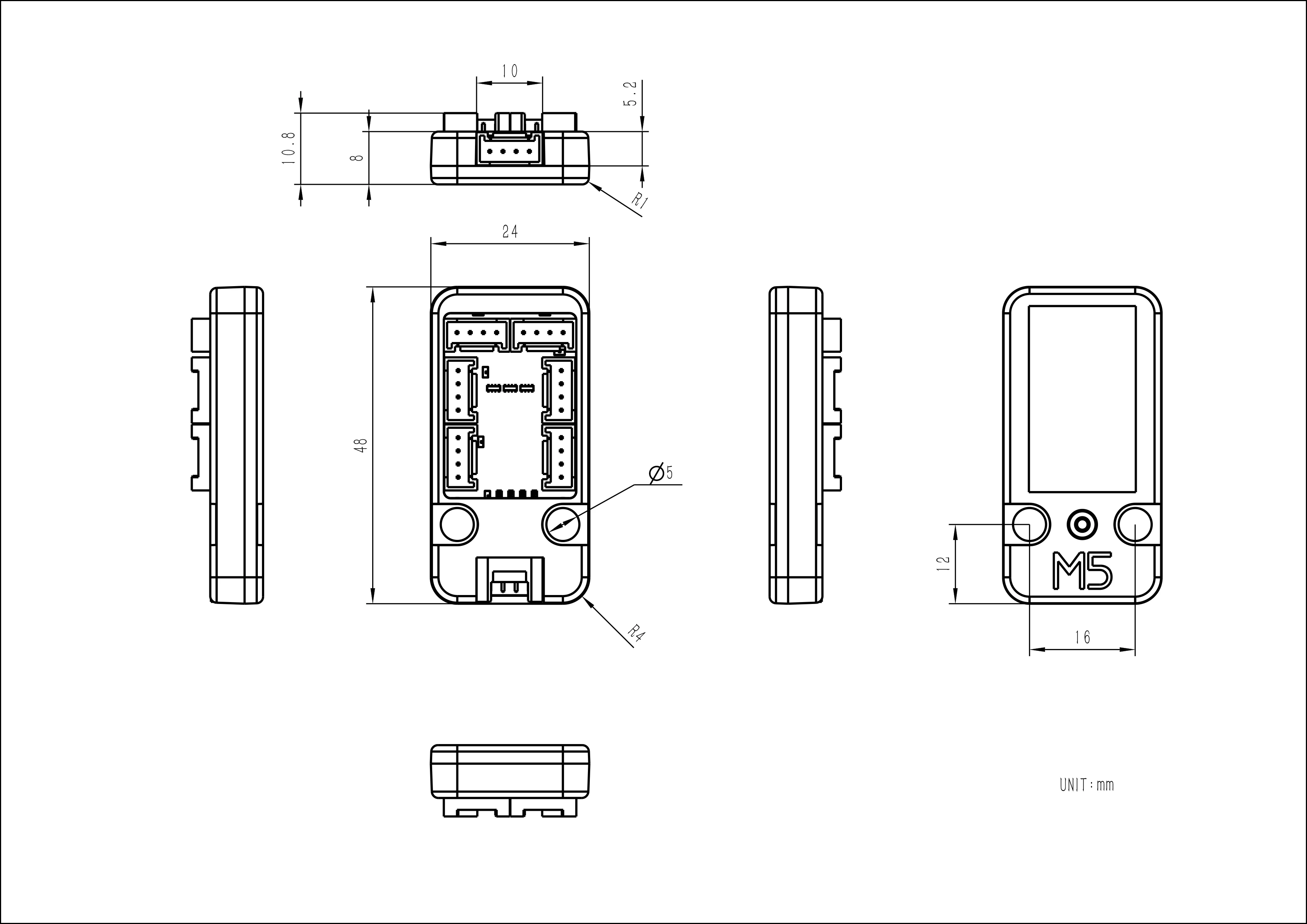

Module Size

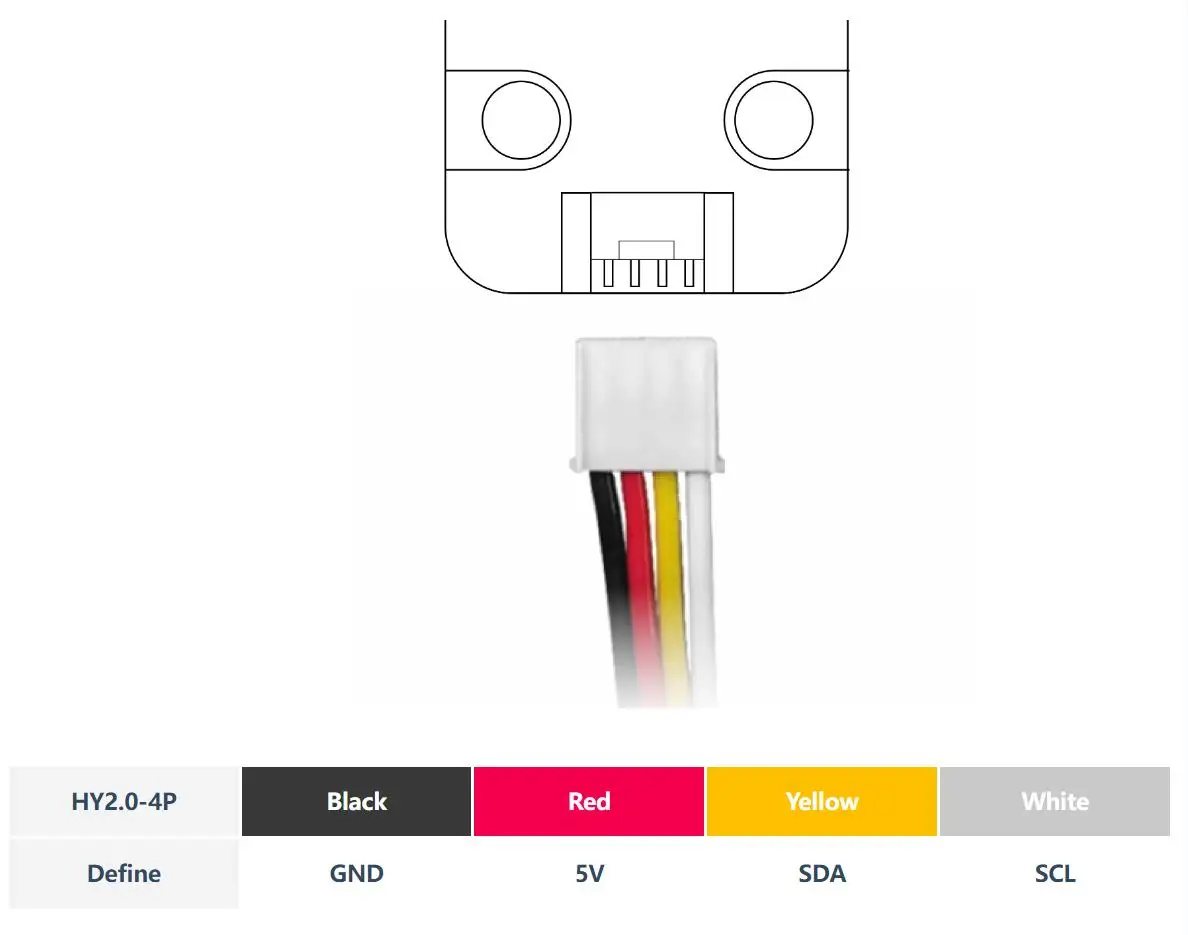

 PinMap

 Product Description

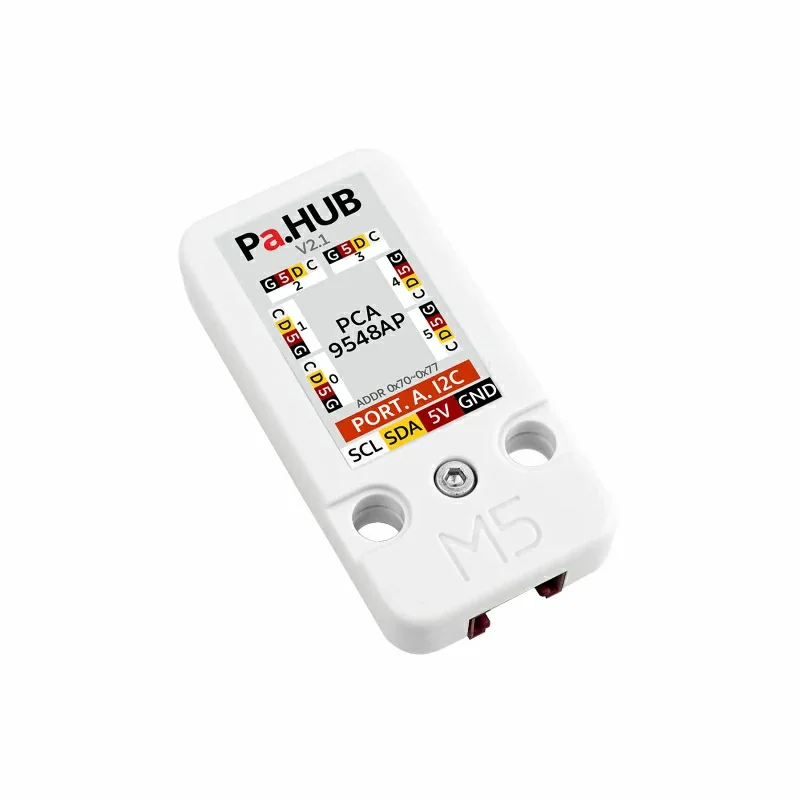

Unit PaHub v2.1 is an I2C multiplexer unit utilizing the PCA9548AP chip, capable of expanding a single I2C interface into six channels. By selecting different channels, it allows multiple devices with the same or different I2C addresses to coexist on the same I2C bus (switching via channel polling). The module features an onboard DIP switch for easy adjustment of the Unit PaHub v2.1's I2C address, supporting multiple-unit cascading to connect more I2C devices. Compared to its predecessor, it offers greater flexibility and scalability in parallel I2C device usage scenarios. This product is ideal for applications requiring simultaneous use of multiple I2C devices.
