M5Stack StickC PLUS2 ESP32 IoT Development Kit IR BT and WiFi 1.14-inch Screen IoT Automation Controller Modules

SKU: 1005008184168249

Original price was: $92.82.Current price is: $26.52.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

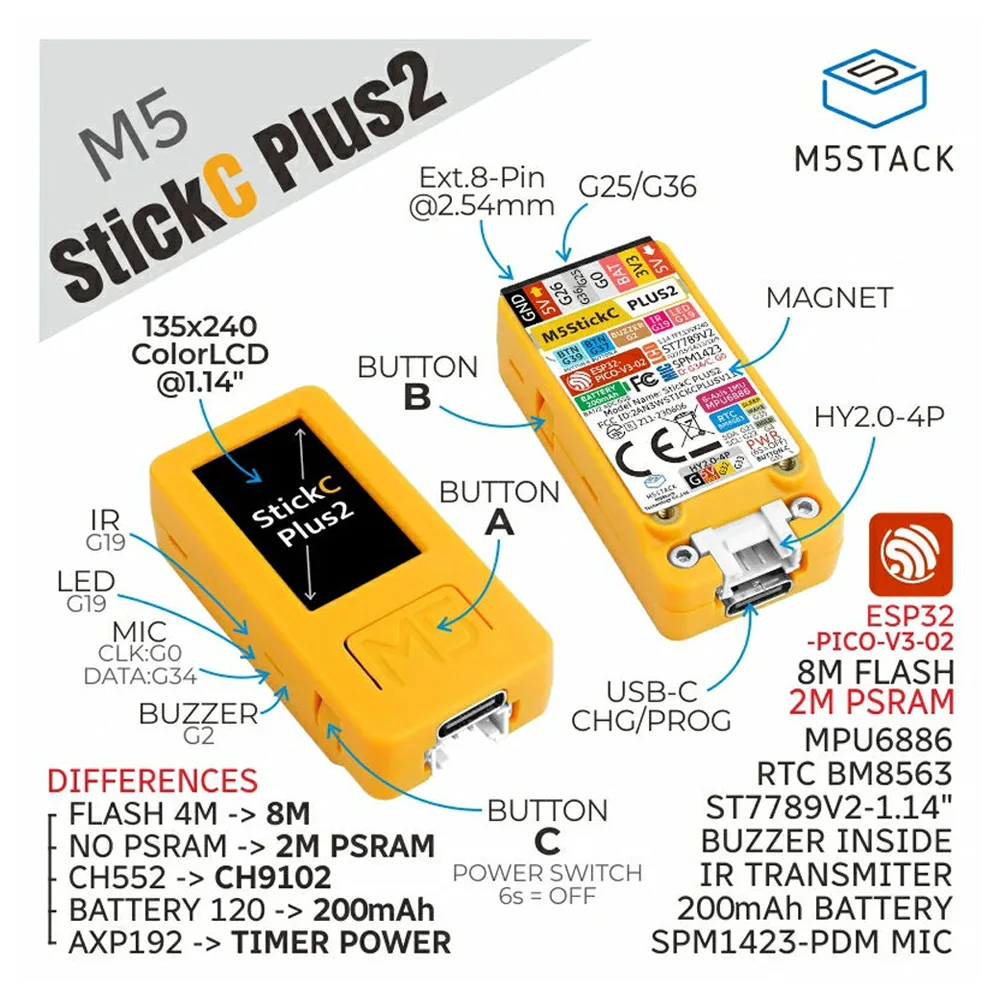

M5StickC PLUS2 ESP32 IoT Development Kit


 Product Features

  • ESP32-­PICO-­V3-­02-Base，support WiFi

  • Built-in 6-Axis IMU

  • IR transmitter

  • Microphone

  • RTC

  • Buttons, LCD(1.14 inch)

  • Built-in Lithium Polymer Battery@200mAh

  • Extendable Socket

  • Built-in Passive Buzzer

  • Wearable & Wall mounted

  • Compatible with multi-platform development:

  • UIFlow, MicroPython, Arduino, .NET nanoFramework

Applications


  • Internet of things terminal controller

  • Wearable devices

  • Stem education product

  • DIY creation

 Package Includes

1x M5StickC Plus2
 Specification

Resources Parameters

ESP32: ESP32-PICO-V3-02, 240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash

PSRAM: 2 MB PSRAM

Flash: 8 MB flash

Power Input: 5V @ 500mA

Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1

LCD screen: 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2

Button: Custom button x 3

Power indicator LED: RED LED(non-programmable)

MEMS: MPU6886

Buzzer: built-in buzzer

MIC: SPM1423

RTC: BM8563

Battery: 200mAh @ 3.7V

Antenna: 2.4G 3D Antenna

PIN port: G0, G25/G36, G26, G32, G33

Operating Temperature: 0°C to 40°C

Case Material: Plastic ( PC )

Product Size: 48*25*13mm

Package Size: 114*64*23mm

Product Weight: 17g

Package Weight: 24.8g

 Product Comparison

Product Name

Soc

Power management

Battery Capacity

Memory

UART Chip

Body Color

M5STICKC

PLUS

ESP32-PICO-D4

AXP192

120mAh

520KB SRAM and 4MB Flash

SRAM and 4MB Flash

orange red

M5STICKC

PLUS2

ESP32-PICO-V3-02

200mAh

2MB PSRAM and 8 MB flash CH9102

CH9102

orange
 Product details

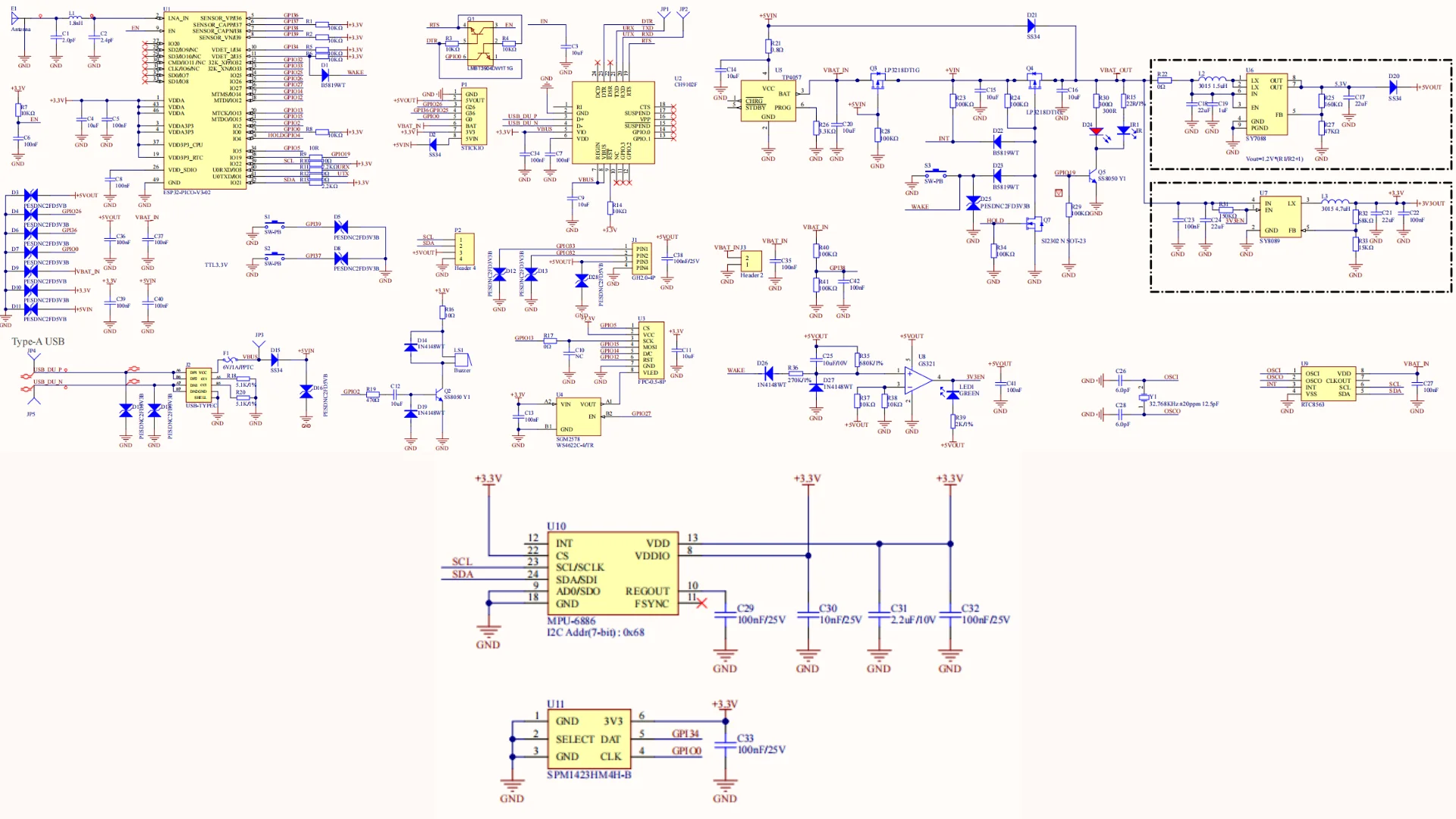

Schematics

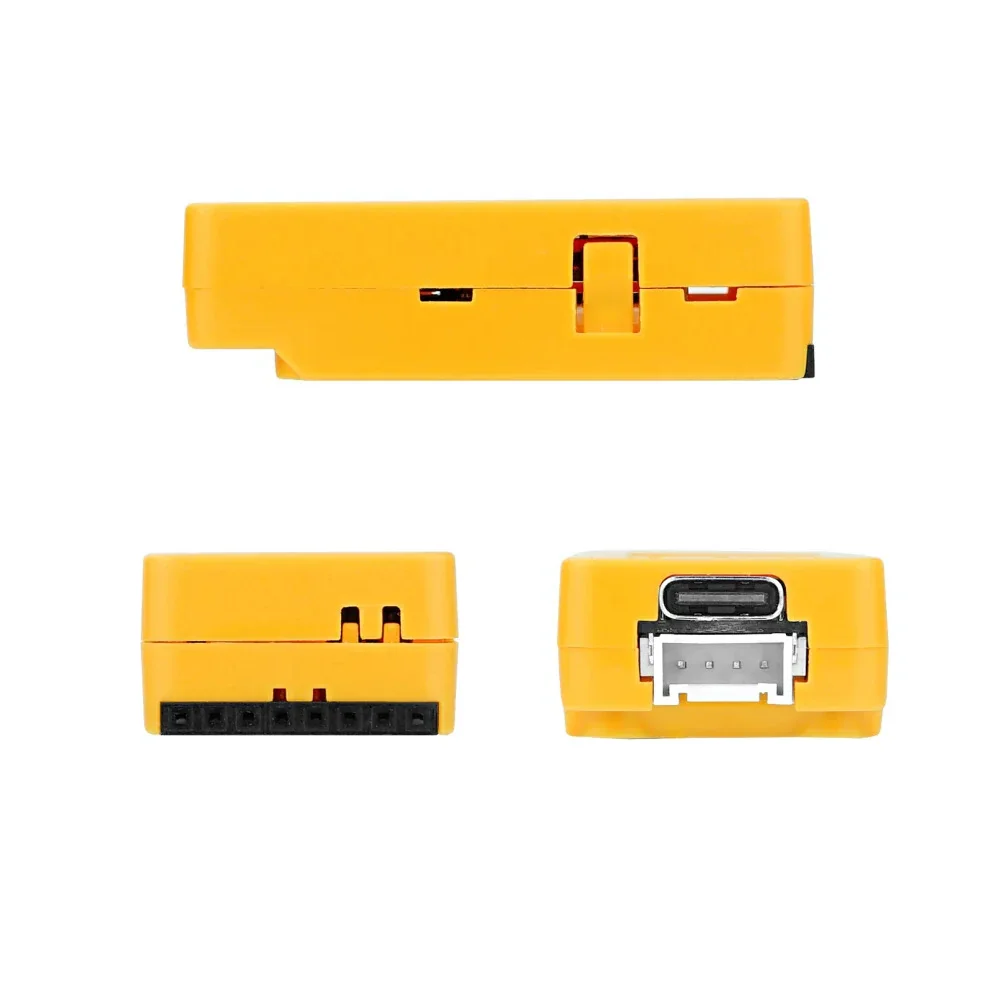

Module Size

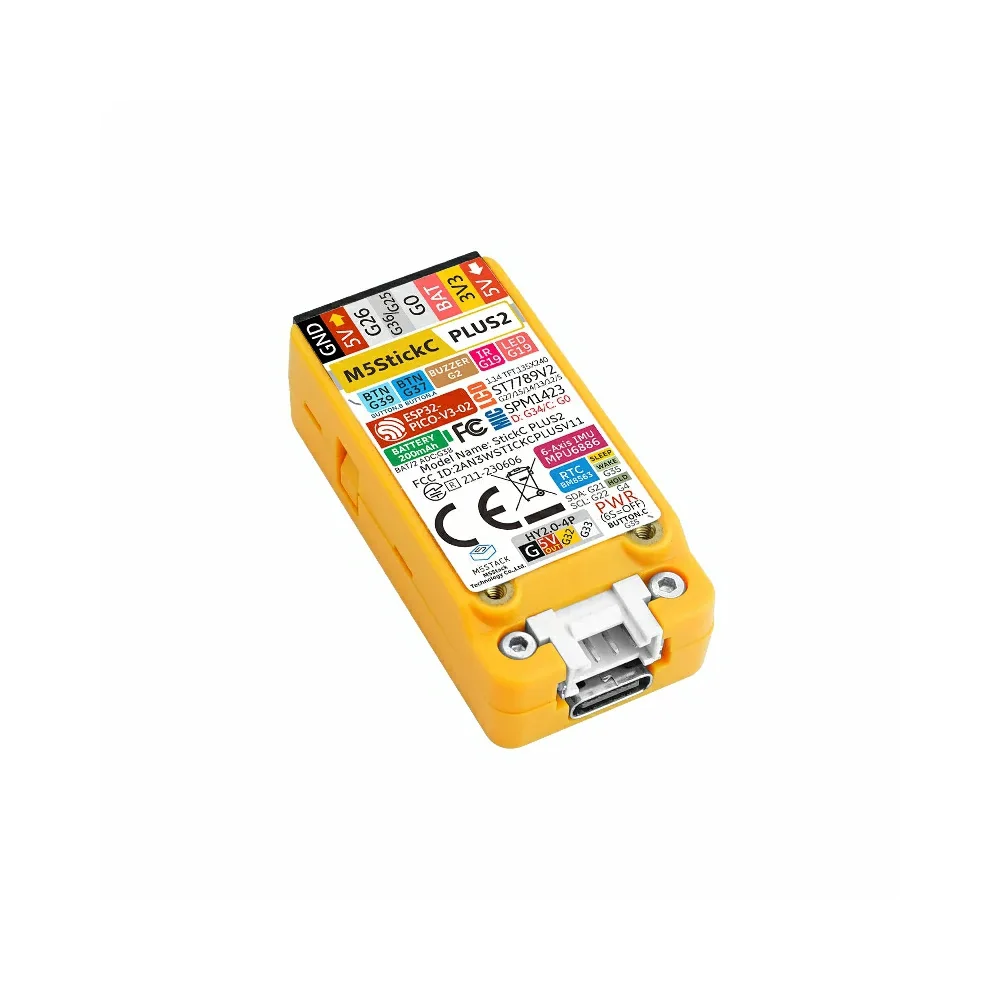

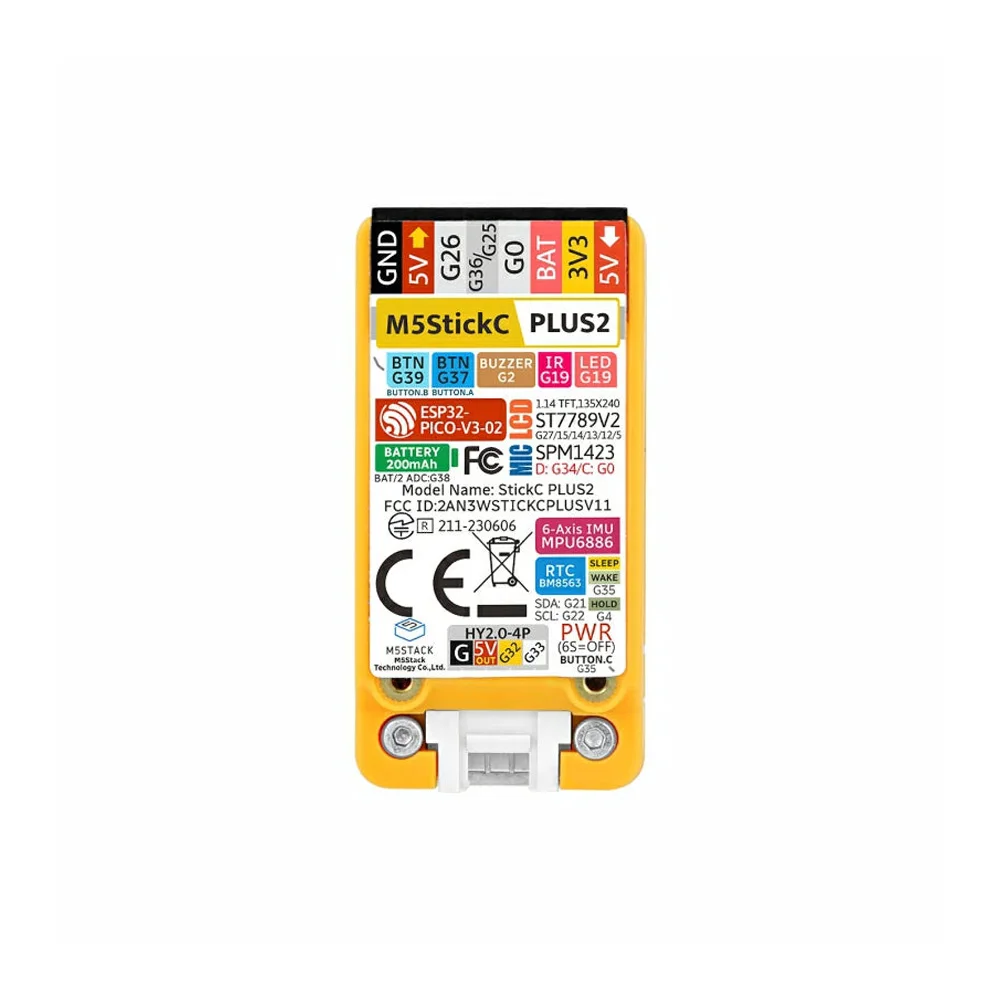

 PinMap

RED LED & IR Transmitter & BUTTON A & BUTTON B & Buzzer

TFT LCD

Driver IC:ST7789V2

Resolution:135 * 240

 Product Description

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.

M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.
