LCD Digital Magnetic Hotplate Stirrer
Three heating models for selecting (fast heating, standard heating and stable heating)
JVLAB heating magnetic stirrers with aluminum work plate, is capable of rapid heating and stable heating as well as precise temperature control. Almost all leading safety standards and features are included for superior and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals, etc.
Features
-
Digital control with max. temperature at 340°C,  max. speed up to 1500rpm.
-
Aluminum alloy work plate with flat plane provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
-
High-resolution LCD display shows actual temperatures and speed.
-
PID controller ensures a precise and steady heating process.
-
External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
-
Brushless DC motor enables more powerful speed control.Â
-
Three heating modes for selected ( fast heating, standard heating and stable heating ).
-
The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off.
-
Remote control function through RS232 interface provides PC control and data transmission.

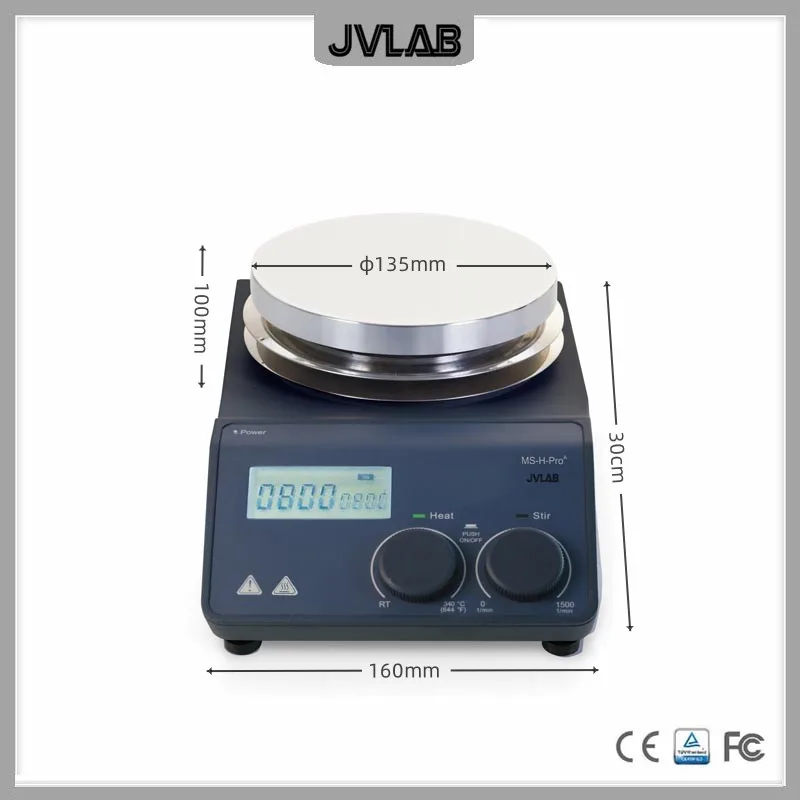

Work plate dimension: φ135mm(5 inch)
Work plate material: Aluminum cover with ceramic coating
Motor type: Brushless DC motor
Motor rating input: 18W
Motor rating output: 10W
Power: 650W
Heating output: 600W
Voltage: 100-120/200-240VÂ 50/60Hz
Stirring positions: 1
Max. stirring quantity[H2O]: 20L
Max. magnetic bar[length]: 80mm
Speed range: 100-1500rpm, resolution±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room temp.-340°C, increment 1°C
Temperature control accuracy: ±1°C(<100°C), ±1%(>100°C)
Over temperature protection: 420°C
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000 (accuracy ±0.2)
"Hot" warning: 50°C
Data connector: RS232
Protection class: IP21
Dimension[WxDxH]: 280×160×100mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
Package listing

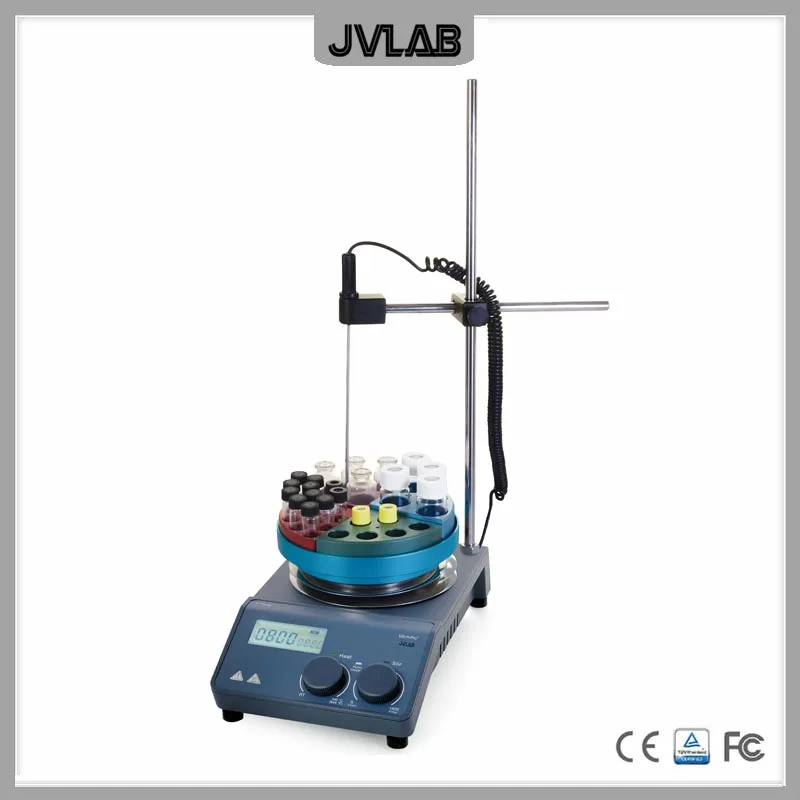

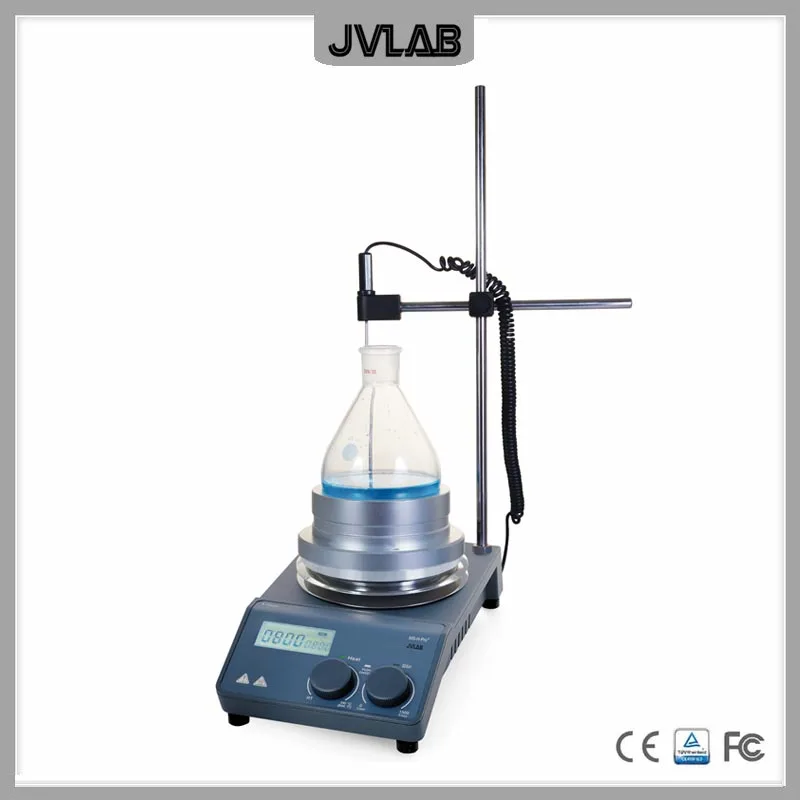

This product come with temperature sensor and support clamp for free, but it doesn't include the beaker and other accessories, please pay attention when purchasing.
