Packing List
Smart Switch Module *1
Bracket *1
User Manual *1

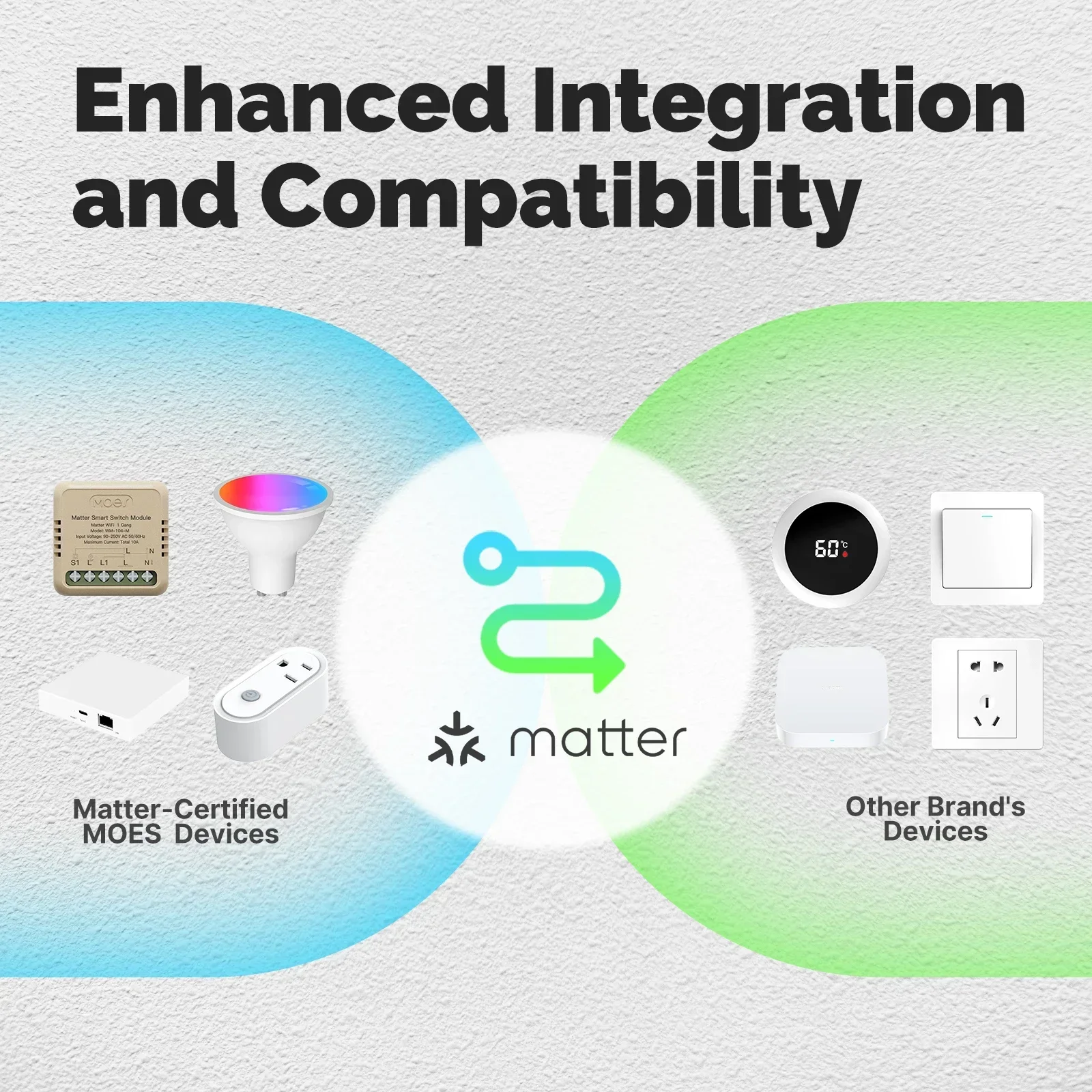

Enhanced Integration and Compatibility
Let’s see the innovation that achieves efficiency. Matter-certified MOES devices can be used with Matter-certified products from other brands. These devices are compatible with Matter-enabled platforms, such as Apple Home, Google Home, and Alexa.

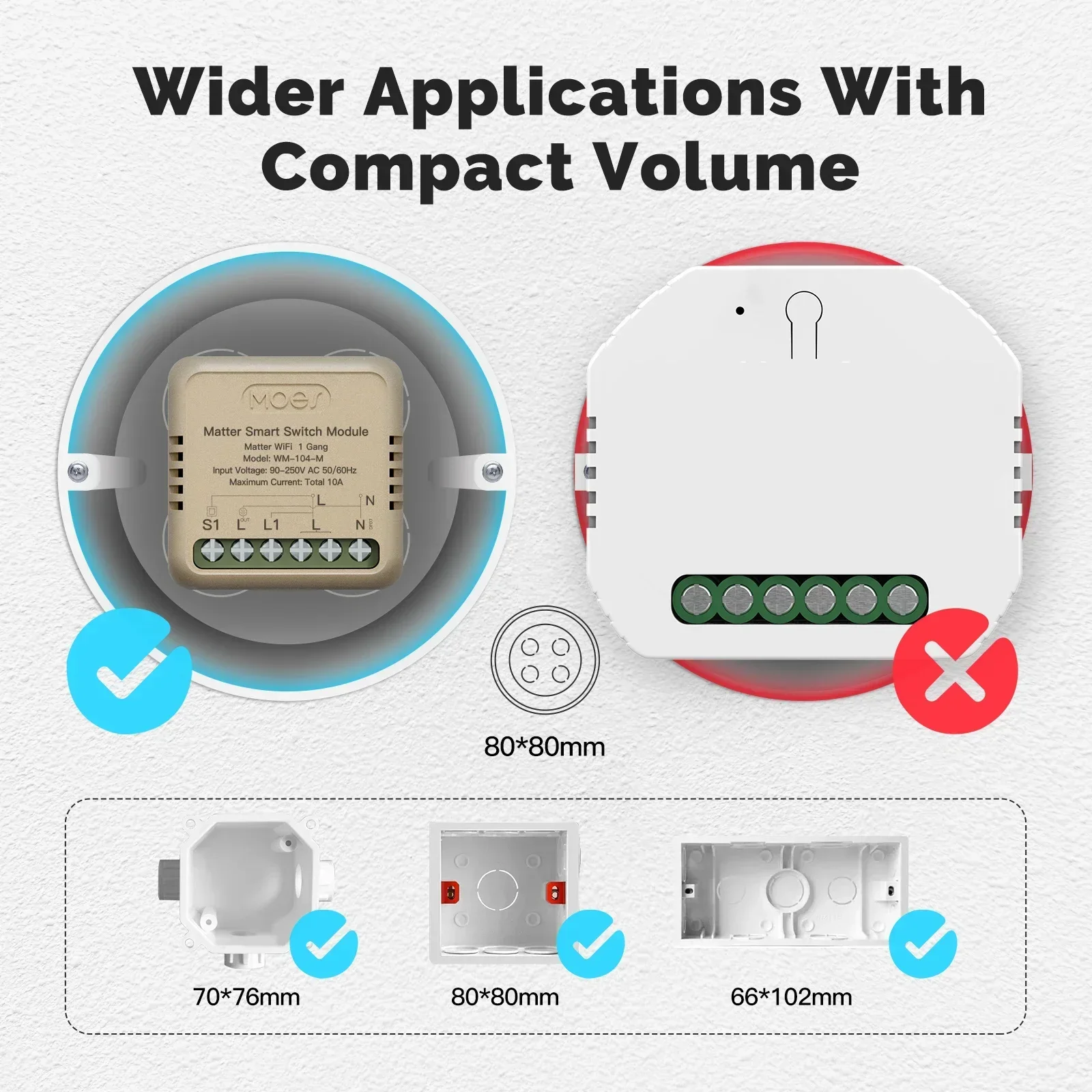

Wider Applications with Compact Volume

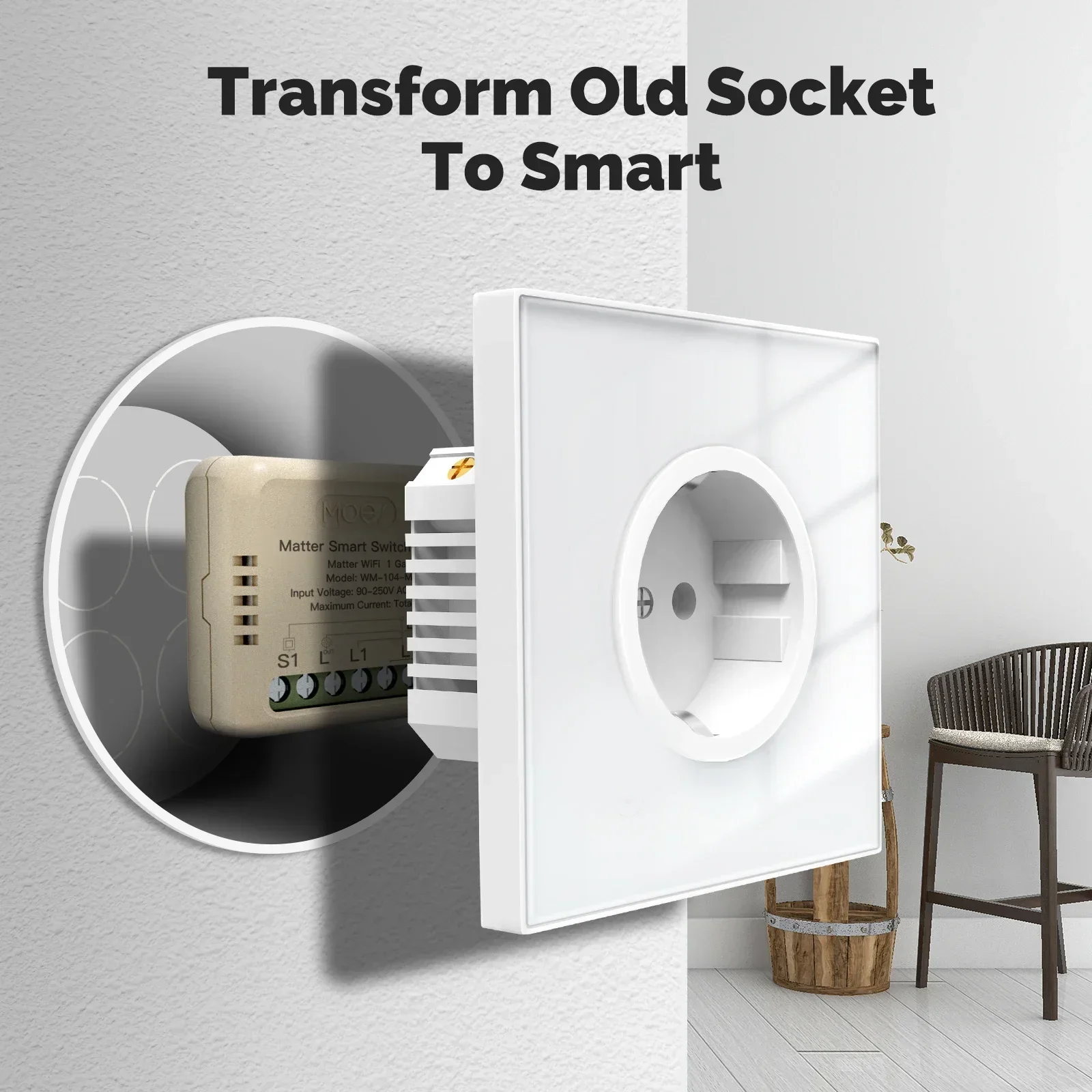

Transform Old Socket to Smart

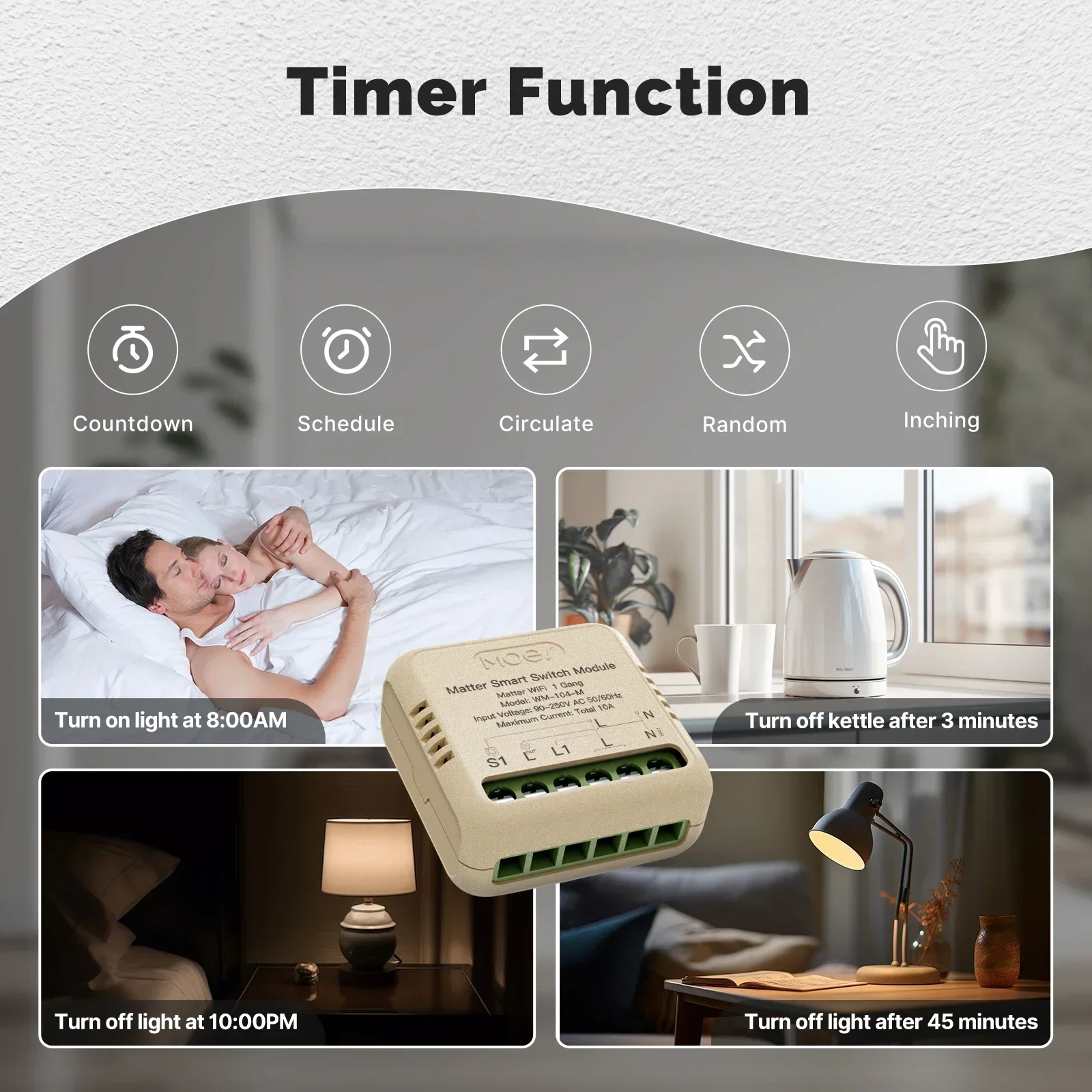

Timer Function
Voice Control
APP Remote Control
With smart switch module, you can control the connected home devices anywhere through MOES APP.

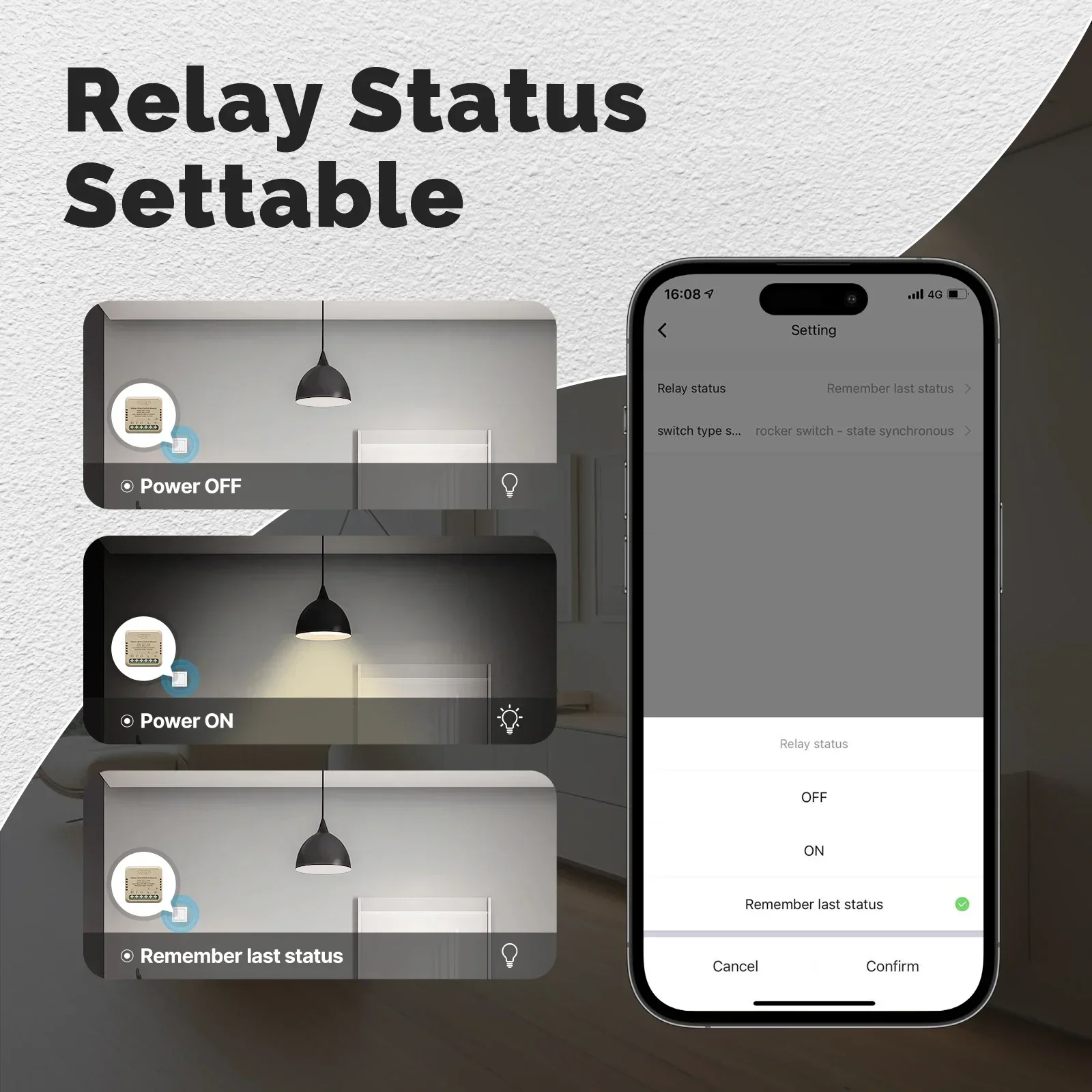

Relay Status Settable
According to your living habits and needs, set the device on/off after the power on or maintain the original switch state, so that your home equipment can operate normally.

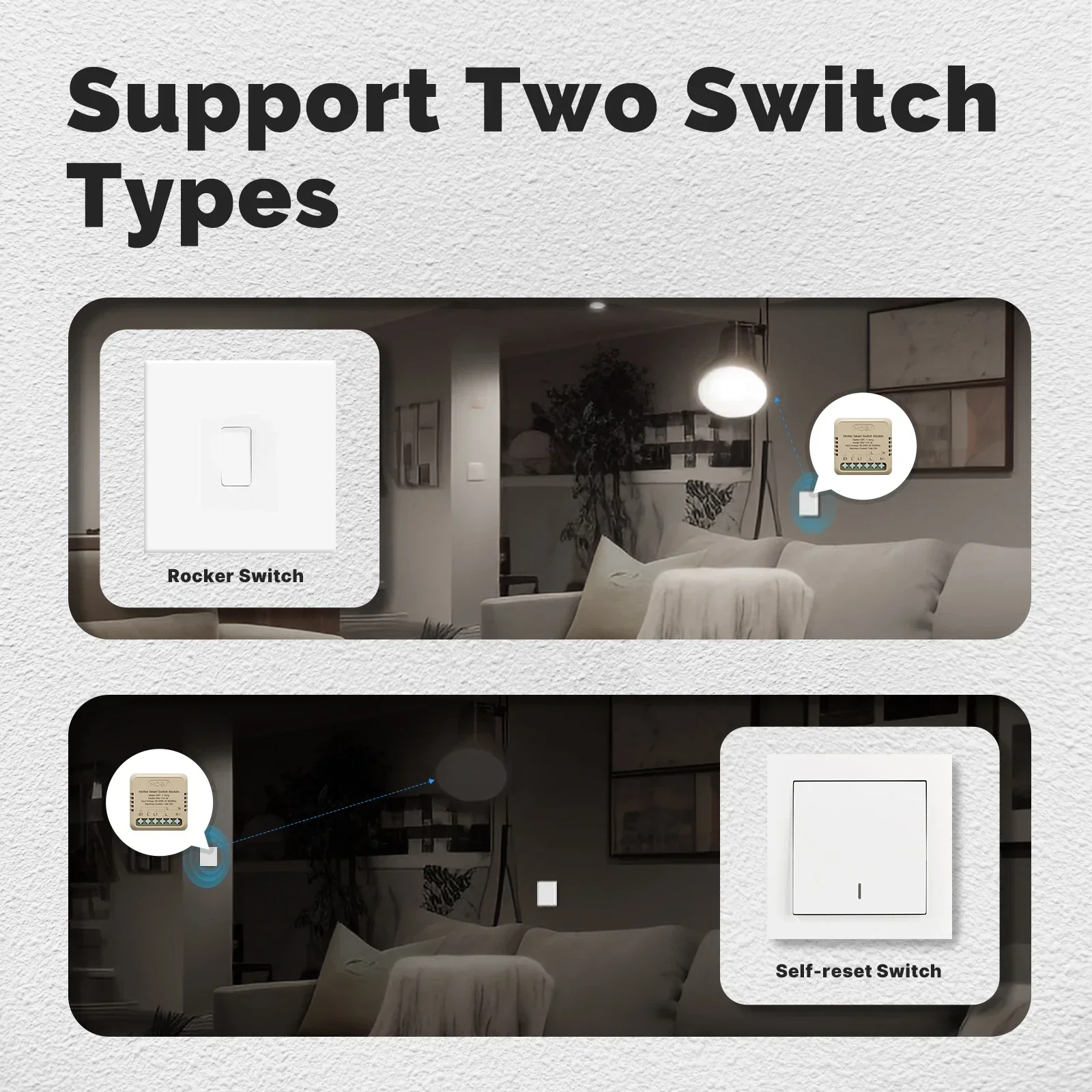

Support Two Switch Types
It can automatically identify the rocker switch or self-reset switch, perfect for different home switches.
Switch State Synchronous
The loaded devices can be controlled according to the original on/off state of the wired switch. After setting the state synchronization, the on/off operation position is fixed and will not change due to the on/off operation of the APP.
Note: This function is only for rocker switch.

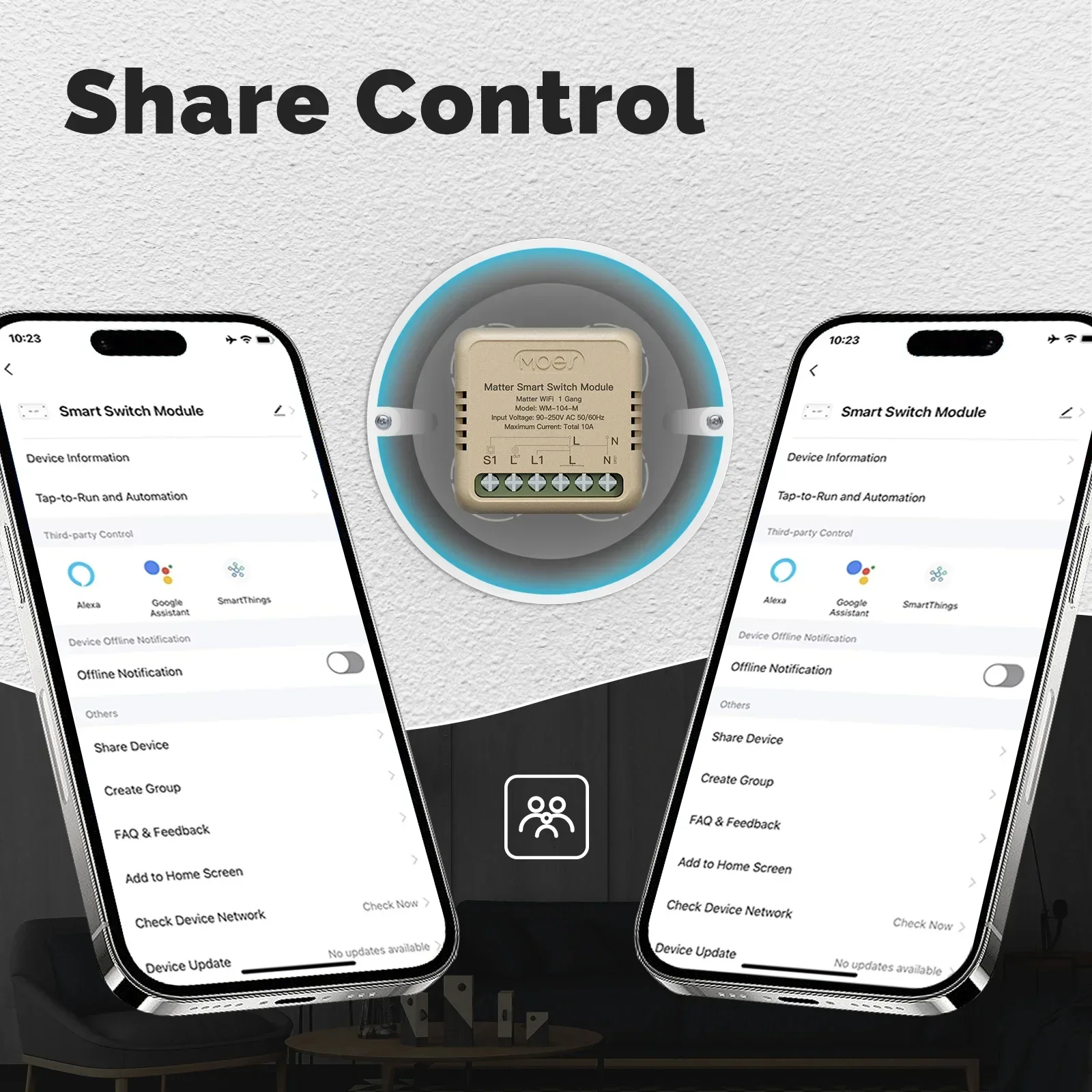

Share Control
Share the smart control with your family members to build your smart home together.

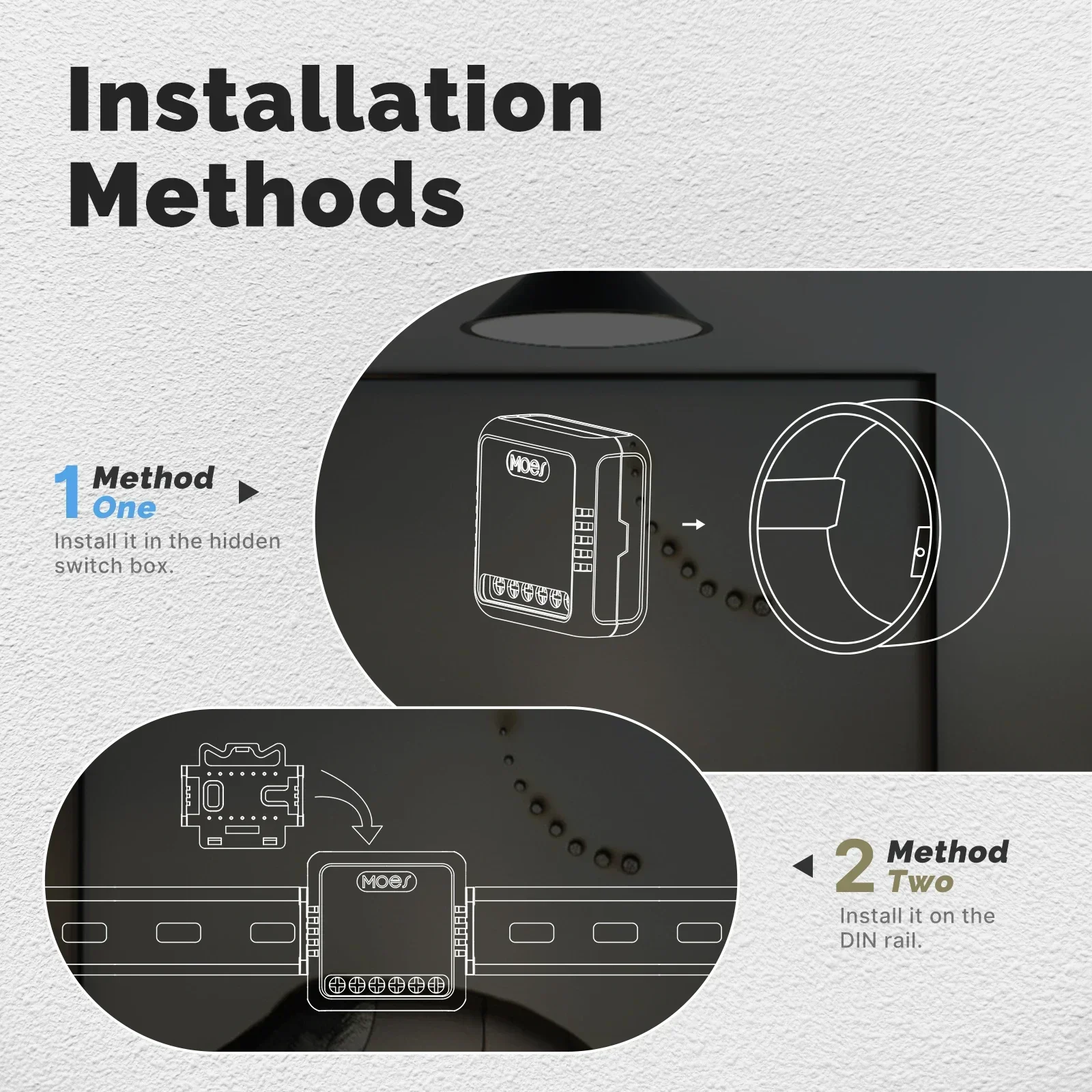

Installation Methods
The switch module supports different installation methods. Its bracket can be clipped onto the din rail as well as be fixed into the wall by screws to make sure the switch module to install in soundly.

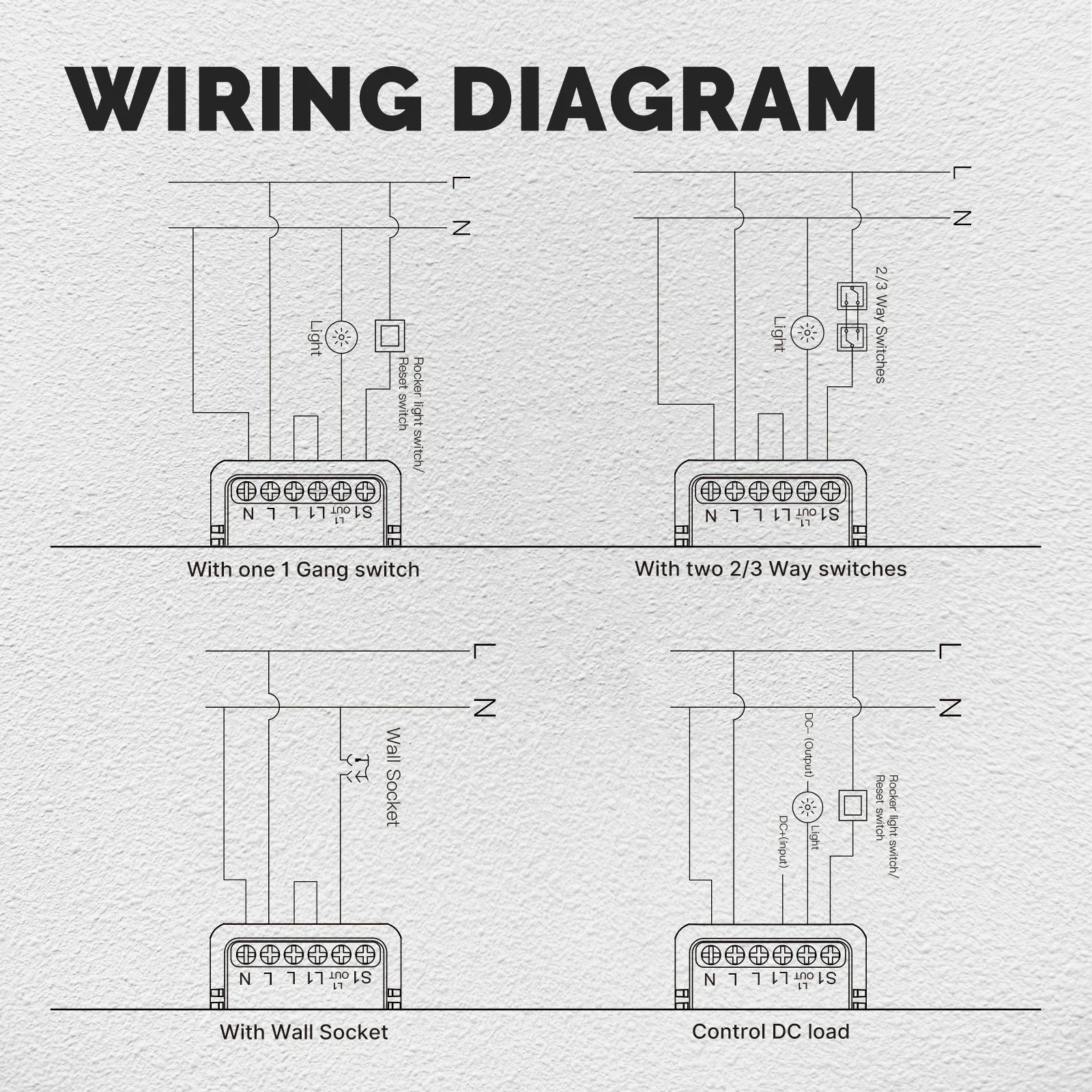

Wiring Diagram
There are three wiring methods for 1-gang switch module. Please select the correct connection mode according to your requirements.

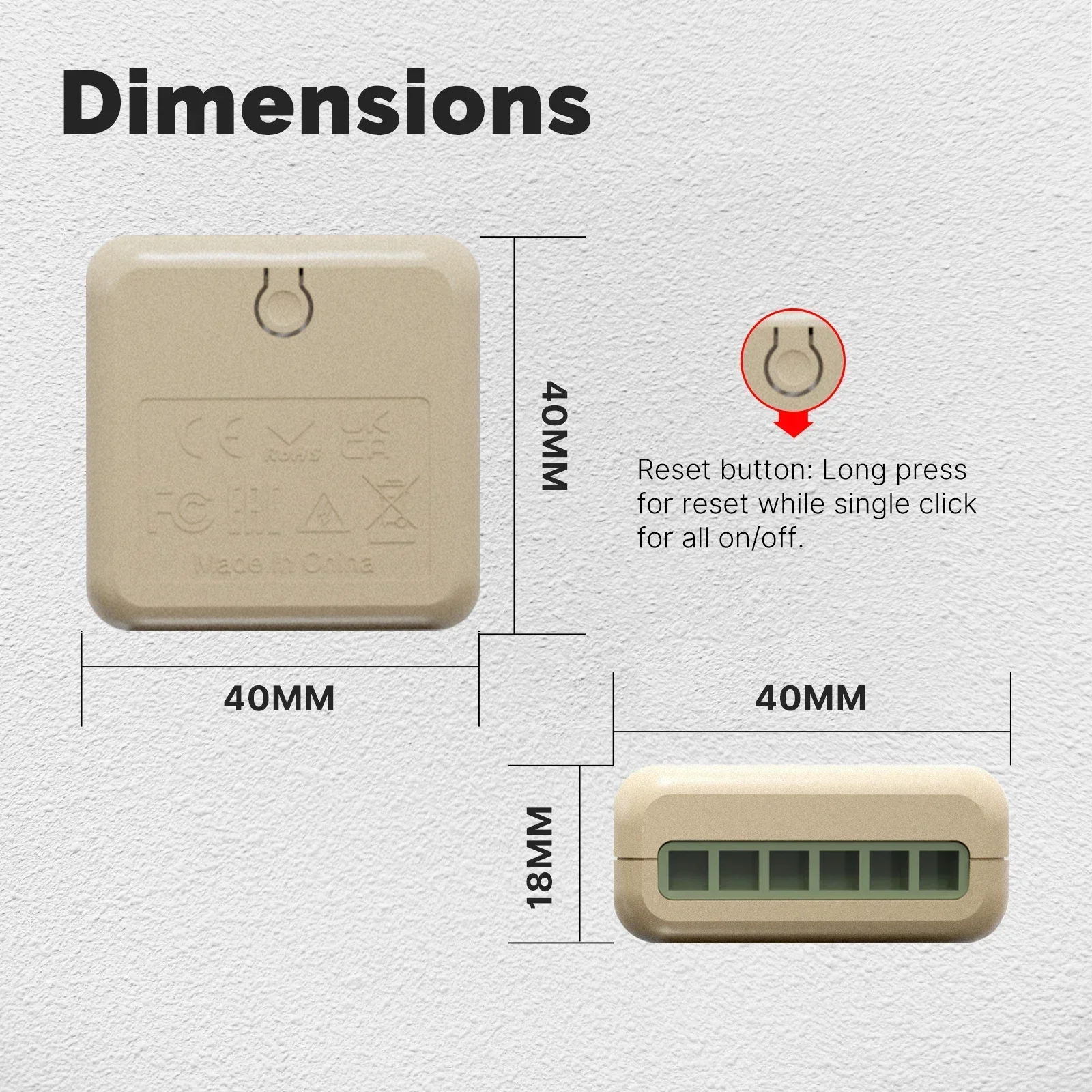

Dimensions
Technical Specifications:
Product Type: Smart Switch Module
Voltage: 90-250V AC 50/60Hz; 5-30V DC
Current: 10A/Gang;Total 10A
Wireless Protocol: Matter WiFi
Operation Temp.: -10ºC ~ 65ºC
Case Temp.: Tc: +80ºC (Max.)
Operation Range: ≤70 m
Dims (WxDxH): 40x40x18 mm
IP Rating: IP20
Frequency band: 2.412-2.484GHZ
Maximum radio transmit power: <+16dBm
