1800kgs sliding gate opener sliding gate motor gate operator for sliding door electrical motor:
â… :Summary
This equipment is one of the auto gate openers launched by our company
adopting a new design and integrated control system. Our new sliding gate opener has
many features such as: low noise, light weight, powerful starting torque, stability,
reliability and is compact and stylish. The motor will still work for a short period of
time using lower voltage. The control board has overload protection. When there is

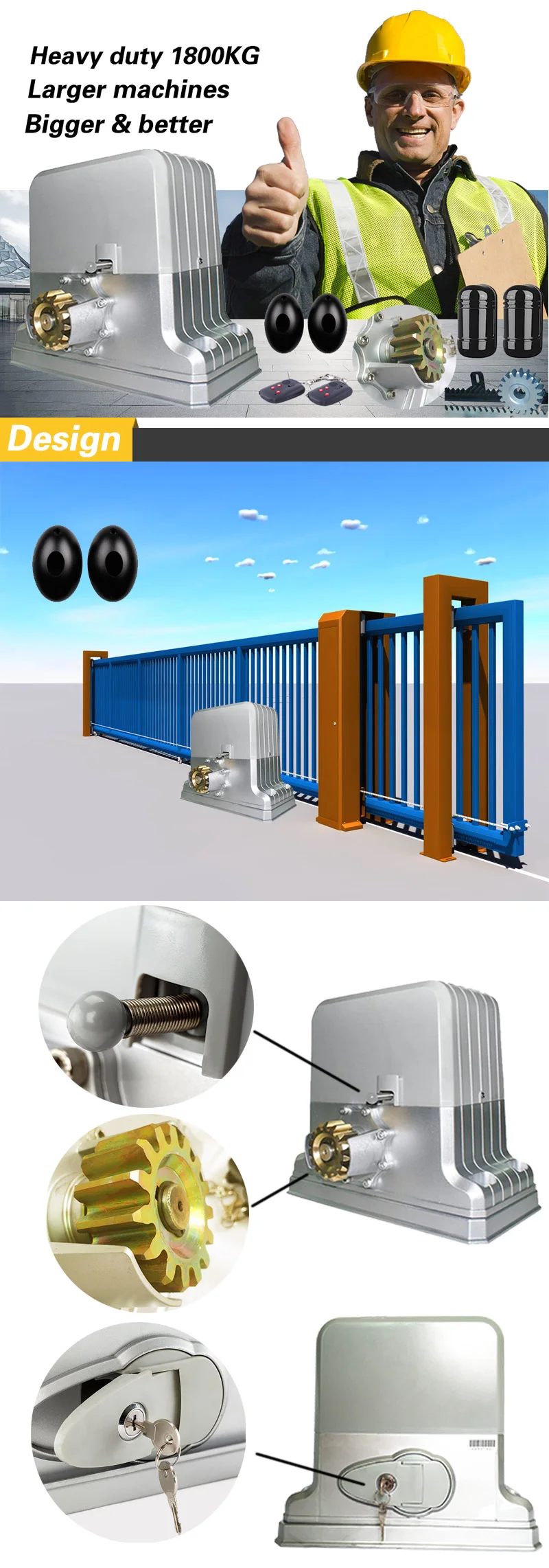

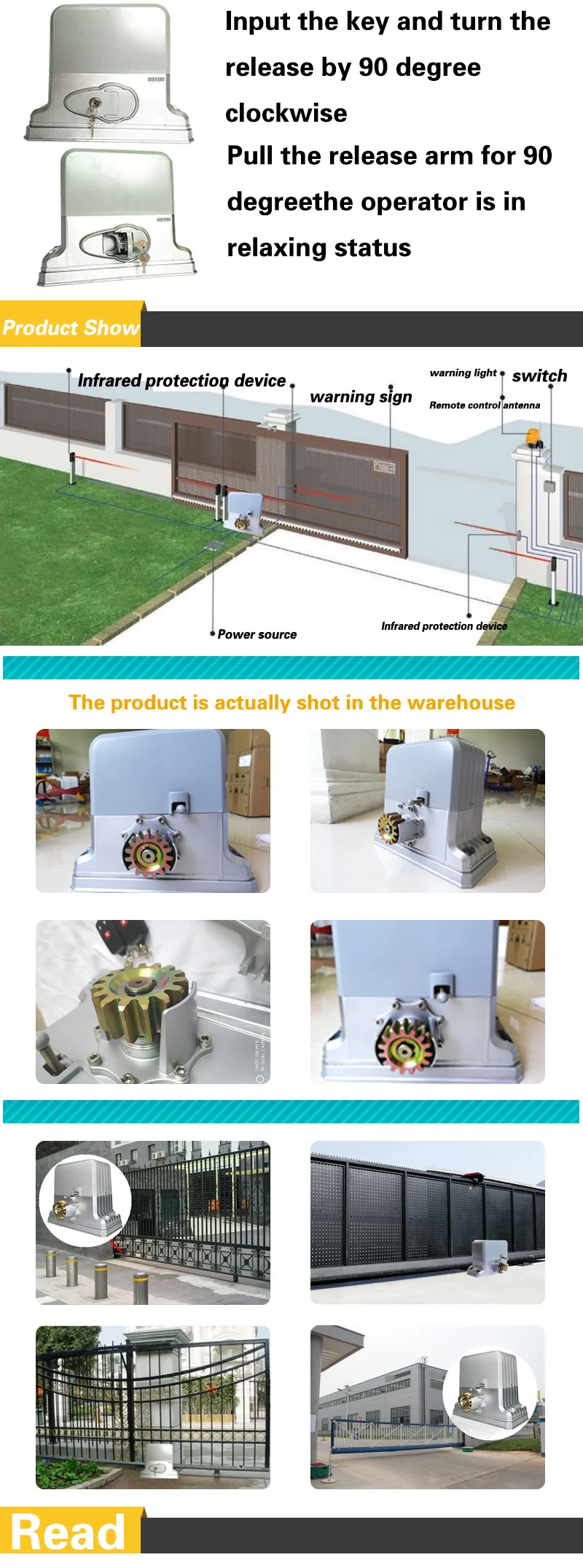

a power failure, the motor drive can be separated by the use of the clutch, by using the
specified key the user has the ability to disconnect the clutch enabling the gate to be

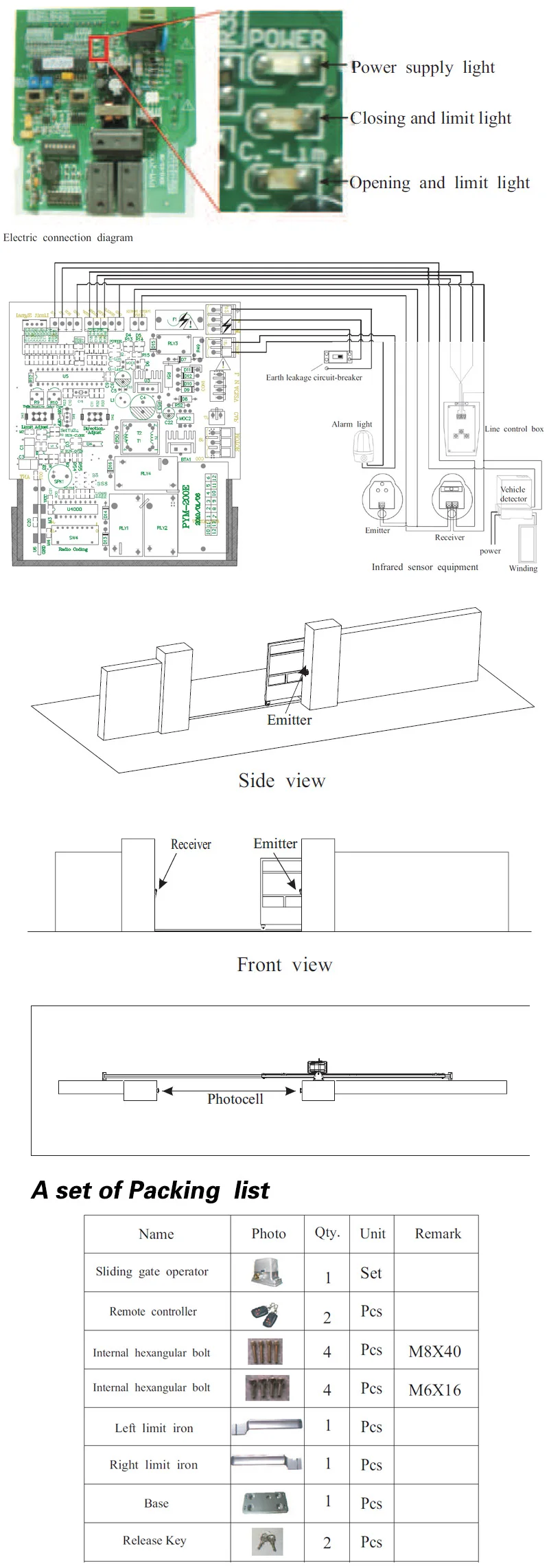

opened or closed manually. Using the optional infrared photocells the gate will
automatically stop and re-open if an obstacle is sensed.
â…¡:Parameters
1. Working temperature of motor-40°C～ +55°C
2. Working humidity≤90%
3. Power supply220VAC±10%/110VAC±10% 50Hz/60Hz
4. Rated power350W
5. Output gear moduleM=4
6. Capacitor60μf +14μf
7.Output torgue:35N.m
8. Open(close) speedv= 13.2/min
9. Rated speed 1620RPM
10. Manual Release:yes
11. Maximum load1800KG
12. Net weight20KG(include racks)
13.Remote control distance : ≥30m
14.Packing : In carton
