Multiple Fingerprint Access Control Kit Waterproof IP66 Anti-Hit Support ID Card /Finger +Power+Locks+Keyfob Tags For Offices

SKU: 1005007929294418

Original price was: $222.78.Current price is: $63.65.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description

SF1 Waterproof IP 66 Fingerprint Standalone Access Control

Features:

 Metal Design & Anti-Vandal

Standalone, one relay

 1,000 fingerprint, 2,000 card users

Wiegand 26~44 output

 Pulse mode, toggle mode

 Multi fingerprints/cards access

 Interlock, Support Principal User

Waterproof, up to IP66

Waterproof Fingerprint Standalone Access Control Specifications:

User Capacity

Fingerprint

Card

3000

1000

2000

Operating Voltage

Idle Current

12V DC

 < 45mA

Proximity Card Reader

Radio Technology

Read Range

EM

125KHz Proximity Card

2~4 cm

Fingerprint Reader

Resolution

Identification time

FAR

FRR

Optical Fingerprint Module

500DPI

<1S

<0.001%

<0.01%

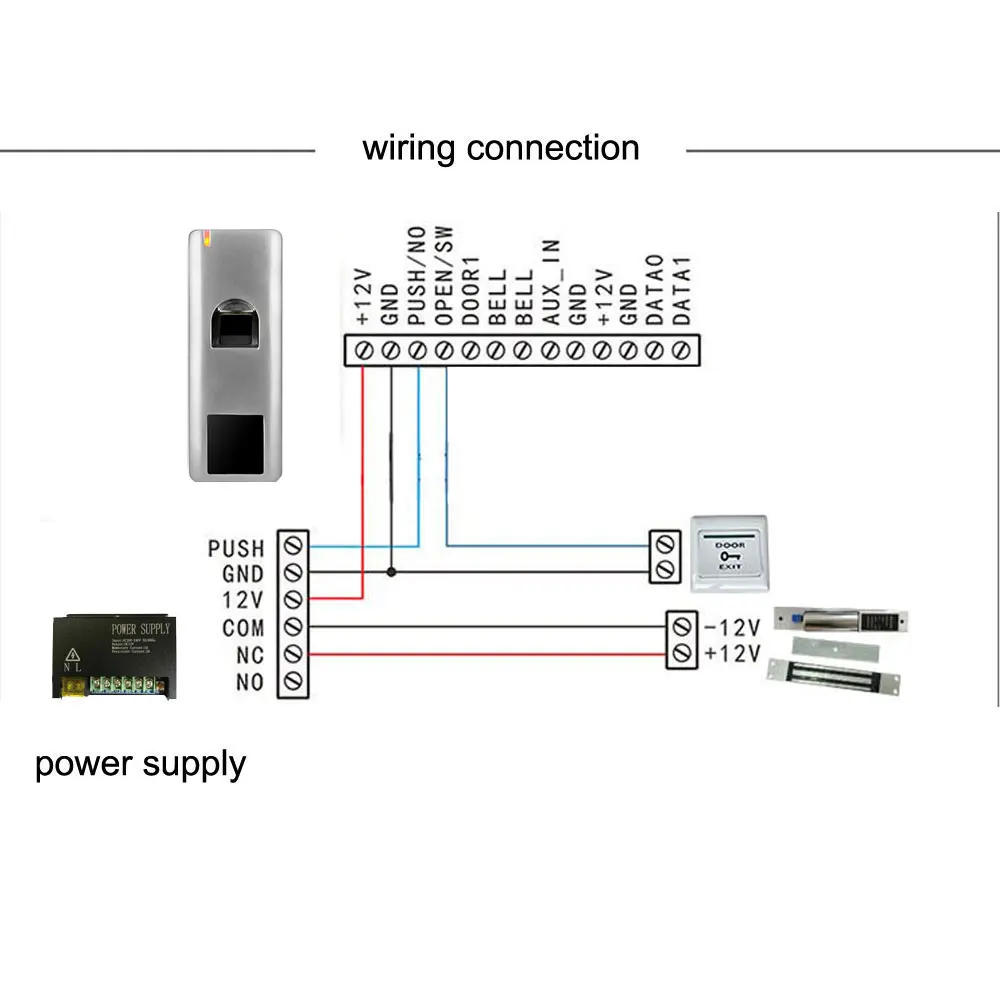

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand output

Relay

Adjustable Relay Output Time

Lock Output Load

One (NO, NC, Common)

0~99 Seconds (5 seconds default)

2 Amp Maximum

Wiegand Interface

Wiegand 26~44bits output

Environment

Operating Temperature

Operating Humidity

Meets IP66

-30 oC ~ 60 oC (-22 oF ~ 140oF)–Default

-40 oC ~ 60 oC (-40 oF ~ 140oF)–Optional

10%RH ~ 99%RH

Physical

Color

 Dimensions

Unit Weight

Shipping Weight

Zinc-Alloy

Silver

12.8L x 4.8W x 2.6H (cm)

400g

500g

********************************************************************************************

10pcs keyfob tgags

****************************************************************************************************************************

Access power supply


1. NC / No output, pure copper high-quality transformer;

2. Built in reverse current circuit to prevent electric lock inductance, built-in unlocking time adjustment knob;

3. Over voltage and over current protection, wrong connection protection, international advanced power chip solution, anti ripple interference

It is especially suitable for the access control system with high voltage stability requirements. It is small in size and convenient for installation and carrying. Compared with the linear transformer power supply, it has small heating, high efficiency and small power consumption, and supports 90 ~ 260V voltage


*******************************************************************************************************************************
exit button
Looks simple, comfortable and beautiful.

Undergoing 100,000 times continuous clicking test, very durable.
Good to touch, easy to operate and use.
Activates electric strike, magnetic lock or other elctric lock via access control.
Works with most electronics access control , door phones with access control.
Flush mounting.


*******************************************************************************************************************************

Package List

Kit1: fingerprint  Access control + 10pcs Keyfobs

*********************************************************************************************************

Kit2:  fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs
+NC type Electric Strike lock

Suitable for wooden door, metal door. convenient No need bracket

  • Working Voltage: 12V ± 10%

  • Current: 200mA – 450mA

  • Holding Force: 500kg

  • Surface Temperature: Lower than room temperature +20

  • Working Temperature: -30-+60 Celsius Degree

  • Operating Humidity: 0~90%(non-condensing)

  • Feature：Fail secure (NO), Fail safe(NC)

  • Material: Stainless steel

  • NC type strike lock: Locked when power on, unlocked when power off

  • NO type strike lock: Locked when power off, unlocked when power on

  • Size: 150 x 28 × 34mm（L / W / H）

*********************************************************************************************************

Kit3:  fingerprint  Access control + power supply + Exit button + 10pcs Keyfobs
+ Small Electric Drop bolt lock

Suitable for wooden / glasses door

  • strarting current:0.9A

  • steady current:0.12A

  • working voltage:DC 12V

  • safety unlock: automatic interruption of power failure

  • weight:0.26kg

  • size:32mm

*********************************************************************************************************

Kit4: fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs
+ Electric Drop bolt lock

Suitable for wooden / glass door

  • This door lock is ideal for high security applications

  • It`s convenient for you to use

  • It features 0, 2.5 ,6,9 second locking timer

  • Refers to the pull switch to adjust the delay time; door status and lock status signal output

  • Voltage: DC12V

  • Current: 900mA / 200mA

  • Size: 205 x 34 x 42mm / 8.07 x 1.34 x 1.65in

  • Wire of the electric bolt door lock and the mounting hole

  •  It made of durable and high material

*********************************************************************************************************

Kit5:  fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs
+ Electric Drop bolt lock + U bracket

Suitable for frameless glass door

  • This door lock is ideal for high security applications

  • It`s convenient for you to use

  • It features 0, 2.5 ,6,9 second locking timer

  • Refers to the pull switch to adjust the delay time; door status and lock status signal output

  • Voltage: DC12V

  • Current: 900mA / 200mA

  • Size: 205 x 34 x 42mm / 8.07 x 1.34 x 1.65in

  • Wire of the electric bolt door lock and the mounting hole

  •  It made of durable and high material

U bracket

  • Lock Bracket

  • Aluminum material

  • frameless glass door

  • 80Lx25Wx45H(mm)

*********************************************************************************************************

Kit6: fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs

 + External Drop bolt lock

Suitable for wooden, metal and Stainless steel door. No need bracket

  • Working voltage: 12V

  • Time delay: 0s,3s,6s adjustable

  • Working current: Start state 1.2A ; Persistent state 120mA

  • Coil type: Continuous working

  • Security type: Electric power lock, unlock

  • Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM

  • Locking mode: Magnetic induction

  • Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)

  • Dimension: 150X34X28( L / W / H )

*********************************************************************************************************

Kit7: fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs
+ 60KG Electric Magnetic Lock

Suitable for wooden, metal  door

  • Product: 60KG Single Door Magnetic Lock

  • Lock Size: 85*38*25(mm)

  • Armature plate:75*35*18(mm)

  • Holding Force:60kg

  • Voltage:DC12V

  • Current Draw:DC12V/300mA

  • Safety function: Built-in reverse current protection device (MOV)

  • Suitable For:Wooden Door, Glass Door, Metal Door, Fire Proof Door

  • Net Weight: 500g

*********************************************************************************************************

Kit8: fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs
+ 180KG Electric Magnetic Lock

Suitable for wooden, metal  door

  • Material: Aluminum alloy shell + iron plate

  • Holding force: 180KG/350lbs

  • Working Voltage: DC12V

  • Working Current: 380-430mA

  • Humidity: 0 to 95%

  • Working Temperature: -10 to 55 Celsius degree

  • Working mode: power-on to lock, power-off to unlock

  • Waterproof: Yes. Can be install outside

*********************************************************************************************************

Kit9: fingerprint  Access control + power supply +  Exit button + 10pcs Keyfobs + 180KG embedded
Magnetic lock

180kg embedded magnetic lock

Suitable for wooden, metal  door

Size of the Lock:             192Lx33Wx20H(mm)
Size of Armature Plate:   139Lx32x11H(mm)
Holding Force:                 180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA
