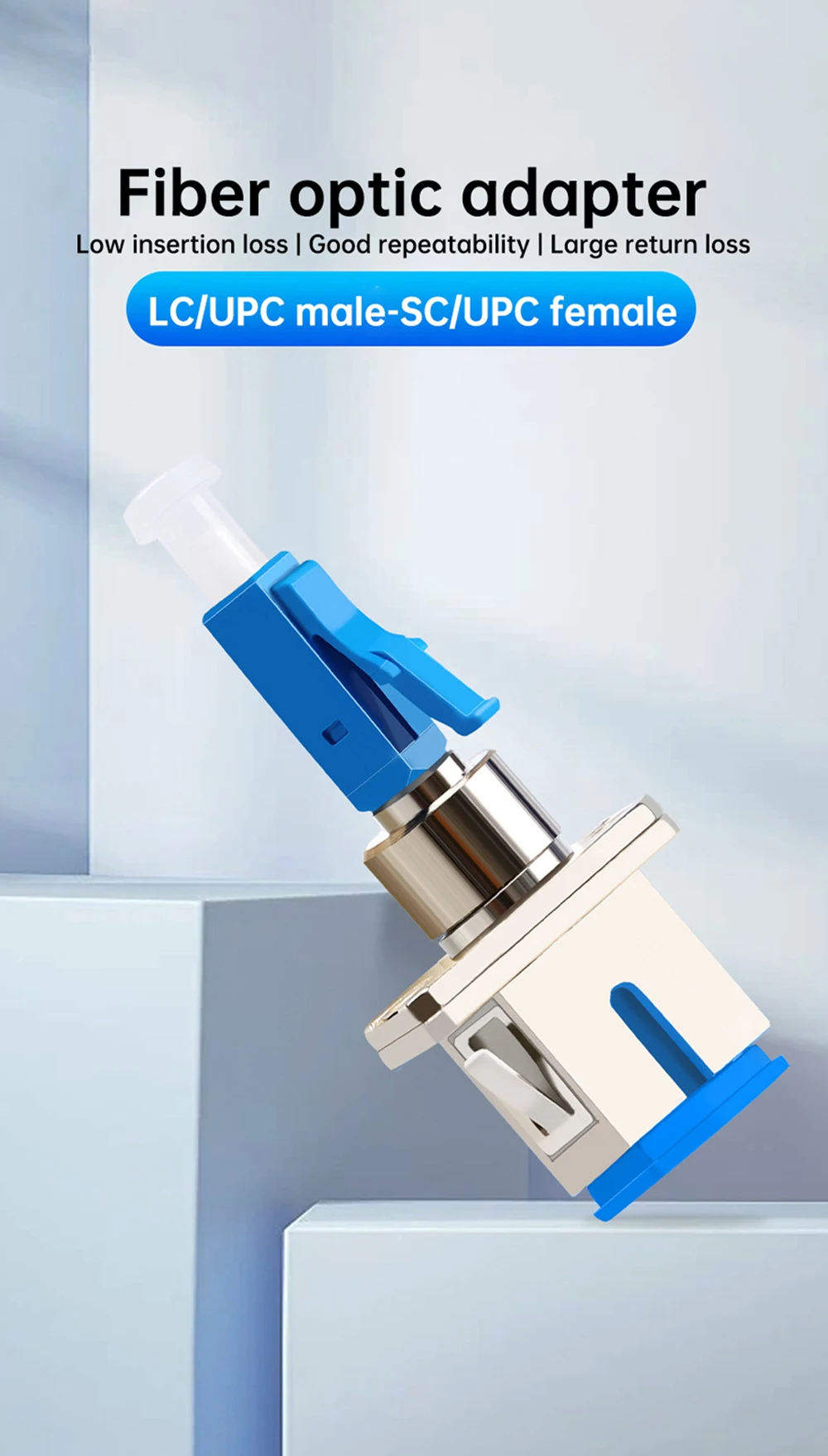

Fiber Optic Adapters

Feature low insertion loss, good repeatability and high return loss

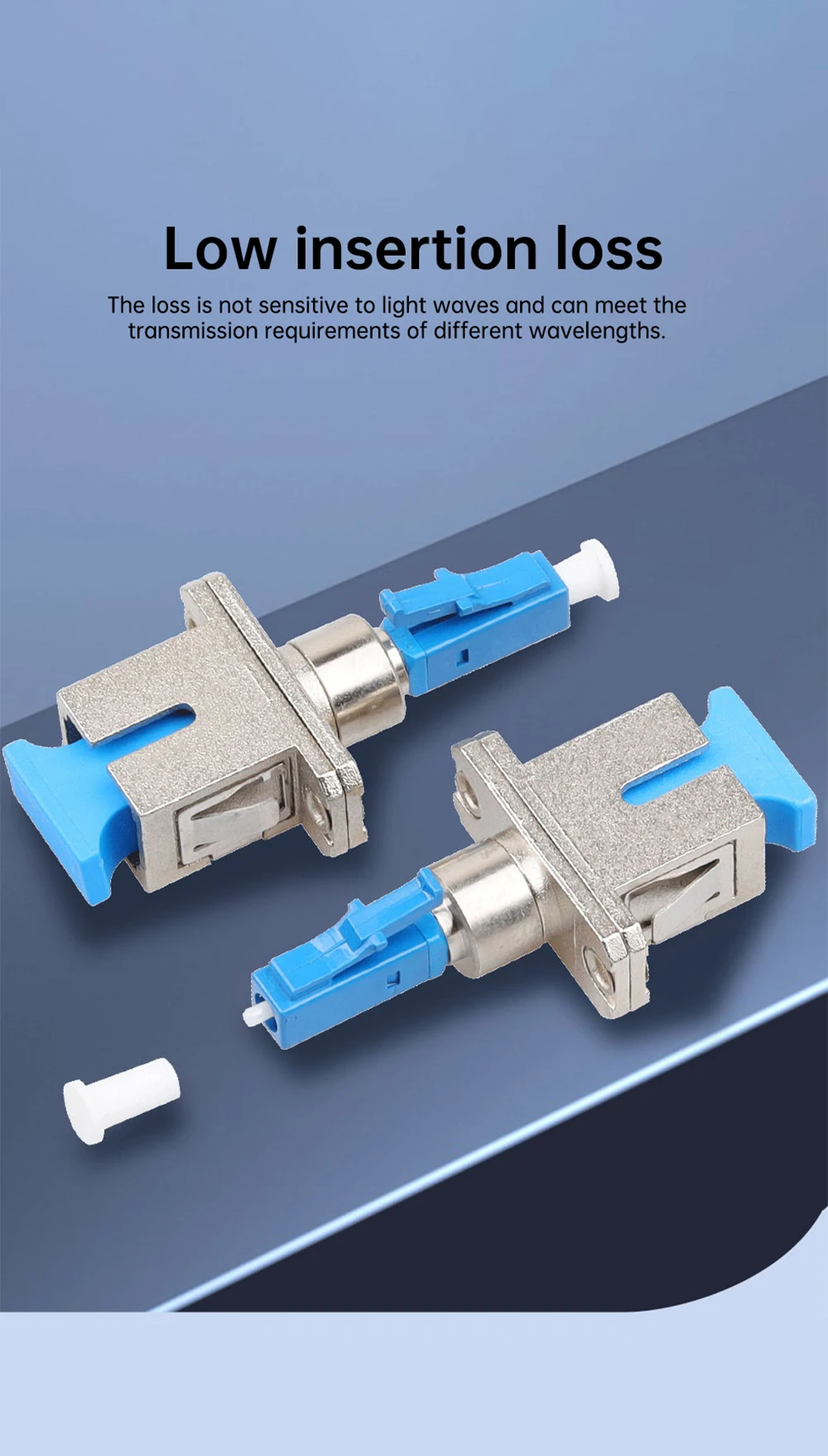

Low Insertion Loss

The loss is not sensitive to light waves and can meet the transmission requirements of different wavelengths.

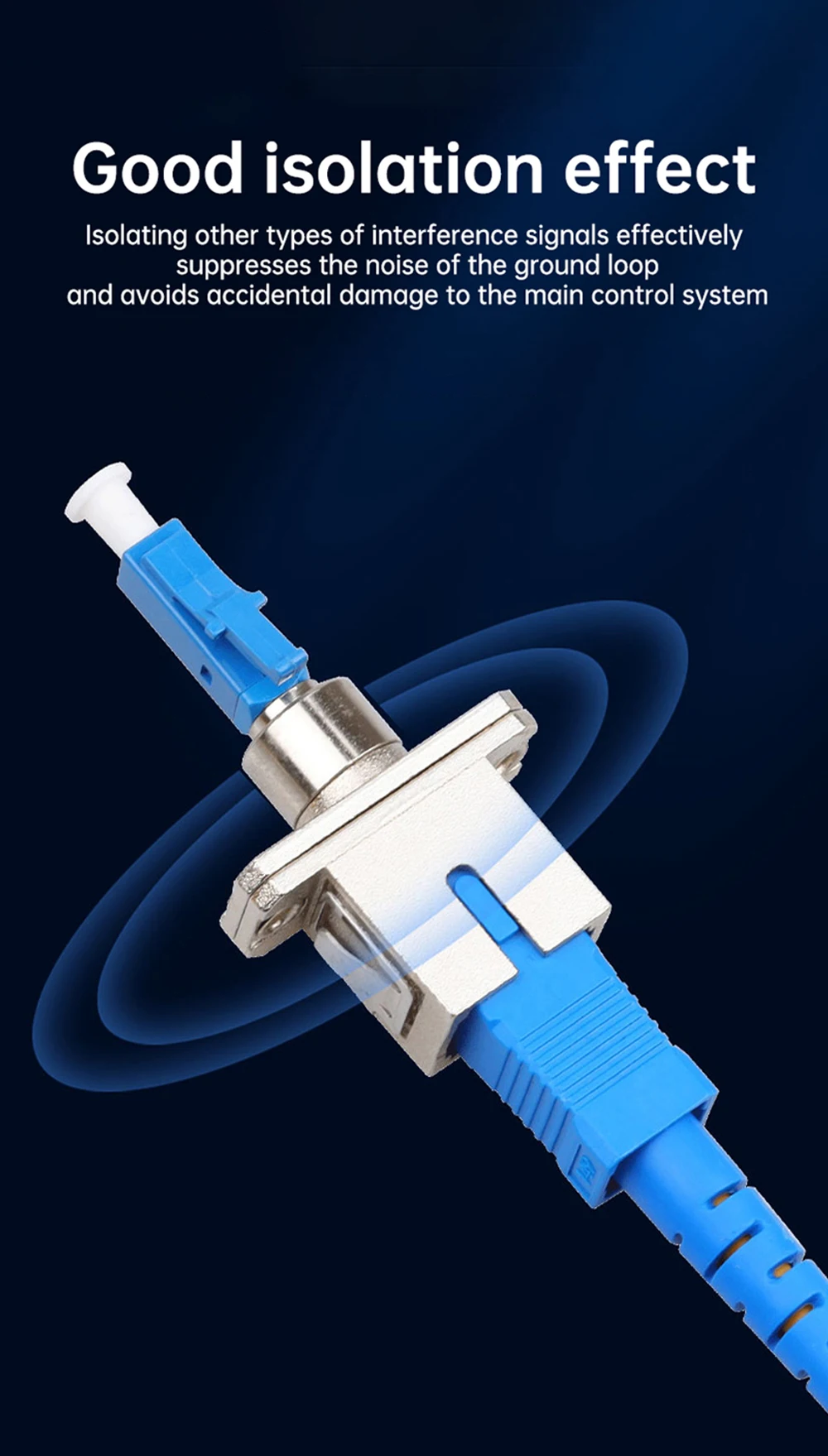

Good isolation effect

Isolating other types of interference signals effectivelysuppresses the noise of the ground loopand avoids accidental damage to the main control system

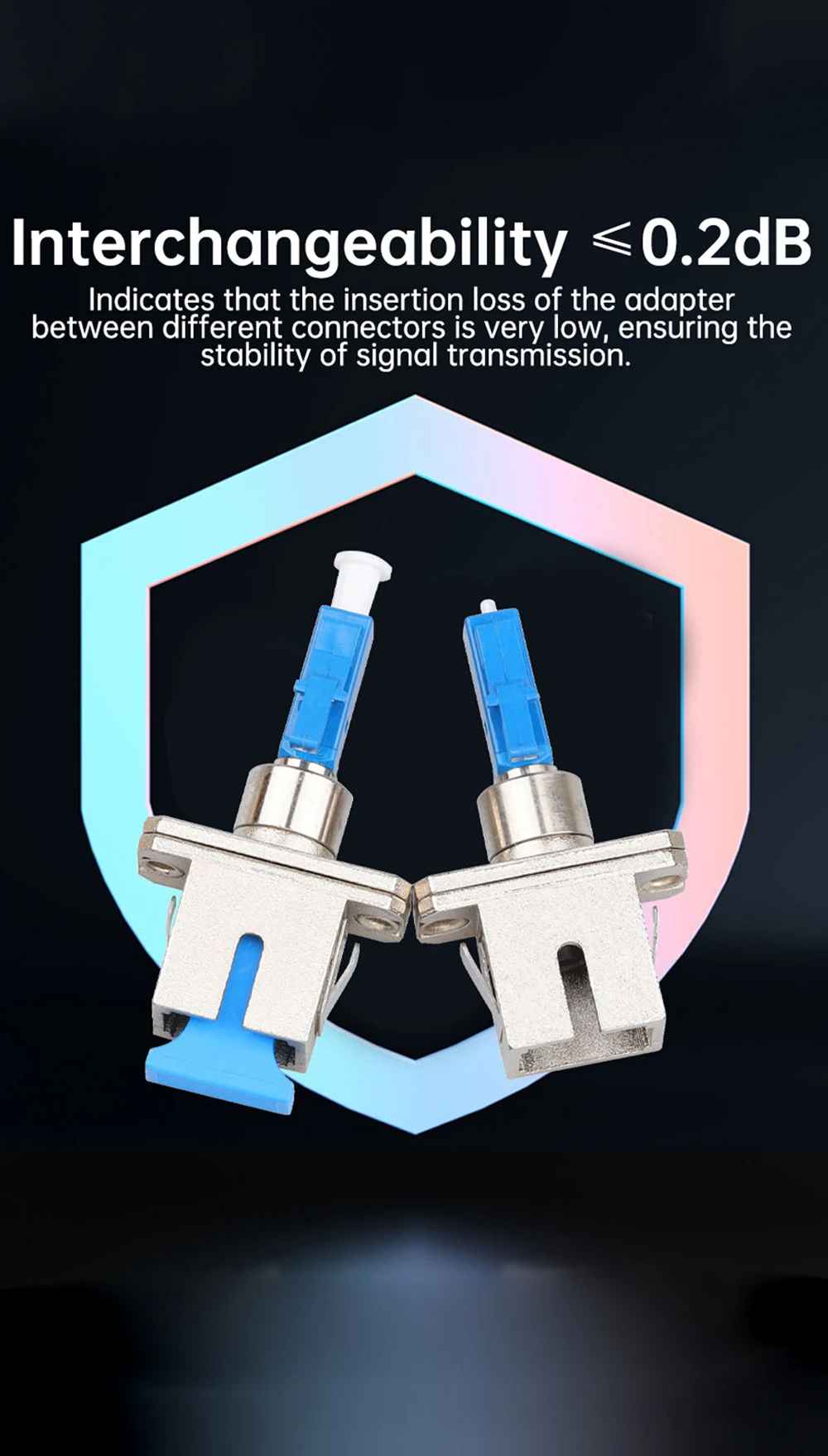

Interchangeability <0.2

Indicates that the insertion loss of the adapter between different connectors is very low, ensuring the stability of signal transmission.

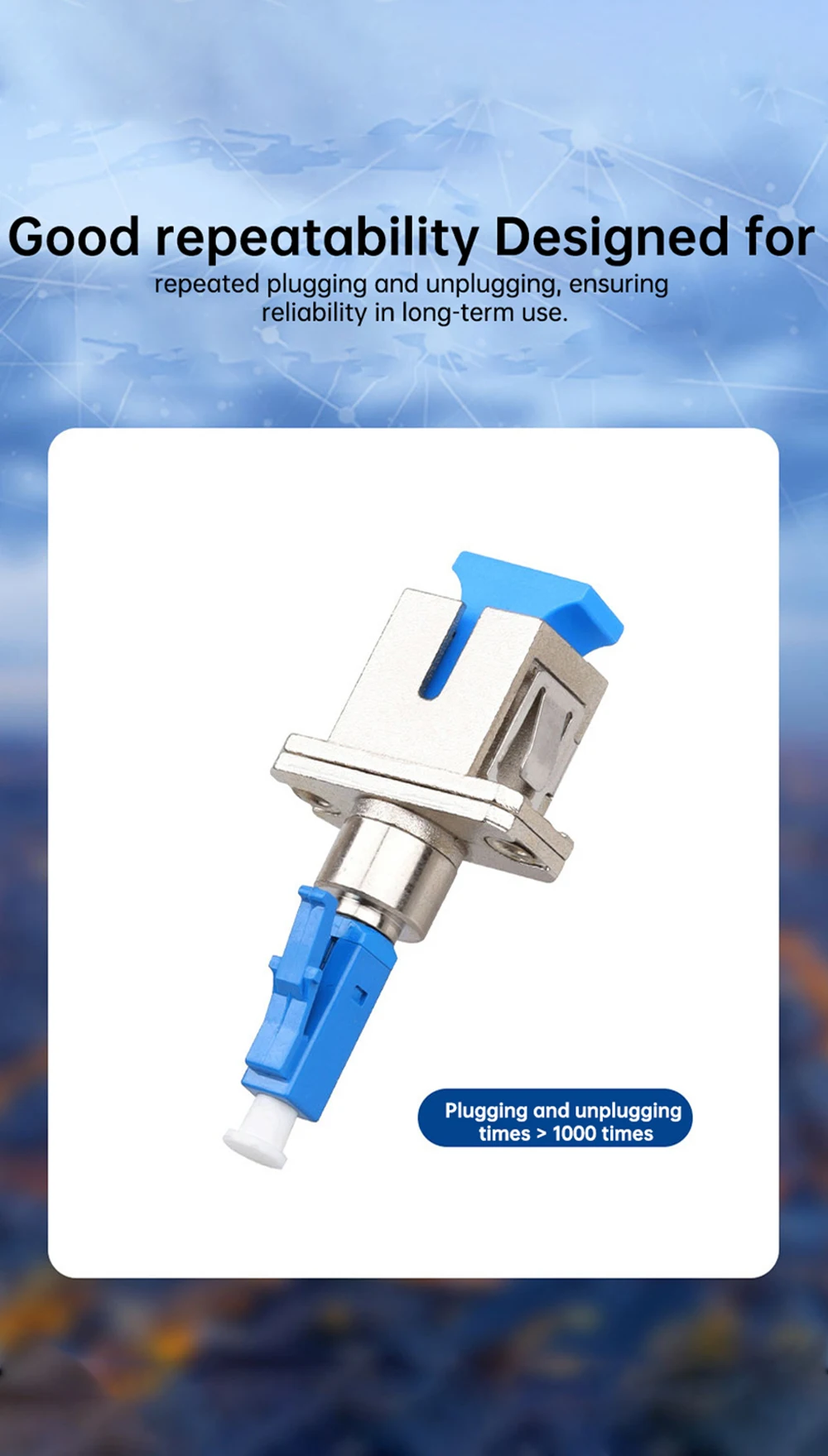

Good repeatability

Designed for repeated plugging and unplugging, ensuring reliability in long-term use.

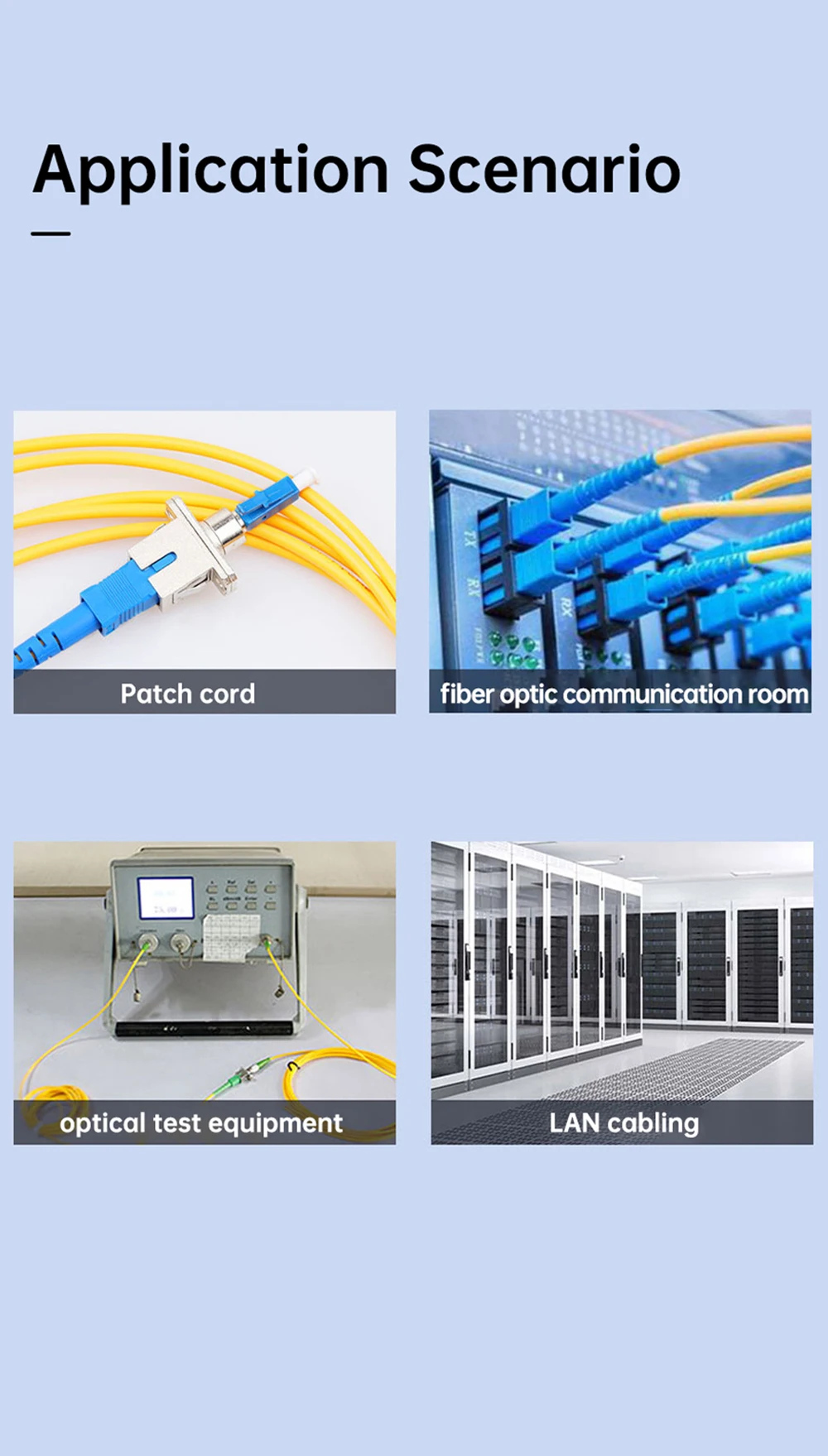

Application Scenario

Patch cord / Fiber optic communication room Optical test equipment / LAN cabling

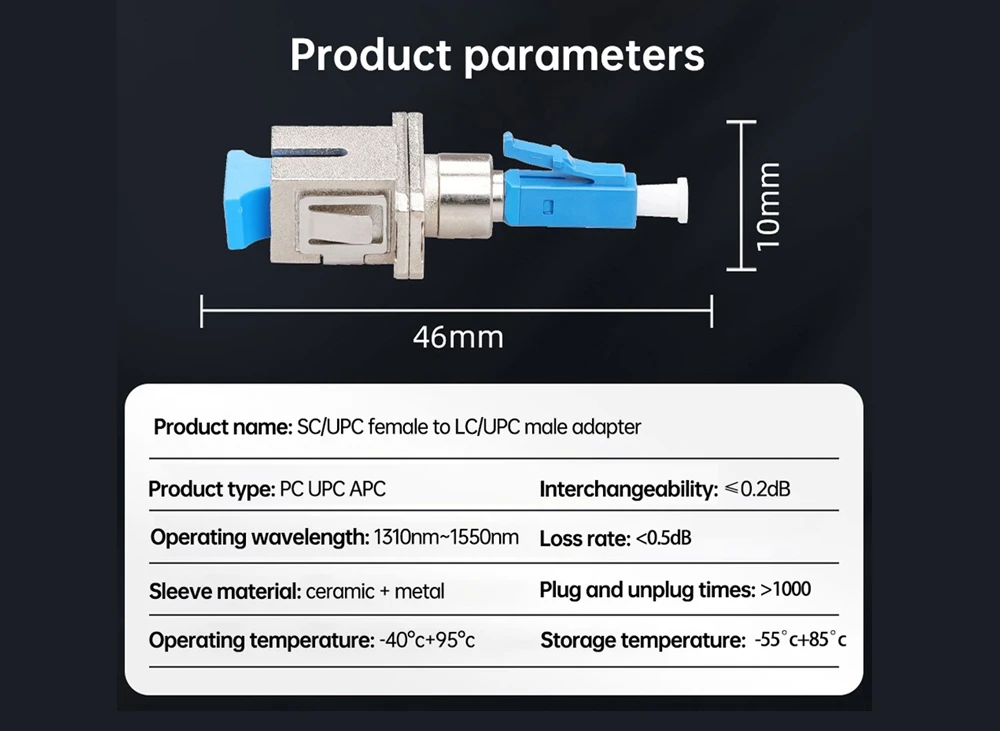

Product Parameters

Product name: SC/UPC female to LC/UPC male adapter
Product type:SC/UPC female to LC/UPC
Interchangeability: ≤0.2dB
Working wavelength: 1310nm~1550nm
Loss rate: <0.5dB
Sleeve material: ceramic + metal
Working temperature: -40°c+95°c
Plug and unplug times: >1000
Storage temperature: -55°c+85°c
