Newest VAG CAN PRO V5.5.1 Professional VCP Scanner OBD2 Diagnostic Interface With Dongle Support Multi-Cars Can Bus UDS K-line

Newest VAG CAN PRO V5.5.1 Professional VCP Scanner OBD2 Diagnostic Interface With Dongle Support Multi-Cars Can Bus UDS K-line

Tips:

1.CAN PRO do not support for other software!!

2.If the CD broken,please contact with us to get the link Do not open dispute

3.The software contains plug-ins,so the computer anti-virus software will prompt that the software contains viruses,please close the anti-virus software before installation

4.V5.5.1 is the correct version,if the version you downloaded is V6.2,you will not be able to use the software

Support Language：

English,Czech,Danish,German,Hrvatski,Italian,Dutch,Polish,Russian,Spanish,Chinese

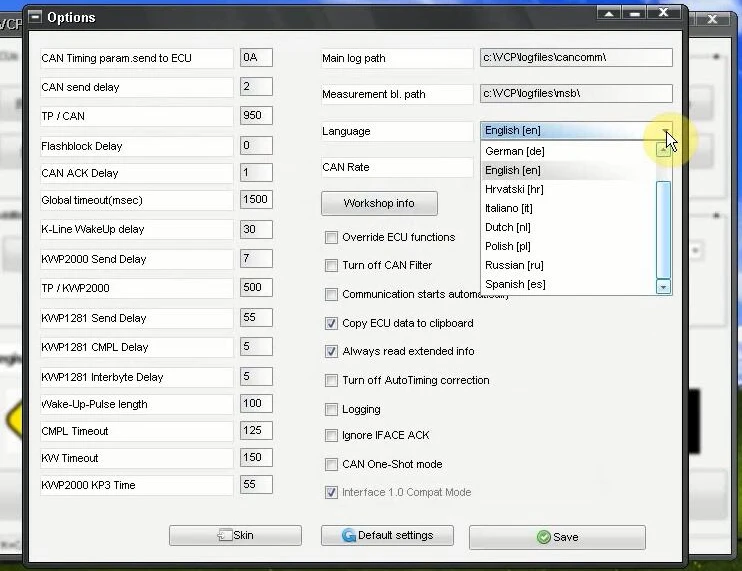

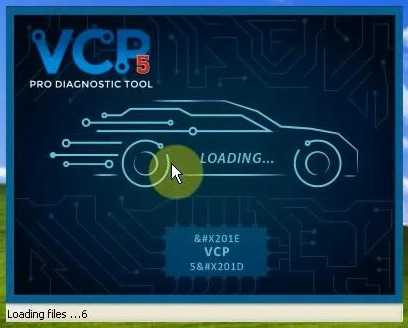

Software Display

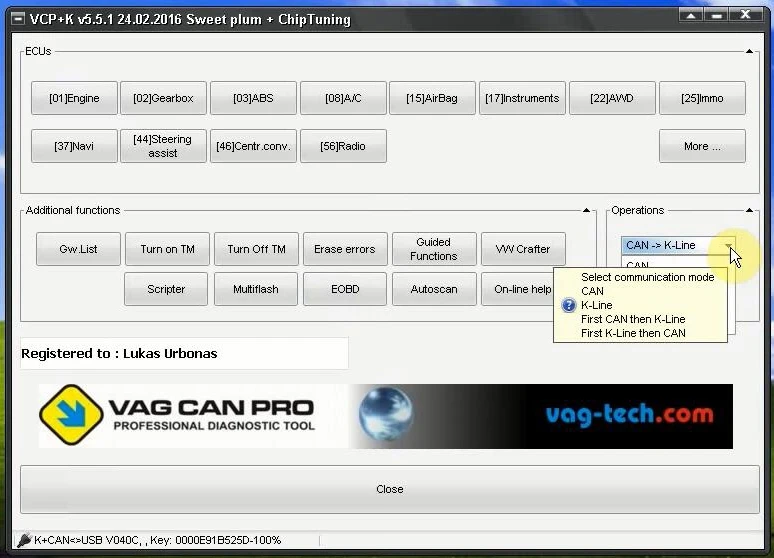

CAN PRO Function interface(we text the software on Window xp and 7 only):

Supported Cars:

1.For Audi

A2 2009-

A3 8P 2003-

A3 – platform MQB-

A4 model 8E wariant B7(Engine,transmission,airbags,ABS,park)2005-

A4 model 8K wariant B8(UDS + TP2.0) 2008-

A5 model 8K (UDS)2007-

A6 model 4F 2004-

A8 model 4E 2003-

Q3 (UDS) 2010-

Q5 (UDS) 2008-

Q7 (TP2.0 + UDS) 2006-

S5 model 8K

(R)S6 model 4F

R8 (UDS)

TT model 8J 2007–

2.For Mercedes

For Sprinter (For VW Crafter) – – Only the engine and immobilizer

3.For Seat

For Altea

For Leon MQB 2013-

For Leon model 1P 2005-

For Toledo model 5P 2004-

For Exeo 2008-(Engine,transmission,airbags,ABS,park)

4.For Skoda

octavia model 1Z 2004 –

octavia platform MQB –

superb II B6 2008-

fabia model 5J 2007-

yeti 2009-

5.For VW

For Crafter (immobilizer, engine)

For Caddy model 2K 2005-

For Eos

For Golf V model 1K

For Golf VI model 5K

For Golf VII platform MQB

For Golf Plus

For Jetta II model 1K

Transporter / Multivan (Only after the CAN-BUS drive for storing data)

Multivan/Transporter GP model 7E (UDS) 2009-

For Passat B6 model 3C 2005-

For Passat CC-

For Phaeton GP 2007-

For Polo model 6R 2009-

For Polo FL MQB 2014-

For Scirocco III-

For Touran-

For Tiguan-

For Touareg GP 2007-

For Touareg NF 2010

6.K-line(KWP1281,TP/KWP2000)

For VW Golf III,IV

For VW Passat 3B

For VW Bora

For VW Transporter T5

For VW New Beetle

For VW Polo II,III,IV

For Skoda Octavia I

For Skoda Fabia i i II

For Seat Leon I

For Seat Toledo II

For Seat Alhambra

For Seat Ibiza II,III,IV

For Audi A2,A3,A4,A6 K-Line

Notes for Audi A4:

1.Option A4 8E B6 model

This model has a can-bus (TP1.6),but it is not connected to the diagnostic socket.The car is fully diagnosed on the K-line(VCP required interface + K).Used protocols KWP2000 and KWP1281 it.

2.Model A4 8E,B7 option

This model has a CAN BUS TP2.0,but the diagnostic socket is only connected to the so- called CAN-Antrieb,i.e.Engine,transmission,airbags,ABS,Quattro drive.

In addition,a standard K-line.In other words,VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb.Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

Main Features of PRO:

* Unique features OCLF service procedures(One-Click-Function);

* inexpensive flasher for;

* inexpensive flasher with support UDS controllers;

* ESP MK60EC1 decision coding blocks;

* a tool for a complete diagnosis MQB platform(for Golf VII,for Octavia III) Support to 01.2013;

* ZDC-loading containers in the electronic components;

* Unlock video in motion (VIM) on the MQB platform(Discover Pro and MMI-MQB);

* Coding controllers for PR-codes;

* "Login finder" – allows you to scan and logins in the CAN controllers UDS;

* Support for the new for Polo in 2014 Facelift;

* Support for the new for Passat B8;

* Full support for Audi TT-3 on the platform of the IBC;

* Full support for Skoda Fabia III

Major Changes in the PR encoder:

* Now it is possible to keep PR-codes of a file

* PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU

* You can compare the data stored in the ECU against the calculated data, choose what you want to download.

* OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved – Thanks Ciamardo / vcp-forum.de

* The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.

* Enhanced TXT-coding, coding calculation is now faster APDUs.

* Updated data base DTC- Fixed problems with parameterization 7N0 cameras

* Fixed problems with parameterization 5M0 …… F AFS modules

* OCF new section called "Apps",which is:Download the parameter data,coding for PR-code, BCM, and so forth programmer..

* The new procedure OCF "FlashFile Dumper" – can extract content from Flash files (*

.SGO, * .FRF, * .ODX) in a binary dump.Note: The source data format is not changed,*

so that if a Flash file kriptovat and compressed, the binary file will be the same.

* Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9)- not all ECU were available through the Gateway.

* Updated database of error codes(added more than 200 new codes,including the MQB / MLB-EVO platform)

* New Firmware v.1.1 for interfaces(04.0D / 02.04) v.2.0(0A.04 / 0B.04) to support new protocols (TCP-IP)used on the MLB-EVO platform

* Fixed a connection problem with the address 46(room unit)on the MLB-EVO(B9 A4 / Q7 4M) platform

* Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the ECU(Direct Connect),popular among fans.

New in Version 5.5.1:

Support for new addresses entered in the MLB-Evo platform

Update database-ODX (support for all models 2015)

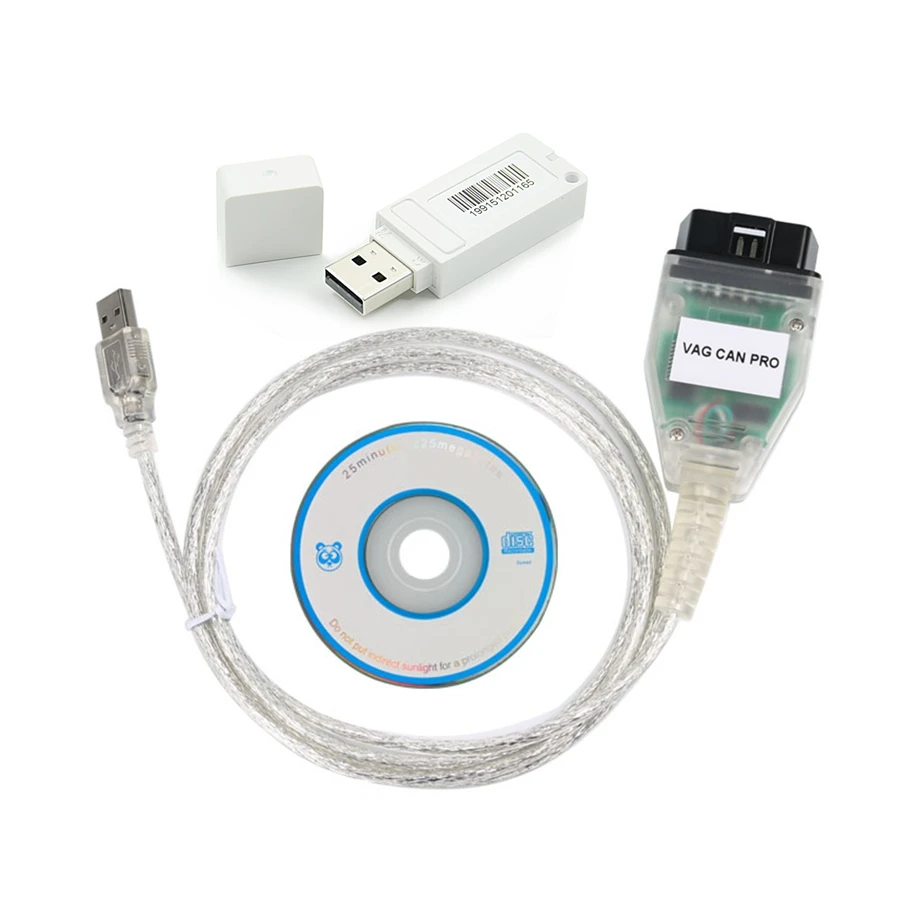

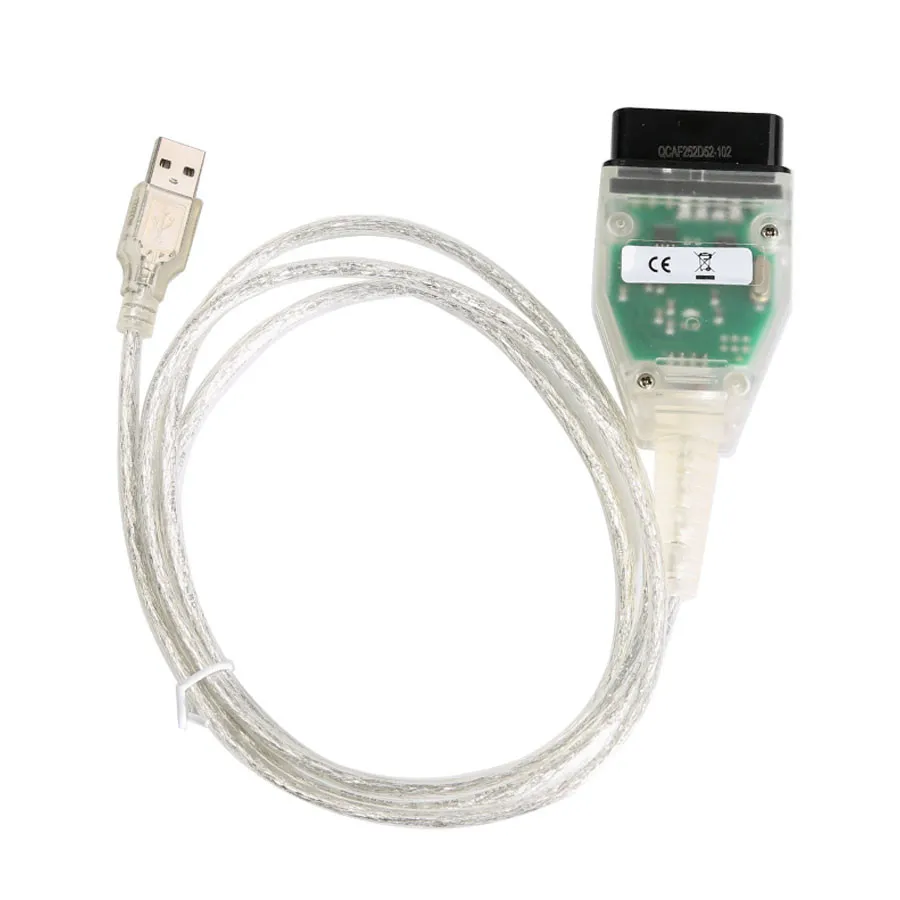

Packing List：

We will ship according to the style you choose

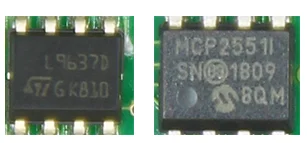

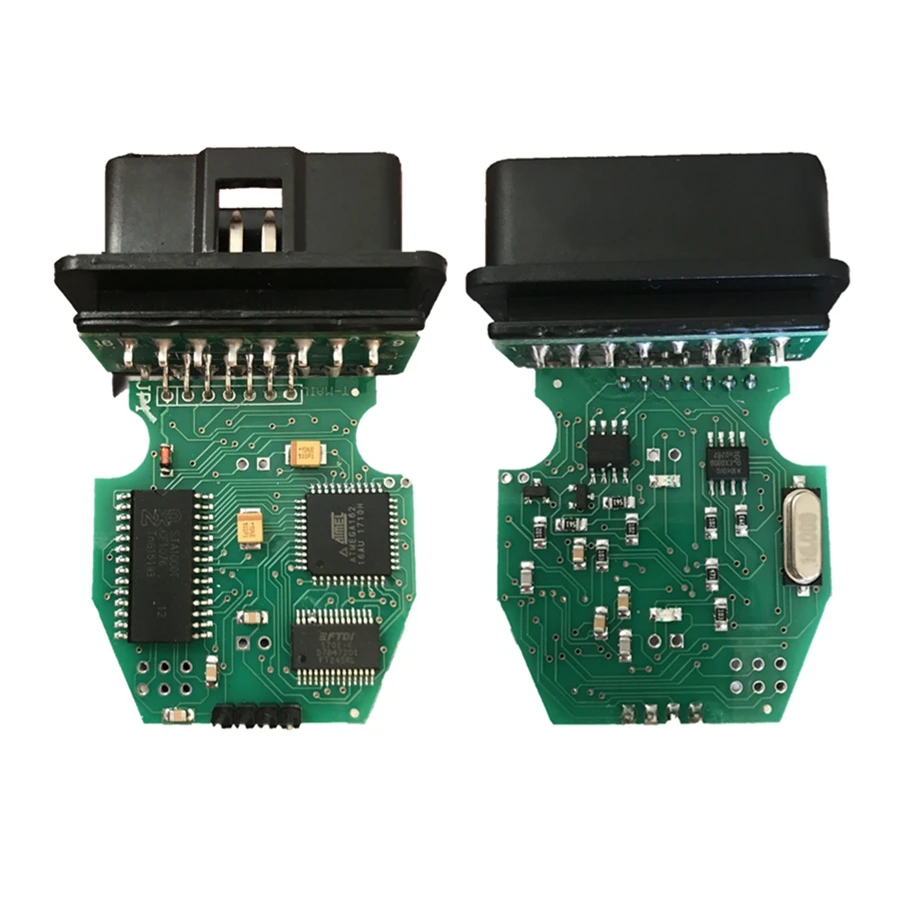

Chip Display
