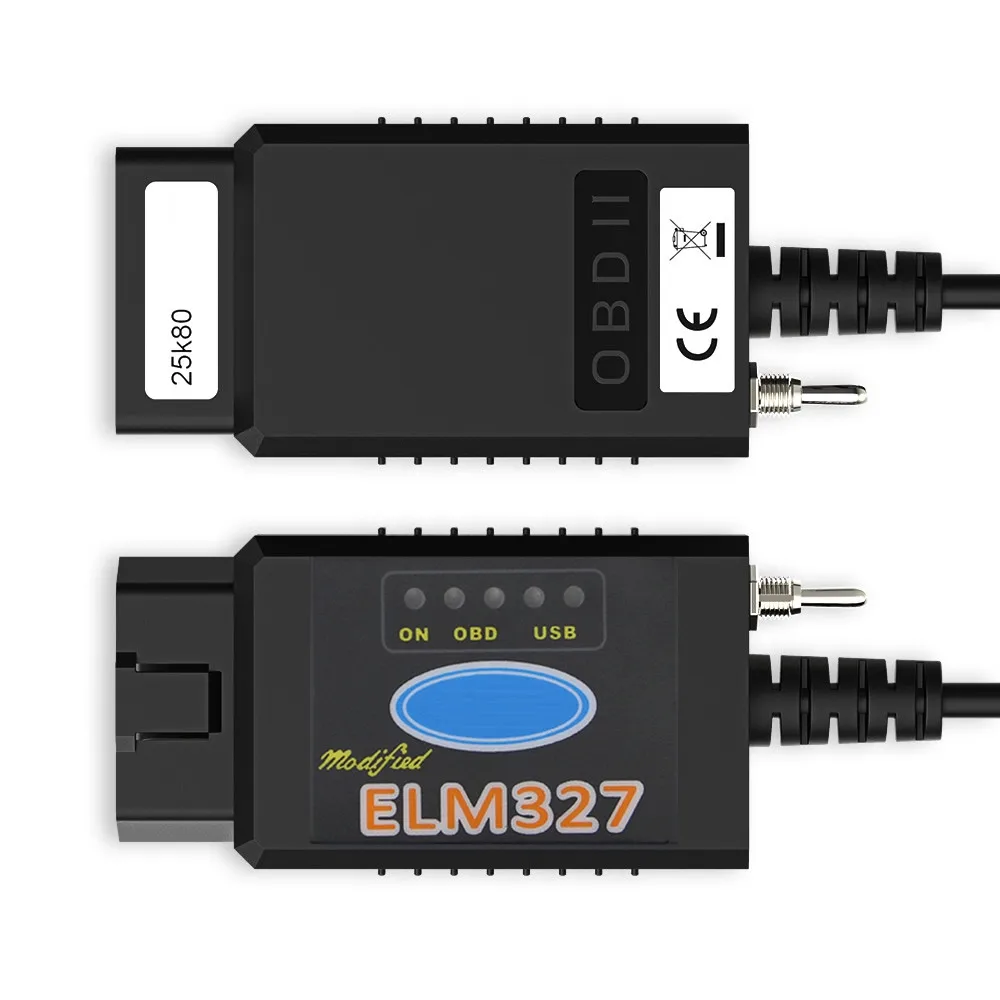

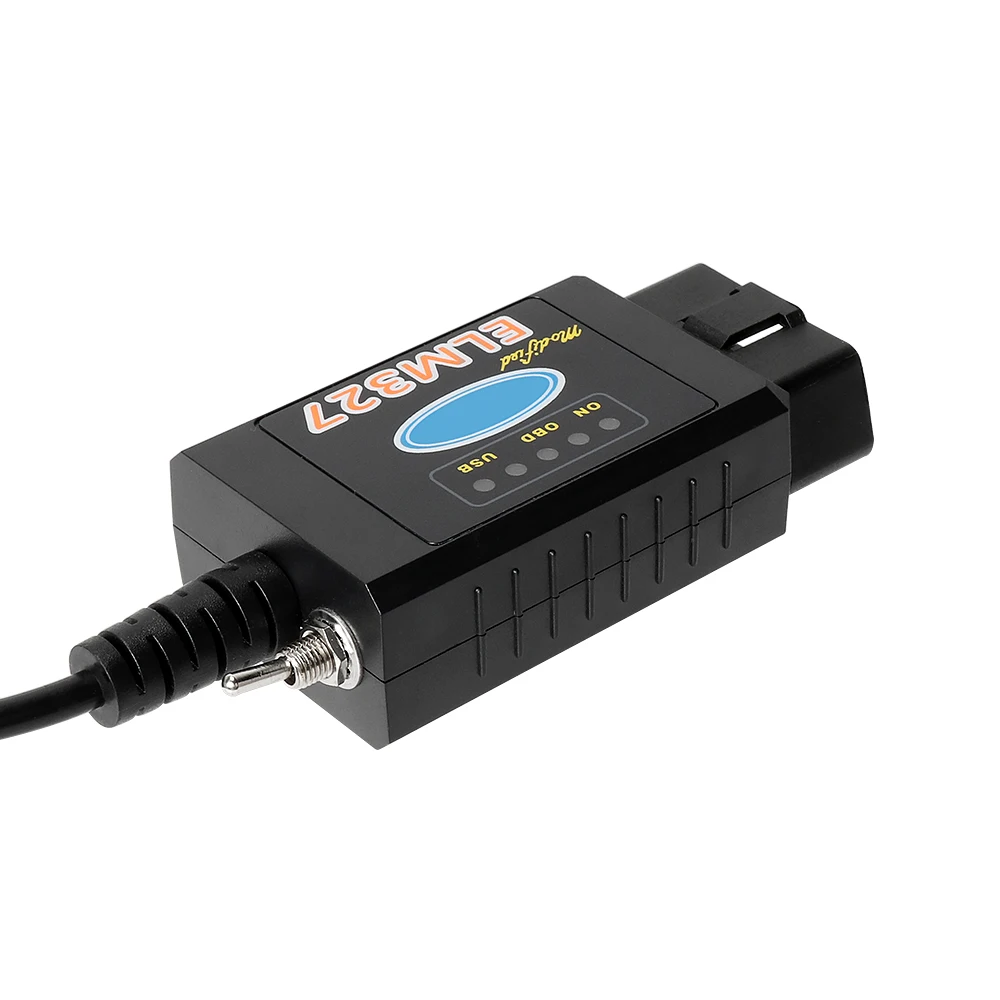

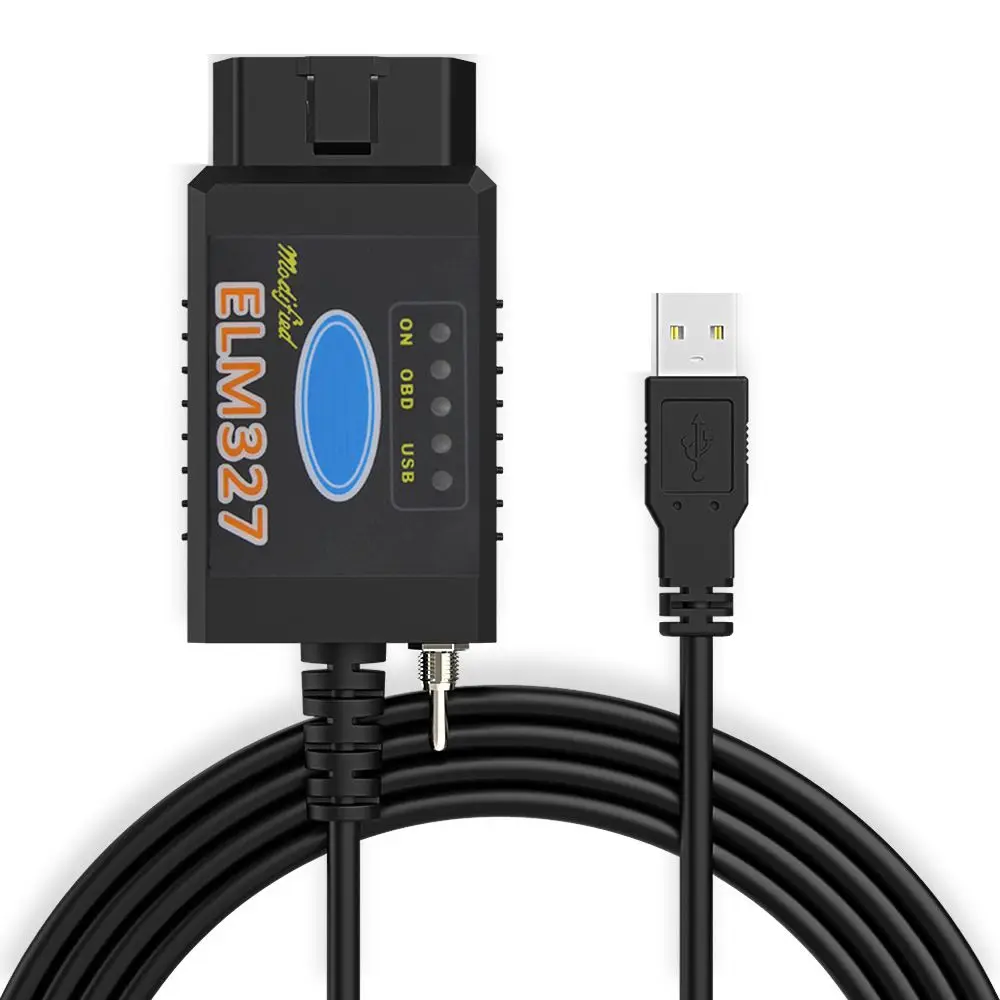

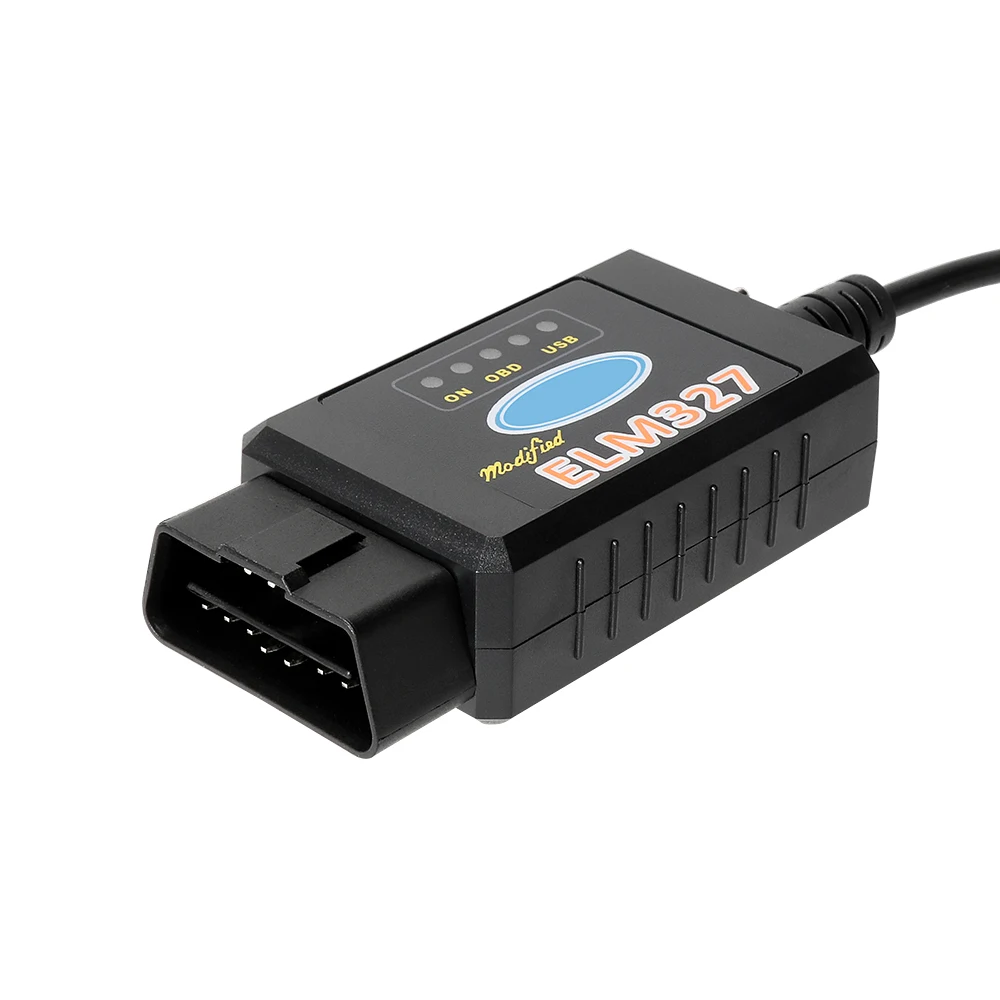

This one is Hardware V1.5 ELM327 USB & Switch. The Chip is PICI8F25K80.

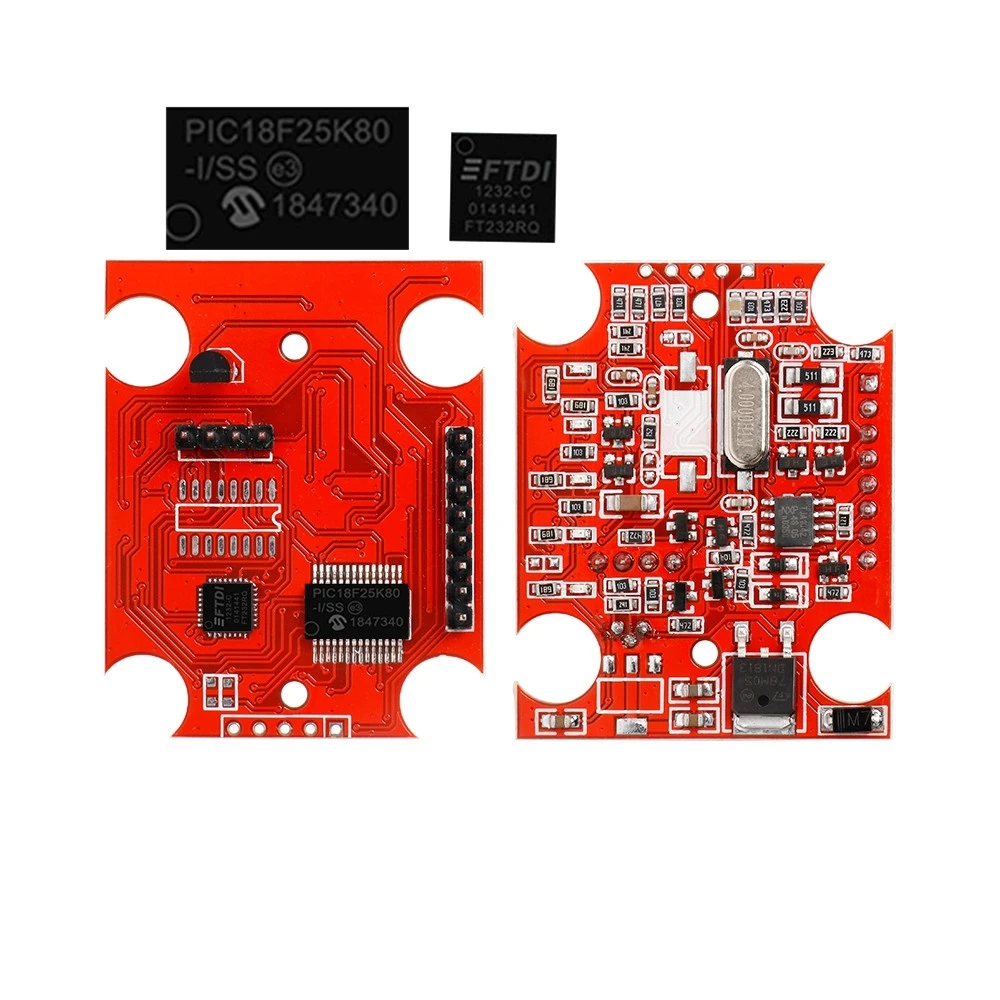

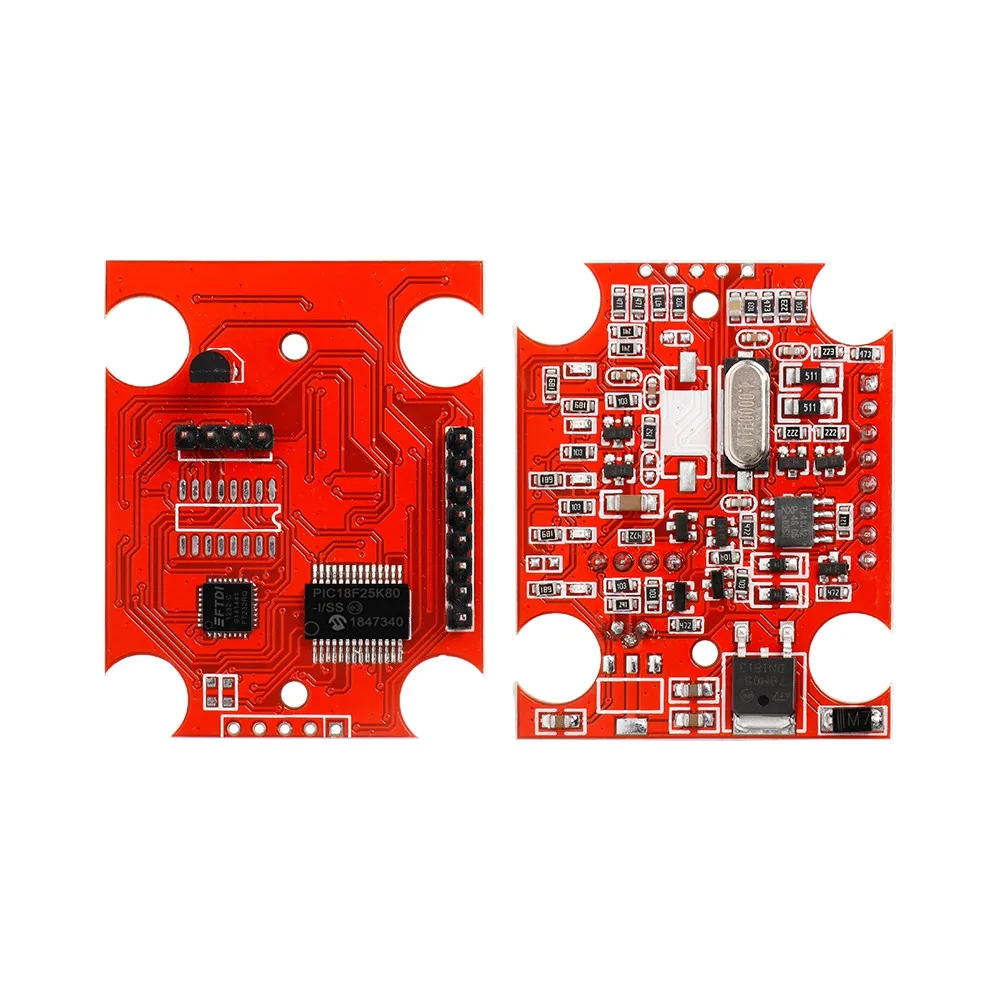

ITEM 1: PICI8F25K80+FTDI FT232RQ Chip

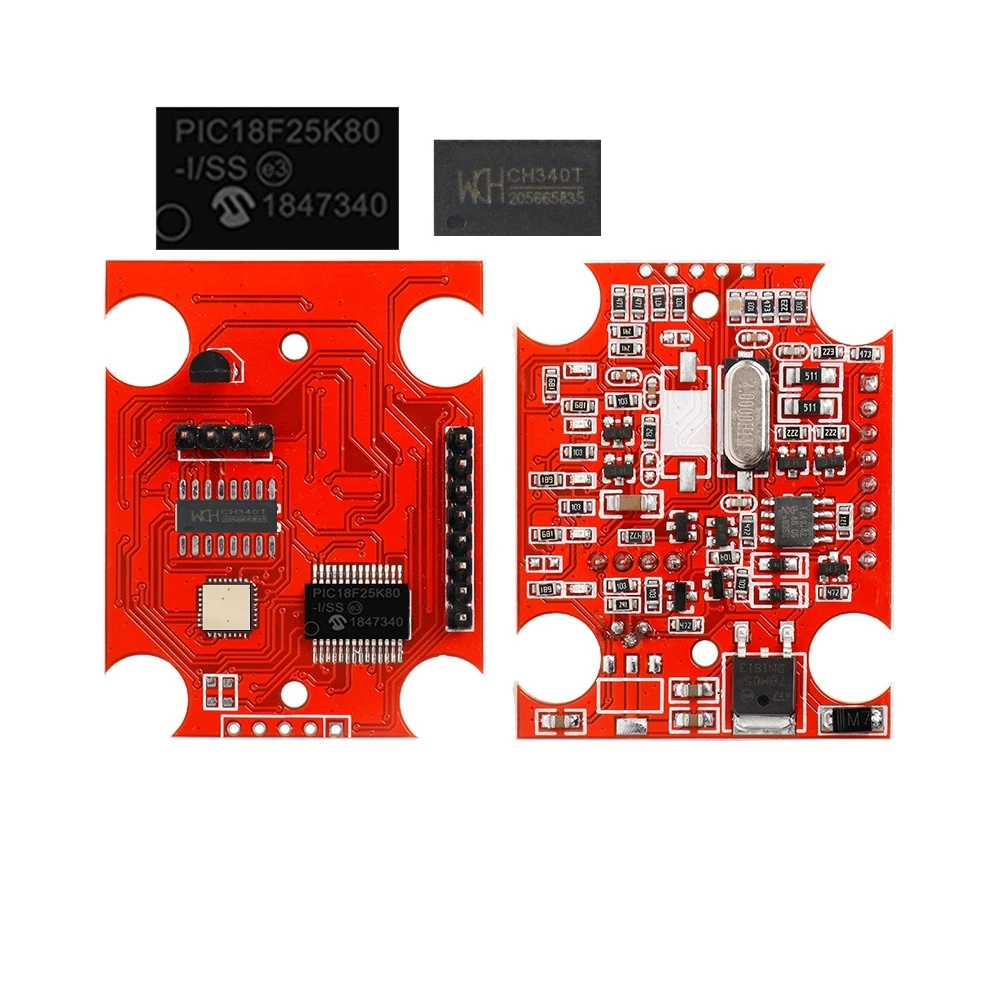

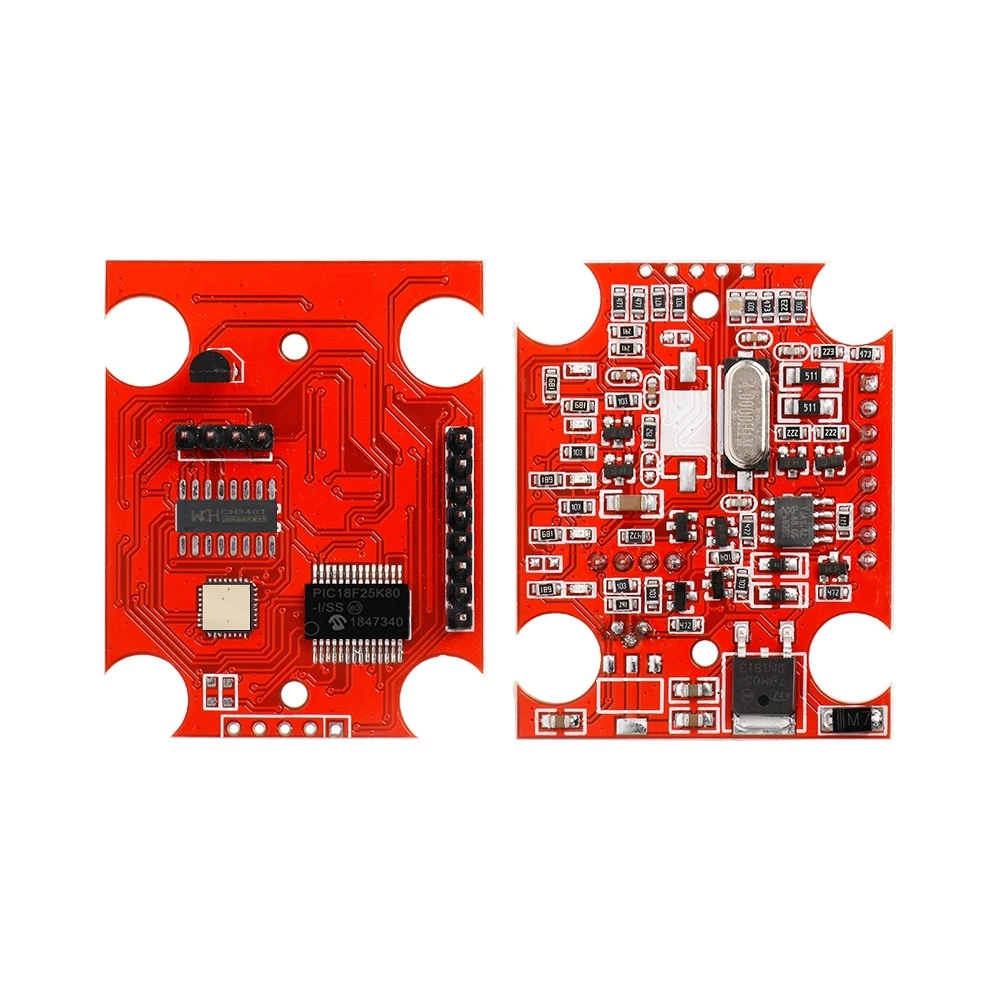

ITEM 2: PICI8F25K80+CH340 Chip
Highlights:
1. Hardware V1.5, Software V2.1
2. The chip of ELM327 USB Forscan is PICI8F25K80 and FTDI chip

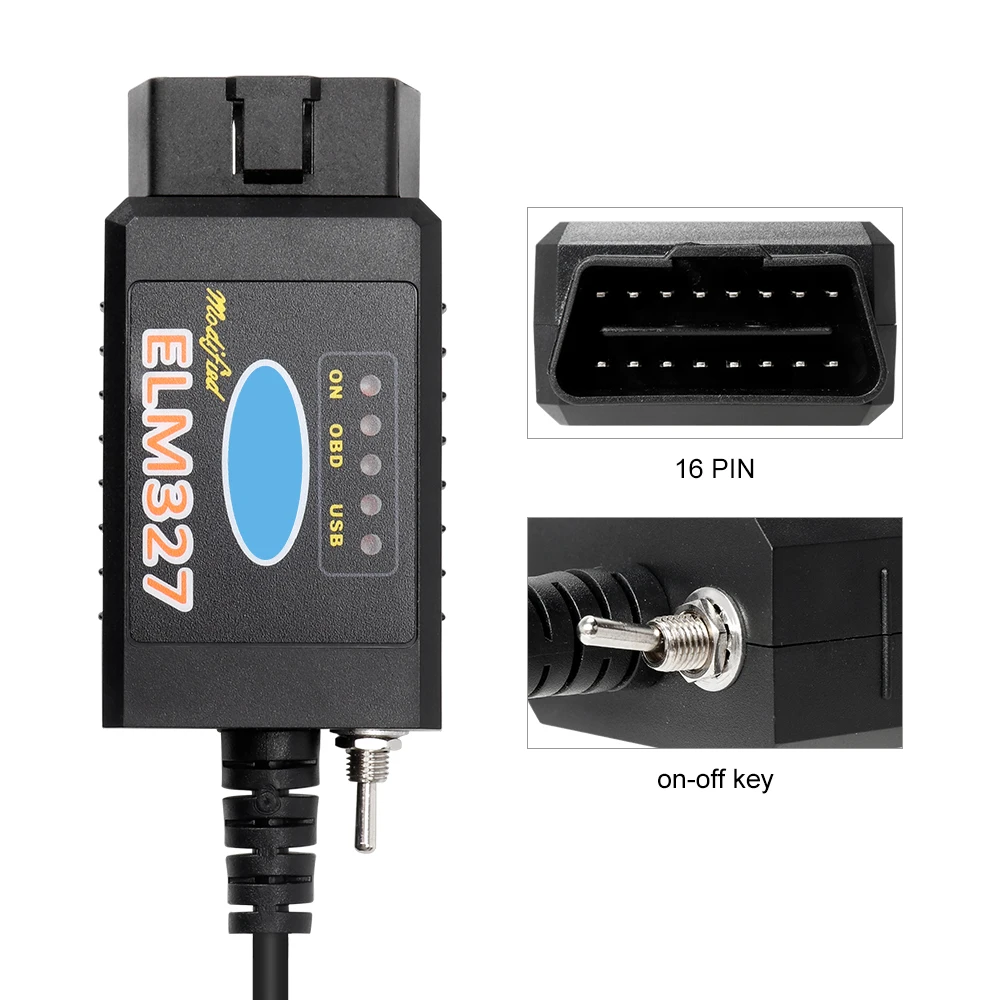

3. MS-CAN support via toggle switch(MS-CAN / HS-CAN).
Support MS CAN bus and HS CAN bus, easily switchable for different CAN speeds.
Switch position one: HS CAN – Occupies pins 6 and 14
Switch position two: MS CAN – Occupies pins 3 and 11
4. Support for FORD models open hidden function.
5. Majority for moderm modules are accessoible only through this protocol
6. Beside added functionality, this device works as normal OBD2/EOBD code reader on all supported vehicels.

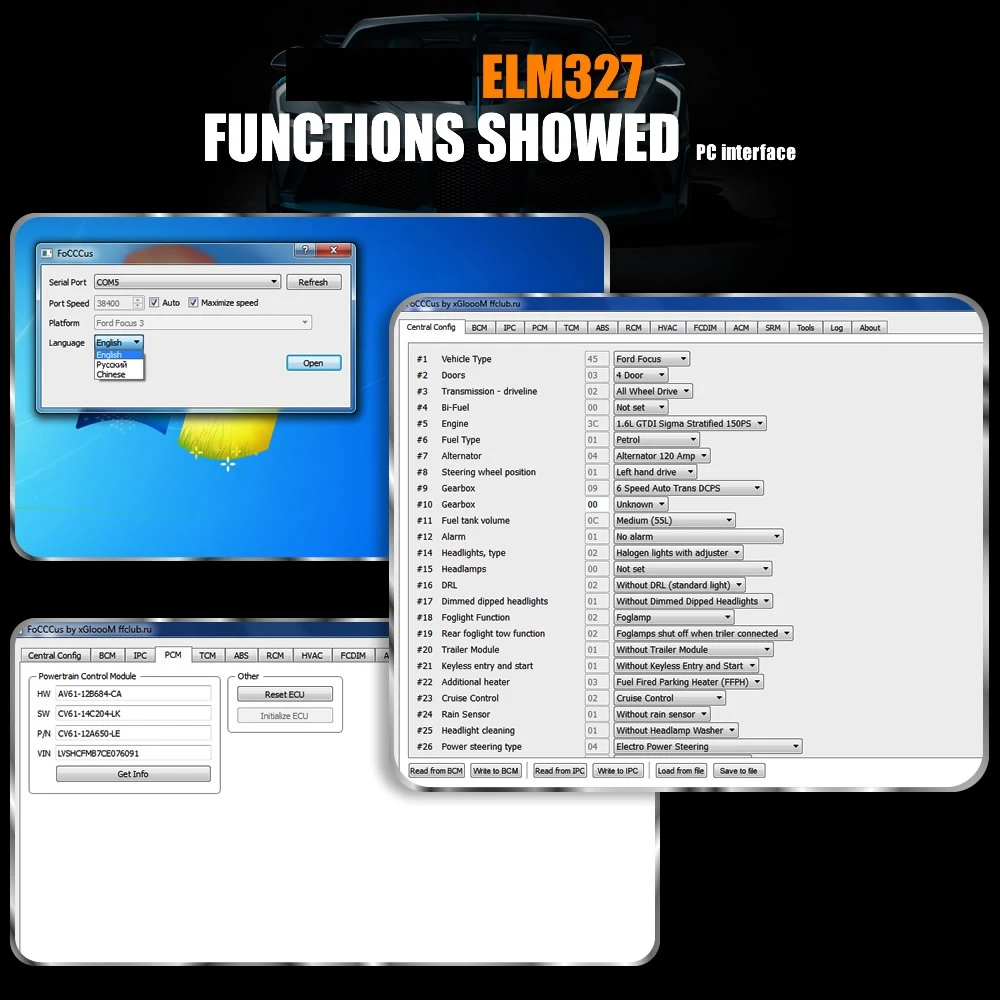

7. When you use it with software of FoCCCus. It just supports 2 kinds of languages: English & Russian.
8. Computer System: Windows XP/Win7 32bits,close anti-virus program to install software.
9. Supports 12V gasoline cars,no supports diesel&truck .
10. Multi-Language Available : English , Czech , Danish , German , Spanish , French , Croatian , Hungarian , Italian , Polish , Serbian , Turkish
Note:
HS MS USB V1.5: ELM327 USB V1.5 version With PIC18F25K80 chip,CH340 chip or FTDI FT232RQÂ Chip,and HS-CAN/M-S CAN Switch(with CD)
（Many customers use HS-COM/MS-COM V1.5 ELM327 for Ford with FORScan）

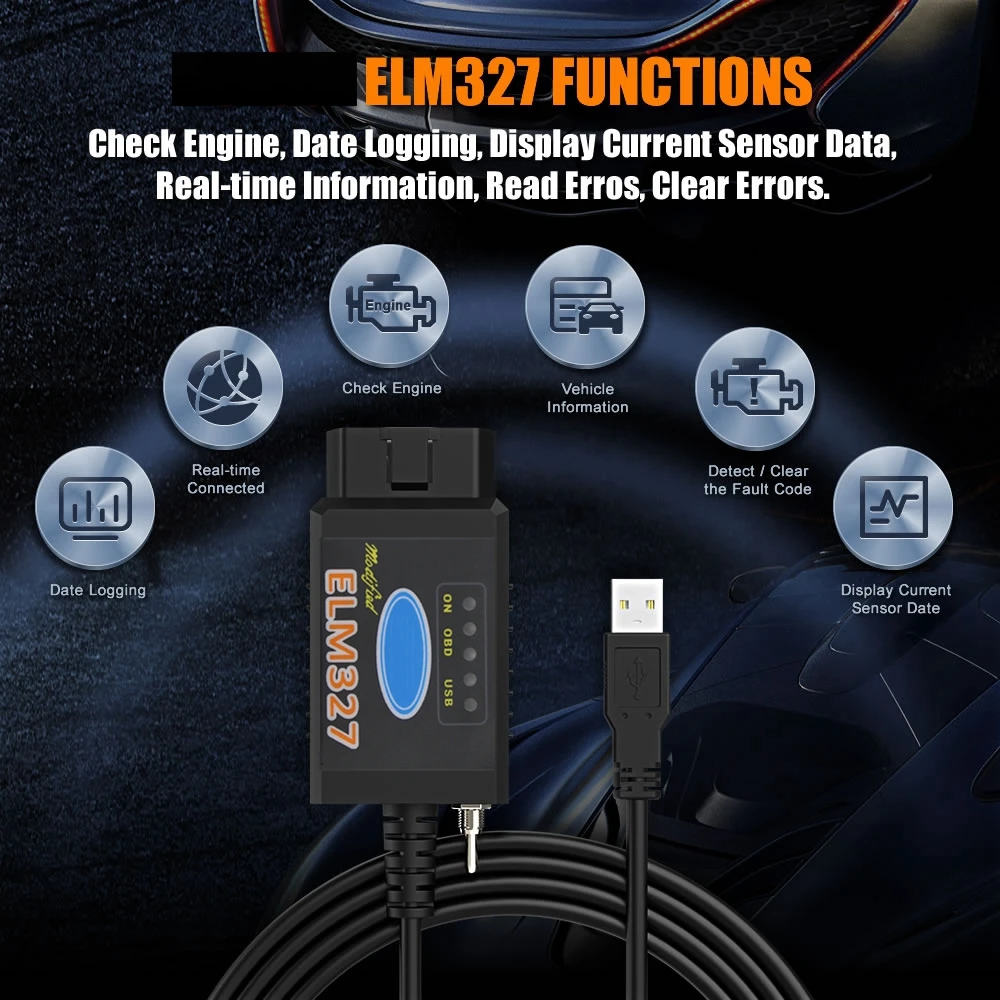

Functions:
* Read/erase fault codes from all modules, including OBD2/EOBD
* Access modules on both HS-CAN and MS-CAN mode
* Read vehicle configuration
* Actuator tests
* Live Data
* Injector coding
* Software update
* Service program
* Force DPF regeneration
* Programming
* Coding
* Adaptation
Supported Software:
For ELMconfig
For Forscan
For FOCCCUS
For FF2
Vehicle Coverage:
The ELM327 USB V1.5 OBD2 scanner is compatible with For FORD, for MAZDA, for BMW, for VW, for GM, for AUDI, for CHEVY, for TOYOTA, for LEXUS, for MERCEDES, for HYUNDAI, for KIA, for MITSUBISHI,for NISSAN, for SUZUKI, for JAGUAR, for LAND ROVER, for CHRYSLER, for HONDA .And so much more!Â

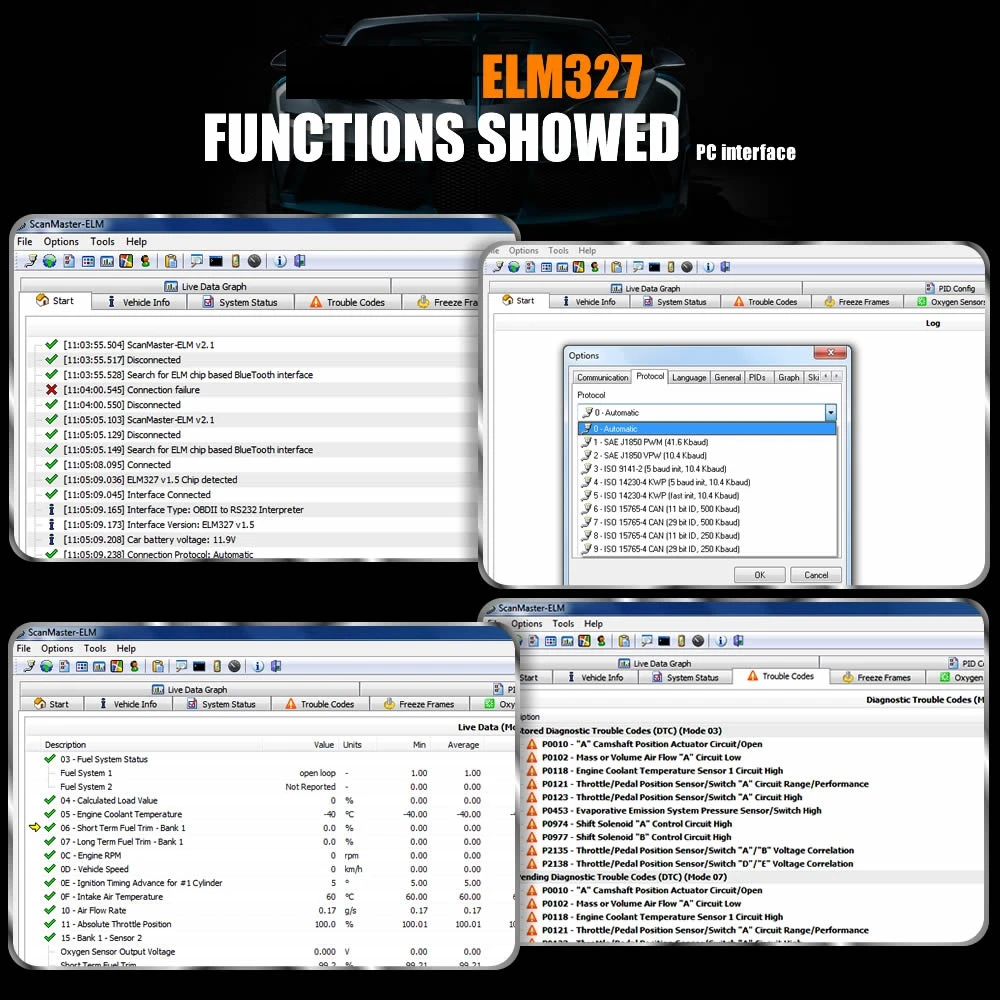

Supported Protocols:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250*Kbaud)
CAN(11*bit ID,125*Kbaud)
CAN(11*bit ID,50*Kbaud)
Packing List:
1pc × ELM327 USB switch
1pc × CD
