Parameter:
Communication method:Bluetooth 4.0
Software Platform: Android /Windows(XP/7/8/10),/IOS/Symbian
Recommended Software:
Android:Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD ect
Symbian:OBDScope ect
IOS
Work voltage:12V
Work current:32mA
Working Temperature: 40℃ to 80℃
Working Humidity: Less than 60%
Functionality:

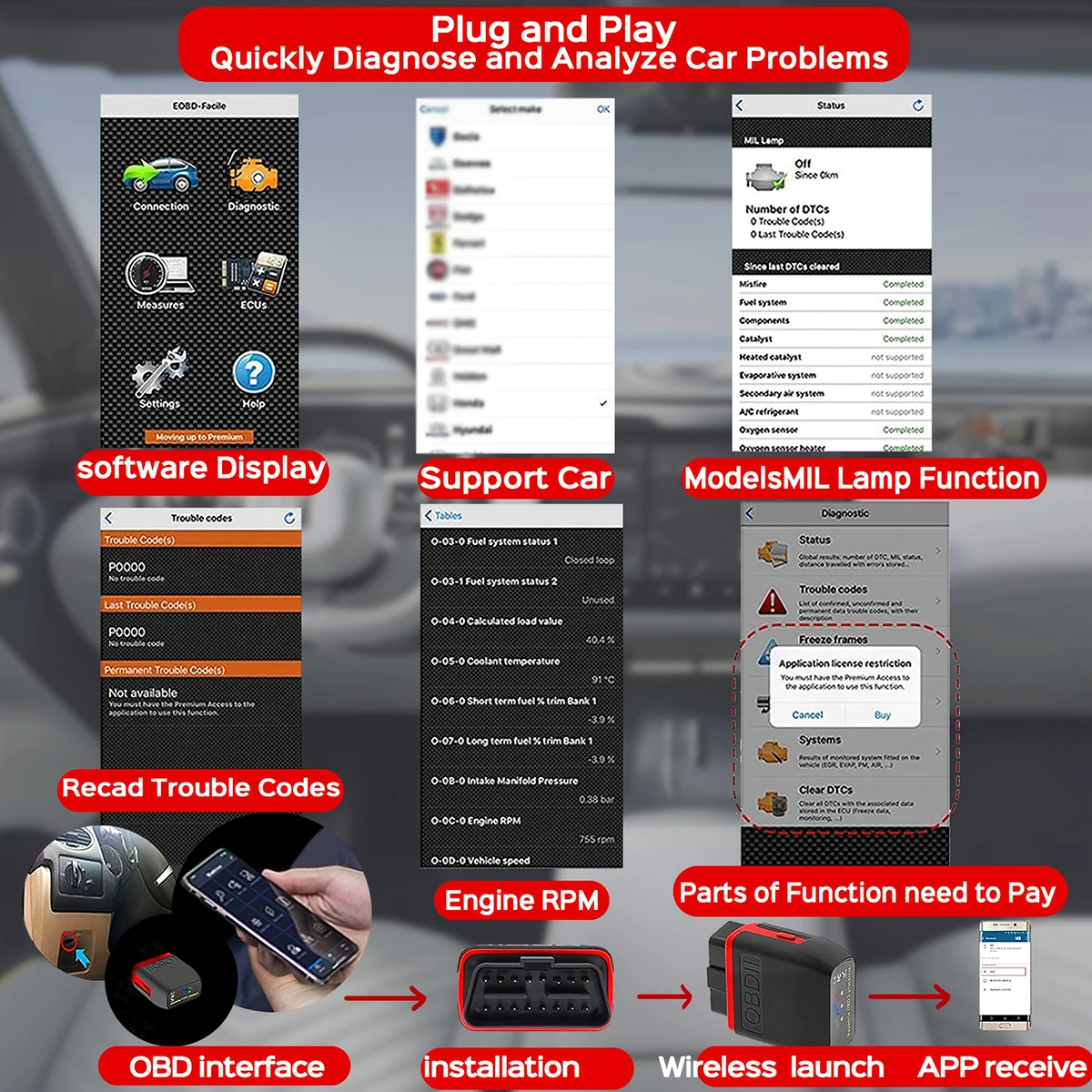

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear the error codes and turn off the MIL ("Check Engine" indicator).

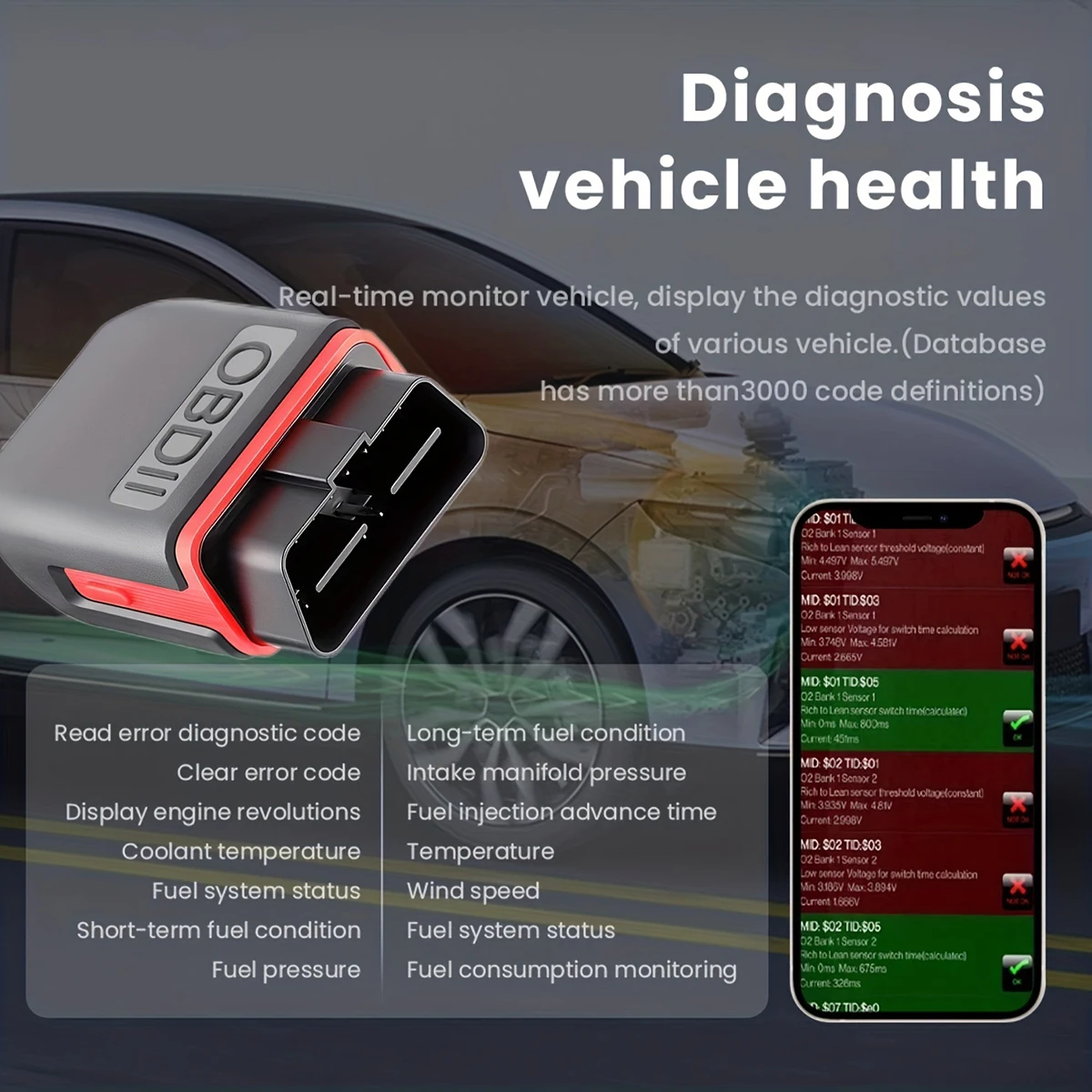

Displays current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Vehicle speed
Short-term fuel condition
Long-term fuel condition
Intake manifold pressure
Injection advance time
Intake air temperature
Air Flow Rate
Absolute throttle position
Oxygen probe voltage associated with short-term fuel status
Fuel system status
Fuel pressure
There are many other data available for fuel consumption monitoring
Data chart display and logging
Freeze frame data
Continuous and non-continuous oxygen sensor results
Supported protocols:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
