Condition ： Used
Warranty：3 months

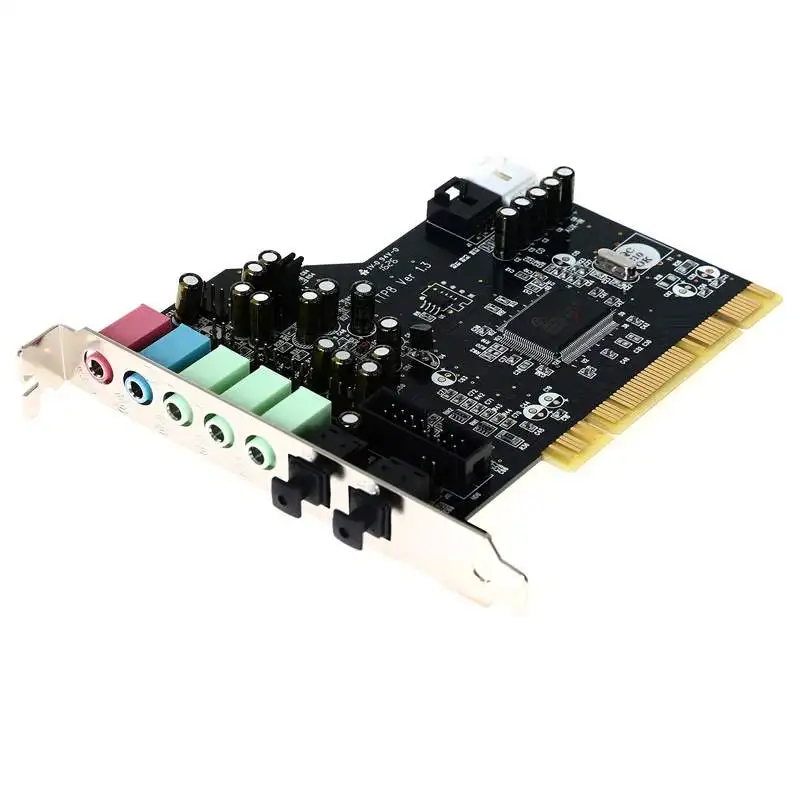

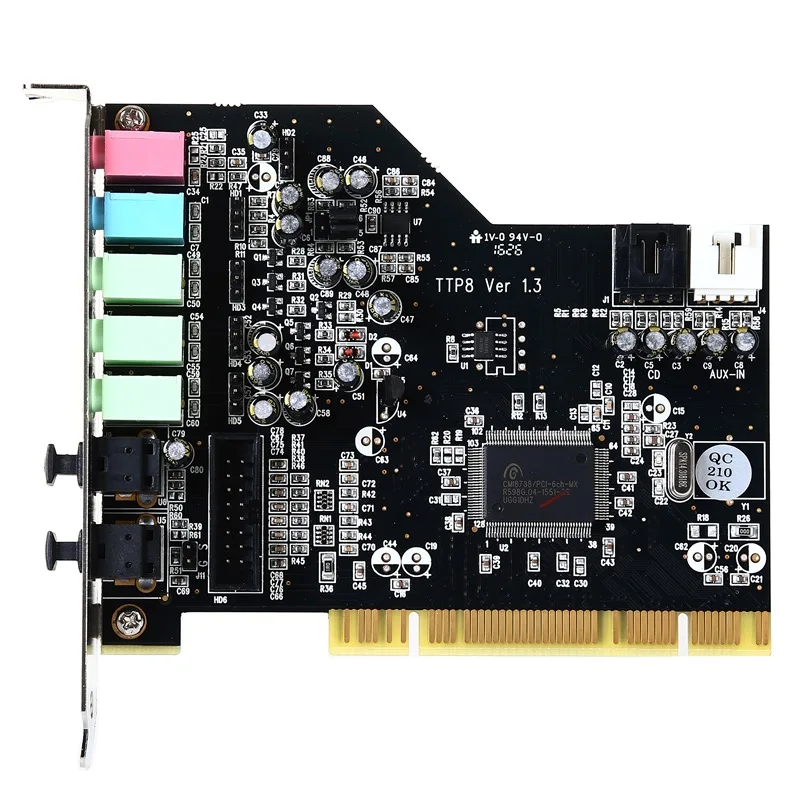

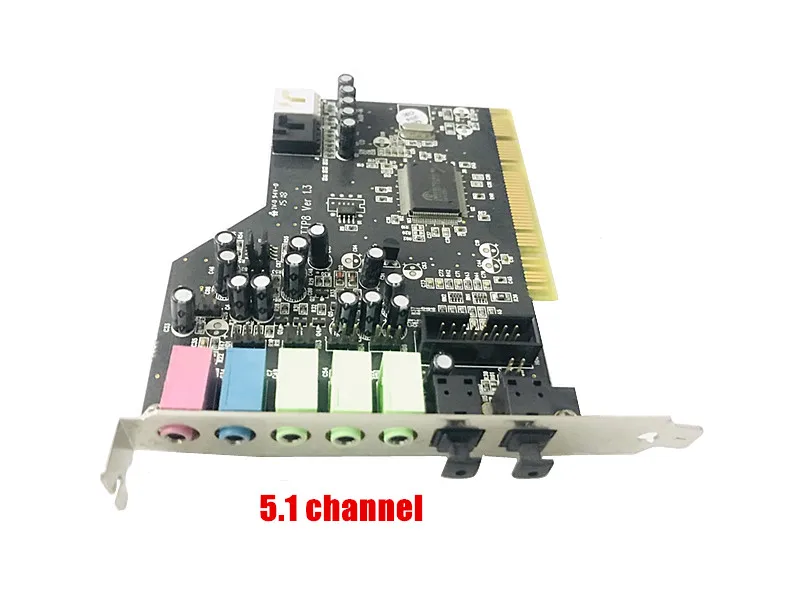

TTP8 VER1.0/VER1.1/VER1.3 is delivered randomly
Basic parameters
Model: 5.1 PCI
Sound card category analog sound card
Channel system: six channel output
Installation method: built in
Applicable type: 16 bits for household sampling
Product features six channel output optical fiber digital input / output
Linear and microphone input
Output AC3 (Dolby) and DTS through optical fiber*
3D sound is compatible with eax 2.0, eax 1.0, a3d 1.0, i3dl2, direct sound 3D and Sensaura 3D
Real time music

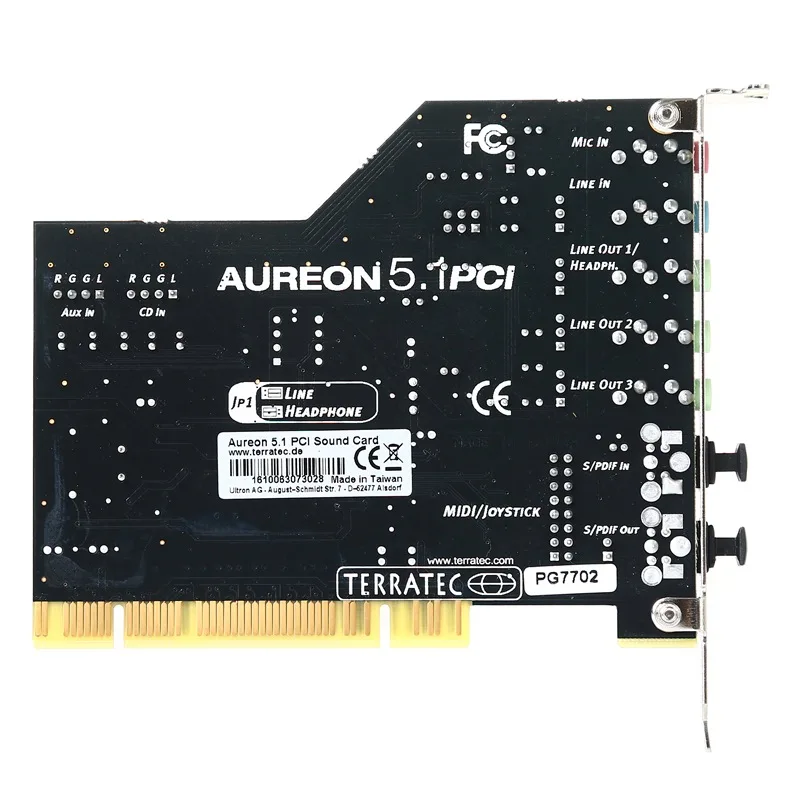

Terratec AUREON 5.1 fun is a set of sound cards that enable you to make your PC have surround sound effortlessly. TerraTec Aureon 5.1 FUN can support simultaneous interpreting from the latest game 3D positioning to DVD movies and other surround effects, just as traditional audio applications do.
Users can choose to play on two, four, or six speakers, and play an admirably 48Khz sampling rate signal on six channels. As a result, the structure of the speaker group can be flexible and suitable for various playback modes. Each optical input and output interface ensures that DVD, DAT and minidisc can be connected in a lossless way. Terratec AUREON 5.1 fun supports all general 3D sound standards. With eax 2.0 / 1.0, 3di2 to direct sound 3D and Sensaura 3D, you can immerse yourself in a real game environment.
Needless to say, Terratec AUREON 5.1 fun comes with sophisticated and optimized software that enables your PC to have theater like DVD playback software, or use MusicMatch jukebox to easily create and edit MP3, and emagic logic fun with recording and MIDI functions. As a result, you can easily bring Terratec AUREON 5.1 fun into full play.
Main features
Six channel output
Optical fiber digital input / output
Linear and microphone input
Output AC3 (Dolby) and DTS through optical fiber*
3D sound is compatible with eax 2.0, eax 1.0, a3d 1.0, i3dl2, direct sound 3D and Sensaura 3D
Real time music
Technical specifications:
Transport interface: PCI 2.1
DSP: cmedia cmi8738mx
Specifications of sound source converter: 16bit A / D analog / digital converter, 16bit D / a digital / analog converter. The highest sampling frequency is 48Khz
Compatible supporting specifications of sound effects: Microsoft? DirectSound? 3D hardware acceleration., direct music, eax? 2.0, a3d? 1.0, i3dl2, Sensaura's, environmentfx? Technology for 2 / 4 channel 3D positioning sound effect. C3dx 3D positioning technology,
Acoustic synthesis support specification:
The sound processor acceleration engine supports 64 software voice counts·
. DLS 1.0 voice support – compatible with GM? (general MIDI) PCI card built-in source terminals: cd-audio / aux in input terminals and S / PDIF out terminals
External source input terminal:
. 3.5mm line in signal input
. 3.5mm mic in microphone signal input (built-in gain amplifier)
External horn output terminal:
. 3.5mm front standard horn output connector·
. 3.5mm rear standard speaker output connector · 3.5mm central / subwoofer output connector
External headphone output terminal: 3.5mm standard headphone output connector
S / PDIF digital output input terminal:
. digital S / PDIF fiber input (44.1KHz, 48Khz sampling frequency)
. digital S / PDIF fiber output (44.1, 48Khz sampling frequency)
Basic system requirements
Pentium MMX 200MHz CPU or AMD K5 or above
Windows 9x, me, 2000, NT4.0, XP operating system Windows 2000 / XP / Vista / 7
More than 64MB memory
PCI slot (PCI ver 2.1 up)
CD ROM or DVD ROM
Color display system
More than 50MB hard disk space
2 / 4 / 6 channel speaker or stereo headset
