Original M5Stack ATOM Lite ESP32-PICO Development Board Kit with Wi-Fi Programmable Button IoT node

SKU: 1005007239741251

Original price was: $43.82.Current price is: $12.52.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description



M5Stack ATOM Lite ESP32-PICO Development Board Kit


 Product Description

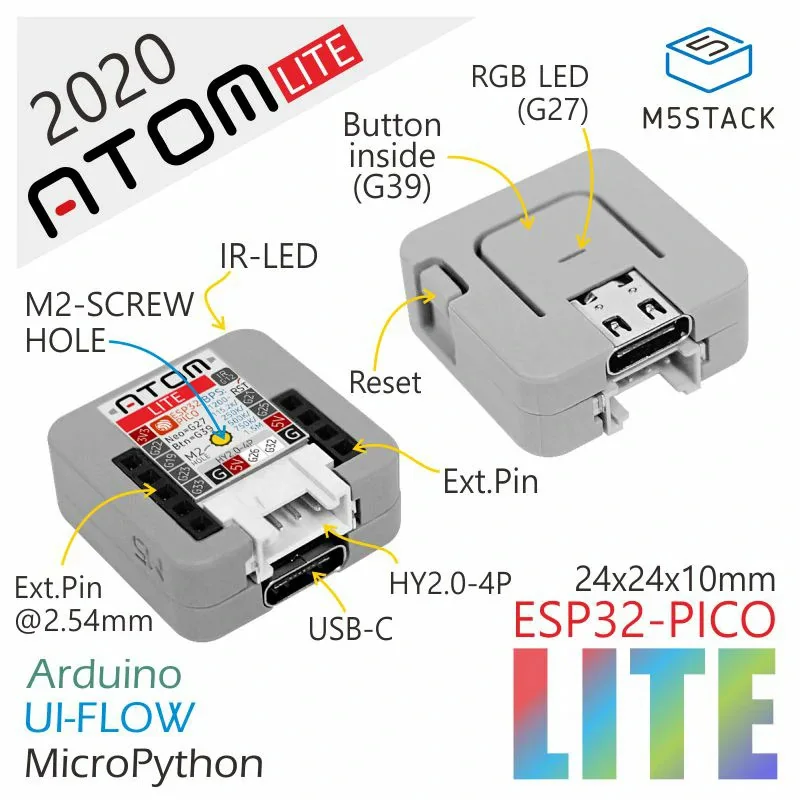

Atom Lite, which has a size of only 24*24mm, is a very compact development board in the M5Stack development kit series. It provides more GPIOs for user customization which is very suitable for embedded smart home devices and in making smart toys. The main control adopts the ESP32-PICO chip which comes integrated with Wi-Fi technologies and has a 4MB of integrated SPI flash memory. Atom Lite board provides an Infra-Red LED, a RGB LED, buttons, and a HY2.0 interface. In addition, it can connect to external sensors and actuators through 6 GPIOs. The on-board Type-C USB interface enables rapid program upload and execution.
 Product Features

  • ESP32-based

  • RGB LED(SK6812)

  • Programmable button

  • Built-in Infra-red

  • Extendable Pins & Holes

  • Program Platform: Arduino, UIFlow

Applications

  • Internet of things terminal controller

  • IoT node

  • Wearable peripherals

 Package Includes

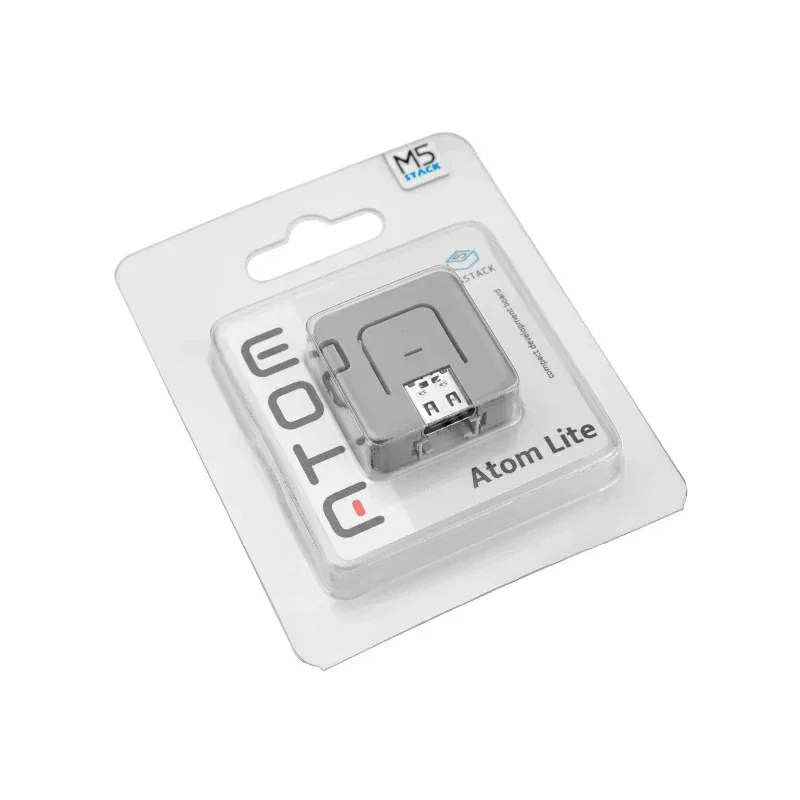

1x ATOM Lite
 Specification

Resources Parameters

ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi

Flash: 4MB

Power Input: 5V @ 500mA

Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1

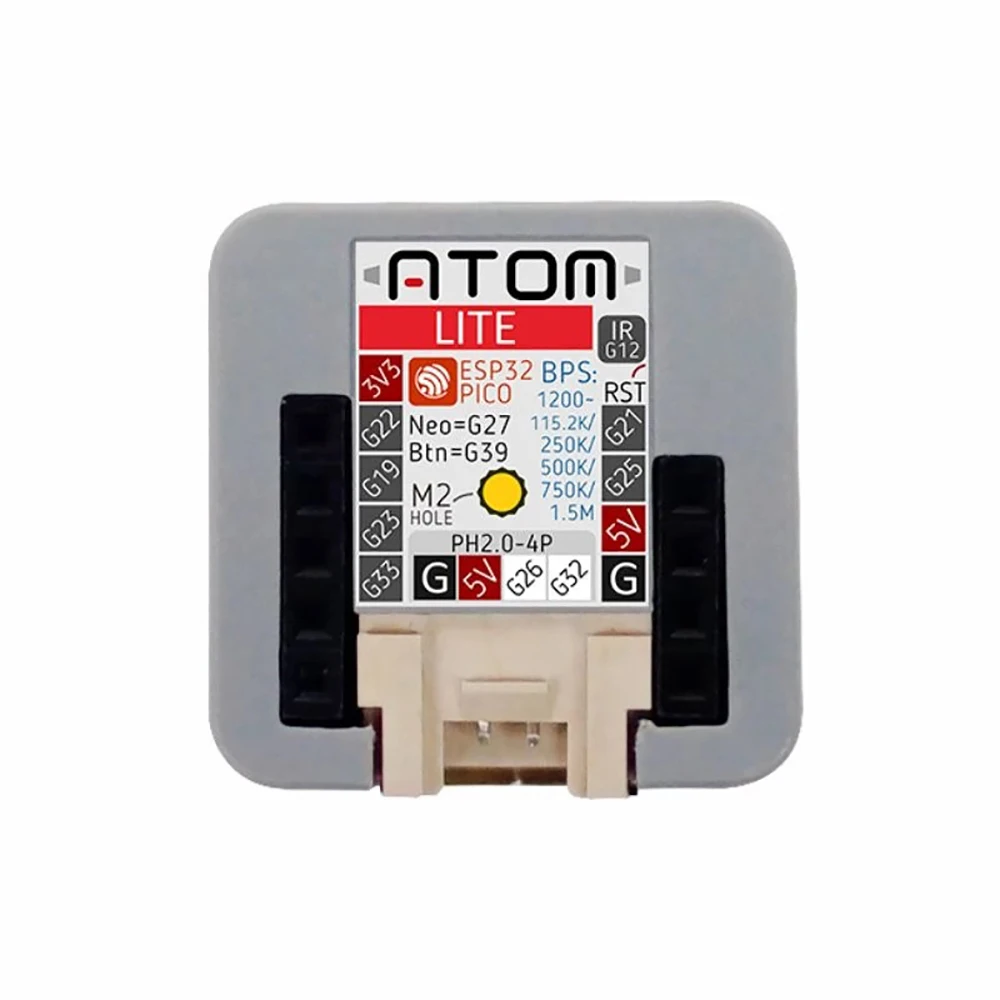

PIN Port: G19, G21,G22,G23,G25, G33

RGB LED: SK6812 3535 x 1

IR: Infrared transmission

Button: Custom button x 1

Antenna: 2.4G 3D Antenna

Operating Temperature: 0°C to 40°C

Case Material: Plastic (PC)

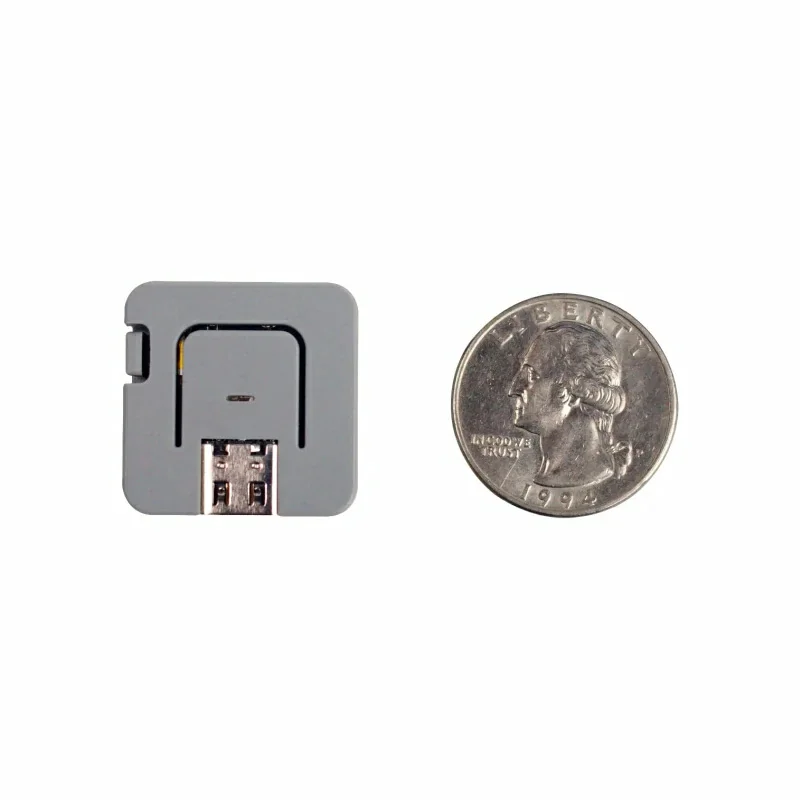

Product Size: 24*24*10mm

Package Size: 43*43*13mm

Product Weight: 3g

Package Weight: 12g


 Product details

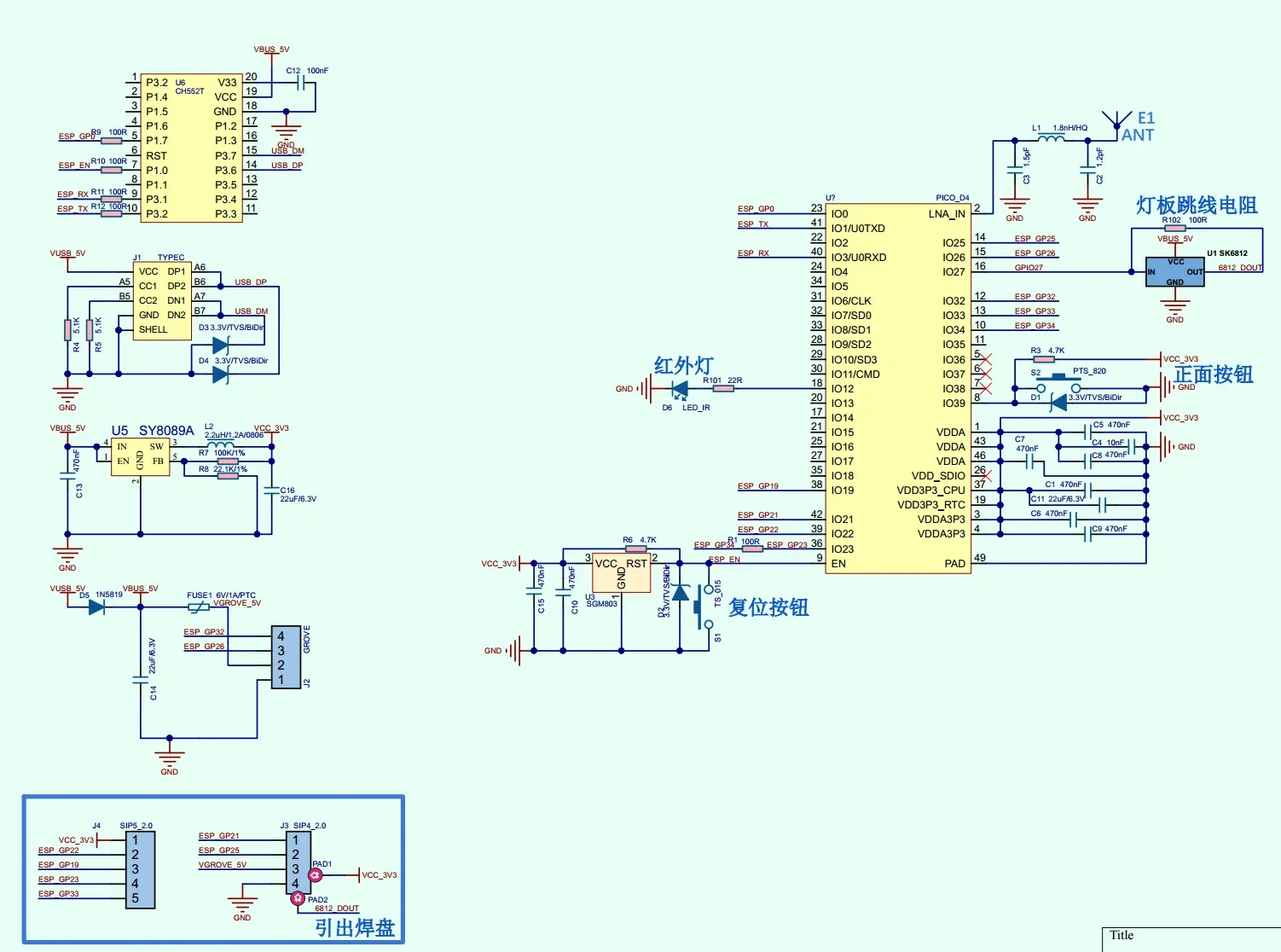

Schematic

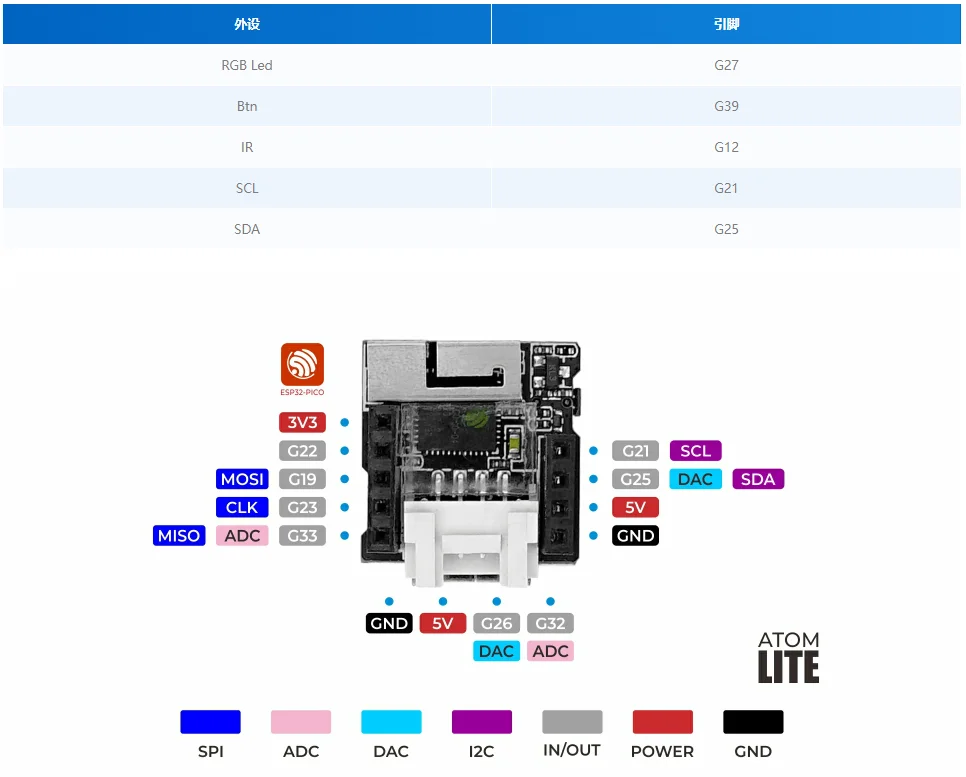

PinMap
