Original M5Stack ATOM Matrix ESP32-PICO-D4 Development Board Kit 5*5 RGB LED Matrix with Wi-Fi Programmable Button for IoT node

SKU: 1005007266754990

Original price was: $82.70.Current price is: $23.63.

0 People watching this product now!

Fast Shipping

Carrier information

50 million products

Payment methods

24/7 Support

Unlimited help desk

2-14 day delivery

Track or off orders

Reviews (0)
Only logged in customers can leave a review.

Description



M5Stack ATOM Matrix ESP32-PICO-D4 Development Board Kit



 Product Features

  • ESP32 PICO-based

  • Programmable button

  • 5 * 5 RGB LED matrix panel(WS2812C)

  • Built-in Infra-red LED

  • Built-in MPU6886 Inertial Sensor

  • Program Platform: Arduino, UIFlow

Applications

  • Internet of things terminal controller

  • IoT node

  • Wearable peripherals

 Package Includes

1x ATOM Matrix
 Specification

Resources Parameters

ESP32: 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi

Flash: 4MB

Power Input: 5V @ 500mA

Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1

PIN Port: G19, G21,G22,G23,G25, G33

RGB LED: WS2812C 2020 x 25

MEMS: MPU6886

IR: Infrared transmission

Button: Custom button x 1

Antenna: 2.4G 3D Antenna

Operating Temperature: 0°C to 60°C

Case Material: Plastic (PC)

Product Size: 24*24*14mm

Package Size: 114*64*22mm

Product Weight: 3g

Package Weight: 3g


 Product details

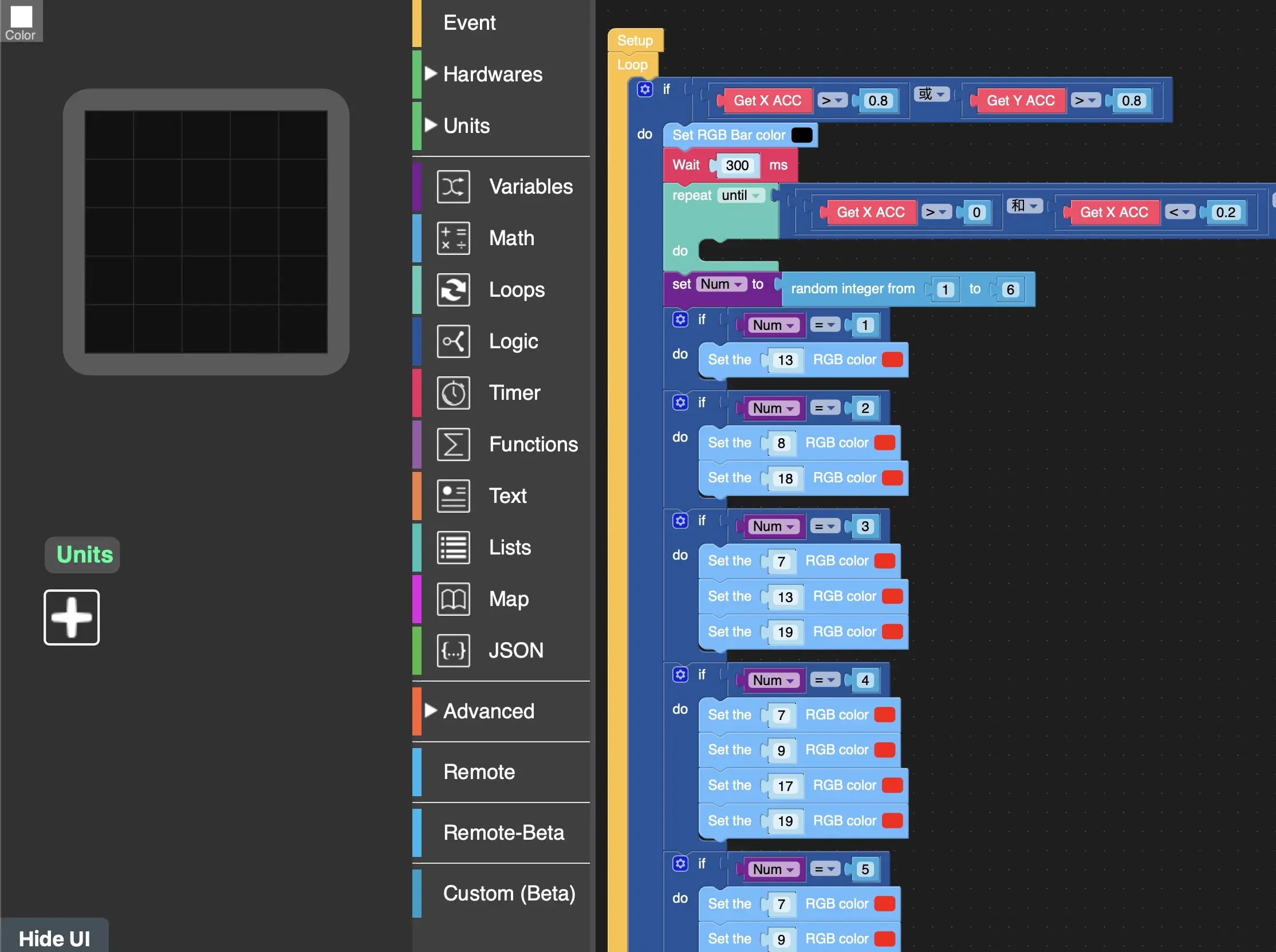

UIFlow example

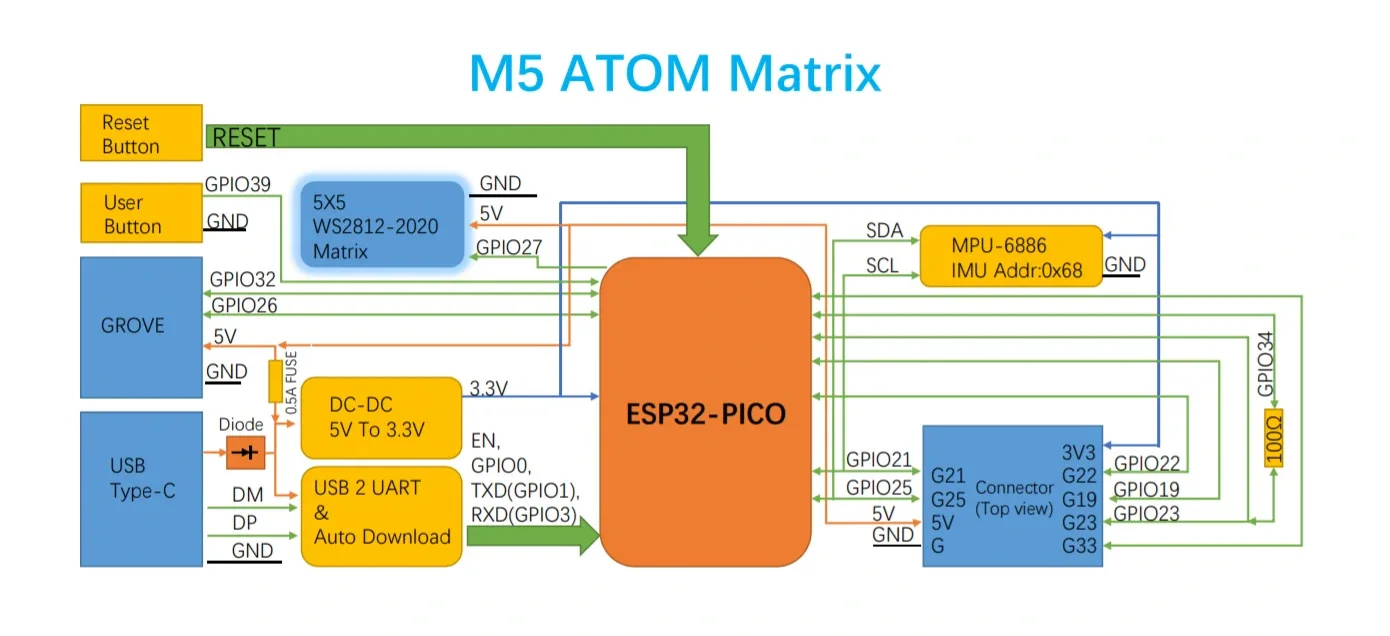

Schematic

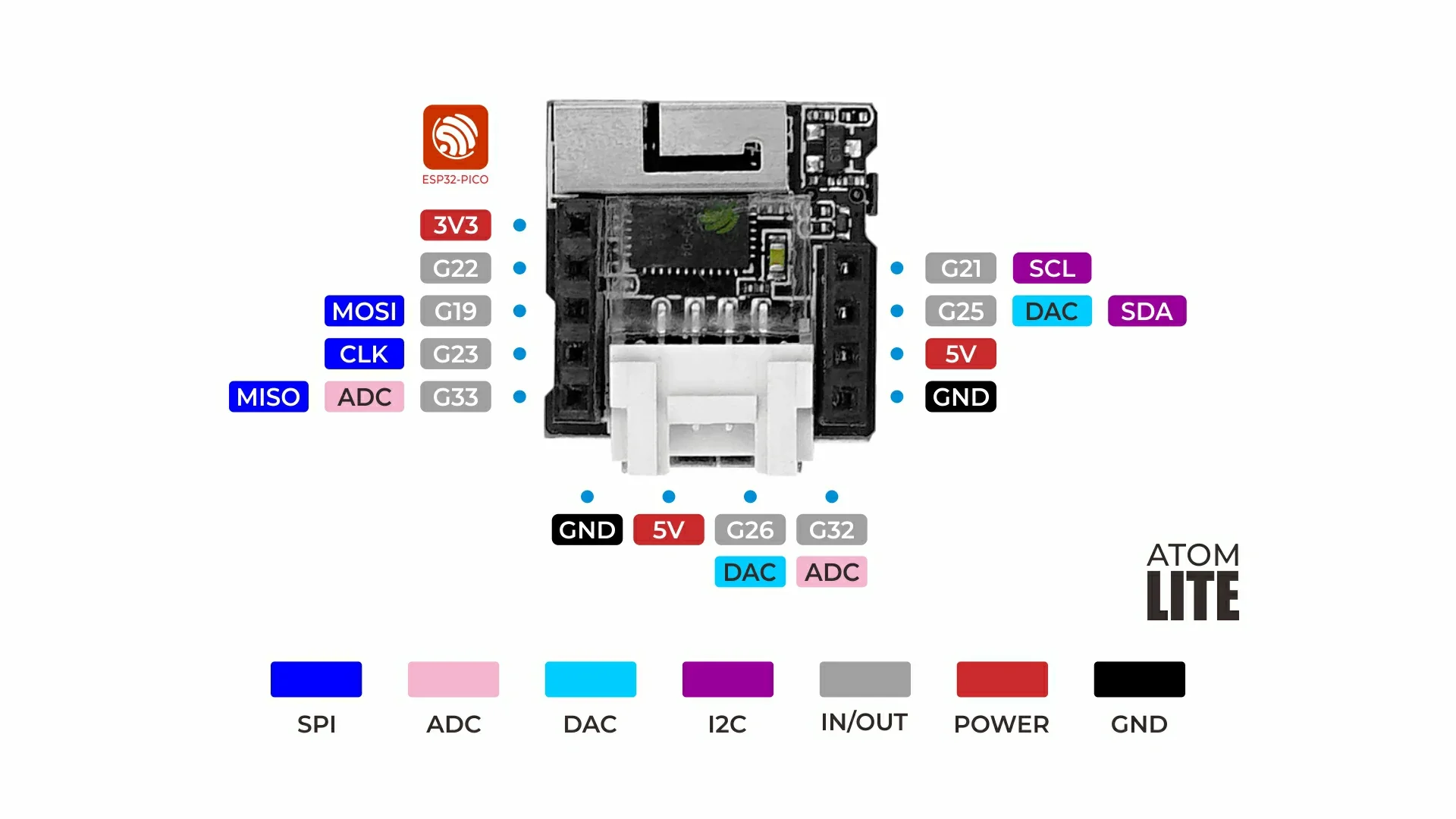

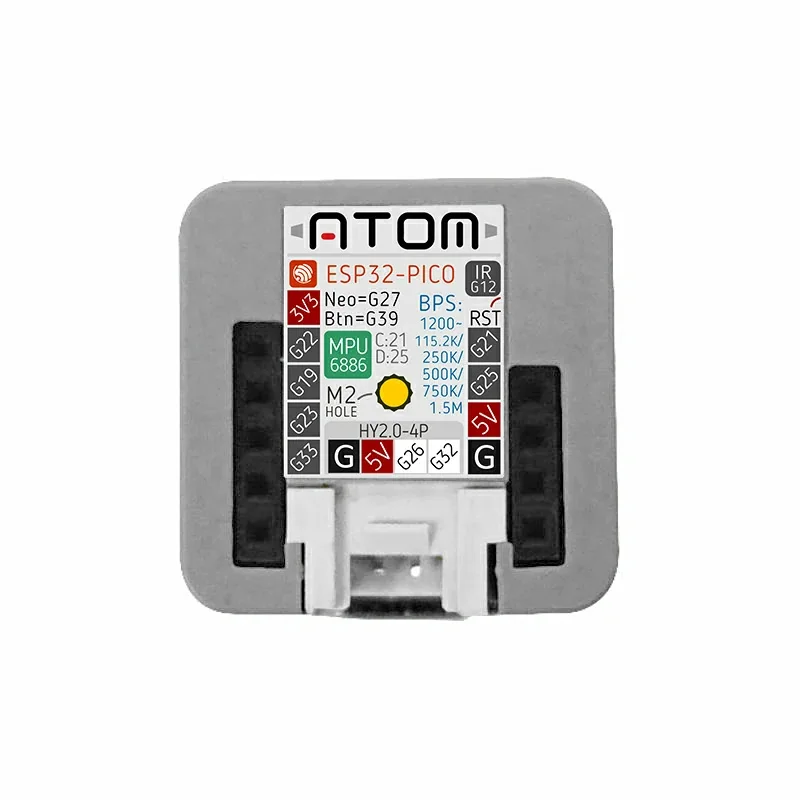

PinMap

 Product Description

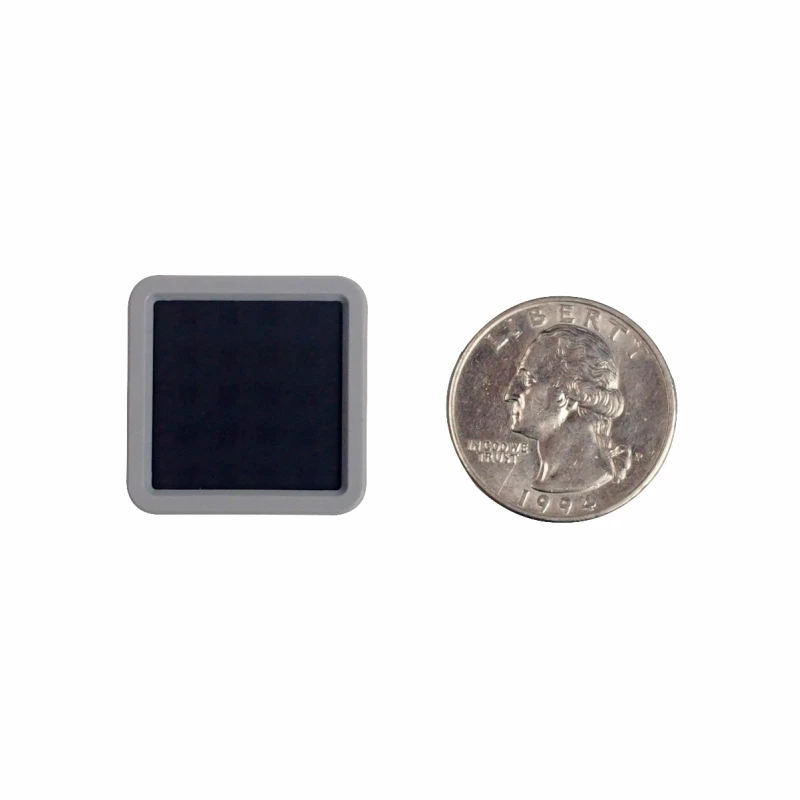

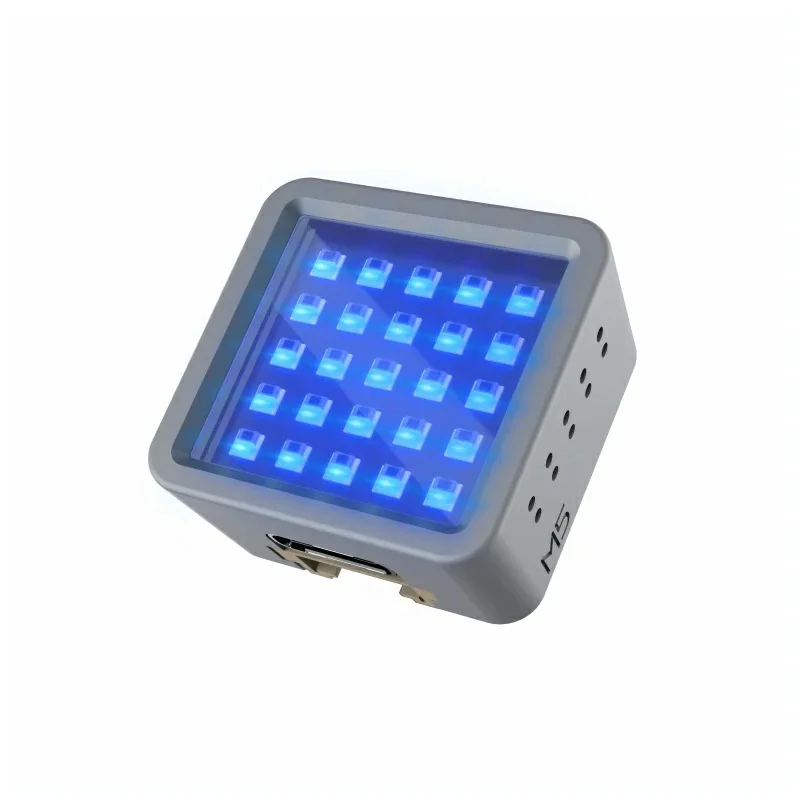

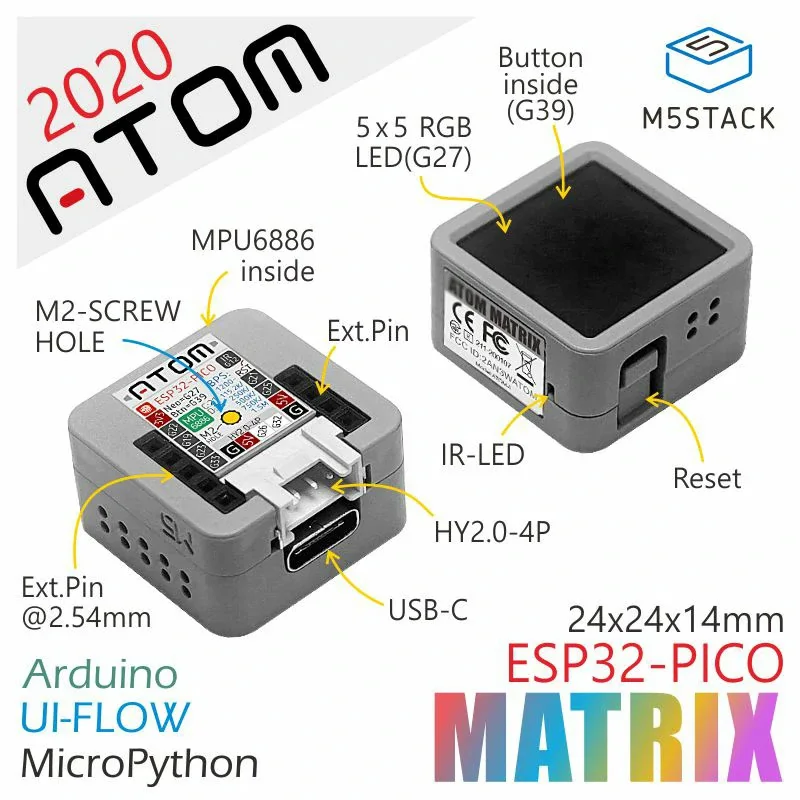

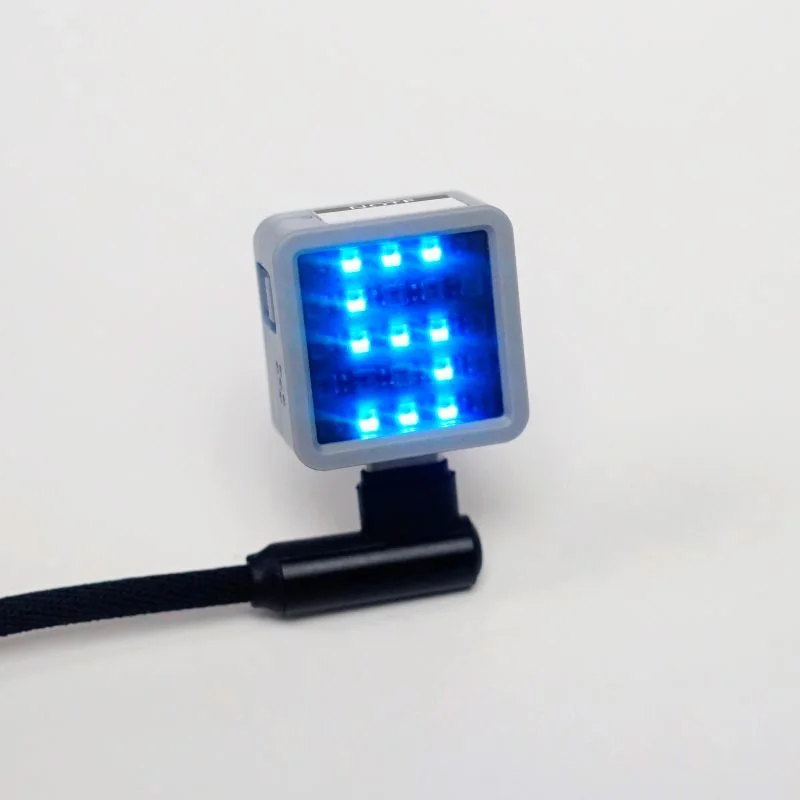

ATOM Matrix, which has a size of only 24 * 24mm, is the most compact development board in the M5Stack development kit series. It provides more GPIO pins and is very suitable for handy and miniature embedded device development. The main control adopts the ESP32-PICO-D4 chip, which comes integrated with Wi-Fi technologies and has 4MB of integrated SPI flash memory. The Atom board provides an Infra-Red LED along with the 5 * 5 RGB LED matrix on the panel, a built-in IMU sensor (MPU6886), and a HY2.0 interface. A general purpose programmable button is proved below the RGB Led matrix to enable users to add input support to their various projects. The on-board USB interface (Type-C) enables rapid program uploading and execution. One M2 screw hole is provided on the back for mounting the board.

 Kindly Remind

Note: When using FastLED lib, the recommended brightness of RGB LED is 20. Please do not set it to a high brightness value to avoid damage to the LED and acrylic screen. (In ATOM lib, we have mapped its appropriate brightness range to 0~100)，The brightness cannot set too high and cannot be fully bright for a long time, which will cause high temperature and maybe damage to the shell.
